Low Temperature Carbon Steel Blind Flange and CS Slip On Flange exporter in Mumbai
What Is Carbon Steel Flanges?
The carbon steel flanges are made up of carbon steel and their pressure ratings range between class 150 to 2500. The content of carbon in these flanges can go up to 2.1% by weight. There are elements too, present in the alloy and the variation in their quantities determine the properties of the flanges. For example, if the carbon content in the flanges increases, then after the heat treatment, it becomes stronger and harder.On the other hand, it also makes the flanges less ductile. However, increasing the carbon content without the heat treatment would reduce the weldability of the material.
The carbon steel flanges mostly consist of mild steel or low carbon steel. The inclusion of a small percentage of carbon enhances the strength and toughness of the flanges, but they are not readily tempered. This helps in reducing the overall cost of the material and as a result, these flanges are used in a wide range of applications.
These flanges are widely used for ambient and high temperature services in environments that involve high pressure. One of the best things about this material is that it is durable and available at low cost. Also, due to its high strength and toughness, these flanges are hard to break.
Manufacturers of carbon steel flanges can offer customization, in terms of, dimensions and coatings on the flanges. Depending on the environment where the flanges will be used, there are several types of coatings available like anti-rust painting, oil varnished, electric zinc coated and alloy material coated. Also, there are different types of carbon steel flanges available and each have their individual usage:
- Weld neck flange- These are used in applications that involve severe and critical conditions.
- Slip-on flange- They are suitable for low pressure applications.
- Blind flange- They help to seal the ends of a piping system or pressure vessel opening.
- Socket weld flange- These are used in small and high pressure pipes.
- Threaded flange- They are used in pipes with threaded ends.
- Reducing flange- These help in connecting one pipe to the other.
Carbon Steel Slip On Flanges Vs Carbon Steel Weld Neck Flange
Being made of the same material, the Carbon Steel Slip On Flanges and the Carbon Steel Weld Neck Flange might possess similar chemical properties. But, due to the dissimilarity in their structure, they perform different operations in pipelines. They are mainly used in industries like chemical, nuclear power, petrochemicals, construction, shipbuilding industries, power plants, etc.
The Carbon Steel Slip On Flanges are mostly suitable for low pressure applications. They are easy to install and can be welded to different pipelines without much hassle. The welding process helps to reduce the cost of manufacturing the flanges. They do not require much longitudinal space to get mounted on for application.
Carbon Steel Weld Neck Flanges are used in applications that involve severe and critical conditions. The environments where these flanges are used mostly have high pressure and widely fluctuating temperatures and pressure. These are used for volatile and hazardous fluids, where the temperature is in the sub-zero range.
Forged Carbon Steel Flanges Vs Carbon Steel Lap Joint Flange
The Forged Carbon Steel Flanges come with higher precision and are capable of giving better performances. These are widely used across several industries, mainly for connecting equipment and pipelines. They can work in environments that involve high temperatures and pressures. The Forged Carbon Steel Flanges is a device that looks like a plate. They are usually circular in shape and hence can be attached to the ends of the pipes easily. They can also be attached to valves and other components for facilitating and assembling and disassembling of the entire piping system. They possess some of the best mechanical features which makes the whole connecting process better.
The Carbon Steel Lap Joint Flange is primarily used in places where frequent dismantling of the piping system is needed. These are mostly used in places where there is a space constraint. It consists of two components, a stab end with a lap-joint ring flange placed over it. These are mostly used in similar sizes and pressure classes like that of the weld neck flange.
Functions Of The Carbon Steel Threaded Flange
Carbon steel is a perfect mixture of various carbon components and iron. The higher the carbon content, the higher will be the strength and toughness of the flanges given it is heat treated properly. But the increased carbon reduces the ductility of the product, and it gets hard to weld too. Higher carbon reduces the melting point and also the temperature tolerance of the flange. The threaded flanges do have welding characteristics, but they are very simple and come with fast assembly. They should not be used in places where there is a large temperature difference. Also known as the screwed-on flange, these are especially used in places where welding cannot be done. Thus, one can mostly find the threaded flanges in low pressure applications that have smaller pipes.
Advantages Of Carbon Steel Socket Weld Flange
The Carbon Steel Socket Weld Flange comes with several advantages: it is resistant to corrosion, durable, safe and economical. The Carbon Steel Socket Weld Flange is used in place of the threaded flanges so as to reduce the risks of leakages. Also, this particular type of flange needs not be bevel for weld preparation. It is also to be noted that the weld material cannot penetrate through the bore of the pipe and also, the construction cost for the socket weld flanges are much less compared to the butt weld joint. It is because no special skills or equipment is required to execute this.
The carbon steel socket weld flanges can be customized by the manufacturers according to the requirements specified by the clients. They are great in leakage reductions and they are available in a high durable standard.
Carbon Steel Flanges manufacturer in India
Manufacturing Normalized Carbon Steel Weld Neck Flanges and CS Reducing flange according to EN 1092-2/ EN 1092-1, ASME B16.5, ANSI B16.47 Series A standards
Table of Content
- Carbon Steel Flanges Specifications
- Quenching Carbon Steel Flange Size Chart
- Plain Carbon Steel Flange Standard
- High Carbon Steel Flange Torque Values
- Weight Of Carbon Steel Flanges
- Carbon Steel Flanges Price List
- Normalized Carbon Steel Flanges Chemical Composition
- Low Temp Carbon Steel Flanges Mechanical Properties
- Physical Properties of Carbon Steel Companion Flange
- Types Of Carbon Steel Flanges
- Pressure Temperature Rating For Carbon Steel Flanges
- 150# Carbon Steel Flange Dimensions
- Low Carbon Steel Pipe Flange Dimensions
- Carbon Steel Pn16 Flange Dimensions

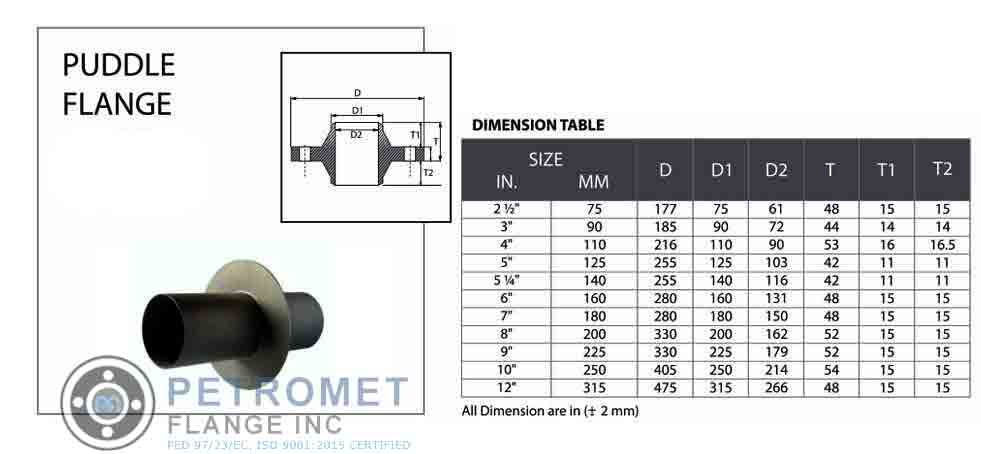

- Fully Killed Carbon Steel Puddle Flange Dimensions
- Carbon Steel Weld Neck Flange Dimensions
- Galvanised Carbon Steel Slip On Flange Dimensions
- Class 150 Carbon Steel Flange Pressure Rating
- Class 300 Carbon Steel Flange Pressure Rating
- Hs Code Carbon Steel Flanges
- How To Prevent Carbon Steel Flange From Rust?
- Killed Carbon Steel Flange Applications
- Manufacturing Standards of Carbon Steel Lap joint Flanges
Carbon Steel Flanges Specifications
| Size Chart | 1/2″(15 NB) to 48″ (1200NB) |
|---|---|
| Pressure Rating Chart ANSI | 150 LBS, 300 LBS, 2500 LBS, 900 LBS, 600 LBS, 1500 LBS |
| DIN Pressure Calculation | 25Bar 40Bar 16Bar 6Bar 10Bar / PN64 PN10 PN25 PN16 PN6 PN40 |
| JIS | 16 K, 5K, 10 K, 20 K, 30 K, 40 K, 63 K |
| UNI / EN | 16Bar 6Bar 40Bar 10Bar 25Bar |
| Manufacturer of Connect Type/ Flange Face Type | RF, RTJ, FF, LJF, Small Tongue, Large Tongue & Groove |
| Coating | Yellow Transparent, Zinc Plated, Anti-rust Paint, Oil Black Paint, Cold and Hot Dip Galvanized |
| Common Types By Manufacturer | Threaded / Screwed / Forged / Plate |
| Equipment | Press machine, Bending machine, Pushing Machine, Sand-blasting machine, electric bevelling machine etc |
| Origin | West Europe / Japan / Indian / USA / Korean |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, SABS, NFE, AWWA, EN etc. |
| Test | Direct-reading Spectrograph, Ultrasonic flaw detector, Magnetic particle detector, X-ray detector, Hydrostatic testing machine |
| Standards Provided By Manufacturer | API7S-43, API605, B16.48, ISO70051, MSS S44, ANSI/ASME B16.5, B16.47 Series A & B, BS4504, BS 10, EN-1092, DIN, API7S-15, JISB2220, BS1560-3.1, ASME/ANSI B16.5/16.36/16.47A/16.47B, EN1092 |
| Production technique Used By Manufacturer | Heat treated, Forged and machined |
Well known Carbon Steel Flanges supplier, importer, stockists, distributor, dealers, exporters, wholesalers, stockholders and Manufacturer in Mumbai
Quenching Carbon Steel Flange Size Chart
| Nominal Pipe Size (inch) |
Dia. of Flange (inch) |
No. of Bolts |
Dia. of Bolts (inch) |
Dia. of Bolt Holes (inch) |
Bolt Circle (inch) |
|---|---|---|---|---|---|
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
Plain Carbon Steel Flange Standard
- MSS S44
- ISO70051
- ASME B16.36
- BS1560-3.1
- API7S-15
- ISO
- UNI
- EN-1092
- ASME B16.5
High Carbon Steel Flange Torque Values
| Sizes in Inch | Imperfections Max. Radial Projection | |
|---|---|---|
| No deeper than the serrations bottom, mm | Serrations Deeper Than the Serrations Bottom, mm | |
| 1/2 | 3.0 | 1.5 |
| 1 1/2 | 3.0 | 1.5 |
| 1 | 3.0 | 1.5 |
| 1 1/4 | 3.0 | 1.5 |
| 2 | 3.0 | 1.5 |
| 3/4 | 3.0 | 1.5 |
| 3 | 4.5 | 1.5 |
| 3 1/2 | 6.0 | 3.0 |
| 4 | 6.0 | 3.0 |
| 2 1/2 | 3.0 | 1.5 |
| 5 | 6.0 | 3.0 |
| 8 | 8.0 | 4.5 |
| 10 | 8.0 | 4.5 |
| 6 | 6.0 | 3.0 |
| 12 | 8.0 | 4.5 |
| 18 | 12.0 | 6.0 |
| 14 | 8.0 | 4.5 |
| 20 | 12.0 | 6.0 |
| 16 | 10.0 | 4.5 |
| 24 | 12.0 | 6.0 |
Low CS Forged Flanges and Killed Carbon Steel Plate Flanges manufacturer in Mumbai offer class 150/ 300 to 2500 Backing, Threaded, Companion and Stub End Flange at factory in Asia, check Carbon Steel Blind Flange price list and pressure rating chart
Weight Of Carbon Steel Flanges
| NPS (Nominal Pipe Size) | NPT (Threaded) | WRNR (Weld Neck) | SWRF (Socket Weld) | Loose (Lap Joint) | SORF (Slip On) | BLRF (Blind) |
|---|---|---|---|---|---|---|
| ½ | 1 | 2 | 2 | 1 | 1 | 2 |
| ¾ | 2 | 2 | 2 | 2 | 2 | 2 |
| 1 | 2 | 3 | 2 | 2 | 2 | 2 |
| 1¼ | 3 | 3 | 3 | 3 | 3 | 3 |
| 1½ | 3 | 4 | 3 | 3 | 3 | 4 |
| 2 | 5 | 6 | 5 | 5 | 5 | 5 |
| 2½ | 8 | 10 | 8 | 8 | 8 | 7 |
| 3 | 9 | 11.5 | 9 | 9 | 9 | 9 |
| 3½ | 12 | 12 | 11 | 11 | 11 | 13 |
| 4 | 13 | 16.5 | 13 | 13 | 13 | 17 |
| 5 | 15 | 21 | 15 | 15 | 15 | 20 |
| 6 | 19 | 26 | 19 | 19 | 19 | 27 |
| 8 | 30 | 42 | 30 | 30 | 30 | 47 |
| 10 | 43 | 54 | 43 | 43 | 43 | 70 |
| 12 | 64 | 88 | 64 | 64 | 64 | 123 |
| 14 | 90 | 114 | 90 | 105 | 90 | 140 |
| 16 | 98 | 140 | 98 | 140 | 106 | 180 |
| 18 | 130 | 165 | 130 | 160 | 130 | 220 |
| 20 | 165 | 197 | 165 | 195 | 165 | 285 |
| 22 | 185 | 225 | 185 | 245 | 185 | 355 |
| 24 | 220 | 268 | 220 | 275 | 220 | 430 |
Carbon Steel Flanges Price List
| Low CS Flanges Price Per Piece in India | Carbon Steel Pipe Flanges Price in INR | High Carbon Steel Flanges Price in UAE Dirham | Normalized CS Flange Price in USD |
| CARBON STEEL FLANGES CL150 WNRF SCH40 Per Kg | 43 | UAE Dirham 2.10 | $0.57 |
| CARBON STEEL (LWNRTJ) FLANGE 150 X 25.40 X 340 Per Kg | 1,314 | UAE Dirham 64.24 | $17.49 |
| WN SWIVEL 1500 8RTJ 12.7 WT CARBON STEEL FLANGES Per Piece | 49 | UAE Dirham 2.40 | $0.65 |
This is an approximate Cost of Low CS Flanges in India. Feel free to contact us latest price list of Low Temp Carbon Steel Flanges in Mumbai. Compare our price with other killed carbon steel flanges manufacturer in India.
Normalized Carbon Steel Flanges Chemical Composition
| Elements Of Carbon Steel Flanges | Composition, % |
| P [Phosphorus] | ≤0.35 |
| C [Carbon] | ≤0.35 |
| S [Sulfur] | ≤0.40 |
| Mn [Manganese] | 0.60-1.05 |
| Si [Silicon] | 0.10-0.35 |
| Ni [Nickel] | ≤0.40 |
| Cr [Chromium] | ≤0.30 |
| Cu [Copper] | ≤0.40 |
| Mo [Molybdenum] | ≤0.12 |
| V [Vanadium] | ≤0.08 |
Low Temp Carbon Steel Flanges Mechanical Properties
| Minimum Tensile Strength | Hardness | Minimum Yield Strength | Minimum Elongation | Minimum Reduction of Area | ||
|---|---|---|---|---|---|---|
| MPa | ksi | HBW | MPa | ksi | % | % |
| 485 | 70 | 137-187 | 250 | 36 | 22 | 30 |
Before you start searching CL150 Raised/ Flat Face Carbon Steel Flanges manufacturers in India, compare our price of RF Class 600 CS Lap Joint, Tongue and Groove Flange in Mumbai, wide range of RF/ RTJ face Carbon Steel Orifice Flange and CS Spades/ Ring Spacers, Socket Weld Flange, Spectacle Blinds in Mumbai (Maharashtra) and Ahmedabad (Gujarat) warehouses
Physical Properties of Carbon Steel Companion Flange
| Density (lb / cu. in.) | 0.284 |
| Thermal Conductivity | 360 |
| Modulus of Elasticity Torsion | 11 |
| Melting Point (Deg F) | 2740 |
| Specific Gravity | 7.9 |
| Mean Coefficient Thermal Expansion | 6.7 |
| Modulus of Elasticity Tension | 30 |
| Specific Heat (Btu/lb/Deg F - [32-212 Deg F]) | 0.107 |
Types Of Carbon Steel Flanges
Medium Carbon Steel Expander Flanges
5000 NB Fully Killed CS Orifice Flanges
Carbon Steel Threaded Flange
2500 LBS Fully Killed CS Slip On Flange
Black Carbon Steel Nipoflange Flanges
High Carbon Steel Girth Flanges
150 LBS CS Socket Weld Flange
Galvanized Carbon Steel Spectacle Blind Flange
900 LBS Galvanised CS Long Weld Neck Flange
Black Carbon Steel Lapped Joint Flange
Galvanized Carbon Steel Blind Flange
1500 LBS Galvanised CS BLRF Flanges
Normalized Carbon Steel Flanges
Low CS SWRF Flanges
Killed Carbon Steel Weld Neck Flanges
300 LBS Low Temperature Carbon Steel Tongue & Groove Flange
Low Temp CS SORF Flanges
600 LBS CS WNRF Flange
Low Temp CS Screwed Flange
Killed Carbon Steel Ring Joint Flange
15 NB Carbon Steel Grade Reducing Flanges
Pressure Temperature Rating For Carbon Steel Flanges
| Temperature °F | Class 150 | Class 600 | Class 1500 | Class 400 | Class 900 | Class 300 | Class 2500 |
| -20 to 100 | 275 | 1440 | 3600 | 960 | 2160 | 720 | 6000 |
| 300 | 205 | 1080 | 2700 | 720 | 1620 | 540 | 4500 |
| 200 | 230 | 1200 | 3000 | 800 | 1800 | 600 | 5000 |
| 400 | 190 | 995 | 2485 | 660 | 1490 | 495 | 4140 |
| 600 | 140 | 875 | 2185 | 580 | 1310 | 435 | 3640 |
| 650 | 125 | 860 | 2150 | 575 | 1290 | 430 | 3580 |
| 500 | 170 | 930 | 2330 | 620 | 1395 | 465 | 3880 |
| 700 | 110 | 850 | 2125 | 565 | 1275 | 425 | 3540 |
| 750 | 95 | 830 | 2075 | 555 | 1245 | 415 | 3460 |
| 850 | 65 | 790 | 1980 | 530 | 1190 | 395 | 3300 |
| 800 | 80 | 805 | 2015 | 540 | 1210 | 405 | 3360 |
| 900 | 50 | 780 | 1945 | 520 | 1165 | 390 | 3240 |
| 950 | 35 | 765 | 1910 | 510 | 1145 | 380 | 3180 |
| 1000 | 20 | 640 | 1605 | 430 | 965 | 320 | 2675 |
| 1100 | 20 | 515 | 1285 | 345 | 770 | 255 | 2145 |
| 1150 | 20 | 400 | 995 | 265 | 595 | 200 | 1655 |
| 1050 | 20 | 615 | 1545 | 410 | 925 | 310 | 2570 |
| 1200 | 20 | 310 | 770 | 205 | 465 | 155 | 1285 |
| 1250 | 20 | 225 | 565 | 150 | 340 | 115 | 945 |
| 1300 | 20 | 170 | 430 | 115 | 255 | 85 | 715 |
| 1400 | 20 | 95 | 240 | 65 | 145 | 50 | 400 |
| 1350 | 20 | 125 | 310 | 80 | 185 | 60 | 515 |
| 1450 | 15 | 70 | 170 | 45 | 105 | 35 | 285 |
| 1500 | 10 | 55 | 135 | 35 | 80 | 25 | 230 |
We can produce large diameter Sch 80 Carbon Steel Pipe Flanges as per customer drawing, fast delivery in Malaysia, UAE, Europe and USA from ready stock, 100% Radiography Test Report
150# Carbon Steel Flange Dimensions
| Size in Inch | RF Dia. | Size in mm | Machine Bolt Length | Flange Thickness | ISO Stud Size | PCD | No of Bolts | Bolt Size UNC | Outer Dia. | RF Height | RF Stud Length | Hole Size | Weight in kg |
| C | B | E | A | D | |||||||||
| 1/2 | 34.9 | 15 | 50 | 9.6 | M14 | 60.3 | 4 | 1/2 | 90 | 2 | 55 | 5/8 | 0.9 |
| 1 | 50.8 | 25 | 55 | 12.7 | M14 | 79.4 | 4 | 1/2 | 110 | 2 | 65 | 5/8 | 0.9 |
| 1 1/4 | 63.5 | 32 | 55 | 14.3 | M14 | 88.9 | 4 | 1/2 | 115 | 2 | 70 | 5/8 | 1.4 |
| 3/4 | 42.9 | 20 | 50 | 11.2 | M14 | 69.9 | 4 | 1/2 | 100 | 2 | 65 | 5/8 | 0.9 |
| 1 1/2 | 73 | 40 | 65 | 15.9 | M14 | 98.4 | 4 | 1/2 | 125 | 2 | 70 | 5/8 | 1.8 |
| 2 | 92.1 | 50 | 70 | 17.5 | M16 | 120.7 | 4 | 5/8 | 150 | 2 | 85 | 3/4 | 2.3 |
| 3 | 127 | 80 | 75 | 22.3 | M16 | 152.4 | 4 | 5/8 | 190 | 2 | 90 | 3/4 | 4.1 |
| 3 1/2 | 139.7 | 90 | 75 | 22.3 | M16 | 177.8 | 8 | 5/8 | 215 | 2 | 90 | 3/4 | 5.9 |
| 4 | 157.2 | 100 | 75 | 22.3 | M16 | 190.5 | 8 | 5/8 | 230 | 2 | 90 | 3/4 | 7.7 |
| 5 | 185.7 | 125 | 85 | 22.3 | M20 | 215.9 | 8 | 3/4 | 255 | 2 | 95 | 7/8 | 9.1 |
| 2 1/2 | 104.8 | 65 | 75 | 20.7 | M16 | 139.7 | 4 | 5/8 | 180 | 2 | 90 | 3/4 | 3.2 |
| 6 | 215.9 | 150 | 85 | 23.9 | M20 | 241.3 | 8 | 3/4 | 280 | 2 | 100 | 7/8 | 11.8 |
| 8 | 269.9 | 200 | 90 | 27 | M20 | 298.5 | 8 | 3/4 | 345 | 2 | 110 | 7/8 | 20.5 |
| 10 | 323.8 | 250 | 100 | 28.6 | M24 | 362 | 12 | 7/8 | 405 | 2 | 115 | 1 | 32 |
| 12 | 381 | 300 | 100 | 30.2 | M24 | 431.8 | 12 | 7/8 | 485 | 2 | 120 | 1 | 50 |
| 14 | 412.8 | 350 | 115 | 33.4 | M27 | 476.3 | 12 | 1 | 535 | 2 | 135 | 1 1/8 | 64 |
| 16 | 469.9 | 400 | 115 | 35 | M27 | 539.8 | 16 | 1 | 595 | 2 | 135 | 1 1/8 | 82 |
| 18 | 533.4 | 450 | 125 | 38.1 | M30 | 577.9 | 16 | 1 1/8 | 635 | 2 | 145 | 1 1/4 | 100 |
| 20 | 584.2 | 500 | 140 | 41.3 | M30 | 635 | 20 | 1 1/8 | 700 | 2 | 160 | 1 1/4 | 130 |
| 24 | 692.2 | 600 | 150 | 46.1 | M33 | 749.3 | 20 | 1 1/4 | 815 | 2 | 170 | 1 3/8 | 196 |
Low Carbon Steel Pipe Flange Dimensions
| Pipe Size (inches) |
Bolt Hole Diameter (inches) 1) |
Number of Bolt Holes | Flange Outside Diameter (inches) |
Pipe Outside Diameter (inches) |
Bolt Circle (inches) |
|---|---|---|---|---|---|
| 1/2 | 5/8 | 4 | 3-1/2 | 0.84 | 2-3/8 |
| 1 | 5/8 | 4 | 4-1/4 | 1.32 | 3-1/8 |
| 1-1/4 | 5/8 | 4 | 4-5/8 | 1.66 | 3-1/2 |
| 3/4 | 5/8 | 4 | 3-7/8 | 1.05 | 2-3/4 |
| 1-1/2 | 5/8 | 4 | 5 | 1.90 | 3-7/8 |
| 2 | 3/4 | 4 | 6 | 2.38 | 4-3/4 |
| 3 | 3/4 | 4 | 7-1/2 | 3.50 | 6 |
| 3-1/2 | 3/4 | 8 | 8-1/2 | 4.00 | 7 |
| 2-1/2 | 3/4 | 4 | 7 | 2.88 | 5-1/2 |
| 4 | 3/4 | 8 | 9 | 4.50 | 7-1/2 |
| 5 | 7/8 | 8 | 10 | 5.56 | 8-1/2 |
| 6 | 7/8 | 8 | 11 | 6.63 | 9-1/2 |
| 8 | 7/8 | 8 | 13-1/2 | 8.63 | 11-3/4 |
| 10 | 1 | 12 | 16 | 10.75 | 14-1/4 |
| 12 | 1 | 12 | 19 | 12.75 | 17 |
| 14 | 1-1/8 | 12 | 21 | 14.00 | 18-3/4 |
| 16 | 1-1/8 | 16 | 23-1/2 | 16.00 | 21-1/4 |
| 18 | 1-1/4 | 16 | 25 | 18.00 | 22-3/4 |
| 20 | 1-1/4 | 20 | 27-1/2 | 20.00 | 25 |
| 24 | 1-3/8 | 20 | 32 | 24.00 | 29-1/2 |
Carbon Steel Pn16 Flange Dimensions
| NPS | Diameter of Dlanges | Bolt Holes Diameter | Flange Diameter | Flanges Thickness | f | Flange Inside Daimeter | Diameter of Bolt Cirlce | Number of | Weight In KG | |
| PLATE | BLIND | |||||||||
| DN | Pipe | KG | D | B | K | D5 | holes | D2 | KG | KG |
| 15 | 21.30 | 14 | 95 | 14 | 2 | 22.00 | 65 | 4 | 0.67 | 0.71 |
| 20 | 26.90 | 14 | 105 | 16 | 2 | 27.60 | 75 | 4 | 0.93 | 1.01 |
| 25 | 33.70 | 14 | 115 | 16 | 2 | 34.40 | 85 | 4 | 1.11 | 1.23 |
| 32 | 42.40 | 18 | 140 | 16 | 2 | 43.10 | 100 | 4 | 1.62 | 1.81 |
| 40 | 48.30 | 18 | 150 | 16 | 3 | 49.00 | 110 | 4 | 1.85 | 2.09 |
| 50 | 60.30 | 18 | 165 | 18 | 3 | 61.10 | 125 | 4 | 2.46 | 2.88 |
| 65 | 76.10 | 18 | 185 | 18 | 3 | 77.10 | 145 | 4 | 2.99 | 3.65 |
| 80 | 88.90 | 18 | 200 | 20 | 3 | 90.30 | 160 | 8 | 3.61 | 4.61 |
| 100 | 114.30 | 18 | 220 | 20 | 3 | 115.90 | 180 | 8 | 3.99 | 5.65 |
| 125 | 139.70 | 18 | 250 | 22 | 3 | 141.60 | 210 | 8 | 5.41 | 8.13 |
| 150 | 168.30 | 22 | 285 | 22 | 3 | 170.50 | 240 | 8 | 6.55 | 10.44 |
| 175 | 193.70 | 22 | 315 | 24 | 3 | 196.10 | 270 | 8 | 8.42 | |
| 200 | 219.10 | 22 | 340 | 24 | 3 | 221.80 | 295 | 12 | 8.97 | 16.48 |
| 250 | 273.00 | 26 | 405 | 26 | 3 | 276.20 | 355 | 12 | 12.76 | 23.99 |
| 300 | 323.90 | 26 | 460 | 28 | 3 | 327.60 | 410 | 12 | 16.60 | 30.73 |
| 350 | 355.60 | 26 | 520 | 30 | 4 | 359.70 | 470 | 16 | 24.08 | 42.56 |
| 400 | 406.40 | 30 | 580 | 32 | 4 | 411.00 | 525 | 16 | 30.20 | 60.68 |
| 450 | 457.00 | 30 | 640 | 38 | 4 | 462.30 | 585 | 20 | 41.67 | 71.74 |
| 500 | 508.00 | 33 | 715 | 38 | 4 | 513.60 | 650 | 20 | 52.87 | 96.4 |
| 600 | 610.00 | 36 | 840 | 42 | 4 | 616.50 | 770 | 20 | 77.58 | 145.6 |
| 700 | 711.00 | 77.13 | 910 | 44 | 840 | 716.00 | 24 | 36 | ||
| 800 | 813.00 | 106.35 | 1025 | 50 | 950 | 818.00 | 24 | 39 | ||
| 900 | 914.00 | 125.39 | 1125 | 54 | 1050 | 920.00 | 28 | 39 | ||
Fully Killed Carbon Steel Puddle Flange Dimensions
Carbon Steel Weld Neck Flange Dimensions
| Flange NPS | H | Inside Diameter |
Flat Face Thickness (T2) |
Outside Diameter |
Raised Face (RF) |
Raised Face (R) |
H1 | Raised Face Thickness (T) |
T1 | Bolt Circle (BC) |
Bolt Hole (B) |
No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 1.19" | 0.62" | 1.82" | 3.50" | .063" | 1.38" | 0.84" | 1.88" | .38" | 2.38" | .62" | 4 |
| 1-1/4" | 2.31" | 1.38" | 2.19" | 4.62" | .063" | 2.50" | 1.66" | 2.25" | .56" | 3.50" | .62" | 4 |
| 3/4" | 1.50" | 0.82" | 2.00" | 3.88" | .063" | 1.69" | 1.05" | 2.06" | .44" | 2.75" | .62" | 4 |
| 1-1/2" | 2.56" | 1.61" | 2.38" | 5.00" | .063" | 2.88" | 1.90" | 2.44" | .62" | 3.88" | .62" | 4 |
| 1" | 1.94" | 1.05" | 2.13" | 4.25" | .063" | 2.00" | 1.32" | 2.19" | .50" | 3.12" | .62" | 4 |
| 2" | 3.06" | 2.07" | 2.44" | 6.00" | .063" | 3.62" | 2.38" | 2.50" | .69" | 4.75" | .75" | 4 |
| 2-1/2" | 3.56" | 2.47" | 2.69" | 7.00" | .063" | 4.12" | 2.88" | 2.75" | .82" | 5.50" | .75" | 4 |
| 3" | 4.25" | 3.07" | 2.69" | 7.50" | .063" | 5.00" | 3.50" | 2.75" | .88" | 6.00" | .75" | 4 |
| 4" | 5.31" | 4.03" | 2.94" | 9.00" | .063" | 6.19" | 4.50" | 3.00" | .88" | 7.50" | .75" | 8 |
| 5" | 6.44" | 5.05" | 3.44" | 10.00" | .063" | 7.31" | 5.56" | 3.50" | .88" | 8.50" | .88" | 8 |
| 3-1/2" | 4.81" | 3.55" | 2.75" | 8.50" | .063" | 5.50" | 4.00" | 2.81" | .88" | 7.00" | .75" | 8 |
| 6" | 7.56" | 6.07" | 3.44" | 11.00" | .063" | 8.50" | 6.63" | 3.50" | .94" | 9.50" | .88" | 8 |
| 8" | 9.69" | 7.98" | 3.94" | 13.50" | .063" | 10.62" | 8.63" | 4.00" | 1.06" | 11.75" | .88" | 8 |
| 22" | 24.25" | 21.25" | 5.82" | 29.50" | .063" | 25.25" | 22.00" | 5.88" | 1.75" | 27.25" | 1.38" | 20 |
| 10" | 12.00" | 10.02" | 3.94" | 16.00" | .063" | 12.75" | 10.75" | 4.00" | 1.13" | 14.25" | 1.00" | 12 |
| 12" | 14.38" | 12.00" | 4.44" | 19.00" | .063" | 15.00" | 12.75" | 4.50" | 1.19" | 17.00" | 1.00" | 12 |
| 16" | 18.00" | 15.25" | 4.94" | 23.50" | .063" | 18.50" | 16.00" | 5.00" | 1.38" | 21.25" | 1.12" | 16 |
| 18" | 19.88" | 17.25" | 5.44" | 25.00" | .063" | 21.00" | 18.00" | 5.50" | 1.50" | 22.75" | 1.25" | 16 |
| 14" | 15.75" | 13.25" | 4.94" | 21.00" | .063" | 16.25" | 14.00" | 5.00" | 1.32" | 18.75" | 1.12" | 12 |
| 20" | 22.00" | 19.25" | 5.63" | 27.50" | .063" | 23.00" | 20.00" | 5.69" | 1.63" | 25.00" | 1.25" | 20 |
| 24" | 26.12" | 23.25" | 5.94" | 32.00" | .063" | 27.25" | 24.00" | 6.00" | 1.82" | 29.50" | 1.38" | 20 |
Galvanised Carbon Steel Slip On Flange Dimensions
| Size in Inch | Size in mm | No of Bolts | Outer Dia. | Hub OD | ISO Stud Size | Flange Length | RF Height | Flange Thick. | RF Dia. | PCD | Hole Size | Socket Bore | Weight in kg |
| A | C | D | F | B | E | G | H | ||||||
| 1/2 | 15 | 4 | 90 | 30 | M14 | 14 | 2 | 9.6 | 34.9 | 60.3 | 5/8 | 22.2 | 0.8 |
| 1 | 25 | 4 | 110 | 49 | M14 | 16 | 2 | 12.7 | 50.8 | 79.4 | 5/8 | 34.5 | 0.9 |
| 3/4 | 20 | 4 | 100 | 38 | M14 | 14 | 2 | 11.2 | 42.9 | 69.9 | 5/8 | 27.7 | 0.9 |
| 1 1/4 | 32 | 4 | 115 | 59 | M14 | 19 | 2 | 14.3 | 63.5 | 88.9 | 5/8 | 43.2 | 1.4 |
| 2 | 50 | 4 | 150 | 78 | M16 | 24 | 2 | 17.5 | 92.1 | 120.7 | 3/4 | 61.9 | 2.3 |
| 1 1/2 | 40 | 4 | 125 | 65 | M14 | 21 | 2 | 15.9 | 73 | 98.4 | 5/8 | 49.5 | 1.4 |
| 2 1/2 | 65 | 4 | 180 | 90 | M16 | 27 | 2 | 20.7 | 104.8 | 139.7 | 3/4 | 74.6 | 3.2 |
| 3 | 80 | 4 | 190 | 108 | M16 | 29 | 2 | 22.3 | 127 | 152.4 | 3/4 | 90.7 | 3.7 |
| 4 | 100 | 8 | 230 | 135 | M16 | 32 | 2 | 22.3 | 157.2 | 190.5 | 3/4 | 116.1 | 5.9 |
| 3 1/2 | 90 | 8 | 215 | 122 | M16 | 30 | 2 | 22.3 | 139.7 | 177.8 | 3/4 | 103.4 | 5 |
| 5 | 125 | 8 | 255 | 164 | M20 | 35 | 2 | 22.3 | 185.7 | 215.9 | 7/8 | 143.8 | 6.8 |
| 8 | 200 | 8 | 345 | 246 | M20 | 43 | 2 | 27 | 269.9 | 298.5 | 7/8 | 221.5 | 13.7 |
| 10 | 250 | 12 | 405 | 305 | M24 | 48 | 2 | 28.6 | 323.8 | 362 | 1 | 276.2 | 19.5 |
| 6 | 150 | 8 | 280 | 192 | M20 | 38 | 2 | 23.9 | 215.9 | 241.3 | 7/8 | 170.7 | 8.6 |
| 12 | 300 | 12 | 485 | 365 | M24 | 54 | 2 | 30.2 | 381 | 431.8 | 1 | 327 | 29 |
| 24 | 600 | 20 | 815 | 663 | M33 | 81 | 2 | 46.1 | 692.2 | 749.3 | 1 3/8 | 616 | 100 |
| 16 | 400 | 16 | 595 | 457 | M27 | 62 | 2 | 35 | 469.9 | 539.8 | 1 1/8 | 410.5 | 54 |
| 18 | 450 | 16 | 635 | 505 | M30 | 67 | 2 | 38.1 | 533.4 | 577.9 | 1 1/4 | 461.8 | 59 |
| 14 | 350 | 12 | 535 | 400 | M27 | 56 | 2 | 33.4 | 412.8 | 476.3 | 1 1/8 | 359.2 | 41 |
| 20 | 500 | 20 | 700 | 559 | M30 | 71 | 2 | 41.3 | 584.2 | 635 | 1 1/4 | 513.1 | 75 |
Class 150 Carbon Steel Flange Pressure Rating
A Class 150 flange, for example, is rated to 270 PSIG at ambient temperatures, 180 PSIG at 400 degrees Fahrenheit, 150 PSIG at 600 degrees Fahrenheit, and 75 PSIG at 800 degrees Fahrenheit.
Class 300 Carbon Steel Flange Pressure Rating
The class 300 flange (which is larger and stronger but has the same hole size) can sustain 570 psi at 600 degrees F°.
Hs Code Carbon Steel Flanges
| Hs Code | 73072100 |
How To Prevent Carbon Steel Flange From Rust?
- Oil varnishing aids in the lubrication of carbon steel. Oil protects them from rust while allowing them to move with friction.
- Anti-rust painting: Painting a carbon steel flange provides a protective covering over metal components. It helps to keep moisture from getting to the metal, preventing rust and corrosion in general.
- Galvanising or electric zinc-coating (yellow or white zinc): Galvanising or electric zinc-coating is a rust-prevention technology. By covering the metal with a thin layer of zinc, it is simple to prevent water and oxygen from penetrating beneath it.
Killed Carbon Steel Flange Applications
- Marine Applications
- Fossil Fuel Power Plants
- Paper & Pulp
- Refineries
- Nuclear Power
- Power Plants
- Ship Building
- Oil And Gas Industry
Manufacturing Standards of Carbon Steel Lap joint Flanges
- ASME B16.5 Steel pipe flanges dimensioning standard
- ASME B16.47 Steel flanges with a large diameter
- MSS SP 44 Standard for steel pipe line flanges
- API 605 large diameter carbon steel flanges
We are one of the best supplier in Below Places
killed carbon steel flanges
Poland, Dubai, Qatar, United States, Indonesia, South Africa,Jakarta, Bangladesh, Finland, Brazil, Bahrain, NY 12203 (USA), Argentina, Istanbul- Turkey, Hong Kong, Oman, Tehran -Iran, Kuala Lumpur, South Korea, Kuwait, Chile, Malaysia, South Africa, Kuwait, Chile, Malaysia, Germany, Norway, Europe, Belgium, Vietnam, Czechia, Nigeria, Singapore, Malaysia, France, Netherlands, Dubai- UAE, Iran, Jakarta -Indonesia, Romania, United States, Indonesia
Carbon Steel Pipe Flanges
Greece, Dammam -KSA, Singapore, Turkey, Philippines, Austria, Los Alamos -Mexico, Canada
Normalized CS Flanges
Spain, United Kingdom (UK), Thailand, USA, Malaysia, Japan, Saudi Arabia (KSA)
