The SMO 254 Flanges are used in a wide range of industrial and commercial applications. The high quality flanges can be used in desulfurization scrubbers of flue gas, and the components used in the production of petroleum. They are also widely used in food processing equipment. The SMO 254 Flanges are sometimes considered to be a cost-effective substitute of expensive nickel and titanium flanges. The 254 SMO Flanges are known for its compatibility with the common austenitic stainless steel and are used in the halide environments like seawater and different types of acids such as contaminated sulfuric acid or hydrochloric acid.
The SMO 254 Flanges are available in different shapes and sizes. Each of them serve various purposes and can be customized on order according to the specific requirements. These flanges have copper in its chemical composition, which helps it to resist reducing acids and chlorides.
The 254 SMO material is also known for providing good resistance to pitting and crevice corrosion. They are also capable of resisting general corrosion along with stress corrosion cracking. It comes with a higher strength when compared to the conventional austenitic stainless steel. The material also possesses good welding capabilities.
The SMO 254 Flanges are well-known for providing leakage-free connections. They are suitable for a wide range of applications like power and instrumentation. The flanges are available in international quality standards, various sizes and dimensions. The 254 SMO Flanges are widely used in various chemical plants as well as process control units. One can also find them in power and petroleum plants. They are also in demand for applications that involve the capacity to carry high pressure.
The 254 SMO Flanges gives a great performance in the presence of chloride and bromide ions. They might show some effects of local corrosion because of crevice, pitting, and stress. It comes with a low carbon element and hence they bear lesser risk of getting that carbide precipitation when the heat is applied during the welding procedure.
SMO 254 Flanges
Alloy 254 Slip on Flange Vs UNS S31254 Weld neck Flange
The Alloy 254 Slip on Flange is a cost-effective piping equipment which is used across several industries. One of the best things about these flanges is that they can be easily slid inside the pipe and then joined to the piping system with the help of a fillet weld. They are available in different pressure classes and sizes. They are easy to maintain and have a very long service life.
The UNS S31254 Weld neck Flange has similar characteristics like the alloy 254 slip on flange as they both have the same chemical composition. However, due to the difference in their structure, they have a varied application. They are used for a more critical application, where pressure, temperature, or fluctuations in them are higher. These flanges are also used in the pipelines carrying hazardous and volatile fluids or gases.
Size Range | 1/2″ to 48″ |
---|---|
Chart of Pressure Rating | 300 LBS, 2500 LBS, 1500 LBS, 900 LBS, 150 LBS, 600 LBS |
DIN Pressure Calculation | 25Bar 40Bar 16Bar 6Bar 10Bar / PN64 PN10 PN25 PN16 PN6 PN40 |
JIS | 40 K, 16 K, 5K, 10 K, 30 K, 20 K, 63 K |
Manufacturer of | GOST, JIS, ANSI, DIN, UNI, BS, AWWA, AS2129, SABS, NFE, EN etc. |
Test | Magnetic particle detector, X-ray detector, Ultrasonic flaw detector, Direct-reading Spectrograph, Hydrostatic testing machine |
Equipment | Pushing Machine, Press machine, Sand-blasting machine, Bending machine, electric bevelling machine etc |
UNI / EN | 16Bar 6Bar 40Bar 10Bar 25Bar |
Manufacturer of Connect / Flange Face Type | LJF, RF, RTJ, FF, Small Tongue, Large Tongue & Groove |
Production technique Used By Manufacturer | Heat treated, Forged and machined |
Origin | Japan / West Europe / Indian / USA / Korean |
Common Types By Manufacturer | Threaded / Screwed / Forged / Plate |
Coating | Zinc Plated, Anti-rust Paint, Yellow Transparent, Oil Black Paint, Cold and Hot Dip Galvanized |
Standards Provided By Manufacturer | ISO70051, MSS S44, BS1560-3.1, API7S-43, B16.48, ANSI/ASME B16.5, B16.47 Series A & B, BS4504, JISB2220, ASME/ANSI B16.5/16.36/16.47A/16.47B, API605, BS 10, EN-1092, DIN, API7S-15, EN1092 |
Are you looking for 254 SMO Flanges importer, stockists, distributor, stockholders, dealers, supplier, wholesalers, exporters and Manufacturer in Mumbai.
Temperature °F | Class 150 | Class 600 | Class 1500 | Class 400 | Class 900 | Class 300 | Class 2500 |
-20 to 100 | 275 | 1440 | 3600 | 960 | 2160 | 720 | 6000 |
300 | 205 | 1080 | 2700 | 720 | 1620 | 540 | 4500 |
200 | 230 | 1200 | 3000 | 800 | 1800 | 600 | 5000 |
400 | 190 | 995 | 2485 | 660 | 1490 | 495 | 4140 |
600 | 140 | 875 | 2185 | 580 | 1310 | 435 | 3640 |
650 | 125 | 860 | 2150 | 575 | 1290 | 430 | 3580 |
500 | 170 | 930 | 2330 | 620 | 1395 | 465 | 3880 |
700 | 110 | 850 | 2125 | 565 | 1275 | 425 | 3540 |
750 | 95 | 830 | 2075 | 555 | 1245 | 415 | 3460 |
850 | 65 | 790 | 1980 | 530 | 1190 | 395 | 3300 |
800 | 80 | 805 | 2015 | 540 | 1210 | 405 | 3360 |
900 | 50 | 780 | 1945 | 520 | 1165 | 390 | 3240 |
950 | 35 | 765 | 1910 | 510 | 1145 | 380 | 3180 |
1000 | 20 | 640 | 1605 | 430 | 965 | 320 | 2675 |
1100 | 20 | 515 | 1285 | 345 | 770 | 255 | 2145 |
1150 | 20 | 400 | 995 | 265 | 595 | 200 | 1655 |
1050 | 20 | 615 | 1545 | 410 | 925 | 310 | 2570 |
1200 | 20 | 310 | 770 | 205 | 465 | 155 | 1285 |
1250 | 20 | 225 | 565 | 150 | 340 | 115 | 945 |
1300 | 20 | 170 | 430 | 115 | 255 | 85 | 715 |
1400 | 20 | 95 | 240 | 65 | 145 | 50 | 400 |
1350 | 20 | 125 | 310 | 80 | 185 | 60 | 515 |
1450 | 15 | 70 | 170 | 45 | 105 | 35 | 285 |
1500 | 10 | 55 | 135 | 35 | 80 | 25 | 230 |
NPS (Nominal Pipe Size) | Loose (Lap Joint) | NPT (Threaded) | SORF (Slip On) | BLRF (Blind) | SWRF (Socket Weld) | WRNR (Weld Neck) |
---|---|---|---|---|---|---|
½ | 1 | 1 | 1 | 2 | 2 | 2 |
1 | 2 | 2 | 2 | 2 | 2 | 3 |
1¼ | 3 | 3 | 3 | 3 | 3 | 3 |
¾ | 2 | 2 | 2 | 2 | 2 | 2 |
1½ | 3 | 3 | 3 | 4 | 3 | 4 |
2½ | 8 | 8 | 8 | 7 | 8 | 10 |
2 | 5 | 5 | 5 | 5 | 5 | 6 |
3 | 9 | 9 | 9 | 9 | 9 | 11.5 |
4 | 13 | 13 | 13 | 17 | 13 | 16.5 |
3½ | 11 | 12 | 11 | 13 | 11 | 12 |
5 | 15 | 15 | 15 | 20 | 15 | 21 |
8 | 30 | 30 | 30 | 47 | 30 | 42 |
6 | 19 | 19 | 19 | 27 | 19 | 26 |
10 | 43 | 43 | 43 | 70 | 43 | 54 |
24 | 275 | 220 | 220 | 430 | 220 | 268 |
14 | 105 | 90 | 90 | 140 | 90 | 114 |
12 | 64 | 64 | 64 | 123 | 64 | 88 |
16 | 140 | 98 | 106 | 180 | 98 | 140 |
20 | 195 | 165 | 165 | 285 | 165 | 197 |
18 | 160 | 130 | 130 | 220 | 130 | 165 |
22 | 245 | 185 | 185 | 355 | 185 | 225 |
SMO 254 Flange Price Per Piece in India | 254 SMO Flange Price in INR | SMO 254 Flange Price in UAE Dirham | A182 Gr F44 SMO 254 Flange Price in USD |
ANSI B16.5 A182 F44 SMO 254 Flange 2" Class 600 Per Unit | 2460.19 | UAE Dirham 119.67 | $32.58 |
Class 900 254 SMO blind flange 4" Per Kg | 604.19 | UAE Dirham 29.38 | $8 |
5inch A182 F44 254 SMO FLANGE B16.5 Per Kg | 868.53 | UAE Dirham 42.24 | $11.50 |
Compare our price with other SMO 254 Blind Flange Manufacturer in India. Why don't you directly contact a SMO 254 Flange manufacturer in India? We have extensive range of A182 Grade F44 Flange in India at Discounted Price.
Size in Inch | Size in mm | No of Bolts | Outer Dia. | Hub OD | ISO Stud Size | Flange Length | RF Height | Flange Thick. | RF Dia. | PCD | Hole Size | Socket Bore | Weight in kg |
A | C | D | F | B | E | G | H | ||||||
1/2 | 15 | 4 | 90 | 30 | M14 | 14 | 2 | 9.6 | 34.9 | 60.3 | 5/8 | 22.2 | 0.8 |
1 | 25 | 4 | 110 | 49 | M14 | 16 | 2 | 12.7 | 50.8 | 79.4 | 5/8 | 34.5 | 0.9 |
3/4 | 20 | 4 | 100 | 38 | M14 | 14 | 2 | 11.2 | 42.9 | 69.9 | 5/8 | 27.7 | 0.9 |
1 1/4 | 32 | 4 | 115 | 59 | M14 | 19 | 2 | 14.3 | 63.5 | 88.9 | 5/8 | 43.2 | 1.4 |
2 | 50 | 4 | 150 | 78 | M16 | 24 | 2 | 17.5 | 92.1 | 120.7 | 3/4 | 61.9 | 2.3 |
1 1/2 | 40 | 4 | 125 | 65 | M14 | 21 | 2 | 15.9 | 73 | 98.4 | 5/8 | 49.5 | 1.4 |
2 1/2 | 65 | 4 | 180 | 90 | M16 | 27 | 2 | 20.7 | 104.8 | 139.7 | 3/4 | 74.6 | 3.2 |
3 | 80 | 4 | 190 | 108 | M16 | 29 | 2 | 22.3 | 127 | 152.4 | 3/4 | 90.7 | 3.7 |
4 | 100 | 8 | 230 | 135 | M16 | 32 | 2 | 22.3 | 157.2 | 190.5 | 3/4 | 116.1 | 5.9 |
3 1/2 | 90 | 8 | 215 | 122 | M16 | 30 | 2 | 22.3 | 139.7 | 177.8 | 3/4 | 103.4 | 5 |
5 | 125 | 8 | 255 | 164 | M20 | 35 | 2 | 22.3 | 185.7 | 215.9 | 7/8 | 143.8 | 6.8 |
8 | 200 | 8 | 345 | 246 | M20 | 43 | 2 | 27 | 269.9 | 298.5 | 7/8 | 221.5 | 13.7 |
10 | 250 | 12 | 405 | 305 | M24 | 48 | 2 | 28.6 | 323.8 | 362 | 1 | 276.2 | 19.5 |
6 | 150 | 8 | 280 | 192 | M20 | 38 | 2 | 23.9 | 215.9 | 241.3 | 7/8 | 170.7 | 8.6 |
12 | 300 | 12 | 485 | 365 | M24 | 54 | 2 | 30.2 | 381 | 431.8 | 1 | 327 | 29 |
24 | 600 | 20 | 815 | 663 | M33 | 81 | 2 | 46.1 | 692.2 | 749.3 | 1 3/8 | 616 | 100 |
16 | 400 | 16 | 595 | 457 | M27 | 62 | 2 | 35 | 469.9 | 539.8 | 1 1/8 | 410.5 | 54 |
18 | 450 | 16 | 635 | 505 | M30 | 67 | 2 | 38.1 | 533.4 | 577.9 | 1 1/4 | 461.8 | 59 |
14 | 350 | 12 | 535 | 400 | M27 | 56 | 2 | 33.4 | 412.8 | 476.3 | 1 1/8 | 359.2 | 41 |
20 | 500 | 20 | 700 | 559 | M30 | 71 | 2 | 41.3 | 584.2 | 635 | 1 1/4 | 513.1 | 75 |
Flange NPS | H | Inside Diameter |
Flat Face Thickness (T2) |
Outside Diameter |
Raised Face (RF) |
Raised Face (R) |
H1 | Raised Face Thickness (T) |
T1 | Bolt Circle (BC) |
Bolt Hole (B) |
No. of Bolt Holes |
---|---|---|---|---|---|---|---|---|---|---|---|---|
1/2" | 1.19" | 0.62" | 1.82" | 3.50" | .063" | 1.38" | 0.84" | 1.88" | .38" | 2.38" | .62" | 4 |
1-1/4" | 2.31" | 1.38" | 2.19" | 4.62" | .063" | 2.50" | 1.66" | 2.25" | .56" | 3.50" | .62" | 4 |
3/4" | 1.50" | 0.82" | 2.00" | 3.88" | .063" | 1.69" | 1.05" | 2.06" | .44" | 2.75" | .62" | 4 |
1-1/2" | 2.56" | 1.61" | 2.38" | 5.00" | .063" | 2.88" | 1.90" | 2.44" | .62" | 3.88" | .62" | 4 |
1" | 1.94" | 1.05" | 2.13" | 4.25" | .063" | 2.00" | 1.32" | 2.19" | .50" | 3.12" | .62" | 4 |
2" | 3.06" | 2.07" | 2.44" | 6.00" | .063" | 3.62" | 2.38" | 2.50" | .69" | 4.75" | .75" | 4 |
2-1/2" | 3.56" | 2.47" | 2.69" | 7.00" | .063" | 4.12" | 2.88" | 2.75" | .82" | 5.50" | .75" | 4 |
3" | 4.25" | 3.07" | 2.69" | 7.50" | .063" | 5.00" | 3.50" | 2.75" | .88" | 6.00" | .75" | 4 |
4" | 5.31" | 4.03" | 2.94" | 9.00" | .063" | 6.19" | 4.50" | 3.00" | .88" | 7.50" | .75" | 8 |
5" | 6.44" | 5.05" | 3.44" | 10.00" | .063" | 7.31" | 5.56" | 3.50" | .88" | 8.50" | .88" | 8 |
3-1/2" | 4.81" | 3.55" | 2.75" | 8.50" | .063" | 5.50" | 4.00" | 2.81" | .88" | 7.00" | .75" | 8 |
6" | 7.56" | 6.07" | 3.44" | 11.00" | .063" | 8.50" | 6.63" | 3.50" | .94" | 9.50" | .88" | 8 |
8" | 9.69" | 7.98" | 3.94" | 13.50" | .063" | 10.62" | 8.63" | 4.00" | 1.06" | 11.75" | .88" | 8 |
22" | 24.25" | 21.25" | 5.82" | 29.50" | .063" | 25.25" | 22.00" | 5.88" | 1.75" | 27.25" | 1.38" | 20 |
10" | 12.00" | 10.02" | 3.94" | 16.00" | .063" | 12.75" | 10.75" | 4.00" | 1.13" | 14.25" | 1.00" | 12 |
12" | 14.38" | 12.00" | 4.44" | 19.00" | .063" | 15.00" | 12.75" | 4.50" | 1.19" | 17.00" | 1.00" | 12 |
16" | 18.00" | 15.25" | 4.94" | 23.50" | .063" | 18.50" | 16.00" | 5.00" | 1.38" | 21.25" | 1.12" | 16 |
18" | 19.88" | 17.25" | 5.44" | 25.00" | .063" | 21.00" | 18.00" | 5.50" | 1.50" | 22.75" | 1.25" | 16 |
14" | 15.75" | 13.25" | 4.94" | 21.00" | .063" | 16.25" | 14.00" | 5.00" | 1.32" | 18.75" | 1.12" | 12 |
20" | 22.00" | 19.25" | 5.63" | 27.50" | .063" | 23.00" | 20.00" | 5.69" | 1.63" | 25.00" | 1.25" | 20 |
24" | 26.12" | 23.25" | 5.94" | 32.00" | .063" | 27.25" | 24.00" | 6.00" | 1.82" | 29.50" | 1.38" | 20 |
Size in Inch | Size in mm | ISO Stud Size | RF Height | Outer Dia. | RF Dia. | Hole Size | PCD | No of Bolts | Bolt Size UNC | Flange Thickness | RF Stud Length | Weight in kg |
D | A | C | E | B | ||||||||
1/2 | 15 | M20 | 7 | 135 | 34.9 | 7/8 | 88.9 | 4 | 3/4 | 30.2 | 120 | 3.2 |
3/4 | 20 | M20 | 7 | 140 | 42.9 | 7/8 | 95.2 | 4 | 3/4 | 31.8 | 125 | 3.7 |
1 | 25 | M24 | 7 | 160 | 50.8 | 1 | 108 | 4 | 7/8 | 35 | 140 | 5 |
1 1/4 | 32 | M27 | 7 | 185 | 63.5 | 1 1/8 | 130.2 | 4 | 1 | 38.1 | 150 | 7.8 |
1 1/2 | 40 | M30 | 7 | 205 | 73 | 1 1/4 | 146 | 4 | 1 1/8 | 44.5 | 170 | 10.5 |
2 | 50 | M27 | 7 | 235 | 92.1 | 1 1/8 | 171.4 | 8 | 1 | 50.9 | 180 | 18 |
2 1/2 | 65 | M30 | 7 | 265 | 104.8 | 1 1/4 | 196.8 | 8 | 1 1/8 | 57.2 | 195 | 25.5 |
3 | 80 | M33 | 7 | 305 | 127 | 1 3/8 | 228.6 | 8 | 1 1/4 | 66.7 | 220 | 39 |
4 | 100 | M39 | 7 | 355 | 157.2 | 1 5/8 | 273 | 8 | 1 1/2 | 76.2 | 255 | 61.5 |
5 | 125 | M45 | 7 | 420 | 185.7 | 1 7/8 | 323.8 | 8 | 1 3/4 | 92.1 | 300 | 102 |
6 | 150 | M52 | 7 | 485 | 215.9 | 2 1/8 | 368.3 | 8 | 2 | 108 | 345 | 157 |
8 | 200 | M52 | 7 | 550 | 269.9 | 2 1/8 | 438.2 | 12 | 2 | 127 | 380 | 241 |
10 | 250 | M64 | 7 | 675 | 323.8 | 2 5/8 | 539.8 | 12 | 2 1/2 | 165.1 | 490 | 470 |
12 | 300 | M72 | 7 | 760 | 381 | 2 7/8 | 619.1 | 12 | 2 3/4 | 184.2 | 540 | 575 |
Grade | % | Ni | Cr | Mo | Cu | N | C | Mn | Si | P | S |
SMO 254 | Min. | 17.5 | 19.5 | 6 | 0.5 | 0.18 | |||||
Max. | 18.5 | 20.5 | 6.5 | 1 | 0.22 | 0.02 | 1 | 0.8 | 0.03 | 0.01 |
The F44 Flanges can be defined as a material of grade F44 of the super austenitic stainless steel alloy. It can also be described as the 6% Mo flanges that possess moderate mechanical strength and have high ductility. They are widely known for their excellent corrosion resistance properties, especially in seawater and various other industrial environments. It comes with a very high resistance to pitting corrosion and also a good amount of crevice corrosion resistance. The material shows good ductility at ambient temperature, and retains the property even at the sub-zero temperature. It has a high molybdenum content in its chemical composition and that is why they are used as a good alternative to the 300 series stainless steel in applications where higher mechanical strength or resistance to different types of corrosion are required. The alloy, however, has lower yield strength compared to the duplex stainless, and much lower compared to the super duplex stainless steel. It’s pitting resistance properties are quite similar to that of the duplex stainless steel.They also come with good weldability.
The F44 Flanges are used for a wide range of industrial applications in transportational and architectural fields.
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
SMO 254 | 8.0 g/cm3 | 1320-1390 ℃ | 650 | 300 | 35 % |
STANDARD | WERKSTOFF NR. | UNS | AFNOR | SIS | GOST | BS | OR | EN |
SMO 254 | 1.4547 | S31254 | Z1 CNDU 20.18.06Az | 2378 | - | - | - | X1CrNiMoCuN20-18-7 |
Properties | Metric | Imperial |
---|---|---|
Thermal expansion co-efficient (@20-100°C/68-212°F) | 16.5 µm/m°C | 9.17 µin/in°F |
Thermal conductivity | 14 W/mK | 97.2 BTU in/hr.ft².°F |
The WNR 1.4547 RTJ Flange Vs and the A182 UNS S31254 Blind Flange have different structural appearance and because of that they serve different purposes. Also, while RTJ is a face type of a flange, the Blind is a type of flange. But as the materials of which they are made are the same, they are both used in similar environments.
The WNR 1.4547 RTJ Flange looks like a metallic ring that has deep cuts and grooves in its face. They are designed to give leak-proof connections for high temperature and high pressure services.
The A182 UNS S31254 Blind Flange is basically a metallic plate with bolted holes around them. They are used to end pipe connections or for sealing the nozzles of the valves. They are mostly used in those parts of the piping connection that is not under usage.

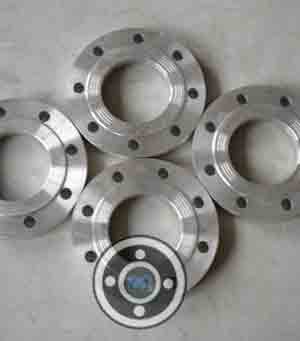

A182 F44 6mo SORF Flanges

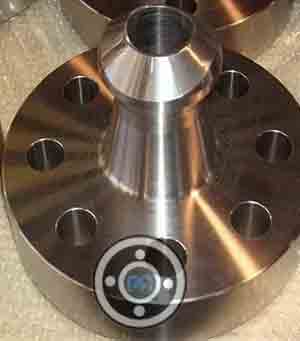

300 LBS A182 Grade F44 Nipoflange

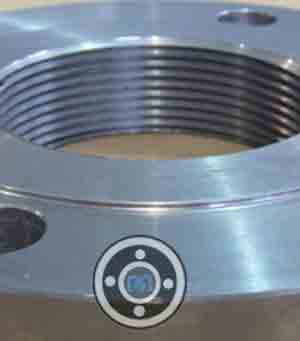

Alloy 254 Screwed Flange

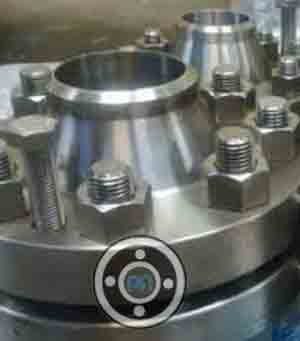

150 LBS A182 Gr F44 Orifice Flanges

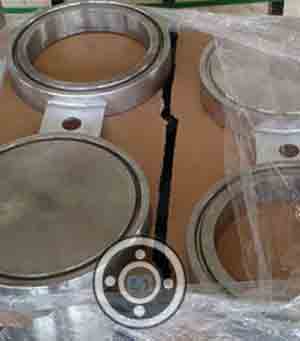

ASTM A182 F44 Stainless Steel Spectacle Blind Flange

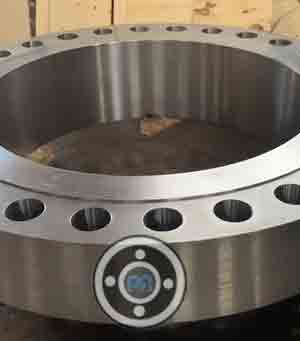

UNS S31254 Girth Flanges
15 NB Alloy 254 SMO Tongue & Groove Flange

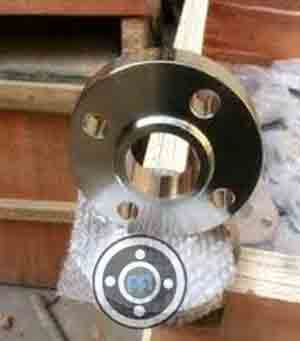

A182 SMO 254 Lapped Joint Flange

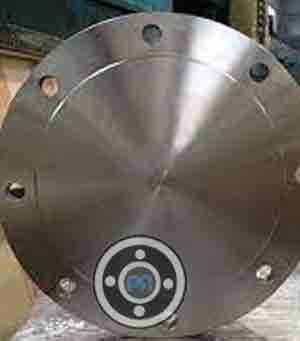

ASTM A182 UNS S31254 Blind Flange

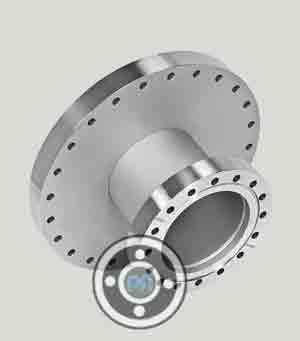

ASTM A182 Grade F44 Expander Flanges

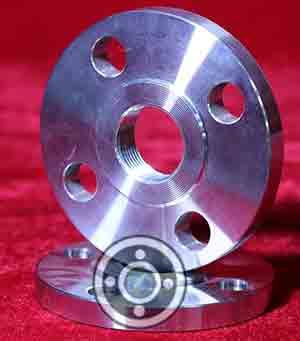

5000 NB 1.4547 Stainless Steel Threaded Flange

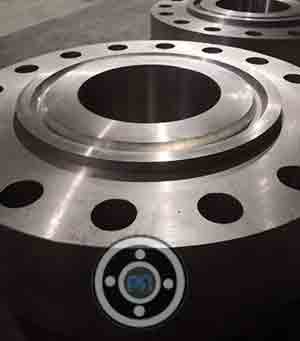

En 1.4547 Ring Joint Flange

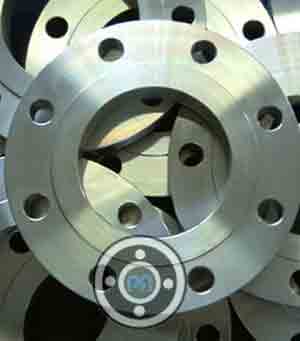

S31254 Stainless Steel Socket Weld Flange

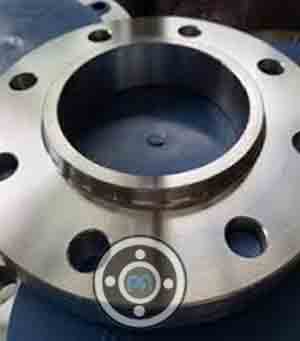

1500 LBS ASTM A182 F44 SWRF Flanges
Alloy 254 Slip on Flange

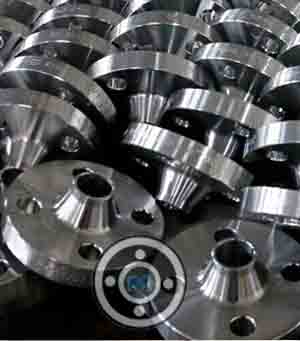

2500 LBS A182 F44 Uns S31254 WNRF Flange
A182 F44 BLRF Flanges
254 SMO Stainless Steel Reducing Flanges

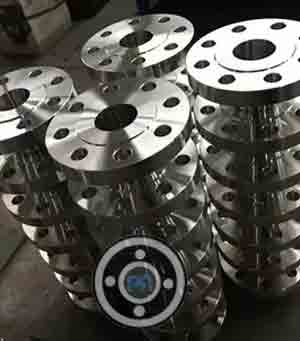

900 LBS UNS S31254 Weld neck Flange
600 LBS ASME SA182 SMO 254 Long Weld Neck Flange
SMO 254 Flanges

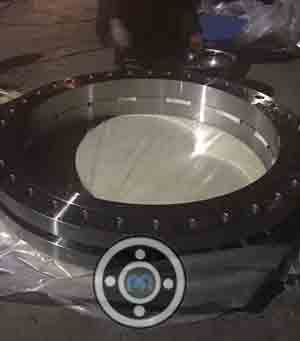

F44 Flanges

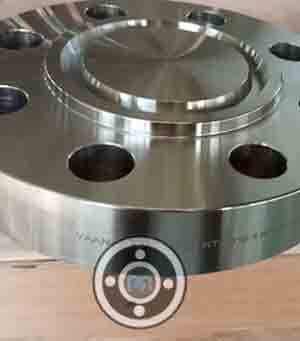

WNR 1.4547 RTJ Flange

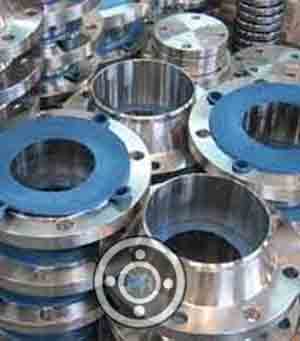

ASME B16.5 A182 F44 WNRF Flange DN100 SCH40 Class 1500
Annealing | 1149-1204°C (2100-2200°F) |
PREN= (Cr% + 3.3Mo% + 16N%) ≥ 40
Solution annealing at min 1150°C followed by water quenching.
