Inconel 600 Flanges Manufacturer
- Home /
- Inconel 600 Flanges
Alloy 600 Blind Flange and UNS n06600 Weld Neck Flange supplier in India
Inconel 600 Blind Flange VS Inconel 600 weld neck flange
Inconel 600 blind flange does not have a hub or a bore in the center. They are used for blocking the flow of pipe or sealing the nozzle of a pressure vessel. They are typically placed between the flanges to stop the pipe run. They are made with different materials and used in different industries.
An Inconel 600 weld neck flange is easily recognizable because of its tapered hub. It primarily helps to relocate the stress to the pipe along with ensuring that there is a decrease in high-stress concentration present at the bottom of the flange body. They are used in severe and critical applications.
uns n06600 flange properties
The uns n06600 is a high performance alloy containing nickel and chromium. It offers high resistance to oxidation, even at an elevated temperature. They are also resistant to environments that contain chlorides. The uns n06600 flanges are designed for a range of cryogenic to elevated temperatures (upto 1093 degrees C). It shows good corrosion resistance in a number of organic and inorganic compounds. It is resistant to chloride-ion and alkaline solutions. The flanges also show good resistance to stress-related corrosion cracking. It is non-magnetic and possesses some good mechanical properties. Because of all these properties, they are used in a wide range of applications across several industries.
astm b564 uns n06600 Slip on flange temprature and heat conditions
The astm b564 uns n06600 Slip on flange can withstand temperatures that are within the range from cryogenic to elevated, of upto 1093 degrees C. This is why they are widely used in chemical and several other industries, where temperatures might vary from one another. The astm b564 uns n06600 Slip on flange also shows a good heat resistance. They are free from aging or stress corrosion throughout the range of annealing to heavily cold worked conditions. Due to all these properties, the flange is used in different applications that occur within the given temperature range (cryogenic to elevated temperature of 1093 degrees C).
Table of Content
- Inconel 600 Flanges Spec Chart
- Nickel 600 Flanges Weight Chart
- Inconel UNS N06600 Flanges Pressure Rating
- Price List of Inconel 600 Flanges
- Alloy 600 Flanges Chemical Composition
- ASTM B564 UNS N06600 Flanges Mechanical Properties
- Inconel Alloy 600 Flanges Equivalent Grade
- Different Types of Inconel 600 Flanges
- Inconel 600 Blind Flange Dimensions
- Inconel 600 Weld Neck Flange Dimensions
- Characteristics of Inconel 600 Flanges?
- Inconel Alloy 600 Flanges Applications
Inconel 600 Flanges Spec Chart
| Size Range | 1/2″(15 NB) to 48″ (1200NB) |
|---|---|
| Pressure Rating Chart ANSI | 150 LBS, 300 LBS, 2500 LBS, 900 LBS, 600 LBS, 1500 LBS |
| JIS | 16 K, 5K, 10 K, 20 K, 30 K, 40 K, 63 K |
| Manufacturer of Connect Type/ Flange Face Type | RF, Small Tongue, RTJ, FF, LJF, Large Tongue & Groove |
| Coating | Zinc Plated, Anti-rust Paint, Yellow Transparent, Oil Black Paint, Cold and Hot Dip Galvanized |
| Manufacturer of | GOST, JIS, ANSI, DIN, UNI, BS, AWWA, AS2129, SABS, NFE, EN etc. |
| Inconel 600 DIN Pressure Calculation | 25Bar 40Bar 16Bar 6Bar 10Bar / PN64 PN10 PN25 PN16 PN6 PN40 |
| Equipment | Pushing Machine, Press machine, Sand-blasting machine, Bending machine, electric bevelling machine etc |
| Origin | Japan / West Europe / Indian / USA / Korean |
| UNI / EN | 16Bar 6Bar 40Bar 10Bar 25Bar |
| Test | X-ray detector, Direct-reading Spectrograph, Magnetic particle detector, Ultrasonic flaw detector, Hydrostatic testing machine |
| Standards Provided By Manufacturer | ISO70051, MSS S44, API7S-43, API605, B16.48, ANSI/ASME B16.5, B16.47 Series A & B, BS4504, JISB2220, BS1560-3.1, ASME/ANSI B16.5/16.36/16.47A/16.47B, BS 10, EN-1092, DIN, API7S-15, EN1092 |
| Common Types By Manufacturer | Threaded / Screwed / Forged / Plate |
| Inconel 600 Production technique Used By Manufacturer | Heat treated, Forged and machined |
Standard Sizes of Nickel 600 Forged Rings at lowest price and Custom Sizes can be produced in inconel 600 hot forged rings
Nickel 600 Flanges Weight Chart
| NPS (Nominal Pipe Size) | Loose (Lap Joint) | NPT (Threaded) | SORF (Slip On) | BLRF (Blind) | SWRF (Socket Weld) | WRNR (Weld Neck) |
|---|---|---|---|---|---|---|
| ½ | 1 | 1 | 1 | 2 | 2 | 2 |
| 1 | 2 | 2 | 2 | 2 | 2 | 3 |
| 1¼ | 3 | 3 | 3 | 3 | 3 | 3 |
| ¾ | 2 | 2 | 2 | 2 | 2 | 2 |
| 1½ | 3 | 3 | 3 | 4 | 3 | 4 |
| 2½ | 8 | 8 | 8 | 7 | 8 | 10 |
| 2 | 5 | 5 | 5 | 5 | 5 | 6 |
| 3 | 9 | 9 | 9 | 9 | 9 | 11.5 |
| 4 | 13 | 13 | 13 | 17 | 13 | 16.5 |
| 3½ | 11 | 12 | 11 | 13 | 11 | 12 |
| 5 | 15 | 15 | 15 | 20 | 15 | 21 |
| 8 | 30 | 30 | 30 | 47 | 30 | 42 |
| 6 | 19 | 19 | 19 | 27 | 19 | 26 |
| 10 | 43 | 43 | 43 | 70 | 43 | 54 |
| 24 | 275 | 220 | 220 | 430 | 220 | 268 |
| 14 | 105 | 90 | 90 | 140 | 90 | 114 |
| 12 | 64 | 64 | 64 | 123 | 64 | 88 |
| 16 | 140 | 98 | 106 | 180 | 98 | 140 |
| 20 | 195 | 165 | 165 | 285 | 165 | 197 |
| 18 | 160 | 130 | 130 | 220 | 130 | 165 |
| 22 | 245 | 185 | 185 | 355 | 185 | 225 |
astm b564 uns n06600 material Stockist and Exporter in Mumbai, Refer our din 17754 flange dimensions and weight chart
Inconel UNS N06600 Flanges Pressure Rating
| Temperature °F | Class 150 | Class 600 | Class 1500 | Class 400 | Class 900 | Class 300 | Class 2500 |
| -20 to 100 | 275 | 1440 | 3600 | 960 | 2160 | 720 | 6000 |
| 300 | 205 | 1080 | 2700 | 720 | 1620 | 540 | 4500 |
| 200 | 230 | 1200 | 3000 | 800 | 1800 | 600 | 5000 |
| 400 | 190 | 995 | 2485 | 660 | 1490 | 495 | 4140 |
| 600 | 140 | 875 | 2185 | 580 | 1310 | 435 | 3640 |
| 650 | 125 | 860 | 2150 | 575 | 1290 | 430 | 3580 |
| 500 | 170 | 930 | 2330 | 620 | 1395 | 465 | 3880 |
| 700 | 110 | 850 | 2125 | 565 | 1275 | 425 | 3540 |
| 750 | 95 | 830 | 2075 | 555 | 1245 | 415 | 3460 |
| 850 | 65 | 790 | 1980 | 530 | 1190 | 395 | 3300 |
| 800 | 80 | 805 | 2015 | 540 | 1210 | 405 | 3360 |
| 900 | 50 | 780 | 1945 | 520 | 1165 | 390 | 3240 |
| 950 | 35 | 765 | 1910 | 510 | 1145 | 380 | 3180 |
| 1000 | 20 | 640 | 1605 | 430 | 965 | 320 | 2675 |
| 1100 | 20 | 515 | 1285 | 345 | 770 | 255 | 2145 |
| 1150 | 20 | 400 | 995 | 265 | 595 | 200 | 1655 |
| 1050 | 20 | 615 | 1545 | 410 | 925 | 310 | 2570 |
| 1200 | 20 | 310 | 770 | 205 | 465 | 155 | 1285 |
| 1250 | 20 | 225 | 565 | 150 | 340 | 115 | 945 |
| 1300 | 20 | 170 | 430 | 115 | 255 | 85 | 715 |
| 1400 | 20 | 95 | 240 | 65 | 145 | 50 | 400 |
| 1350 | 20 | 125 | 310 | 80 | 185 | 60 | 515 |
| 1450 | 15 | 70 | 170 | 45 | 105 | 35 | 285 |
| 1500 | 10 | 55 | 135 | 35 | 80 | 25 | 230 |
Price List of Inconel 600 Flanges
| Inconel 600 Flanges Price Per Piece in India | Alloy 600 Flanges Price in INR | Inconel 600 Flanges Price in UAE Dirham | ASTM B564 UNS N06600 Flanges Price in USD |
| INCONEL 625 FLANGES 2 600 RTJ Per Unit | 19,519 | UAE Dirham 963.35 | $262.28 |
| BLIND FLANGE 2 150# RF ASME B16.5 50-150RF-INCONEL 600 Per Kg | 18,583 | UAE Dirham 917.16 | $249.70 |
| ASME SB564 UNS N06600 ASME B16.5 11/2NB SCH 40 Per Unit | 27,828 | UAE Dirham 1373.44 | $373.93 |
| INCONEL FORGED ALLOY 600 FLANGE ASME B16.5-4NB 300LBS Per Kg | 74,123 | UAE Dirham 3658.32 | $996.00 |
Alloy 600 Flanges Chemical Composition
| Grade | C | Ni | Si | S | Cu | Mn | Fe | Cr |
| Inconel 600 | 0.15 max | 72.00 min | 0.50 max | 0.015max | 0.50 max | 1.00 max | 6.00 – 10.00 | 14.00 – 17.00 |
ASTM B564 UNS N06600 Flanges Mechanical Properties
| Element | Density | Yield Strength (0.2%Offset) | Tensile Strength | Melting Point | Elongation |
| Inconel 600 | 8.47 g/cm3 | Psi – 45,000 , MPa – 310 | Psi – 95,000 , MPa – 655 | 1413 °C (2580 °F) | 40 % |
Inconel Alloy 600 Flanges Equivalent Grade
| STANDARD | WERKSTOFF NR. | EN | GOST | JIS | BS | UNS | AFNOR |
| Inconel 600 | 2.4816 | NiCr15Fe | МНЖМц 28-2,5-1,5 | NCF 600 | NA 13 | N06600 | NC15FE11M |
SEE our Nickel Alloy 600 Slip on Flange Price List and ASME SB564 n06600 Socket Weld Flange Price Ex Mumbai
Different Types of Inconel 600 Flanges

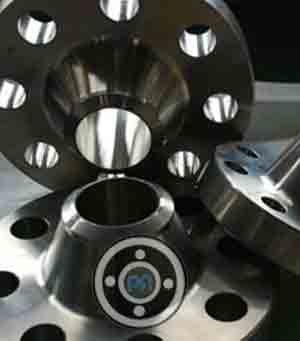

Inconel 600 Weld Neck Flanges

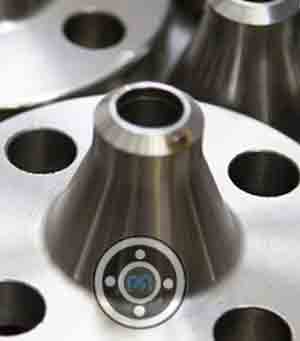

ASTM B564 UNS N06600 Reducing Flanges
WNR 2.4816 WNRF Flange

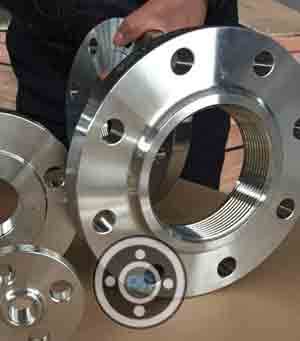

Alloy 600 Screwed Flange

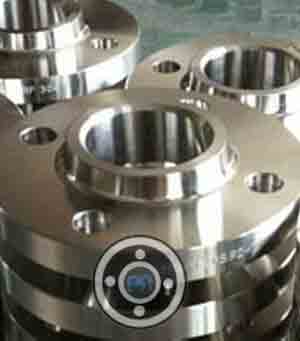

Nickel 600 Slip On Flange

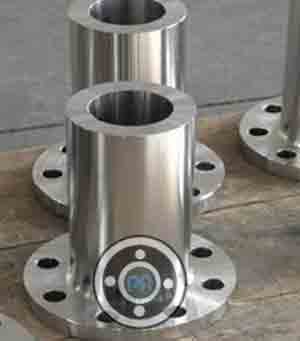

Nickel Alloy 600 Long Weld Neck Flange

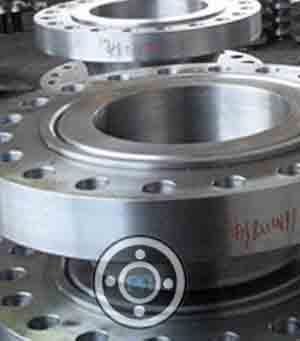

ASTM B564 Inconel 600 Ring Joint Flange

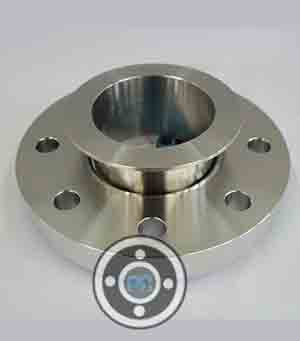

Inconel Alloy 600 Lapped Joint Flange

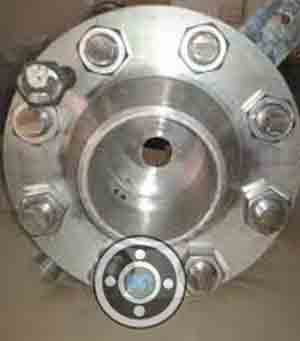

600 Inconel Orifice Flanges

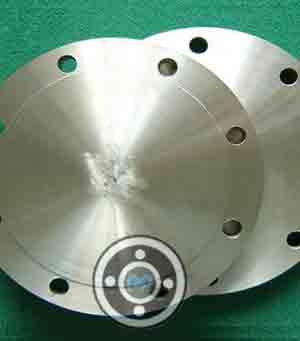

2.4816 Inconel 600 BLRF Flanges

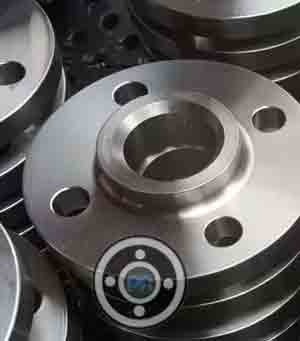

DIN 2.4816 SWRF Flanges
Inconel 600 Spectacle Blind Flange

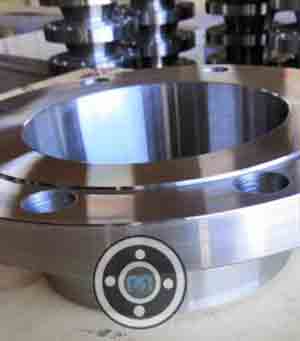

ASTM B564 UNS N06600 Girth Flanges

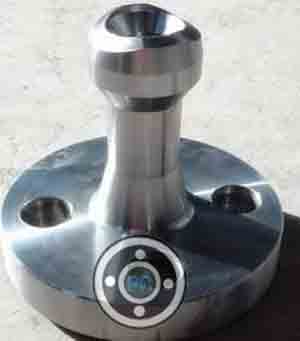

WNR 2.4816 Nipoflange

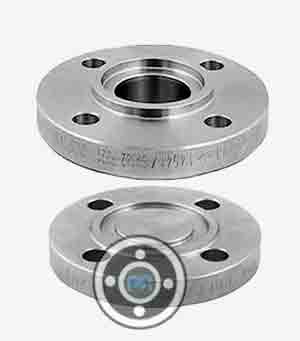

Alloy 600 Tongue & Groove Flange

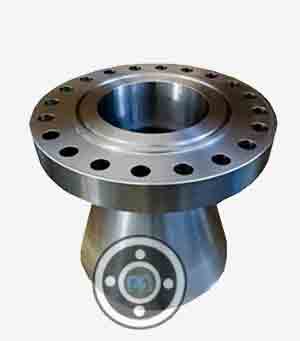

Nickel 600 Expander Flanges

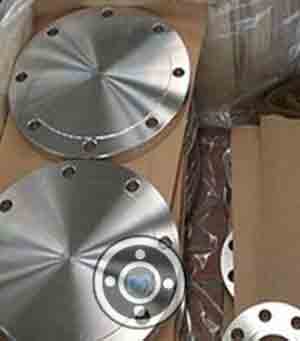

Nickel Alloy 600 Blind Flange

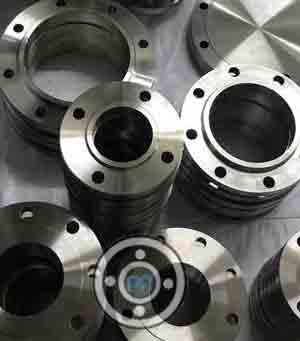

ASTM B564 Inconel 600 SORF Flanges

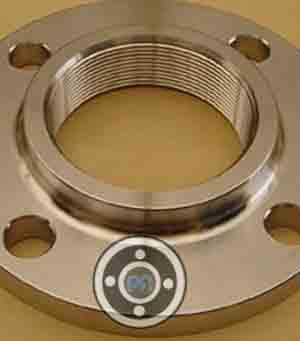

Inconel Alloy 600 Threaded Flange

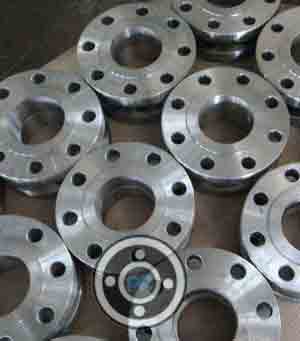

600 Inconel Socket Weld Flange

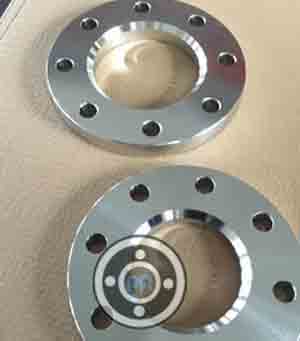

Nickel Alloy 600 Flanges

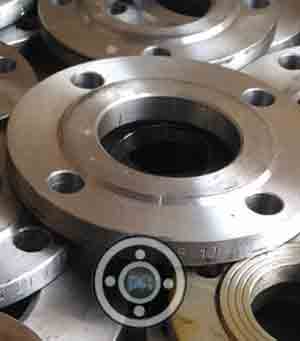

UNS N06600 Flanges

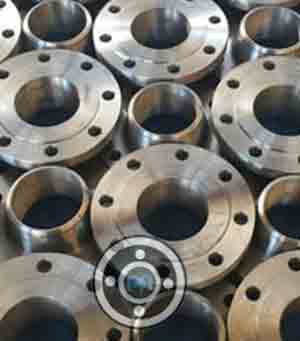

Nickel 600 Flanges

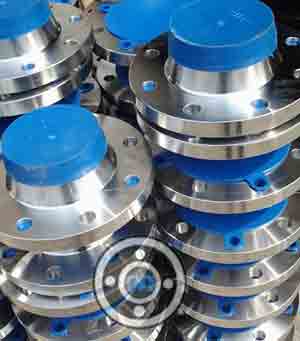

Inconel UNS N06600 Flanges

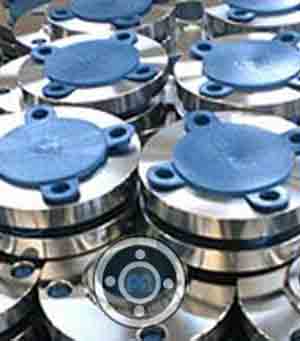

Alloy 600 Flanges

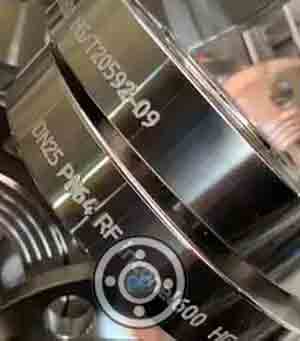

ASTM B564 UNS N06600 Flanges
Inconel Alloy 600 Flanges
Inconel 600 Blind Flange Dimensions
| Size in Inch | Size in mm | ISO Stud Size | RF Height | Outer Dia. | RF Dia. | Hole Size | PCD | No of Bolts | Bolt Size UNC | Flange Thickness | RF Stud Length | Weight in kg |
| D | A | C | E | B | ||||||||
| 1/2 | 15 | M20 | 7 | 135 | 34.9 | 7/8 | 88.9 | 4 | 3/4 | 30.2 | 120 | 3.2 |
| 3/4 | 20 | M20 | 7 | 140 | 42.9 | 7/8 | 95.2 | 4 | 3/4 | 31.8 | 125 | 3.7 |
| 1 | 25 | M24 | 7 | 160 | 50.8 | 1 | 108 | 4 | 7/8 | 35 | 140 | 5 |
| 1 1/4 | 32 | M27 | 7 | 185 | 63.5 | 1 1/8 | 130.2 | 4 | 1 | 38.1 | 150 | 7.8 |
| 1 1/2 | 40 | M30 | 7 | 205 | 73 | 1 1/4 | 146 | 4 | 1 1/8 | 44.5 | 170 | 10.5 |
| 2 | 50 | M27 | 7 | 235 | 92.1 | 1 1/8 | 171.4 | 8 | 1 | 50.9 | 180 | 18 |
| 2 1/2 | 65 | M30 | 7 | 265 | 104.8 | 1 1/4 | 196.8 | 8 | 1 1/8 | 57.2 | 195 | 25.5 |
| 3 | 80 | M33 | 7 | 305 | 127 | 1 3/8 | 228.6 | 8 | 1 1/4 | 66.7 | 220 | 39 |
| 4 | 100 | M39 | 7 | 355 | 157.2 | 1 5/8 | 273 | 8 | 1 1/2 | 76.2 | 255 | 61.5 |
| 5 | 125 | M45 | 7 | 420 | 185.7 | 1 7/8 | 323.8 | 8 | 1 3/4 | 92.1 | 300 | 102 |
| 6 | 150 | M52 | 7 | 485 | 215.9 | 2 1/8 | 368.3 | 8 | 2 | 108 | 345 | 157 |
| 8 | 200 | M52 | 7 | 550 | 269.9 | 2 1/8 | 438.2 | 12 | 2 | 127 | 380 | 241 |
| 10 | 250 | M64 | 7 | 675 | 323.8 | 2 5/8 | 539.8 | 12 | 2 1/2 | 165.1 | 490 | 470 |
| 12 | 300 | M72 | 7 | 760 | 381 | 2 7/8 | 619.1 | 12 | 2 3/4 | 184.2 | 540 | 575 |
Get Distributor Price in Sizes 1/2″NB TO 60″NB of Inconel 600 ring type joint flange, Threaded Flange and Alloy 600 Long Welding Neck Flange
Inconel 600 Weld Neck Flange Dimensions
| Flange NPS | H | Inside Diameter |
Flat Face Thickness (T2) |
Outside Diameter |
Raised Face (RF) |
Raised Face (R) |
H1 | Raised Face Thickness (T) |
T1 | Bolt Circle (BC) |
Bolt Hole (B) |
No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 1.19" | 0.62" | 1.82" | 3.50" | .063" | 1.38" | 0.84" | 1.88" | .38" | 2.38" | .62" | 4 |
| 1-1/4" | 2.31" | 1.38" | 2.19" | 4.62" | .063" | 2.50" | 1.66" | 2.25" | .56" | 3.50" | .62" | 4 |
| 3/4" | 1.50" | 0.82" | 2.00" | 3.88" | .063" | 1.69" | 1.05" | 2.06" | .44" | 2.75" | .62" | 4 |
| 1-1/2" | 2.56" | 1.61" | 2.38" | 5.00" | .063" | 2.88" | 1.90" | 2.44" | .62" | 3.88" | .62" | 4 |
| 1" | 1.94" | 1.05" | 2.13" | 4.25" | .063" | 2.00" | 1.32" | 2.19" | .50" | 3.12" | .62" | 4 |
| 2" | 3.06" | 2.07" | 2.44" | 6.00" | .063" | 3.62" | 2.38" | 2.50" | .69" | 4.75" | .75" | 4 |
| 2-1/2" | 3.56" | 2.47" | 2.69" | 7.00" | .063" | 4.12" | 2.88" | 2.75" | .82" | 5.50" | .75" | 4 |
| 3" | 4.25" | 3.07" | 2.69" | 7.50" | .063" | 5.00" | 3.50" | 2.75" | .88" | 6.00" | .75" | 4 |
| 4" | 5.31" | 4.03" | 2.94" | 9.00" | .063" | 6.19" | 4.50" | 3.00" | .88" | 7.50" | .75" | 8 |
| 5" | 6.44" | 5.05" | 3.44" | 10.00" | .063" | 7.31" | 5.56" | 3.50" | .88" | 8.50" | .88" | 8 |
| 3-1/2" | 4.81" | 3.55" | 2.75" | 8.50" | .063" | 5.50" | 4.00" | 2.81" | .88" | 7.00" | .75" | 8 |
| 6" | 7.56" | 6.07" | 3.44" | 11.00" | .063" | 8.50" | 6.63" | 3.50" | .94" | 9.50" | .88" | 8 |
| 8" | 9.69" | 7.98" | 3.94" | 13.50" | .063" | 10.62" | 8.63" | 4.00" | 1.06" | 11.75" | .88" | 8 |
| 22" | 24.25" | 21.25" | 5.82" | 29.50" | .063" | 25.25" | 22.00" | 5.88" | 1.75" | 27.25" | 1.38" | 20 |
| 10" | 12.00" | 10.02" | 3.94" | 16.00" | .063" | 12.75" | 10.75" | 4.00" | 1.13" | 14.25" | 1.00" | 12 |
| 12" | 14.38" | 12.00" | 4.44" | 19.00" | .063" | 15.00" | 12.75" | 4.50" | 1.19" | 17.00" | 1.00" | 12 |
| 16" | 18.00" | 15.25" | 4.94" | 23.50" | .063" | 18.50" | 16.00" | 5.00" | 1.38" | 21.25" | 1.12" | 16 |
| 18" | 19.88" | 17.25" | 5.44" | 25.00" | .063" | 21.00" | 18.00" | 5.50" | 1.50" | 22.75" | 1.25" | 16 |
| 14" | 15.75" | 13.25" | 4.94" | 21.00" | .063" | 16.25" | 14.00" | 5.00" | 1.32" | 18.75" | 1.12" | 12 |
| 20" | 22.00" | 19.25" | 5.63" | 27.50" | .063" | 23.00" | 20.00" | 5.69" | 1.63" | 25.00" | 1.25" | 20 |
| 24" | 26.12" | 23.25" | 5.94" | 32.00" | .063" | 27.25" | 24.00" | 6.00" | 1.82" | 29.50" | 1.38" | 20 |
Characteristics of Inconel 600 Flanges?
- The material is resistant to a wide range of corrosive agents.
- Almost impervious to chlorine ion stress corrosion cracking
- Non-magnetic
- Outstanding mechanical properties
- High strength and weldability over a wide temperature range
Inconel Alloy 600 Flanges Applications
- Fossil Fuel Power Plants
- Refineries
- Nuclear Plants
- Ship Building
- Marine Applications
- Paper & Pulp
- Oil & Gas Industry
- Power Plants
