What is ASTM A420 WPL6 Fittings?
The ASTM A420 WPL6 is one of the most popular grades of buttweld pipe fittings. It has ASTM A420 material and the grade is WPL6. It can be described as the standard specification for alloy steel and wrought iron carbon steel, which are especially used for low temperature services. The pipe fittings of the ASTM A420 WPL6 specification is mostly used in cold weather applications or projects that take place in deep sea water. These fittings are available in fabricated, welded and seamless variants. Also, one can get different types of ASTM A420 WPL6 fittings like elbows, tee, couplings, plugs, bends, caps, etc. They have different structural appearances and hence they are used for different purposes like changing the direction of flow, stopping or dividing the flow and so on. Due to the unique features of the ASTM A420 WPL6 fittings, they are used in several industries like pharmaceutical equipment, petrochemicals, gas processings, off-shore oil drilling companies, pulp and paper industry. These fittings are mostly found in sea water equipment, heat exchangers, and condensers.
The ASTM A420 Wpl6 Buttweld Pipe Fittings come with the following advantages:

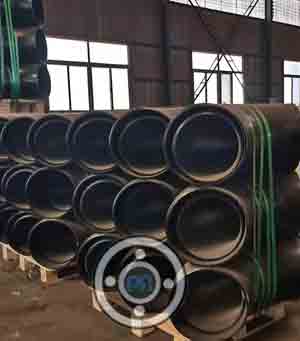

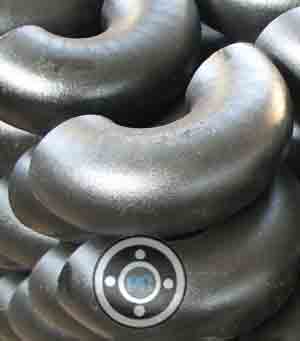

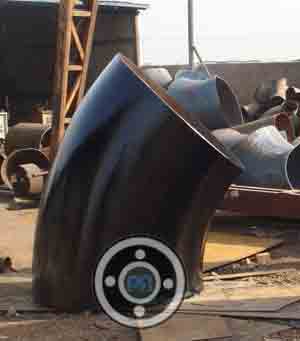

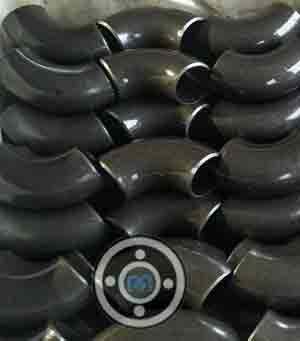

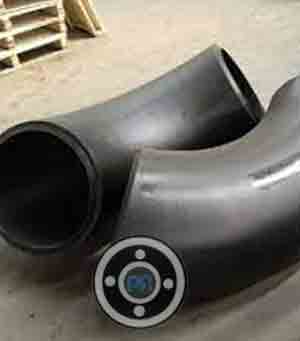

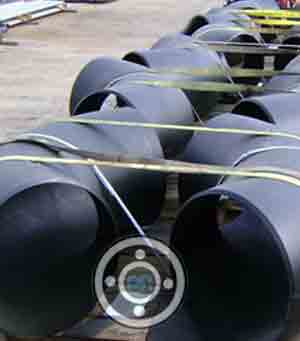

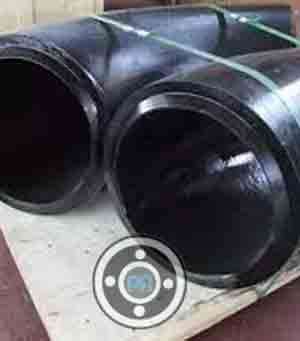

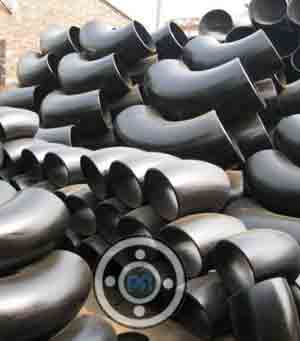

ASTM A420 WPL6 Elbow Vs SA 420 WPL6 Reducer
The ASTM A420 WPL6 elbow can be described as a pipe fitting that is installed between two lengths of pipe or tube. It helps to change the flow direction, usually at 45 degrees or 90 degrees angle. The elbows are available in different shapes and dimensions, and they are frequently used for several pressurized applications. The SA 420 WPL6 Reducer is a type of pipe fitting that helps in joining two pipes of different diameters. These are available in different dimensions and can be customized according to the specific client requirements. They primarily help in increasing or reducing the straight part of the run pipe and they are available in different types like concentric reducer and eccentric reducer.

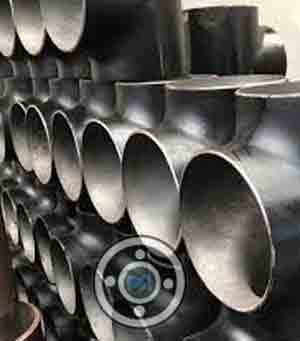

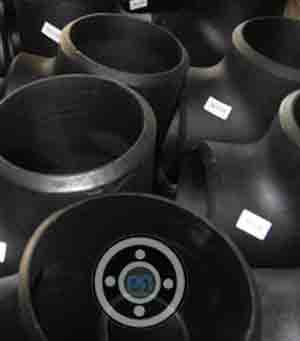

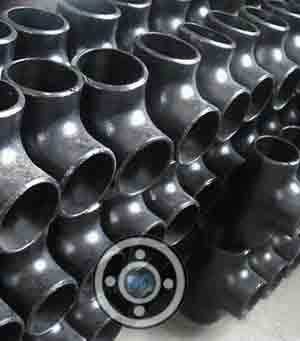

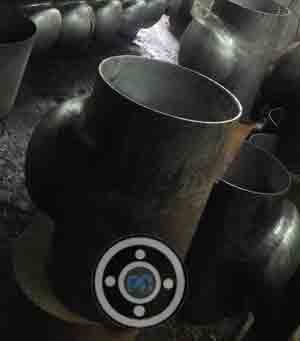

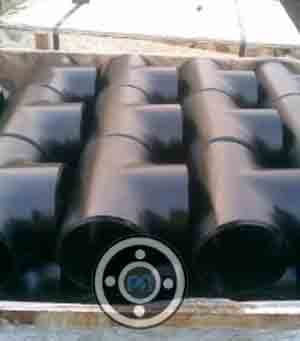

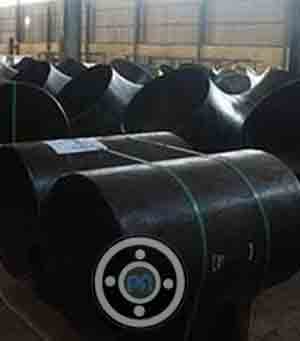

ASTM A420 Gr WPL6 Equal Tee Vs SA 420 Gr WPL6 Reducing Tee
The tee is a type of pipe fitting that looks like the ‘T’ alphabet. They have two outlets, which are at 90 degrees to the main connection line. The ASTM A420 Gr WPL6 Equal Tee has both the branch diameters the same as the run pipe (main connection) diameter. The SA 420 Gr WPL6 Reducing Tee also looks the same but their branching outlets are available in a combination of various diameters. Here, the port size of the branching diameter is usually smaller compared to the main diameter.
The reducing tee is more popular compared to the equal tee, as it is suitable for more functions and can withstand different environments. The equal tee is available for all the common diameters whereas, it is not the case for reducing tees as multiple diameters cannot be produced for this one.
ASTM A420 WPL6 Fittings
How to produce ASTM A420 Wpl6 Buttweld Pipe Fittings?
The ASTM A420 Wpl6 Buttweld Pipe Fittings are manufactured using different processes such as press, cast, push, forge, etc. They are intended for low temperature and pressurized applications. Depending on the specific requirements of the clients, the ASTM A420 Wpl6 Buttweld Pipe Fittings are customized in different sizes, shapes, and dimensions. The size usually ranges between ½” to 10”, and they are buttweld following all the international standards. The overall quality of the end product is hugely dependent on the quality of the raw materials, thus clients must ensure that the manufacturers they are choosing use quality products in the manufacturing process. These pipe fittings are produced in single pieces and then assembled to be sold in bulk quantities; it ensures that each fitting is made following the specifications.
Table of Content
ASTM A420 WPL6 Buttweld Pipe Fittings Specifications | ASTM A420 |
---|---|
ASTM A420 WPL6 Fittings Sizes | A420 WPL6 Seamless Fittings: 1/2" - 10" ASME B16 9 Carbon Steel LTCS Welded Fittings: 1/2" - 48" |
LTCS Carbon Steel Fittings Dimensions | ASME B16.28, ASME/ANSI B16.9, BS4504, MSS-SP-43, BS1560, BS4504, BS10 |
ASTM A420 WPL6 Fittings Thickness | SCH30, SCH10, SCH 160, SCH20, SCH60, XS, STD SCH40, SCH 80, SCH 120, SCH 140, SCH 100, XXS available with NACE MR 01-75 |
ASTM A420 WPL6 Buttweld Pipe Fittings Type Manufacturer | DN15-DN1200 |
SA 420 WPL6 Fittings Connection | Welding |
Bending Radius Provided By Manufacturer | R=1D, 3D, 2D, 5D, 8D, 6D, 10D or Custom ASTM A420 WPL6 Fittings |
Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) A420 Gr WPL6 Fittings |
ASTM A420 WPL6 Elbow Manufacturer | Angle : 22.5 deg, 45 deg, 30deg, 90 deg, 1.0D, 180 deg, 1.5D, 3D, 2.5D, 2.0D, 4D, 6D, 5D, 7D-40D . Standard: ASME B16.28, GB, ASME B16.9, MSS SP-75 JISB2311 DIN2605 JISB2312 JISB2313, ASME B16.25, BS, ISO |
ASTM A420 WPL6-S Fittings Manufacturing process | Push, Forge, Press, Cast, etc. |
Test Certificates Provided by ASTM A420 WPL6 Pipe Fittings Manufacturer | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
LTCS A420 WPL6 Buttweld Fittings Origin & Mills | European, Japanese, USA, Korean, Ukraine, Indian, Russian |

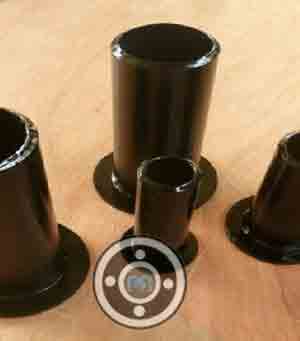

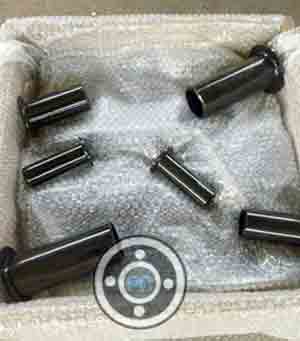

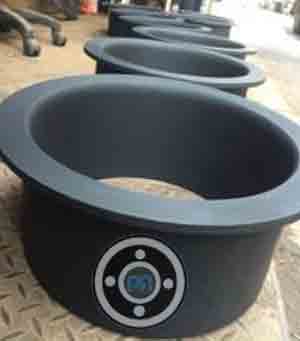

Specialized manufacturer of | A420 Grade WPL6 Stub End, 90º Elbows, Tees, Pipe Cap, Crosses, 45º Elbows, Reducers, Pipe Bend |
Application of Industrial LTCS Pipe Fittings |
|
A420 WPL6 Weld Fittings Thread Provided By Manufacturer | BSPT, NPT, BSPP |
LTCS Fittings Pressure Rating | Threaded end - 3000lb/ 2000lb/ 6000lbs Socket weld end- 6000/ 3000/ 9000lbs |
Dimension Specification | MSS SP-79, 95, 83, 97, BS 3799, ASME 16.11 |
A420 LTCS WPL6 Products Manufacturer | Half Coupling, Union, Tee, Cross, Coupling, Cap, Outlet, Welding Outlet, Boss, Insert |
Biggest SA 420 WPL6 Elbow wholesalers, supplier, dealers, stockholders, importer, distributor, stockists, exporters and Manufacturer in Mumbai. Check yield strength and tensile strength of A420 Gr. WPL6 Tee.
NPS | KG | LBS |
1/2 | 0.16 | 0.35 |
3/4 | 0.2 | 0.45 |
1 | 0.34 | 0.75 |
1¼ | 0.59 | 1.3 |
1½ | 0.91 | 2 |
2 | 1.59 | 3.5 |
2½ | 2.72 | 6 |
3 | 3.18 | 7 |
3½ | 4.08 | 9 |
4 | 5.44 | 12 |
5 | 9.53 | 21 |
6 | 15.42 | 34 |
8 | 24.95 | 55 |
10 | 38.56 | 85 |
12 | 54.43 | 120 |
14 | 74.84 | 165 |
16 | 88.45 | 195 |
18 | 112.94 | 249 |
20 | 155.13 | 342 |
22 | 187.79 | 414 |
24 | 239.5 | 528 |
26 | 349.27 | 770 |
30 | 480.81 | 1060 |
36 | 675.85 | 1490 |
NOMINAL PIPE SIZE | LENGTH | CENTER TO END | OUTSIDE DIAMETER |
---|---|---|---|
Inch. | M | C | OD |
1/2 | 25 | 25 | 21.3 |
3/4 | 29 | 29 | 26.7 |
1 | 38 | 38 | 33.4 |
1 1/4 | 48 | 48 | 42.2 |
1 1/2 | 57 | 57 | 48.3 |
2 | 64 | 64 | 60.3 |
2 1/2 | 76 | 76 | 73 |
3 | 86 | 86 | 88.9 |
3 1/2 | 95 | 95 | 101.6 |
4 | 105 | 105 | 114.3 |
5 | 124 | 124 | 141.3 |
6 | 143 | 143 | 168.3 |
8 | 178 | 178 | 219.1 |
10 | 216 | 216 | 273.1 |
12 | 254 | 254 | 323.9 |
14 | 279 | 279 | 355.6 |
16 | 305 | 305 | 406.4 |
18 | 343 | 343 | 457.2 |
20 | 381 | 381 | 508 |
22 | 419 | 419 | 559 |
24 | 432 | 432 | 610 |
26 | 495 | 495 | 660 |
28 | 521 | 521 | 711 |
30 | 559 | 559 | 762 |
32 | 597 | 597 | 813 |
34 | 635 | 635 | 864 |
36 | 673 | 673 | 914 |
38 | 711 | 711 | 965 |
40 | 749 | 749 | 1016 |
42 | 711 | 762 | 1067 |
44 | 762 | 813 | 1118 |
46 | 800 | 851 | 1168 |
48 | 838 | 889 | 1219 |
Nominal Pipe Size | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
---|---|---|---|---|---|---|---|---|
(inches) | Long Radius | Short Radius | Long Radius | Long Radius | ||||
(mm) | (inches) | Center to Face (inches) |
Center to Face (inches) |
Center to Face (inches) |
Radius (inches) |
Center to Center (inches) |
Back to face (inches) |
|
1/2 | 21.3 | 0.840 | 1 1/2 | - | 5/8 | 2 | 1 7/8 | |
3/4 | 26.7 | 1.050 | 1 1/8 | - | 7/16 | 2 1/4 | 1 11/16 | |
1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
NPS | O.D. D |
90° 3D Center to End A |
45° 3D Center to End B |
45° Long Rad Center to End B |
90° Long Rad Center to End A |
18 | 457 | 1372 | 568 | 286 | 686 |
20 | 508 | 1524 | 632 | 318 | 762 |
22 | 559 | 1676 | 694 | 343 | 838 |
24 | 610 | 1829 | 757 | 381 | 914 |
26 | 660 | 1981 | 821 | 406 | 991 |
28 | 711 | 2134 | 883 | 438 | 1067 |
30 | 762 | 2286 | 946 | 470 | 1143 |
32 | 813 | 2438 | 1010 | 502 | 1219 |
34 | 864 | 2591 | 1073 | 533 | 1295 |
36 | 914 | 2743 | 1135 | 565 | 1372 |
38 | 965 | 2896 | 1200 | 600 | 1448 |
40 | 1016 | 3048 | 1264 | 632 | 1524 |
42 | 1067 | 3200 | 1326 | 660 | 1600 |
44 | 1118 | 3353 | 1389 | 695 | 1676 |
46 | 1168 | 3505 | 1453 | 727 | 1753 |
48 | 1219 | 3658 | 1516 | 759 | 1829 |
Nominal Size | SCH20 | STD | SCH40S | SCH80S | SCH120 | SCH160 | |
DN | NPS | ||||||
15 | 1/2 | 0.08 | 0.08 | 0.1 | |||
20 | 3/4 | 0.17 | 0.17 | 0.2 | |||
25 | 1 | 0.21 | 0.21 | 0.25 | 0.22 | ||
32 | 1 1/4 | 0.29 | 0.29 | 0.35 | |||
40 | 1 1/2 | 0.42 | 0.42 | 0.58 | 0.6 | ||
50 | 2 | 0.8 | 0.8 | 1.03 | 1.04 | ||
65 | 2 1/2 | 1.05 | 1.05 | 1.42 | 1.65 | ||
80 | 3 | 1.36 | 1.36 | 1.9 | |||
90 | 3 1/2 | 1.63 | 1.63 | 2.27 | 2.4 | ||
100 | 4 | 2.77 | 2.77 | 3.93 | 4.4 | ||
125 | 5 | 3.96 | 3.96 | 6 | 7.14 | ||
150 | 6 | 6.31 | 6.31 | 9.26 | 10.8 | ||
200 | 8 | 7.85 | 10.7 | 10.7 | 17.5 | 15 | 18.4 |
250 | 10 | 11.2 | 15.8 | 16.3 | 25.1 | 25.1 | 32.5 |
300 | 12 | 25.6 | 28.8 | 32.1 | 56.5 | 41.7 | 53.3 |
350 | 14 | 30.5 | 38.5 | 48.8 | 79 | 84.5 | 106 |
400 | 16 | 35.2 | 44.5 | 64.3 | 102 | 112 | 143 |
450 | 18 | 62.7 | 62.7 | 98.5 | 165 | ||
500 | 20 | 72.6 | 72.6 | 181 | |||
550 | 22 | 97 | 79.1 | 142 | 226 | ||
600 | 24 | 130 | 100 |
NOMINAL PIPE SIZE | END TO END | OUTSIDE DIAMETER | |
---|---|---|---|
Inch | H | D | P |
3/4 x 1/2 | 38 | 26.7 | 21.3 |
3/4 x 3/8 | 38 | 26.7 | 17.1 |
1 x 3/4 | 51 | 33.4 | 26.7 |
1 x 1/2 | 51 | 33.4 | 21.3 |
1 1/4 x 1 | 51 | 42.2 | 33.4 |
1 1/4 x 3/4 | 51 | 42.2 | 26.7 |
1 1/4 x 1/2 | 51 | 42.2 | 21.3 |
1 1/2 x 1 1/2 | 64 | 48.3 | 42.2 |
1 1/2 x 1 | 64 | 48.3 | 33.4 |
1 1/2 x 3/4 | 64 | 48.3 | 26.7 |
1 1/2 x 1/2 | 64 | 48.3 | 21.3 |
2 x 1 1/2 | 76 | 60.3 | 48.2 |
2 x 1 1/4 | 76 | 60.3 | 42.2 |
2 x 1 | 76 | 60.3 | 33.4 |
2 x 3/4 | 76 | 60.3 | 26.7 |
2 1/2 x 2 | 89 | 73 | 60.3 |
2 1/2 x 1 1/2 | 89 | 73 | 48.3 |
2 1/2 x 1 1/4 | 89 | 73 | 42.2 |
2 1/2 x 1 | 89 | 73 | 33.4 |
3 x 2 1/2 | 89 | 88.9 | 73 |
3 x 2 | 89 | 88.9 | 60.3 |
3 x 1 1/2 | 89 | 88.9 | 48.3 |
3 x 1 1/4 | 89 | 88.9 | 42.2 |
3 1/2 x 3 | 102 | 101.6 | 88.9 |
3 1/2 x 21/2 | 102 | 101.6 | 73 |
3 1/2 x 2 | 102 | 101.6 | 60.3 |
3 1/2 x 1 1/2 | 102 | 101.6 | 48.3 |
3 1/2 x 1 1/4 | 102 | 101.6 | 42.2 |
4 x 3 1/2 | 102 | 114.3 | 101.6 |
4 x 3 | 102 | 114.3 | 88.9 |
4 x 2 1/2 | 102 | 114.3 | 73 |
4 x 2 | 102 | 114.3 | 60.3 |
4 x 1 1/2 | 102 | 114.3 | 48.3 |
5 x 4 | 127 | 141.3 | 114.3 |
5 x 3 1/2 | 127 | 141.3 | 101.6 |
5 x 3 | 127 | 141.3 | 88.9 |
5 x 2 1/2 | 127 | 141.3 | 73 |
5 x 2 | 127 | 141.3 | 60.3 |
6 x 5 | 140 | 168.3 | 141.3 |
6 x 4 | 140 | 168.3 | 114.3 |
6 x 3 1/2 | 140 | 168.3 | 101.6 |
6 x 3 | 140 | 168.3 | 88.9 |
6 x 2 1/2 | 140 | 168.3 | 73 |
8 x 6 | 152 | 219.1 | 168.3 |
8 x 5 | 152 | 219.1 | 141.3 |
8 x 4 | 152 | 219.1 | 114.3 |
8 x 3 1/2 | 152 | 219.1 | 101.6 |
10 x 8 | 178 | 273.1 | 219.1 |
10 x 6 | 178 | 273.1 | 168.1 |
10 x 5 | 178 | 273.1 | 141.3 |
10 x 4 | 178 | 273.1 | 114.3 |
12 x 10 | 203 | 323.9 | 273.1 |
12 x 8 | 203 | 323.9 | 219.1 |
12 x 6 | 203 | 323.9 | 168.3 |
12 x 5 | 203 | 323.9 | 141.3 |
14 x 12 | 330 | 355.6 | 323.9 |
14 x 10 | 330 | 355.6 | 273.1 |
14 x 8 | 330 | 355.6 | 219.1 |
14 x 6 | 330 | 355.6 | 168.3 |
16 x 14 | 356 | 406.4 | 355.6 |
16 x 12 | 356 | 406.4 | 323.9 |
16 x 10 | 356 | 406.4 | 273.1 |
16 x 8 | 356 | 406.4 | 219.1 |
16 x 6 | 356 | 406.4 | 168.3 |
18 x 16 | 381 | 457 | 406.4 |
18 x 14 | 381 | 457 | 355.6 |
18 x 12 | 381 | 457 | 323.9 |
18 x 10 | 381 | 457 | 273.1 |
18 x 8 | 381 | 457 | 219.1 |
20 x 18 | 508 | 508 | 457 |
20 x 16 | 508 | 508 | 406.4 |
20 x 14 | 508 | 508 | 355.6 |
20 x 12 | 508 | 508 | 323.9 |
20 x 10 | 508 | 508 | 273.1 |
20 x 8 | 508 | 508 | 219.1 |
22 x 20 | 508 | 559 | 508 |
22 x 18 | 508 | 559 | 457 |
22 x 16 | 508 | 559 | 406.4 |
22 x 14 | 508 | 559 | 355.6 |
22 x 12 | 508 | 559 | 323.9 |
24 x 10 | 508 | 559 | 273.1 |
24 x 22 | 508 | 610 | 559 |
24 x 20 | 508 | 610 | 508 |
24 x 18 | 508 | 610 | 457 |
24 x 16 | 508 | 610 | 406.4 |
24 x 14 | 508 | 610 | 355.6 |
24 x 12 | 508 | 610 | 323.9 |
24 x 10 | 508 | 610 | 273.1 |

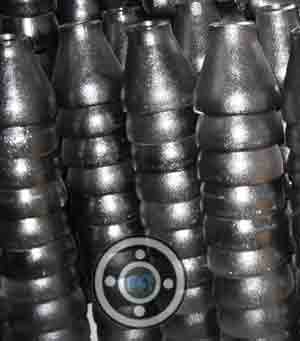

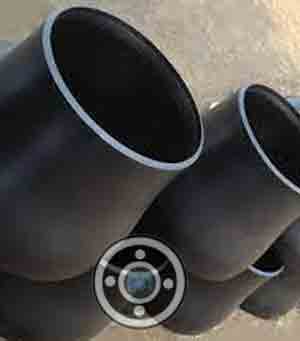

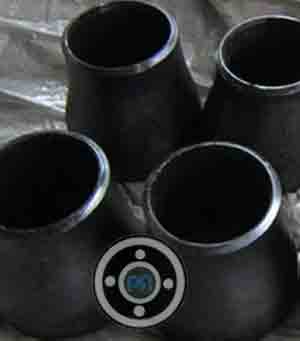

Nominal Pipe Size |
Outside Diameter |
Reducers | ||
---|---|---|---|---|
Reduced from (inches) |
(inches) | (mm) | Concentric & Eccentric Length (inches) |
Reduced to (inches) |
1/2 | 0.840 | 21.3 | 1 1/2 | 1/4 |
1 1/2 | 3/8 | |||
3/4 | 1.050 | 26.7 | 2 | 3/8 |
2 | 1/2 | |||
1 | 1.315 | 33.4 | 2 | 3/8 |
2 | 1/2 | |||
2 | 3/4 | |||
1 1/4 | 1.660 | 42.2 | 2 | 1/2 |
2 | 3/4 | |||
2 | 1 | |||
1 1/2 | 1.900 | 48.3 | 2 1/2 | 1/2 |
2 1/2 | 3/4 | |||
2 1/2 | 1 | |||
2 1/2 | 1 1/4 | |||
2 | 2.375 | 60.3 | 3 | 3/4 |
3 | 1 | |||
3 | 1 1/4 | |||
3 | 1 1/2 | |||
2 1/2 | 2.875 | 73.0 | 3 1/2 | 1 |
3 1/2 | 1 1/4 | |||
3 1/2 | 1 1/2 | |||
3 1/2 | 2 | |||
3 | 3.500 | 88.9 | 3 1/2 | 1 |
3 1/2 | 1 1/2 | |||
3 1/2 | 2 | |||
3 1/2 | 2 1/2 | |||
3 1/2 | 4.000 | 101.6 | 4 | 1 1/4 |
4 | 1 1/2 | |||
4 | 2 | |||
4 | 2 1/2 | |||
4 | 3 | |||
4 | 4.500 | 114.3 | 4 | 1 1/2 |
4 | 2 | |||
4 | 2 1/2 | |||
4 | 3 | |||
4 | 3 1/2 | |||
5 | 5.563 | 141.3 | 5 | 2 |
5 | 2 1/2 | |||
5 | 3 | |||
5 | 3 1/2 | |||
5 | 4 | |||
6 | 6.625 | 168.3 | 5 1/2 | 2 1/2 |
5 1/2 | 3 | |||
5 1/2 | 3 1/2 | |||
5 1/2 | 4 | |||
5 1/2 | 5 | |||
8 | 8.625 | 219.1 | 6 | 3 |
6 | 3 1/2 | |||
6 | 4 | |||
6 | 5 | |||
6 | 6 | |||
10 | 10.750 | 273.1 | 7 | 4 |
7 | 5 | |||
7 | 6 | |||
7 | 8 | |||
12 | 12.750 | 323.9 | 8 | 5 |
8 | 6 | |||
8 | 8 | |||
8 | 10 |
ASTM A420 WPL6 Pipe Fittings Price Per Piece in India | Price Applicable for jan 2022 to june 2022 | Price Applicable for July 2022 to December 2022 |
ASTM A420 LTCS WPL6 1/2″ Cap Per Piece | US $28.93 | US $30.93 |
A420 WPL6 1-1/2″ x 1-1/2″ x 1-1/4″ Reducing Tee Per Piece | US $94.61 | US $96.61 |
ASTM A420 WPL6 3″ x 3″ x 1″ Reducing Tee Per Piece | US $146.13 | US $148.13 |
LTCS ASTM A420 WPL6 4″ Cap Per Piece | US $70.43 | US $72.43 |
ASTM A420 LTCS WPL6 1-1/2″ Long Radius Elbow Per Piece | US $32.87 | US $34.87 |
Low Temperature Carbon Steel A420 WPL6 2″ x 3/4″ Concentric Reducer Per Piece | US $112.11 | US $114.11 |
Petromet Flange is ASTM A420 WPL6 Pipe Fittings Manufacturer in India, Contact us to get latest price list of A420 Gr. WPL6 Tee, We are leading Supplier and Exporter of ASTM A420 WPL6 Elbow.
Impact Test Temperature | -45℃ |
Grade
|
C
|
Mn
|
P
|
S
|
Si
|
WPL6(1)(2)
|
0.3
|
0.60-1.35
|
0.035
|
0.04
|
0.15-0.30
|
Tensile Strength (KSI)
|
Yield Strength (KSI)
|
60-95
|
35
|
Melting Point | 1480 - 1526 °C |
Temperature Range | 700°F |

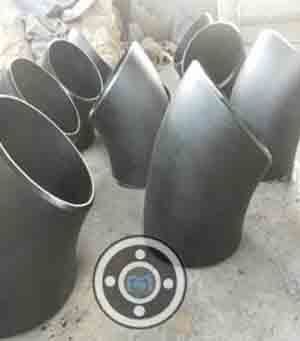

Carbon Steel LTCS 90° Long Radius Elbow
LTCS A420 90° Short Radius Elbow

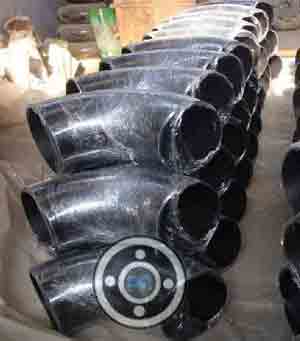

SCH 160 LTCS 45° Long Radius Elbow

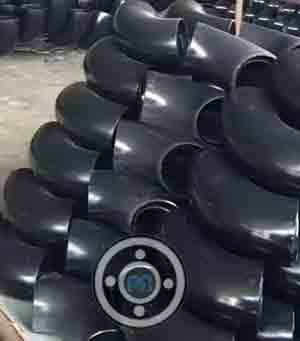

LTCS Carbon Steel 45° Short Radius Elbow

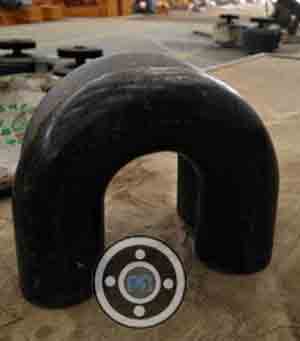

SCH XXS ASTM A420 Gr.WPL6 Smls 180° Long Radius Elbow
ASTM A420 WPL6-S 180° Short Radius Elbow

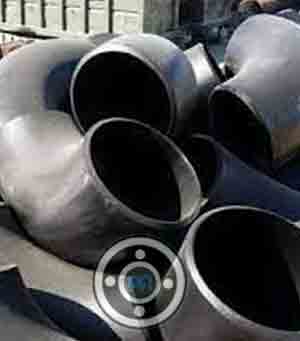

SCH 140 LTCS Grade WPL6 1D Elbow
Carbon Steel LTCS 1.5D Elbow
LTCS Gr WPL6 3D Elbow
SCH XS A420 Grade WPL6 5D Elbow

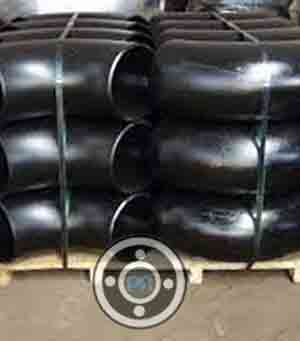

ASTM A420 Grade WPL6 10D ELBOW
SCH 10 LTCS A420 WPL6 Seamless Buttwelding 45° and 90° Elbows
A420 Gr. WPL6 Welded Elbows

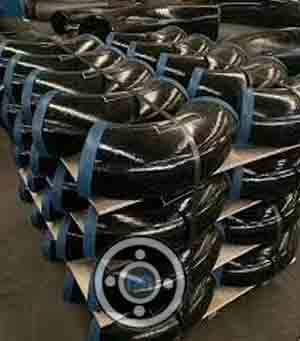

Low Temperature Steel Seamless Buttwelding 180° Returns
ASTM A420 WPL6 LTCS Straight Tees and Crosses
SCH 20 ASTM A420 Gr WPL6 Reducing Outlet Tees and Reducing Outlet Crosses
A420 WPL6 Equal Tee
450 NB SCH 40 LTCS Gr WPL6 Reducing Tee

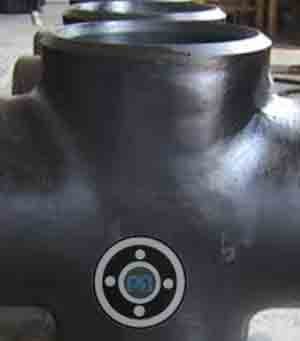

A420 LTCS WPL6 Equal Cross

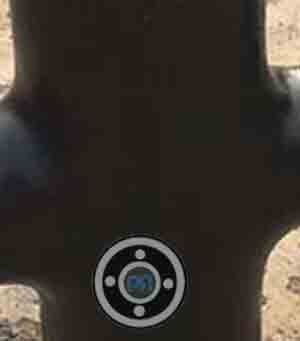

ASTM A420 WPL6 Reducing Cross
LTCS Grade WPL6 Reducers

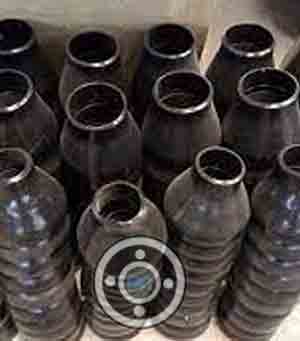

SCH STD LTCS Carbon Steel Concentric Reducer
LTCS ASTM A420 WPL6 Eccentric Reducer
Low Temperature Steel Stub End
Low Temperature Steel Lap Joint Stub Ends
SCH 120 ASTM A420 Gr WPL6-S Long Stubend
Low Temperature WPL6 Short Stubend

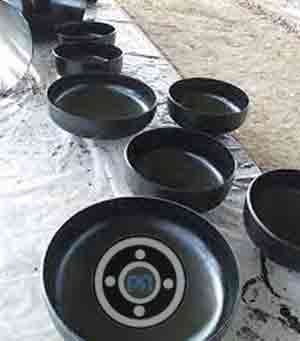

15 NB SCH 100 Low Temperature Carbon Steel Pipe Cap

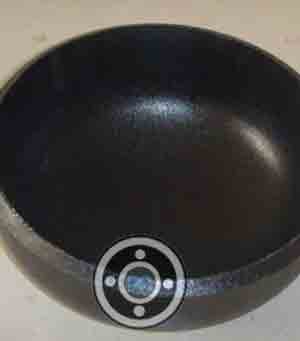

ASTM A420 WPL6 LTCS End Cap

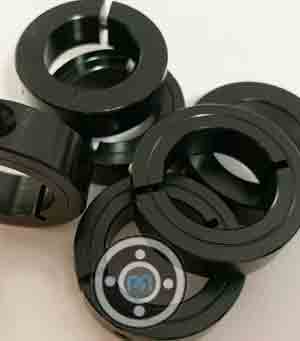

SCH 60 LTCS Carbon Steel Collar

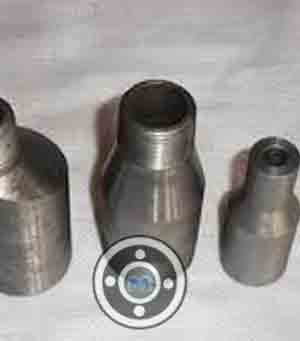

LTCS A420 Swage Nipple

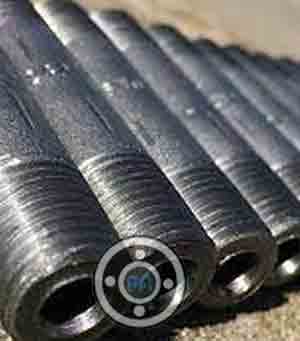

LTCS WPL6 Pipe Nipples

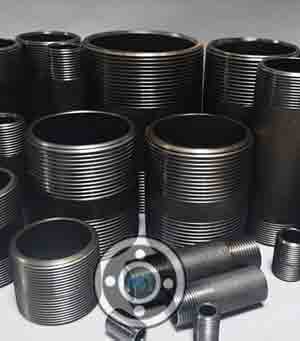

A420 Gr WPL6 Barrel Nipple

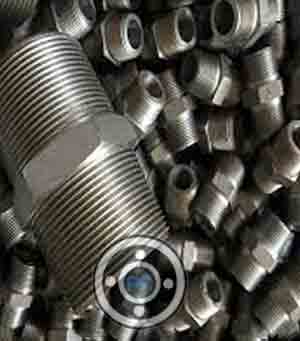

SCH 80 LTCS Reducing Nipple

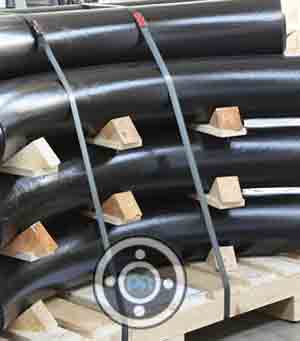

LTCS ASTM A420 WPL6 Bend

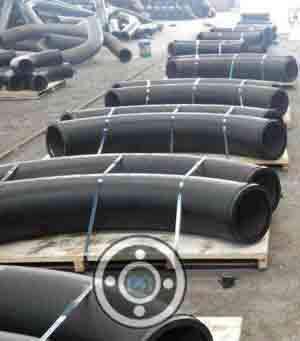

SCH 30 Carbon Steel LTCS Long Radius Bend
Size of Specimen | A* | B* | ||
---|---|---|---|---|
mm | ft·lbf | J | ft·lbf | J |
10 by 10.0 | 13 | 17.6 | 10 | 13.6 |
10 by 7.5 | 10 | 13.6 | 8 | 10.8 |
10 by 5.0 | 7 | 9.5 | 5 | 7.0 |
10 by 2.5 | 4 | 5.4 | 3 | 4.1 |
ASTM A420 WPL6 Cross | Low Temperature Steel U Bend |
A420 Elbow Pipe Fittings | LTCS Grade BW Tee Fittings |
ASTM A420 90 Deg Long Radius Elbow | LTCS Pipe Cap |
ASTM A420 Gr WPL6 Equal Tee Fittings | LTCS Carbon Steel Lateral Tee |
A420 Grade WPL6 Seamless Pipe Fitting | Carbon Steel LTCS 180 Deg Short Radius Elbow |
A420 LTCS Pipe Cross | ASTM A420 5D Bend |
LTCS Pipe Tee Fittings | A420 Reducer |
LTCS A420 Welded Pipe Fittings | ASTM A420 Pipe End Cap |
LTCS ASTM A420 180 Deg Long Radius Elbow | ASTM A420 90 Deg Short Radius Elbow |
ASTM A420 Gr WPL6-S Long Radius Bend | LTCS A420 Pipe Reducer |
ASTM A420 CS Eccentric Reducer | A420 Straight Cross |
ASTM A420 Smls Reducing Cross | LTCS 45 Deg Short Radius Elbow |
LTCS A420 Seamless Butt Weld Fittings | LTCS A420 Seamless Bend Pipe |
A420 Carbon Steel Eccentric Reducer | LTCS A420 End Cap |
Low Temperature WPL6 Pipe Bends | LTCS WPL6 Equal Cross |
A420 LTCS WPL6 Reducing Tee Fittings | ASTM A420 LTCS Pipe Nipple |
LTCS A420 Buttweld Elbow | Low Temperature Steel 45 Deg Long Radius Elbow |
LTCS Carbon Steel Buttweld Fittings | LTCS Grade WPL6 End Pipe Cap |
Carbon Steel LTCS Tees | LTCS Stubends Fittings |
LTCS WPL6 Elbow Fittings | LTCS Carbon Steel Concentric Reducer Fittings |
ASTM A420 Stub End | Carbon Steel LTCS Seamless Tee Fittings |
*Temp. | -20~100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 |
*YS | 35.0 | 32.9 | 32.1 | 31.5 | 31.0 | 22.9 | 28.5 | 26.8 |
*Temp. | 650 | 700 | 750 | 800 | 850 | 900 | 950 | 1000 |
*YS | 25.9 | 25.1 | 24.2 | 23.5 | 22.8 | 22.1 | 21.5 | 20.8 |
SCH40 ASTM A420 WPL6 Eccentric Reducer
Concentric Reducer SCH 30 LTCS ASTM A420 WPL6 BE ASME B16.9

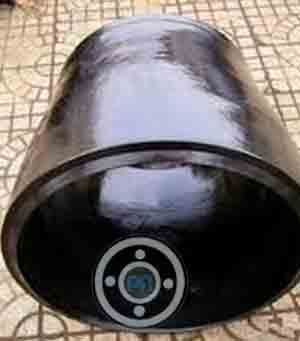

ASTM A420 WPL6 8inch x 4inch SCH40 Eccentric Reducer
Low Temperature Carbon Steel Elbow
ASTM A420 WPL6 Elbow
ASME SA 420 WPL6 Elbow
6 in SCH40 ASTM A420 WPL6 Tee
A420 Gr. WPL6 Tee
8 inch A420 WPL6 Reducing Tee
*Temp. | -20~100 | 300 | 600 | 400 | 500 | 200 | 650 |
*TS | 60.0 | 60.0 | 60.0 | 60.0 | 60.0 | 60.0 | 60.0 |
*Temp. | 700 | 800 | 950 | 850 | 900 | 750 | 1000 |
*TS | 60.0 | 55.1 | 39.4 | 50.2 | 44.8 | 59.3 | 34.6 |
Pipe Fittings Material
Flanges Material
Other Products
