What is Monel 400 Pipe Fittings?
The Monel 400 material is an alloy with copper and nickel as its main components. It is high in strength and can retain its properties upto the temperature of 538 degrees C. It is a ductile material that has a good resistance against various corrosive conditions. Due to its properties, the Monel 400 Pipe Fittings are used in a wide range of environments, starting from oxidizing to reducing conditions. They are also used in marine equipment and chloride solutions that are non-oxidizing in nature.
The Monel 400 has low strength in annealed conditions, and that is why different tempers are used for increasing its strength levels. They are one of the few materials that can maintain a considerable amount of strength in cryogenic or sub-zero temperatures, and hence it is often used in such applications. They are widely used in industries such as chemical engineering, marine engineering, hydrocarbon processing, etc. It has a moderate magnetic permeability and a melting point of 1350 degrees C, and hence they can be used for high temperature applications. They have a high tolerance, and come with a good fabricability. Different types of finishing can be applied on the Monel 400 Forged Fittings, to resist corrosion and improve its appearance.

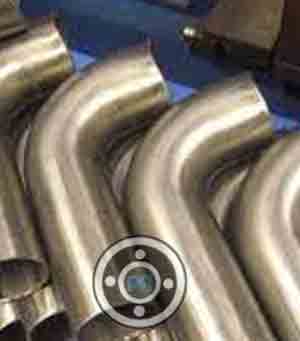

ASTM B366 Nickel 400 Bend Vs Alloy 400 Short Radius Elbow

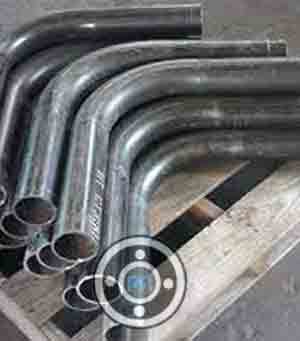

The ASTM B366 Nickel 400 Bend can be described as a piece of pipe that is bent at a certain angle and can be used for joining two piping systems. They are available in all bending radius and angles, and can easily be customized according to requirements. It minimizes the changes in pressure while routing materials through different complex piping systems.

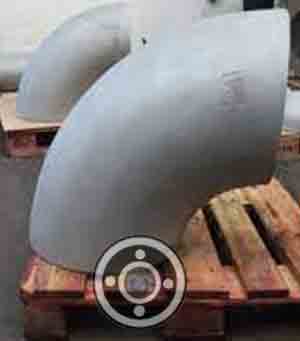

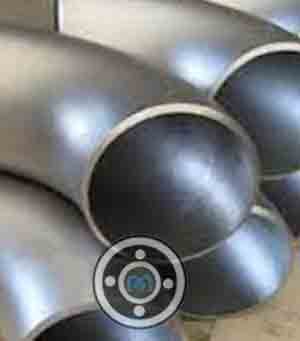

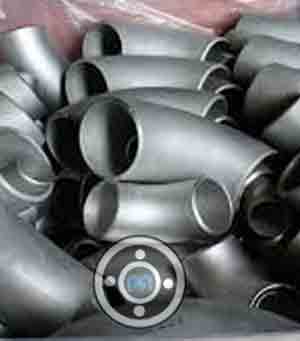

The Alloy 400 Short Radius Elbow helps to change the flow direction in the pipe run. It is available in 45 and 90 degree angles. For a short radius elbow, the radius of curvature is equal to that of the diameter of the pipe.
UNS N04400 Tee Vs DIN 2.4360 Stub End

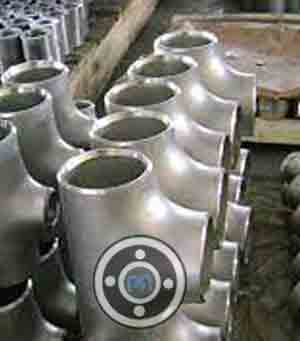

The UNS N04400 Tee is a T-shaped pipe fittings used for various purposes. They help in combining or dividing the flow in the pipe. They also help to change the flow direction and control the flow rate inside the pipe.

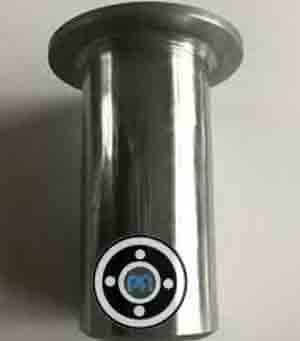

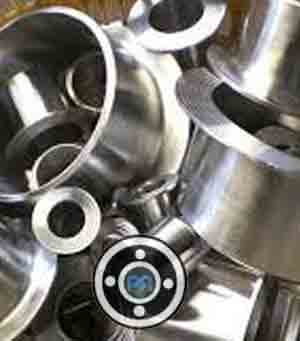

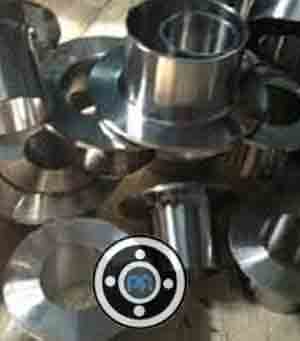

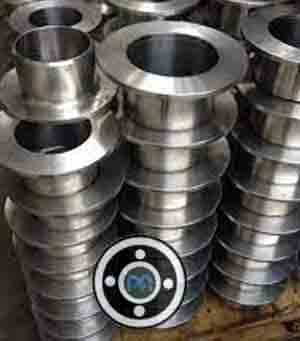

The DIN 2.4360 Stub End are buttweld fittings that are used with a lap joint flange to make flanged connections. They are mostly used as an alternative to the weld neck flanges.

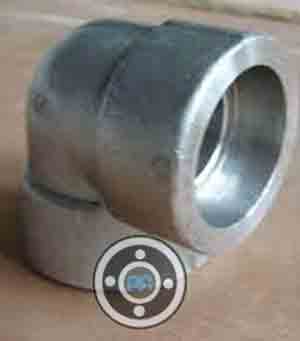

Is Monel 400 Forged Fittings are magnetic?
The Monel 400 Forged Fittings are slightly magnetic at room temperature. They are widely used in industries like marine, oil and chemical.
Monel 400 Pipe Fittings
Monel 400 Pipe Fittings Specifications | ASTM B366 |
---|---|
Monel 400 Buttweld Fitting Thickness | SCH30, SCH10, SCH 160, SCH20, SCH60, XS, STD SCH40, SCH 80, SCH 120, SCH 140, SCH 100, XXS available with NACE MR 01-75 |
Monel Pipe Fittings Sizes | UNS N04400 Seamless Fittings: 1/2" - 10"

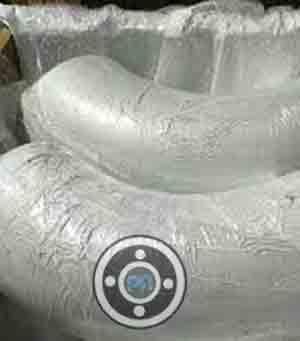

ASME B16 9 Nickel Alloy 400 Welded Fittings: 1/2" - 48" |
Monel 400 Fittings Type Manufacturer | DN15-DN1200 |
Monel Fittings Connection | Welding |
ASME B16.9 Monel 400 Pipe Fittings Test Certificates | EN 10204/3.1B
Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |

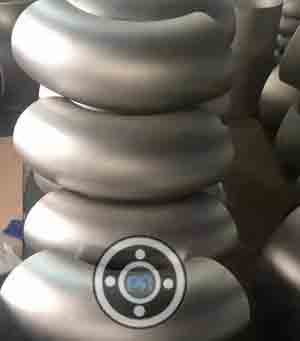

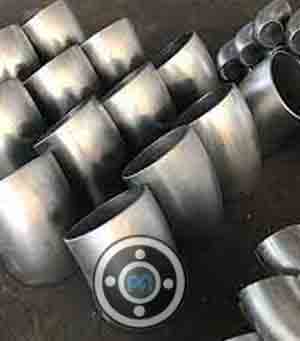

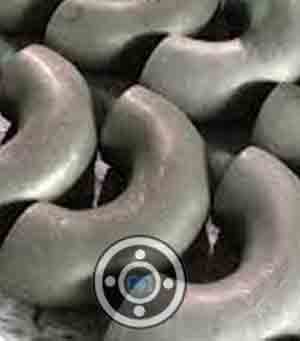

Bending Radius Provided By Monel 400 Fittings Manufacturer | R=1D, 3D, 2D, 5D, 8D, 6D, 10D or Custom |
Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Nickel Alloy 400 Buttweld Fittings |
ASTM B366 UNS N04400 Fitting Dimensions | ASME B16.28, ASME/ANSI B16.9, BS4504, MSS-SP-43, BS1560, BS4504, BS10 |
Monel Alloy 400 Elbows Manufacturer | Angle : 22.5 deg, 45 deg, 30deg, 90 deg, 1.0D, 180 deg, 1.5D, 3D, 2.5D, 2.0D, 4D, 6D, 5D, 7D-40D .
Standard: ASME B16.28, GB, ASME B16.9, MSS SP-75 JISB2311 DIN2605 JISB2312 JISB2313, ASME B16.25, BS, ISO |
Monel 400 Pipe Fitting Manufacturing process | Push, Forge, Press, Cast, etc. |
Specialized manufacturer of | Nickel 400 Stub End, 90º Elbows, Tees, Pipe Cap, Crosses, 45º Elbows, Reducers, Pipe Bend |

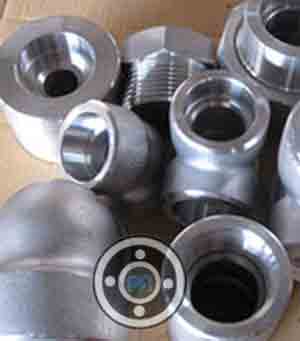

Monel Threaded Fittings Thread Provided By Manufacturer | BSPT, NPT, BSPP |
Monel 400 Fitting Origin & Mills | European, Japanese, USA, Korean, Ukraine, Indian, Russian |
Monel 400 Forged Fitting Pressure Rating | Threaded end - 3000lb/ 2000lb/ 6000lbs
Socket weld end- 6000/ 3000/ 9000lbs |
W.nr. 2.4360 Products Manufacturer | Half Coupling, Union, Tee, Cross, Coupling, Cap, Outlet, Welding Outlet, Boss, Insert |
Dimension Specification | MSS SP-79, 95, 83, 97, BS 3799, ASME 16.11 |
Application of Industrial Monel Buttweld Fitting |
|
Are you looking for Monel Pipe Fittings Suppliers, importer, dealers, wholesalers, stockists, stockholders, distributor, exporters and Manufacturer in Mumbai.

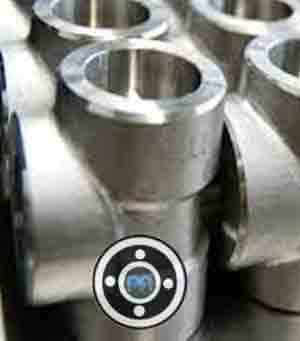

Alloy 400 Forged Tee

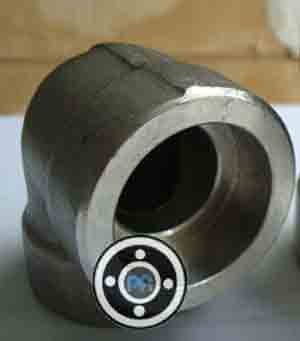

Monel Alloy 400 Forged Elbow

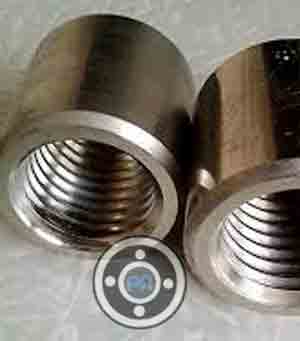

Nickel Alloy 400 Forged Coupling

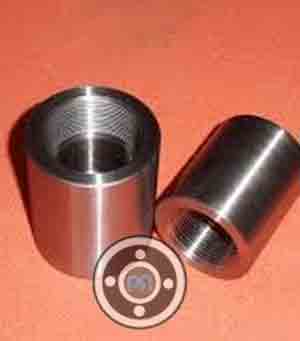

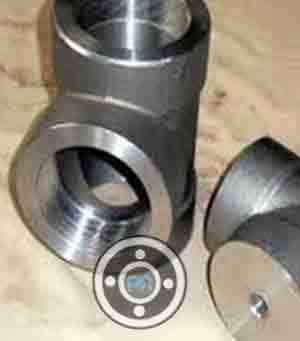

Monel 400 Socket Weld Full Coupling

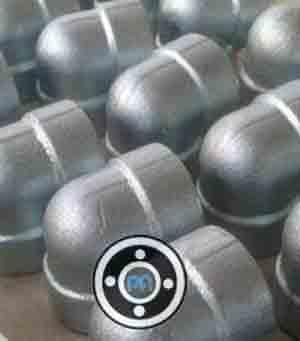

Nickel 400 SW Elbow

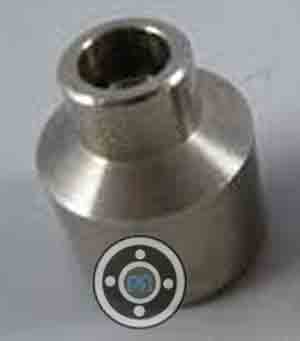

W.nr. 2.4360 Socket Weld Adapters

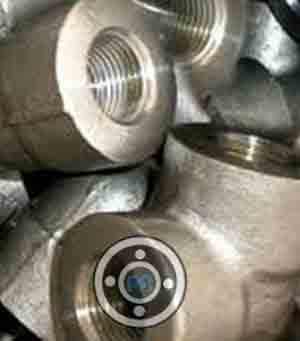

400 Monel Threaded Elbow
UNS N04400 Threaded Coupling

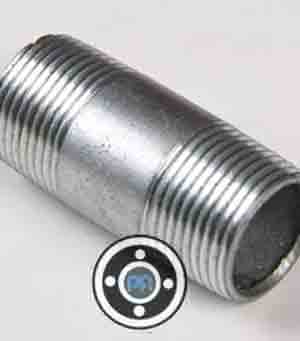

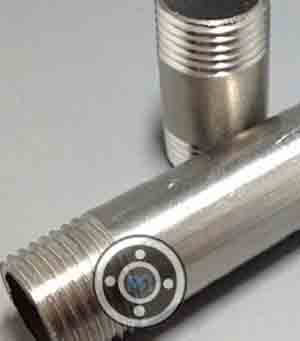

Nickel Alloy 400 Threaded Nipple
Monel 400 Pipe Fittings Price Per Piece in India | Monel Fittings Price in INR | Alloy 400 Buttweld Fittings Price in UAE Dirham | Nickel 400 Fittings Price in USD |
UNEQUAL TEE CLASS 3000,SWF,FORGED,ASTM B 366 GR CRNC, MONEL400(UNSN04400),PER MSS SP-97 Per Kg | 43127 | UAE Dirham 2120.23 | $577.26 |
SOCKETWELD STRAIGHT TEE, CLASS 3000,FORGED,ASTM B 366 GR WPNC-S,MONEL ALLOY 400 Per Unit | 25,640 | UAE Dirham 1260.53 | $343.20 |
90 DEG. SOCCKETWELD ELBOW, CLASS 3000, FORGED, ASTM B 366 GRWPNC-S, MONEL ALLOY 400 Per Kg | 35,397 | UAE Dirham 1740.27 | $473.80 |
ELBOW 1.5, SCH.XXS,BW 90 DEG LR, SB366 UNS N04400 Per Unit | 36,037 | UAE Dirham 1771.74 | $482.38 |
We are well known Monel Pipe Fittings Manufacturers in India, We supply and stock Monel 400 Forged Fittings. Contact us to get latest price list and available sizes of Alloy 400 Fittings
NPS | KG | LBS |
1/2 | 0.11 | 0.25 |
3/4 | 0.11 | 0.25 |
1 | 0.23 | 0.5 |
1¼ | 0.41 | 0.9 |
1½ | 0.52 | 1.15 |
2 | 1 | 2.2 |
2½ | 1.81 | 4 |
3 | 2.95 | 6.5 |
3½ | 3.79 | 8.35 |
4 | 6.12 | 13.5 |
5 | 9.98 | 22 |
6 | 15.88 | 35 |
8 | 32.21 | 71 |
10 | 48.53 | 107 |
12 | 72.57 | 160 |
14 | 92.99 | 205 |
16 | 125.19 | 276 |
18 | 154.22 | 340 |
20 | 190.51 | 420 |
22 | 235.87 | 520 |
24 | 272.16 | 600 |
26 | 330.67 | 729 |
30 | 442.25 | 975 |
36 | 640.47 | 1412 |

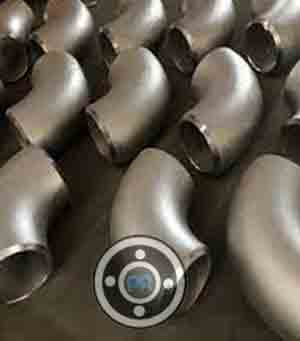

Nominal Pipe Size | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
---|---|---|---|---|---|---|---|---|
(inches)
|
Long Radius
|
Short Radius
|
Long Radius
|
Long Radius
|
||||
(mm)
|
(inches)
|
Center to Face
(inches) |
Center to Face
(inches) |
Center to Face
(inches) |
Radius
(inches) |
Center to Center
(inches) |
Back to face
(inches) |
|
1/2
|
21.3
|
0.840
|
1 1/2
|
-
|
5/8
|
2
|
1 7/8
|
|
3/4
|
26.7
|
1.050
|
1 1/8
|
-
|
7/16
|
2 1/4
|
1 11/16
|
|
1
|
33.4
|
1.315
|
1 1/2
|
1
|
7/8
|
3
|
2 3/16
|
|
1 1/4
|
42.2
|
1.660
|
1 7/8
|
1 1/4
|
1
|
3 3/4
|
2 3/4
|
|
1 1/2
|
48.3
|
1.900
|
2 1/4
|
1 1/2
|
1 1/8
|
3
|
4 1/2
|
3 1/4
|
2
|
60.3
|
2.375
|
3
|
2
|
1 3/8
|
4
|
6
|
4 3/16
|
2 1/2
|
73.0
|
2.875
|
3 3/4
|
2 1/2
|
1 3/4
|
5
|
7 1/2
|
5 3/16
|
3
|
88.9
|
3.500
|
4 1/2
|
3
|
2
|
6
|
9
|
6 1/4
|
3 1/2
|
101.6
|
4.000
|
5 1/4
|
3 1/2
|
2 1/4
|
7
|
10 1/2
|
7 1/4
|
4
|
114.3
|
4.500
|
6
|
4
|
2 1/2
|
8
|
12
|
8 1/4
|
5
|
141.3
|
5.563
|
7 1/2
|
5
|
3 1/8
|
10
|
15
|
10 5/16
|
6
|
168.3
|
6.625
|
9
|
6
|
3 3/4
|
12
|
18
|
12 5/16
|
8
|
219.1
|
8.625
|
12
|
8
|
5
|
12
|
24
|
16 5/16
|
10
|
273.1
|
10.750
|
15
|
10
|
6 1/4
|
15
|
30
|
20 3/8
|
12
|
323.9
|
12.750
|
18
|
12
|
7 1/2
|
18
|
36
|
24 3/8
|
NPS | O.D. D |
90° 3D Center to End A |
45° 3D Center to End B |
45° Long Rad Center to End B |
90° Long Rad Center to End A |
18 | 457 | 1372 | 568 | 286 | 686 |
20 | 508 | 1524 | 632 | 318 | 762 |
22 | 559 | 1676 | 694 | 343 | 838 |
24 | 610 | 1829 | 757 | 381 | 914 |
26 | 660 | 1981 | 821 | 406 | 991 |
28 | 711 | 2134 | 883 | 438 | 1067 |
30 | 762 | 2286 | 946 | 470 | 1143 |
32 | 813 | 2438 | 1010 | 502 | 1219 |
34 | 864 | 2591 | 1073 | 533 | 1295 |
36 | 914 | 2743 | 1135 | 565 | 1372 |
38 | 965 | 2896 | 1200 | 600 | 1448 |
40 | 1016 | 3048 | 1264 | 632 | 1524 |
42 | 1067 | 3200 | 1326 | 660 | 1600 |
44 | 1118 | 3353 | 1389 | 695 | 1676 |
46 | 1168 | 3505 | 1453 | 727 | 1753 |
48 | 1219 | 3658 | 1516 | 759 | 1829 |
Nominal Size | SCH20 | STD | SCH40S | SCH80S | SCH120 | SCH160 | |
DN | NPS | ||||||
15 | 1/2 | 0.08 | 0.08 | 0.1 | |||
20 | 3/4 | 0.17 | 0.17 | 0.2 | |||
25 | 1 | 0.21 | 0.21 | 0.25 | 0.22 | ||
32 | 1 1/4 | 0.29 | 0.29 | 0.35 | |||
40 | 1 1/2 | 0.42 | 0.42 | 0.58 | 0.6 | ||
50 | 2 | 0.8 | 0.8 | 1.03 | 1.04 | ||
65 | 2 1/2 | 1.05 | 1.05 | 1.42 | 1.65 | ||
80 | 3 | 1.36 | 1.36 | 1.9 | |||
90 | 3 1/2 | 1.63 | 1.63 | 2.27 | 2.4 | ||
100 | 4 | 2.77 | 2.77 | 3.93 | 4.4 | ||
125 | 5 | 3.96 | 3.96 | 6 | 7.14 | ||
150 | 6 | 6.31 | 6.31 | 9.26 | 10.8 | ||
200 | 8 | 7.85 | 10.7 | 10.7 | 17.5 | 15 | 18.4 |
250 | 10 | 11.2 | 15.8 | 16.3 | 25.1 | 25.1 | 32.5 |
300 | 12 | 25.6 | 28.8 | 32.1 | 56.5 | 41.7 | 53.3 |
350 | 14 | 30.5 | 38.5 | 48.8 | 79 | 84.5 | 106 |
400 | 16 | 35.2 | 44.5 | 64.3 | 102 | 112 | 143 |
450 | 18 | 62.7 | 62.7 | 98.5 | 165 | ||
500 | 20 | 72.6 | 72.6 | 181 | |||
550 | 22 | 97 | 79.1 | 142 | 226 | ||
600 | 24 | 130 | 100 |

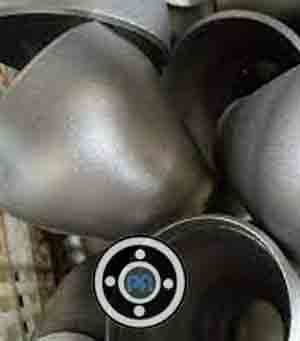

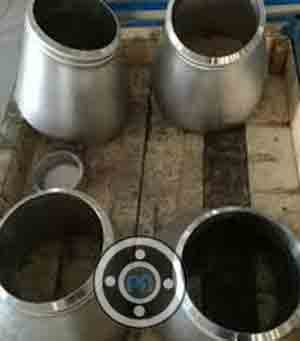

Nominal Pipe Size |
Outside Diameter |
Reducers | ||
---|---|---|---|---|
Reduced from (inches) |
(inches) | (mm) | Concentric & Eccentric Length (inches) |
Reduced to (inches) |
1/2 | 0.840 | 21.3 | 1 1/2 | 1/4 |
1 1/2 | 3/8 | |||
3/4 | 1.050 | 26.7 | 2 | 3/8 |
2 | 1/2 | |||
1 | 1.315 | 33.4 | 2 | 3/8 |
2 | 1/2 | |||
2 | 3/4 | |||
1 1/4 | 1.660 | 42.2 | 2 | 1/2 |
2 | 3/4 | |||
2 | 1 | |||
1 1/2 | 1.900 | 48.3 | 2 1/2 | 1/2 |
2 1/2 | 3/4 | |||
2 1/2 | 1 | |||
2 1/2 | 1 1/4 | |||
2 | 2.375 | 60.3 | 3 | 3/4 |
3 | 1 | |||
3 | 1 1/4 | |||
3 | 1 1/2 | |||
2 1/2 | 2.875 | 73.0 | 3 1/2 | 1 |
3 1/2 | 1 1/4 | |||
3 1/2 | 1 1/2 | |||
3 1/2 | 2 | |||
3 | 3.500 | 88.9 | 3 1/2 | 1 |
3 1/2 | 1 1/2 | |||
3 1/2 | 2 | |||
3 1/2 | 2 1/2 | |||
3 1/2 | 4.000 | 101.6 | 4 | 1 1/4 |
4 | 1 1/2 | |||
4 | 2 | |||
4 | 2 1/2 | |||
4 | 3 | |||
4 | 4.500 | 114.3 | 4 | 1 1/2 |
4 | 2 | |||
4 | 2 1/2 | |||
4 | 3 | |||
4 | 3 1/2 | |||
5 | 5.563 | 141.3 | 5 | 2 |
5 | 2 1/2 | |||
5 | 3 | |||
5 | 3 1/2 | |||
5 | 4 | |||
6 | 6.625 | 168.3 | 5 1/2 | 2 1/2 |
5 1/2 | 3 | |||
5 1/2 | 3 1/2 | |||
5 1/2 | 4 | |||
5 1/2 | 5 | |||
8 | 8.625 | 219.1 | 6 | 3 |
6 | 3 1/2 | |||
6 | 4 | |||
6 | 5 | |||
6 | 6 | |||
10 | 10.750 | 273.1 | 7 | 4 |
7 | 5 | |||
7 | 6 | |||
7 | 8 | |||
12 | 12.750 | 323.9 | 8 | 5 |
8 | 6 | |||
8 | 8 | |||
8 | 10 |
NOMINAL PIPE SIZE | END TO END | OUTSIDE DIAMETER | |
---|---|---|---|
Inch | H | D | P |
3/4 x 1/2 | 38 | 26.7 | 21.3 |
3/4 x 3/8 | 38 | 26.7 | 17.1 |
1 x 3/4 | 51 | 33.4 | 26.7 |
1 x 1/2 | 51 | 33.4 | 21.3 |
1 1/4 x 1 | 51 | 42.2 | 33.4 |
1 1/4 x 3/4 | 51 | 42.2 | 26.7 |
1 1/4 x 1/2 | 51 | 42.2 | 21.3 |
1 1/2 x 1 1/2 | 64 | 48.3 | 42.2 |
1 1/2 x 1 | 64 | 48.3 | 33.4 |
1 1/2 x 3/4 | 64 | 48.3 | 26.7 |
1 1/2 x 1/2 | 64 | 48.3 | 21.3 |
2 x 1 1/2 | 76 | 60.3 | 48.2 |
2 x 1 1/4 | 76 | 60.3 | 42.2 |
2 x 1 | 76 | 60.3 | 33.4 |
2 x 3/4 | 76 | 60.3 | 26.7 |
2 1/2 x 2 | 89 | 73 | 60.3 |
2 1/2 x 1 1/2 | 89 | 73 | 48.3 |
2 1/2 x 1 1/4 | 89 | 73 | 42.2 |
2 1/2 x 1 | 89 | 73 | 33.4 |
3 x 2 1/2 | 89 | 88.9 | 73 |
3 x 2 | 89 | 88.9 | 60.3 |
3 x 1 1/2 | 89 | 88.9 | 48.3 |
3 x 1 1/4 | 89 | 88.9 | 42.2 |
3 1/2 x 3 | 102 | 101.6 | 88.9 |
3 1/2 x 21/2 | 102 | 101.6 | 73 |
3 1/2 x 2 | 102 | 101.6 | 60.3 |
3 1/2 x 1 1/2 | 102 | 101.6 | 48.3 |
3 1/2 x 1 1/4 | 102 | 101.6 | 42.2 |
4 x 3 1/2 | 102 | 114.3 | 101.6 |
4 x 3 | 102 | 114.3 | 88.9 |
4 x 2 1/2 | 102 | 114.3 | 73 |
4 x 2 | 102 | 114.3 | 60.3 |
4 x 1 1/2 | 102 | 114.3 | 48.3 |
5 x 4 | 127 | 141.3 | 114.3 |
5 x 3 1/2 | 127 | 141.3 | 101.6 |
5 x 3 | 127 | 141.3 | 88.9 |
5 x 2 1/2 | 127 | 141.3 | 73 |
5 x 2 | 127 | 141.3 | 60.3 |
6 x 5 | 140 | 168.3 | 141.3 |
6 x 4 | 140 | 168.3 | 114.3 |
6 x 3 1/2 | 140 | 168.3 | 101.6 |
6 x 3 | 140 | 168.3 | 88.9 |
6 x 2 1/2 | 140 | 168.3 | 73 |
8 x 6 | 152 | 219.1 | 168.3 |
8 x 5 | 152 | 219.1 | 141.3 |
8 x 4 | 152 | 219.1 | 114.3 |
8 x 3 1/2 | 152 | 219.1 | 101.6 |
10 x 8 | 178 | 273.1 | 219.1 |
10 x 6 | 178 | 273.1 | 168.1 |
10 x 5 | 178 | 273.1 | 141.3 |
10 x 4 | 178 | 273.1 | 114.3 |
12 x 10 | 203 | 323.9 | 273.1 |
12 x 8 | 203 | 323.9 | 219.1 |
12 x 6 | 203 | 323.9 | 168.3 |
12 x 5 | 203 | 323.9 | 141.3 |
14 x 12 | 330 | 355.6 | 323.9 |
14 x 10 | 330 | 355.6 | 273.1 |
14 x 8 | 330 | 355.6 | 219.1 |
14 x 6 | 330 | 355.6 | 168.3 |
16 x 14 | 356 | 406.4 | 355.6 |
16 x 12 | 356 | 406.4 | 323.9 |
16 x 10 | 356 | 406.4 | 273.1 |
16 x 8 | 356 | 406.4 | 219.1 |
16 x 6 | 356 | 406.4 | 168.3 |
18 x 16 | 381 | 457 | 406.4 |
18 x 14 | 381 | 457 | 355.6 |
18 x 12 | 381 | 457 | 323.9 |
18 x 10 | 381 | 457 | 273.1 |
18 x 8 | 381 | 457 | 219.1 |
20 x 18 | 508 | 508 | 457 |
20 x 16 | 508 | 508 | 406.4 |
20 x 14 | 508 | 508 | 355.6 |
20 x 12 | 508 | 508 | 323.9 |
20 x 10 | 508 | 508 | 273.1 |
20 x 8 | 508 | 508 | 219.1 |
22 x 20 | 508 | 559 | 508 |
22 x 18 | 508 | 559 | 457 |
22 x 16 | 508 | 559 | 406.4 |
22 x 14 | 508 | 559 | 355.6 |
22 x 12 | 508 | 559 | 323.9 |
24 x 10 | 508 | 559 | 273.1 |
24 x 22 | 508 | 610 | 559 |
24 x 20 | 508 | 610 | 508 |
24 x 18 | 508 | 610 | 457 |
24 x 16 | 508 | 610 | 406.4 |
24 x 14 | 508 | 610 | 355.6 |
24 x 12 | 508 | 610 | 323.9 |
24 x 10 | 508 | 610 | 273.1 |
NOMINAL PIPE SIZE | LENGTH | CENTER TO END | OUTSIDE DIAMETER |
---|---|---|---|
Inch. | M | C | OD |
1/2 | 25 | 25 | 21.3 |
3/4 | 29 | 29 | 26.7 |
1 | 38 | 38 | 33.4 |
1 1/4 | 48 | 48 | 42.2 |
1 1/2 | 57 | 57 | 48.3 |
2 | 64 | 64 | 60.3 |
2 1/2 | 76 | 76 | 73 |
3 | 86 | 86 | 88.9 |
3 1/2 | 95 | 95 | 101.6 |
4 | 105 | 105 | 114.3 |
5 | 124 | 124 | 141.3 |
6 | 143 | 143 | 168.3 |
8 | 178 | 178 | 219.1 |
10 | 216 | 216 | 273.1 |
12 | 254 | 254 | 323.9 |
14 | 279 | 279 | 355.6 |
16 | 305 | 305 | 406.4 |
18 | 343 | 343 | 457.2 |
20 | 381 | 381 | 508 |
22 | 419 | 419 | 559 |
24 | 432 | 432 | 610 |
26 | 495 | 495 | 660 |
28 | 521 | 521 | 711 |
30 | 559 | 559 | 762 |
32 | 597 | 597 | 813 |
34 | 635 | 635 | 864 |
36 | 673 | 673 | 914 |
38 | 711 | 711 | 965 |
40 | 749 | 749 | 1016 |
42 | 711 | 762 | 1067 |
44 | 762 | 813 | 1118 |
46 | 800 | 851 | 1168 |
48 | 838 | 889 | 1219 |
NPS | KG | LBS |
1/2 | 0.16 | 0.35 |
3/4 | 0.2 | 0.45 |
1 | 0.34 | 0.75 |
1¼ | 0.59 | 1.3 |
1½ | 0.91 | 2 |
2 | 1.59 | 3.5 |
2½ | 2.72 | 6 |
3 | 3.18 | 7 |
3½ | 4.08 | 9 |
4 | 5.44 | 12 |
5 | 9.53 | 21 |
6 | 15.42 | 34 |
8 | 24.95 | 55 |
10 | 38.56 | 85 |
12 | 54.43 | 120 |
14 | 74.84 | 165 |
16 | 88.45 | 195 |
18 | 112.94 | 249 |
20 | 155.13 | 342 |
22 | 187.79 | 414 |
24 | 239.5 | 528 |
26 | 349.27 | 770 |
30 | 480.81 | 1060 |
36 | 675.85 | 1490 |
Monel Alloy 400 Reducing Nipple
Alloy 400 Long Stubend
SCH 160 Monel 400 90° Short Radius Elbow
UNS N04400 10D ELBOW

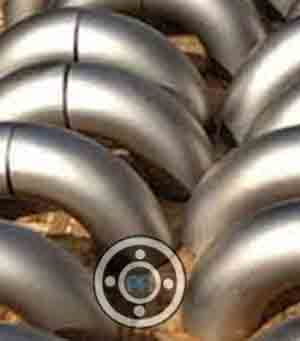

Nickel 400 45° Long Radius Elbow

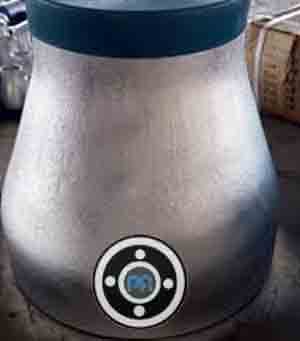

W.nr. 2.4360 Concentric Reducer

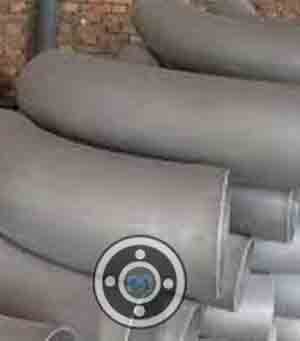

Monel 400 1D Elbow
SCH 120 400 Monel 180° Short Radius Elbow
SCH 80 Monel Alloy 400 Collar

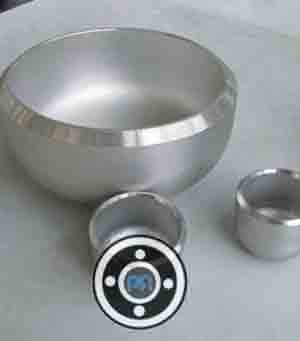

DIN 2.4360 End Cap

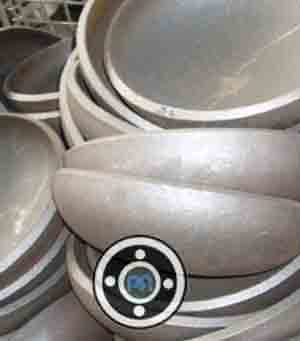

15 NB SCH 100 Monel UNS N04400 Pipe Cap
Monel 400 Welded Elbows
Monel UNS N04400 45° Short Radius Elbow

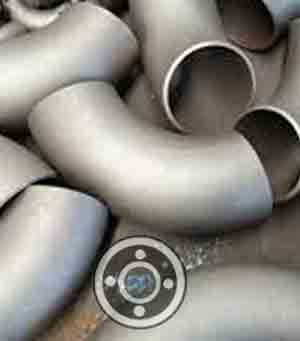

Nickel 400 1.5D Elbow
Monel Alloy 400 Short Stubend

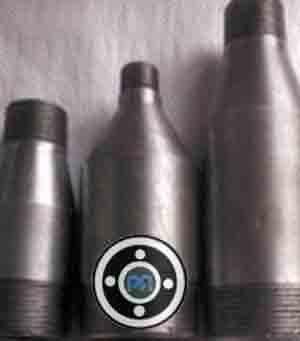

Monel UNS N04400 Swage Nipple
SCH STD Monel Eccentric Reducer
UNS N04400 Equal Cross

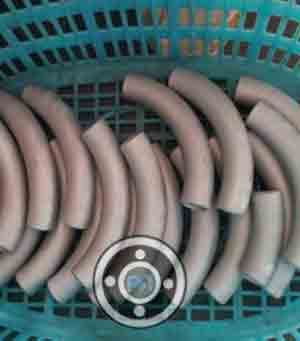

SCH XXS Monel Seamless Buttwelding 180° Returns
Monel 3D Elbow
SCH XS W.nr. 2.4360 5D Elbow
SCH 60 ASTM B366 UNS N04400 Lap Joint Stub Ends

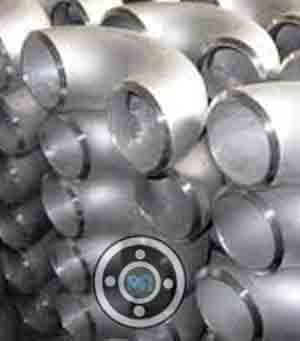

Nickel Alloy 400 180° Long Radius Elbow
Alloy 400 90° Long Radius Elbow

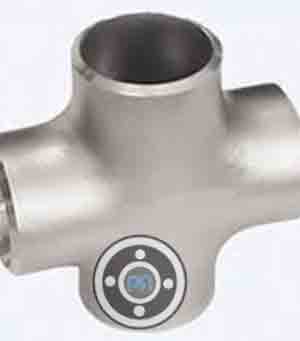

SCH 10 ASME SB366 UNS N04400 Reducing Cross
Monel Seamless Buttwelding 45° and 90° Elbows
DIN 2.4360 Stub End
SCH 30 Monel 400 Bend

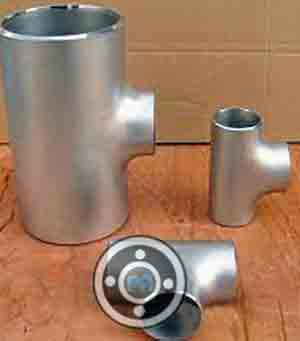

Monel Alloy 400 Straight Tees and Crosses

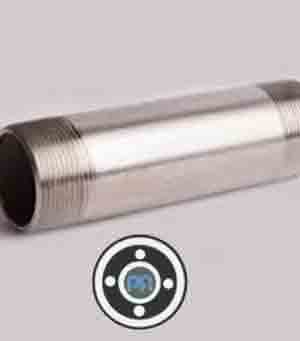

ASME SB366 UNS N04400 Barrel Nipple
400 Monel Reducers
Nickel 400 Equal Tee

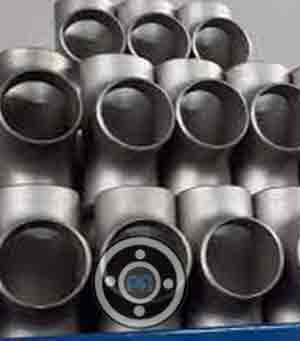

SCH 140 ASTM B366 UNS N04400 Reducing Outlet Tees and Reducing Outlet Crosses
450 NB SCH 40 Nickel Alloy 400 Pipe Nipples
Nickel 400 Long Radius Bend

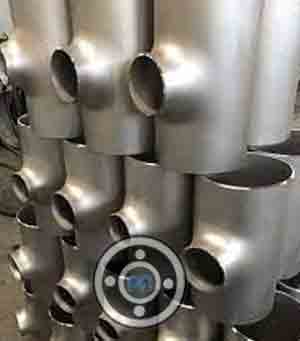

SCH 20 Monel UNS N04400 Reducing Tee
Monel Forged Fittings
Nickel Alloy 400 Elbow

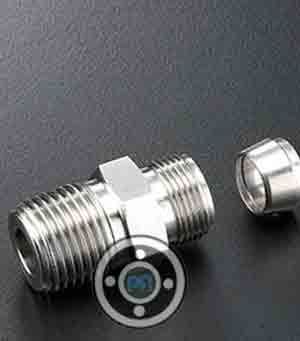

DIN 2.4360 Monel Tube Fittings
Monel Socket Weld Fittings
Monel Threaded Fittings
Monel Fittings

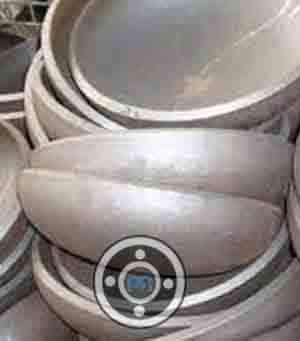

Alloy 400 Pipe Cap
DIN 2.4360 Eccentric Reducer
Monel Pipe Fittings
Monel 400 | Ni | C | Al | Mn | Si | Fe | Cu | S | Co | Cr |
63.0 min | 0.3 max | 0.50 max | 2.0 max | 0.5 max | 1.0 – 2.5 | 28.0 – 34.0 | 0.02 max | – | – |
Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
8.8 g/cm3 | 1350 °C (2460 °F) | Psi - 35,000 , MPa - 240 | Psi - 80,000 , MPa - 550 | 40 % |
STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
Monel 400 | N04400 | 2.4360 | NU-30M | NiCu30Fe | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 |
Property | Value (Metric) | Value (Imperial) |
---|---|---|
Modulus of Elasticity | 179 GPa | 26,000 ksi |
Thermal Expansion (20ºC) | 13.9*10-6º C-1 | 7.7*10-6 in/(in*ºF) |
Specific Heat Capacity | 427 J/(kg*K) | 0.102 BTU/(lb*ºF) |
Thermal Conductivity | 21.8 W/(m*K) | 151 BTU*in/(hr*ft2*ºF) |
Electric Resistivity | 54.7*10-8 Ohm*m | 54.7*10-6 Ohm*cm |
Tensile Strength (Annealed) | 550 MPa | 79,800 psi |
Yield Strength (Annealed) | 240 MPa | 34,800 psi |
Elongation | 48% | 48% |
Liquidus Temperature | 1,350º C | 2,460º F |
Solidus Temperature | 1,300º C | 2,370º F |
Annealing | annealed at 926°C (1700°F) |
Hs Code | 75022020 | Nickel alloys: Monel metal including 'K' monel |
