What is Titanium Pipe Fittings?
The titanium material can be described as a structural material which is resistant to different types of corrosions. They have a high strength but are very light in weight. The Titanium Pipe Fittings have some excellent chemical and mechanical properties. They are also made with good dimensional accuracy, and high tensile strength. It is hard with anti-corrosive properties.
The Titanium Pipe Fittings are also resistant to pitting, stress relation corrosion cracking, general corrosion and crevice corrosion. They can also withstand oxidizing environments. All these features make the Titanium Pipe Fittings a good choice for using in different critical industrial applications. They come with an extended service life and are capable of carrying out various complicated industrial applications in a smooth way. They are used in the equipment for water treatment plants, power generation, marine chemical processing, desalination plants, etc.
One of the best things about Titanium Pipe Fittings is that it has similar high strength as that of stainless steel, but is around 40% lighter. They also possess a high tensile strength to density ratio. They can effectively resist a wide range of chemical media. It has low elasticity modulus, which makes them very flexible. It means they can even return to their original shape even after getting bent. Due to all its metallic properties, the Titanium Pipe Fittings have high boiling and melting points.

Titanium Gr 2 Forged Fittings Vs Titanium Gr 5 Buttweld Fittings

• The Titanium Gr 2 Forged Fittings are primarily used for pipes having a diameter within the range of 2-4 inches. Whereas, the Titanium Gr 5 Buttweld Fittings are used for pipes with larger diameters.
• The forged fittings are manufactured using solid steel blocks. They are machined to give the desired shape and size, obviously with the tolerances of the material grade. The Buttweld fittings are manufactured by bending, cutting, and shaping either seamless or welded pipes.
• The forged fittings are more affordable compared to the buttweld fittings because they need more time, effort, and skills.

ASTM B363 R50400 Elbow Vs DIN 3.7035 Stub End
The ASTM B363 R50400 Elbow is used for changing the direction of the pipe run, at an angle of 45 degrees or 90 degrees. There are two types of elbows, namely short radius and long radius, and the main difference between them are in their radius of curvature.
The DIN 3.7035 Stub End is used with a lap joint flange to make a flanged connection. They are basically used as an alternative to the weld neck flange. They can be used in severe and critical conditions, just like the weld neck flanges.

Ti Alloy Grade 2 Socket Weld Vs Titanium Grade 5 Threaded Fittings

• The Ti Alloy Grade 2 Socket Weld fittings come with a socket through which the pipes are passed before they are welded. Titanium Grade 5 Threaded Fittings do not need any welding and they can be screwed to join with the pipe. They are used on pipes that need frequent assembling and disassembling.
• The grade 2 material might be low in strength compared to the grade 5, but they possess better corrosion resistance properties.
• The socket weld fittings are used for more critical conditions compared to the threaded fittings.

Titanium Pipe Fittings manufacturer in India

Titanium fittings manufacturers offer lowest price of Ti Grade 5 Buttweld Fittings and ASTM B363 Grade WPT5 Stub Ends in India, Certified By European Directive 2014/68/eu & ISO

Table of Content

• Titanium Pipe Fittings Specification List
• Titanium Fittings Prices
• Titanium Forged Fittings
• Titanium Threaded Fittings
• Ti Alloy Socket Weld Fittings
• Weight of Ti CP Grade 2 Reducer
• Dimensions of Titanium Gr.5 Reducer
• Size Chart of ASTM B363 Titanium Gr 5 Reducer
• ASME B16.9 UNS R50400 Tee Dimensions Table
• Titanium Gr 2 Elbow Weight Chart

• Dimensions Table of Titanium Grade 5 Elbow
• Weight Chart of DIN 3.7035 Tee
• Titanium Pipe Fittings Chemical Composition
• Titanium Weld Fittings Mechanical Properites
• Titanium Buttweld Fittings Equivalent Grade
• Various Types of Titanium Pipe Fittings
• Fabrication of Titanium Gr 5 Forged Fittings
• Titanium Grade 2 Fittings Material Inspection
• Applications of Titanium Gr 5 Buttweld Fittings

Titanium Pipe Fittings Specification List

Titanium Pipe Fittings Specifications	ASTM B363
Titanium Gr 2 Buttweld Fittings Thickness	SCH30, SCH10, SCH 160, SCH20, SCH60, XS, STD SCH40, SCH 80, SCH 120, SCH 140, SCH 100, XXS available with NACE MR 01-75
Titanium Weld Fittings Sizes	Titanium Alloy Gr 2 Seamless Fittings: 1/2" - 10" ASME B16 9 DIN 3.7035 Welded Fittings: 1/2" - 48"
Titanium Gr 5 Buttweld Fittings Type Manufacturer	DN15-DN1200
Titanium Grade 5 Fittings Connection	Welding
ASME B16.9 Titanium Grade 1 Fitting Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Bending Radius Provided By Manufacturer	R=1D, 3D, 2D, 5D, 8D, 6D, 10D or Custom Titanium Pipe Fittings
Size Range	½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Titanium Grade 2 Fittings
Titanium Grade 7 Buttweld Fitting Dimensions	ASME B16.28, ASME/ANSI B16.9, BS4504, MSS-SP-43, BS1560, BS4504, BS10
Grade 2 Pure Titanium Elbows Manufacturer	Angle : 22.5 deg, 45 deg, 30deg, 90 deg, 1.0D, 180 deg, 1.5D, 3D, 2.5D, 2.0D, 4D, 6D, 5D, 7D-40D . Standard: ASME B16.28, GB, ASME B16.9, MSS SP-75 JISB2311 DIN2605 JISB2312 JISB2313, ASME B16.25, BS, ISO
Titanium Forged Fittings Manufacturing process	Push, Forge, Press, Cast, etc.
Specialized manufacturer of	Titanium UNS R50400 Stub End, 90º Elbows, Tees, Pipe Cap, Crosses, 45º Elbows, Reducers, Pipe Bend
Titanium Threaded Fittings Thread Provided By Manufacturer	BSPT, NPT, BSPP
Titanium Pipe Fitting Origin & Mills	European, Japanese, USA, Korean, Ukraine, Indian, Russian
Titanium Gr 2 Forged Fittings Pressure Rating	Threaded end - 3000lb/ 2000lb/ 6000lbs Socket weld end- 6000/ 3000/ 9000lbs
ASTM B363 WPT2 Products Manufacturer	Half Coupling, Union, Tee, Cross, Coupling, Cap, Outlet, Welding Outlet, Boss, Insert
Dimension Specification	MSS SP-79, 95, 83, 97, BS 3799, ASME 16.11
Application of Industrial Titanium Gr 5 Forged Fitting	Fittings To Connect Tubes and Pipe in Gas, Petroleum, Metallurgy, Chemical, Power, Construction, Shipbuilding etc

Well known Titanium Pipe Fittings Suppliers, stockists, importer, wholesalers, dealers, distributor, stockholders, exporters and Manufacturer in Mumbai.

Titanium Fittings Prices

Titanium Pipe Fittings Price Per Piece in India	Titanium Gr 2 Fittings Price in INR	Titanium Gr 5 Buttweld Fittings Price in UAE Dirham	Ti Alloy Weld Fittings Price in USD
TITANIUM 90 DEGREE LR ELBOW, ASME B 16.9 6 X SCH 10 Per Kg	1,872	UAE Dirham 92.02	$25.05
SEAMLESS TI ELBOW,ANNEALED ASTM B338 GR.2 Per Kg	5,130	UAE Dirham 252.16	$68.65
GR2 TITANIUM TEE(ASME B16.9) 50NB X 25NB, SCH10 Per Kg	2,319	UAE Dirham 113.99	$31.04
TITANIUM UN-EQUAL TEES GRADE 2,ANSI B16 9 SCH40S ,ERW ASTM B363 SIZE:50*25 Per Kg	3,927	UAE Dirham 193.03	$52.56

Buy Directly from Titanium Fittings Manufacturers in India. We are leading Titanium Fittings Distributor and Supplier Worldwide. Compare Prices with other before buying ASTM B363 WPT2 Elbow

Titanium Forged Fittings

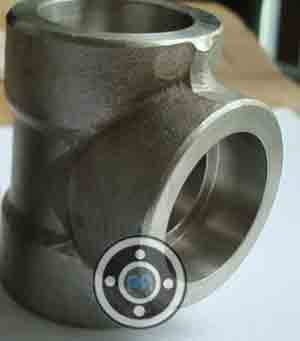

Titanium Alloy Gr 2 Forged Equal Tee

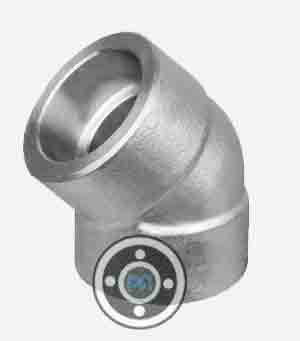

DIN 3.7035 Forged Elbow

Grade 2 Pure Titanium Coupling

Titanium Threaded Fittings

Titanium 3.7035 Threaded Elbow

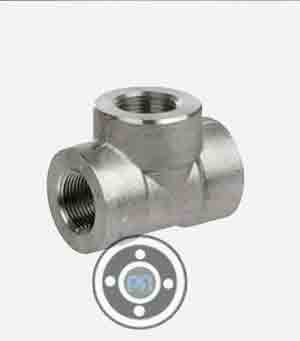

Titanium UNS R50400 Threaded Reducing Tee

Titanium Grade 1 Threaded Coupling

Ti Alloy Socket Weld Fittings

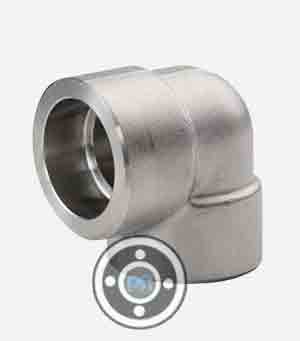

ASME B16.11 Titanium Grade 5 Socket Weld Elbow

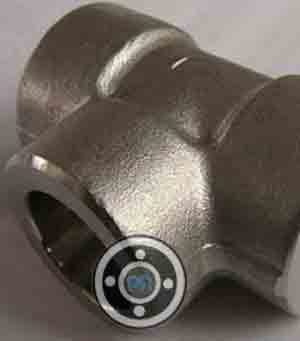

Ti CP Grade 2 SW Tee

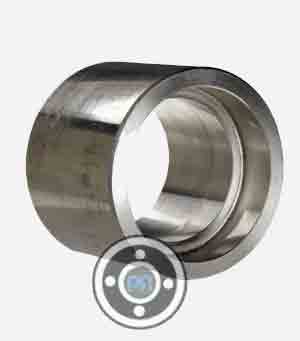

Ti Grade 7 Socket Weld Half Coupling

Widest selection of high temperature Titanium Tube Fittings, buy SB 363 WPT5 long radius elbow, Reducer, Ti Grade 2 concentric/ eccentric reducers and ASTM B363 Grade 5 Tees

Weight of Ti CP Grade 2 Reducer

Nominal Size		SCH20	STD	SCH40S	SCH80S	SCH120	SCH160
DN	NPS
15	1/2		0.08	0.08	0.1
20	3/4		0.17	0.17	0.2
25	1		0.21	0.21	0.25		0.22
32	1 1/4		0.29	0.29	0.35
40	1 1/2		0.42	0.42	0.58		0.6
50	2		0.8	0.8	1.03		1.04
65	2 1/2		1.05	1.05	1.42		1.65
80	3		1.36	1.36	1.9
90	3 1/2		1.63	1.63	2.27		2.4
100	4		2.77	2.77	3.93		4.4
125	5		3.96	3.96	6		7.14
150	6		6.31	6.31	9.26		10.8
200	8	7.85	10.7	10.7	17.5	15	18.4
250	10	11.2	15.8	16.3	25.1	25.1	32.5
300	12	25.6	28.8	32.1	56.5	41.7	53.3
350	14	30.5	38.5	48.8	79	84.5	106
400	16	35.2	44.5	64.3	102	112	143
450	18	62.7	62.7	98.5	165
500	20	72.6	72.6		181
550	22	97	79.1	142	226
600	24	130	100

Dimensions of Titanium Gr.5 Reducer

Nominal Pipe Size	Outside Diameter		Reducers
Reduced from (inches)	(inches)	(mm)	Concentric & Eccentric Length (inches)	Reduced to (inches)
1/2	0.840	21.3	1 1/2	1/4
			1 1/2	3/8
3/4	1.050	26.7	2	3/8
			2	1/2
1	1.315	33.4	2	3/8
			2	1/2
			2	3/4
1 1/4	1.660	42.2	2	1/2
			2	3/4
			2	1
1 1/2	1.900	48.3	2 1/2	1/2
			2 1/2	3/4
			2 1/2	1
			2 1/2	1 1/4
2	2.375	60.3	3	3/4
			3	1
			3	1 1/4
			3	1 1/2
2 1/2	2.875	73.0	3 1/2	1
			3 1/2	1 1/4
			3 1/2	1 1/2
			3 1/2	2
3	3.500	88.9	3 1/2	1
			3 1/2	1 1/2
			3 1/2	2
			3 1/2	2 1/2
3 1/2	4.000	101.6	4	1 1/4
			4	1 1/2
			4	2
			4	2 1/2
			4	3
4	4.500	114.3	4	1 1/2
			4	2
			4	2 1/2
			4	3
			4	3 1/2
5	5.563	141.3	5	2
			5	2 1/2
			5	3
			5	3 1/2
			5	4
6	6.625	168.3	5 1/2	2 1/2
			5 1/2	3
			5 1/2	3 1/2
			5 1/2	4
			5 1/2	5
8	8.625	219.1	6	3
			6	3 1/2
			6	4
			6	5
			6	6
10	10.750	273.1	7	4
			7	5
			7	6
			7	8
12	12.750	323.9	8	5
			8	6
			8	8
			8	10

Norsok Ed4, Aramco, BP, and Shell approved ASTM B363 WPT2 Pipe Elbow and Titanium Grade 5 Forged Fittings manufacturer in India

Size Chart of ASTM B363 Titanium Gr 5 Reducer

NOMINAL PIPE SIZE	END TO END	OUTSIDE DIAMETER
Inch	H	D	P
3/4 x 1/2	38	26.7	21.3
3/4 x 3/8	38	26.7	17.1
1 x 3/4	51	33.4	26.7
1 x 1/2	51	33.4	21.3
1 1/4 x 1	51	42.2	33.4
1 1/4 x 3/4	51	42.2	26.7
1 1/4 x 1/2	51	42.2	21.3
1 1/2 x 1 1/2	64	48.3	42.2
1 1/2 x 1	64	48.3	33.4
1 1/2 x 3/4	64	48.3	26.7
1 1/2 x 1/2	64	48.3	21.3
2 x 1 1/2	76	60.3	48.2
2 x 1 1/4	76	60.3	42.2
2 x 1	76	60.3	33.4
2 x 3/4	76	60.3	26.7
2 1/2 x 2	89	73	60.3
2 1/2 x 1 1/2	89	73	48.3
2 1/2 x 1 1/4	89	73	42.2
2 1/2 x 1	89	73	33.4
3 x 2 1/2	89	88.9	73
3 x 2	89	88.9	60.3
3 x 1 1/2	89	88.9	48.3
3 x 1 1/4	89	88.9	42.2
3 1/2 x 3	102	101.6	88.9
3 1/2 x 21/2	102	101.6	73
3 1/2 x 2	102	101.6	60.3
3 1/2 x 1 1/2	102	101.6	48.3
3 1/2 x 1 1/4	102	101.6	42.2
4 x 3 1/2	102	114.3	101.6
4 x 3	102	114.3	88.9
4 x 2 1/2	102	114.3	73
4 x 2	102	114.3	60.3
4 x 1 1/2	102	114.3	48.3
5 x 4	127	141.3	114.3
5 x 3 1/2	127	141.3	101.6
5 x 3	127	141.3	88.9
5 x 2 1/2	127	141.3	73
5 x 2	127	141.3	60.3
6 x 5	140	168.3	141.3
6 x 4	140	168.3	114.3
6 x 3 1/2	140	168.3	101.6
6 x 3	140	168.3	88.9
6 x 2 1/2	140	168.3	73
8 x 6	152	219.1	168.3
8 x 5	152	219.1	141.3
8 x 4	152	219.1	114.3
8 x 3 1/2	152	219.1	101.6
10 x 8	178	273.1	219.1
10 x 6	178	273.1	168.1
10 x 5	178	273.1	141.3
10 x 4	178	273.1	114.3
12 x 10	203	323.9	273.1
12 x 8	203	323.9	219.1
12 x 6	203	323.9	168.3
12 x 5	203	323.9	141.3
14 x 12	330	355.6	323.9
14 x 10	330	355.6	273.1
14 x 8	330	355.6	219.1
14 x 6	330	355.6	168.3
16 x 14	356	406.4	355.6
16 x 12	356	406.4	323.9
16 x 10	356	406.4	273.1
16 x 8	356	406.4	219.1
16 x 6	356	406.4	168.3
18 x 16	381	457	406.4
18 x 14	381	457	355.6
18 x 12	381	457	323.9
18 x 10	381	457	273.1
18 x 8	381	457	219.1
20 x 18	508	508	457
20 x 16	508	508	406.4
20 x 14	508	508	355.6
20 x 12	508	508	323.9
20 x 10	508	508	273.1
20 x 8	508	508	219.1
22 x 20	508	559	508
22 x 18	508	559	457
22 x 16	508	559	406.4
22 x 14	508	559	355.6
22 x 12	508	559	323.9
24 x 10	508	559	273.1
24 x 22	508	610	559
24 x 20	508	610	508
24 x 18	508	610	457
24 x 16	508	610	406.4
24 x 14	508	610	355.6
24 x 12	508	610	323.9
24 x 10	508	610	273.1

ASME B16.9 UNS R50400 Tee Dimensions Table

NOMINAL PIPE SIZE	LENGTH	CENTER TO END	OUTSIDE DIAMETER
Inch.	M	C	OD
1/2	25	25	21.3
3/4	29	29	26.7
1	38	38	33.4
1 1/4	48	48	42.2
1 1/2	57	57	48.3
2	64	64	60.3
2 1/2	76	76	73
3	86	86	88.9
3 1/2	95	95	101.6
4	105	105	114.3
5	124	124	141.3
6	143	143	168.3
8	178	178	219.1
10	216	216	273.1
12	254	254	323.9
14	279	279	355.6
16	305	305	406.4
18	343	343	457.2
20	381	381	508
22	419	419	559
24	432	432	610
26	495	495	660
28	521	521	711
30	559	559	762
32	597	597	813
34	635	635	864
36	673	673	914
38	711	711	965
40	749	749	1016
42	711	762	1067
44	762	813	1118
46	800	851	1168
48	838	889	1219

Titanium Gr 2 Elbow Weight Chart

NPS	KG	LBS
1/2	0.11	0.25
3/4	0.11	0.25
1	0.23	0.5
1¼	0.41	0.9
1½	0.52	1.15
2	1	2.2
2½	1.81	4
3	2.95	6.5
3½	3.79	8.35
4	6.12	13.5
5	9.98	22
6	15.88	35
8	32.21	71
10	48.53	107
12	72.57	160
14	92.99	205
16	125.19	276
18	154.22	340
20	190.51	420
22	235.87	520
24	272.16	600
26	330.67	729
30	442.25	975
36	640.47	1412

Manufacturer of Welded Sch 40s ASTM B363 Gr.5 Long Radius Elbow 90° & Titanium Gr 2 Equal/ Unequal Tee according to ASME B16.9

Dimensions Table of Titanium Grade 5 Elbow

Nominal Pipe Size	Outside Diameter		90° Elbows		45° Elbows		180° Returns
(inches)			Long Radius	Short Radius	Long Radius		Long Radius
	(mm)	(inches)	Center to Face (inches)	Center to Face (inches)	Center to Face (inches)	Radius (inches)	Center to Center (inches)	Back to face (inches)
1/2	21.3	0.840	1 1/2	-	5/8		2	1 7/8
3/4	26.7	1.050	1 1/8	-	7/16		2 1/4	1 11/16
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8

Weight Chart of DIN 3.7035 Tee

NPS	KG	LBS
1/2	0.16	0.35
3/4	0.2	0.45
1	0.34	0.75
1¼	0.59	1.3
1½	0.91	2
2	1.59	3.5
2½	2.72	6
3	3.18	7
3½	4.08	9
4	5.44	12
5	9.53	21
6	15.42	34
8	24.95	55
10	38.56	85
12	54.43	120
14	74.84	165
16	88.45	195
18	112.94	249
20	155.13	342
22	187.79	414
24	239.5	528
26	349.27	770
30	480.81	1060
36	675.85	1490

Titanium Pipe Fittings Chemical Composition

Grade	Ti	C	Fe	H	N	O	Al	V
Ti Grade2	99.2 min	0.1 max	0.3 max	0.015 max	0.03 max	0.25 max	-	-
Ti Grade5	90 min	-	0.25 max	-	-	0.2 max	6 min	4 min

Titanium Weld Fittings Mechanical Properites

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Titanium Gr. 2	4.5 g/cm3	1665 °C (3030 °F)	Psi – 49900 , MPa – 344	Psi – 39900 , MPa – 275	20 %
Titanium Gr. 5	4.43 g/cm3	1632 °C (2970 °F)	Psi – 138000 , MPa – 950	Psi – 128000 , MPa – 880	14 %

Titanium Buttweld Fittings Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS
Titanium Gr. 2	3.7035	R50400
Titanium Gr. 5	3.7165	N56400

Various Types of Titanium Pipe Fittings

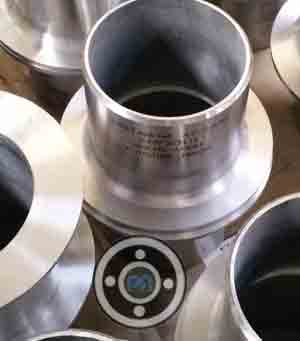

ASTM B363 Gr WPT2 Stub End

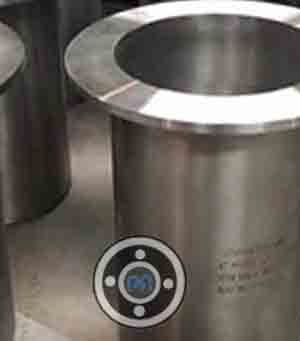

Titanium 3.7035 Long Stubend

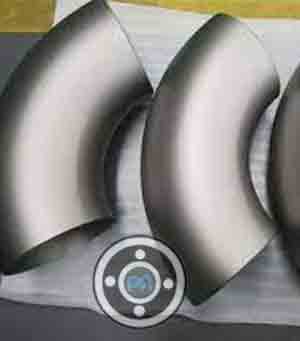

Titanium Grade 2 3D Elbow

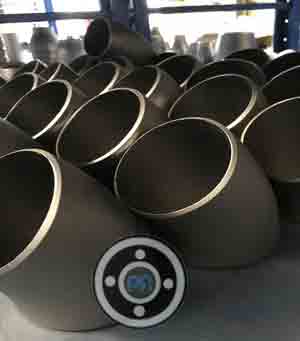

SCH 80 Titanium Grade 2 UNS R50400 180° Short Radius Elbow

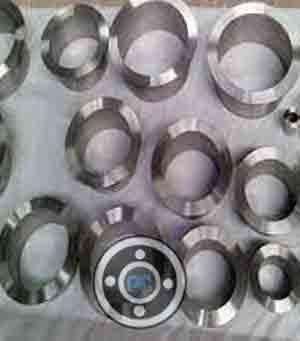

SB 363 WPT5 Short Stubend

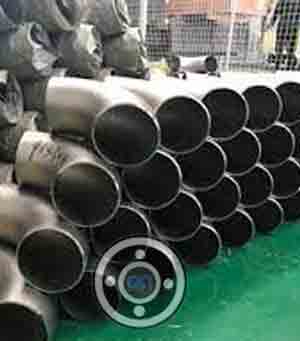

Titanium Grade 5 90° Long Radius Elbow

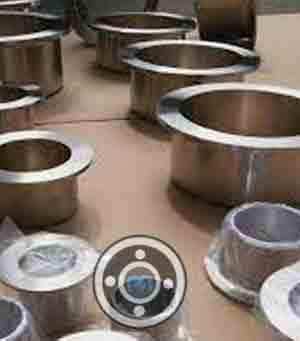

SCH 60 Ti Grade 1 Lap Joint Stub Ends

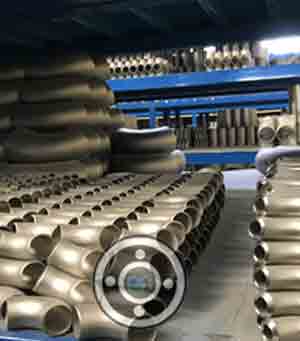

Ti Grade 5 1.5D Elbow

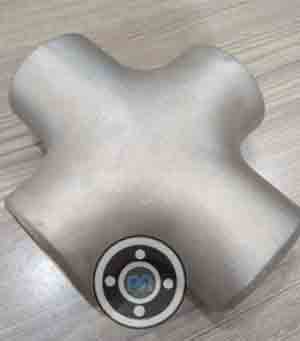

SCH 160 Titanium Grade 5 Reducing Cross

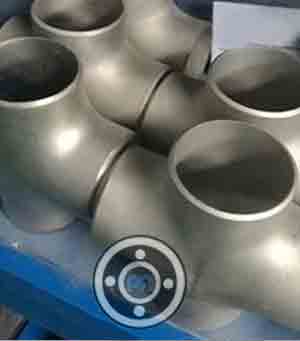

Ti-6al-4v Straight Tees and Crosses

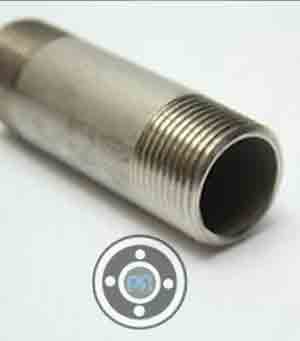

SCH STD Titanium Gr.5 Pipe Nipples

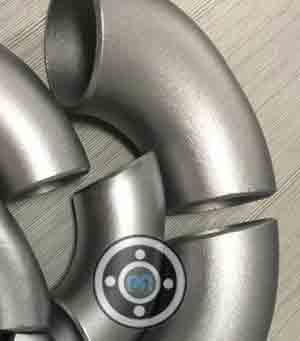

Titanium Grade 5 Welded Elbows

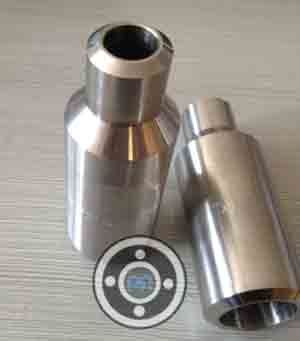

Ti CP Grade 2 Swage Nipple

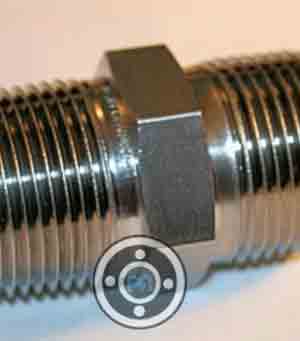

Ti Grade 2 Reducing Nipple

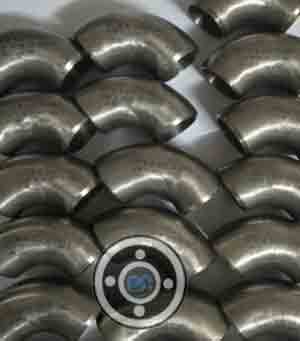

SCH 140 Titanium Alloy Grade 2 90° Short Radius Elbow

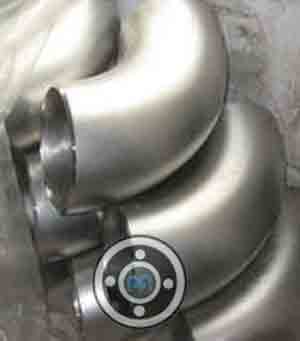

Ti Grade 1 180° Long Radius Elbow

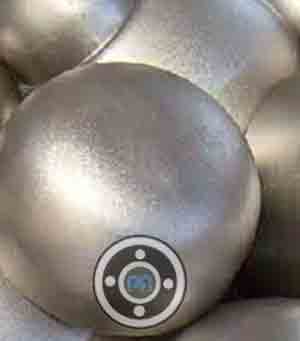

ASTM B363 WPT2 End Cap

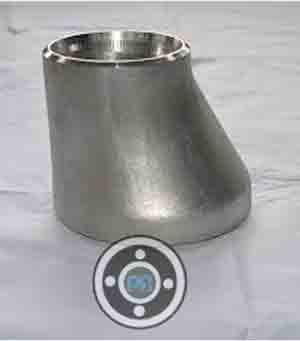

SCH XXS Titanium Alloy Gr 2 Eccentric Reducer

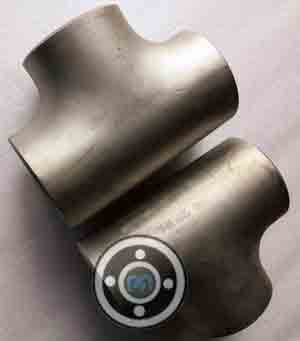

DIN 3.7035 Equal Tee

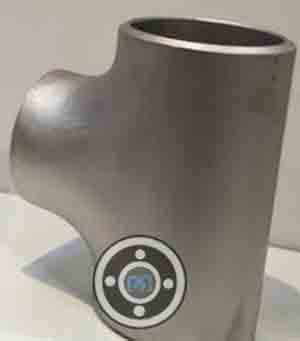

SCH 120 Titanium Grade 2 Reducing Tee

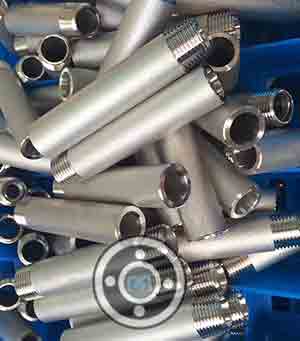

Grade 2 Pure Titanium Barrel Nipple

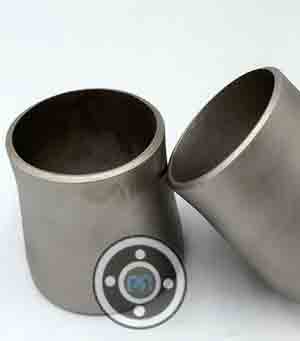

ASTM B363 Grade WPT5 Reducers

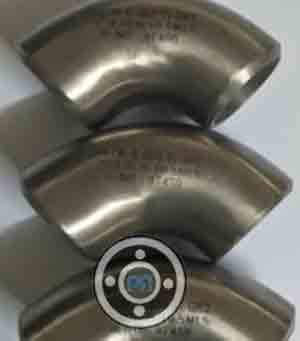

Ti Grade 7 Seamless Buttwelding 45° and 90° Elbows

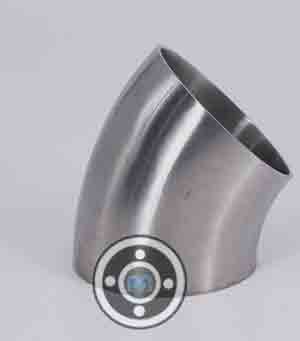

ASTM B363 Titanium Alloy Gr 2 45° Short Radius Elbow

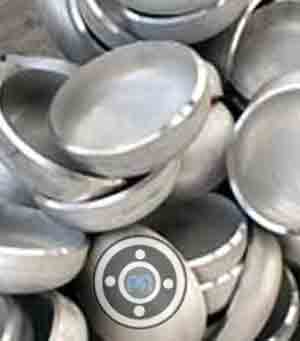

SCH 30 ASTM B363 Gr.5 Pipe Cap

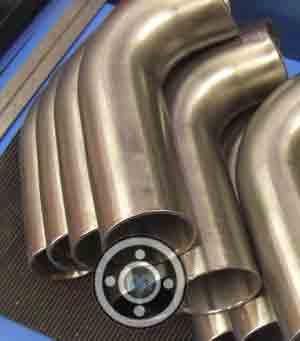

ASME SB 363 Titanium Gr-2 Long Radius Bend

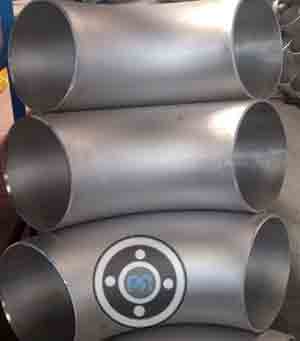

Titanium Grade 5 10D ELBOW

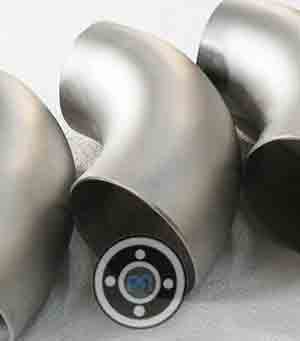

Titanium Grade 2 UNS R50400 45° Long Radius Elbow

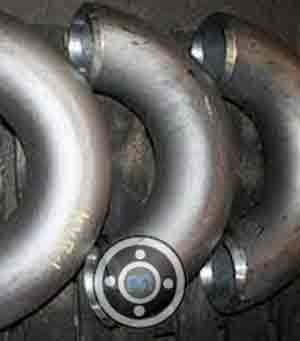

15 NB SCH 100 Titanium Gr.5 Seamless Buttwelding 180° Returns

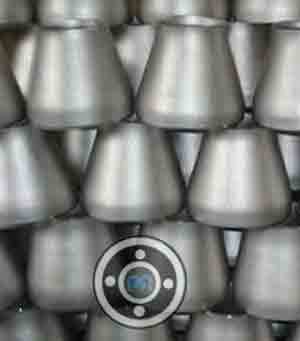

Titanium Grade 1 Concentric Reducer

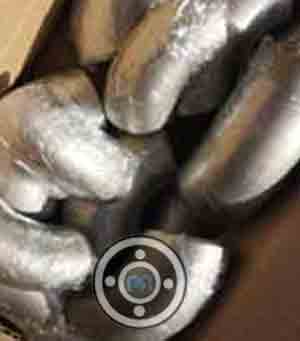

SCH 20 Ti. Alloy Grade 2 5D Elbow

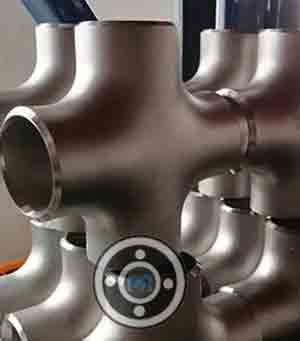

Ti Grade 5 Equal Cross

SCH XS Titanium Grade 7 Reducing Outlet Tees and Reducing Outlet Crosses

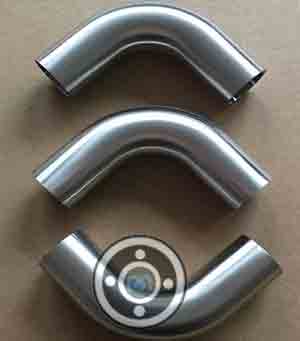

SCH 10 Ti CP Grade 2 Bend

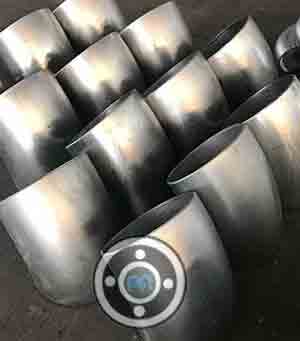

Titanium UNS R50400 1D Elbow

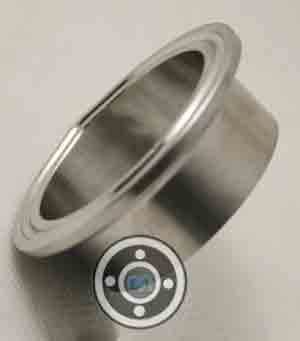

450 NB SCH 40 Titanium Grade 7 Collar

Fabrication of Titanium Gr 5 Forged Fittings

• Weldability – Fair
• Solution Heat Treating – Forgings
• Annealing - 732°C (1350°F), 4hr, FC to 566°C (1050°F), A.C. F.C. not necessary for bars
• Aging – 904-954°C (1660-1750°F), 5 min-2hrs, W.Q. 538°C (1000°F), 4hr, A.C.
• Forging – Rough 982°C (1800°F), finish 968°C (1775°F)

Titanium Grade 2 Fittings Material Inspection

• Hardness Test
• Ultra Sonic Test (UT)
• Eddy Current Testing
• Flaring Test
• Intergranular Corrosion (IGC) Test
• Dye Penetrant Test (DP Test)
• Radiography Test
• Micro Test
• Macro Test
• Pitting Resistance Test
• Flattening Test

Applications of Titanium Gr 5 Buttweld Fittings

• Gas Processing
• Specialty Chemicals
• Pharmaceutical Equipment
• Sea Water Equipment
• Chemical Equipment
• Petrochemicals
• Off-Shore Oil Drilling Companies
• Power Generation
• Pulp and Paper Industry
