ASTM A182 F11 Flanges
- Home /
- ASTM A182 F11 Flanges
ASME B16.5 A182 GR F11 Alloy Steel Blind Flange & SA 182 Gr F11 Slip On Flange manufacturer in India
What is ASTM A182 F11 Flange?
The ASTM A182 is a specification for steel which is mostly used for applications in the pressure system. The grade F11 Flange of the given specifications are included in the dimensional standards, like the ASME specifications. The ASTM A182 F11 Flange is used for connecting pipes, valves and all the other equipment to form a piping system. It can also be installed for easy access to the piping, so that inspection, maintenance or modifications can be done without any additional hassles. These flanges are bolted together with a gasket for sealing so that the pipes would have a flanged joint.
The ASTM A182 F11 Flange has a diameter range between ½ inch to 48 inch. Their wall thickness might vary with the change in their pressure classes, and pope diameters. The ASTM A182 F11 material is known for properties such as corrosion resistance, enhanced strength, and high mechanical properties. The ASTM A182 F11 class 1 Flange is more affordable compared to the class 2 variant, and that is why it is used more across different industries. There are different types of ASTM A182 F11 Flanges like forged, screwed, plate and threaded. They are also available in different face and each of them has their unique usage.
The ASTM A182 F11 Flange is widely used for various applications across several industrial, transportational, and agricultural fields.From oil and gas, food processing, ship building, etc., to different pipelines and equipment, these flanges are popularly used across different vertices. They are designed with high precision in conformity, following all the national and international quality standards.
How to do Heat treatment of SA 182 Gr F11 Flange
The heat treatment of SA 182 Gr F11 Flange should be done properly to retain and enhance the mechanical strength of the material. Once the hot working is done, the forgings need to be cooled to a temperature less than 583 degrees C, before the heat treatment starts. For all the classes of F11 grade of the SA 182 material specification, the heat treatment type is annealing, normalizing and tempering. They are then furnace cooled or air cooled.
ASTM A182 Gr F11 Slip on Flange VS SA182 F11 Blind Flange
The ASTM A182 Gr F11 Slip on Flange is one of the most popularly used piping accessories, wherein the pipes are slipped into the centre of the flange before the welding process starts. This is true for both the outer dimension of the pipe as well as the inner side of the connection. The ASTM A182 Gr F11 Slip on Flange is mostly used for low pressure applications.
The SA182 F11 Blind Flange can be defined as a flange that does not have a hub or any bores in the center of the flange. They have similar face thickness, matching face types and bolting pattern as that of a flange. They are mostly used for sealing the ends of the pipe or a nozzle opening in the pressure vessel, hence used in places where the piping system does not need to work.
ASTM A182 F11 Flanges
Petromet Flange is one of the leading A182 F11 Flanges manufacturers in India, producing A182 F11 CL2 Orifice Flanges, F11 Alloy Steel Lap Joint Flange, SA 182 F11 Weld Neck Flange and A182f11 material for Petrochemical, Oil, and Gas industry
ASTM A182 F11 Class 2 Flange Vs A182 F11 Class 1 Flange
There is a slight difference in the chemical composition of ASTM A182 F11 Class 2 Flange and A182 F11 Class 1 Flange, and thus they have a varied mechanical property. The class 2 flanges have better mechanical properties compared to class 1, but despite that the class 1 flanges are more abundantly used due to its cost effectiveness.
Table of Content
ASTM A182 F11 Flanges Material Specification
| Size Range | 1/2″ to 48″ |
|---|---|
| Chart of Pressure Rating | 300 LBS, 2500 LBS, 1500 LBS, 900 LBS, 150 LBS, 600 LBS |
| JIS | 40 K, 16 K, 5K, 10 K, 30 K, 20 K, 63 K |
| DIN Pressure Calculation | 25Bar 40Bar 16Bar 6Bar 10Bar / PN64 PN10 PN25 PN16 PN6 PN40 |
| Manufacturer of Connect / Flange Face Type | LJF, RF, RTJ, FF, Small Tongue, Large Tongue & Groove |
| Test | Magnetic particle detector, X-ray detector, Ultrasonic flaw detector, Direct-reading Spectrograph, Hydrostatic testing machine |
| Origin | Japan / West Europe / Indian / USA / Korean |
| Manufacturer of | GOST, JIS, ANSI, DIN, UNI, BS, AWWA, AS2129, SABS, NFE, EN etc. |
| UNI / EN | 16Bar 6Bar 40Bar 10Bar 25Bar |
| Standards Provided By Manufacturer | ISO70051, MSS S44, BS1560-3.1, API7S-43, B16.48, ANSI/ASME B16.5, B16.47 Series A & B, BS4504, JISB2220, ASME/ANSI B16.5/16.36/16.47A/16.47B, API605, BS 10, EN-1092, DIN, API7S-15, EN1092 |
| Common Types By Manufacturer | Threaded / Screwed / Forged / Plate |
| Equipment | Pushing Machine, Press machine, Sand-blasting machine, Bending machine, electric bevelling machine etc |
| Production technique Used By Manufacturer | Heat treated, Forged and machined |
| Coating | Zinc Plated, Anti-rust Paint, Yellow Transparent, Oil Black Paint, Cold and Hot Dip Galvanized |
Well known ASTM A182 F11 Flange dealers, distributor, importer, stockists, supplier, wholesalers, exporters, stockholders and Manufacturer in Mumbai.
Size Range of A182 Gr F11 Flanges
| Nominal Pipe Size | Flanges Inside Diameter (ID) (inch) |
Flanges Outside Diameter (OD) (inches) |
||||
|---|---|---|---|---|---|---|
| Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | ||
| 1/2 | 0.84 | 1.875 | 2.125 | 2.125 | 2.125 | 2.50 |
| 3/4 | 1.06 | 2.25 | 2.625 | 2.625 | 2.625 | 2.75 |
| 1 | 1.31 | 2.625 | 2.875 | 2.875 | 2.875 | 3.125 |
| 1 1/4 | 1.66 | 3 | 3.25 | 3.25 | 3.25 | 3.50 |
| 1 1/2 | 1.91 | 3.375 | 3.75 | 3.75 | 3.75 | 3.875 |
| 2 | 2.38 | 4.125 | 4.375 | 4.375 | 4.375 | 5.625 |
| 2 1/2 | 2.88 | 4.875 | 5.125 | 5.125 | 5.125 | 6.50 |
| 3 | 3.50 | 5.375 | 5.875 | 5.875 | 5.875 | 6.625 |
| 4 | 4.50 | 6.875 | 7.125 | 7.00 | 7.625 | 8.125 |
| 5 | 5.56 | 7.75 | 8.50 | 8.375 | 9.50 | 9.75 |
| 6 | 6.62 | 8.75 | 9.875 | 9.75 | 10.50 | 11.375 |
| 8 | 8.62 | 11 | 12.125 | 12.00 | 12.625 | 14.125 |
| 10 | 10.75 | 13.375 | 14.25 | 14.125 | 15.75 | 17.125 |
| 12 | 12.75 | 16.125 | 16.625 | 16.50 | 18.00 | 19.625 |
A wide range of Class 300/ 600/ 900 SA 182 F11 CL2 Socket Weld Flange and ASTM A182 F11 Spectacle Blind Flange Designed To Meet All Your Needs
ASME SA 182 Gr F11 Flanges Weight Chart
| NPS (Nominal Pipe Size) | NPT (Threaded) | WRNR (Weld Neck) | SWRF (Socket Weld) | Loose (Lap Joint) | SORF (Slip On) | BLRF (Blind) |
|---|---|---|---|---|---|---|
| ½ | 1 | 2 | 2 | 1 | 1 | 2 |
| ¾ | 2 | 2 | 2 | 2 | 2 | 2 |
| 1 | 2 | 3 | 2 | 2 | 2 | 2 |
| 1¼ | 3 | 3 | 3 | 3 | 3 | 3 |
| 1½ | 3 | 4 | 3 | 3 | 3 | 4 |
| 2 | 5 | 6 | 5 | 5 | 5 | 5 |
| 2½ | 8 | 10 | 8 | 8 | 8 | 7 |
| 3 | 9 | 11.5 | 9 | 9 | 9 | 9 |
| 3½ | 12 | 12 | 11 | 11 | 11 | 13 |
| 4 | 13 | 16.5 | 13 | 13 | 13 | 17 |
| 5 | 15 | 21 | 15 | 15 | 15 | 20 |
| 6 | 19 | 26 | 19 | 19 | 19 | 27 |
| 8 | 30 | 42 | 30 | 30 | 30 | 47 |
| 10 | 43 | 54 | 43 | 43 | 43 | 70 |
| 12 | 64 | 88 | 64 | 64 | 64 | 123 |
| 14 | 90 | 114 | 90 | 105 | 90 | 140 |
| 16 | 98 | 140 | 98 | 140 | 106 | 180 |
| 18 | 130 | 165 | 130 | 160 | 130 | 220 |
| 20 | 165 | 197 | 165 | 195 | 165 | 285 |
| 22 | 185 | 225 | 185 | 245 | 185 | 355 |
| 24 | 220 | 268 | 220 | 275 | 220 | 430 |
Dimensions of ASTM A182 F11 Class 3 Slip on Flange
| Size in Inch | Size in mm | No of Bolts | Outer Dia. | Hub OD | ISO Stud Size | Flange Length | RF Height | Flange Thick. | RF Dia. | PCD | Hole Size | Socket Bore | Weight in kg |
| A | C | D | F | B | E | G | H | ||||||
| 1/2 | 15 | 4 | 90 | 30 | M14 | 14 | 2 | 9.6 | 34.9 | 60.3 | 5/8 | 22.2 | 0.8 |
| 1 | 25 | 4 | 110 | 49 | M14 | 16 | 2 | 12.7 | 50.8 | 79.4 | 5/8 | 34.5 | 0.9 |
| 3/4 | 20 | 4 | 100 | 38 | M14 | 14 | 2 | 11.2 | 42.9 | 69.9 | 5/8 | 27.7 | 0.9 |
| 1 1/4 | 32 | 4 | 115 | 59 | M14 | 19 | 2 | 14.3 | 63.5 | 88.9 | 5/8 | 43.2 | 1.4 |
| 2 | 50 | 4 | 150 | 78 | M16 | 24 | 2 | 17.5 | 92.1 | 120.7 | 3/4 | 61.9 | 2.3 |
| 1 1/2 | 40 | 4 | 125 | 65 | M14 | 21 | 2 | 15.9 | 73 | 98.4 | 5/8 | 49.5 | 1.4 |
| 2 1/2 | 65 | 4 | 180 | 90 | M16 | 27 | 2 | 20.7 | 104.8 | 139.7 | 3/4 | 74.6 | 3.2 |
| 3 | 80 | 4 | 190 | 108 | M16 | 29 | 2 | 22.3 | 127 | 152.4 | 3/4 | 90.7 | 3.7 |
| 4 | 100 | 8 | 230 | 135 | M16 | 32 | 2 | 22.3 | 157.2 | 190.5 | 3/4 | 116.1 | 5.9 |
| 3 1/2 | 90 | 8 | 215 | 122 | M16 | 30 | 2 | 22.3 | 139.7 | 177.8 | 3/4 | 103.4 | 5 |
| 5 | 125 | 8 | 255 | 164 | M20 | 35 | 2 | 22.3 | 185.7 | 215.9 | 7/8 | 143.8 | 6.8 |
| 8 | 200 | 8 | 345 | 246 | M20 | 43 | 2 | 27 | 269.9 | 298.5 | 7/8 | 221.5 | 13.7 |
| 10 | 250 | 12 | 405 | 305 | M24 | 48 | 2 | 28.6 | 323.8 | 362 | 1 | 276.2 | 19.5 |
| 6 | 150 | 8 | 280 | 192 | M20 | 38 | 2 | 23.9 | 215.9 | 241.3 | 7/8 | 170.7 | 8.6 |
| 12 | 300 | 12 | 485 | 365 | M24 | 54 | 2 | 30.2 | 381 | 431.8 | 1 | 327 | 29 |
| 24 | 600 | 20 | 815 | 663 | M33 | 81 | 2 | 46.1 | 692.2 | 749.3 | 1 3/8 | 616 | 100 |
| 16 | 400 | 16 | 595 | 457 | M27 | 62 | 2 | 35 | 469.9 | 539.8 | 1 1/8 | 410.5 | 54 |
| 18 | 450 | 16 | 635 | 505 | M30 | 67 | 2 | 38.1 | 533.4 | 577.9 | 1 1/4 | 461.8 | 59 |
| 14 | 350 | 12 | 535 | 400 | M27 | 56 | 2 | 33.4 | 412.8 | 476.3 | 1 1/8 | 359.2 | 41 |
| 20 | 500 | 20 | 700 | 559 | M30 | 71 | 2 | 41.3 | 584.2 | 635 | 1 1/4 | 513.1 | 75 |
Our large fleet of heavy goods vehicles enable us to deliver SA182F11 Forged Flange and ASTM A182 F11 Class 2 Long Weld Neck Flange throughout India quickly
Price List of ASTM A182 F11 Flanges
| ASTM A182 F11 Flange Price Per Piece in India | Alloy Steel F11 Pipe Flange Price in INR | SA182 Gr F11 Cl3 Flange Price in UAE Dirham | ASTM A182 Grade F11 Flange Price in USD |
| A182 F11 - FLANGE-WN-8in-80/XS-Sp.12,70-300 Per Unit | 13,975 | UAE Dirham 676.74 | $184.21 |
| A182 F11 - FLANGE-WN RJ-2in-80/XS-Sp.5,54-900 Per Kg | 4,768 | UAE Dirham 230.89 | $62.86 |
| WNRF FLANGE TO ASTM A182 F11, DIMN B16.5. SIZE: 8 X 300# X SCH 40 Per kg | 17,266 | UAE Dirham 835.87 | $227.63 |
This is an estimate of the price of ASME SA 182 Gr F11 Flange in India. Please contact us for the most recent price list of SA-182 F11 Cl2 Weld Neck Flange in Mumbai. Contrast our price with that of other ASTM A182 F11 Class 1 Slip on Flange manufacturers in India.
ASTM A182 F11 Class 3 Blind Flange Dimensions
| Size in Inch | Size in mm | ISO Stud Size | RF Height | Outer Dia. | RF Dia. | Hole Size | PCD | No of Bolts | Bolt Size UNC | Flange Thickness | RF Stud Length | Weight in kg |
| D | A | C | E | B | ||||||||
| 1/2 | 15 | M20 | 7 | 135 | 34.9 | 7/8 | 88.9 | 4 | 3/4 | 30.2 | 120 | 3.2 |
| 3/4 | 20 | M20 | 7 | 140 | 42.9 | 7/8 | 95.2 | 4 | 3/4 | 31.8 | 125 | 3.7 |
| 1 | 25 | M24 | 7 | 160 | 50.8 | 1 | 108 | 4 | 7/8 | 35 | 140 | 5 |
| 1 1/4 | 32 | M27 | 7 | 185 | 63.5 | 1 1/8 | 130.2 | 4 | 1 | 38.1 | 150 | 7.8 |
| 1 1/2 | 40 | M30 | 7 | 205 | 73 | 1 1/4 | 146 | 4 | 1 1/8 | 44.5 | 170 | 10.5 |
| 2 | 50 | M27 | 7 | 235 | 92.1 | 1 1/8 | 171.4 | 8 | 1 | 50.9 | 180 | 18 |
| 2 1/2 | 65 | M30 | 7 | 265 | 104.8 | 1 1/4 | 196.8 | 8 | 1 1/8 | 57.2 | 195 | 25.5 |
| 3 | 80 | M33 | 7 | 305 | 127 | 1 3/8 | 228.6 | 8 | 1 1/4 | 66.7 | 220 | 39 |
| 4 | 100 | M39 | 7 | 355 | 157.2 | 1 5/8 | 273 | 8 | 1 1/2 | 76.2 | 255 | 61.5 |
| 5 | 125 | M45 | 7 | 420 | 185.7 | 1 7/8 | 323.8 | 8 | 1 3/4 | 92.1 | 300 | 102 |
| 6 | 150 | M52 | 7 | 485 | 215.9 | 2 1/8 | 368.3 | 8 | 2 | 108 | 345 | 157 |
| 8 | 200 | M52 | 7 | 550 | 269.9 | 2 1/8 | 438.2 | 12 | 2 | 127 | 380 | 241 |
| 10 | 250 | M64 | 7 | 675 | 323.8 | 2 5/8 | 539.8 | 12 | 2 1/2 | 165.1 | 490 | 470 |
| 12 | 300 | M72 | 7 | 760 | 381 | 2 7/8 | 619.1 | 12 | 2 3/4 | 184.2 | 540 | 575 |
SA182 F11 Chemical Composition
| Grade | C | Mn | Si | S | P | Cr | Mo |
| ASTM A182 F11 | 0.05 - 0.15 | 0.3 - 0.6 | 0.5 - 1 | 0.03 | 0.03 | 1 - 1.5 | 0.044 - 0.65 |
ASTM A182 F11 Mechanical Properties
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| ASTM A182 F11 Flange | 205 | 415 | 20 |
A182 F11 Material Equivalent
| STANDARD | UNS | WNR. |
| Alloy Steel F11 | K11597 | 1.7335 |
Manufacturer of UNS K11572 Plate Flange, SA 182 F11 CL2 Loose Plate Flange and ASTM A182 GR F11 Threaded Flange in RF, FF and RTJ Face
ASTM A182 F11 Heat Treatment
| F11 Class 1, 2, 3 | Anneal, or normalise and temper; Minimum austenitizing/solutioning temperature: 1600°F [900°C]; Cooling medium: furnace or air cool Tempering temperature: 1150°F [620°C] |
Various Types of ASTM A182 F11 Flanges

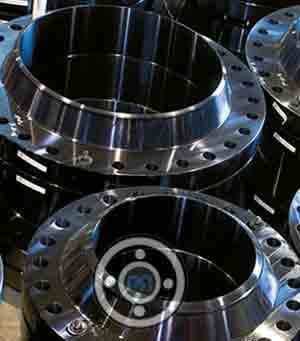

8” - Sch.100, WELD NECK FLANGES (WN), 900 lbs, face type RTJ, ASTM A182 Gr.F11, as per ASME B16.5, beveled end as ANSI B16.25

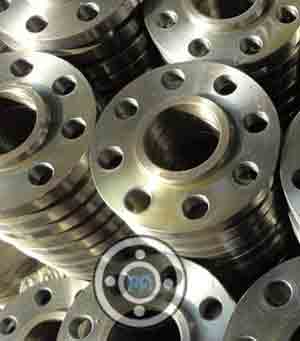

2” - Sch.80, SOCKETWELD FLANGES (SW), 900 lb, RF, ASTM A182 Gr.F11 according to ASME B16.5

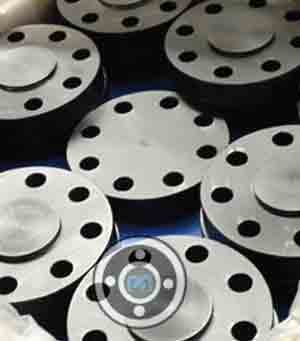

A182 GR F11 Alloy Steel Blind Flange

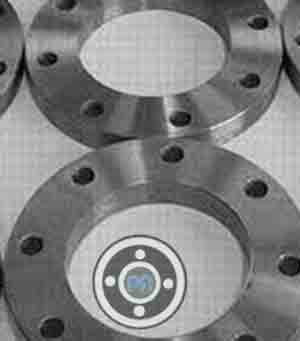

ASME SA182 F11 SORF Flanges

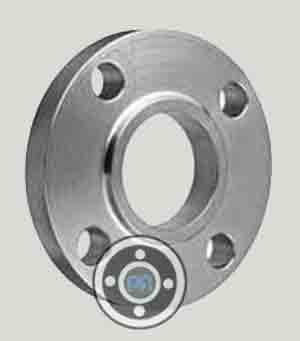

600 LBS SA-182 F11 Cl2 Threaded Flange

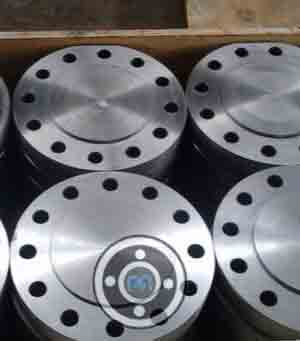

ASTM A182 F11 Class 1 BLRF Flanges

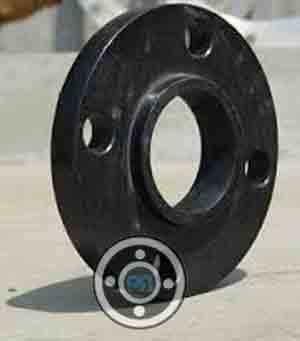

A182 Grade F11 Slip On Flange

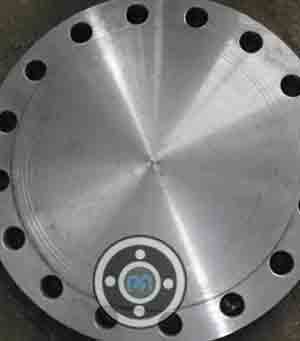

15 NB SA182 F11 Blind Flange

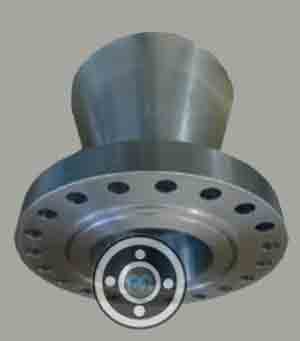

SA 182 F11 Expander Flanges

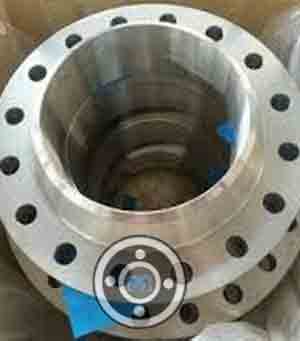

900 LBS ASTM A182 Grade F11 Class 2 Steel Long Weld Neck Flange

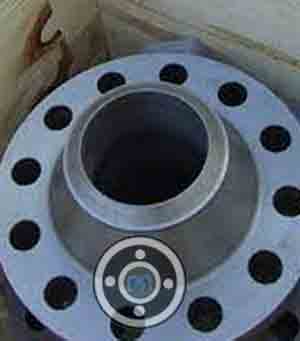

ASME SA182 F11 Class 2 WNRF Flange

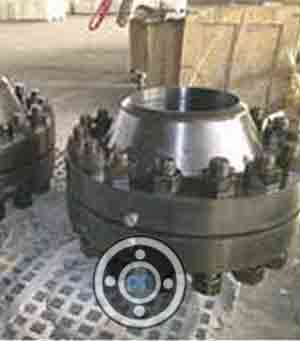

2500 LBS ASTM A182 Gr F11 Class 2 Orifice Flanges

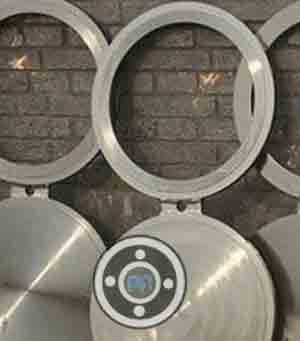

ASTM A182 Gr.F11 Cl.2 Spectacle Blind Flange

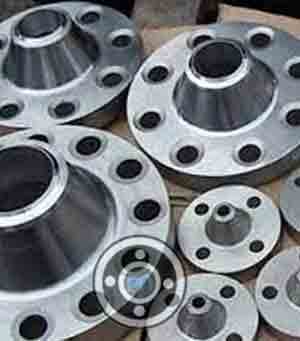

300 LBS ASTM A182 F11 Class 2 Reducing Flanges

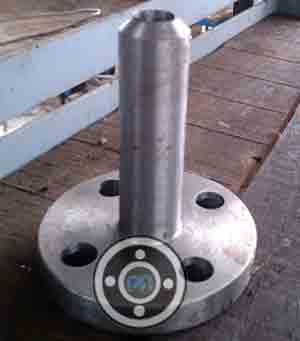

ASTM A182 Grade F11 Nipoflange Flanges

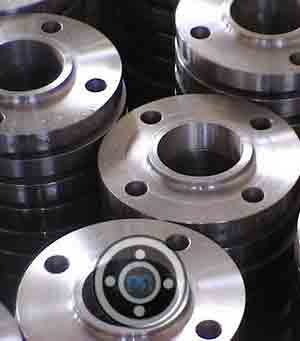

ASTM A182 F11 SWRF Flanges

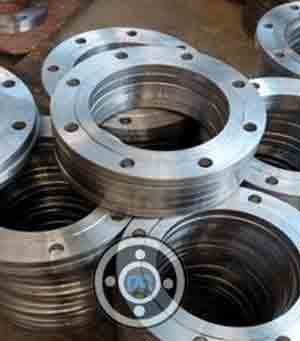

5000 NB SA182 F11 Cl2 Lapped Joint Flange

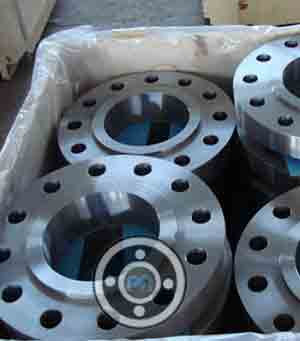

ASME SA 182 Gr F11 Flanges

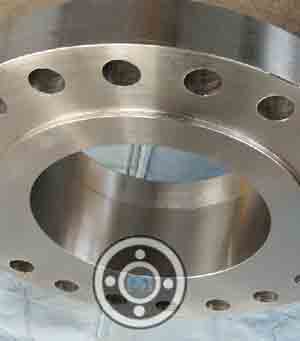

ASTM A182 F11 Cl2 Girth Flanges

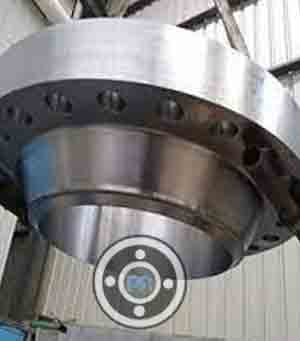

150 LBS ASTM A182 F11 Cl.2 Weld Neck Flanges

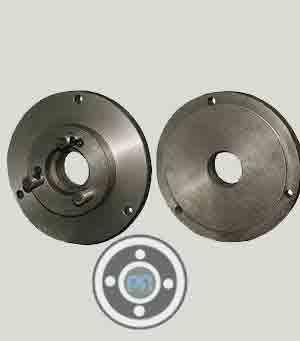

ASTM A182 Gr F11 Tongue & Groove Flange
SA 182 Gr F11 Ring Joint Flange
1500 LBS ASTM A182 F11 Class 3 Socket Weld Flange

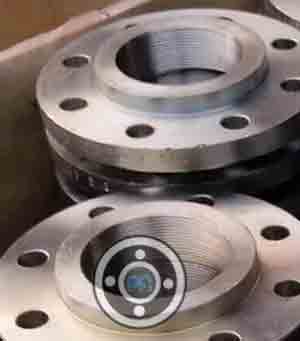

ASME SA 182 Gr F11 Screwed Flange
SA182 F11 Cl2 Flange Pressure Rating
| Temperature °F | Class 150 | Class 600 | Class 1500 | Class 400 | Class 900 | Class 300 | Class 2500 |
| -20 to 100 | 275 | 1440 | 3600 | 960 | 2160 | 720 | 6000 |
| 300 | 205 | 1080 | 2700 | 720 | 1620 | 540 | 4500 |
| 200 | 230 | 1200 | 3000 | 800 | 1800 | 600 | 5000 |
| 400 | 190 | 995 | 2485 | 660 | 1490 | 495 | 4140 |
| 600 | 140 | 875 | 2185 | 580 | 1310 | 435 | 3640 |
| 650 | 125 | 860 | 2150 | 575 | 1290 | 430 | 3580 |
| 500 | 170 | 930 | 2330 | 620 | 1395 | 465 | 3880 |
| 700 | 110 | 850 | 2125 | 565 | 1275 | 425 | 3540 |
| 750 | 95 | 830 | 2075 | 555 | 1245 | 415 | 3460 |
| 850 | 65 | 790 | 1980 | 530 | 1190 | 395 | 3300 |
| 800 | 80 | 805 | 2015 | 540 | 1210 | 405 | 3360 |
| 900 | 50 | 780 | 1945 | 520 | 1165 | 390 | 3240 |
| 950 | 35 | 765 | 1910 | 510 | 1145 | 380 | 3180 |
| 1000 | 20 | 640 | 1605 | 430 | 965 | 320 | 2675 |
| 1100 | 20 | 515 | 1285 | 345 | 770 | 255 | 2145 |
| 1150 | 20 | 400 | 995 | 265 | 595 | 200 | 1655 |
| 1050 | 20 | 615 | 1545 | 410 | 925 | 310 | 2570 |
| 1200 | 20 | 310 | 770 | 205 | 465 | 155 | 1285 |
| 1250 | 20 | 225 | 565 | 150 | 340 | 115 | 945 |
| 1300 | 20 | 170 | 430 | 115 | 255 | 85 | 715 |
| 1400 | 20 | 95 | 240 | 65 | 145 | 50 | 400 |
| 1350 | 20 | 125 | 310 | 80 | 185 | 60 | 515 |
| 1450 | 15 | 70 | 170 | 45 | 105 | 35 | 285 |
| 1500 | 10 | 55 | 135 | 35 | 80 | 25 | 230 |
Check SA-182 F11 Steel Spectacle Blinds and ASTM A182 F11 CL2 Spades/ Ring Spacers pressure rating & price in India
Dimensions of ASTM A182 Gr F11 Class 2 Weld Neck Flange
| Flange NPS | H | Inside Diameter |
Flat Face Thickness (T2) |
Outside Diameter |
Raised Face (RF) |
Raised Face (R) |
H1 | Raised Face Thickness (T) |
T1 | Bolt Circle (BC) |
Bolt Hole (B) |
No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 1.19" | 0.62" | 1.82" | 3.50" | .063" | 1.38" | 0.84" | 1.88" | .38" | 2.38" | .62" | 4 |
| 1-1/4" | 2.31" | 1.38" | 2.19" | 4.62" | .063" | 2.50" | 1.66" | 2.25" | .56" | 3.50" | .62" | 4 |
| 3/4" | 1.50" | 0.82" | 2.00" | 3.88" | .063" | 1.69" | 1.05" | 2.06" | .44" | 2.75" | .62" | 4 |
| 1-1/2" | 2.56" | 1.61" | 2.38" | 5.00" | .063" | 2.88" | 1.90" | 2.44" | .62" | 3.88" | .62" | 4 |
| 1" | 1.94" | 1.05" | 2.13" | 4.25" | .063" | 2.00" | 1.32" | 2.19" | .50" | 3.12" | .62" | 4 |
| 2" | 3.06" | 2.07" | 2.44" | 6.00" | .063" | 3.62" | 2.38" | 2.50" | .69" | 4.75" | .75" | 4 |
| 2-1/2" | 3.56" | 2.47" | 2.69" | 7.00" | .063" | 4.12" | 2.88" | 2.75" | .82" | 5.50" | .75" | 4 |
| 3" | 4.25" | 3.07" | 2.69" | 7.50" | .063" | 5.00" | 3.50" | 2.75" | .88" | 6.00" | .75" | 4 |
| 4" | 5.31" | 4.03" | 2.94" | 9.00" | .063" | 6.19" | 4.50" | 3.00" | .88" | 7.50" | .75" | 8 |
| 5" | 6.44" | 5.05" | 3.44" | 10.00" | .063" | 7.31" | 5.56" | 3.50" | .88" | 8.50" | .88" | 8 |
| 3-1/2" | 4.81" | 3.55" | 2.75" | 8.50" | .063" | 5.50" | 4.00" | 2.81" | .88" | 7.00" | .75" | 8 |
| 6" | 7.56" | 6.07" | 3.44" | 11.00" | .063" | 8.50" | 6.63" | 3.50" | .94" | 9.50" | .88" | 8 |
| 8" | 9.69" | 7.98" | 3.94" | 13.50" | .063" | 10.62" | 8.63" | 4.00" | 1.06" | 11.75" | .88" | 8 |
| 22" | 24.25" | 21.25" | 5.82" | 29.50" | .063" | 25.25" | 22.00" | 5.88" | 1.75" | 27.25" | 1.38" | 20 |
| 10" | 12.00" | 10.02" | 3.94" | 16.00" | .063" | 12.75" | 10.75" | 4.00" | 1.13" | 14.25" | 1.00" | 12 |
| 12" | 14.38" | 12.00" | 4.44" | 19.00" | .063" | 15.00" | 12.75" | 4.50" | 1.19" | 17.00" | 1.00" | 12 |
| 16" | 18.00" | 15.25" | 4.94" | 23.50" | .063" | 18.50" | 16.00" | 5.00" | 1.38" | 21.25" | 1.12" | 16 |
| 18" | 19.88" | 17.25" | 5.44" | 25.00" | .063" | 21.00" | 18.00" | 5.50" | 1.50" | 22.75" | 1.25" | 16 |
| 14" | 15.75" | 13.25" | 4.94" | 21.00" | .063" | 16.25" | 14.00" | 5.00" | 1.32" | 18.75" | 1.12" | 12 |
| 20" | 22.00" | 19.25" | 5.63" | 27.50" | .063" | 23.00" | 20.00" | 5.69" | 1.63" | 25.00" | 1.25" | 20 |
| 24" | 26.12" | 23.25" | 5.94" | 32.00" | .063" | 27.25" | 24.00" | 6.00" | 1.82" | 29.50" | 1.38" | 20 |
ASME SA 182 Gr F11 Flanges Applications
- Fossil Fuel Power Plants
- Power Plants
- Oil And Gas Industry
- Ship Building
- Refineries
- Paper & Pulp
- Nuclear Power
- Marine Applications
