What is Phosphorus Bronze Flanges?
The Phosphor Bronze material, also known as tin bronze, is a copper alloy containing 0.5-11% tin and 0.01-0.35% phosphorus. The Phosphor Bronze Flanges have some excellent mechanical properties due to its chemical composition, like high fatigue resistance, excellent formability and high resistance to corrosion. The high tin content in the alloy enhances its corrosion resistance properties and also increases its strength. The phosphorus contributes to increase the stiffness and wear resistance properties of the alloy.
The Phosphor Bronze Flanges are available in different sizes and material standards. Their dimensions, shapes and sizes can be customized according to the specific requirements. They are used in different industries, like chemical, pharmaceutical, etc., for heat exchangers, thrust washers, valves, etc.
Phosphor Bronze Blind Flange Vs Phosphorous Bronze Weld Neck Flange
The Phosphor Bronze Blind Flange is manufactured without a bore and is used for sealing the ends of the pipes or nozzles of pressure vessels. They are used for terminating the piping connections and are placed with other flanges. They are mostly used in inactive sections of the piping system, or when the pipes require internal maintenance or repairs.
The Phosphorous Bronze Weld Neck Flange comes with a long tapered hub, which makes the flanges useful in various high pressure applications at different temperature settings. The bore of these flanges match the inner diameter of the pipe, to ensure a smooth flow. The weld neck flanges are designed for excellent stress distribution and they are buttweld to the pipes for connection.
Phosphorus Bronze Slip on Flange Vs Phosphorus Bronze Threaded Flange
The Phosphorus Bronze Slip on Flange comes with a bore in the center, and the diameter of that hole is equal to the outer diameter of the pipe. The flange is slipped into the pipe through the bore and then it is double welded, both inside and outside of the flange. It helps to reduce the chances of leakage in the piping system. However, they are mainly used for applications with lower pressure and where there is a lesser leakage risk.
The best thing about Phosphorus Bronze Threaded Flange is that they can be attached to the piping system without welding. They are used for pipes with thicker walls, and for those applications where welding bears risk of explosion. Also, the threaded flanges are ideal for those cases where space is a constraint.
Phosphor Bronze Flanges
Table of Content
Size Range | 1/2″ to 48″ |
---|---|
Chart of Pressure Rating | 300 LBS, 2500 LBS, 1500 LBS, 900 LBS, 150 LBS, 600 LBS |
JIS | 40 K, 16 K, 5K, 10 K, 30 K, 20 K, 63 K |
DIN Pressure Calculation | 25Bar 40Bar 16Bar 6Bar 10Bar / PN64 PN10 PN25 PN16 PN6 PN40 |
Manufacturer of Connect / Flange Face Type | LJF, RF, RTJ, FF, Small Tongue, Large Tongue & Groove |
Test | Magnetic particle detector, X-ray detector, Ultrasonic flaw detector, Direct-reading Spectrograph, Hydrostatic testing machine |
Origin | Japan / West Europe / Indian / USA / Korean |
Manufacturer of | GOST, JIS, ANSI, DIN, UNI, BS, AWWA, AS2129, SABS, NFE, EN etc. |
UNI / EN | 16Bar 6Bar 40Bar 10Bar 25Bar |
Standards Provided By Manufacturer | ISO70051, MSS S44, BS1560-3.1, API7S-43, B16.48, ANSI/ASME B16.5, B16.47 Series A & B, BS4504, JISB2220, ASME/ANSI B16.5/16.36/16.47A/16.47B, API605, BS 10, EN-1092, DIN, API7S-15, EN1092 |
Common Types By Manufacturer | Threaded / Screwed / Forged / Plate |
Equipment | Pushing Machine, Press machine, Sand-blasting machine, Bending machine, electric bevelling machine etc |
Production technique Used By Manufacturer | Heat treated, Forged and machined |
Coating | Zinc Plated, Anti-rust Paint, Yellow Transparent, Oil Black Paint, Cold and Hot Dip Galvanized |
Are you looking for C524 Phosphor Bronze Blind Flange dealers, distributor, supplier, stockholders, importer, stockists, wholesalers, exporters and Manufacturer in Mumbai.
Size in Inch | Size in mm | No of Bolts | Outer Dia. | Hub OD | ISO Stud Size | Flange Length | RF Height | Flange Thick. | RF Dia. | PCD | Hole Size | Socket Bore | Weight in kg |
A | C | D | F | B | E | G | H | ||||||
1/2 | 15 | 4 | 90 | 30 | M14 | 14 | 2 | 9.6 | 34.9 | 60.3 | 5/8 | 22.2 | 0.8 |
1 | 25 | 4 | 110 | 49 | M14 | 16 | 2 | 12.7 | 50.8 | 79.4 | 5/8 | 34.5 | 0.9 |
3/4 | 20 | 4 | 100 | 38 | M14 | 14 | 2 | 11.2 | 42.9 | 69.9 | 5/8 | 27.7 | 0.9 |
1 1/4 | 32 | 4 | 115 | 59 | M14 | 19 | 2 | 14.3 | 63.5 | 88.9 | 5/8 | 43.2 | 1.4 |
2 | 50 | 4 | 150 | 78 | M16 | 24 | 2 | 17.5 | 92.1 | 120.7 | 3/4 | 61.9 | 2.3 |
1 1/2 | 40 | 4 | 125 | 65 | M14 | 21 | 2 | 15.9 | 73 | 98.4 | 5/8 | 49.5 | 1.4 |
2 1/2 | 65 | 4 | 180 | 90 | M16 | 27 | 2 | 20.7 | 104.8 | 139.7 | 3/4 | 74.6 | 3.2 |
3 | 80 | 4 | 190 | 108 | M16 | 29 | 2 | 22.3 | 127 | 152.4 | 3/4 | 90.7 | 3.7 |
4 | 100 | 8 | 230 | 135 | M16 | 32 | 2 | 22.3 | 157.2 | 190.5 | 3/4 | 116.1 | 5.9 |
3 1/2 | 90 | 8 | 215 | 122 | M16 | 30 | 2 | 22.3 | 139.7 | 177.8 | 3/4 | 103.4 | 5 |
5 | 125 | 8 | 255 | 164 | M20 | 35 | 2 | 22.3 | 185.7 | 215.9 | 7/8 | 143.8 | 6.8 |
8 | 200 | 8 | 345 | 246 | M20 | 43 | 2 | 27 | 269.9 | 298.5 | 7/8 | 221.5 | 13.7 |
10 | 250 | 12 | 405 | 305 | M24 | 48 | 2 | 28.6 | 323.8 | 362 | 1 | 276.2 | 19.5 |
6 | 150 | 8 | 280 | 192 | M20 | 38 | 2 | 23.9 | 215.9 | 241.3 | 7/8 | 170.7 | 8.6 |
12 | 300 | 12 | 485 | 365 | M24 | 54 | 2 | 30.2 | 381 | 431.8 | 1 | 327 | 29 |
24 | 600 | 20 | 815 | 663 | M33 | 81 | 2 | 46.1 | 692.2 | 749.3 | 1 3/8 | 616 | 100 |
16 | 400 | 16 | 595 | 457 | M27 | 62 | 2 | 35 | 469.9 | 539.8 | 1 1/8 | 410.5 | 54 |
18 | 450 | 16 | 635 | 505 | M30 | 67 | 2 | 38.1 | 533.4 | 577.9 | 1 1/4 | 461.8 | 59 |
14 | 350 | 12 | 535 | 400 | M27 | 56 | 2 | 33.4 | 412.8 | 476.3 | 1 1/8 | 359.2 | 41 |
20 | 500 | 20 | 700 | 559 | M30 | 71 | 2 | 41.3 | 584.2 | 635 | 1 1/4 | 513.1 | 75 |
Size in Inch | Size in mm | ISO Stud Size | RF Height | Outer Dia. | RF Dia. | Hole Size | PCD | No of Bolts | Bolt Size UNC | Flange Thickness | RF Stud Length | Weight in kg |
D | A | C | E | B | ||||||||
1/2 | 15 | M20 | 7 | 135 | 34.9 | 7/8 | 88.9 | 4 | 3/4 | 30.2 | 120 | 3.2 |
3/4 | 20 | M20 | 7 | 140 | 42.9 | 7/8 | 95.2 | 4 | 3/4 | 31.8 | 125 | 3.7 |
1 | 25 | M24 | 7 | 160 | 50.8 | 1 | 108 | 4 | 7/8 | 35 | 140 | 5 |
1 1/4 | 32 | M27 | 7 | 185 | 63.5 | 1 1/8 | 130.2 | 4 | 1 | 38.1 | 150 | 7.8 |
1 1/2 | 40 | M30 | 7 | 205 | 73 | 1 1/4 | 146 | 4 | 1 1/8 | 44.5 | 170 | 10.5 |
2 | 50 | M27 | 7 | 235 | 92.1 | 1 1/8 | 171.4 | 8 | 1 | 50.9 | 180 | 18 |
2 1/2 | 65 | M30 | 7 | 265 | 104.8 | 1 1/4 | 196.8 | 8 | 1 1/8 | 57.2 | 195 | 25.5 |
3 | 80 | M33 | 7 | 305 | 127 | 1 3/8 | 228.6 | 8 | 1 1/4 | 66.7 | 220 | 39 |
4 | 100 | M39 | 7 | 355 | 157.2 | 1 5/8 | 273 | 8 | 1 1/2 | 76.2 | 255 | 61.5 |
5 | 125 | M45 | 7 | 420 | 185.7 | 1 7/8 | 323.8 | 8 | 1 3/4 | 92.1 | 300 | 102 |
6 | 150 | M52 | 7 | 485 | 215.9 | 2 1/8 | 368.3 | 8 | 2 | 108 | 345 | 157 |
8 | 200 | M52 | 7 | 550 | 269.9 | 2 1/8 | 438.2 | 12 | 2 | 127 | 380 | 241 |
10 | 250 | M64 | 7 | 675 | 323.8 | 2 5/8 | 539.8 | 12 | 2 1/2 | 165.1 | 490 | 470 |
12 | 300 | M72 | 7 | 760 | 381 | 2 7/8 | 619.1 | 12 | 2 3/4 | 184.2 | 540 | 575 |
Flange NPS | H | Inside Diameter |
Flat Face Thickness (T2) |
Outside Diameter |
Raised Face (RF) |
Raised Face (R) |
H1 | Raised Face Thickness (T) |
T1 | Bolt Circle (BC) |
Bolt Hole (B) |
No. of Bolt Holes |
---|---|---|---|---|---|---|---|---|---|---|---|---|
1/2" | 1.19" | 0.62" | 1.82" | 3.50" | .063" | 1.38" | 0.84" | 1.88" | .38" | 2.38" | .62" | 4 |
1-1/4" | 2.31" | 1.38" | 2.19" | 4.62" | .063" | 2.50" | 1.66" | 2.25" | .56" | 3.50" | .62" | 4 |
3/4" | 1.50" | 0.82" | 2.00" | 3.88" | .063" | 1.69" | 1.05" | 2.06" | .44" | 2.75" | .62" | 4 |
1-1/2" | 2.56" | 1.61" | 2.38" | 5.00" | .063" | 2.88" | 1.90" | 2.44" | .62" | 3.88" | .62" | 4 |
1" | 1.94" | 1.05" | 2.13" | 4.25" | .063" | 2.00" | 1.32" | 2.19" | .50" | 3.12" | .62" | 4 |
2" | 3.06" | 2.07" | 2.44" | 6.00" | .063" | 3.62" | 2.38" | 2.50" | .69" | 4.75" | .75" | 4 |
2-1/2" | 3.56" | 2.47" | 2.69" | 7.00" | .063" | 4.12" | 2.88" | 2.75" | .82" | 5.50" | .75" | 4 |
3" | 4.25" | 3.07" | 2.69" | 7.50" | .063" | 5.00" | 3.50" | 2.75" | .88" | 6.00" | .75" | 4 |
4" | 5.31" | 4.03" | 2.94" | 9.00" | .063" | 6.19" | 4.50" | 3.00" | .88" | 7.50" | .75" | 8 |
5" | 6.44" | 5.05" | 3.44" | 10.00" | .063" | 7.31" | 5.56" | 3.50" | .88" | 8.50" | .88" | 8 |
3-1/2" | 4.81" | 3.55" | 2.75" | 8.50" | .063" | 5.50" | 4.00" | 2.81" | .88" | 7.00" | .75" | 8 |
6" | 7.56" | 6.07" | 3.44" | 11.00" | .063" | 8.50" | 6.63" | 3.50" | .94" | 9.50" | .88" | 8 |
8" | 9.69" | 7.98" | 3.94" | 13.50" | .063" | 10.62" | 8.63" | 4.00" | 1.06" | 11.75" | .88" | 8 |
22" | 24.25" | 21.25" | 5.82" | 29.50" | .063" | 25.25" | 22.00" | 5.88" | 1.75" | 27.25" | 1.38" | 20 |
10" | 12.00" | 10.02" | 3.94" | 16.00" | .063" | 12.75" | 10.75" | 4.00" | 1.13" | 14.25" | 1.00" | 12 |
12" | 14.38" | 12.00" | 4.44" | 19.00" | .063" | 15.00" | 12.75" | 4.50" | 1.19" | 17.00" | 1.00" | 12 |
16" | 18.00" | 15.25" | 4.94" | 23.50" | .063" | 18.50" | 16.00" | 5.00" | 1.38" | 21.25" | 1.12" | 16 |
18" | 19.88" | 17.25" | 5.44" | 25.00" | .063" | 21.00" | 18.00" | 5.50" | 1.50" | 22.75" | 1.25" | 16 |
14" | 15.75" | 13.25" | 4.94" | 21.00" | .063" | 16.25" | 14.00" | 5.00" | 1.32" | 18.75" | 1.12" | 12 |
20" | 22.00" | 19.25" | 5.63" | 27.50" | .063" | 23.00" | 20.00" | 5.69" | 1.63" | 25.00" | 1.25" | 20 |
24" | 26.12" | 23.25" | 5.94" | 32.00" | .063" | 27.25" | 24.00" | 6.00" | 1.82" | 29.50" | 1.38" | 20 |
Phosphor Bronze Flanges Price Per Piece in India | ASTM B139 C51000 Flange Price in INR | Phos Bronze Flanges Price in UAE Dirham | Phosphor Bronze Flanges Price in USD |
Phosphor Bronze Flanges, Size: 0-1 and >30 inch Per Kg | 690 | UAE Dirham 746.71 | $9.15 |
Compare our prices to those of other Phosphor Bronze Flanges manufacturers in India before making a purchase. This is an approximation of the Pb102 Phosphor Bronze Flanges pricing in India. For the most up-to-date stocklist of ASTM B103 C51000 Plate Flange in Mumbai, please contact us.
NPS (Nominal Pipe Size) | Loose (Lap Joint) | NPT (Threaded) | SORF (Slip On) | BLRF (Blind) | SWRF (Socket Weld) | WRNR (Weld Neck) |
---|---|---|---|---|---|---|
½ | 1 | 1 | 1 | 2 | 2 | 2 |
1 | 2 | 2 | 2 | 2 | 2 | 3 |
1¼ | 3 | 3 | 3 | 3 | 3 | 3 |
¾ | 2 | 2 | 2 | 2 | 2 | 2 |
1½ | 3 | 3 | 3 | 4 | 3 | 4 |
2½ | 8 | 8 | 8 | 7 | 8 | 10 |
2 | 5 | 5 | 5 | 5 | 5 | 6 |
3 | 9 | 9 | 9 | 9 | 9 | 11.5 |
4 | 13 | 13 | 13 | 17 | 13 | 16.5 |
3½ | 11 | 12 | 11 | 13 | 11 | 12 |
5 | 15 | 15 | 15 | 20 | 15 | 21 |
8 | 30 | 30 | 30 | 47 | 30 | 42 |
6 | 19 | 19 | 19 | 27 | 19 | 26 |
10 | 43 | 43 | 43 | 70 | 43 | 54 |
24 | 275 | 220 | 220 | 430 | 220 | 268 |
14 | 105 | 90 | 90 | 140 | 90 | 114 |
12 | 64 | 64 | 64 | 123 | 64 | 88 |
16 | 140 | 98 | 106 | 180 | 98 | 140 |
20 | 195 | 165 | 165 | 285 | 165 | 197 |
18 | 160 | 130 | 130 | 220 | 130 | 165 |
22 | 245 | 185 | 185 | 355 | 185 | 225 |
Temperature °F | Class 150 | Class 600 | Class 1500 | Class 400 | Class 900 | Class 300 | Class 2500 |
-20 to 100 | 275 | 1440 | 3600 | 960 | 2160 | 720 | 6000 |
300 | 205 | 1080 | 2700 | 720 | 1620 | 540 | 4500 |
200 | 230 | 1200 | 3000 | 800 | 1800 | 600 | 5000 |
400 | 190 | 995 | 2485 | 660 | 1490 | 495 | 4140 |
600 | 140 | 875 | 2185 | 580 | 1310 | 435 | 3640 |
650 | 125 | 860 | 2150 | 575 | 1290 | 430 | 3580 |
500 | 170 | 930 | 2330 | 620 | 1395 | 465 | 3880 |
700 | 110 | 850 | 2125 | 565 | 1275 | 425 | 3540 |
750 | 95 | 830 | 2075 | 555 | 1245 | 415 | 3460 |
850 | 65 | 790 | 1980 | 530 | 1190 | 395 | 3300 |
800 | 80 | 805 | 2015 | 540 | 1210 | 405 | 3360 |
900 | 50 | 780 | 1945 | 520 | 1165 | 390 | 3240 |
950 | 35 | 765 | 1910 | 510 | 1145 | 380 | 3180 |
1000 | 20 | 640 | 1605 | 430 | 965 | 320 | 2675 |
1100 | 20 | 515 | 1285 | 345 | 770 | 255 | 2145 |
1150 | 20 | 400 | 995 | 265 | 595 | 200 | 1655 |
1050 | 20 | 615 | 1545 | 410 | 925 | 310 | 2570 |
1200 | 20 | 310 | 770 | 205 | 465 | 155 | 1285 |
1250 | 20 | 225 | 565 | 150 | 340 | 115 | 945 |
1300 | 20 | 170 | 430 | 115 | 255 | 85 | 715 |
1400 | 20 | 95 | 240 | 65 | 145 | 50 | 400 |
1350 | 20 | 125 | 310 | 80 | 185 | 60 | 515 |
1450 | 15 | 70 | 170 | 45 | 105 | 35 | 285 |
1500 | 10 | 55 | 135 | 35 | 80 | 25 | 230 |
Nominal Pipe Size (inch) |
Dia. of Flange (inch) |
No. of Bolts |
Dia. of Bolts (inch) |
Dia. of Bolt Holes (inch) |
Bolt Circle (inch) |
---|---|---|---|---|---|
1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
12 | 19 | 12 | 7/8 | 1 | 17 |
18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
Alloy | UNS Designation | Tin | Phosphorus | Iron, max | Lead, max | Zinc, max | Copper |
510 | C51000 | 4.2-5.8 | .030-.35 | 0.1 | 0.05 | 0.3 | remainder |
Alloy Description | American Spec. | German Spec. | British Spec. |
UNS | SAE | Alloy | |
Phosphor Bronze Grade I | C54400 | CuSn4 | PB101 |
Phosphor Bronze Grade II | C51000 | CuSn5 | PB102 |
Phosphor Bronze Grade III | C51900 | CuSn6 | PB103 |
Phosphor Bronze IV | C52100 | CuSn8 | PB104 |
ASTM Specification | Temper | Tensile Strength | Rockwell B Scale | Superficial (30-T Scale) |
min-max psi | min-max | min-max | ||
Annealed | Annealed | 43-58 | 12-64 | 24-59 |
H02 | 1/2 Hard | 58-73 | 60-85 | 53-73 |
H04 | Hard Tempered | 76-91 | 84-93 | 71-78 |
H06 | Extra Hard | 88-103 | 89-96 | 74-81 |
H08 | Spring Temper | 95-110 | 92-98 | 76-82 |
H10 | Extra Spring | 100-114 | 94-99 | 77-83 |
ASTM B139 Grade C52100 Orifice Flanges

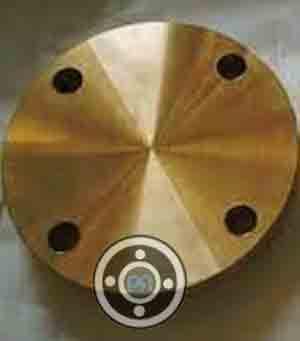

C52400 Phosphorus Bronze Blind Flange

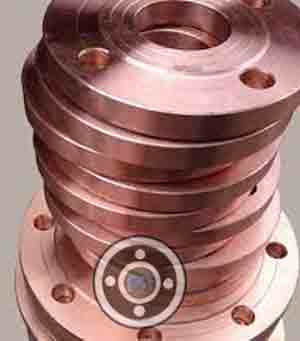

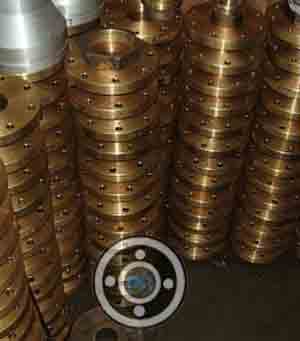

Phosphorus Bronze Flanges

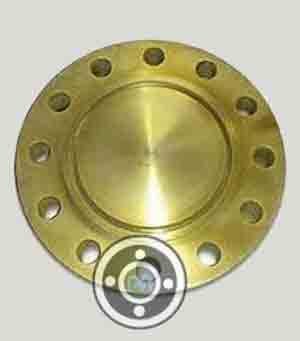

1500 LBS C510 Phosphor Bronze BLRF Flanges

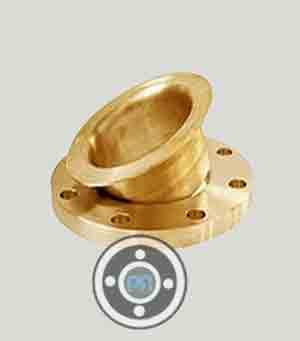

Phosphor Bronze Alloy Lapped Joint Flange

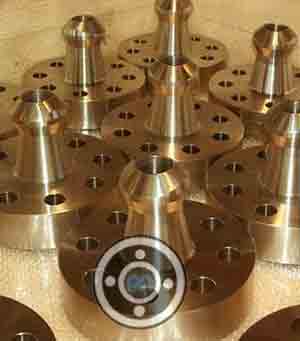

C51000 Phosphor Bronze Nipoflange

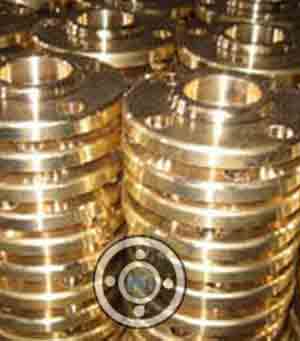

15 NB Bs1400 Pb1 SWRF Flanges
ASTM B139 C51000 Forged Flange
Bronze C52100 Socket Weld Flange

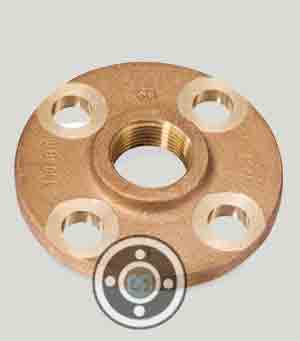

C54400 Phosphor Bronze Screwed Flange
2500 LBS ASTM B139 C51000 SORF Flanges

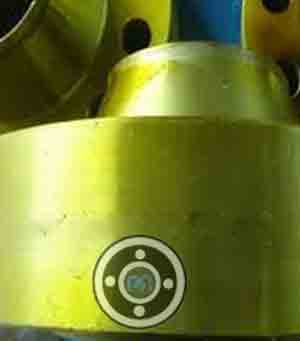

544 Phosphor Bronze Reducing Flanges

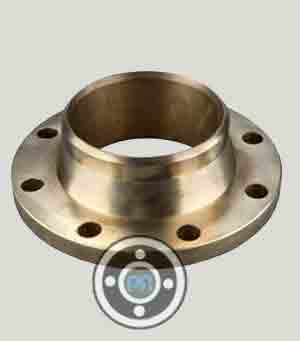

300 LBS C52400 Phosphor Bronze Weld Neck Flanges

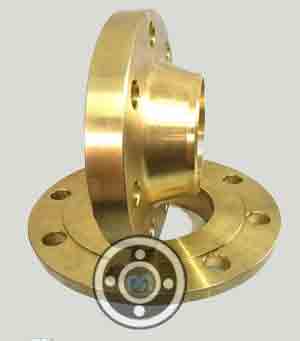

Phosphor Bronze Pb2 Girth Flanges

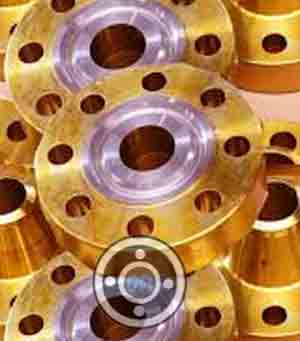

5000 NB ASTM B103 C51000 Ring Joint Flange

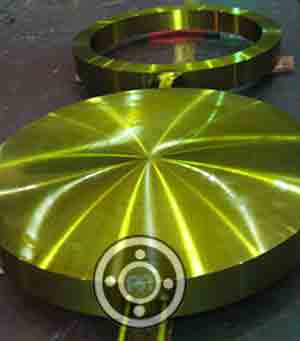

150 LBS C544 Bronze Spectacle Blind Flange
ASTM B103 C51000 Plate Flange

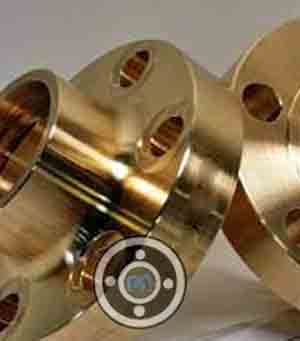

Bs1400 Pb2 WNRF Flange
C51000 Bronze Threaded Flange
900 LBS P Bronze Expander Flanges
Phosphor Bronze Slip On Flange
600 LBS Pb102 Bronze Long Weld Neck Flange
C544 Phosphor Bronze Tongue & Groove Flange
Phosphor Bronze Flanges
Physical Properties | Metric | English |
Density | 8.8 g/cc | 0.318 lb/in³ |
Electrical Resistivity | 1.33e-005 ohm-cm | 1.33e-005 ohm-cm | at 20°C (68°F) |
CTE, linear 250°C | 18.2 µm/m-°C | 10.1 µin/in-°F | from 20-300°C (68-570°F) |
Heat Capacity | 0.38 J/g-°C | 0.0908 BTU/lb-°F | |
Thermal Conductivity | 62 W/m-K | 430 BTU-in/hr-ft²-°F | at 20°C (68°F) |
Melting Point | 880 – 1025 °C | 1620 – 1880 °F | |
Solidus | 880 °C | 1620 °F | |
Liquidus | 1025 °C | 1880 °F |
Annealing Temperature | 475 – 675 °C | 887 – 1250 °F |
Flanges Material
Pipe Fittings Material
Other Products
