Difference between brass blind flange and brass brazing flange
The brass blind flanges are used for stopping the flow inside the pipe or sealing the ends of a nozzle. They come with various features, like good thermal conductivity and high strength. The brass blind flange is also known for its lightweight but they have high hardness. Other properties of the brass blind flange would include resistance to pressure and corrosions. Due to all these features, they are effectively used in a wide range of applications.
The brass brazing flanges come with a good surface finish and they offer good sealing to the pipe connections. Their shapes can easily be customized and they are dimensionally stable.
What is Brass flange bushing
Brass flange bushing can be defined as bronze sintered and oil impregnated bushing. These flanges are designed for supporting different types of loads. They are mainly used at a lower speed, and for bearing lighter loads. In the process, the mating shaft is able to freely slide within the bushing. They are often used on the propeller shafts.

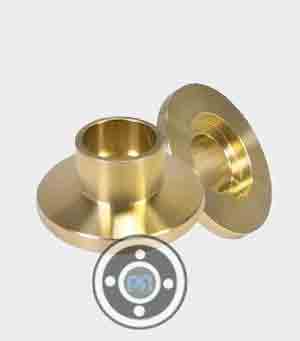

c86300 manganese bronze flange vs c93200 bearing bronze flange

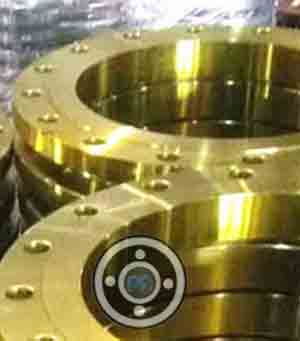

The c86300 manganese bronze flanges are used in a wide range of industries, including aerospace, fasteners, oil and gas, etc. These flanges are high in strength and offer good resistance to corrosion. They are capable of operating at a lower speed and with heavy loads. However, to do so, they would need higher hardness of shaft along with non-abrasive operating conditions.

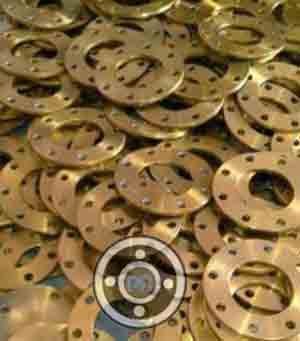

The c93200 bearing bronze flange comes with some good anti-friction properties. They also possess high strength, with enhanced ductility and excellent machinability.
c95510-nickel aluminum bronze flange vs c84400 red brass flange

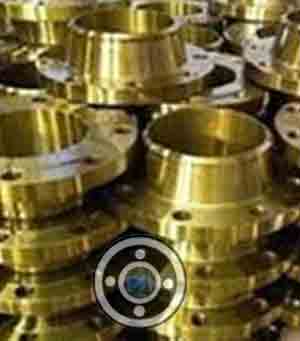

The c95510-nickel aluminum bronze flanges are made with material which is popular for landing gear bushings along with the C63000 material. They need to be heat treated for exhibiting high mechanical strength which is comparable to that of the flanges made with C63000 material.

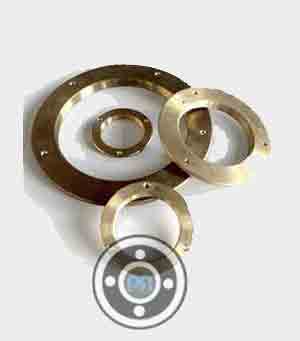

The c84400 is a popular material when it comes to brass flange. They are very affordable and come with good machinability. The c84400 red brass material also has good casting properties. They are primarily used for low-cost bearing materials and can withstand low loads.

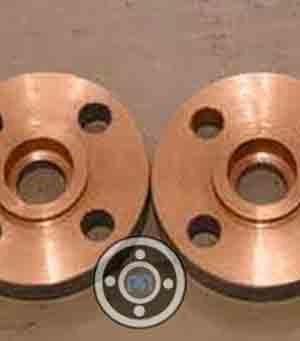

c86200 manganese bronze flange vs c86500 bronze flange
The c86200 manganese bronze flange is made up of an alloy that consists of other elements, like copper, zinc, and aluminum. There is also lead present in the alloy which enhances its durability and helps the flange to last long.

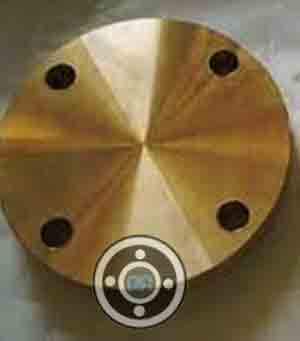

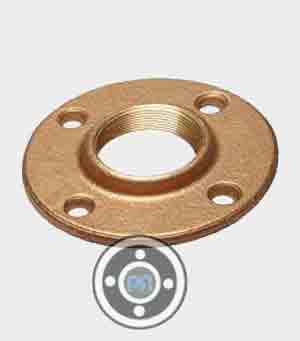

The c86500 bronze flanges are capable of working with high loads. They have good mechanical properties and they are able to withstand corrosion effectively. The c86500 bronze flange possesses high tensile strength, good min yield strength, and the elongation of 25%.

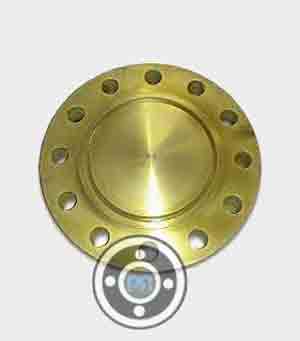

c92500 bronze flange vs c83600 leaded red brass flange

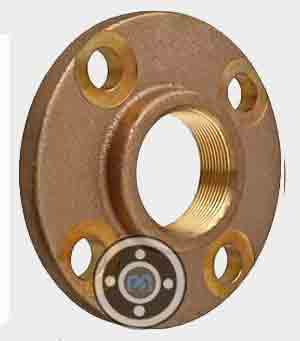

The c92500 bronze flange is made up of a material that contains high amounts of tin and lead in its chemical composition. Because of this, they have a high strength and come with good machinability. They have good min tensile strength and yield strength.
The c83600 leaded red brass flange material consists of copper and they are known for their high aqueous and atmospheric corrosion resistance properties. They are very affordable and come with good machinability. They also have good casting properties.
brass floor flange Specifications
The standard specification of the brass floor flanges would include C35300 / C35330 DZR / C36000 (CDA 360) / C37000 / C36500 / C37700 / C37100 / C37710 / C38500. They are available within the size range of ½” to 48”, and can be customized according to specific requirements. The brass floor flanges are available in different BS, EN, and IS standards. Special flange material compositions can also be customized according to requirements.
Size Range | 1/2″ to 48″ |
---|---|
DIN Pressure Calculation | 25Bar 40Bar 16Bar 6Bar 10Bar / PN64 PN10 PN25 PN16 PN6 PN40 |
JIS | 40 K, 16 K, 5K, 10 K, 30 K, 20 K, 63 K |
Chart of Pressure Rating | 300 LBS, 2500 LBS, 1500 LBS, 900 LBS, 150 LBS, 600 LBS |
Production technique Used By Manufacturer | Heat treated, Forged and machined |
Manufacturer of Connect / Flange Face Type | LJF, RF, RTJ, FF, Small Tongue, Large Tongue & Groove |
Standards Provided By Manufacturer | ISO70051, MSS S44, BS1560-3.1, API7S-43, B16.48, ANSI/ASME B16.5, B16.47 Series A & B, BS4504, JISB2220, ASME/ANSI B16.5/16.36/16.47A/16.47B, API605, BS 10, EN-1092, DIN, API7S-15, EN1092 |
Test | Magnetic particle detector, X-ray detector, Ultrasonic flaw detector, Direct-reading Spectrograph, Hydrostatic testing machine |
UNI / EN | 16Bar 6Bar 40Bar 10Bar 25Bar |
Coating | Zinc Plated, Anti-rust Paint, Yellow Transparent, Oil Black Paint, Cold and Hot Dip Galvanized |
Origin | Japan / West Europe / Indian / USA / Korean |
Equipment | Pushing Machine, Press machine, Sand-blasting machine, Bending machine, electric bevelling machine etc |
Manufacturer of | GOST, JIS, ANSI, DIN, UNI, BS, AWWA, AS2129, SABS, NFE, EN etc. |
Common Types By Manufacturer | Threaded / Screwed / Forged / Plate |
Temperature °F | Class 150 | Class 600 | Class 1500 | Class 400 | Class 900 | Class 300 | Class 2500 |
-20 to 100 | 275 | 1440 | 3600 | 960 | 2160 | 720 | 6000 |
300 | 205 | 1080 | 2700 | 720 | 1620 | 540 | 4500 |
200 | 230 | 1200 | 3000 | 800 | 1800 | 600 | 5000 |
400 | 190 | 995 | 2485 | 660 | 1490 | 495 | 4140 |
600 | 140 | 875 | 2185 | 580 | 1310 | 435 | 3640 |
650 | 125 | 860 | 2150 | 575 | 1290 | 430 | 3580 |
500 | 170 | 930 | 2330 | 620 | 1395 | 465 | 3880 |
700 | 110 | 850 | 2125 | 565 | 1275 | 425 | 3540 |
750 | 95 | 830 | 2075 | 555 | 1245 | 415 | 3460 |
850 | 65 | 790 | 1980 | 530 | 1190 | 395 | 3300 |
800 | 80 | 805 | 2015 | 540 | 1210 | 405 | 3360 |
900 | 50 | 780 | 1945 | 520 | 1165 | 390 | 3240 |
950 | 35 | 765 | 1910 | 510 | 1145 | 380 | 3180 |
1000 | 20 | 640 | 1605 | 430 | 965 | 320 | 2675 |
1100 | 20 | 515 | 1285 | 345 | 770 | 255 | 2145 |
1150 | 20 | 400 | 995 | 265 | 595 | 200 | 1655 |
1050 | 20 | 615 | 1545 | 410 | 925 | 310 | 2570 |
1200 | 20 | 310 | 770 | 205 | 465 | 155 | 1285 |
1250 | 20 | 225 | 565 | 150 | 340 | 115 | 945 |
1300 | 20 | 170 | 430 | 115 | 255 | 85 | 715 |
1400 | 20 | 95 | 240 | 65 | 145 | 50 | 400 |
1350 | 20 | 125 | 310 | 80 | 185 | 60 | 515 |
1450 | 15 | 70 | 170 | 45 | 105 | 35 | 285 |
1500 | 10 | 55 | 135 | 35 | 80 | 25 | 230 |
Normal Pipe Size (NPS) Of Flanges | (I.D.) Inside Diameter | Thickness Of Raised Face (RF) (T) |
Outside Daimeter (O.D.) | Raised Face (R) |
RF (Raised Face) |
Holes Of Bolts (B) |
H | T1 | Thickness Of Flat Face (FF) (T2) |
BC (Circle Of Bolt) | Bolts Holes Numbers |
---|---|---|---|---|---|---|---|---|---|---|---|
1/2 | 0.88 | 0.88 | 3.75 | 1.38 | .063 | 0.62 | 1.50 | 0.50 | 0.82 | 2.62 | 4 |
1 | 1.36 | 1.06 | 4.88 | 2.00 | .063 | 0.75 | 2.12 | 0.63 | 1.00 | 3.50 | 4 |
3/4 | 1.09 | 1.00 | 4.62 | 1.69 | .063 | 0.75 | 1.88 | .056 | 0.94 | 3.25 | 4 |
1-1/4 | 1.70 | 1.06 | 5.25 | 2.50 | .063 | 0.75 | 2.50 | 0.69 | 1.00 | 3.88 | 4 |
2 | 2.44 | 1.31 | 6.50 | 3.62 | .063 | 0.75 | 3.31 | 0.82 | 1.25 | 5.00 | 8 |
1-1/2 | 1.95 | 1.19 | 6.12 | 2.88 | .063 | 0.88 | 2.75 | 0.75 | 1.13 | 4.50 | 4 |
2-1/2 | 2.94 | 1.50 | 7.50 | 4.12 | .063 | 0.88 | 3.94 | 0.94 | 1.44 | 5.88 | 8 |
3 | 3.57 | 1.69 | 8.25 | 5.00 | .063 | 0.88 | 4.62 | 1.06 | 1.63 | 6.62 | 8 |
3-1/2 | 4.07 | 1.75 | 9.00 | 5.50 | .063 | 0.88 | 5.25 | 1.13 | 1.69 | 7.25 | 8 |
4 | 4.57 | 1.88 | 10.00 | 6.19 | .063 | 0.88 | 5.75 | 1.19 | 1.82 | 7.88 | 8 |
5 | 5.66 | 2.00 | 11.00 | 7.31 | .063 | 0.88 | 7.00 | 1.32 | 1.94 | 9.25 | 8 |
18 | 18.18 | 3.50 | 28.00 | 21.00 | .063 | 1.38 | 21.00 | 2.32 | 3.44 | 24.75 | 24 |
6 | 6.72 | 2.06 | 12.50 | 8.50 | .063 | 0.88 | 8.12 | 1.38 | 2.00 | 10.62 | 12 |
8 | 8.72 | 2.44 | 15.00 | 10.62 | .063 | 1.00 | 10.25 | 1.56 | 2.38 | 13.00 | 12 |
10 | 10.88 | 2.62 | 17.50 | 12.75 | .063 | 1.12 | 12.62 | 1.82 | 2.56 | 15.25 | 16 |
12 | 12.88 | 2.88 | 20.50 | 15.00 | .063 | 1.25 | 14.75 | 1.94 | 2.82 | 17.75 | 16 |
14 | 14.14 | 3.00 | 23.00 | 16.25 | .063 | 1.25 | 16.75 | 2.06 | 2.94 | 20.25 | 20 |
20 | 20.20 | 3.75 | 30.50 | 23.00 | .063 | 1.38 | 23.12 | 2.44 | 3.69 | 27.00 | 24 |
16 | 16.16 | 3.25 | 25.50 | 18.50 | .063 | 1.38 | 19.00 | 2.19 | 3.19 | 22.50 | 20 |
22 | 22.22 | 4.00 | 33.00 | 25.25 | .063 | 1.63 | 25.25 | 2.57 | 3.94 | 29.25 | 24 |
24 | 24.25 | 4.19 | 36.00 | 27.25 | .063 | 1.62 | 27.62 | 2.69 | 4.13 | 32.00 | 24 |
NPS (Nominal Pipe Size) | Loose (Lap Joint) | NPT (Threaded) | SORF (Slip On) | BLRF (Blind) | SWRF (Socket Weld) | WRNR (Weld Neck) |
---|---|---|---|---|---|---|
½ | 1 | 1 | 1 | 2 | 2 | 2 |
1 | 2 | 2 | 2 | 2 | 2 | 3 |
1¼ | 3 | 3 | 3 | 3 | 3 | 3 |
¾ | 2 | 2 | 2 | 2 | 2 | 2 |
1½ | 3 | 3 | 3 | 4 | 3 | 4 |
2½ | 8 | 8 | 8 | 7 | 8 | 10 |
2 | 5 | 5 | 5 | 5 | 5 | 6 |
3 | 9 | 9 | 9 | 9 | 9 | 11.5 |
4 | 13 | 13 | 13 | 17 | 13 | 16.5 |
3½ | 11 | 12 | 11 | 13 | 11 | 12 |
5 | 15 | 15 | 15 | 20 | 15 | 21 |
8 | 30 | 30 | 30 | 47 | 30 | 42 |
6 | 19 | 19 | 19 | 27 | 19 | 26 |
10 | 43 | 43 | 43 | 70 | 43 | 54 |
24 | 275 | 220 | 220 | 430 | 220 | 268 |
14 | 105 | 90 | 90 | 140 | 90 | 114 |
12 | 64 | 64 | 64 | 123 | 64 | 88 |
16 | 140 | 98 | 106 | 180 | 98 | 140 |
20 | 195 | 165 | 165 | 285 | 165 | 197 |
18 | 160 | 130 | 130 | 220 | 130 | 165 |
22 | 245 | 185 | 185 | 355 | 185 | 225 |
Brass flanges Price Per Piece in India | Bronze Flange Price in INR | Bronze Alloy C83600 Flange Price in UAE Dirham | C86300 Manganese Bronze Flange Price in USD |
REDUCTION FLANGE BRASS Per Kg | 4,612 | UAE Dirham 227.08 | $61.82 |
28mm x 34 x 3 FLANGE BRONZE BEARING Per Unit | 95 | UAE Dirham 4.68 | $1.27 |
Cu(1) |
Al | Fe | Pb | Mn | Ni(2) | Sn | Zn | |
Min./Max. | 60.0-66.0 | 5.0-7.5 | 2.0-4.0 | .20 | 2.5-5.0 | 1.0 | .20 | 22.0-28.0 |
Nominal | 63.0 | 6.2 | 3.0 | - | 3.7 | - | - | 25.0 |
Temper | Section Size |
Cold Work |
Typ/ Min |
Temp | Tensile Strength |
Yield Strength (0.5% ext. under load) |
Yield Strength (0.2% offset) |
Yield Strength (0.05% offset) |
El | Rockwell Hardness |
Vickens Hard. |
Brinell Hard. |
Shear Strength |
Fatigue Strength* |
Izod Impact Strength |
||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
in. | % | F | ksi | ksi | ksi | ksi | % | B | C | F | 30T | 500 | 500 | 3000 | ksi | ksi | ft-lb | ||
mm. | C | MPa | MPa | MPa | MPa | MPa | MPa | J | |||||||||||
As Sand Cast | |||||||||||||||||||
M01 | 0.0 | 0 | TYP | 68 | 119 | 62 | - | - | 18 | - | - | - | - | - | - | 225 | - | 25 | 15.0 |
0.0 | 20 | 821 | 427 | - | - | 18 | - | - | - | - | - | - | 225 | - | 172 | 20.0 | |||
As Centrifugal Cast | |||||||||||||||||||
M02 | 0.0 | 0 | SMIN | 68 | 110 | 60 | - | - | 12 | - | - | - | - | - | - | - | - | - | 0.0 |
0.0 | 20 | 758 | 414 | - | - | 12 | - | - | - | - | - | - | - | - | - | 0.0 | |||
As Continuous Cast | |||||||||||||||||||
M07 | 0.0 | 0 | SMIN | 68 | 110 | 62 | - | - | 14 | - | - | - | - | - | - | - | - | - | 0.0 |
0.0 | 20 | 758 | 427 | - | - | 14 | - | - | - | - | - | - | - | - | - | 0.0 | |||
As Sand Cast | |||||||||||||||||||
M01 | 0.0 | 0 | SMIN | 68 | 110 | 60 | - | - | 12 | - | - | - | - | - | - | 223 | - | - | 0.0 |
0.0 | 20 | 760 | 415 | - | - | 12 | - | - | - | - | - | - | 223 | - | - | 0.0 |
Cu(1) |
Al | Sb | Fe | Pb | Ni(2) | P(3) | Si | S | Sn | Zn | |
Min./Max. | 81.0-85.0 | .005 | .35 | .20 | 6.0-8.0 | 1.0 | .15 | .005 | .08 | 6.3-7.5 | 1.0-4.0 |
Nominal | 83.0 | - | - | - | 7.0 | - | - | - | - | 6.9 | 2.5 |
Temper | Section Size |
Cold Work |
Typ/ Min |
Temp | Tensile Strength |
Yield Strength (0.5% ext. under load) |
Yield Strength (0.2% offset) |
Yield Strength (0.05% offset) |
El | Rockwell Hardness |
Vickens Hard. |
Brinell Hard. |
Shear Strength |
Fatigue Strength* |
Izod Impact Strength |
||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
in. | % | F | ksi | ksi | ksi | ksi | % | B | C | F | 30T | 500 | 500 | 3000 | ksi | ksi | ft-lb | ||
mm. | C | MPa | MPa | MPa | MPa | MPa | MPa | J | |||||||||||
As Sand Cast | |||||||||||||||||||
M01 | 0.0 | 0 | TYP | 68 | 35 | 18 | - | - | 20 | - | - | - | - | - | 65 | - | - | 16 | 6.0 |
0.0 | 20 | 241 | 124 | - | - | 20 | - | - | - | - | - | 65 | - | - | 110 | 8.0 | |||
As Centrifugal Cast | |||||||||||||||||||
M02 | 0.0 | 0 | SMIN | 68 |
30 | 14 | - | - | 15 | - | - | - | - | - | - | - | - | - | 0.0 |
0.0 | 20 | 207 | 97 | - | - | 15 | - | - | - | - | - | - | - | - | - | 0.0 | |||
As Continuous Cast | |||||||||||||||||||
M07 | 0.0 | 0 | SMIN | 68 | 35 | 20 | - | - | 10 | - | - | - | - | - | - | - | - | - | 0.0 |
0.0 | 20 | 241 | 138 | - | - | 10 | - | - | - | - | - | - | - | - | - | 0.0 | |||
As Sand Cast | |||||||||||||||||||
M01 | 0.0 | 0 | SMIN | 68 | 30 | 14 | - | - | 15 | - | - | - | - | - | - | - | - | - | 0.0 |
0.0 | 20 | 207 | 97 | - | - | 15 | - | - | - | - | - | - | - | - | - | 0.0 |
Cu | Al | Fe | Mn | Ni(1) | Sn | Zn | |
Min./Max. | 78.0 min | 9.7-10.9 | 2.0-3.5 | 1.5 | 4.5-5.5 | .20 | .30 |
Nominal | - | 10.3 | 2.7 | - | 5.0 | - | - |
Cu(1) | Al | Sb | Fe | Pb | Ni(2) | P(3) | Si | S | Sn | Zn | |
Min./Max. | 78.0-82.0 | .005 | .25 | .40 | 6.0-8.0 | 1.0 | .02 | .005 | .08 | 2.3-3.5 | 7.0-10.0 |
Nominal | 81.0 | - | - | - | 7.0 | - | - | - | - | 3.0 | 9.0 |
Temper | Section Size |
Cold Work |
Typ/ Min |
Temp | Tensile Strength |
Yield Strength (0.5% ext. under load) |
Yield Strength (0.2% offset) |
Yield Strength (0.05% offset) |
El | Rockwell Hardness |
Vickens Hard. |
Brinell Hard. |
Shear Strength |
Fatigue Strength* |
Izod Impact Strength |
||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
in. | % | F | ksi | ksi | ksi | ksi | % | B | C | F | 30T | 500 | 500 | 3000 | ksi | ksi | ft-lb | ||
mm. | C | MPa | MPa | MPa | MPa | MPa | MPa | J | |||||||||||
As Sand Cast | |||||||||||||||||||
M01 | 0.0 | 0 | TYP | 68 | 34 | 15 | - | - | 26 | - | - | - | - | - | 55 | - | - | - | 8.0 |
0.0 | 20 | 234 | 103 | - | - | 26 | - | - | - | - | - | 55 | - | - | - | 11.0 | |||
M01 | 0.0 | 0 | SMIN | 68 | 29 | 13 | - | - | 18 | - | - | - | - | - | - | - | - | - | 0.0 |
0.0 | 20 | 200 | 90 | - | - | 18 | - | - | - | - | - | - | - | - | - | 0.0 | |||
As Centrifugal Cast | |||||||||||||||||||
M02 | 0.0 | 0 | SMIN | 68 | 29 | 13 | - | - | 18 | - | - | - | - | - | - | - | - | - | 0.0 |
0.0 | 20 | 200 | 90 | - | - | 18 | - | - | - | - | - | - | - | - | - | 0.0 | |||
As Continuous Cast | |||||||||||||||||||
M07 | 0.0 | 0 | SMIN | 68 | 30 | 15 | - | - | 16 | - | - | - | - | - | - | - | - | - | 0.0 |
0.0 | 20 | 207 | 103 | - | - | 16 | - | - | - | - | - | - | - | - | - | 0.0 |
|
Al | Fe | Pb | Mn | Ni(2) | Sn | Zn | |
Min./Max. | 60.0-66.0 | 3.0-4.9 | 2.0-4.0 | .20 | 2.5-5.0 | 1.0 | .20 | 22.0-28.0 |
Nominal | 63.0 | 4.0 | 3.0 | - | 3.7 | - | - | 25.0 |
Temper | Section Size |
Cold Work |
Typ/ Min |
Temp | Tensile Strength |
Yield Strength (0.5% ext. under load) |
Yield Strength (0.2% offset) |
Yield Strength (0.05% offset) |
El | Rockwell Hardness |
Vickens Hard. |
Brinell Hard. |
Shear Strength |
Fatigue Strength* |
Izod Impact Strength |
||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
in. | % | F | ksi | ksi | ksi | ksi | % | B | C | F | 30T | 500 | 500 | 3000 | ksi | ksi | ft-lb | ||
mm. | C | MPa | MPa | MPa | MPa | MPa | MPa | J | |||||||||||
As Sand Cast | |||||||||||||||||||
M01 | 0.0 | 0 | TYP | 68 | 95 | 48 | - | - | 20 | - | - | - | - | - | - | 180 | - | - | 12.0 |
0.0 | 20 | 655 | 331 | - | - | 20 | - | - | - | - | - | - | 180 | - | - | 16.0 | |||
As Continuous Cast | |||||||||||||||||||
M07 | 0.0 | 0 | SMIN | 68 | 90 | 45 | - | - | 18 | - | - | - | - | - | - | - | - | - | 0.0 |
0.0 | 20 | 621 | 310 | - | - | 18 | - | - | - | - | - | - | - | - | - | 0.0 | |||
As Centrifugal Cast | |||||||||||||||||||
M02 | 0.0 | 0 | SMIN | 68 | 90 | - | 45 | - | 18 | - | - | - | - | - | - | - | - | - | 0.0 |
0.0 | 20 | 621 | - | 310 | - | 18 | - | - | - | - | - | - | - | - | - | 0.0 | |||
As Sand Cast | |||||||||||||||||||
M01 | 0.0 | 0 | SMIN | 68 | 90 | 45 | - | - | 18 | - | - | - | - | - | - | - | - | - | 0.0 |
0.0 | 20 | 621 | 310 | - | - | 18 | - | - | - | - | - | - | - | - | - | 0.0 |
Brass flanges
Bronze Alloy C83600 Flange
C86300 Manganese Bronze Flange
UNS C86300 Bronze Flange
C93200 Bearing Bronze Flange
UNS C93200 Flange
C95510 Nickel Aluminum Bronze Flange
C84400 Red Brass Flange
Alloy C84400 Flange
C86200 Manganese Bronze Flange
Alloy C86200 Flanges
C86500 Bronze Flanges
UNS C86500 Flanges
C92500 Bronze Flange
Alloy UNS C92500 Flanges
C83600 Leaded Red Brass Flanges
Bronze C93200 Plate Flange
Bronze Weld Neck Flange
Cu(1) | Al | Fe | Pb | Mn | Ni(2) | Sn | Zn | |
Min./Max. | 55.0-60.0 | .50-1.5 | .40-2.0 | .40 | .10-1.5 | 1.0 | 1.0 | 36.0-42.0 |
Nominal | 58.0 | 1.0 | 1.2 | - | .8 | - | .50 | 39.0 |
Temper | Section Size |
Cold Work |
Typ/ Min |
Temp | Tensile Strength |
Yield Strength (0.5% ext. under load) |
Yield Strength (0.2% offset) |
Yield Strength (0.05% offset) |
El | Rockwell Hardness |
Vickens Hard. |
Brinell Hard. |
Shear Strength |
Fatigue Strength* |
Izod Impact Strength |
||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
in. | % | F | ksi | ksi | ksi | ksi | % | B | C | F | 30T | 500 | 500 | 3000 | ksi | ksi | ft-lb | ||
mm. | C | MPa | MPa | MPa | MPa | MPa | MPa | J | |||||||||||
As Sand Cast | |||||||||||||||||||
M01 | 0.0 | 0 | TYP | 68 | 71 | 29 | - | - | 30 | - | - | - | - | - | 100 | 130 | - | 20 | 0.0 |
0.0 | 20 | 490 | 200 | - | - | 30 | - | - | - | - | - | 100 | 130 | - | 138 | 0.0 | |||
As Centrifugal Cast | |||||||||||||||||||
M02 | 0.0 | 0 | SMIN | 68 | 65 | 25 | - | - | 20 | - | - | - | - | - | - | - | - | - | 0.0 |
0.0 | 20 | 448 | 172 | - | - | 20 | - | - | - | - | - | - | - | - | - | 0.0 | |||
As Continuous Cast | |||||||||||||||||||
M07 | 0.0 | 0 | SMIN | 68 | 70 | 25 | - | - | 25 | - | - | - | - | - | - | - | - | - | 0.0 |
0.0 | 20 | 483 | 172 | - | - | 25 | - | - | - | - | - | - | - | - | - | 0.0 | |||
As Sand Cast | |||||||||||||||||||
M01 | 0.0 | 0 | SMIN | 68 | 65 | 25 | - | - | 20 | - | - | - | - | - | - | - | - | - | 0.0 |
0.0 | 20 | 448 | 172 | - | - | 20 | - | - | - | - | - | - | - | - | - | 0.0 |
Cu(1) | Al | Sb | Fe | Pb | Ni(2) | P(3) | Si | S | Sn | Zn | |
Min./Max. | 85.0-88.0 | .005 | .25 | .30 | 1.0-1.5 | .8-1.5 | .30 | .005 | .05 | 10.0-12.0 | .50 |
Nominal | 86.5 | - | - | - | 1.3 | 1.2 | - | - | - | 11.0 | - |
Temper | Section Size |
Cold Work |
Typ/ Min |
Temp | Tensile Strength |
Yield Strength (0.5% ext. under load) |
Yield Strength (0.2% offset) |
Yield Strength (0.05% offset) |
El | Rockwell Hardness |
Vickens Hard. |
Brinell Hard. |
Shear Strength |
Fatigue Strength* |
Izod Impact Strength |
||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
in. | % | F | ksi | ksi | ksi | ksi | % | B | C | F | 30T | 500 | 500 | 3000 | ksi | ksi | ft-lb | ||
mm. | C | MPa | MPa | MPa | MPa | MPa | MPa | J | |||||||||||
As Sand Cast | |||||||||||||||||||
M01 | 0.0 | 0 | TYP | 68 | 44 | 20 | - | - | 20 | - | - | - | - | - | 80 | - | - | - | 0.0 |
0.0 | 20 | 303 | 138 | - | - | 20 | - | - | - | - | - | 80 | - | - | - | 0.0 | |||
As Continuous Cast | |||||||||||||||||||
M07 | 0.0 | 0 | SMIN | 68 | 40 | 24 | - | - | 10 | - | - | - | - | - | - | - | - | - | 0.0 |
0.0 | 20 | 276 | 165 | - | - | 10 | - | - | - | - | - | - | - | - | - | 0.0 |
Cu(1) | Al | Sb | Fe | Pb | Ni(2) | P(3) | Si | S | Sn | Zn | |
Min./Max. | 84.0-86.0 | .005 | .25 | .30 | 4.0-6.0 | 1.0 | .05 | .005 | .08 | 4.0-6.0 | 4.0-6.0 |
Nominal | 85.0 | - | - | - | 5.0 | - | - | - | - | 5.0 | 5.0 |
Size in Inches | Size in Millmeter | Max. Radial Projection of Imperfections that are | |
---|---|---|---|
Serrations, No Deeper Than the Bottom, Millmeter | Serrations, Deeper Than the Bottom, Millmeter | ||
1/2 | 15 | 3.0 | 1.5 |
3/4 | 20 | 3.0 | 1.5 |
1 | 25 | 3.0 | 1.5 |
1 1/4 | 32 | 3.0 | 1.5 |
1 1/2 | 40 | 3.0 | 1.5 |
2 | 50 | 3.0 | 1.5 |
2 1/2 | 65 | 3.0 | 1.5 |
3 | 80 | 4.5 | 1.5 |
3 1/2 | 90 | 6.0 | 3.0 |
4 | 100 | 6.0 | 3.0 |
5 | 125 | 6.0 | 3.0 |
6 | 150 | 6.0 | 3.0 |
8 | 200 | 8.0 | 4.5 |
10 | 250 | 8.0 | 4.5 |
12 | 300 | 8.0 | 4.5 |
14 | 350 | 8.0 | 4.5 |
16 | 400 | 10.0 | 4.5 |
18 | 450 | 12.0 | 6.0 |
20 | 500 | 12.0 | 6.0 |
24 | 600 | 12.0 | 6.0 |
