What is WPHY 42 Fittings?
The WPHY 42 Fittings are made from carbon-based stainless steel material. The alloy consists of several elements like sulfur, phosphorus, magenseum, chromium, nickel, molybdenum, etc., which enhances its overall mechanical properties. The WPHY 42 Fittings are compliant to the ASTM A860 specification and they follow the guidelines for butt weld pipe fittings. They are made from the wrought steel that has high strength but it has a low alloy, seamless and EFW stainless steel. The WPHY 42 Fittings are mostly used in transportation pipelines of oil and gas in high-pressure environments.
There are different types of WPHY 42 Fittings available, and each of them comes with a unique design, which means they have separate applications. They are manufactured with various thicknesses and grade specifications, and in different sizes with various end connections. Due to the unique chemical composition of the WPHY 42 material, it possesses a high tensile strength that ranges between 515 and 690 MPa. Its elongation is 28%.
The WPHY 42 materials are heat treated by normalizing, quenching, stress relieving or tempering. Also, depending on the requirements, the surface treatments can be customized on the WPHY 42 Fittings. The surface treatment coating helps in enhancing the corrosion resistance properties of the material. The WPHY 42 Fittings can effectively withstand high temperatures and pressures, and hence they are used across several industries. The common applications of WPHY 42 Fittings would be in heat exchangers, condensers, chemical equipment, power generation equipment, off-shore oil drilling equipment, etc.
MSS SP75 WPHY 42 Tee Vs A860 WPHY 42 Elbow
Being made of the same material grade, both the MSS SP75 WPHY 42 Tee and the A860 WPHY 42 Elbow are used in similar environments. However, due to the difference in their structure and design, they help in serving different purposes.

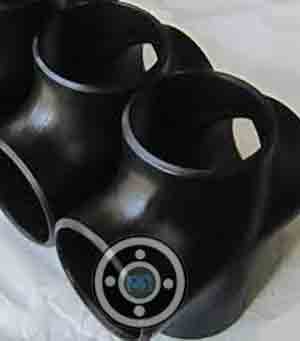

The MSS SP75 WPHY 42 Tee fitting looks like the letter T, which means it has two outlets located at 90 degrees each with a primary connection line. This means that the pipes are connected at 90 degrees in the adjacent outlets. These fittings are used for various commercial and industrial applications. There are different types of tees, and each of them comes in different shapes and controls the flow accordingly.

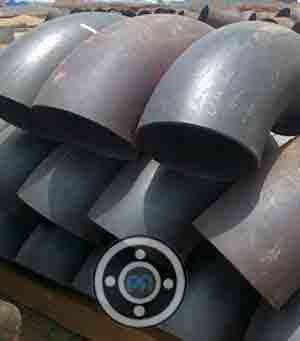

The A860 WPHY 42 Elbow is one of the most commonly used fitting of this material grade. It helps in changing the direction of the pipe. The fittings have a sharp bent which is used for various industrial applications. Elbows are generally available in two types, which means that the bents are at 45 degrees or 90 degrees.

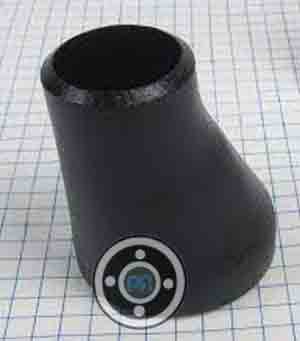

ASTM A860 WPHY 42 Concentric Vs WPHY 42 Eccentric Reducer

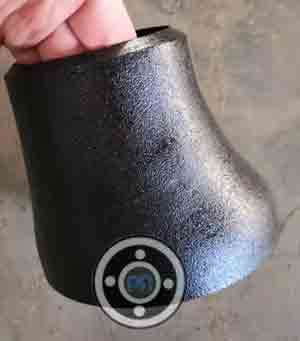

The ASTM A860 WPHY 42 Concentric reducer helps to reduce the pipe at the center, whereas the WPHY 42 Eccentric Reducer helps to reduce the pipe at the side. The concentric reducers come with matched center lines, whereas in case of the eccentric reducers, the lines remain mismatched. Concentric reducers are more common compared to the eccentric reducers, as the latter is mostly used to avoid air trapping in the system. In other words, they are often used when air and liquids might be flowing together. However, it is very important to align the eccentric reducers properly. The concentric reducers are used when the pipework lies vertically at the pump’s discharge side, whereas the eccentric reducers are used when pipework lays the pipe rack, horizontally.
How should an A860 Grade WPHY 42 Reducer be connected to a pipe?
Depending on the type of the A860 Grade WPHY 42 Reducer, it is decided how they are joined to the pipe. For example, the A860 Grade WPHY 42 Concentric Reducer, which looks like a cone, is used for joining sections of the pipe on the same axis. For the eccentric reducers, the alignment is done in accordance to one side of the inlet.
WPHY 42 Fittings manufacturer in India
Table of Content
WPHY 42 Fittings Specifications | ASTM A860 |
---|---|
ASTM A860 WPHY 42 Fittings Thickness | SCH30, SCH10, SCH 160, SCH20, SCH60, XS, STD SCH40, SCH 80, SCH 120, SCH 140, SCH 100, XXS available with NACE MR 01-75 |
API 5L X42 Fittings Sizes | Carbon Steel X42 Seamless Fittings: 1/2" - 10"
ASME B16 9 MSS SP75 WPHY 42 Welded Fittings: 1/2" - 48" |
WPHY 42 Fittings Type Manufacturer | DN15-DN1200 |
A860 WPHY 42 Fittings Connection | Welding |
ASME B16.9 ASTM A860 MSS SP 75 WPHY 42 Fittings Test Certificates | EN 10204/3.1B
Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Bending Radius Provided By Wphy 42 Fittings Manufacturers | R=1D, 3D, 2D, 5D, 8D, 6D, 10D or Custom MSS SP 75 WPHY 42 Fittings |
Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) WPHY 42 Fittings |
A860 WPHY 42 Fittings Dimensions | ASME B16.28, ASME/ANSI B16.9, BS4504, MSS-SP-43, BS1560, BS4504, BS10 |
MSS SP75 42 Elbows Manufacturer | Angle : 22.5 deg, 45 deg, 30deg, 90 deg, 1.0D, 180 deg, 1.5D, 3D, 2.5D, 2.0D, 4D, 6D, 5D, 7D-40D .
Standard: ASME B16.28, GB, ASME B16.9, MSS SP-75 JISB2311 DIN2605 JISB2312 JISB2313, ASME B16.25, BS, ISO |
WPHY 42 Fittings Manufacturing process | Push, Forge, Press, Cast, etc. |

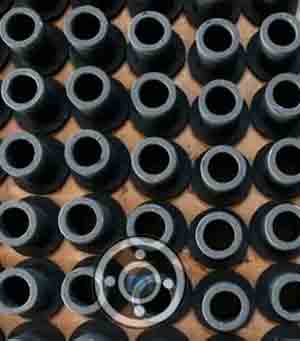

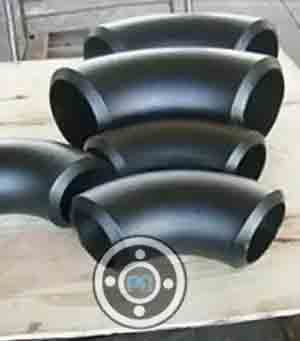

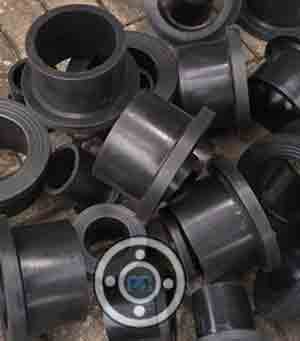

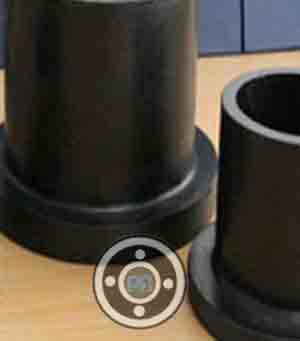

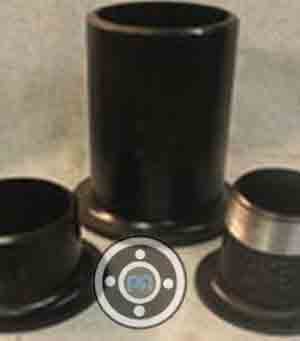

Specialized manufacturer of | CS Gr 42 High Yield Stub End, 90º Elbows, Tees, Pipe Cap, Crosses, 45º Elbows, Reducers, Pipe Bend |
MSS SP75 WPHY 42 Fittings Thread Provided By Manufacturer | BSPT, NPT, BSPP |
API 5L X42 Fittings Origin & Mills | European, Japanese, USA, Korean, Ukraine, Indian, Russian |
Carbon Steel Grade 42 Buttweld Fittings Pressure Rating | Threaded end - 3000lb/ 2000lb/ 6000lbs
Socket weld end- 6000/ 3000/ 9000lbs |
API 5L X42 Products Manufacturer | Half Coupling, Union, Tee, Cross, Coupling, Cap, Outlet, Welding Outlet, Boss, Insert |
Dimension Specification | MSS SP-79, 95, 83, 97, BS 3799, ASME 16.11 |
Application of Industrial A860 MSS SP 75 WPHY 42 Fittings |
|
Leading WPHY 42 Pipe Fittings importer, wholesalers, distributor, stockists, dealers, supplier, exporters, stockholders and Manufacturer in Mumbai
Nominal Pipe Size | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
---|---|---|---|---|---|---|---|---|
(inches) | Long Radius | Short Radius | Long Radius | Long Radius | ||||
(mm) | (inches) | Center to Face (inches) |
Center to Face (inches) |
Center to Face (inches) |
Radius (inches) |
Center to Center (inches) |
Back to face (inches) |
|
1/2 | 21.3 | 0.840 | 1 1/2 | - | 5/8 | 2 | 1 7/8 | |
3/4 | 26.7 | 1.050 | 1 1/8 | - | 7/16 | 2 1/4 | 1 11/16 | |
1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
NPS | KG | LBS |
1/2 | 0.11 | 0.25 |
3/4 | 0.11 | 0.25 |
1 | 0.23 | 0.5 |
1¼ | 0.41 | 0.9 |
1½ | 0.52 | 1.15 |
2 | 1 | 2.2 |
2½ | 1.81 | 4 |
3 | 2.95 | 6.5 |
3½ | 3.79 | 8.35 |
4 | 6.12 | 13.5 |
5 | 9.98 | 22 |
6 | 15.88 | 35 |
8 | 32.21 | 71 |
10 | 48.53 | 107 |
12 | 72.57 | 160 |
14 | 92.99 | 205 |
16 | 125.19 | 276 |
18 | 154.22 | 340 |
20 | 190.51 | 420 |
22 | 235.87 | 520 |
24 | 272.16 | 600 |
26 | 330.67 | 729 |
30 | 442.25 | 975 |
36 | 640.47 | 1412 |

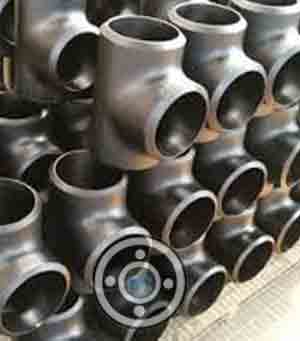

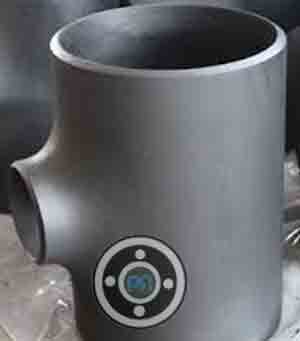

ANSI B16.9 WPHY 42 Reducing Tee DN300 x DN100, BW
8 X 6 Inch Tee WPHY 42

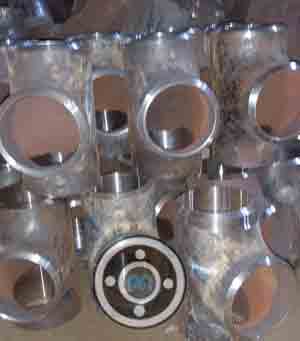

14 Inch MSS SP75 WPHY 42 Equal Tee

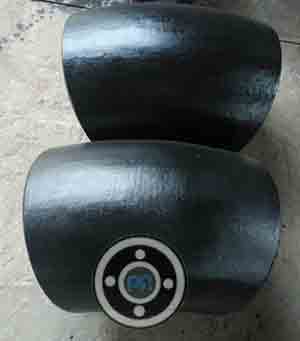

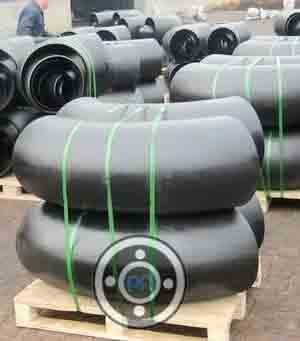

ASTM A860 Wphy 42 Long Radius Elbow

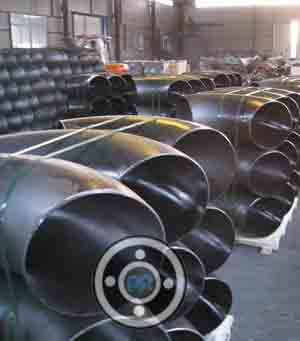

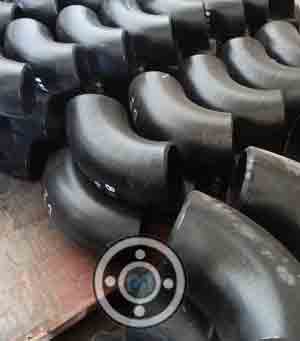

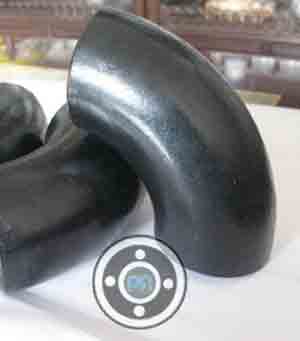

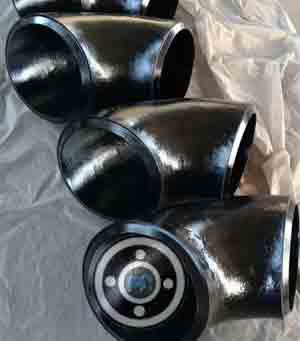

A860 CS WPHY 42 90 Degree Elbows

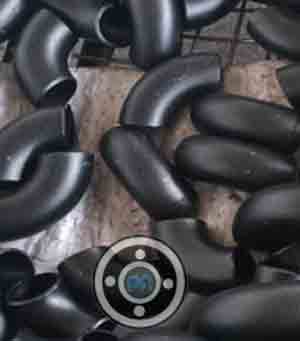

SCH 120S SA860 WPHY 42 Elbow

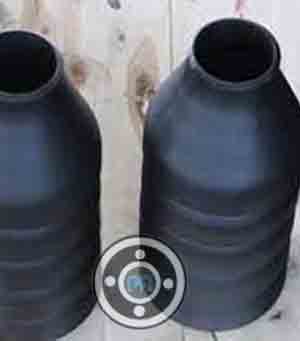

Pipe Reducer WPHY Gr 42 BW MSS SP 75
2 x 6 inch Carbon Steel X42 Concentric Reducer

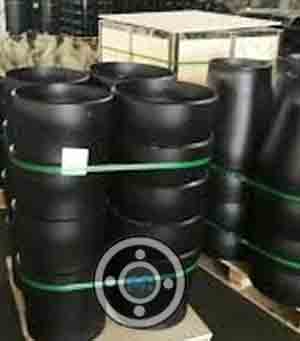

ASME SA860 WPHY 42 Pipe Reducer
MSS SP 75 WPHY 42 Fittings Price Per Piece in India | Price Applicable for jan 2022 to june 2022 | Price Applicable for July 2022 to December 2022 |
MSS SP75 WPHY 42 steel pipe fittings Per Kg | US $1.80 | US $3.80 |

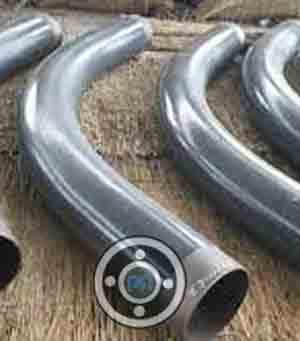

ASTM A860 Wphy 42 5D Pipe Bend Per Kg | US $1.78 | US $3.78 |
ASTM A860 WPHY 42 elbow LR B16.9 Per Kg | US $10 | US $12 |
ASTM A860 WPHY 42 SCH. 80 Tee Per Kg | US $2 | US $4 |
Compare Price list of WPHY 42 Buttweld Fittings With other Manufacturer in India. We are Manufacturing ASTM A860 WPHY 42 Fittings as per ASME B16.9 Standards in Mumbai. Leading Wphy 42 Fittings Manufacturers in India.
Nominal Pipe Size | Wall Thickness* |
** Working Pressure– lbs per square inch at the
Fahrenheit Temperature Indicated |
|||
-20 to 650 | 700 | 750 | *** 800 | ||
1/2 | 0.109 | 1695 | 1621 | 1463 | 1220 |
3/4 | 0.113 | 1455 | 1392 | 1256 | 1046 |
1 | 0.133 | 1575 | 1506 | 1359 | 1134 |
1 1/4 | 0.140 | 1065 | 1019 | 919 | 766 |
1 1/2 | 0.145 | 1005 | 960 | 867 | 723 |
2 | 0.154 | 900 | 861 | 777 | 648 |
2 1/2 | 0.203 | 1215 | 1162 | 1048 | 874 |
3 | 0.216 | 1095 | 1047 | 945 | 788 |
3 1/2 | 0.226 | 1020 | 975 | 880 | 734 |
4 | 0.237 | 975 | 932 | 841 | 702 |
5 | 0.258 | 885 | 846 | 764 | 637 |
6 | 0.280 | 840 | 803 | 725 | 604 |
8 | 0.322 | 765 | 731 | 660 | 550 |
10 | 0.365 | 720 | 688 | 621 | 518 |
12 | 0.375 | 630 | 602 | 543 | 453 |
14 | 0.375 | 570 | 545 | 492 | 410 |
16 | 0.375 | 495 | 473 | 427 | 356 |
18 | 0.375 | 450 | 430 | 388 | 354 |
20 | 0.375 | 405 | 387 | 349 | 291 |
24 | 0.375 | 330 | 315 | 284 | 237 |
30 | 0.375 | 265 | 254 | 229 | 190 |
36 | 0.375 | 220 | 198 | 178 | 148 |
42 | 0.375 | 189 | 181 | 163 | 136 |
48 | 0.375 | 165 | 158 | 143 | 118 |
NOMINAL PIPE SIZE | END TO END | OUTSIDE DIAMETER | |
---|---|---|---|
Inch | H | D | P |
3/4 x 1/2 | 38 | 26.7 | 21.3 |
3/4 x 3/8 | 38 | 26.7 | 17.1 |
1 x 3/4 | 51 | 33.4 | 26.7 |
1 x 1/2 | 51 | 33.4 | 21.3 |
1 1/4 x 1 | 51 | 42.2 | 33.4 |
1 1/4 x 3/4 | 51 | 42.2 | 26.7 |
1 1/4 x 1/2 | 51 | 42.2 | 21.3 |
1 1/2 x 1 1/2 | 64 | 48.3 | 42.2 |
1 1/2 x 1 | 64 | 48.3 | 33.4 |
1 1/2 x 3/4 | 64 | 48.3 | 26.7 |
1 1/2 x 1/2 | 64 | 48.3 | 21.3 |
2 x 1 1/2 | 76 | 60.3 | 48.2 |
2 x 1 1/4 | 76 | 60.3 | 42.2 |
2 x 1 | 76 | 60.3 | 33.4 |
2 x 3/4 | 76 | 60.3 | 26.7 |
2 1/2 x 2 | 89 | 73 | 60.3 |
2 1/2 x 1 1/2 | 89 | 73 | 48.3 |
2 1/2 x 1 1/4 | 89 | 73 | 42.2 |
2 1/2 x 1 | 89 | 73 | 33.4 |
3 x 2 1/2 | 89 | 88.9 | 73 |
3 x 2 | 89 | 88.9 | 60.3 |
3 x 1 1/2 | 89 | 88.9 | 48.3 |
3 x 1 1/4 | 89 | 88.9 | 42.2 |
3 1/2 x 3 | 102 | 101.6 | 88.9 |
3 1/2 x 21/2 | 102 | 101.6 | 73 |
3 1/2 x 2 | 102 | 101.6 | 60.3 |
3 1/2 x 1 1/2 | 102 | 101.6 | 48.3 |
3 1/2 x 1 1/4 | 102 | 101.6 | 42.2 |
4 x 3 1/2 | 102 | 114.3 | 101.6 |
4 x 3 | 102 | 114.3 | 88.9 |
4 x 2 1/2 | 102 | 114.3 | 73 |
4 x 2 | 102 | 114.3 | 60.3 |
4 x 1 1/2 | 102 | 114.3 | 48.3 |
5 x 4 | 127 | 141.3 | 114.3 |
5 x 3 1/2 | 127 | 141.3 | 101.6 |
5 x 3 | 127 | 141.3 | 88.9 |
5 x 2 1/2 | 127 | 141.3 | 73 |
5 x 2 | 127 | 141.3 | 60.3 |
6 x 5 | 140 | 168.3 | 141.3 |
6 x 4 | 140 | 168.3 | 114.3 |
6 x 3 1/2 | 140 | 168.3 | 101.6 |
6 x 3 | 140 | 168.3 | 88.9 |
6 x 2 1/2 | 140 | 168.3 | 73 |
8 x 6 | 152 | 219.1 | 168.3 |
8 x 5 | 152 | 219.1 | 141.3 |
8 x 4 | 152 | 219.1 | 114.3 |
8 x 3 1/2 | 152 | 219.1 | 101.6 |
10 x 8 | 178 | 273.1 | 219.1 |
10 x 6 | 178 | 273.1 | 168.1 |
10 x 5 | 178 | 273.1 | 141.3 |
10 x 4 | 178 | 273.1 | 114.3 |
12 x 10 | 203 | 323.9 | 273.1 |
12 x 8 | 203 | 323.9 | 219.1 |
12 x 6 | 203 | 323.9 | 168.3 |
12 x 5 | 203 | 323.9 | 141.3 |
14 x 12 | 330 | 355.6 | 323.9 |
14 x 10 | 330 | 355.6 | 273.1 |
14 x 8 | 330 | 355.6 | 219.1 |
14 x 6 | 330 | 355.6 | 168.3 |
16 x 14 | 356 | 406.4 | 355.6 |
16 x 12 | 356 | 406.4 | 323.9 |
16 x 10 | 356 | 406.4 | 273.1 |
16 x 8 | 356 | 406.4 | 219.1 |
16 x 6 | 356 | 406.4 | 168.3 |
18 x 16 | 381 | 457 | 406.4 |
18 x 14 | 381 | 457 | 355.6 |
18 x 12 | 381 | 457 | 323.9 |
18 x 10 | 381 | 457 | 273.1 |
18 x 8 | 381 | 457 | 219.1 |
20 x 18 | 508 | 508 | 457 |
20 x 16 | 508 | 508 | 406.4 |
20 x 14 | 508 | 508 | 355.6 |
20 x 12 | 508 | 508 | 323.9 |
20 x 10 | 508 | 508 | 273.1 |
20 x 8 | 508 | 508 | 219.1 |
22 x 20 | 508 | 559 | 508 |
22 x 18 | 508 | 559 | 457 |
22 x 16 | 508 | 559 | 406.4 |
22 x 14 | 508 | 559 | 355.6 |
22 x 12 | 508 | 559 | 323.9 |
24 x 10 | 508 | 559 | 273.1 |
24 x 22 | 508 | 610 | 559 |
24 x 20 | 508 | 610 | 508 |
24 x 18 | 508 | 610 | 457 |
24 x 16 | 508 | 610 | 406.4 |
24 x 14 | 508 | 610 | 355.6 |
24 x 12 | 508 | 610 | 323.9 |
24 x 10 | 508 | 610 | 273.1 |
Nominal Pipe Size |
Outside Diameter |
Reducers | ||
---|---|---|---|---|
Reduced from (inches) |
(inches) | (mm) | Concentric & Eccentric Length (inches) |
Reduced to (inches) |
1/2 | 0.840 | 21.3 | 1 1/2 | 1/4 |
1 1/2 | 3/8 | |||
3/4 | 1.050 | 26.7 | 2 | 3/8 |
2 | 1/2 | |||
1 | 1.315 | 33.4 | 2 | 3/8 |
2 | 1/2 | |||
2 | 3/4 | |||
1 1/4 | 1.660 | 42.2 | 2 | 1/2 |
2 | 3/4 | |||
2 | 1 | |||
1 1/2 | 1.900 | 48.3 | 2 1/2 | 1/2 |
2 1/2 | 3/4 | |||
2 1/2 | 1 | |||
2 1/2 | 1 1/4 | |||
2 | 2.375 | 60.3 | 3 | 3/4 |
3 | 1 | |||
3 | 1 1/4 | |||
3 | 1 1/2 | |||
2 1/2 | 2.875 | 73.0 | 3 1/2 | 1 |
3 1/2 | 1 1/4 | |||
3 1/2 | 1 1/2 | |||
3 1/2 | 2 | |||
3 | 3.500 | 88.9 | 3 1/2 | 1 |
3 1/2 | 1 1/2 | |||
3 1/2 | 2 | |||
3 1/2 | 2 1/2 | |||
3 1/2 | 4.000 | 101.6 | 4 | 1 1/4 |
4 | 1 1/2 | |||
4 | 2 | |||
4 | 2 1/2 | |||
4 | 3 | |||
4 | 4.500 | 114.3 | 4 | 1 1/2 |
4 | 2 | |||
4 | 2 1/2 | |||
4 | 3 | |||
4 | 3 1/2 | |||
5 | 5.563 | 141.3 | 5 | 2 |
5 | 2 1/2 | |||
5 | 3 | |||
5 | 3 1/2 | |||
5 | 4 | |||
6 | 6.625 | 168.3 | 5 1/2 | 2 1/2 |
5 1/2 | 3 | |||
5 1/2 | 3 1/2 | |||
5 1/2 | 4 | |||
5 1/2 | 5 | |||
8 | 8.625 | 219.1 | 6 | 3 |
6 | 3 1/2 | |||
6 | 4 | |||
6 | 5 | |||
6 | 6 | |||
10 | 10.750 | 273.1 | 7 | 4 |
7 | 5 | |||
7 | 6 | |||
7 | 8 | |||
12 | 12.750 | 323.9 | 8 | 5 |
8 | 6 | |||
8 | 8 | |||
8 | 10 |
NOMINAL PIPE SIZE | LENGTH | CENTER TO END | OUTSIDE DIAMETER |
---|---|---|---|
Inch. | M | C | OD |
1/2 | 25 | 25 | 21.3 |
3/4 | 29 | 29 | 26.7 |
1 | 38 | 38 | 33.4 |
1 1/4 | 48 | 48 | 42.2 |
1 1/2 | 57 | 57 | 48.3 |
2 | 64 | 64 | 60.3 |
2 1/2 | 76 | 76 | 73 |
3 | 86 | 86 | 88.9 |
3 1/2 | 95 | 95 | 101.6 |
4 | 105 | 105 | 114.3 |
5 | 124 | 124 | 141.3 |
6 | 143 | 143 | 168.3 |
8 | 178 | 178 | 219.1 |
10 | 216 | 216 | 273.1 |
12 | 254 | 254 | 323.9 |
14 | 279 | 279 | 355.6 |
16 | 305 | 305 | 406.4 |
18 | 343 | 343 | 457.2 |
20 | 381 | 381 | 508 |
22 | 419 | 419 | 559 |
24 | 432 | 432 | 610 |
26 | 495 | 495 | 660 |
28 | 521 | 521 | 711 |
30 | 559 | 559 | 762 |
32 | 597 | 597 | 813 |
34 | 635 | 635 | 864 |
36 | 673 | 673 | 914 |
38 | 711 | 711 | 965 |
40 | 749 | 749 | 1016 |
42 | 711 | 762 | 1067 |
44 | 762 | 813 | 1118 |
46 | 800 | 851 | 1168 |
48 | 838 | 889 | 1219 |
NPS | KG | LBS |
1/2 | 0.16 | 0.35 |
3/4 | 0.2 | 0.45 |
1 | 0.34 | 0.75 |
1¼ | 0.59 | 1.3 |
1½ | 0.91 | 2 |
2 | 1.59 | 3.5 |
2½ | 2.72 | 6 |
3 | 3.18 | 7 |
3½ | 4.08 | 9 |
4 | 5.44 | 12 |
5 | 9.53 | 21 |
6 | 15.42 | 34 |
8 | 24.95 | 55 |
10 | 38.56 | 85 |
12 | 54.43 | 120 |
14 | 74.84 | 165 |
16 | 88.45 | 195 |
18 | 112.94 | 249 |
20 | 155.13 | 342 |
22 | 187.79 | 414 |
24 | 239.5 | 528 |
26 | 349.27 | 770 |
30 | 480.81 | 1060 |
36 | 675.85 | 1490 |
SCH 10 Carbon Steel WPHY 42 Reducing Tee
SCH 120 A860 WPHY 42 Reducers

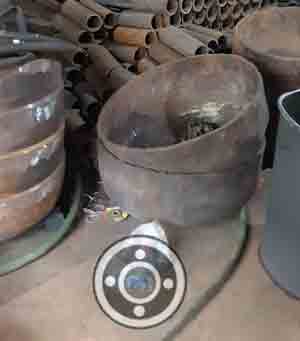

A860 Grade WPHY 42 End Cap
Carbon Steel Grade 42 Straight Tees and Crosses
450 NB SCH 40 ASTM A860 WPHY Gr 42 Barrel Nipple
A860 Gr WPHY 42 1.5D Elbow

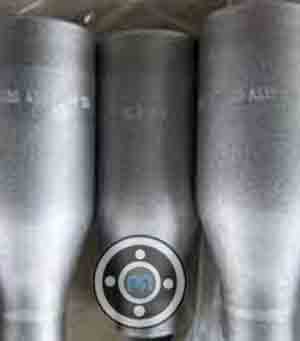

CS 42 Swage Nipple
Gr 42 Carbon Steel Equal Tee

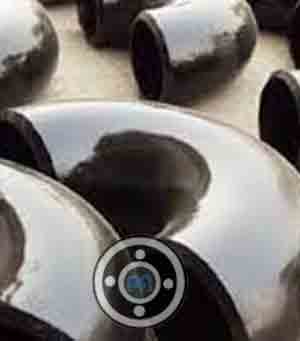

MSS SP75 42 Seamless Buttwelding 180° Returns
SCH 160 CS Gr 42 High Yield 3D Elbow
Carbon Steel X42 90° Long Radius Elbow
WPHY Grade 42 Short Stubend
MSS SP75 WPHY Gr 42 Eccentric Reducer

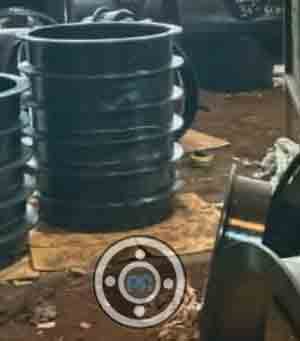

SCH 80 MSS SP-75 Gr WPHY 42 Collar

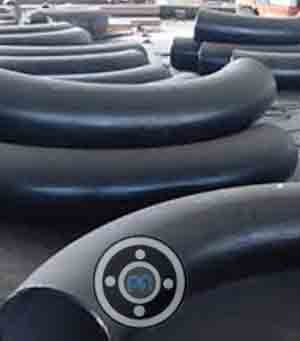

SCH 140 Carbon WPHY 42 Long Radius Bend

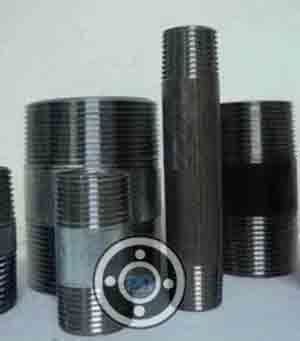

ASTM A860 MSS SP 75 WPHY 42 Pipe Nipples
SCH XS MSS SP 75 WPHY 42 90° Short Radius Elbow
15 NB SCH 100 A860 MSS SP 75 WPHY 42 Stub End

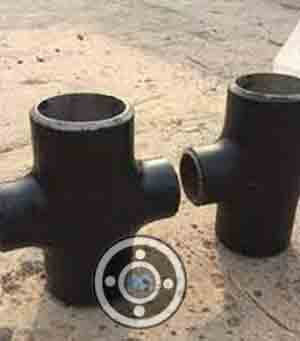

API 5L X42 Equal Cross
42000 PSI Lap Joint Stub Ends

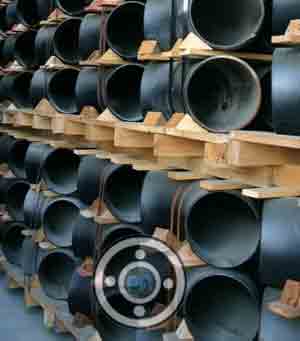

ASTM A860 WPHY Grade 42 5D Elbow

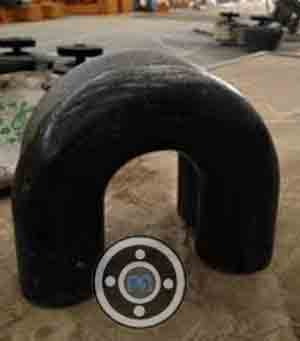

SCH STD CS Grade 42 High Yield 180° Short Radius Elbow
SCH 30 Grade 42 Reducing Outlet Tees and Reducing Outlet Crosses
ASTM A860 Grade WPHY 42 Bend
Carbon 42 Welded Elbows
CS WPHY 42 1D Elbow

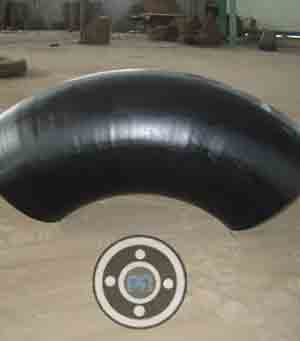

SCH XXS MSS SP75 WPHY 42 45° Short Radius Elbow
Grade WPHY 42 Concentric Reducer
API 5L WPHY 42 Seamless Buttwelding 45° and 90° Elbows

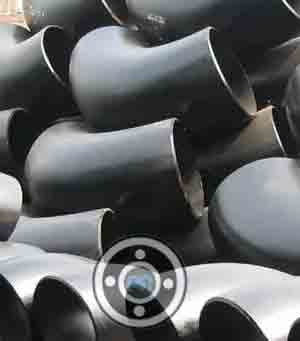

SCH 60 ASTM A860 WPHY 42 10D ELBOW

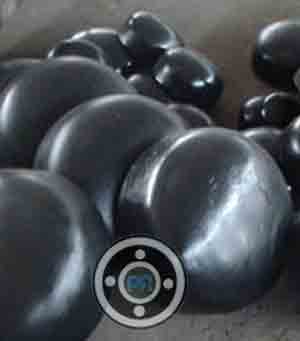

SCH 20 WPHY 42 Pipe Cap
Carbon Steel API 5L X42 Long Stubend

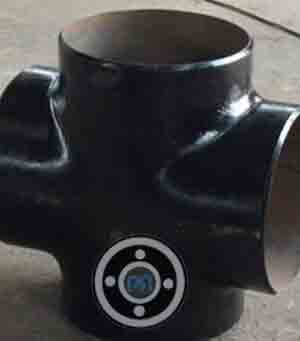

ASTM A860 Gr WPHY 42 Reducing Cross

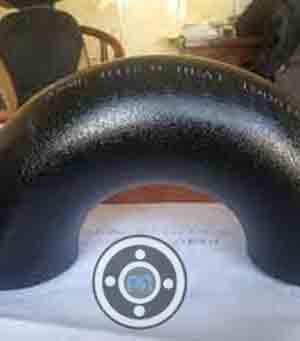

API 5L 42 180° Long Radius Elbow

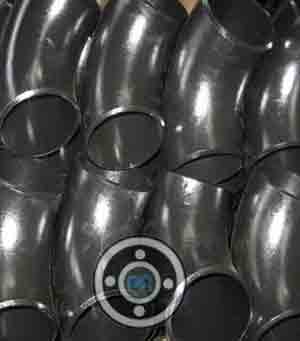

Gr 42 45° Long Radius Elbow

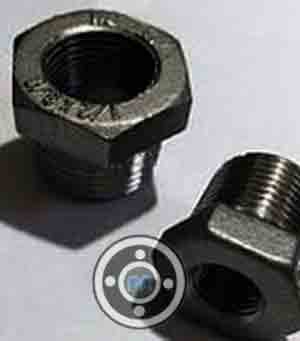

MSS SP75 WPHY Grade 42 Reducing Nipple
Grade | C | Mn | S | P | Si | Ni | Cr | Mo | Cu | Ti | V | Cb |
WPHY 42 | 0.20 | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.05 | 0.10 | 0.06 |
Element | Tensile Strength(Min PSI) | Yield Strength (Min PSI) | Elongation(%, in 2in.) |
WPHY 42 | 60000 PSI | 42000 PSI | 25 % |
Property | Temperature | Value |
Charpy impact energy | 23.0 °C | 40 J |
Elongation A50 | 23.0 °C | 0.32 |
Elastic modulus | 23.0 °C | 200 - 215 GPa |
Hardness, Brinell | 23.0 °C | 235 [-] |
Poisson's ratio | 23.0 °C | 0.29 [-] |
Hardness, Rockwell C | 23.0 °C | 22 [-] |
Tensile strength | 23.0 °C | 415 - 585 MPa |
Yield strength Rp0.2 | 23.0 °C | 290 MPa |
Property | Temperature | Value |
Coefficient of thermal expansion | 23.0 °C | 1.33E-5 1/K |
Melting point | 1382 - 1529 °C | |
Specific heat capacity | 23.0 °C | 510 - 553 J/(kg·K) |
Thermal conductivity | 23.0 °C | 14 - 16 W/(m·K) |
Hardness | Max 22 HRC (235 HBW) |
ASTM A860 WPHY 42 Tees | MSS SP75 42 Pipe Nipple |
WPHY Gr 42 Carbon Steel Reducing Tee Fittings | Carbon 42 Pipe End Cap |
A860 WPHY 42 CS Eccentric Reducer | WPHY Grade 42 CS End Pipe Cap |
MSS SP75 42 U Bend | Carbon Steel API 5L X42 5D Bend |
Carbon Steel X42 Concentric Reducer Fittings | WPHY Grade 42 Carbon Steel Pipe Bends |
CS Grade 42 High Yield Cross | Grade 42 BW Tee Fittings |
API 5L 42 Straight Cross | 42000 PSI Buttweld Fittings |
Gr 42 Seamless Tee Fittings | API 5L WPHY Grade 42 Lateral Tee |
MSS SP75 42 90 Deg Long Radius Elbow | WPHY Gr 42 High Yield Eccentric Reducer |
CS WPHY Grade 42 Buttweld Elbow | A860 WPHY 42 CS Pipe Cap |
Grade 42 Elbow Fittings | Carbon 42 Reducer |
Gr 42 Carbon Steel Seamless Butt Weld Fittings | Carbon Steel Grade 42 Long Radius Bend |
API 5L 42 45 Deg Short Radius Elbow | CS 42 Elbow Pipe Fittings |
API 5L X42 180 Deg Long Radius Elbow | Carbon Steel Grade 42 Pipe Tee Fittings |
WPHY Grade 42 High Yield 90 Deg Short Radius Elbow | ASTM A860 WPHY 42 Stub End |
CS Grade 42 High Yield 45 Deg Long Radius Elbow | Carbon Steel WPHY Gr 42 End Cap |
Carbon Steel X42 180 Deg Short Radius Elbow | API 5LWPHY Gr 42 Pipe Cross |
Carbon Steel WPHY Grade 42 Equal Cross | Carbon Steel API 5L X42 Welded Pipe Fittings |
Gr 42 Stubends Fittings | CS Grade 42 High Yield Seamless Pipe Fitting |
CS WPHY 42 High Yield Reducing Cross | API 5L X42 Seamless Bend Pipe |
CS Gr 42 High Yield Equal Tee Fittings | CS WPHY Gr 42 Pipe Reducer |
Pipe Fittings Material
Flanges Material
Other Products
