WPHY 60 Fittings

MSS SP75 WPHY 60 Buttweld Elbow & ASTM A860 WPHY 60 Tee manufacturer in India

What is WPHY 60 Fittings?
The WPHY 60 material grade is basically a carbon-based stainless steel material. The WPHY 60 Fittings are wrought; they are either seamless or welded and come with a high yield strength of 414 MPa. There are several other elements present in the WPHY 60 alloy like nickel, chromium, manganese, vanadium, niobium, etc., which gives the fittings their unique mechanical and physical properties, even after being present in trace amounts. Manufacturers can customize the dimensions of the WPHY 60 Fittings according to specific requirements. Their nominal diameter can vary between ½ “ to 48” and the various wall thickness makes up the schedules from SCH10 to XXS. According to the dimensions, the standards might also vary according to ASME B16.9 and B16.28.
The WPHY 60 Fittings have high strength due to its chemical composition. It also possesses excellent durability, sturdiness, and has high tensile strength. The WPHY 60 Fittings are made with dimensional accuracy. The WPHY 60 Fittings are surface treated with various solutions like transparent oil, anti corrosion oil, or hot galvanization. All of these enhance the material’s ability to resist corrosion.
Apart from general corrosion, the WPHY 60 Fittings is also resistant to stress corrosion cracking by chloride ions. This is why they are widely used in the marine industry. The fittings also have a huge applications in construction, engineering, automobile, sugar mills, petrochemicals, etc.
The WPHY 60 Fittings are very versatile as they are available in different sizes and dimensions. They are also available in different types, which accelerates the working of many industries and hence are considered as a cost-saving solution. These fittings are available in seamless and welded variants. They can also be fabricated.

ASTM A860 Gr WPHY 60 Elbow Vs WPHY 60 End Cap
The ASTM A860 Gr WPHY 60 Elbow basically helps in changing the direction of the flow and hence they are one of the most used pipe fitting of any material grade. They can change the flow direction either at an angle of 45 degrees or 90 degrees. They are available in short radius which gives a sharper bent and long radius, which reduces the friction of the fluid inside the pipe.
The WPHY 60 End Cap is basically placed at the end of the pipe, and hence their dimensions should be equal to the outer diameter of the pipe. They are used at the dead end of the piping system, or in those areas where there is no flow. They can also be used as piping headers for any future connections.

MSS SP75 WPHY 60 Equal Tee and ASTM A860 WPHY 60 Reducing Tee
The MSS SP75 WPHY 60 Equal Tee and the ASTM A860 WPHY 60 Reducing Tee are T-shaped pipe fittings with three branches. They are used for diving, combining, and adjusting the flow rate along with changing the flow direction. The main difference between an equal tee and a reducing tee are in their diameters. For an equal tee, the diameters of all the three branches are the same but for the reducing tee, the branch diameter is smaller than that of the main line diameter. Also, the reducing tee is more commonly used compared to the equal tee, as the former has more functions for different environments.

Advantages of WPHY 60 Buttweld Fittings
The advantages of WPHY 60 Buttweld Fittings are:

• When it comes to buttweld fittings, the joints are permanently sealed and they offer a much stronger connection.
• When buttwelding is applied, there is a continuous structure between the pipe and the fittings, which enhances the strength of the overall piping system.
• They have smoother surfaces.
• They help in changing the flow direction gradually.
• It helps to reduce the turbulence and pressure loss, and also offer added protection to the joints from erosion and corrosion.
• They are affordable.
• Buttwelding can even be done in small spaces.

WPHY 60 Fittings

API 5L WPHY 60 Eccentric / Concentric Reducer, Y Tee, Stub End and Pipe Cap manufacturer in India, Certified By ISO & European Directive 2014/68/eu

Table of Content

• Standard Specification of WPHY 60 Fittings
• WPHY 60 Pipe Fittings Dimensions Table
• Pressure Rating of CS WPHY Gr 60 Fittings
• WPHY 60 Fittings Price List
• ASTM A860 Gr WPHY 60 Elbow
• Carbon Steel X60 Reducer
• MSS SP75 WPHY 60 Tee
• A860 WPHY 60 Chemical Composition
• WPHY 60 Mechanical Properties
• ASTM A860 WPHY 60 Equivalent
• WPHY 60 Fittings Types
• Size Chart of A860 WPHY 60 CS Reducer
• Dimensions Chart of CS Gr 60 High Yield Tee

• Weight Chart of WPHY Gr 60 Tee
• Dimensions Table of Carbon WPHY 60 Reducer
• A860 WPHY Grade 60 Elbow Weight Table
• MSS SP-75 Gr WPHY 60 Hardness
• Carbon Steel API 5L X60 Fittings Stock List
• Industrial Applications of Carbon Steel Grade 60 Buttweld Fittings
• Carbon Steel WPHY Gr 60 Fittings Inspection and Testing
• Physical Properties of CS WPHY Gr 60 Fittings
• CS Grade 60 High Yield Pipe Fittings Thermal Properties

Standard Specification of WPHY 60 Fittings

WPHY 60 Fittings Specifications	ASTM A860
MSS SP 75 WPHY 60 Fittings Sizes	Carbon Steel API 5L X60 Seamless Fittings: 1/2" - 10" ASME B16 9 Carbon Steel X60 Welded Fittings: 1/2" - 48"
A860 Gr WPHY 60 Elbow Manufacturer	Angle : 22.5 deg, 45 deg, 30deg, 90 deg, 1.0D, 180 deg, 1.5D, 3D, 2.5D, 2.0D, 4D, 6D, 5D, 7D-40D . Standard: ASME B16.28, GB, ASME B16.9, MSS SP-75 JISB2311 DIN2605 JISB2312 JISB2313, ASME B16.25, BS, ISO
Carbon Steel X60 Weld Fittings Dimensions	ASME B16.28, ASME/ANSI B16.9, BS4504, MSS-SP-43, BS1560, BS4504, BS10
MSS SP-75 Gr WPHY 60 Buttweld Fittings Connection	Welding
WPHY 60 Fittings Thickness	SCH30, SCH10, SCH 160, SCH20, SCH60, XS, STD SCH40, SCH 80, SCH 120, SCH 140, SCH 100, XXS available with NACE MR 01-75
ASTM A860 WPHY 60 Fittings Type Manufacturer	DN15-DN1200
Bending Radius Provided By WPHY 60 Fittings Manufacturers	R=1D, 3D, 2D, 5D, 8D, 6D, 10D or Custom ASTM A860 MSS SP 75 WPHY 60 Fittings
Size Range	½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) A860 WPHY 60 Fittings
ASME B16.9 A860 Gr WPHY 60 Pipe Fittings Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
A860 Grade WPHY 60 Fittings Manufacturing process	Push, Forge, Press, Cast, etc.
WPHY 60 Fittings Origin & Mills	European, Japanese, USA, Korean, Ukraine, Indian, Russian
Specialized manufacturer of	Carbon Steel X60 Stub End, 90º Elbows, Tees, Pipe Cap, Crosses, 45º Elbows, Reducers, Pipe Bend
Dimension Specification	MSS SP-79, 95, 83, 97, BS 3799, ASME 16.11
API 5L X60 Fittings Thread Provided By Manufacturer	BSPT, NPT, BSPP
WPHY 60 Fittings Pressure Rating	Threaded end - 3000lb/ 2000lb/ 6000lbs Socket weld end- 6000/ 3000/ 9000lbs
Carbon Steel Grade 60 Products Manufacturer	Half Coupling, Union, Tee, Cross, Coupling, Cap, Outlet, Welding Outlet, Boss, Insert
Application of Industrial API 5L X60 Fittings	Fittings To Connect Tubes and Pipe in Gas, Petroleum, Metallurgy, Chemical, Power, Construction, Shipbuilding etc

Leading ASTM A860 WPHY 60 Fittings importer, supplier, stockholders, exporters, wholesalers, distributor, dealers, stockists and Manufacturer in Mumbai

WPHY 60 Pipe Fittings Dimensions Table

Nominal Pipe Size	Outside Diameter		90° Elbows		45° Elbows		180° Returns
(inches)			Long Radius	Short Radius	Long Radius		Long Radius
	(mm)	(inches)	Center to Face (inches)	Center to Face (inches)	Center to Face (inches)	Radius (inches)	Center to Center (inches)	Back to face (inches)
1/2	21.3	0.840	1 1/2	-	5/8		2	1 7/8
3/4	26.7	1.050	1 1/8	-	7/16		2 1/4	1 11/16
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8

Pressure Rating of CS WPHY Gr 60 Fittings

Normal Size Of Pipe (inches)	Pipe Sch	OD (inch)	Wall Thick. (inch)	Temperature (oF)
				100	200	300	400	500	600	650	700	750
				Allowable Stress (psi)
				16700	16700	16700	15500	14400	13500	13200	12900	12600
1"	40	1.315	0.133	2205	2205	2205	2047	1902	1783	1743	1703	1664
	80	1.315	0.179	3061	3061	3061	2841	2640	2475	2420	2365	2310
	160	1.315	0.250	4493	4493	4493	4170	3874	3632	3552	3471	3390
1 1/2"	40	1.900	0.145	1629	1629	1629	1512	1404	1317	1287	1258	1229
	80	1.900	0.200	2303	2303	2303	2138	1986	1862	1821	1779	1738
	160	1.900	0.281	3362	3362	3362	3120	2899	2717	2657	2597	2536
2"	40	2.375	0.154	1371	1371	1371	1272	1182	1108	1083	1059	1034
	80	2.375	0.218	1985	1985	1985	1843	1712	1605	1569	1534	1498
	160	2.375	0.344	3283	3283	3283	3047	2831	2654	2595	2536	2477
3"	40	3.500	0.216	1301	1301	1301	1208	1122	1052	1028	1005	982
	80	3.500	0.300	1844	1844	1844	1712	1590	1491	1458	1425	1391
	160	3.500	0.438	2787	2787	2787	2587	2403	2253	2203	2153	2103
4"	40	4.500	0.237	1102	1102	1102	1023	950	891	871	851	831
	80	4.500	0.337	1596	1596	1596	1482	1377	1291	1262	1233	1204
	160	4.500	0.531	2611	2611	2611	2424	2552	2111	2064	2017	1970
5"	40	5.563	0.258	965	965	965	896	832	780	763	746	728
	80	5.563	0.375	1428	1428	1428	1325	1231	1154	1129	1103	1077
	160	5.563	0.625	2474	2474	2474	2296	2133	2000	1955	1911	1866
6"	40	6.625	0.280	877	877	877	814	756	709	693	677	661
	80	6.625	0.432	1379	1379	1379	1280	1189	1115	1090	1065	1040
	160	6.625	0.719	2382	2382	2382	2211	2054	1925	1883	1840	1797
8"	40	8.625	0.322	771	771	771	716	665	623	610	596	582
	80	8.625	0.500	1218	1218	1218	1131	1050	985	963	941	919
	160	8.625	0.906	2298	2298	2298	2133	1982	1858	1817	1775	1734
10"	40	10.750	0.365	699	699	699	649	603	565	553	540	528
	80	10.750	0.594	1159	1159	1159	1075	999	937	916	895	874
	160	10.750	1.125	2289	2289	2289	2124	1974	1850	1809	1768	1727

Manufacturer of welded High-Yield 60000 PSI WPHY 60 Elbow, Reducing Tee and Stub End according to DIN 2605, view WPHY 60 material chemical composition and equivalent.

WPHY 60 Fittings Price List

API 5L X60 Pipe Fittings Price Per Piece in India	Carbon Steel Grade 60 Fittings Price in INR	WPHY 60 Buttweld Fittings Price in UAE Dirham	MSS SP 75 WPHY 60 Weld Fittings Price in USD
CAP, MSS SP75 WPHY60 (CHARPY),BW,20INCH 20.6MM THK Per PCS	22,430	UAE Dirham 1106.34	$301.15
1.2WT * 2434.9MM THK REDUCER ECC.BW WELDED CS Per Kg	427	UAE Dirham 21.06	$5.73
DN900, 9.53MM, 90 DEGREE ELBOW(LR)MSS-SP-75,GR.WPHY 60 Per Kg	130	UAE Dirham 6.41	$1.75
27.0MM LR 90 ASTM A860 WPHY 60 WX Elbow Per Kg	278	UAE Dirham 13.71	$3.73

We are WPHY 60 Fittings Manufacturer in India in Various forms Such as Elbows, reducers, Stub End, Tee. This is an approximate Cost of ASTM A860 MSS SP 75 WPHY 60 Fittings in India. Compare our price with other WPHY 60 Fittings Manufacturers in India.

ASTM A860 Gr WPHY 60 Elbow

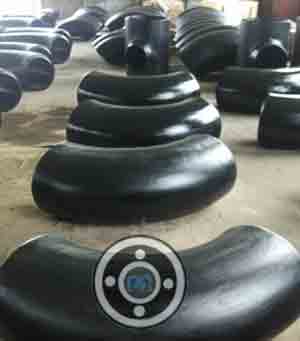

Sch80 A860 Gr WPHY 60 Elbow

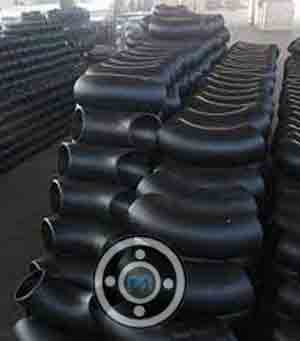

Carbon Steel API 5L X60 Butt Welded 45° Elbow

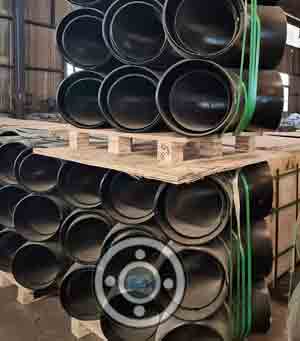

MSS SP-75 Gr WPHY 60 Short Radius Pipe Elbow

Carbon Steel X60 Reducer

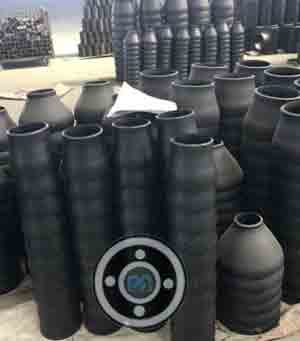

16" x 10" WPHY 60 CS Concentric Reducer XS BW

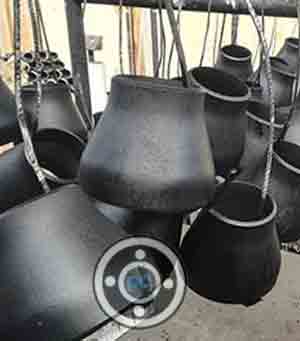

600#, Reducer, MSS SP-75 WPHY 60

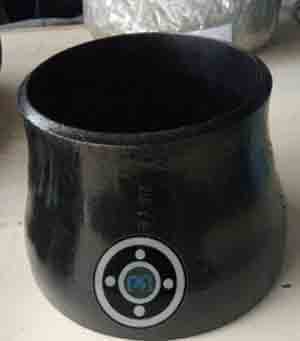

Astm A860 Wphy 60 Eccentric Reducer

MSS SP75 WPHY 60 Tee

MSS SP75 WPHY 60 carbon steel tee

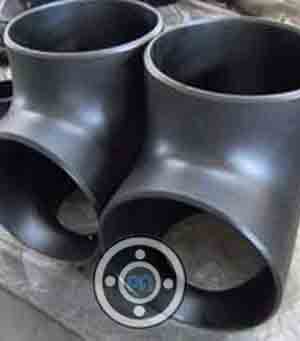

8" WPHY Gr 60 Tee SCH 40

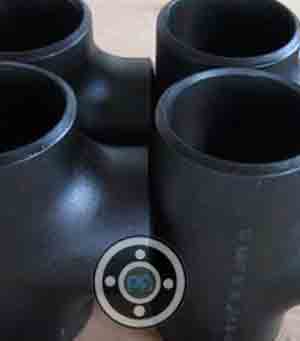

Tee BW A860 GR 60 ASME B16.9

A860 WPHY 60 Chemical Composition

Grade	C	Mn	S	P	Si	Ni	Cr	Mo	Cu	Ti	V	Cb	Al
WPHY 60	0.20	1.00-1.45	0.03	0.01	0.15-0.40	0.50	0.30	0.25	0.35	0.05	0.10	0.06

WPHY 60 Mechanical Properties

Element	Tensile Strength(Min PSI)	Yield Strength (Min PSI)	Elongation(%, in 2in.)
WPHY 60	75000 PSI	60000 PSI	20 %

ASTM A860 WPHY 60 Equivalent

A860 WPHY 60	A860 Grade WPHY 60 Fittings
A694 WPHY 60	A694 Grade F60 Flanges
A234 WPHY 60	A234 Grade WPB Carbon Steel Fittings

Shell, Norsok Ed4, Aramco, BP approved Carbon Steel WPHY 60 Long and Short Radius Elbow, Equal/ Unequal/ Lateral Tee and WPHY 60 Fittings manufacturer in India

WPHY 60 Fittings Types

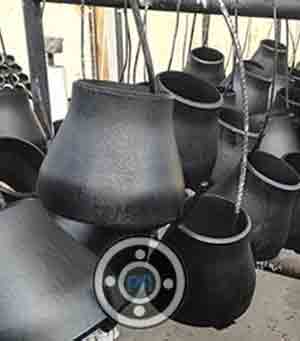

Carbon Steel WPHY 60 Reducers

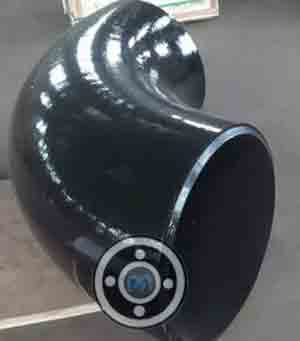

SCH 60 Carbon Steel X60 90° Short Radius Elbow

SCH XS Gr 60 Carbon Steel Seamless Buttwelding 45° and 90° Elbows

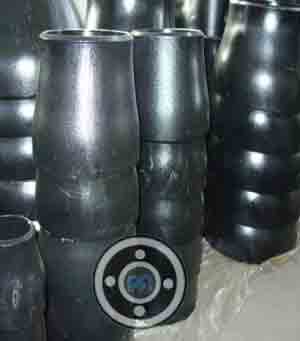

SCH 140 CS Grade 60 High Yield Concentric Reducer

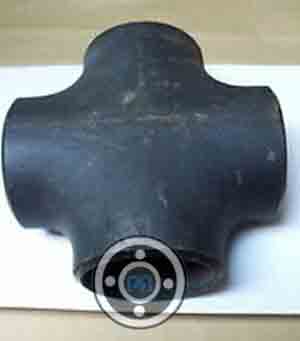

API 5L WPHY 60 Reducing Cross

ASTM A860 WPHY Grade 60 Equal Cross

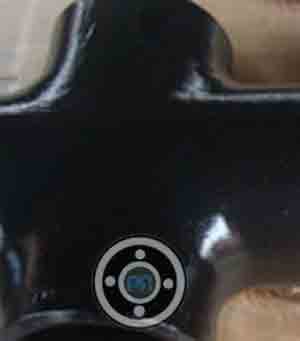

WPHY Grade 60 Straight Tees and Crosses

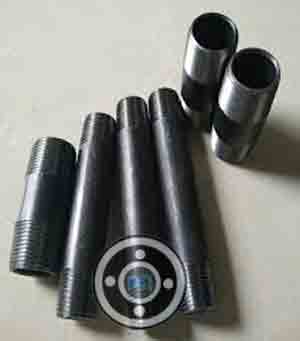

A860 WPHY 60 Pipe Nipples

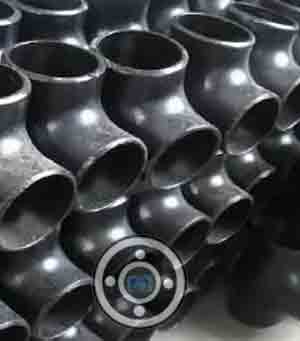

SCH 160 MSS SP 75 WPHY 60 Equal Tee

MSS SP75 WPHY Gr 60 Reducing Tee

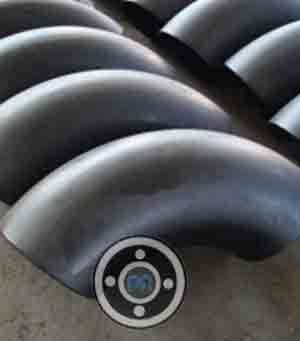

MSS SP-75 Gr WPHY 60 Welded Elbows

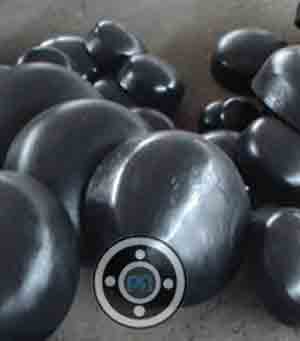

Carbon Steel API 5L X60 End Cap

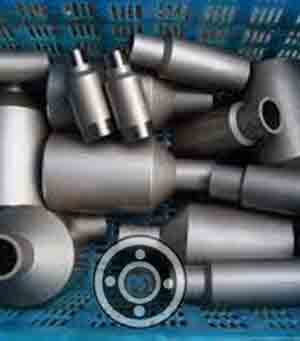

SCH XXS Carbon WPHY 60 Swage Nipple

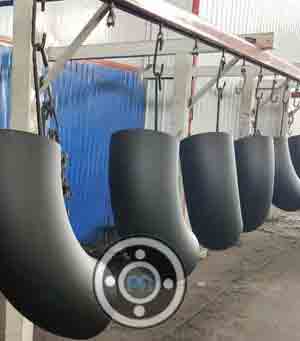

A860 Grade WPHY 60 180° Short Radius Elbow

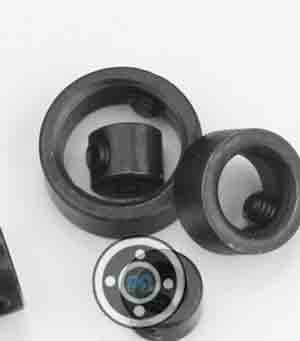

A860 MSS SP 75 WPHY 60 Collar

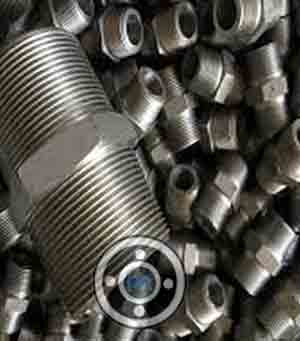

Carbon 60 Reducing Nipple

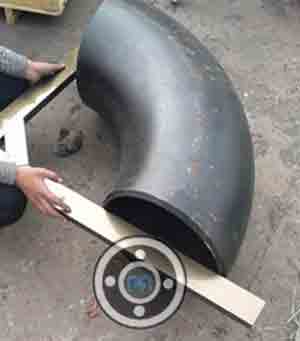

ASTM A860 WPHY 60 90° Long Radius Elbow

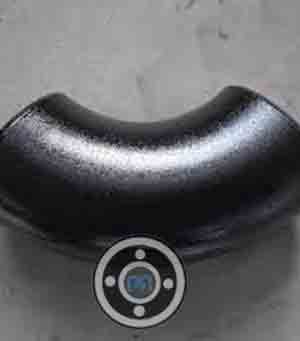

450 NB SCH 40 MSS SP75 WPHY Grade 60 1.5D Elbow

SCH STD WPHY Gr 60 Seamless Buttwelding 180° Returns

CS WPHY 60 Eccentric Reducer

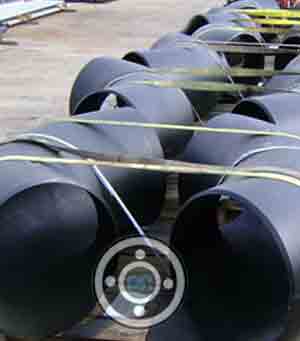

WPHY 60 180° Long Radius Elbow

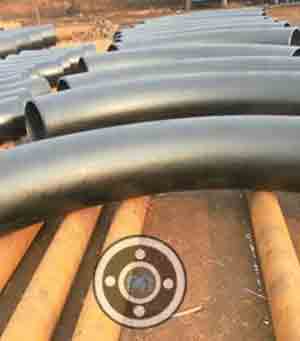

API 5L 60 Long Radius Bend

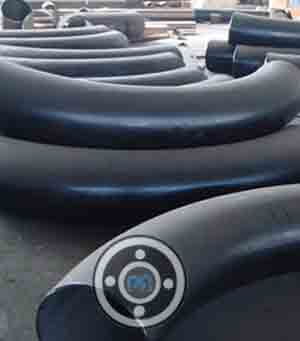

SCH 20 Grade WPHY 60 Bend

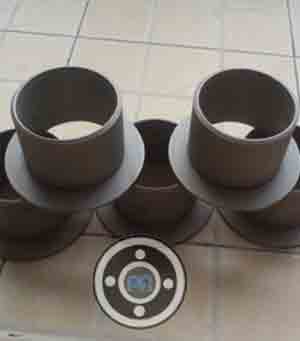

SCH 10 CS 60 Short Stubend

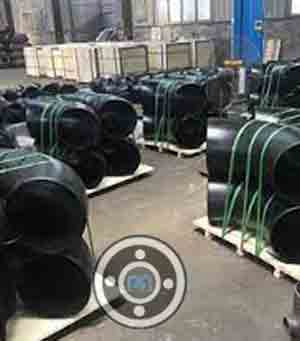

ASTM A860 WPHY Gr 60 10D ELBOW

A860 Gr WPHY 60 3D Elbow

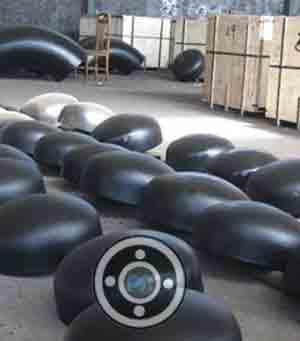

Gr 60 Pipe Cap

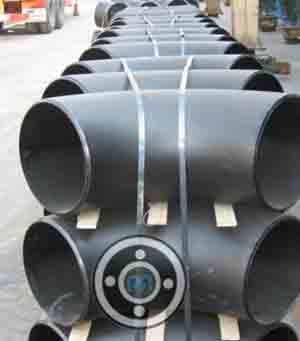

15 NB SCH 100 MSS SP75 WPHY 60 45° Short Radius Elbow

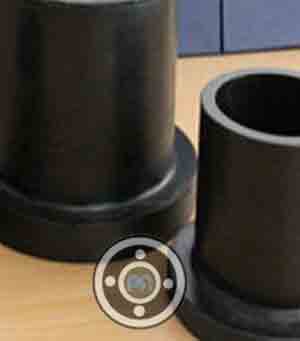

SCH 30 Carbon Steel Grade 60 Stub End

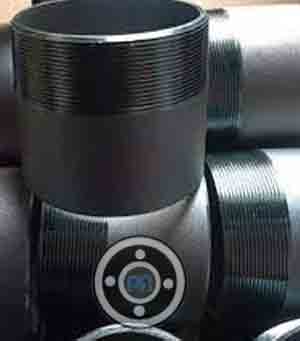

SCH 120 API 5L X60 Barrel Nipple

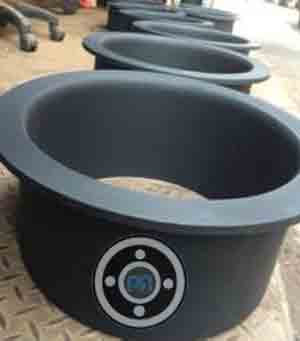

CS Gr 60 High Yield Lap Joint Stub Ends

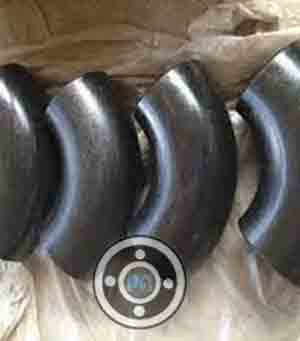

MSS SP75 60 1D Elbow

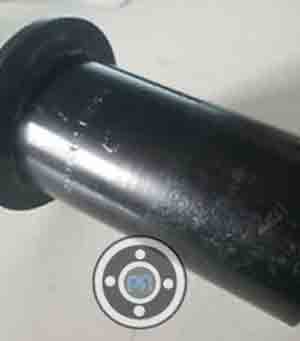

SCH 80 Grade 60 Long Stubend

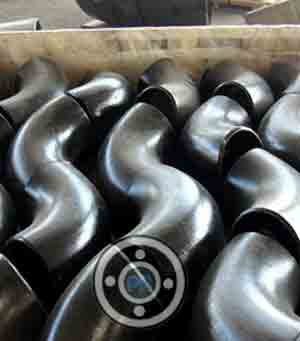

ASTM A860 MSS SP 75 WPHY 60 45° Long Radius Elbow

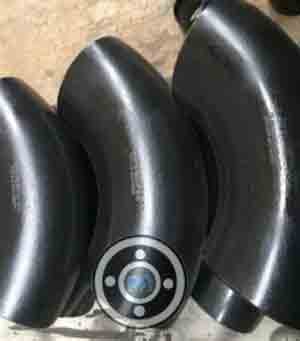

ASTM A860 Gr WPHY 60 5D Elbow

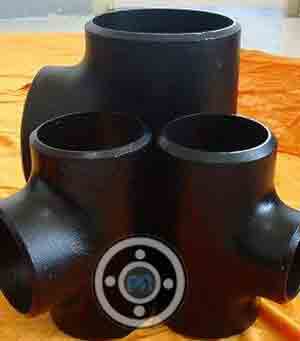

ASTM A860 Grade WPHY 60 Reducing Outlet Tees and Reducing Outlet Crosses

Size Chart of A860 WPHY 60 CS Reducer

NOMINAL PIPE SIZE	END TO END	OUTSIDE DIAMETER
Inch	H	D	P
3/4 x 1/2	38	26.7	21.3
3/4 x 3/8	38	26.7	17.1
1 x 3/4	51	33.4	26.7
1 x 1/2	51	33.4	21.3
1 1/4 x 1	51	42.2	33.4
1 1/4 x 3/4	51	42.2	26.7
1 1/4 x 1/2	51	42.2	21.3
1 1/2 x 1 1/2	64	48.3	42.2
1 1/2 x 1	64	48.3	33.4
1 1/2 x 3/4	64	48.3	26.7
1 1/2 x 1/2	64	48.3	21.3
2 x 1 1/2	76	60.3	48.2
2 x 1 1/4	76	60.3	42.2
2 x 1	76	60.3	33.4
2 x 3/4	76	60.3	26.7
2 1/2 x 2	89	73	60.3
2 1/2 x 1 1/2	89	73	48.3
2 1/2 x 1 1/4	89	73	42.2
2 1/2 x 1	89	73	33.4
3 x 2 1/2	89	88.9	73
3 x 2	89	88.9	60.3
3 x 1 1/2	89	88.9	48.3
3 x 1 1/4	89	88.9	42.2
3 1/2 x 3	102	101.6	88.9
3 1/2 x 21/2	102	101.6	73
3 1/2 x 2	102	101.6	60.3
3 1/2 x 1 1/2	102	101.6	48.3
3 1/2 x 1 1/4	102	101.6	42.2
4 x 3 1/2	102	114.3	101.6
4 x 3	102	114.3	88.9
4 x 2 1/2	102	114.3	73
4 x 2	102	114.3	60.3
4 x 1 1/2	102	114.3	48.3
5 x 4	127	141.3	114.3
5 x 3 1/2	127	141.3	101.6
5 x 3	127	141.3	88.9
5 x 2 1/2	127	141.3	73
5 x 2	127	141.3	60.3
6 x 5	140	168.3	141.3
6 x 4	140	168.3	114.3
6 x 3 1/2	140	168.3	101.6
6 x 3	140	168.3	88.9
6 x 2 1/2	140	168.3	73
8 x 6	152	219.1	168.3
8 x 5	152	219.1	141.3
8 x 4	152	219.1	114.3
8 x 3 1/2	152	219.1	101.6
10 x 8	178	273.1	219.1
10 x 6	178	273.1	168.1
10 x 5	178	273.1	141.3
10 x 4	178	273.1	114.3
12 x 10	203	323.9	273.1
12 x 8	203	323.9	219.1
12 x 6	203	323.9	168.3
12 x 5	203	323.9	141.3
14 x 12	330	355.6	323.9
14 x 10	330	355.6	273.1
14 x 8	330	355.6	219.1
14 x 6	330	355.6	168.3
16 x 14	356	406.4	355.6
16 x 12	356	406.4	323.9
16 x 10	356	406.4	273.1
16 x 8	356	406.4	219.1
16 x 6	356	406.4	168.3
18 x 16	381	457	406.4
18 x 14	381	457	355.6
18 x 12	381	457	323.9
18 x 10	381	457	273.1
18 x 8	381	457	219.1
20 x 18	508	508	457
20 x 16	508	508	406.4
20 x 14	508	508	355.6
20 x 12	508	508	323.9
20 x 10	508	508	273.1
20 x 8	508	508	219.1
22 x 20	508	559	508
22 x 18	508	559	457
22 x 16	508	559	406.4
22 x 14	508	559	355.6
22 x 12	508	559	323.9
24 x 10	508	559	273.1
24 x 22	508	610	559
24 x 20	508	610	508
24 x 18	508	610	457
24 x 16	508	610	406.4
24 x 14	508	610	355.6
24 x 12	508	610	323.9
24 x 10	508	610	273.1

Dimensions Chart of CS Gr 60 High Yield Tee

NOMINAL PIPE SIZE	LENGTH	CENTER TO END	OUTSIDE DIAMETER
Inch.	M	C	OD
1/2	25	25	21.3
3/4	29	29	26.7
1	38	38	33.4
1 1/4	48	48	42.2
1 1/2	57	57	48.3
2	64	64	60.3
2 1/2	76	76	73
3	86	86	88.9
3 1/2	95	95	101.6
4	105	105	114.3
5	124	124	141.3
6	143	143	168.3
8	178	178	219.1
10	216	216	273.1
12	254	254	323.9
14	279	279	355.6
16	305	305	406.4
18	343	343	457.2
20	381	381	508
22	419	419	559
24	432	432	610
26	495	495	660
28	521	521	711
30	559	559	762
32	597	597	813
34	635	635	864
36	673	673	914
38	711	711	965
40	749	749	1016
42	711	762	1067
44	762	813	1118
46	800	851	1168
48	838	889	1219

Weight Chart of WPHY Gr 60 Tee

NPS	KG	LBS
1/2	0.16	0.35
3/4	0.2	0.45
1	0.34	0.75
1¼	0.59	1.3
1½	0.91	2
2	1.59	3.5
2½	2.72	6
3	3.18	7
3½	4.08	9
4	5.44	12
5	9.53	21
6	15.42	34
8	24.95	55
10	38.56	85
12	54.43	120
14	74.84	165
16	88.45	195
18	112.94	249
20	155.13	342
22	187.79	414
24	239.5	528
26	349.27	770
30	480.81	1060
36	675.85	1490

Dimensions Table of Carbon WPHY 60 Reducer

Nominal Pipe Size	Outside Diameter		Reducers
Reduced from (inches)	(inches)	(mm)	Concentric & Eccentric Length (inches)	Reduced to (inches)
1/2	0.840	21.3	1 1/2	1/4
			1 1/2	3/8
3/4	1.050	26.7	2	3/8
			2	1/2
1	1.315	33.4	2	3/8
			2	1/2
			2	3/4
1 1/4	1.660	42.2	2	1/2
			2	3/4
			2	1
1 1/2	1.900	48.3	2 1/2	1/2
			2 1/2	3/4
			2 1/2	1
			2 1/2	1 1/4
2	2.375	60.3	3	3/4
			3	1
			3	1 1/4
			3	1 1/2
2 1/2	2.875	73.0	3 1/2	1
			3 1/2	1 1/4
			3 1/2	1 1/2
			3 1/2	2
3	3.500	88.9	3 1/2	1
			3 1/2	1 1/2
			3 1/2	2
			3 1/2	2 1/2
3 1/2	4.000	101.6	4	1 1/4
			4	1 1/2
			4	2
			4	2 1/2
			4	3
4	4.500	114.3	4	1 1/2
			4	2
			4	2 1/2
			4	3
			4	3 1/2
5	5.563	141.3	5	2
			5	2 1/2
			5	3
			5	3 1/2
			5	4
6	6.625	168.3	5 1/2	2 1/2
			5 1/2	3
			5 1/2	3 1/2
			5 1/2	4
			5 1/2	5
8	8.625	219.1	6	3
			6	3 1/2
			6	4
			6	5
			6	6
10	10.750	273.1	7	4
			7	5
			7	6
			7	8
12	12.750	323.9	8	5
			8	6
			8	8
			8	10

Manufacturer of Seamless Butt weld ASTM A860 WPHY 60 Short Radius Elbow and 45/ 90/ 180 Degree LR Elbow according to ANSI B16.9

A860 WPHY Grade 60 Elbow Weight Table

NPS	KG	LBS
1/2	0.11	0.25
3/4	0.11	0.25
1	0.23	0.5
1¼	0.41	0.9
1½	0.52	1.15
2	1	2.2
2½	1.81	4
3	2.95	6.5
3½	3.79	8.35
4	6.12	13.5
5	9.98	22
6	15.88	35
8	32.21	71
10	48.53	107
12	72.57	160
14	92.99	205
16	125.19	276
18	154.22	340
20	190.51	420
22	235.87	520
24	272.16	600
26	330.67	729
30	442.25	975
36	640.47	1412

MSS SP-75 Gr WPHY 60 Hardness

Hardness

22 HRC (235 HBW)

Carbon Steel API 5L X60 Fittings Stock List

A860 WPHY 60 Long Radius Bend	Carbon Steel WPHY Gr 60 Pipe Cap
A860 Gr WPHY 60 Elbow Pipe Fittings	Grade WPHY 60 Eccentric Reducer
CS 60 Reducer	Carbon 60 Reducing Cross
WPHY Gr 60 High Yield 45 Deg Short Radius Elbow	CS 60 Seamless Pipe Fitting
CS Grade 60 High Yield Seamless Bend Pipe	WPHY Grade 60 High Yield End Cap
Carbon Steel X60 180 Deg Short Radius Elbow	MSS SP75 60 End Pipe Cap
WPHY Grade 60 CS Concentric Reducer Fittings	WPHY Gr 60 Pipe Bends
Carbon Steel 60 Pipe End Cap	Carbon WPHY 60 Equal Tee Fittings
ASTM A860 MSS SP 75 WPHY 60 Pipe Reducer	WPHY Grade 60 Carbon Steel BW Tee Fittings
A860 Grade WPHY 60 Buttweld Elbow	CS Grade 60 High Yield Pipe Tee Fittings
A860 WPHY 60 CS 90 Deg Short Radius Elbow	A860 MSS SP 75 60 Straight Cross
CS WPHY Grade 60 Eccentric Reducer	Carbon 60 180 Deg Long Radius Elbow
CS WPHY 60 High Yield Equal Cross	API 5L Grade 60 Seamless Butt Weld Fittings
Carbon Steel WPHY Grade 60 45 Deg Long Radius Elbow	Carbon Steel API 5L X60 Pipe Cross
CS WPHY Gr 60 Pipe Nipple	CS Gr 60 High Yield Lateral Tee
WPHY Gr 60 Carbon Steel Stubends Fittings	MSS SP75 Grade 60 Welded Pipe Fittings
Carbon Steel Grade 60 5D Bend	MSS SP75 WPHY 60 Stub End
Grade 60 Seamless Tee Fittings	Gr 60 Cross
Gr 60 Carbon Steel U Bend	API 5L 60 Reducing Tee Fittings
ASTM A860 WPHY 60 Buttweld Fittings	API 5LWPHY Gr 60 Tees
API 5L 60 Elbow Fittings	API 5L X60 90 Deg Long Radius Elbow

Industrial Applications of Carbon Steel Grade 60 Buttweld Fittings

• Paper & Pulp
• Oil and Gas Industry
• High Pressure Applications
• Chemical Refinery
• Food Processing and Dairy Industries
• Nuclear Power Plants
• Water Pipe Line
• High Temperature Application

Carbon Steel WPHY Gr 60 Fittings Inspection and Testing

• X-ray test
• Firmness test
• Pitting protection test
• Large-scale test
• Chemical examination
• Small tests
• Prompt test
• Impact analysis
• Eddy current examining
• Hydrostatic analysis
• Positive material recognition

Physical Properties of CS WPHY Gr 60 Fittings

Property	Temperature	Value
Charpy impact energy	23.0 °C	40 J
Elastic modulus	23.0 °C	200 - 215 GPa
Elongation A50	23.0 °C	0.28
Hardness, Brinell	23.0 °C	235 [-]
Hardness, Rockwell C	23.0 °C	22 [-]
Poisson's ratio	23.0 °C	0.29 [-]
Tensile strength	23.0 °C	515 - 690 MPa
Yield strength Rp0.2	23.0 °C	415 MPa

CS Grade 60 High Yield Pipe Fittings Thermal Properties

Property	Temperature	Value
Coefficient of thermal expansion	23.0 °C	1.33E-5 1/K
Melting point		1382 - 1529 °C
Specific heat capacity	23.0 °C	510 - 553 J/(kg·K)
Thermal conductivity	23.0 °C	14 - 16 W/(m·K)

Best Material supplied in Following Countries

MSS SP 75 WPHY 60 Reducer

Dubai, Poland, Kuala Lumpur, South Korea, Qatar, Tehran -Iran, Indonesia, United States

A860 Carbon Steel 60 Equal Tee

France, Netherlands, Romania, Malaysia, Singapore, Jakarta -Indonesia, Iran, Dubai- UAE

Buttweld-WPHY 60 SMLS CAP

Vietnam, Europe, Chile, Norway, South Africa, Czechia, Germany, Nigeria, Kuwait, Malaysia, Belgium

ASTM A860 Gr WPHY 60 Stubend

Bahrain, Istanbul- Turkey, Jakarta, Hong Kong, NY 12203 (USA), Oman, Argentina, Bangladesh, Brazil, Finland

ASTM A860 API 5L X60 elbow

Ellington -United United Kingdom (UK), Japan, Malaysia, Spain, Saudi Arabia (KSA), Thailand, USA, States

A860 WPHY 60 Seamless Fittings

Philippines, Canada, Turkey, Los Alamos -Mexico, Singapore, Greece, Austria, Dammam -KSA
