WPHY 52 Fittings

  • Home /
  • WPHY 52 Fittings

MSS SP75 WPHY 52 Elbow & ASTM A860 WPHY 52 Tee Fittings manufacturer in India

What is WPHY 52 Fittings?
The WPHY 52 material is basically a carbon-based stainless steel, with elements like manganese, phosphorous, aluminum, nickel, chromium, molybdenum, etc., in the alloy. The chemical composition of the WPHY 52 material helps to enhance its mechanical properties, like good tensile strength and enhanced corrosion resistance. The tensile strength of WPHY 52 Fittings is around 455 MPa, and its minimum yield strength is 360 MPa. Some other properties of the WPHY 52 Fittings would include:

  • High durability
  • Greater toughness
  • Better weldability
  • Dimensional accuracy
  • High resistance to hydrogen stress corrosion cracking
  • Prolonged service life
  • Cost-saving and affordable

The WPHY 52 Fittings are resistant to hydrogen stress corrosion cracking and hence they can effectively be used in sour service wells. These fittings are heat treated according to any WPHY 52 specifications by methods such as tempering, quenching, stress relieving, or normalizing. Due to all these properties, the WPHY 52 Fittings are used in a wide range of applications across several industries. They are found in several marine applications and sea water equipment, off-shore oil drilling, etc. Apart from that, they are also used in heat exchangers, condensers, pharmaceutical equipment, chemical equipment, machinery for power generation, etc. Due to all the properties, enhanced service life and durability, the WPHY 52 Fittings is considered to be a cost-saving option for many industries.

ASTM A860 Gr WPHY 52 Tee Vs Carbon Steel X52 Reducer
The ASTM A860 Gr WPHY 52 Tee Fitting comes in the shape of alphabet T, with two outlets located at an angle of 90 degrees to one another. They also have one inlet, which is the main connection line. These pipe fittings are very popular for a wide range of commercial and industrial services. These tee fittings are available in different sizes, and can be customized according to the specifications. There are different types of tee fitting, and each branch the flow in different ways.
The Carbon Steel X52 Reducer Fittings is mostly used in process piping. It helps to reduce the pipe size from a larger to a smaller borel. The length of the reducer is calculated by finding out the average of the larger and smaller pipe inner diameters. There are two type reducers, concentric which is normally used, and eccentric which are used to maintain the same top or bottom level of the pipe.

ASTM A860 WPHY 52 Long Radius Vs WPHY 52 Short Radius Elbow
The ASTM A860 WPHY 52 Long Radius and the WPHY 52 Short Radius Elbow are made of the same material grade. However, the difference between them is in their length and curvatures. The short radius elbows give a pipe a sharper turn compared to the long radios ones. But the long radius elbows give less amount of frictional resistance to the fluids compared to the short radius. The long radius elbows are mostly used in high pressure and high flow rate environments. Short radius are used for low pressure fluids or when there is a limitation in the number of elbows at the time of installation.

WPHY 52 Short Stubend Vs MSS SP75 WPHY 52 Long Stubend
WPHY 52 Short Stubend and MSS SP75 WPHY 52 Long Stubend have similar material grades. However, their functions are different due to the difference in their structures. The WPHY 52 Short Stub end comes with a smaller hub length, whereas the MSS SP75 WPHY 52 Long Stubend has an elongated hub. The short stub ends can work as an alternative to flanges, and thus help in establishing flanged connections for smaller pressure classes. The long stub end helps in establishing flanged connections for higher pressure classes.

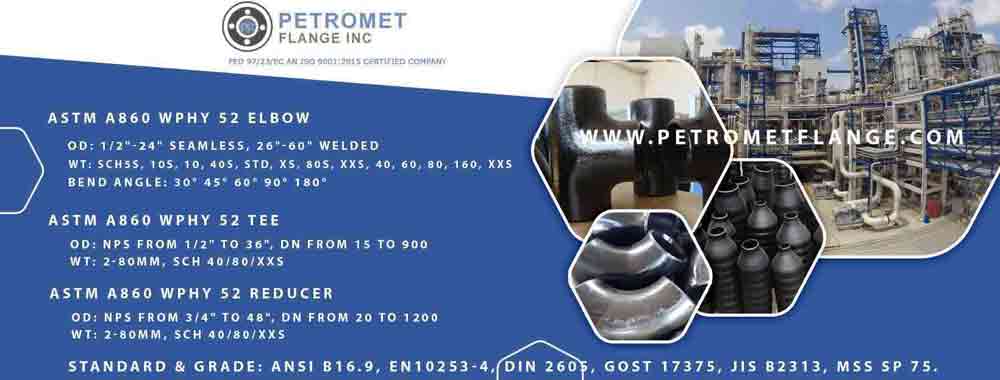

ASTM A860 WPHY 52 Fittings

ASTM A860 WPHY 52 Fittings

ASTM A860 WPHY Grade 52 Concentric/ Eccentric Reducer and ANSI B16.9 WPHY 52 Fittings manufacturer in India, Certified By ISO & PED


WPHY 52 Fittings Specifications ASTM A860
MSS SP 75 WPHY 52 Fittings Sizes WPHY Gr 52 High Yield Seamless Fittings: 1/2" - 10"
ASME B16 9 WPHY Grade 52 CS Welded Fittings: 1/2" - 48"
API 5L X52 Fittings Dimensions ASME B16.28, ASME/ANSI B16.9, BS4504, MSS-SP-43, BS1560, BS4504, BS10
WPHY 52 Fittings Thickness SCH30, SCH10, SCH 160, SCH20, SCH60, XS, STD SCH40, SCH 80, SCH 120, SCH 140, SCH 100, XXS available with NACE MR 01-75
MSS SP 75 WPHY 52 Fittings Type Manufacturer DN15-DN1200
ASTM A860 WPHY 52 Fittings Connection Welding
Bending Radius Provided By Wphy 52 Fittings Manufacturer R=1D, 3D, 2D, 5D, 8D, 6D, 10D or Custom ASTM A860 MSS SP 75 WPHY 52 Pipe Bend
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) WPHY 52 Fittings
MSS SP-75 Gr WPHY 52 Elbows Manufacturer Angle : 22.5 deg, 45 deg, 30deg, 90 deg, 1.0D, 180 deg, 1.5D, 3D, 2.5D, 2.0D, 4D, 6D, 5D, 7D-40D .
Standard: ASME B16.28, GB, ASME B16.9, MSS SP-75 JISB2311 DIN2605 JISB2312 JISB2313, ASME B16.25, BS, ISO
MSS SP75 WPHY 52 Fittings Manufacturing process Push, Forge, Press, Cast, etc.
ASME B16.9 MSS SP 75 WPHY 52 Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
CS Gr 52 High Yield Fittings Origin & Mills European, Japanese, USA, Korean, Ukraine, Indian, Russian
Specialized manufacturer of CS WPHY 52 Stub End, 90º Elbows, Tees, Pipe Cap, Crosses, 45º Elbows, Reducers, Pipe Bend
Application of Industrial CS WPHY 52 Fittings
  • Fittings To Connect Tubes and Pipe in Gas, Petroleum, Metallurgy, Chemical, Power, Construction, Shipbuilding etc
WPHY 52 Pipe Fittings Thread Provided By Manufacturer BSPT, NPT, BSPP
CS Gr 52 High Yield Fittings Pressure Rating Threaded end - 3000lb/ 2000lb/ 6000lbs
Socket weld end- 6000/ 3000/ 9000lbs
Dimension Specification MSS SP-79, 95, 83, 97, BS 3799, ASME 16.11
API 5L WPHY Gr 52 Products Manufacturer Half Coupling, Union, Tee, Cross, Coupling, Cap, Outlet, Welding Outlet, Boss, Insert

Leading WPHY 52 Fittings distributor, supplier, stockholders, importer, wholesalers, stockists, dealers, exporters and Manufacturer in India.

Nominal Pipe Size Outside Diameter 90° Elbows 45° Elbows 180° Returns
(inches)
Long Radius
Short Radius
Long Radius
Long Radius
(mm)
(inches)
Center to Face
(inches)
Center to Face
(inches)
Center to Face
(inches)
Radius
(inches)
Center to Center
(inches)
Back to face
(inches)
1/2
21.3
0.840
1 1/2
-
5/8
2
1 7/8
3/4
26.7
1.050
1 1/8
-
7/16
2 1/4
1 11/16
1
33.4
1.315
1 1/2
1
7/8
3
2 3/16
1 1/4
42.2
1.660
1 7/8
1 1/4
1
3 3/4
2 3/4
1 1/2
48.3
1.900
2 1/4
1 1/2
1 1/8
3
4 1/2
3 1/4
2
60.3
2.375
3
2
1 3/8
4
6
4 3/16
2 1/2
73.0
2.875
3 3/4
2 1/2
1 3/4
5
7 1/2
5 3/16
3
88.9
3.500
4 1/2
3
2
6
9
6 1/4
3 1/2
101.6
4.000
5 1/4
3 1/2
2 1/4
7
10 1/2
7 1/4
4
114.3
4.500
6
4
2 1/2
8
12
8 1/4
5
141.3
5.563
7 1/2
5
3 1/8
10
15
10 5/16
6
168.3
6.625
9
6
3 3/4
12
18
12 5/16
8
219.1
8.625
12
8
5
12
24
16 5/16
10
273.1
10.750
15
10
6 1/4
15
30
20 3/8
12
323.9
12.750
18
12
7 1/2
18
36
24 3/8

Widest selection of Carbon Steel WPHY 52 long radius elbow, concentric/ eccentric reducers, and Equal/ Unequal/ Reducing/ Lateral Tee in India, get a free sample now!

Normal Size Of Pipe
(inches)
Pipe Sch OD (inch)
Wall
Thick.
(inch)
Temperature (oF)
100 200 300 400 500 600 650 700 750
Allowable Stress (psi)
16700 16700 16700 15500 14400 13500 13200 12900 12600
1" 40 1.315 0.133 2205 2205 2205 2047 1902 1783 1743 1703 1664
80 1.315 0.179 3061 3061 3061 2841 2640 2475 2420 2365 2310
160 1.315 0.250 4493 4493 4493 4170 3874 3632 3552 3471 3390
1 1/2" 40 1.900 0.145 1629 1629 1629 1512 1404 1317 1287 1258 1229
80 1.900 0.200 2303 2303 2303 2138 1986 1862 1821 1779 1738
160 1.900 0.281 3362 3362 3362 3120 2899 2717 2657 2597 2536
2" 40 2.375 0.154 1371 1371 1371 1272 1182 1108 1083 1059 1034
80 2.375 0.218 1985 1985 1985 1843 1712 1605 1569 1534 1498
160 2.375 0.344 3283 3283 3283 3047 2831 2654 2595 2536 2477
3" 40 3.500 0.216 1301 1301 1301 1208 1122 1052 1028 1005 982
80 3.500 0.300 1844 1844 1844 1712 1590 1491 1458 1425 1391
160 3.500 0.438 2787 2787 2787 2587 2403 2253 2203 2153 2103
4" 40 4.500 0.237 1102 1102 1102 1023 950 891 871 851 831
80 4.500 0.337 1596 1596 1596 1482 1377 1291 1262 1233 1204
160 4.500 0.531 2611 2611 2611 2424 2552 2111 2064 2017 1970
5" 40 5.563 0.258 965 965 965 896 832 780 763 746 728
80 5.563 0.375 1428 1428 1428 1325 1231 1154 1129 1103 1077
160 5.563 0.625 2474 2474 2474 2296 2133 2000 1955 1911 1866
6" 40 6.625 0.280 877 877 877 814 756 709 693 677 661
80 6.625 0.432 1379 1379 1379 1280 1189 1115 1090 1065 1040
160 6.625 0.719 2382 2382 2382 2211 2054 1925 1883 1840 1797
8" 40 8.625 0.322 771 771 771 716 665 623 610 596 582
80 8.625 0.500 1218 1218 1218 1131 1050 985 963 941 919
160 8.625 0.906 2298 2298 2298 2133 1982 1858 1817 1775 1734
10" 40 10.750 0.365 699 699 699 649 603 565 553 540 528
80 10.750 0.594 1159 1159 1159 1075 999 937 916 895 874
160 10.750 1.125 2289 2289 2289 2124 1974 1850 1809 1768 1727

Carbon Steel API 5L X52 Elbow Size

NPS O.D.
D
90°
3D
Center to End
A
45°
3D
Center to End
B
45°
Long Rad
Center to End
B
90°
Long Rad
Center to End
A
18 457 1372 568 286 686
20 508 1524 632 318 762
22 559 1676 694 343 838
24 610 1829 757 381 914
26 660 1981 821 406 991
28 711 2134 883 438 1067
30 762 2286 946 470 1143
32 813 2438 1010 502 1219
34 864 2591 1073 533 1295
36 914 2743 1135 565 1372
38 965 2896 1200 600 1448
40 1016 3048 1264 632 1524
42 1067 3200 1326 660 1600
44 1118 3353 1389 695 1676
46 1168 3505 1453 727 1753
48 1219 3658 1516 759 1829
ASTM A860 WPHY 52 Fittings Price Per Piece in India MSS SP75 WPHY 52 Buttweld Fittings Price in INR WPHY 52 Weld Fittings Price in Saudi Riyal A860 WPHY 52 Fittings Price in UAE Dirham
Elbow 1.5d 45 degree 2 inch wphy 52 Per Piece 372.04 $5.00 UAE Dirham 18.36
ASTM A860 WPHY 52 Reducer 12 inch SCH80 Per Piece 178.59 $2.4 UAE Dirham 8.82
ASTM A860 Wphy 52 Seamless 8D Bend Per Piece 122.78 $1.65 UAE Dirham 6.06

Above Price List is Approximate. Well known A860 Gr WPHY 52 Tee Manufacturer in India. Supplier of MSS SP75 WPHY 52 Buttweld Elbow. Compare our price with other Carbon Steel Grade 52 Weld Fittings Manufacturer in Mumbai.

CS Grade 52 Reducer Size

NOMINAL PIPE SIZE END TO END OUTSIDE DIAMETER
Inch H D P
3/4 x 1/2 38 26.7 21.3
3/4 x 3/8 38 26.7 17.1
1 x 3/4 51 33.4 26.7
1 x 1/2 51 33.4 21.3
1 1/4 x 1 51 42.2 33.4
1 1/4 x 3/4 51 42.2 26.7
1 1/4 x 1/2 51 42.2 21.3
1 1/2 x 1 1/2 64 48.3 42.2
1 1/2 x 1 64 48.3 33.4
1 1/2 x 3/4 64 48.3 26.7
1 1/2 x 1/2 64 48.3 21.3
2 x 1 1/2 76 60.3 48.2
2 x 1 1/4 76 60.3 42.2
2 x 1 76 60.3 33.4
2 x 3/4 76 60.3 26.7
2 1/2 x 2 89 73 60.3
2 1/2 x 1 1/2 89 73 48.3
2 1/2 x 1 1/4 89 73 42.2
2 1/2 x 1 89 73 33.4
3 x 2 1/2 89 88.9 73
3 x 2 89 88.9 60.3
3 x 1 1/2 89 88.9 48.3
3 x 1 1/4 89 88.9 42.2
3 1/2 x 3 102 101.6 88.9
3 1/2 x 21/2 102 101.6 73
3 1/2 x 2 102 101.6 60.3
3 1/2 x 1 1/2 102 101.6 48.3
3 1/2 x 1 1/4 102 101.6 42.2
4 x 3 1/2 102 114.3 101.6
4 x 3 102 114.3 88.9
4 x 2 1/2 102 114.3 73
4 x 2 102 114.3 60.3
4 x 1 1/2 102 114.3 48.3
5 x 4 127 141.3 114.3
5 x 3 1/2 127 141.3 101.6
5 x 3 127 141.3 88.9
5 x 2 1/2 127 141.3 73
5 x 2 127 141.3 60.3
6 x 5 140 168.3 141.3
6 x 4 140 168.3 114.3
6 x 3 1/2 140 168.3 101.6
6 x 3 140 168.3 88.9
6 x 2 1/2 140 168.3 73
8 x 6 152 219.1 168.3
8 x 5 152 219.1 141.3
8 x 4 152 219.1 114.3
8 x 3 1/2 152 219.1 101.6
10 x 8 178 273.1 219.1
10 x 6 178 273.1 168.1
10 x 5 178 273.1 141.3
10 x 4 178 273.1 114.3
12 x 10 203 323.9 273.1
12 x 8 203 323.9 219.1
12 x 6 203 323.9 168.3
12 x 5 203 323.9 141.3
14 x 12 330 355.6 323.9
14 x 10 330 355.6 273.1
14 x 8 330 355.6 219.1
14 x 6 330 355.6 168.3
16 x 14 356 406.4 355.6
16 x 12 356 406.4 323.9
16 x 10 356 406.4 273.1
16 x 8 356 406.4 219.1
16 x 6 356 406.4 168.3
18 x 16 381 457 406.4
18 x 14 381 457 355.6
18 x 12 381 457 323.9
18 x 10 381 457 273.1
18 x 8 381 457 219.1
20 x 18 508 508 457
20 x 16 508 508 406.4
20 x 14 508 508 355.6
20 x 12 508 508 323.9
20 x 10 508 508 273.1
20 x 8 508 508 219.1
22 x 20 508 559 508
22 x 18 508 559 457
22 x 16 508 559 406.4
22 x 14 508 559 355.6
22 x 12 508 559 323.9
24 x 10 508 559 273.1
24 x 22 508 610 559
24 x 20 508 610 508
24 x 18 508 610 457
24 x 16 508 610 406.4
24 x 14 508 610 355.6
24 x 12 508 610 323.9
24 x 10 508 610 273.1
Norsok Ed4, Shell, Aramco, BP approved Buttweld High-Yield 52000 PSI 45/ 90/ 180 Degree Elbow and API 5L WPHY 52 Pipe Bend manufacturer in India

A860 WPHY 52 CS Tee Dimensions

NOMINAL PIPE SIZE LENGTH CENTER TO END OUTSIDE DIAMETER
Inch. M C OD
1/2 25 25 21.3
3/4 29 29 26.7
1 38 38 33.4
1 1/4 48 48 42.2
1 1/2 57 57 48.3
2 64 64 60.3
2 1/2 76 76 73
3 86 86 88.9
3 1/2 95 95 101.6
4 105 105 114.3
5 124 124 141.3
6 143 143 168.3
8 178 178 219.1
10 216 216 273.1
12 254 254 323.9
14 279 279 355.6
16 305 305 406.4
18 343 343 457.2
20 381 381 508
22 419 419 559
24 432 432 610
26 495 495 660
28 521 521 711
30 559 559 762
32 597 597 813
34 635 635 864
36 673 673 914
38 711 711 965
40 749 749 1016
42 711 762 1067
44 762 813 1118
46 800 851 1168
48 838 889 1219
NPS KG LBS
1/2 0.16 0.35
3/4 0.2 0.45
1 0.34 0.75
0.59 1.3
0.91 2
2 1.59 3.5
2.72 6
3 3.18 7
4.08 9
4 5.44 12
5 9.53 21
6 15.42 34
8 24.95 55
10 38.56 85
12 54.43 120
14 74.84 165
16 88.45 195
18 112.94 249
20 155.13 342
22 187.79 414
24 239.5 528
26 349.27 770
30 480.81 1060
36 675.85 1490
Nominal
Pipe Size
Outside
Diameter
Reducers
Reduced from
(inches)
(inches) (mm) Concentric & Eccentric Length
(inches)
Reduced to
(inches)
1/2 0.840 21.3 1 1/2 1/4
1 1/2 3/8
3/4 1.050 26.7 2 3/8
2 1/2
1 1.315 33.4 2 3/8
2 1/2
2 3/4
1 1/4 1.660 42.2 2 1/2
2 3/4
2 1
1 1/2 1.900 48.3 2 1/2 1/2
2 1/2 3/4
2 1/2 1
2 1/2 1 1/4
2 2.375 60.3 3 3/4
3 1
3 1 1/4
3 1 1/2
2 1/2 2.875 73.0 3 1/2 1
3 1/2 1 1/4
3 1/2 1 1/2
3 1/2 2
3 3.500 88.9 3 1/2 1
3 1/2 1 1/2
3 1/2 2
3 1/2 2 1/2
3 1/2 4.000 101.6 4 1 1/4
4 1 1/2
4 2
4 2 1/2
4 3
4 4.500 114.3 4 1 1/2
4 2
4 2 1/2
4 3
4 3 1/2
5 5.563 141.3 5 2
5 2 1/2
5 3
5 3 1/2
5 4
6 6.625 168.3 5 1/2 2 1/2
5 1/2 3
5 1/2 3 1/2
5 1/2 4
5 1/2 5
8 8.625 219.1 6 3
6 3 1/2
6 4
6 5
6 6
10 10.750 273.1 7 4
7 5
7 6
7 8
12 12.750 323.9 8 5
8 6
8 8
8 10
NPS KG LBS
1/2 0.11 0.25
3/4 0.11 0.25
1 0.23 0.5
0.41 0.9
0.52 1.15
2 1 2.2
1.81 4
3 2.95 6.5
3.79 8.35
4 6.12 13.5
5 9.98 22
6 15.88 35
8 32.21 71
10 48.53 107
12 72.57 160
14 92.99 205
16 125.19 276
18 154.22 340
20 190.51 420
22 235.87 520
24 272.16 600
26 330.67 729
30 442.25 975
36 640.47 1412
ASME B16.9 Carbon Steel WPHY Grade 52 90 Degree Weld Elbow, Thin-Wall Stub End & SCH10 WPHY 52 Long Radius Elbow manufacturer in India, check WPHY 52 material yield strength and chemical composition
C P Si Ni Cr Mo Mn Cu Ti V S Al Cb
0.20 0.01 0.15-0.40 0.50 0.30 0.25 1.00-1.45 0.35 0.05 0.03 0.06 0.10
Tensile Strength Elongation Yield Strength (0.2%Offset)
515-690 28 % 66
A860 WPHY 52
A860 Gr WPHY 52 Fittings
A234 WPHY 52
A234 Grade WPB Fittings
A694 WPHY 52
A694 Gr F52 Flanges

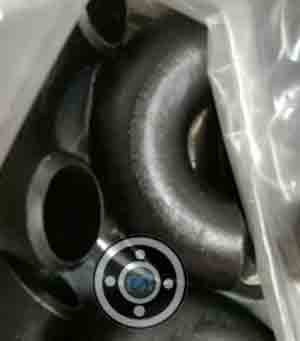

MSS SP75 WPHY 52 90° Long Radius Elbow

MSS SP75 WPHY 52 90° Long Radius Elbow

SCH 30 CS Gr 52 High Yield 90° Short Radius Elbow

SCH 30 CS Gr 52 High Yield 90° Short Radius Elbow

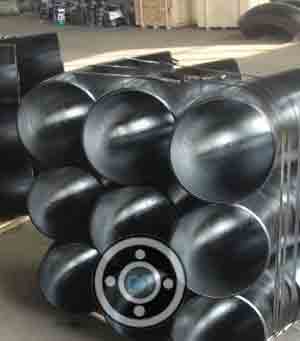

Carbon Steel API 5L X52 45° Long Radius Elbow

Carbon Steel API 5L X52 45° Long Radius Elbow

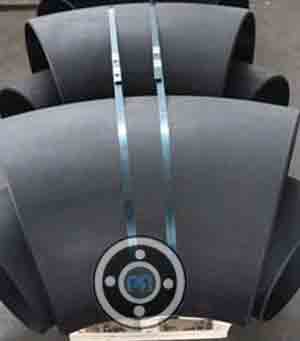

ASTM A860 WPHY 52 45° Short Radius Elbow

ASTM A860 WPHY 52 45° Short Radius Elbow

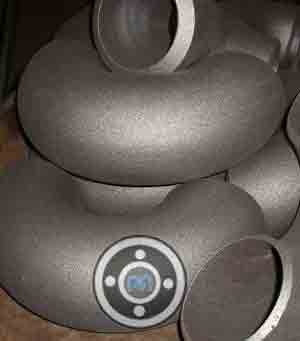

450 NB SCH 40 ASTM A860 MSS SP 75 WPHY 52 180° Long Radius Elbow

450 NB SCH 40 ASTM A860 MSS SP 75 WPHY 52 180° Long Radius Elbow

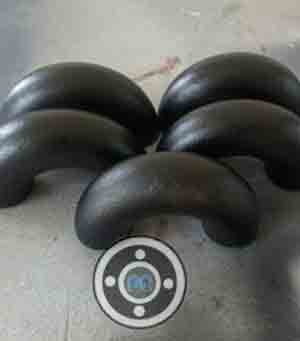

WPHY Gr 52 High Yield 180° Short Radius Elbow

WPHY Gr 52 High Yield 180° Short Radius Elbow

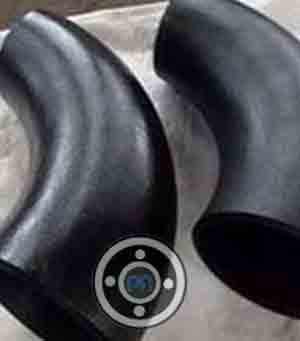

SCH 80 Carbon 52 1D Elbow

SCH 80 Carbon 52 1D Elbow

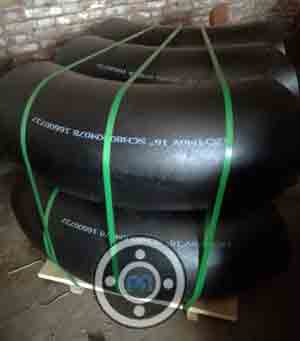

ASTM A860 WPHY 52 1.5D Elbow

ASTM A860 WPHY 52 1.5D Elbow

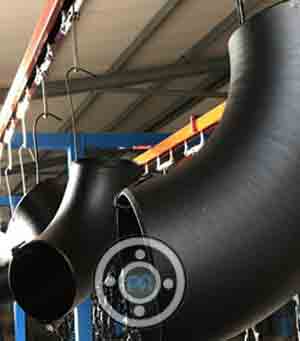

SCH 160 Grade WPHY 52 3D Elbow

SCH 160 Grade WPHY 52 3D Elbow

API 5L X52 5D Elbow

API 5L X52 5D Elbow

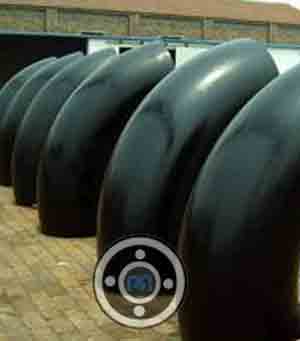

SCH XS MSS SP 75 WPHY 52 10D ELBOW

SCH XS MSS SP 75 WPHY 52 10D ELBOW

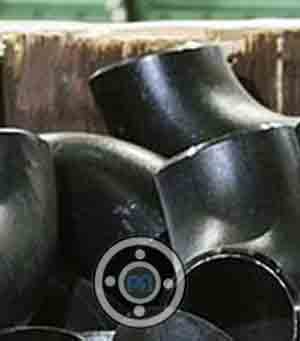

WPHY Grade 52 High Yield Seamless Buttwelding 45° and 90° Elbows

WPHY Grade 52 High Yield Seamless Buttwelding 45° and 90° Elbows

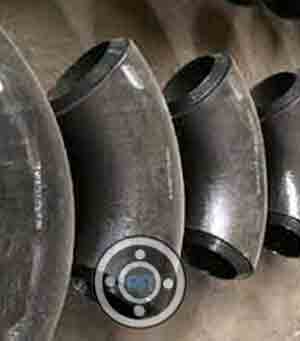

15 NB SCH 100 Carbon Steel Grade 52 Welded Elbows

15 NB SCH 100 Carbon Steel Grade 52 Welded Elbows

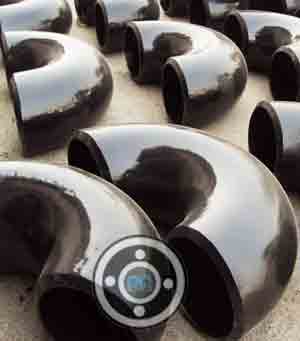

ASTM A860 Grade WPHY 52 Seamless Buttwelding 180° Returns

ASTM A860 Grade WPHY 52 Seamless Buttwelding 180° Returns

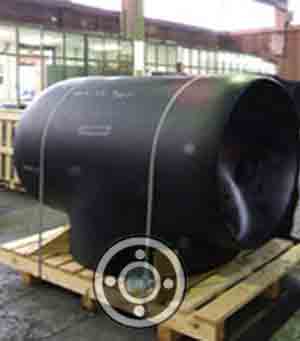

SCH 60 A860 WPHY 52 Straight Tees and Crosses

SCH 60 A860 WPHY 52 Straight Tees and Crosses

CS Gr 52 High Yield Reducing Outlet Tees and Reducing Outlet Crosses

CS Gr 52 High Yield Reducing Outlet Tees and Reducing Outlet Crosses

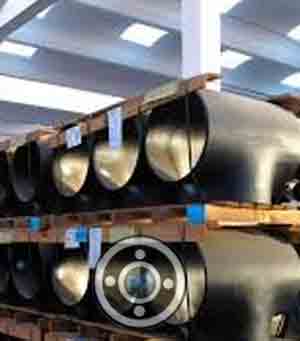

A860 MSS SP 75 WPHY 52 Equal Tee

A860 MSS SP 75 WPHY 52 Equal Tee

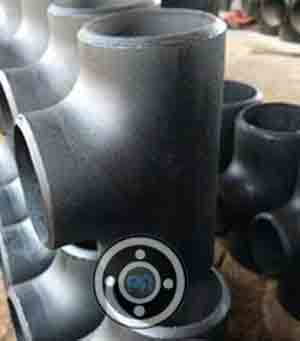

SCH STD Carbon Steel X52 Reducing Tee

SCH STD Carbon Steel X52 Reducing Tee

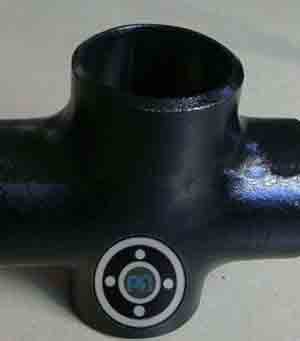

MSS SP75 52 Equal Cross

MSS SP75 52 Equal Cross

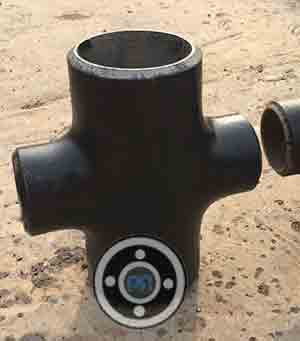

SCH 10 ASTM A860 Gr WPHY 52 Reducing Cross

SCH 10 ASTM A860 Gr WPHY 52 Reducing Cross

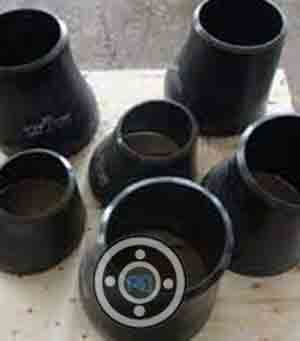

CS WPHY 52 High Yield Reducers

CS WPHY 52 High Yield Reducers

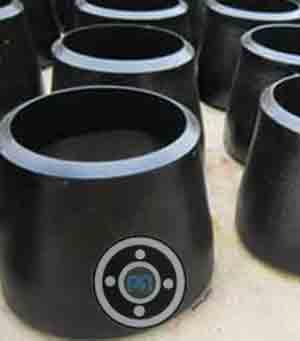

CS Grade 52 High Yield Concentric Reducer

CS Grade 52 High Yield Concentric Reducer

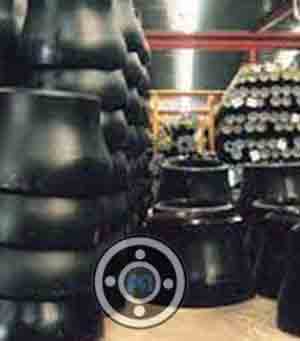

CS 52 Eccentric Reducer

CS 52 Eccentric Reducer

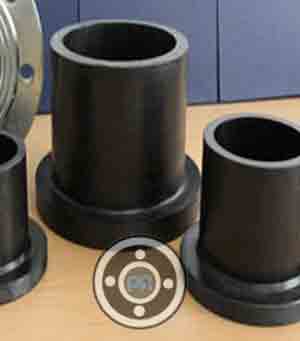

Gr 52 Carbon Steel Stub End

Gr 52 Carbon Steel Stub End

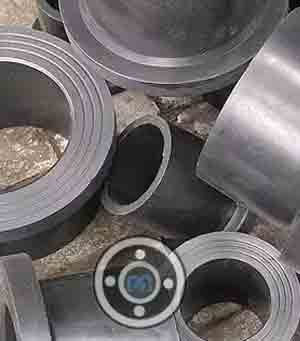

Grade 52 Carbon Steel Lap Joint Stub Ends

Grade 52 Carbon Steel Lap Joint Stub Ends

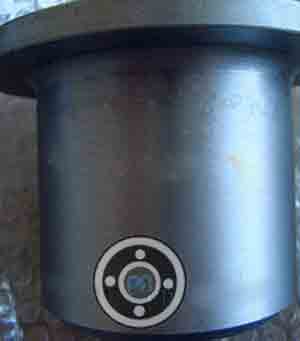

SCH 140 Carbon Steel API 5L X52 Long Stubend

SCH 140 Carbon Steel API 5L X52 Long Stubend

Carbon Steel API 5L X52 Short Stubend

Carbon Steel API 5L X52 Short Stubend

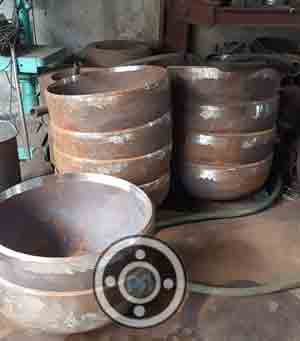

SCH 20 Carbon Steel X52 Pipe Cap

SCH 20 Carbon Steel X52 Pipe Cap

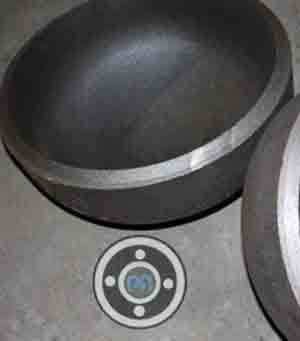

A860 Grade WPHY 52 End Cap

A860 Grade WPHY 52 End Cap

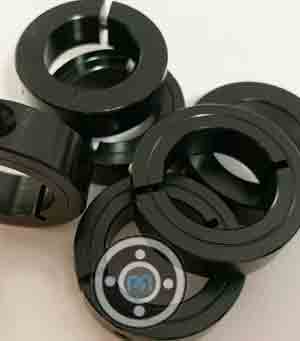

Carbon Steel Grade 52 Collar

Carbon Steel Grade 52 Collar

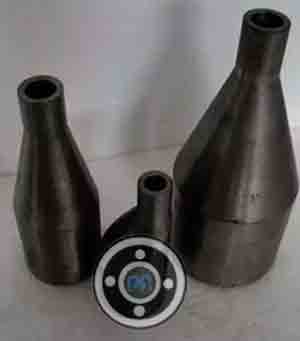

API 5L 52 Swage Nipple

API 5L 52 Swage Nipple

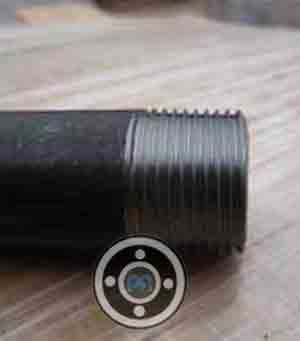

SCH XXS A860 Gr WPHY 52 Pipe Nipples

SCH XXS A860 Gr WPHY 52 Pipe Nipples

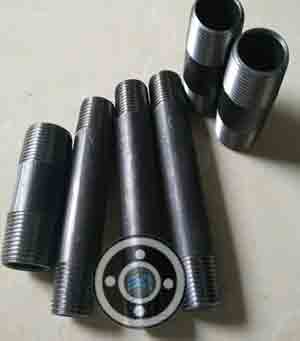

CS Grade 52 High Yield Barrel Nipple

CS Grade 52 High Yield Barrel Nipple

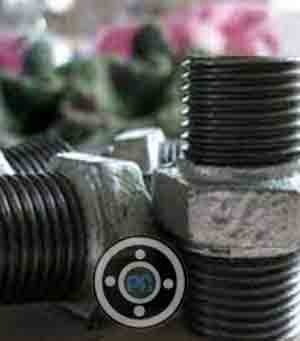

SCH 120 Carbon Steel X52 Reducing Nipple

SCH 120 Carbon Steel X52 Reducing Nipple

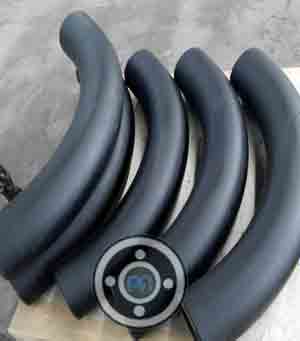

MSS SP-75 Gr WPHY 52 Bend

MSS SP-75 Gr WPHY 52 Bend

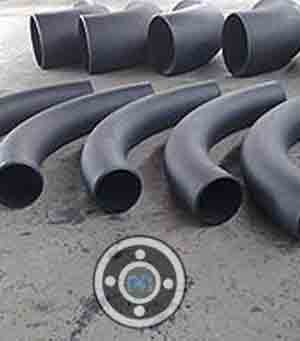

Carbon Steel Grade 52 Long Radius Bend

Carbon Steel Grade 52 Long Radius Bend

  • Chemical Industries
  • Pharmaceutical Plant
  • Food & Dairy Plants
  • Desalination Plant
  • Paper Industries
  • Aerospace
  • Fertilizer Plant
  • Thermal & Nuclear Power Plants
  • Oil & Gas Exploration
  • Ultrasonic Testing
  • Destructive Testing
  • Polishing
  • Beveling
  • Heat Treatment
  • Non Destructive Testing
  • 100% X-Ray Welding
  • Cold Drawing Services
  • Annealing
  • Pickling

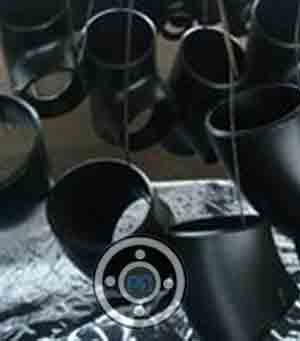

ASTM A860 Wphy 52 Lr 90 Degree Elbow

ASTM A860 Wphy 52 Lr 90 Degree Elbow

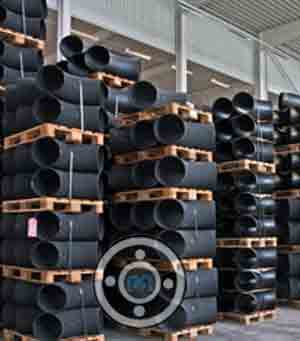

High pressure elbow 2 SCH40s wphy 52

High pressure elbow 2″ SCH40s wphy 52

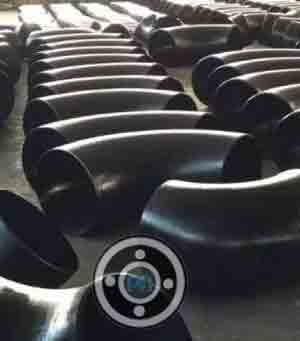

Elbow LR 90 DEG BW SCH 80 ASTM A860 WPHY 52

Elbow LR 90 DEG BW SCH 80 ASTM A860 WPHY 52

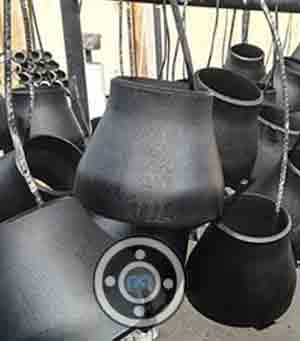

12 inch SCH80 ASTM A860 WPHY 52 Reducer

12 inch SCH80 ASTM A860 WPHY 52 Reducer

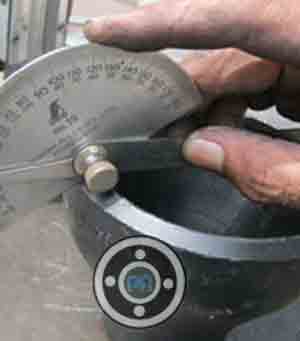

A860 wphy 52 Carbon Steel Reducer

A860 wphy 52 Carbon Steel Reducer

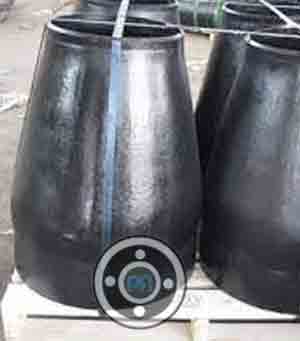

A860 Wphy52 Seamless Concentric Pipe Reducer

A860 Wphy52 Seamless Concentric Pipe Reducer

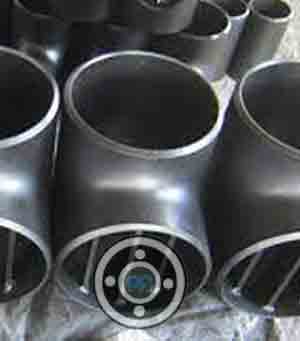

Barred Tee 18X16 A860 Wphy 52

Barred Tee 18″X16″ A860 Wphy 52

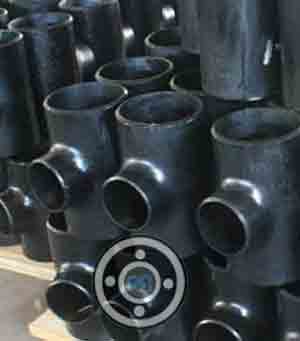

Mss Sp-75 Wphy 52 Nace Mr 0175 Reducing Tee

Mss Sp-75 Wphy 52 Nace Mr 0175 Reducing Tee

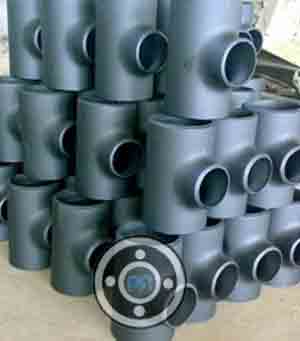

A860 Gr WPHY 52 Tee Sch40

A860 Gr WPHY 52 Tee Sch40

API 5L Gr 52 Long Radius Bend Grade 52 Pipe Bends
API 5L 52 Elbow Fittings ASTM A860 WPHY 52 Buttweld Elbow
CS 52 End Pipe Cap API 5L 52 Pipe Cap
MSS SP75 52 Equal Cross Carbon Steel WPHY Grade 52 Lateral Tee
MSS SP75 52 Tees CS Gr 52 High Yield U Bend
Carbon 52 Seamless Tee Fittings CS Gr 52 High Yield Pipe Reducer
Gr 52 Carbon Steel 45 Deg Long Radius Elbow Carbon Steel API 5L X52 45 Deg Short Radius Elbow
CS WPHY 52 Seamless Pipe Fitting MSS SP75 52 Eccentric Reducer
Carbon 52 Buttweld Fittings Carbon Steel X52 Seamless Butt Weld Fittings
A860 MSS SP 75 WPHY 52 Seamless Bend Pipe API 5L X52 Elbow Pipe Fittings
API 5L 52 Eccentric Reducer ASTM A860 Gr WPHY 52 Pipe Cross
Gr 52 Carbon Steel Straight Cross CS Grade 52 5D Bend
Carbon Steel Gr 52 Pipe Nipple MSS SP 75 WPHY 52 BW Tee Fittings
CS Grade 52 High Yield Welded Pipe Fittings Carbon 52 180 Deg Long Radius Elbow
Carbon Steel API 5L X52 Reducing Cross Carbon Steel X52 180 Deg Short Radius Elbow
Carbon Steel Grade 52 Pipe End Cap Gr 52 Carbon Steel Reducing Tee Fittings
WPHY 52 Stubends Fittings Carbon Steel Grade 52 End Cap
ASTM A860 Grade 52 Cross API 5L WPHY Grade 52 90 Deg Long Radius Elbow
MSS SP-75 Gr 52 Concentric Reducer Fittings Gr 52 Equal Tee Fittings
CS 52 High Yield 90 Deg Short Radius Elbow Grade 52 Stub End
Grade 52 Carbon Steel Pipe Tee Fittings API 5L 52 Reducer

Heat Treatment of WPHY 52 Fittings can be done by one or more of the following procedures: normalizing, annealing (stress relieving), normalizing and tempering, tempering and quenching

Carbon Steel Steel Fittings (Grade A234 WPB, A420 WPL6, A860 WPHY) Tolerance 90 Deg And 45 Deg
Elbows And Pipe Tee
Reducer (Concentric/ Eccentric)
& Lap Joint
Stub End (Long / Short)
Pipe End Caps
Normal Pipe Size (NPS) Of ASME B16.9 O. (Outside)
D. (Daimeter)
at Bevel
I. (Inside)
D.(Daimeter)
at End
Wall Thickness Of T Center-to-End
Dimension
A ,C ,B
Over-all
Length Of H
Over-all
Length Of F
1/2 to 2-1/2 +0.06 Not less than 87.5%
of nominal thickness
+/- 0.06 +/- 0.06 +/- 0.12
-0.03
3 to 3-1/2 +/- 0.06 +/- 0.06 +/- 0.06 +/- 0.06 +/- 0.12
4 +/- 0.06 +/- 0.06 +/- 0.06 +/- 0.06 +/- 0.12
5 to 8 +/- 0.06 +/- 0.06 +/- 0.06 +/- 0.06 +/- 0.25
10 to 18 +0.16 +/- 0.12 +/- 0.09 +/- 0.09 +/- 0.25
-0.12
20 to 24 +0.25 +/- 0.19 +/- 0.09 +/- 0.09 +/- 0.25
-0.19
26 to 30 +0.25 +/- 0.19 +/- 0.12 +/- 0.19 +/- 0.38
-0.19
32 to 48 +0.25 +/- 0.19 +/- 0.19 +/- 0.19 +/- 0.38
-0.19
Coefficient of thermal expansion 1.33E-5 1/K at 23 °C
Melting point 1382 – 1529 °C
Specific heat capacity 510 – 553 J/(kg·K) at 23 °C
Thermal conductivity 14 – 16 W/(m·K) at 23 °C
API 5L X52 180 Degree Elbow

API 5L X52 180 Degree Elbow

Kuala Lumpur, Poland, Tehran -Iran, Qatar, Indonesia, South Korea, United States, Dubai,

ASTM A860 MSS SP 75 WPHY 52 Fittings

ASTM A860 MSS SP 75 WPHY 52 Fittings

Malaysia, France, Jakarta -Indonesia, Romania Dubai- UAE, Iran, Netherlands, Singapore,

MSS SP 75 WPHY 52 Fittings

MSS SP 75 WPHY 52 Fittings

Chile, South Africa, Malaysia, Kuwait, Europe, Vietnam, Czechia, Norway, Belgium, Germany, Nigeria,

ASTM A860 Mss Sp 75 Wphy 52 Pipe Fitting

ASTM A860 Mss Sp 75 Wphy 52 Pipe Fitting

Istanbul- Turkey, Argentina, NY 12203 (USA), Bahrain, Oman, Bangladesh, Finland, Jakarta, Hong Kong, Brazil,

ASTM A860 WPHY 52 Material

ASTM A860 WPHY 52 Material

Japan, States, United Kingdom (UK), Ellington -United Spain, Saudi Arabia (KSA), Malaysia, USA, Thailand,

Elbow WPHY 52

Elbow WPHY 52

Canada, Austria, Turkey, Philippines, Los Alamos -Mexico, Dammam -KSA, Greece, Singapore,
