What is Silicone Rubber Gasket?
The silicone rubber gaskets come from synthetic elastomers that possess the excellent property of electric insulation. The silicone rubber gaskets are known for their high performance and mechanical seals. They are also popular for this high resistance at elevated temperatures. They are capable of retaining their flexibility and compression at both high and low temperatures. All these properties make them ideal for various gaskets as well as sealing applications.
What is Silicone O Ring?
The silicon O-rings are materials that offer excellent sealings at elevated temperatures and in static environments. They are known for their unique properties, such as flexibility and fatigue life. They can also strongly resist ozone and UV radiation. They possess physiologically insulating and neutral properties. However, it should be ensured that the silicon o-rings should not be used with fuels, acids, or silicon and petroleum based oils.
Advantages and disadvantages of VMQ Silicone O-rings
There are several advantages of VMQ Silicone O-Rings, like:
The disadvantages would include:
Application and uses of Silicone Gasket Ring
Silicone O-Rings possess some excellent features, like high resistance to extreme temperatures, high flexibility and they can withstand getting exposed to various substances and gases. All these features make them useful for a wide range of applications across several industries, like automotive manufacturing, electronics, aerospace, water processing equipment, pressure cleaners, etc. They also do not affect the odor or taste of their immediate surroundings, and hence they can be a good choice for food production and processing equipment, semiconductor systems, pharmaceuticals, etc.
They can also be effectively used in environments that are exposed to high heat, ozone and have minimally additive mineral oils. Thus should not be used for applications that have concentrated acids, fuels, gear lubricants, etc.
Silicone Rubber Gasket manufacturer in India
Table of Content
Polymer | Silicone |
Gauge (thickness) By Manufacturer | 1/32”, 1/16”, 3/32”, 1/8”, 3/16”, ¼” |
Durometer Rating (hardness) | 30, 40, 50, 60, 70, 80 |
Temperature Range | -94°F to +392°F |
ISO/ASTM Designation Provided By Manufacturer | FE |
High Temperature | up to +500F |
Tensile strength | 1100 PSI |
Finish | Plate |
Elongation | 300% |
Widths | 36”, 48” |
Pressure Sensitive Adhesive (PSA) | available upon request |
Well known Silicone O Ring Gasket distributor, supplier, exporters, importer, stockists, dealers, wholesalers, stockholders and Manufacturer in Mumbai. We are Silicone Rubber Gasket manufacturers India.
Silicone rubber gaskets are manufactured from a synthetic elastomer and have good electrical insulating qualities. Si rubber gaskets are high-performance mechanical seals known for their outstanding temperature resistance. At both high and low temperatures, they keep their flexibility and compression set, making them excellent for gasket and sealing applications.
For high temperatures in static conditions, Si o-rings are ideal seal materials. Silicone o-rings typically have excellent flex and fatigue life, high ozone and UV radiation resistance, and physiologically neutral and insulating qualities.
Silicone Rubber Gasket Price Per Piece in India | Silicone O Ring Price in INR | Si Flange Gasket Price in UAE Dirham | Silicone O Ring Gasket Flange Price in USD |
Si GASKET STYLE 077, 323.9 MM/12 C07,77,75,78 Per Kg | 1,158 | UAE Dirham 56.73 | $15.45 |
SILICONE RUBBER GASKET COLOR RED 16X12MM Per Mtr | 1,582 | UAE Dirham 77.50 | $21.10 |
DN 100 REACTOR GASKET-SILICONE O-RING FEP COVERED Per Unit | 7,056 | UAE Dirham 345.64 | $94.10 |
We are leading silicone gasket manufacturer in india. If you are looking for Custom Silicone Seals supplier in Mumbai contact us. Compare Price of Small Silicone O Rings With other manufacturers in India
HS Code | 40169340 | Silicone gaskets |
High temperature | 400° F to 450° F |
Low temperature | -65° F to -100° F |
Hardness: Shore A | 10-90 |
Tensile Strength PSI | 200-1500 |
Low Temperature | -120°C |
High Temperature | 300°C |
Silicone | 20 years |
Advantages
Disadvantages

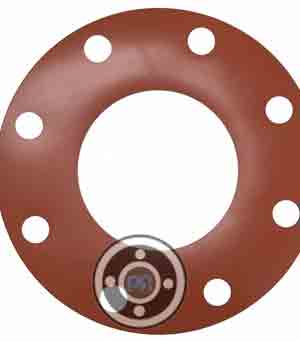

Silicone Flange

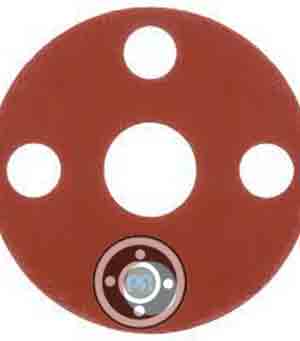

Silicon Flange

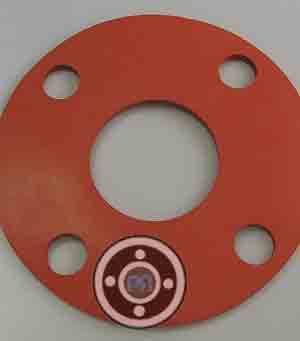

Silicone Flange Gasket

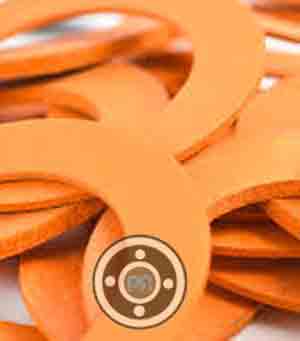

High Temp Rubber Gasket

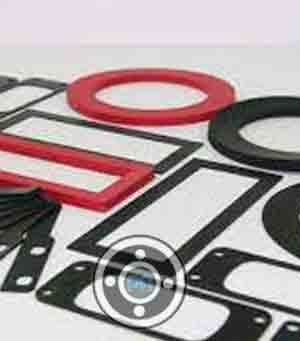

Silicone Rubber Gasket Material

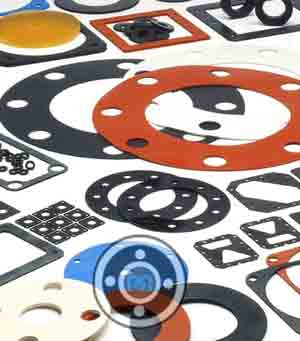

Custom Silicone Gaskets

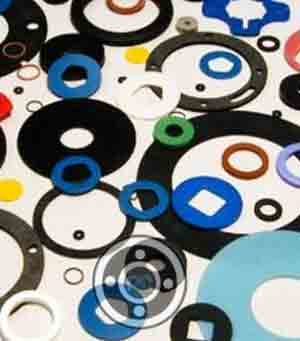

Silicone Seals and Gaskets
Silicone Gasket Ring

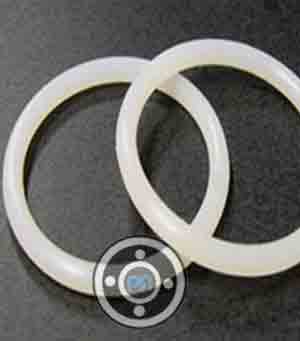

Silicone O Ring

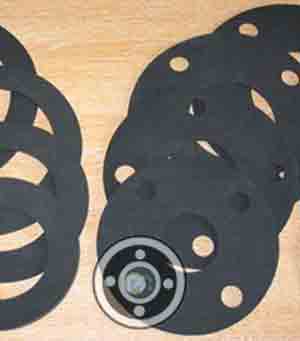

Silicone O Ring Gasket

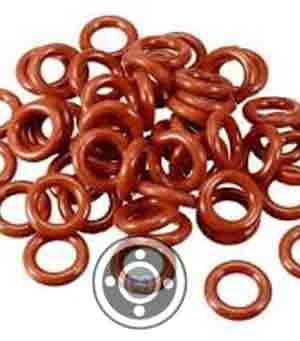

VMQ O-Rings

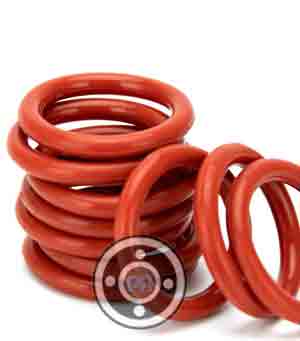

VMQ Silicone O-rings
Small Silicone O Rings

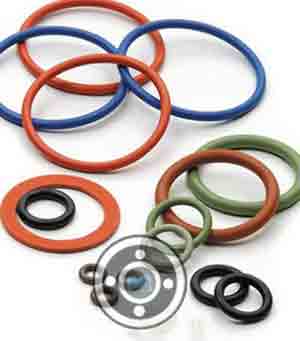

Metric Silicone O Rings

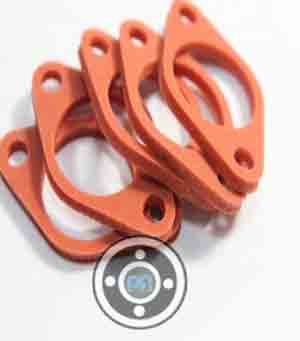

Custom Silicone Seals

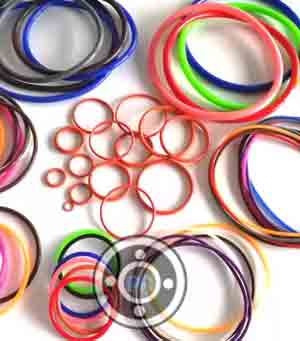

Silicone O Ring Set

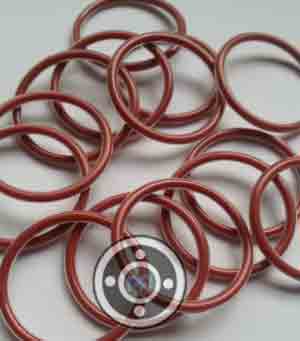

Silicone O Ring Seals
High Temperature Silicone Rubber Gasket
Features
Limitations
Properties | Test Method | Typical Values (AG-3320) | Typical Values (AG-3315) |
---|---|---|---|
THICKNESS | ASTM D751 | .033" - .250" | .033" - .032" |
DUROMETER (SHORE A) | ASTM D2240 | 70 | 70 |
WIDTH | ASTM D751 | 36" | 36" |
TEMPERATURE RANGE | Fahrenheit (°F) Celsius (°C) |
-103°F to 500°F -75°C to 260°C |
-103°F to 500°F -75°C to 260°C |
TENSILE STRENGTH | ASTM D412 | 1300 psi | 1100 psi |
COMPRESSION SET | ASTM D395 | 35% Max | 35% Max |
BREAKING STRENGTH (WARP/FILL) | ASTM D751 | 400 x 350 psi | 250 x 200 psi |
DIAPHRAGM BURST STRENGTH | ASTM D751 | 750 psi | 400 psi |
FINISH | Visual | Smooth | Smooth |
FIBERGLASS WEIGHT | ASTM D751 | 12.5 oz./yd² | 6 oz./yd² |
Physical Property | Test Method | Unit of Measure | Typical Properties |
---|---|---|---|
DUROMETER | ASTM D 2240 | SHORE A | 30 +/- 5 |
TENSILE STRENGTH | ASTM D 412 | psi | 1000 |
SPECIFIC GRAVITY | ASTM D 297 | G/CC | 1.12 |
TEAR | ASTM D 624 | ppi (Die B) |
140 |
ELONGATION | ASTM D 412 | % | 500 |
LOW TEMPERATURE | N/A | °F °C |
-94°F -70°C |
HIGH TEMPERATURE | N/A | °F °C |
450°F 232°C |
COLOR | N/A | N/A | ORANGE/RED |
Buy Directly from Silicone O Ring manufacturers in India at best price. We have exported Si Rubber Gasket Material in More than 30 countries.
Properties
Properties | Test Method | Typical Values |
---|---|---|
THICKNESS | ASTM D751 | .010" - .500" |
DUROMETER (SHORE A) | ASTM D2240 | 65 +/- 5 |
WIDTH | ASTM D751 | 36", 48" - 56" |
TEMPERATURE RANGE |
Fahrenheit (°F) Celsius (°C) |
-65°F to 450°F (500° Intermittent) -53°C to 232°C (260°C Intermittent) |
TENSILE STRENGTH | ASTM D412 | 800 psi |
ELONGATION | ASTM D412 | 250% |
TEAR STRENGTH (ppi Die “B”) | ASTM D624 | 125 |
SPECIFIC GRAVITY | ASTM D297 | 1.20 g/cc |
FINISH | Visual | Smooth |
Dimensions
Durometer | Color | Thickness | Width |
---|---|---|---|
65 Durometer | Black | .032" Thick | 36" Wide Electrically-Conductive Si |
65 Durometer | Black | .062" Thick | 36" Wide Electrically-Conductive Si |
