What is Super Duplex Pipe Fittings?
The Super Duplex material is an austenitic-ferritic alloy that consists of elements such as nickel, chromium, iron, with an addition of molybdenum. They are primarily known for their resistance to different types of corrosion, including general corrosion, intergranular corrosion, pitting, stress corrosion cracking at moderate temperatures, etc. They have these features much better than the standard austenitic stainless steel. They also possess high tensile strength and hence are capable of undertaking high pressure.
Due to all the unique features, the Super Duplex Pipe Fittings are widely used in various onshore and offshore applications. They can be found in the oil and gas industry. The Super Duplex Pipe Fittings can effectively resist stress related corrosion cracking in both sulfide and chloride environments. They are prone to embrittlement, which can be rectified using the annealing treatment. Thermal treatment on the Super Duplex Pipe Fittings do not affect its features, like hardness. They retain their toughness within a temperature range of -50 degrees C to 300 degrees C, beyond that the Super Duplex material starts reducing its toughness.
The Super Duplex Pipe Fittings are often classified as the pressure or welded fittings, which means they can be welded to the pipe or joined to the connection using the National Pipe Thread.
Duplex UNS S32760 Socket Weld Fittings Vs Super Duplex 2507 Threaded Fittings
The Duplex UNS S32760 Socket Weld Fittings come with a recessed area where the pipe can be inserted. They help in maintaining a strong piping connection and hence are less prone to leakage compared to the threaded fittings of the given material grade. They are only used on pipes whose nominal diameter is less or equal to NPS 2. They are more costly than the threaded connections.
Super Duplex 2507 Threaded Fittings are mainly used in case welding is not possible. It is one of the oldest methods of connecting pipes, and is used for less critical applications. Here the male thread is attached to the female thread to establish the piping connection. They are easy to install, and are ideal for piping connections that need frequent dismantling. The threaded fittings are more affordable than the socket weld fittings.
SAF 2507 Short Radius Elbow Vs Super Duplex S32750 Tee
A SAF 2507 Short Radius Elbow helps in changing the direction of flow in the run pipe, either by 45 degrees or 90 degrees. For this, the radius of curvature is the same as that of the outer tube diameter (R=D). These are mainly used when there is a space constraint or a limit in the position of installation.
The Super Duplex S32750 Tee is a T-shaped pipe fitting that primarily helps to combine or divide the flow in the pipe run. It is also sometimes used to change the flow direction or control the flow rate. It has two outlets located at 90 degrees to the main connection line, and is one of the most widely used pipe fitting of the given grade.
Super Duplex 2507 Welded Fittings Vs DIN 1.4410 Seamless Fittings
The Super Duplex 2507 Welded Fittings come with a seam that helps in joining the pipe. It comes with a seam line on the surface. For DIN 1.4410 Seamless Fittings, there is no seam line which is the main difference between the construction of both the pipes. Also, the seamless fittings have more pressure bearing capacity compared to the welded variant. Hence, the DIN 1.4410 Seamless Fittings are preferred more for high-pressure applications. The seam of the welded fittings might make them vulnerable to failures. Another difference between the two types of fittings would be in their price. While the Super Duplex 2507 Welded Fittings are manufactured from metal plates and their production is fast, they are priced very economically. On the other hand, the DIN 1.4410 Seamless Fittings are made from billets, and the manufacturing process is time-consuming and labor intensive. This is why they are highly priced compared to the welded fittings.
Super Duplex Pipe Fittings
Table of Content
Super Duplex Pipe Fittings Specifications | ASTM A815 |
---|---|
Super Duplex 2507 Pipe Fittings Sizes | Duplex Uns S32760 Seamless Fittings: 1/2" - 10" ASME B16 9 SAF 2507 Welded Fittings: 1/2" - 48" |
Super Duplex Stainless Steel Pipe Fittings Dimensions | ASME B16.28, ASME/ANSI B16.9, BS4504, MSS-SP-43, BS1560, BS4504, BS10 |
Super Duplex Pipe Fittings Thickness | SCH30, SCH10, SCH 160, SCH20, SCH60, XS, STD SCH40, SCH 80, SCH 120, SCH 140, SCH 100, XXS available with NACE MR 01-75 |
Super Duplex 2507 Pipe Fittings Type Manufacturer | DN15-DN1200 |
Super Duplex 2507 Fittings Connection | Welding |
Bending Radius Provided By Super Duplex Pipe Fittings Manufacturers | R=1D, 3D, 2D, 5D, 8D, 6D, 10D or Custom |
Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Super Duplex Pipe Fittings |
Super Duplex Elbow Manufacturer | Angle : 22.5 deg, 45 deg, 30deg, 90 deg, 1.0D, 180 deg, 1.5D, 3D, 2.5D, 2.0D, 4D, 6D, 5D, 7D-40D . Standard: ASME B16.28, GB, ASME B16.9, MSS SP-75 JISB2311 DIN2605 JISB2312 JISB2313, ASME B16.25, BS, ISO |
Super Duplex 2507 Fittings Manufacturing process | Push, Forge, Press, Cast, etc. |
ASME B16.9 Super Duplex S32750 Buttweld Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Super Duplex Pipe Fittings Origin & Mills | European, Japanese, USA, Korean, Ukraine, Indian, Russian |
Specialized manufacturer of | DIN 1.4410 Stub End, 90º Elbows, Tees, Pipe Cap, Crosses, 45º Elbows, Reducers, Pipe Bend |
Application of Industrial Alloy 2507 Fittings |
|
Super Duplex 2507 Threaded Fittings Thread Provided By Manufacturer | BSPT, NPT, BSPP |
Super Duplex S32760 Forged Fitting Pressure Rating | Threaded end - 3000lb/ 2000lb/ 6000lbs Socket weld end- 6000/ 3000/ 9000lbs |
Dimension Specification | MSS SP-79, 95, 83, 97, BS 3799, ASME 16.11 |
ASME B16.11 Super Duplex Products Manufacturer | Half Coupling, Union, Tee, Cross, Coupling, Cap, Outlet, Welding Outlet, Boss, Insert |
Leading Super Duplex S32760 Forged Fitting stockholders, dealers, wholesalers, importer, stockists, distributor, supplier, exporters and Manufacturer in Mumbai.
Normal Size Of Pipe (inches) |
Pipe Sch | OD
(inch) |
Wall Thick. (inch) |
Temperature (oF) | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 | 750 | ||||
Allowable Stress (psi) | ||||||||||||
16700 | 16700 | 16700 | 15500 | 14400 | 13500 | 13200 | 12900 | 12600 | ||||
1" | 40 | 1.315 | 0.133 | 2205 | 2205 | 2205 | 2047 | 1902 | 1783 | 1743 | 1703 | 1664 |
80 | 1.315 | 0.179 | 3061 | 3061 | 3061 | 2841 | 2640 | 2475 | 2420 | 2365 | 2310 | |
160 | 1.315 | 0.250 | 4493 | 4493 | 4493 | 4170 | 3874 | 3632 | 3552 | 3471 | 3390 | |
1 1/2" | 40 | 1.900 | 0.145 | 1629 | 1629 | 1629 | 1512 | 1404 | 1317 | 1287 | 1258 | 1229 |
80 | 1.900 | 0.200 | 2303 | 2303 | 2303 | 2138 | 1986 | 1862 | 1821 | 1779 | 1738 | |
160 | 1.900 | 0.281 | 3362 | 3362 | 3362 | 3120 | 2899 | 2717 | 2657 | 2597 | 2536 | |
2" | 40 | 2.375 | 0.154 | 1371 | 1371 | 1371 | 1272 | 1182 | 1108 | 1083 | 1059 | 1034 |
80 | 2.375 | 0.218 | 1985 | 1985 | 1985 | 1843 | 1712 | 1605 | 1569 | 1534 | 1498 | |
160 | 2.375 | 0.344 | 3283 | 3283 | 3283 | 3047 | 2831 | 2654 | 2595 | 2536 | 2477 | |
3" | 40 | 3.500 | 0.216 | 1301 | 1301 | 1301 | 1208 | 1122 | 1052 | 1028 | 1005 | 982 |
80 | 3.500 | 0.300 | 1844 | 1844 | 1844 | 1712 | 1590 | 1491 | 1458 | 1425 | 1391 | |
160 | 3.500 | 0.438 | 2787 | 2787 | 2787 | 2587 | 2403 | 2253 | 2203 | 2153 | 2103 | |
4" | 40 | 4.500 | 0.237 | 1102 | 1102 | 1102 | 1023 | 950 | 891 | 871 | 851 | 831 |
80 | 4.500 | 0.337 | 1596 | 1596 | 1596 | 1482 | 1377 | 1291 | 1262 | 1233 | 1204 | |
160 | 4.500 | 0.531 | 2611 | 2611 | 2611 | 2424 | 2552 | 2111 | 2064 | 2017 | 1970 | |
5" | 40 | 5.563 | 0.258 | 965 | 965 | 965 | 896 | 832 | 780 | 763 | 746 | 728 |
80 | 5.563 | 0.375 | 1428 | 1428 | 1428 | 1325 | 1231 | 1154 | 1129 | 1103 | 1077 | |
160 | 5.563 | 0.625 | 2474 | 2474 | 2474 | 2296 | 2133 | 2000 | 1955 | 1911 | 1866 | |
6" | 40 | 6.625 | 0.280 | 877 | 877 | 877 | 814 | 756 | 709 | 693 | 677 | 661 |
80 | 6.625 | 0.432 | 1379 | 1379 | 1379 | 1280 | 1189 | 1115 | 1090 | 1065 | 1040 | |
160 | 6.625 | 0.719 | 2382 | 2382 | 2382 | 2211 | 2054 | 1925 | 1883 | 1840 | 1797 | |
8" | 40 | 8.625 | 0.322 | 771 | 771 | 771 | 716 | 665 | 623 | 610 | 596 | 582 |
80 | 8.625 | 0.500 | 1218 | 1218 | 1218 | 1131 | 1050 | 985 | 963 | 941 | 919 | |
160 | 8.625 | 0.906 | 2298 | 2298 | 2298 | 2133 | 1982 | 1858 | 1817 | 1775 | 1734 | |
10" | 40 | 10.750 | 0.365 | 699 | 699 | 699 | 649 | 603 | 565 | 553 | 540 | 528 |
80 | 10.750 | 0.594 | 1159 | 1159 | 1159 | 1075 | 999 | 937 | 916 | 895 | 874 | |
160 | 10.750 | 1.125 | 2289 | 2289 | 2289 | 2124 | 1974 | 1850 | 1809 | 1768 | 1727 |
UNS S32760 Forged Elbow
ASME B16.11 Super Duplex Forged Equal Tee
Super Duplex Steel Reducing Coupling
Super Duplex S32760 Socket Weld Elbow
DIN 1.4410 Socket Weld Coupling
Sdss 25cr SW Union
Super Duplex UNS S32760 Threaded Coupling
Alloy 2507 Threaded Tee
Super Duplex Steel Threaded Elbow
Super Duplex Pipe Fittings Price Per Piece in India | Price Applicable for jan 2022 to june 2022 | Price Applicable for July 2022 to December 2022 |
SUPER DUPLEX SS SEAMLESS PIPE FITTING 90 ELBOW LR ( GRADE :S32750 ) (SIZE : 1.25 ) Per Piece | US $3.58 | US $5.58 |
ELBOW 90 DEG SUPER DUPLEX (ELBOW 90 LR DN 25 SCH 40S S32750 Per Piece | US $62.34 | US $64.34 |
SUPER DUPLEX SS CON REDUCER ( GRADE :S32750 ) (SIZE : 2.5 X 1.5 ) Per Piece | US $8.49 | US $10.49 |
SUPER DUPLEX SS SEAMLESS EQUAL TEE Per Piece | US $4.20 | US $6.20 |
Check our price with other Super Duplex Pipe Fittings Manufacturers in India Before Purchasing. This is an approximate Price of Super Duplex Elbow in India. Feel free to contact us latest Stocklist of Super Duplex S32750 Buttweld Fittings in Mumbai.
NPS | O.D. D |
90° 3D Center to End A |
45° 3D Center to End B |
45° Long Rad Center to End B |
90° Long Rad Center to End A |
18 | 457 | 1372 | 568 | 286 | 686 |
20 | 508 | 1524 | 632 | 318 | 762 |
22 | 559 | 1676 | 694 | 343 | 838 |
24 | 610 | 1829 | 757 | 381 | 914 |
26 | 660 | 1981 | 821 | 406 | 991 |
28 | 711 | 2134 | 883 | 438 | 1067 |
30 | 762 | 2286 | 946 | 470 | 1143 |
32 | 813 | 2438 | 1010 | 502 | 1219 |
34 | 864 | 2591 | 1073 | 533 | 1295 |
36 | 914 | 2743 | 1135 | 565 | 1372 |
38 | 965 | 2896 | 1200 | 600 | 1448 |
40 | 1016 | 3048 | 1264 | 632 | 1524 |
42 | 1067 | 3200 | 1326 | 660 | 1600 |
44 | 1118 | 3353 | 1389 | 695 | 1676 |
46 | 1168 | 3505 | 1453 | 727 | 1753 |
48 | 1219 | 3658 | 1516 | 759 | 1829 |
NPS | KG | LBS |
1/2 | 0.11 | 0.25 |
3/4 | 0.11 | 0.25 |
1 | 0.23 | 0.5 |
1¼ | 0.41 | 0.9 |
1½ | 0.52 | 1.15 |
2 | 1 | 2.2 |
2½ | 1.81 | 4 |
3 | 2.95 | 6.5 |
3½ | 3.79 | 8.35 |
4 | 6.12 | 13.5 |
5 | 9.98 | 22 |
6 | 15.88 | 35 |
8 | 32.21 | 71 |
10 | 48.53 | 107 |
12 | 72.57 | 160 |
14 | 92.99 | 205 |
16 | 125.19 | 276 |
18 | 154.22 | 340 |
20 | 190.51 | 420 |
22 | 235.87 | 520 |
24 | 272.16 | 600 |
26 | 330.67 | 729 |
30 | 442.25 | 975 |
36 | 640.47 | 1412 |
Nominal Pipe Size | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
---|---|---|---|---|---|---|---|---|
(inches) | Long Radius | Short Radius | Long Radius | Long Radius | ||||
(mm) | (inches) | Center to Face (inches) |
Center to Face (inches) |
Center to Face (inches) |
Radius (inches) |
Center to Center (inches) |
Back to face (inches) |
|
1/2 | 21.3 | 0.840 | 1 1/2 | - | 5/8 | 2 | 1 7/8 | |
3/4 | 26.7 | 1.050 | 1 1/8 | - | 7/16 | 2 1/4 | 1 11/16 | |
1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Nominal Pipe Size |
Outside Diameter |
Reducers | ||
---|---|---|---|---|
Reduced from (inches) |
(inches) | (mm) | Concentric & Eccentric Length (inches) |
Reduced to (inches) |
1/2 | 0.840 | 21.3 | 1 1/2 | 1/4 |
1 1/2 | 3/8 | |||
3/4 | 1.050 | 26.7 | 2 | 3/8 |
2 | 1/2 | |||
1 | 1.315 | 33.4 | 2 | 3/8 |
2 | 1/2 | |||
2 | 3/4 | |||
1 1/4 | 1.660 | 42.2 | 2 | 1/2 |
2 | 3/4 | |||
2 | 1 | |||
1 1/2 | 1.900 | 48.3 | 2 1/2 | 1/2 |
2 1/2 | 3/4 | |||
2 1/2 | 1 | |||
2 1/2 | 1 1/4 | |||
2 | 2.375 | 60.3 | 3 | 3/4 |
3 | 1 | |||
3 | 1 1/4 | |||
3 | 1 1/2 | |||
2 1/2 | 2.875 | 73.0 | 3 1/2 | 1 |
3 1/2 | 1 1/4 | |||
3 1/2 | 1 1/2 | |||
3 1/2 | 2 | |||
3 | 3.500 | 88.9 | 3 1/2 | 1 |
3 1/2 | 1 1/2 | |||
3 1/2 | 2 | |||
3 1/2 | 2 1/2 | |||
3 1/2 | 4.000 | 101.6 | 4 | 1 1/4 |
4 | 1 1/2 | |||
4 | 2 | |||
4 | 2 1/2 | |||
4 | 3 | |||
4 | 4.500 | 114.3 | 4 | 1 1/2 |
4 | 2 | |||
4 | 2 1/2 | |||
4 | 3 | |||
4 | 3 1/2 | |||
5 | 5.563 | 141.3 | 5 | 2 |
5 | 2 1/2 | |||
5 | 3 | |||
5 | 3 1/2 | |||
5 | 4 | |||
6 | 6.625 | 168.3 | 5 1/2 | 2 1/2 |
5 1/2 | 3 | |||
5 1/2 | 3 1/2 | |||
5 1/2 | 4 | |||
5 1/2 | 5 | |||
8 | 8.625 | 219.1 | 6 | 3 |
6 | 3 1/2 | |||
6 | 4 | |||
6 | 5 | |||
6 | 6 | |||
10 | 10.750 | 273.1 | 7 | 4 |
7 | 5 | |||
7 | 6 | |||
7 | 8 | |||
12 | 12.750 | 323.9 | 8 | 5 |
8 | 6 | |||
8 | 8 | |||
8 | 10 |
NOMINAL PIPE SIZE | END TO END | OUTSIDE DIAMETER | |
---|---|---|---|
Inch | H | D | P |
3/4 x 1/2 | 38 | 26.7 | 21.3 |
3/4 x 3/8 | 38 | 26.7 | 17.1 |
1 x 3/4 | 51 | 33.4 | 26.7 |
1 x 1/2 | 51 | 33.4 | 21.3 |
1 1/4 x 1 | 51 | 42.2 | 33.4 |
1 1/4 x 3/4 | 51 | 42.2 | 26.7 |
1 1/4 x 1/2 | 51 | 42.2 | 21.3 |
1 1/2 x 1 1/2 | 64 | 48.3 | 42.2 |
1 1/2 x 1 | 64 | 48.3 | 33.4 |
1 1/2 x 3/4 | 64 | 48.3 | 26.7 |
1 1/2 x 1/2 | 64 | 48.3 | 21.3 |
2 x 1 1/2 | 76 | 60.3 | 48.2 |
2 x 1 1/4 | 76 | 60.3 | 42.2 |
2 x 1 | 76 | 60.3 | 33.4 |
2 x 3/4 | 76 | 60.3 | 26.7 |
2 1/2 x 2 | 89 | 73 | 60.3 |
2 1/2 x 1 1/2 | 89 | 73 | 48.3 |
2 1/2 x 1 1/4 | 89 | 73 | 42.2 |
2 1/2 x 1 | 89 | 73 | 33.4 |
3 x 2 1/2 | 89 | 88.9 | 73 |
3 x 2 | 89 | 88.9 | 60.3 |
3 x 1 1/2 | 89 | 88.9 | 48.3 |
3 x 1 1/4 | 89 | 88.9 | 42.2 |
3 1/2 x 3 | 102 | 101.6 | 88.9 |
3 1/2 x 21/2 | 102 | 101.6 | 73 |
3 1/2 x 2 | 102 | 101.6 | 60.3 |
3 1/2 x 1 1/2 | 102 | 101.6 | 48.3 |
3 1/2 x 1 1/4 | 102 | 101.6 | 42.2 |
4 x 3 1/2 | 102 | 114.3 | 101.6 |
4 x 3 | 102 | 114.3 | 88.9 |
4 x 2 1/2 | 102 | 114.3 | 73 |
4 x 2 | 102 | 114.3 | 60.3 |
4 x 1 1/2 | 102 | 114.3 | 48.3 |
5 x 4 | 127 | 141.3 | 114.3 |
5 x 3 1/2 | 127 | 141.3 | 101.6 |
5 x 3 | 127 | 141.3 | 88.9 |
5 x 2 1/2 | 127 | 141.3 | 73 |
5 x 2 | 127 | 141.3 | 60.3 |
6 x 5 | 140 | 168.3 | 141.3 |
6 x 4 | 140 | 168.3 | 114.3 |
6 x 3 1/2 | 140 | 168.3 | 101.6 |
6 x 3 | 140 | 168.3 | 88.9 |
6 x 2 1/2 | 140 | 168.3 | 73 |
8 x 6 | 152 | 219.1 | 168.3 |
8 x 5 | 152 | 219.1 | 141.3 |
8 x 4 | 152 | 219.1 | 114.3 |
8 x 3 1/2 | 152 | 219.1 | 101.6 |
10 x 8 | 178 | 273.1 | 219.1 |
10 x 6 | 178 | 273.1 | 168.1 |
10 x 5 | 178 | 273.1 | 141.3 |
10 x 4 | 178 | 273.1 | 114.3 |
12 x 10 | 203 | 323.9 | 273.1 |
12 x 8 | 203 | 323.9 | 219.1 |
12 x 6 | 203 | 323.9 | 168.3 |
12 x 5 | 203 | 323.9 | 141.3 |
14 x 12 | 330 | 355.6 | 323.9 |
14 x 10 | 330 | 355.6 | 273.1 |
14 x 8 | 330 | 355.6 | 219.1 |
14 x 6 | 330 | 355.6 | 168.3 |
16 x 14 | 356 | 406.4 | 355.6 |
16 x 12 | 356 | 406.4 | 323.9 |
16 x 10 | 356 | 406.4 | 273.1 |
16 x 8 | 356 | 406.4 | 219.1 |
16 x 6 | 356 | 406.4 | 168.3 |
18 x 16 | 381 | 457 | 406.4 |
18 x 14 | 381 | 457 | 355.6 |
18 x 12 | 381 | 457 | 323.9 |
18 x 10 | 381 | 457 | 273.1 |
18 x 8 | 381 | 457 | 219.1 |
20 x 18 | 508 | 508 | 457 |
20 x 16 | 508 | 508 | 406.4 |
20 x 14 | 508 | 508 | 355.6 |
20 x 12 | 508 | 508 | 323.9 |
20 x 10 | 508 | 508 | 273.1 |
20 x 8 | 508 | 508 | 219.1 |
22 x 20 | 508 | 559 | 508 |
22 x 18 | 508 | 559 | 457 |
22 x 16 | 508 | 559 | 406.4 |
22 x 14 | 508 | 559 | 355.6 |
22 x 12 | 508 | 559 | 323.9 |
24 x 10 | 508 | 559 | 273.1 |
24 x 22 | 508 | 610 | 559 |
24 x 20 | 508 | 610 | 508 |
24 x 18 | 508 | 610 | 457 |
24 x 16 | 508 | 610 | 406.4 |
24 x 14 | 508 | 610 | 355.6 |
24 x 12 | 508 | 610 | 323.9 |
24 x 10 | 508 | 610 | 273.1 |
NOMINAL PIPE SIZE | LENGTH | CENTER TO END | OUTSIDE DIAMETER |
---|---|---|---|
Inch. | M | C | OD |
1/2 | 25 | 25 | 21.3 |
3/4 | 29 | 29 | 26.7 |
1 | 38 | 38 | 33.4 |
1 1/4 | 48 | 48 | 42.2 |
1 1/2 | 57 | 57 | 48.3 |
2 | 64 | 64 | 60.3 |
2 1/2 | 76 | 76 | 73 |
3 | 86 | 86 | 88.9 |
3 1/2 | 95 | 95 | 101.6 |
4 | 105 | 105 | 114.3 |
5 | 124 | 124 | 141.3 |
6 | 143 | 143 | 168.3 |
8 | 178 | 178 | 219.1 |
10 | 216 | 216 | 273.1 |
12 | 254 | 254 | 323.9 |
14 | 279 | 279 | 355.6 |
16 | 305 | 305 | 406.4 |
18 | 343 | 343 | 457.2 |
20 | 381 | 381 | 508 |
22 | 419 | 419 | 559 |
24 | 432 | 432 | 610 |
26 | 495 | 495 | 660 |
28 | 521 | 521 | 711 |
30 | 559 | 559 | 762 |
32 | 597 | 597 | 813 |
34 | 635 | 635 | 864 |
36 | 673 | 673 | 914 |
38 | 711 | 711 | 965 |
40 | 749 | 749 | 1016 |
42 | 711 | 762 | 1067 |
44 | 762 | 813 | 1118 |
46 | 800 | 851 | 1168 |
48 | 838 | 889 | 1219 |
NPS | KG | LBS |
1/2 | 0.16 | 0.35 |
3/4 | 0.2 | 0.45 |
1 | 0.34 | 0.75 |
1¼ | 0.59 | 1.3 |
1½ | 0.91 | 2 |
2 | 1.59 | 3.5 |
2½ | 2.72 | 6 |
3 | 3.18 | 7 |
3½ | 4.08 | 9 |
4 | 5.44 | 12 |
5 | 9.53 | 21 |
6 | 15.42 | 34 |
8 | 24.95 | 55 |
10 | 38.56 | 85 |
12 | 54.43 | 120 |
14 | 74.84 | 165 |
16 | 88.45 | 195 |
18 | 112.94 | 249 |
20 | 155.13 | 342 |
22 | 187.79 | 414 |
24 | 239.5 | 528 |
26 | 349.27 | 770 |
30 | 480.81 | 1060 |
36 | 675.85 | 1490 |
S32750 / S32760 | C | N | P | Si | Mn | Mo | Ni | Cr | S | Other |
0.030 | 0.24/0.32 | 0.035 | 0.80 | 1.20 | 3.0/5.0 | 6.00/8.00 | 24.0/26.0 | 0.020 | Cu:0.50 |
S32750 / S32760 | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
7.8 g/cm3 | 1350 °C (2460 °F) | Psi - 80000 , MPa - 550 | Psi - 116000 , MPa - 800 | 15 % |
STANDARD | UNS | WERKSTOFF NR. |
Super Duplex S32750 | S32750 | 1.4410 |
Super Duplex S32760 | S32760 | 1.4410 |
Super Duplex Stainless Steel 90° Long Radius Elbow
15 NB SCH 100 Super Duplex 2507 90° Short Radius Elbow
Super Duplex S32760 45° Long Radius Elbow
Super Duplex Uns S32750 45° Short Radius Elbow
SCH XS Super Duplex Steel 180° Long Radius Elbow
Super Duplex Alloy 2507 180° Short Radius Elbow
ASTM A815 UNS S32205 1D Elbow
Sdss 2507 1.5D Elbow
SCH 80 Sdss 25cr 3D Elbow
Super Duplex S32750 5D Elbow
SCH 160 Super Duplex UNS S32750 10D ELBOW
Super Duplex SS S32750 Seamless Buttwelding 45° and 90° Elbows
SCH XXS Super Duplex UNS S32760 Welded Elbows
Super Duplex 2507 Uns S32760 Seamless Buttwelding 180° Returns
SCH 10 Duplex Uns S32760 Straight Tees and Crosses
Alloy 2507 Reducing Outlet Tees and Reducing Outlet Crosses
Alloy 2507 Super Duplex Equal Tee
450 NB SCH 40 SAF 2507 Reducing Tee
Stainless Steel Type 2507 Equal Cross
SCH 60 UNS S32750 Reducing Cross
UNS S32760 Reducers
DIN 1.4410 Concentric Reducer
SCH 20 1.4410 Stainless Steel Eccentric Reducer
ASME B16.9 Super Duplex Stub End
SCH STD ASME SA815 Duplex Steel 1.4462 Lap Joint Stub Ends
ASME B16.11 Super Duplex Long Stubend
ASTM A182 2507 Alloy Steel Short Stubend
SCH 30 Super Duplex S32760 Pipe Cap
Super Duplex Uns S32750 End Cap
Super Duplex Steel Collar
Super Duplex Alloy 2507 Swage Nipple
ASTM A815 UNS S32205 Pipe Nipples
SCH 140 Sdss 2507 Barrel Nipple

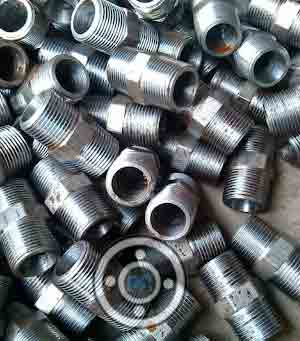

Sdss 25cr Reducing Nipple
SCH 120 Alloy 2507 Bend
Alloy 2507 Super Duplex Long Radius Bend
6" Nb Sch30 45° Super Duplex 2507 Long Radius Elbow
8" Nb Sch80 90° Super Duplex S32760 Short Radius Elbow
1-1/4" Nb Sch120 90° Super Duplex Steel Long Radius Elbow
3" X 2" Nb Sch60 Sdss 2507 Eccentric Reducer
1-1/2" X 3/4" Nb Sch40 Super Duplex UNS S32750 Concentric Reducer
2" X 1" Nb Sch20 Duplex Uns S32760 Eccentric Reducer
8" Nb Sch20 Alloy 2507 Equal Tee
4" Nb Sch10 2507 Alloy Steel Equal Tee
1-1/2" X 1-1/4" Nb Sch100 Stainless Steel Type 2507 Reducing Tee
