254 SMO Pipe Fittings

ASTM A403 UNS S31254 Elbow, Tee and 6mo Fittings manufacturer in India

What is 254 SMO Pipe Fittings?
The 254 SMO material can be described as autenistic steel with high alloy, and they are particularly used for marine and applications in aggressive chloride bearing media. The 254 SMO Pipe Fittings are known for their excellent resistance to crevice corrosion and pitting. They possess higher strength compared to the conventional austenitic stainless steel. The 254 SMO Pipe Fittings also have good resistance to general corrosion and stress related corrosion cracking. They have high weldability. Depending on the joint welding, the products are manufactured with different product standards.
Due to all these properties, the 254 SMO Pipe Fittings are used in different types of applications including the equipment that can handle sea water, hydraulic tubing, pulp bleaching plant equipment, gas cleaning systems, etc.
The 254 SMO Pipe Fittings have a very low carbon content, which means there is a very little risk of carbide precipitation during the welding procedure. This means that the fittings are resistant to intergranular corrosion. They possess excellent formability but low machinability. The 254 SMO Pipe Fittings have high impact strength at cryogenic and room temperatures

What is F44 Buttweld Elbow?
The F44 Buttweld Elbow is designed to be welded at its ends on site to join with the piping system. It helps to change the direction of flow at 45 degrees or 90 degrees angle. They have good mechanical strength and high ductility. They are capable of resisting corrosion in a wide range of environments. The given material grade is a fully austenitic alloy that has excellent resistance to various aqueous and aggressive environments. They are also resistant to pitting, crevice corrosion and have higher strength compared to the conventional austenitic steel.

Alloy 254 Forged Fittings Vs SMO 254 Buttweld Fittings
The Alloy 254 Forged Fittings are used for pipes that have a diameter between 2 to 4 inches, whereas the SMO 254 Buttweld Fittings are used for pipes having larger diameters. Also, the forged fittings are manufactured using solid blocks of steel. They are then machined to give the desired shape. Whereas, for buttweld fittings, they are manufactured by bending, shaping, and cutting seamless or welded pipes of steel.

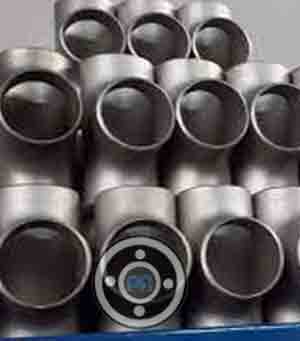

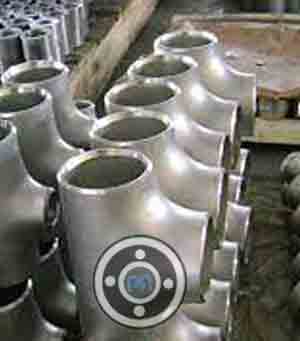

ASTM A403 UNS S31254 Equal Tee Vs DIN 1.4547 Pipe Bend
The ASTM A403 UNS S31254 Equal Tee is a T-shaped pipe fittings used for primarily combining or dividing the flow. They can also sometimes help to change the direction of the pipe run, or control the flow inside the pipe. The equal tee has all the port sizes and also the size of the main connection lines, the same.

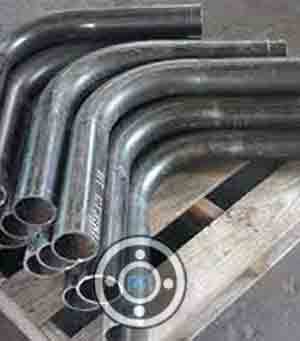

The DIN 1.4547 Pipe Bend is made from small pipes. They help in controlling the pressure of the flow and are customized to be available at any degrees, according to specific requirements.

254 SMO Pipe Fittings

254 SMO Fittings manufacturers in Mumbai offers widest range of ASTM A403 UNS S31254 Buttweld Fittings and 6mo Tube Fittings in India

Table of Content

• 254 SMO Pipe Fittings Spec Chart
• A403 Gr F44 Elbow Weight Chart
• Dimensions Table of Alloy 254 Elbow
• Weight of SMO 254 Reducer
• Dimensions of 254 SMO Reducer
• Size Chart of A403 F44 UNS S31254 Reducer
• ASME B16.9 SMO Alloy 254 Tee Dimensions Table
• Weight Chart of A403 F44 6mo Tee
• Price list of 254 SMO Pipe Fittings
• SMO 254 Forged Fittings
• Alloy 254 SMO Socket Weld Fittings
• A182 F44 Threaded Fittings

• 254 SMO Alloy Fittings Chemical Composition
• UNS S31254 Weld Fittings Mechanical Properties
• Alloy 254 Pipe Fittings Equivalent Grade
• Different Types of 254 SMO Pipe Fittings
• Thermal conductivity of 254 SMO Stainless Steel Fittings
• SMO 254 Elbow Specific heat capacity
• Recommended filler metals For Alloy 254 SMO Pipe Fittings
• ASTM A403 F44 Buttweld Fittings Applications
• ASTM A182 F44 Forged Fittings Heat Treatment
• SMO 254 F44 Reducer Value Added Services

254 SMO Pipe Fittings Spec Chart

254 SMO Pipe Fittings Specifications	ASTM A403
Size Range	½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Alloy 254 Pipe Fittings
254 SMO Pipe Fittings Type Manufacturer	DN15-DN1200
A403 F44 UNS S31254 Fittings Connection	Welding
A403 F44 6mo Fittings Thickness	SCH30, SCH10, SCH 160, SCH20, SCH60, XS, STD SCH40, SCH 80, SCH 120, SCH 140, SCH 100, XXS available with NACE MR 01-75
Alloy 254 Pipe Fitting Sizes	A403 F44 Uns S31254 Seamless Fitting: 1/2" - 10" ASME B16 9 A403 SMO 254 Welded Fitting: 1/2" - 48"
Bending Radius Provided By Manufacturer	R=1D, 3D, 2D, 5D, 8D, 6D, 10D or Custom Alloy 254 SMO Pipe Fitting
254 SMO Pipe Fittings Dimensions	ASME B16.28, ASME/ANSI B16.9, BS4504, MSS-SP-43, BS1560, BS4504, BS10
Alloy 254 Elbows Manufacturer	Angle : 22.5 deg, 45 deg, 30deg, 90 deg, 1.0D, 180 deg, 1.5D, 3D, 2.5D, 2.0D, 4D, 6D, 5D, 7D-40D . Standard: ASME B16.28, GB, ASME B16.9, MSS SP-75 JISB2311 DIN2605 JISB2312 JISB2313, ASME B16.25, BS, ISO
ASME B16.9 ASTM A403 F44 Buttweld Fitting Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
ASTM A182 F44 Forged Fittings Manufacturing process	Push, Forge, Press, Cast, etc.
Specialized manufacturer of	SMO 254 Stub End, 90º Elbows, Tees, Pipe Cap, Crosses, 45º Elbows, Reducers, Pipe Bend
A182 F44 Threaded Fittings Thread Provided By Manufacturer	BSPT, NPT, BSPP
UNS S31254 Weld Fitting Origin & Mills	European, Japanese, USA, Korean, Ukraine, Indian, Russian
SMO 254 Forged Fittings Pressure Rating	Threaded end - 3000lb/ 2000lb/ 6000lbs Socket weld end- 6000/ 3000/ 9000lbs
Alloy 254 SMO Socket Weld Fitting Products Manufacturer	Half Coupling, Union, Tee, Cross, Coupling, Cap, Outlet, Welding Outlet, Boss, Insert
Dimension Specification	MSS SP-79, 95, 83, 97, BS 3799, ASME 16.11
Application of Industrial 254 SMO Alloy Fitting	Fittings To Connect Tubes and Pipe in Gas, Petroleum, Metallurgy, Chemical, Power, Construction, Shipbuilding etc

254 SMO Pipe Fittings Distributors, stockists, suppliers, importers, stocks, wholesalers, dealers, exporters and manufacturers in Mumbai.

A403 Gr F44 Elbow Weight Chart

NPS	KG	LBS
1/2	0.11	0.25
3/4	0.11	0.25
1	0.23	0.5
1¼	0.41	0.9
1½	0.52	1.15
2	1	2.2
2½	1.81	4
3	2.95	6.5
3½	3.79	8.35
4	6.12	13.5
5	9.98	22
6	15.88	35
8	32.21	71
10	48.53	107
12	72.57	160
14	92.99	205
16	125.19	276
18	154.22	340
20	190.51	420
22	235.87	520
24	272.16	600
26	330.67	729
30	442.25	975
36	640.47	1412

Dimensions Table of Alloy 254 Elbow

Nominal Pipe Size	Outside Diameter		180° Returns		90° Elbows		45° Elbows
(inches)			Long Radius		Long Radius	Short Radius	Long Radius
	(mm)	(inches)	Center to Center (inches)	Back to face (inches)	Center to Face (inches)	Center to Face (inches)	Center to Face (inches)	Radius (inches)
1/2	21.3	0.840	2	1 7/8	1 1/2	-	5/8
3/4	26.7	1.050	2 1/4	1 11/16	1 1/8	-	7/16
1	33.4	1.315	3	2 3/16	1 1/2	1	7/8
1 1/4	42.2	1.660	3 3/4	2 3/4	1 7/8	1 1/4	1
1 1/2	48.3	1.900	4 1/2	3 1/4	2 1/4	1 1/2	1 1/8	3
2	60.3	2.375	6	4 3/16	3	2	1 3/8	4
2 1/2	73.0	2.875	7 1/2	5 3/16	3 3/4	2 1/2	1 3/4	5
3	88.9	3.500	9	6 1/4	4 1/2	3	2	6
3 1/2	101.6	4.000	10 1/2	7 1/4	5 1/4	3 1/2	2 1/4	7
4	114.3	4.500	12	8 1/4	6	4	2 1/2	8
5	141.3	5.563	15	10 5/16	7 1/2	5	3 1/8	10
6	168.3	6.625	18	12 5/16	9	6	3 3/4	12
8	219.1	8.625	24	16 5/16	12	8	5	12
10	273.1	10.750	30	20 3/8	15	10	6 1/4	15
12	323.9	12.750	36	24 3/8	18	12	7 1/2	18

EN 10253 Butt Welding SMO 254 Eccentric / Concentric Reducer and 1.4547 Stainless Steel Threaded Pipe Fittings supplier in India

Weight of SMO 254 Reducer

Nominal Size		SCH20	STD	SCH40S	SCH80S	SCH120	SCH160
DN	NPS
15	1/2		0.08	0.08	0.1
20	3/4		0.17	0.17	0.2
25	1		0.21	0.21	0.25		0.22
32	1 1/4		0.29	0.29	0.35
40	1 1/2		0.42	0.42	0.58		0.6
50	2		0.8	0.8	1.03		1.04
65	2 1/2		1.05	1.05	1.42		1.65
80	3		1.36	1.36	1.9
90	3 1/2		1.63	1.63	2.27		2.4
100	4		2.77	2.77	3.93		4.4
125	5		3.96	3.96	6		7.14
150	6		6.31	6.31	9.26		10.8
200	8	7.85	10.7	10.7	17.5	15	18.4
250	10	11.2	15.8	16.3	25.1	25.1	32.5
300	12	25.6	28.8	32.1	56.5	41.7	53.3
350	14	30.5	38.5	48.8	79	84.5	106
400	16	35.2	44.5	64.3	102	112	143
450	18	62.7	62.7	98.5	165
500	20	72.6	72.6		181
550	22	97	79.1	142	226
600	24	130	100

Dimensions of 254 SMO Reducer

Nominal Pipe Size	Outside Diameter		Reducers
Reduced from (inches)	(inches)	(mm)	Concentric & Eccentric Length (inches)	Reduced to (inches)
1/2	0.840	21.3	1 1/2	1/4
			1 1/2	3/8
3/4	1.050	26.7	2	3/8
			2	1/2
1	1.315	33.4	2	3/8
			2	1/2
			2	3/4
1 1/4	1.660	42.2	2	1/2
			2	3/4
			2	1
1 1/2	1.900	48.3	2 1/2	1/2
			2 1/2	3/4
			2 1/2	1
			2 1/2	1 1/4
2	2.375	60.3	3	3/4
			3	1
			3	1 1/4
			3	1 1/2
2 1/2	2.875	73.0	3 1/2	1
			3 1/2	1 1/4
			3 1/2	1 1/2
			3 1/2	2
3	3.500	88.9	3 1/2	1
			3 1/2	1 1/2
			3 1/2	2
			3 1/2	2 1/2
3 1/2	4.000	101.6	4	1 1/4
			4	1 1/2
			4	2
			4	2 1/2
			4	3
4	4.500	114.3	4	1 1/2
			4	2
			4	2 1/2
			4	3
			4	3 1/2
5	5.563	141.3	5	2
			5	2 1/2
			5	3
			5	3 1/2
			5	4
6	6.625	168.3	5 1/2	2 1/2
			5 1/2	3
			5 1/2	3 1/2
			5 1/2	4
			5 1/2	5
8	8.625	219.1	6	3
			6	3 1/2
			6	4
			6	5
			6	6
10	10.750	273.1	7	4
			7	5
			7	6
			7	8
12	12.750	323.9	8	5
			8	6
			8	8
			8	10

Size Chart of A403 F44 UNS S31254 Reducer

NOMINAL PIPE SIZE	END TO END	OUTSIDE DIAMETER
Inch	H	D	P
3/4 x 1/2	38	26.7	21.3
3/4 x 3/8	38	26.7	17.1
1 x 3/4	51	33.4	26.7
1 x 1/2	51	33.4	21.3
1 1/4 x 1	51	42.2	33.4
1 1/4 x 3/4	51	42.2	26.7
1 1/4 x 1/2	51	42.2	21.3
1 1/2 x 1 1/2	64	48.3	42.2
1 1/2 x 1	64	48.3	33.4
1 1/2 x 3/4	64	48.3	26.7
1 1/2 x 1/2	64	48.3	21.3
2 x 1 1/2	76	60.3	48.2
2 x 1 1/4	76	60.3	42.2
2 x 1	76	60.3	33.4
2 x 3/4	76	60.3	26.7
2 1/2 x 2	89	73	60.3
2 1/2 x 1 1/2	89	73	48.3
2 1/2 x 1 1/4	89	73	42.2
2 1/2 x 1	89	73	33.4
3 x 2 1/2	89	88.9	73
3 x 2	89	88.9	60.3
3 x 1 1/2	89	88.9	48.3
3 x 1 1/4	89	88.9	42.2
3 1/2 x 3	102	101.6	88.9
3 1/2 x 21/2	102	101.6	73
3 1/2 x 2	102	101.6	60.3
3 1/2 x 1 1/2	102	101.6	48.3
3 1/2 x 1 1/4	102	101.6	42.2
4 x 3 1/2	102	114.3	101.6
4 x 3	102	114.3	88.9
4 x 2 1/2	102	114.3	73
4 x 2	102	114.3	60.3
4 x 1 1/2	102	114.3	48.3
5 x 4	127	141.3	114.3
5 x 3 1/2	127	141.3	101.6
5 x 3	127	141.3	88.9
5 x 2 1/2	127	141.3	73
5 x 2	127	141.3	60.3
6 x 5	140	168.3	141.3
6 x 4	140	168.3	114.3
6 x 3 1/2	140	168.3	101.6
6 x 3	140	168.3	88.9
6 x 2 1/2	140	168.3	73
8 x 6	152	219.1	168.3
8 x 5	152	219.1	141.3
8 x 4	152	219.1	114.3
8 x 3 1/2	152	219.1	101.6
10 x 8	178	273.1	219.1
10 x 6	178	273.1	168.1
10 x 5	178	273.1	141.3
10 x 4	178	273.1	114.3
12 x 10	203	323.9	273.1
12 x 8	203	323.9	219.1
12 x 6	203	323.9	168.3
12 x 5	203	323.9	141.3
14 x 12	330	355.6	323.9
14 x 10	330	355.6	273.1
14 x 8	330	355.6	219.1
14 x 6	330	355.6	168.3
16 x 14	356	406.4	355.6
16 x 12	356	406.4	323.9
16 x 10	356	406.4	273.1
16 x 8	356	406.4	219.1
16 x 6	356	406.4	168.3
18 x 16	381	457	406.4
18 x 14	381	457	355.6
18 x 12	381	457	323.9
18 x 10	381	457	273.1
18 x 8	381	457	219.1
20 x 18	508	508	457
20 x 16	508	508	406.4
20 x 14	508	508	355.6
20 x 12	508	508	323.9
20 x 10	508	508	273.1
20 x 8	508	508	219.1
22 x 20	508	559	508
22 x 18	508	559	457
22 x 16	508	559	406.4
22 x 14	508	559	355.6
22 x 12	508	559	323.9
24 x 10	508	559	273.1
24 x 22	508	610	559
24 x 20	508	610	508
24 x 18	508	610	457
24 x 16	508	610	406.4
24 x 14	508	610	355.6
24 x 12	508	610	323.9
24 x 10	508	610	273.1

Manufacturer of UNS S31254 Super Duplex compression fittings and 254 SMO Pipe Cap offers Radiography and Eddy Current Testing

ASME B16.9 SMO Alloy 254 Tee Dimensions Table

NOMINAL PIPE SIZE	LENGTH	CENTER TO END	OUTSIDE DIAMETER
Inch.	M	C	OD
1/2	25	25	21.3
3/4	29	29	26.7
1	38	38	33.4
1 1/4	48	48	42.2
1 1/2	57	57	48.3
2	64	64	60.3
2 1/2	76	76	73
3	86	86	88.9
3 1/2	95	95	101.6
4	105	105	114.3
5	124	124	141.3
6	143	143	168.3
8	178	178	219.1
10	216	216	273.1
12	254	254	323.9
14	279	279	355.6
16	305	305	406.4
18	343	343	457.2
20	381	381	508
22	419	419	559
24	432	432	610
26	495	495	660
28	521	521	711
30	559	559	762
32	597	597	813
34	635	635	864
36	673	673	914
38	711	711	965
40	749	749	1016
42	711	762	1067
44	762	813	1118
46	800	851	1168
48	838	889	1219

Weight Chart of A403 F44 6mo Tee

NPS	KG	LBS
1/2	0.16	0.35
3/4	0.2	0.45
1	0.34	0.75
1¼	0.59	1.3
1½	0.91	2
2	1.59	3.5
2½	2.72	6
3	3.18	7
3½	4.08	9
4	5.44	12
5	9.53	21
6	15.42	34
8	24.95	55
10	38.56	85
12	54.43	120
14	74.84	165
16	88.45	195
18	112.94	249
20	155.13	342
22	187.79	414
24	239.5	528
26	349.27	770
30	480.81	1060
36	675.85	1490

Price list of 254 SMO Pipe Fittings

254 SMO Pipe Fittings Price Per Piece in India	SMO 254 Fitting Price in INR	UNS S31254 Weld Fitting Price in UAE Dirham	Alloy 254 Buttweld Fittings Price in USD
SMO 254 Elbow 90 Degree LR DN 80 SCH 20 Seamless BW Per Piece	4431.69	UAE Dirham 218.84	$59.58
ANSI B16.9 Alloy 254 Seamles Equal Tee SCH20 3/4" Per Kg	37.19	UAE Dirham 1.84	$0.50

Before purchasing, compare our pricing to that of other Alloy 254 Fittings manufacturers in India. This is an estimate of the cost of A403 F44 UNS S31254 Reducer. Please contact us for the most up-to-date stocklist of ASME B16.9 Alloy 254 SMO Pipe Fitting in Mumbai.

SMO 254 Forged Fittings

A182 SMO 254 Forged Elbow

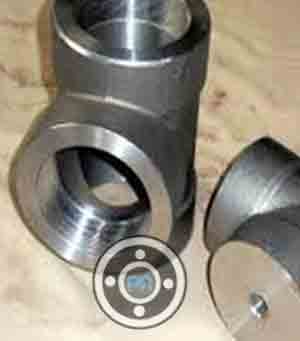

En 1.4547 Forged Equal Tee

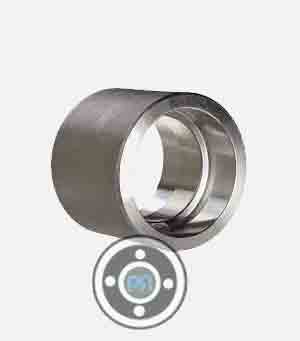

Alloy 254 Forged Coupling

Alloy 254 SMO Socket Weld Fittings

A182 F44 Uns S31254 Socket Weld Elbow

254 SMO Alloy Socket Weld Coupling

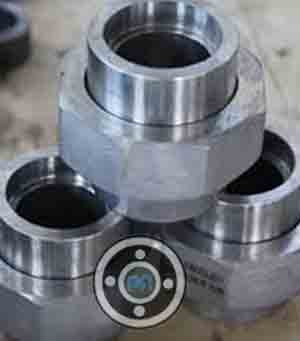

254 SMO Stainless Steel SW Union

A182 F44 Threaded Fittings

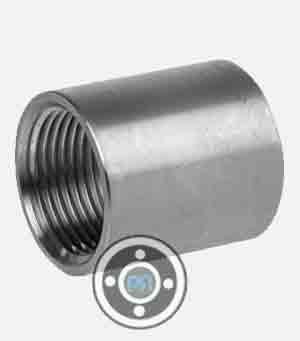

Alloy 254 SMO Threaded Coupling

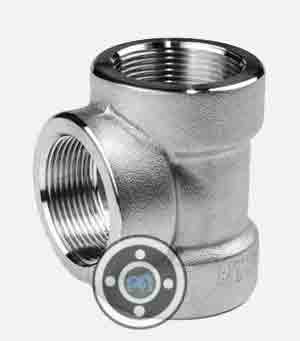

UNS S31254 Threaded Tee

ASTM A182 Grade F44 Threaded Elbow

Manufacturer of ASME B16.9 SCH10 Alloy 254 SMO Short Radius 90 Degree Elbow and 6mo UNS S31254 LR Elbow in Welded & Seamless

254 SMO Alloy Fittings Chemical Composition

Grade	%	Ni	Cr	Mo	Cu	N	C	Mn	Si	P	S
SMO 254	Min.	17.5	19.5	6	0.5	0.18
	Max.	18.5	20.5	6.5	1	0.22	0.02	1	0.8	0.03	0.01

UNS S31254 Weld Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
SMO 254	8.0 g/cm3	1320-1390 ℃	650	300	35 %

Alloy 254 Pipe Fittings Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS	AFNOR	SIS	GOST	BS	OR	EN
SMO 254	1.4547	S31254	Z1 CNDU 20.18.06Az	2378	-	-	-	X1CrNiMoCuN20-18-7

Different Types of 254 SMO Pipe Fittings

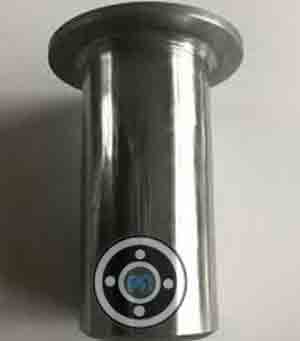

254 SMO Stainless Steel Long Stubend

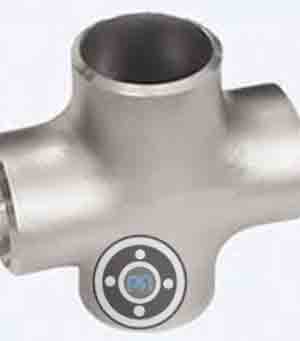

SCH XS Alloy 254 SMO Reducing Cross

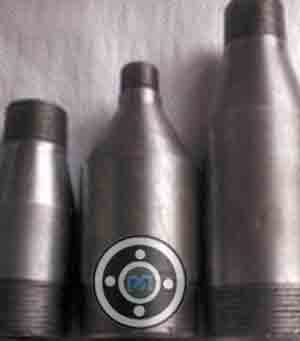

Alloy 254 Swage Nipple

SCH 80 UNS S31254 3D Elbow

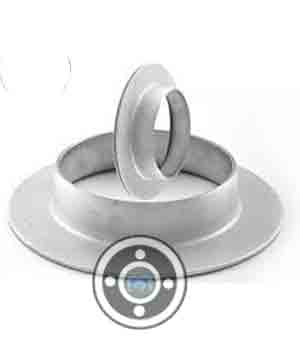

ASTM A403 F44 Collar

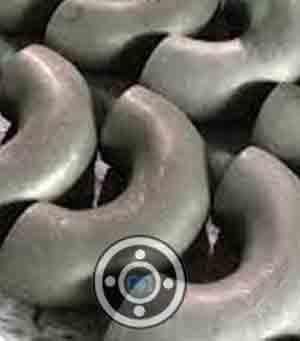

SCH 120 ASTM A403 F44 Stainless Steel Seamless Buttwelding 180° Returns

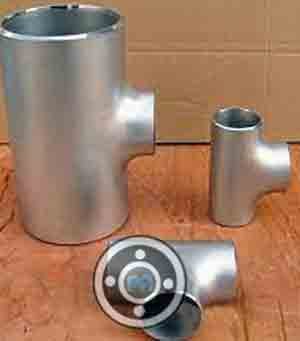

Alloy 254 Straight Tees and Crosses

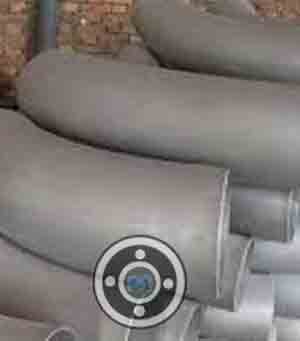

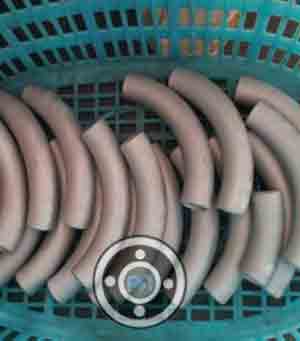

450 NB SCH 40 ASTM A403 Grade F44 10D ELBOW

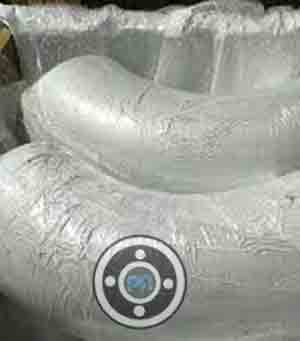

S31254 Stainless Steel 45° Short Radius Elbow

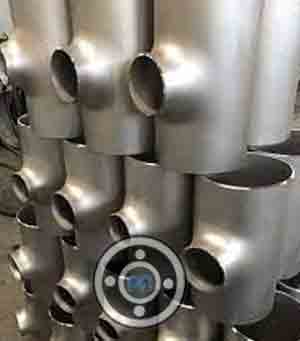

SCH 160 A403 F44 6mo Reducing Outlet Tees and Reducing Outlet Crosses

UNS S31254 Reducing Tee

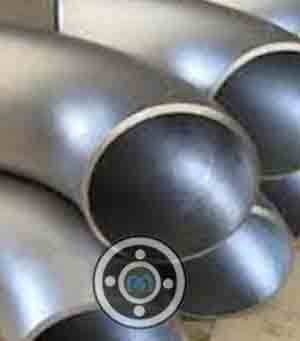

SCH 20 SMO 254 1.5D Elbow

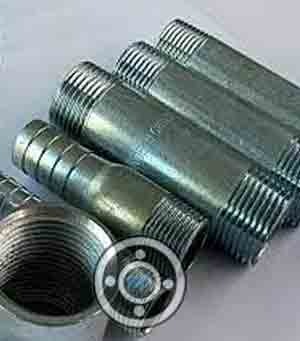

A403 SMO 254 Pipe Nipples

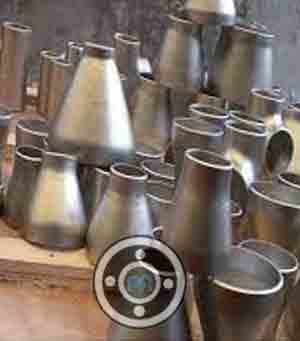

ASTM A403 Grade F44 Eccentric Reducer

SCH 10 1.4547 Stainless Steel Equal Cross

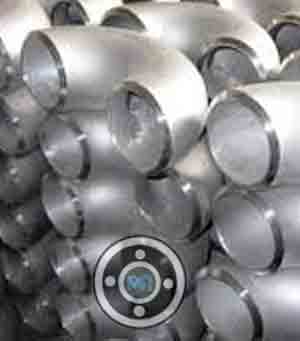

ASTM A403 F44 180° Short Radius Elbow

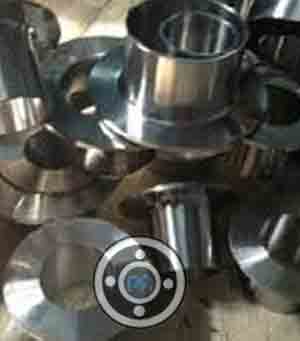

A403 F44 Lap Joint Stub Ends

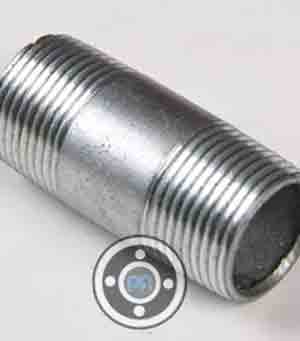

S31254 Stainless Steel Reducing Nipple

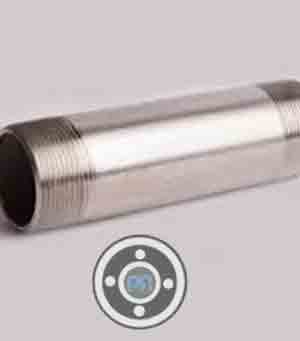

SCH 30 SMO 254 Barrel Nipple

254 SMO Long Radius Bend

A403 Gr F44 Pipe Cap

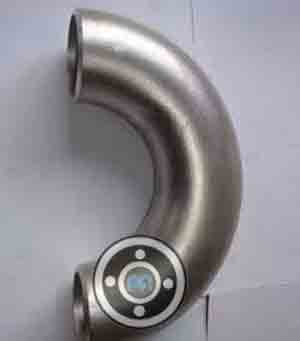

A403 Grade F44 180° Long Radius Elbow

15 NB SCH 100 A403 SMO 254 Seamless Buttwelding 45° and 90° Elbows

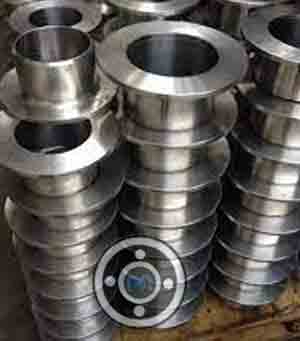

A403 F44 Short Stubend

A403 F44 Uns S31254 90° Short Radius Elbow

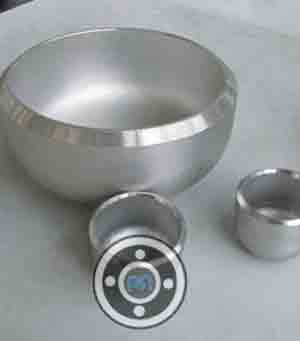

A403 F44 Uns S31254 End Cap

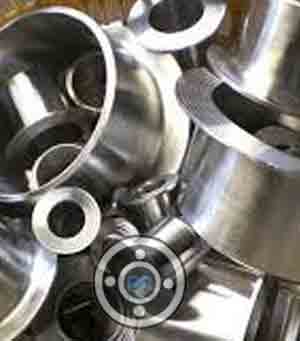

En 1.4547 Stub End

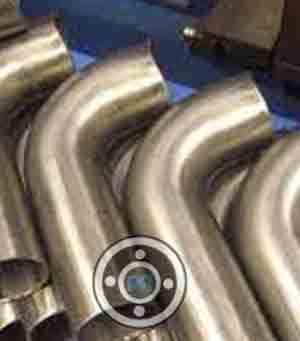

SCH 140 A403 Grade F44 Bend

1.4547 Stainless Steel 5D Elbow

SCH 60 En 1.4547 Equal Tee

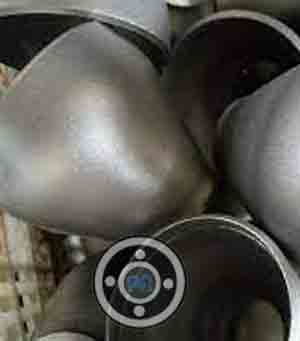

ASTM A403 F44 Stainless Steel Concentric Reducer

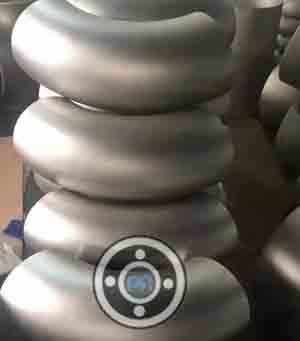

SCH XXS A403 Gr F44 1D Elbow

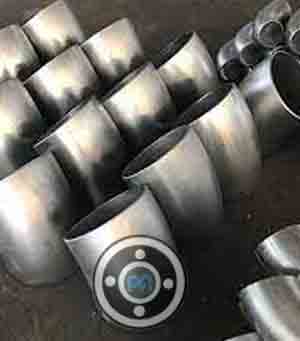

254 SMO 45° Long Radius Elbow

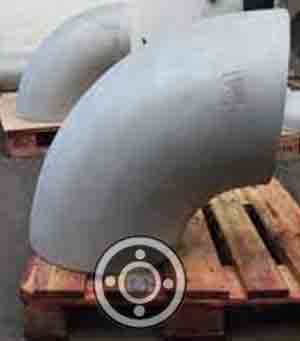

Alloy 254 SMO 90° Long Radius Elbow

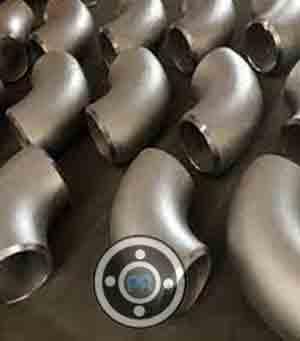

SCH STD 254 SMO Stainless Steel Welded Elbows

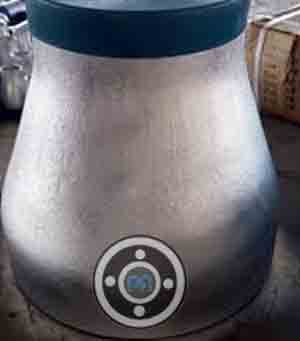

A403 F44 6mo Reducers

Thermal conductivity of 254 SMO Stainless Steel Fittings

Temperature, o C	W/m o C	Temperature, o F	Btu/ft h o F
20	10	68	6
100	12	200	7
200	14	400	8
300	16	600	9.5
400	18	800	10.5
500	20	1000	11.5
600	21	1200	12.5
700	23	1300	13

SMO 254 Elbow Specific heat capacity

Temperature, °C	J/kg °C	Temperature, °F	Btu/ft h °F
20	485	68	0.12
100	510	200	0.12
200	535	400	0.13
300	565	600	0.14
400	585	800	0.14
500	600	1000	0.14
600	615	1200	0.15
700	625	1400	0.15

Recommended filler metals For Alloy 254 SMO Pipe Fittings

• ISO 18274 S Ni 6625/AWS A5.14 ERNiCrMo-3
• ISO 18274 S Ni 6059/AWS A5.14 ERNiCrMo-13
• MMA/SMAW welding
• ISO 14172 E Ni 6059/AWS A5.11 ENiCrMo-13
• ISO 14172 E Ni 6625/AWS A5.11 ENiCrMo-3

ASTM A403 F44 Buttweld Fittings Applications

• Paper & Pulp
• Fossil Fuel Power Plants
• Oil And Gas Industry
• Power Plants
• Refineries
• Marine Applications
• Nuclear Power
• Ship Building

ASTM A182 F44 Forged Fittings Heat Treatment

Heat Treatment

1150–1200°C (2100–2190°F)

SMO 254 F44 Reducer Value Added Services

• Macro Test
• Flattening Test
• Dye Penetrant Test (DP Test)
• Eddy Current Testing
• Flaring Test
• Radiography Test
• Micro Test
• Intergranular Corrosion (IGC) Test
• Hardness Test
• Ultra Sonic Test (UT)
• Pitting Resistance Test
