ASTM A105 Forged Fittings manufacturer in India
- Home /
- ASTM A105 Fittings
3000lbs NPT SA 105 Socket Weld Elbow and Carbon Steel A105 Coupling supplier in Mumbai
The ASTM A105 Forged Fittings is made up of an alloy that has different types of materials, like manganese, silicon, carbon, phosphorus, nickel, copper, silicon, chromium, vanadium, and molybdenum. Due to the chemical combination of these forged fittings, it possesses properties like corrosion resistance and high strength. It also comes with a high wear and tear, and a hardness of 187 HBW. The ASTM A105 Forged Fittings are intended to be used in industrial applications with heavy usage. The forged steel helps in making the fitting stronger, which enables them to be used in environments like pressure systems that involve high temperature applications. The ASTM A105 Forged Fittings can be used in pipes that transfer any of the three types of materials- solid, liquid, and gas. They come in various sizes and are made according to the dimensions of the pipe to be fitted properly. They are used for a wide range of services which includes combining, diverting or reducing the flow. The function basically depends on the type of the fittings put to use.
Common types of ASTM A105 Forged Fittings would include:
- The ASTM A105 socket weld fittings offer good structural strength and hence they are used in applications where leakages cannot occur.
- The ASTM A105 threaded fittings are generally used for manufacturing forged piping components.
- The ASTM A105 elbows are available in 45 degrees and 90 degrees and they help to change the flow direction.
- The ASTM A105 tee fittings are commonly used for combining or splitting the flow of fluids.
- The ASTM A105 reducer fitting helps to reduce the size of the pipe to a smaller diameter.
Thus, each type of fitting comes with different applications and they are used in various industries according to specific requirements.
A105 Steel Socket Weld Tee Vs ASME SA 105 Threaded Tee
The ASME A105 standard basically covers the forget fittings made of the seamless carbon steel. These fittings are great for high-pressure environments having high or ambient temperatures. The A105 Steel Socket Weld Tee and the ASME SA 105 Threaded Tee are of the same standards and hence are used in similar environments. They also perform the same task which is connecting different pipes to the main pipeline. It comes with two parallel side ends that run perpendicularly from the middle section of the fittings.However, the only difference between them is in their welding method. The A105 Steel Socket Weld Tee are connected to the pipes through fillet welds whereas the ASME SA 105 Threaded Tee are basically screwed into the pipe. The socket weld tees are also high in strength and they offer more durable connection compared to the threaded connections. They are more reliable than the threaded ones. However, it is to be noted that threaded tees take less time to install when compared to the welded ones.
ASTM A105 Forged Fittings manufacturer in India
Manufacturer of High Pressure ASTM A105 Pipe Fittings and A105n Steel Socket Weld Fittings in Class 2000, 3000 and 6000
ASTM A105 Material Properties
The ASTM A105 is a standard material of seamless carbon steel and it is a specification for the forged fittings. They are mostly used for high pressure services in high or ambient temperature settings. Carbon steel is an alloy of different materials and hence they have varied properties. The mechanical properties of the material is listed below:
Tensile strength (psi) min |
70,000 psi |
Yield strength (psi) min |
36,000 psi |
Elongation in 2” (%) min |
22% |
Reduction of area (%) min |
30% |
Brinell Hardness (BHN) max |
187 |
CS ASTM A105 Socket Weld Elbow Vs ASTM A105 Steel Threaded Elbow
The ASME A105 standard basically covers the forget fittings made of the seamless carbon steel. These fittings are great for high-pressure environments having high or ambient temperatures. The CS ASTM A105 Socket Weld Elbow and the ASTM A105 Steel Threaded Elbow are of the same standards and hence are used in similar environments. They also perform the same task which is changing the flow direction or angle of the pipe run. Generally, they are available in two types of turns and they are 45 degrees and 90 degrees.However, the only difference between them is in their welding method. The CS ASTM A105 Socket Weld Elbow is connected to the pipes through fillet welds whereas the ASTM A105 Steel Threaded Elbow is basically screwed into the pipe. The socket weld fittings are also high in strength and they last longer for the connection process compared to the threaded connections. The socket welds are also more reliable than the threaded ones, and hence these are preferred by more industrials that involve serious applications. The threaded fittings are more commonly used in domestic pipelines and casual industrial usages, like the cooling water line of an office. However, it is to be noted that threaded tees take less time to install when compared to the welded ones.
A105 Forged Fittings Vs A105n Forged Fittings
The A105 Forged Fittings and the A105n Forged Fittings are not entirely the same. They might have the same raw materials and steel grades, but their requirement for heat treatment is quite different. The N in A105N stands for the normalization heat treatment, whereas no heat treatment is required for the A105 fittings. In other words, it can be said that the A105N is a type of A105 fittings. The A105N comes with better mechanical properties compared to the A105 fittings, they have higher strength and offer better performance in services that involve low temperatures. They both have similar chemical composition, but as the A105N material offers better mechanical properties hence it is used for more critical situations.
Table of Content
- ASTM A105 Fittings Material Specification
- Weight Chart of SA105 Forged Steel Fittings
- ASME SA105 Threaded Tee Dimensions
- Dimension Table of A105 Galvanized Coupling
- CS A105 Socket Weld Elbow Dimensions
- Price List of ASTM A105 Fittings
- ASTM A105 Fittings Dimensions
- ASTM A105 Fitting Pressure Rating
- ASTM A105 Chemical Composition
- ASME SA105 Mechanical Properties
- Thermal Properties of ASME SA105 SW Elbow
- ASTM A105 Density
- Various ASTM A105 Fittings Types
- Standards and Forms of A105 Weld Fittings
- A105 Socket Weld Fittings Sizes and Schedule
- ASME B16.11 CS A105 Threaded Tee Temperature Range
- Allowable Stress of CS A105 Threaded Fittings
- Tolerance Chart of Carbon Steel A105 Fittings
- Industrial Applications of ASTM A105 Pipe Fittings
- ASME Grade A105 Tee Size Chart
- CS ASTM A105 Fittings Testing
ASTM A105 Fittings Material Specification
| Dimension Specification | ASTM A105 |
|---|---|
| End | Threaded, Welding, JIC |
| Pressure Rating | Threaded end-2000lb/ 3000lb/ 6000lbs Socket-weld end-3000/ 6000/ 9000lbs |
| Markings |
|
| Connection | Welding |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Threads | NPT, BSPT, BSPP Provided By Manufacturer |
| Type | DN15-DN1200 |
| Test Certificates Provided By Manufacturer | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized Manufacturer of | 45º Elbows, 90º Elbows, Tees, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Crosses, Couplings, Reducers, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows – Female-Female, Male-Female, Male-Male, Union, Nipples, Couplings, Plugs Fittings |
Biggest ASTM A105 Fittings stockists, supplier, wholesalers, dealers, stockholders, distributor, importer, exporters and Manufacturer in Mumbai
Weight Chart of SA105 Forged Steel Fittings
| Normal Sizes Of Pipe | Type B | Type A | QTY | Weight |
|---|---|---|---|---|
| ¼ | 0.88 | 0.81 | 160 | 0.20 |
| ⁄ | 1.00 | 0.97 | 130 | 0.26 |
| ½ | 1.31 | 1.12 | 100 | 0.57 |
| ¾ | 1.5 | 1.31 | 75 | 0.71 |
| 1 | 1.81 | 1.5 | 40 | 1.08 |
| 1 ¼ | 2.19 | 1.75 | 25 | 1.68 |
| 1 ½ | 2.44 | 2.00 | 18 | 2.38 |
| 2 | 2.97 | 2.38 | 10 | 3.55 |
| 2 ½ | 3.62 | 3.00 | 4 | 6.22 |
| 3 | 4.31 | 3.38 | 2 | 10.36 |
| 4 | 5.75 | 4.19 | 1 | 23.91 |
ASME SA105 Threaded Tee Dimensions
| NPS | Min Length of Thread | Outside Dia of Band D |
Center to End A |
Min WT |
|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 33 | 28 | 3.18 |
| 3/4 | 12.7 | 13.9 | 38 | 33 | 3.18 |
| 1 | 14.7 | 17.3 | 46 | 38 | 3.68 |
| 1.1/4 | 17 | 18 | 56 | 44 | 3.89 |
| 1.1/2 | 17.8 | 18.4 | 62 | 51 | 4.01 |
| 2 | 19 | 19.2 | 75 | 60 | 4.27 |
| 2.1/2 | 23.6 | 28.9 | 92 | 76 | 5.61 |
| 3 | 25.9 | 30.5 | 109 | 86 | 5.99 |
| 4 | 27.7 | 33 | 146 | 106 | 6.55 |
ANSI / ASME B16.11 A105 Carbon Steel Threaded Pipe Fittings, Threadolet, Straight Coupling and ASTM A105 Fittings manufacturer in India
Dimension Table of A105 Galvanized Coupling
| Normal Pipe Sizes (NPS) | End to End | (O.D.) Outside Diameter |
Minimum Length of Thread |
|
| A | D | B | J | |
| 1/2 | 48 | 28 | 10.9 | 13.6 |
| 3/4 | 51 | 35 | 12.7 | 13.9 |
| 1 | 60 | 44 | 14.7 | 17.3 |
| 1.1/4 | 67 | 57 | 17 | 18 |
| 1.1/2 | 79 | 64 | 17.8 | 18.4 |
| 2 | 86 | 76 | 19 | 19.2 |
| 2.1/2 | 92 | 92 | 23.6 | 28.9 |
| 3 | 108 | 108 | 25.9 | 30.5 |
| 4 | 121 | 140 | 27.7 | 33 |
CS A105 Socket Weld Elbow Dimensions
| NPS | Socket Bore |
Depth Socket |
Bore DIA |
Socket WT |
Body WT |
| B | J | D | C | G | |
| 1/2 | 21.95 21.70 |
10 | 16.6 15 |
4.65 4.10 |
3.75 |
| 3/4 | 27.30 27.05 |
13 | 21.7 20.2 |
4.90 4.25 |
3.90 |
| 1 | 34.05 33.80 |
13 | 27.4 25.9 |
5.70 5.00 |
4.55 |
| 1.1/4 | 42.80 42.55 |
13 | 35.8 34.3 |
6.05 5.30 |
4.85 |
| 1.1/2 | 48.90 48.65 |
13 | 41.7 40.1 |
6.35 5.55 |
5.10 |
| 2 | 61.35 61.10 |
16 | 53.5 51.7 |
6.95 6.05 |
5.55 |
| 2.1/2 | 74.20 73.80 |
16 | 64.2 61.2 |
8.75 7.65 |
7.00 |
| 3 | 90.15 89.80 |
16 | 79.5 46.4 |
9.50 8.30 |
7.60 |
| 4 | 115.80 115.45 |
19 | 103.8 100.7 |
10.70 9.35 |
8.55 |
Price List of ASTM A105 Fittings
| ASTM A105 Pipe Fittings Price Per Piece in India | ASME SA105 Fittings Price in INR | Carbon Steel A105 Buttweld Fittings Price in UAE Dirham | SA105 Forged Fittings Price in USD |
| ASTM A105 Mss Sp-97 Weldolet Forged Fitting Per Piece | 270.00 | UAE Dirham 13.22 | $3.6 |
| Socket Welded Tee Carbon Steel ASTM A105 Per Piece | 315 | UAE Dirham 15.43 | $4.2 |
| Carbon Steel ASTM A105 3000# Union Fittings Per Piece | 180 | UAE Dirham 8.82 | $2.4 |
| ASTM A105 Sch40 Elbows Price Per Piece | 285.01 | UAE Dirham 13.96 | $3.8 |
| B16.11 ASTM A105 3000lbs Forged Pipe Fittings Per Piece | 390.01 | UAE Dirham 19.10 | $5.2 |
Compare our price with other ASME SA105 Forged Fittings manufacturer in India. This is an approximate Price of A105 Galvanized Fittings in India. Feel free to contact us latest Stocklist of Carbon Steel ASTM A105 Fittings in Mumbai.
ASTM A105 Fittings Dimensions
| NPS | End to End | Outside Diameter | Minimum End Wall Thickness | Min Length of Thread | |
| A | D | G | B | J | |
| 1/2 | 32 | 28 | 6.4 | 10.9 | 13.6 |
| 3/4 | 37 | 35. | 6.4 | 12.7 | 13.9 |
| 1 | 41 | 44 | 9.7 | 14.7 | 17.3 |
| 1.1/4 | 44 | 57 | 9.7 | 17 | 18 |
| 1.1/2 | 44 | 64 | 11.2 | 17.8 | 18.4 |
| 2 | 48 | 76 | 12.7 | 19 | 19.2 |
| 2.1/2 | 60 | 92 | 15.7 | 23.6 | 28.9 |
| 3 | 65 | 108 | 19 | 25.9 | 30.5 |
| 4 | 68 | 140 | 22.4 | 27.7 | 33 |
ASTM A105 Fitting Pressure Rating
| Pressure-Temperature for ASTM A105 Forged Fittings (psig) | |||||
|---|---|---|---|---|---|
| Temperature | Class | ||||
| Class 150 | Class 300 | ||||
| 1/4 - 1 inch | 1 1/4 - 2 inch | 2 1/2 - 3 inch | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | - | 935 | 750 | 560 |
| 450 | 232 | - | 725 | 600 | 475 |
| 500 | 260 | - | 510 | 450 | 385 |
| 550 | 288 | - | 300 | 300 | 300 |
NPT, ISO/BSP, SAE threads ASTM A105 Pipe Nipples, ASME SA 105 Lateral Tee, Plug, Caps, Cross, and ASTM A105n Union Fittings supplier in Mumbai
ASTM A105 Chemical Composition
| C | Mn | P | S | Si |
| .35 max | .60/1.05 | .040 max | .05 max0 | .35 max |
ASME SA105 Mechanical Properties
| Tensile Strength min. | Yield Strength min. | Elongation min. | Reduction of Area, min. | Hardness | ||
|---|---|---|---|---|---|---|
| MPa | ksi | MPa | ksi | % | % | HBW |
| 485 | 70 | 250 | 36 | 22 | 30 | 137-187 |
Thermal Properties of ASME SA105 SW Elbow
| Property | Value |
| Coefficient of thermal expansion | 1.32E-5 1/K |
| Max service temperature | 500 °C |
| Melting point | 1380 - 1514 °C |
| Specific heat capacity | 470 - 520 J/(kg·K) |
| Thermal conductivity | 21 - 52 W/(m·K) |
ASTM A105 Density
| Density | 7.8 - 7.9 g/cm³ |
Various ASTM A105 Fittings Types
A105 Forged Steel 90° Elbow
A105 Forged Steel 45° Elbow
15 NB ASME SA105 Long Radius Bend

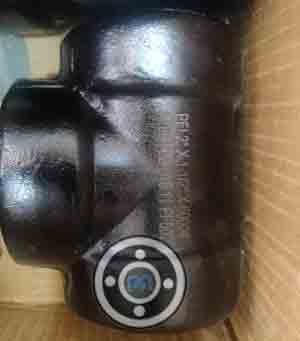

ASTM A105 Steel Tee
ASTM A105 CS Cross
ASTM A105 CS Full Coupling

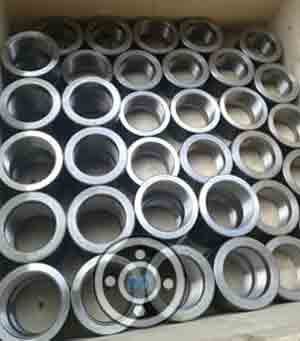

Forged Carbon Steel A105 Half Coupling

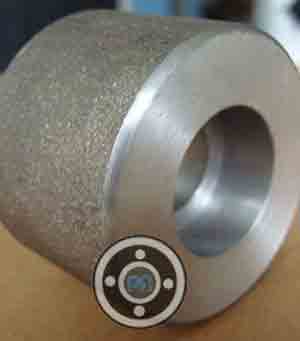

ASTM A105 Reducing Coupling

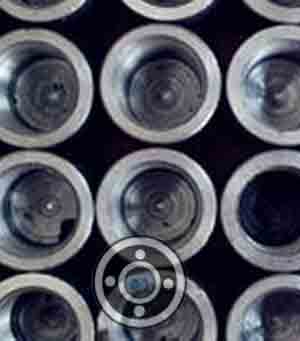

ASTM A105 Steel Pipe Cap

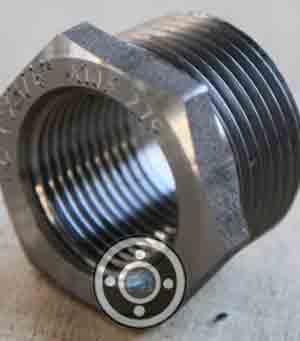

ASME SA105 Hex Head Bushing
A105 Hex Head Plug
100 NB ASTM A105 Forged Steel Square Head Plug
ASTM A105 CS Round Head Plug

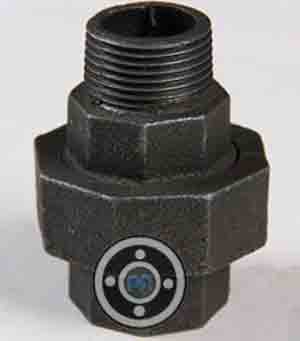

ASTM A105 Union
ASTM A105 Forged Steel Hex Nipple
Forged Carbon Steel A105 Street Elbow

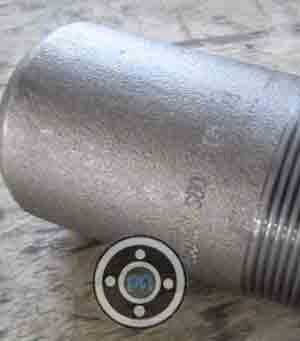

ASTM A105 Bull Plug
ASTM A105 Carbon Steel Boss

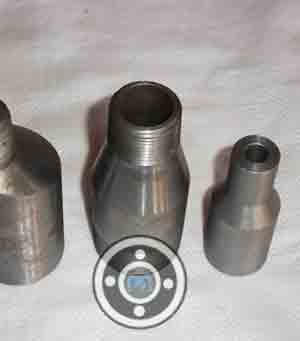

1500 LBS ASTM A105n Swage Nipple

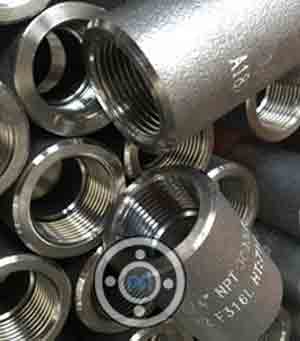

SA105 Pipe Nipple
CS ASTM A105 Adapter
SA105 Union
A105 Forged Steel Branch Outlet
SA105 90° Elbow Outlet
ASTM A105 Carbon Steel 45° Lateral Tee
SA105 Lateral Outlet

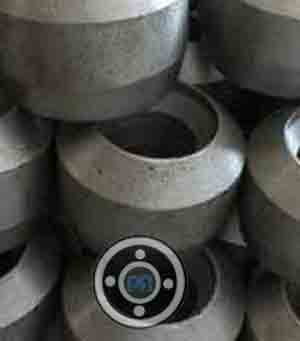

Forged Carbon Steel A105 Nipple Branch Outlet
3000 LBS A105 Socket weld Reducers

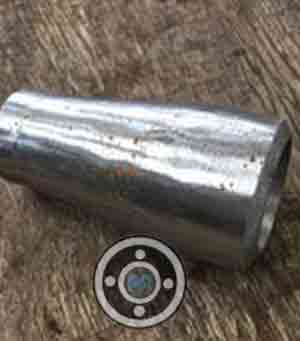

ASTM A105 Socket weld Concentric Reducer

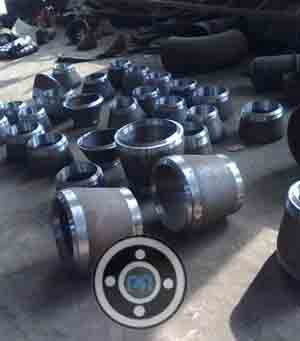

Carbon Steel ASTM A105 Socket Weld Eccentric Reducer

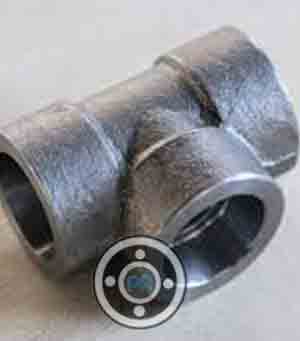

A105 Socket Weld Equal Tee

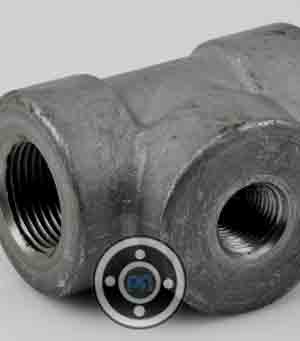

Forged Carbon Steel A105 Socket Weld Unequal Tee
Carbon Steel ASTM A105 Socket Weld Adapters

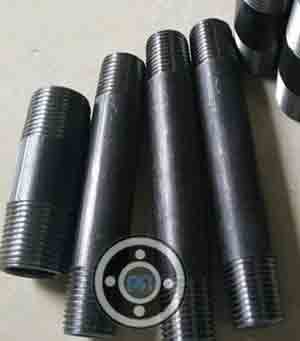

ASME SA105 Socket Weld Pipe Nipples

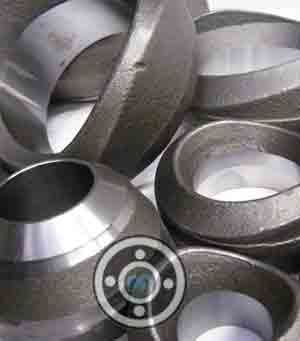

Carbon Steel ASTM A105 Outlets

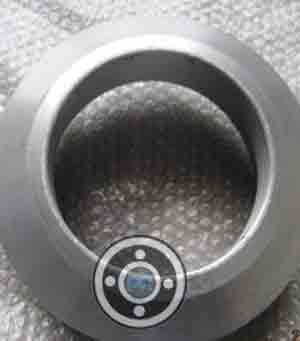

A105 Weldolet

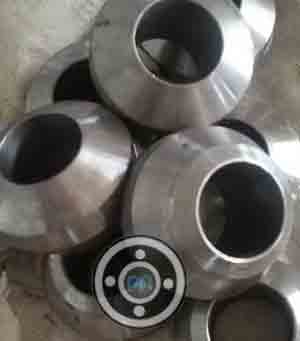

ASME SA105 Sockolet

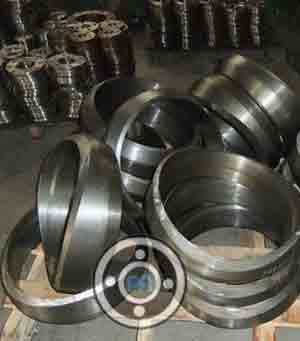

6000 LBS ASTM A105 CS Threadolet

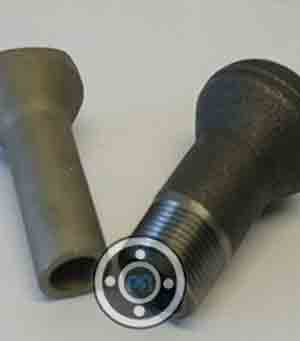

ASTM A105n Nipolet

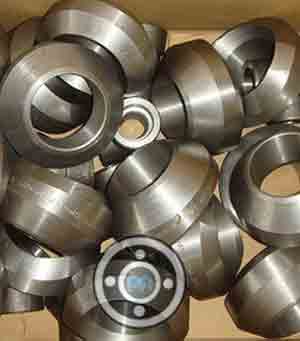

ASTM A105 Carbon Steel Latrolet

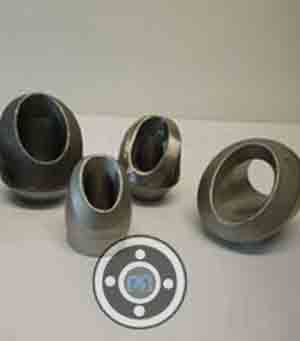

ASTM A105n Elbolet

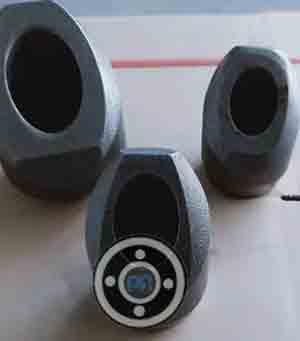

ASTM A105 Steel Threaded Elbolet
Carbon Steel ASTM A105 Socket weld Elbolet
ASTM A105 Steel Sweepolet

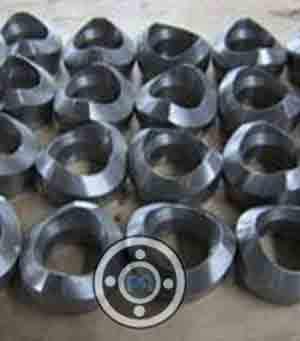

CS ASTM A105 Insert Weldolet

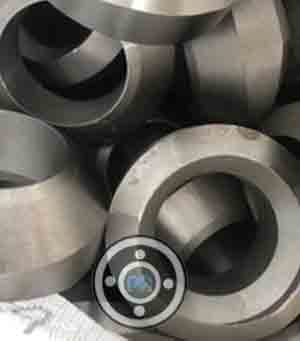

CS ASTM A105 Brazolet

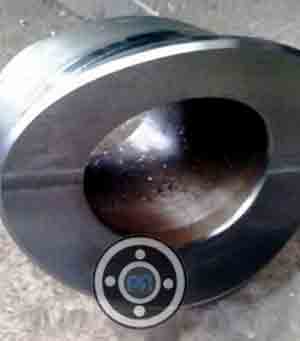

9000 LBS ASTM A105n Coupolet

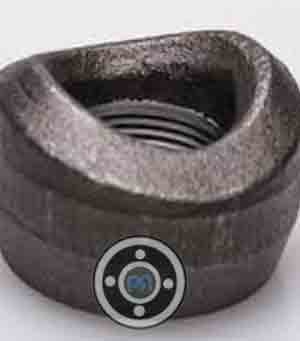

ASTM A105 Carbon Steel Flexolet Butt Weld
CS ASTM A105 Flexolet Socket Weld

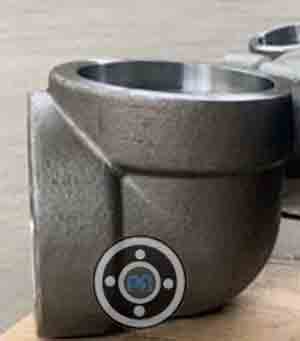

ASTM A105 Pipe Fittings

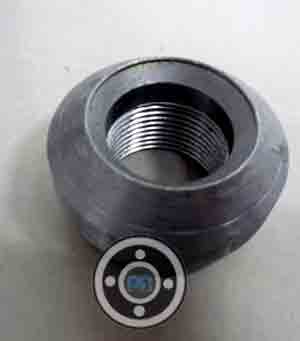

A105 Forged Steel Flexolet Threaded
Standards and Forms of A105 Weld Fittings
| Product Form | Standards |
|---|---|
| Forged Fittings | ASME B16.11, BS 3799, MSS SP 83, MSS SP 95, MSS SP 97, GB/T14383, GB/T14626 |
A105 Socket Weld Fittings Sizes and Schedule
| Fitting Class | Fitting Connection | Pipe Equivalent | |
|---|---|---|---|
| Wall Designation | Schedule No. | ||
| 2000 | NPT | XS | Sch. 80 |
| 3000 | NPT | – | Sch. 160 |
| 6000 | NPT | XXS | – |
| 3000 | SW | XS | Sch. 80 |
| 6000 | SW | – | Sch. 160 |
| 9000 | SW | XXS | – |
NPT 3000 lbs ASTM A105 Carbon Steel Full/ Half Coupling, Hex Nipple and Burr-free DN6- DN100 SA-105 UNS K03504 Reducer exporter in India
ASME B16.11 CS A105 Threaded Tee Temperature Range
| Temperature Range | 1000°F |
Allowable Stress of CS A105 Threaded Fittings
| Temp. | S |
|---|---|
| -20~100 | 20.0 |
| 200 | 20.0 |
| 300 | 20.0 |
| 400 | 20.0 |
| 500 | 19.6 |
| 600 | 18.4 |
| 650 | 17.8 |
| 700 | 17.2 |
| 750 | 14.8 |
| 800 | 12.0 |
Tolerance Chart of Carbon Steel A105 Fittings
| Dimensions | Up to 2" NB | 2 1/2" & 3" NB | |
| • Socket Bore | + 0.25 | + 0.38 | |
| - 0.00 | - 0.00 | ||
| • Body Bore | + 0.00 | + 0.00 | |
| - 1.52 | - 3.00 | ||
| A | 1/4" NB | ± 0.8 | ± 2.50 |
| 3/8" TO 3/4" NB | ± 1.6 | ||
| 1"T0 2"NB | ± 2.0 | ||
Industrial Applications of ASTM A105 Pipe Fittings
- Sea Water Equipment
- Pulp and Paper Industry
- Power Generation
- Specialty Chemicals
- Chemical Equipment
- Petrochemicals
- Gas Processing
- Pharmaceutical Equipment
ASME Grade A105 Tee Size Chart
| Size Ranges | 1/8 inch - 4 inch (DN6~DN100) |
|---|---|
| Pressure Classes | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type of Forged | NPT, BSP, BSPT |
| Dimension Standard | ASME 16.11, MSS SP-95, 95, 83, 97, BS 3799, MSS SP-79 |
CS ASTM A105 Fittings Testing
- Hardness Test
- Chemical Analysis
- Positive Material Identification
- Testing
- Flattening Test
- Micro and MacroTest
- Pitting Resistance Test
- Flaring Test
- Intergranular Corrosion Test
Manufacturer of ASTM A105 Fittings in India and Exporter in Europe and Asia
A105 Socket Weld Elbow B16.11
Kuala Lumpur, Dubai, United States, Tehran -Iran, Indonesia, Poland, Qatar, South Korea,
A105 Socket Weld Tee B16.11
Dubai- UAE, Romania Netherlands, Jakarta -Indonesia, Malaysia, France, Iran, Singapore,
A105 Screwed Union B16.11
Kuwait, Belgium, Norway, Nigeria, Malaysia, Vietnam, Czechia, Chile, Germany, Europe, South Africa,
A105N Forged Fittings
Hong Kong, NY 12203 (USA), Bahrain, Istanbul- Turkey, Jakarta, Oman, Brazil, Finland, Argentina, Bangladesh,
ASME B16.11 CS A105 Socket Weld Fittings
Thailand, Malaysia, Ellington -United States, USA, Spain, United Kingdom (UK), Saudi Arabia (KSA), Japan,
Forged Carbon Steel ASTM A105 Fittings
Singapore, Dammam -KSA, Austria, Philippines, Turkey, Los Alamos -Mexico, Canada, Greece,
