Copper Nickel Fittings manufacturer India | Cuni 90/10 Pipe Elbow/ Tee

Manufacturing Cuni 90/10 Elbow & EEMUA 234 Pipe Fittings according to ASTM B466 UNS C70600 specification

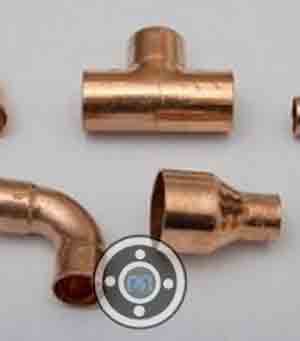

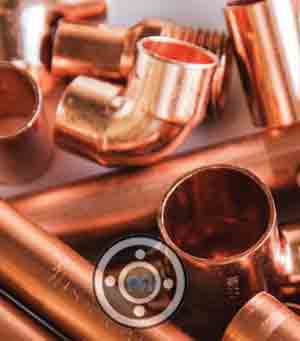

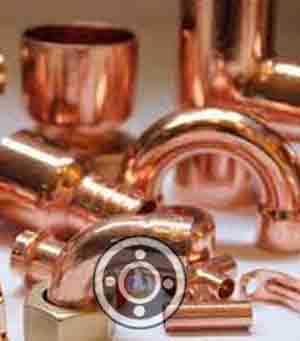

What is Copper Nickel Pipe Fittings?
The Copper Nickel Fittings mainly consists of copper with 25% nickel, along with other materials like 0.05-0.4% manganese. The copper nickel alloy is mainly used for making coins, medals, and several other semi valuable products. The chemical composition of the alloy gives it some unique features which are quite useful for several industrial usages. The key features of the Copper Nickel Fittings would include:

They are resistant to sea-water corrosion. It means, you can use these fittings for saltwater applications.
They are highly resistant to stress corrosion cracking, in the saltwater environment, that is, the seawater.
They offer general resistance to chloride stress corrosion.
The Copper Nickel Fittings are also quite resistant to the crevice corrosion.
They are also known for their resistance to pitting.
These fittings have high weldability.
They are easily fabricable too.
They have inherent resistance to biofouling.

Due to all these wonderful features offered by the Copper Nickel Fittings, they are used for a wide range of applications across several industries. Due to their excellent performance in seawater, they are widely used in offshore projects, special marine vessels, etc. Along with these, they also have a high demand in several other industries such as desalination plants, chemical processing, oil refineries, power plants, and condensers.

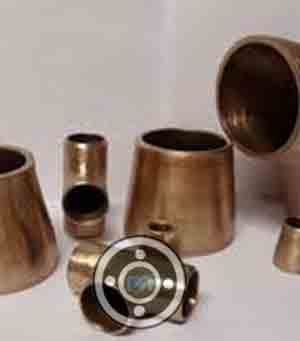

What is Copper Nickel 90/10 Fittings used for?
The chemical composition of Copper Nickel 90/10 Fittings makes it ideal for all-around seawater applications. It has a good demand in the shipbuilding and offshore industries. Being resistant to seawater corrosion, and stress corrosion cracking in saltwater, the Copper Nickel fittings has a good demand in special marine vessels too. Apart from these, the fittings are also used in piping, condensers and heat exchangers in seawater environments. They are a popular choice to be used in marine hardware. One can also find the Copper Nickel 90/10 Fittings in propellers, propeller shafts, and in the hulls of the high-quality boats.
The addition of iron and manganese in the copper nickel alloy helps them to maintain their high resistance to corrosion. Thus, this fitting has a wide range of applications across different verticals, starting from consumer products, to different industries like desalination plants, chemical processing, oil refineries, power plants, etc., and they are mostly known for their applications in the marine environment.

Is Cupro nickel pipe fittings better than copper fittings?
The addition of nickel and other materials like iron and manganese to the copper nickel fittings enhances its properties. One can find 70/30 copper nickel that consists of 70% copper and 30% nickel, along with trace amounts of iron and manganese. The 90/10 copper nickel alloy is also available that has 90% copper and 10% nickel. The addition of other elements like iron and manganese to copper and nickel helps in enhancing its properties like the strength and corrosion resistance. They also possess good tensile strength and have excellent thermal conductivity. The additional material also increases the inherent resistance to microfouling properties and enhances the ductility of the fittings too. The alloy also has better castability, weldability and hardening properties when compared to the copper fittings. Thus, it can be said that the overall performance of the copper nickel fittings is much better than the copper fittings, especially in marine environments. That is why, one can find the increased usage of the copper nickel fittings in the shipbuilding and offshore industries.

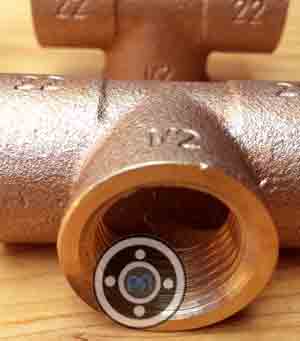

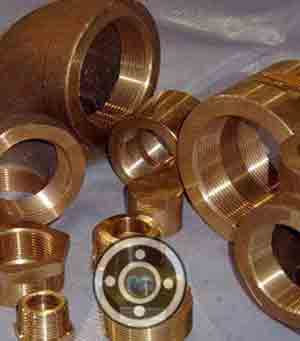

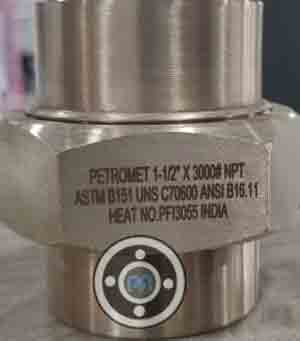

Copper Nickel Socket Weld Fittings Vs Copper Nickel Threaded Pipe Fittings
The copper nickel fittings are popular grades for several marine, industrial, and architectural applications. Being made of the same alloy the Copper Nickel Socket Weld Fittings and the Copper Nickel Threaded Pipe Fittings are used in similar applications. But their welding process is different and due to that, their characteristics might vary a bit. Socket weldings are done by inserting the pipe into the valve’s recessed area. The same goes for fittings and flanges. They are mainly used for the smaller pipe sizes whose diameters can go upto NPS 2 maximum. The threaded pipe fittings are the ones in which the pipes are connected internally or externally by threads. These can go upto the maximum size of 4 inches. They are the most traditional connections that we continue to use at the present times. They too are used for the smaller pipe sizes whose diameters are NPS 2 and smaller.
The Copper Nickel Socket Weld Fittings are mostly used in an environment of low to medium pressure, and they are mostly suitable for confined spaces. The socket weld fittings are widely used in various industrial applications. They offer a good flow and thus are mostly used in places where the pipeline tends to be permanent. On the other hand, the Copper Nickel Threaded Pipe Fittings are mostly used in non-critical low-cost applications. This would include domestic water pipes, industrial water cooling systems, and fire protections.
The threaded fittings are easy to install compared to the socket weld fittings. Also, lesser force is required for the joining process in case of threaded fittings.

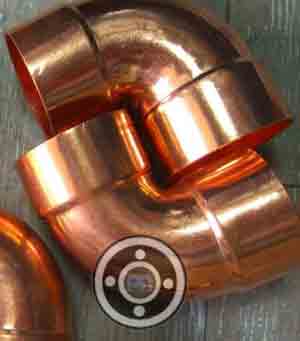

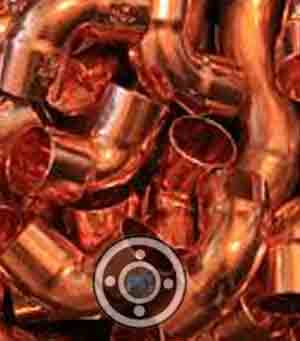

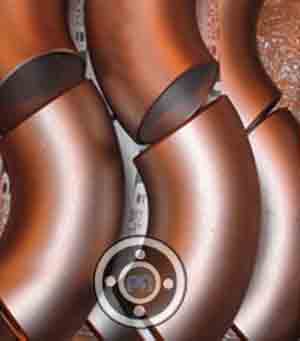

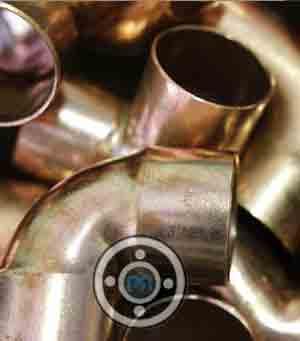

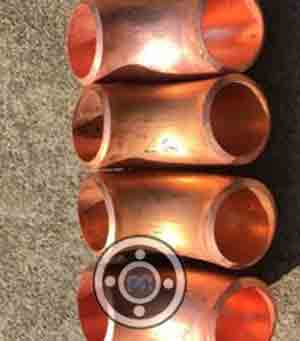

Cupro Nickel 90/10 Long Radius Elbow Vs Copper Nickel 90/10 Short Radius Elbow
The Cupro Nickel 90/10 Long Radius Elbow and the Copper Nickel 90/10 Short Radius Elbow are made of the same alloy, cupro nickel and thus they have similar properties. Also, being an elbow type of fittings, they perform similar functions. The elbow is one of the most common types of fittings used in the piping systems. They offer a flexibility to the pipe to change its direction of flow. The elbows are mostly available in two angles which are 45 degrees and 90 degrees. However, the angle can also be customized by the supplier according to the requirements of the client. The elbows are classified as short radius and long radius. Thus, their difference lies in the curvature and the length of the fittings. The long radius elbow will not be able to give the pipe as sharp a turn as the short radius elbow. The long radius elbow has a radius 1.5 times the outer diameter. The large radius ones are mostly used for reducing the resistance or elbow wear. However, when there is a space or position limit in the installation area, then the short radius elbows are preferred.

Why to buy from a stockiest? Buy directly through copper nickel fittings manufacturers and save cost

Copper Nickel Fittings manufacturer in India

European Directive 2014/68/eu certified Cunifer Pipe Fittings manufacturers in India offers widest range of 90/10 Copper Nickel Tee and DIN 86090 Elbow in Mumbai

Table of Content

Copper Nickel Pipe Fittings Specification List

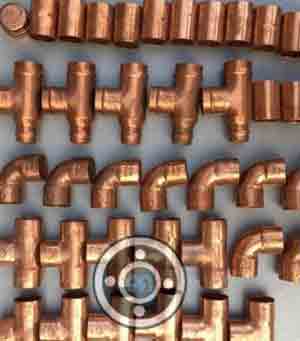

ASTM B151 CUNI C70600 Buttweld Fitting Dimensions
Cupro nickel 90/10 Seamless Fittings Pressure Rating
Price List of Copper Nickel Pipe Fittings
Weight Chart of 90/10 cupro nickel Reducer
UNS C70600 Reducer Dimensions Chart
Dimensions Table Copper nickel 90/10 Tee
ASME B16.9 CUNI 90/10 Elbow Weight Table
Copper Nickel 90/10 Buttweld Fittings Chemical Composition
Cuni 90/10 Fittings Mechanical Properties

Copper Nickel 90/10 Fittings Equivalent
Physical Properties of Cu Ni 90/10 Elbow
Size Range of Copper Nickel Forged Pipe Fittings
Fabrication Properties of Werkstoff Nr. 2.0872 Welded Fittings

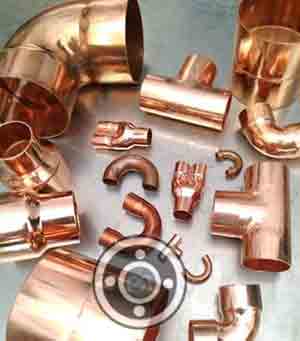

Types of Copper Nickel Pipe Fittings
Copper nickel 90/10 Forged Fitting Temperature Range
Cu-Ni 90/10 Fittings Hs Code
Application Of ASME B16.11 CUNI 90/10 Forged Fittings
Available Testing of Copper nickel 90/10 Forged Fittings
ASME SB 151 Copper Nickel Fittings Features

Copper Nickel Pipe Fittings Specifications	ASTM B151
Copper Nickel Alloy Pipe Fitting Sizes	90/10 Copper Nickel Seamless Fittings: 1/2" - 10" ASME B16 9 Cupro nickel 90/10 Welded Fittings: 1/2" - 48"
Bending Radius Provided By Manufacturer	R=1D, 3D, 2D, 5D, 8D, 6D, 10D or Custom Copper Nickel 90/10 Fitting
Size Range	½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Cu-ni 90-10 Fitting
Copper Nickel Pipe Fitting Thickness	SCH30, SCH10, SCH 160, SCH20, SCH60, XS, STD SCH40, SCH 80, SCH 120, SCH 140, SCH 100, XXS available with NACE MR 01-75
Copper nickel 90/10 Buttweld Fittings Type Manufacturer	DN15-DN1200
Copper Nickel Fittings Connection	Welding
ASME B16.9 Copper Nickel Buttweld Fittings Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Copper Nickel Pipe Fitting Dimensions	ASME B16.28, ASME/ANSI B16.9, BS4504, MSS-SP-43, BS1560, BS4504, BS10

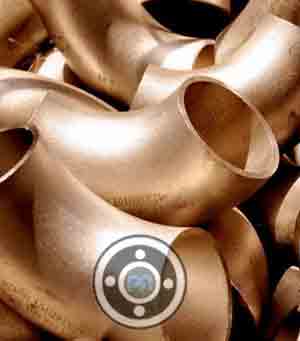

Cu ni 90/10 Elbows Manufacturer	Angle : 22.5 deg, 45 deg, 30deg, 90 deg, 1.0D, 180 deg, 1.5D, 3D, 2.5D, 2.0D, 4D, 6D, 5D, 7D-40D . Standard: ASME B16.28, GB, ASME B16.9, MSS SP-75 JISB2311 DIN2605 JISB2312 JISB2313, ASME B16.25, BS, ISO
Copper Nickel Threaded Pipe Fittings Thread Provided By Manufacturer	BSPT, NPT, BSPP
Copper Nickel Fittings Origin & Mills	European, Japanese, USA, Korean, Ukraine, Indian, Russian
Cupro Nickel Pipe Fitting Manufacturing process	Push, Forge, Press, Cast, etc.
Specialized Copper Nickel Pipe Fittings Manufacturer of	DIN 2.0872 Stub End, 90º Elbows, Tees, Pipe Cap, Crosses, 45º Elbows, Reducers, Pipe Bend
Copper Nickel Socket Weld Fitting Pressure Rating	Threaded end - 3000lb/ 2000lb/ 6000lbs Socket weld end- 6000/ 3000/ 9000lbs

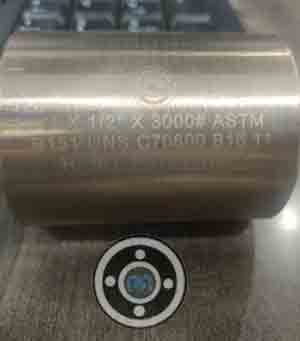

Copper nickel 90/10 Forged Fittings Manufacturer	Half Coupling, Union, Tee, Cross, Coupling, Cap, Outlet, Welding Outlet, Boss, Insert
Dimension Specification	MSS SP-79, 95, 83, 97, BS 3799, ASME 16.11
Application of Industrial Copper Nickel Pipe Fitting	Fittings To Connect Tubes and Pipe in Gas, Petroleum, Metallurgy, Chemical, Power, Construction, Shipbuilding etc

Well known Cu Ni 90/10 Elbow supplier, dealers, stockholders, importer, exporters, stockists, wholesalers, distributor and Manufacturer in Mumbai

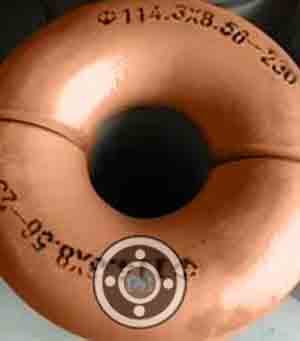

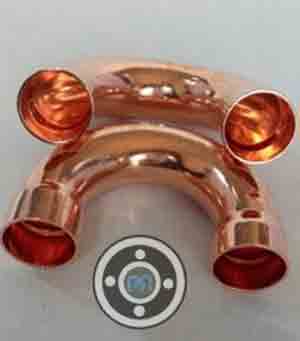

Nominal Pipe Size	Outside Diameter		90° Elbows		45° Elbows		180° Returns
(inches)			Long Radius	Short Radius	Long Radius		Long Radius
	(mm)	(inches)	Center to Face (inches)	Center to Face (inches)	Center to Face (inches)	Radius (inches)	Center to Center (inches)	Back to face (inches)
1/2	21.3	0.840	1 1/2	-	5/8		2	1 7/8
3/4	26.7	1.050	1 1/8	-	7/16		2 1/4	1 11/16
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8

Normal Size Of Pipe (inches)	Pipe Sch	OD (inch)	Wall Thick. (inch)	Temperature(oF)
				100	200	300	400	500	600	650	700	750
				Allowable Stress(psi)
				16700	16700	16700	15500	14400	13500	13200	12900	12600
1"	40	1.315	0.133	2205	2205	2205	2047	1902	1783	1743	1703	1664
	80	1.315	0.179	3061	3061	3061	2841	2640	2475	2420	2365	2310
	160	1.315	0.250	4493	4493	4493	4170	3874	3632	3552	3471	3390
1 1/2"	40	1.900	0.145	1629	1629	1629	1512	1404	1317	1287	1258	1229
	80	1.900	0.200	2303	2303	2303	2138	1986	1862	1821	1779	1738
	160	1.900	0.281	3362	3362	3362	3120	2899	2717	2657	2597	2536
2"	40	2.375	0.154	1371	1371	1371	1272	1182	1108	1083	1059	1034
	80	2.375	0.218	1985	1985	1985	1843	1712	1605	1569	1534	1498
	160	2.375	0.344	3283	3283	3283	3047	2831	2654	2595	2536	2477
3"	40	3.500	0.216	1301	1301	1301	1208	1122	1052	1028	1005	982
	80	3.500	0.300	1844	1844	1844	1712	1590	1491	1458	1425	1391
	160	3.500	0.438	2787	2787	2787	2587	2403	2253	2203	2153	2103
4"	40	4.500	0.237	1102	1102	1102	1023	950	891	871	851	831
	80	4.500	0.337	1596	1596	1596	1482	1377	1291	1262	1233	1204
	160	4.500	0.531	2611	2611	2611	2424	2552	2111	2064	2017	1970
5"	40	5.563	0.258	965	965	965	896	832	780	763	746	728
	80	5.563	0.375	1428	1428	1428	1325	1231	1154	1129	1103	1077
	160	5.563	0.625	2474	2474	2474	2296	2133	2000	1955	1911	1866
6"	40	6.625	0.280	877	877	877	814	756	709	693	677	661
	80	6.625	0.432	1379	1379	1379	1280	1189	1115	1090	1065	1040
	160	6.625	0.719	2382	2382	2382	2211	2054	1925	1883	1840	1797
8"	40	8.625	0.322	771	771	771	716	665	623	610	596	582
	80	8.625	0.500	1218	1218	1218	1131	1050	985	963	941	919
	160	8.625	0.906	2298	2298	2298	2133	1982	1858	1817	1775	1734
10"	40	10.750	0.365	699	699	699	649	603	565	553	540	528
	80	10.750	0.594	1159	1159	1159	1075	999	937	916	895	874
	160	10.750	1.125	2289	2289	2289	2124	1974	1850	1809	1768	1727

Type B EN 10253-2 butt weld 90/10 Cuni Reducer, Cupro Nickel Cap and EEMUA 234 Stub End suitable for full service pressure

Copper Nickel Pipe Fittings Price Per Piece in India	Price Applicable for jan 2022 to june 2022	Price Applicable for July 2022 to December 2022
90/10 COPPER NICKEL 159 X 44.5MM X 3.0/2.0MM Buttweld RED.TEE Per Kg	US $29.04	US $31.04

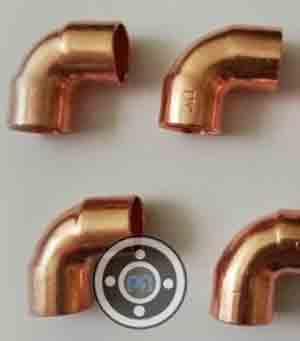

COPPER NICKEL 1.5D 44 X DN 80 90 DEG. ELBOW Per Kg	US $19.18	US $21.18
COPPER NICKEL DN150 X DN100 CON. REDUCER Per Kg	US $27.87	US $29.87
COPPER NICKEL 105MM X 2.5 MM CU-NI SEMI FINISHED BEND Price Per Piece	US $19.49	US $21.49

We are Copper Nickel 90/10 Fittings Manufacturer in India in Various forms Such as Elbows, reducers, Stub End, Tee. This is an approximate Cost of Copper nickel 90/10 Buttweld Fittings in India. Compare our price with other Copper Nickel Pipe Fittings Manufacturer in India.

Nominal Size		SCH20	STD	SCH40S	SCH80S	SCH120	SCH160
DN	NPS	SCH20	STD	SCH40S	SCH80S	SCH120	SCH160
15	1/2		0.08	0.08	0.1
20	3/4		0.17	0.17	0.2
25	1		0.21	0.21	0.25		0.22
32	1 1/4		0.29	0.29	0.35
40	1 1/2		0.42	0.42	0.58		0.6
50	2		0.8	0.8	1.03		1.04
65	2 1/2		1.05	1.05	1.42		1.65
80	3		1.36	1.36	1.9
90	3 1/2		1.63	1.63	2.27		2.4
100	4		2.77	2.77	3.93		4.4
125	5		3.96	3.96	6		7.14
150	6		6.31	6.31	9.26		10.8
200	8	7.85	10.7	10.7	17.5	15	18.4
250	10	11.2	15.8	16.3	25.1	25.1	32.5
300	12	25.6	28.8	32.1	56.5	41.7	53.3
350	14	30.5	38.5	48.8	79	84.5	106
400	16	35.2	44.5	64.3	102	112	143
450	18	62.7	62.7	98.5	165
500	20	72.6	72.6		181
550	22	97	79.1	142	226
600	24	130	100

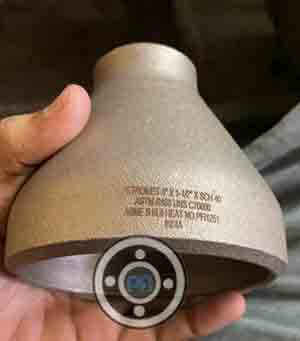

Nominal Pipe Size	Outside Diameter		Reducers
Reduced from (inches)	(inches)	(mm)	Concentric & Eccentric Length (inches)	Reduced to (inches)
1/2	0.840	21.3	1 1/2	1/4
1/2	0.840	21.3	1 1/2	3/8
3/4	1.050	26.7	2	3/8
3/4	1.050	26.7	2	1/2
1	1.315	33.4	2	3/8
			2	1/2
			2	3/4
1 1/4	1.660	42.2	2	1/2
			2	3/4
			2	1
1 1/2	1.900	48.3	2 1/2	1/2
			2 1/2	3/4
			2 1/2	1
			2 1/2	1 1/4
2	2.375	60.3	3	3/4
			3	1
			3	1 1/4
			3	1 1/2
2 1/2	2.875	73.0	3 1/2	1
			3 1/2	1 1/4
			3 1/2	1 1/2
			3 1/2	2
3	3.500	88.9	3 1/2	1
			3 1/2	1 1/2
			3 1/2	2
			3 1/2	2 1/2
3 1/2	4.000	101.6	4	1 1/4
			4	1 1/2
			4	2
			4	2 1/2
			4	3
4	4.500	114.3	4	1 1/2
			4	2
			4	2 1/2
			4	3
			4	3 1/2
5	5.563	141.3	5	2
			5	2 1/2
			5	3
			5	3 1/2
			5	4
6	6.625	168.3	5 1/2	2 1/2
			5 1/2	3
			5 1/2	3 1/2
			5 1/2	4
			5 1/2	5
8	8.625	219.1	6	3
			6	3 1/2
			6	4
			6	5
			6	6
10	10.750	273.1	7	4
			7	5
			7	6
			7	8
12	12.750	323.9	8	5
			8	6
			8	8
			8	10

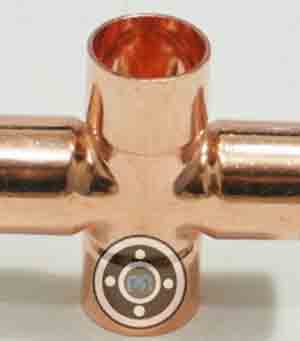

Norsok Ed4, Shell, Aramco, BP approved ASTM B466 C70600 Copper Nickel Buttweld Pipe Fittings, EEMUA 234 UNS 7060x Threaded Elbow and Cuni Press Fittings manufacturer in India

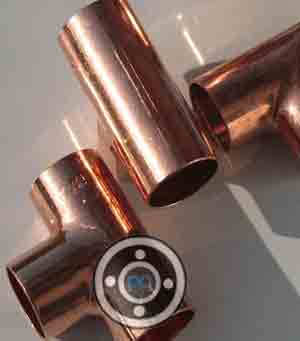

Copper nickel 90/10 Tee Dimensions

NOMINAL PIPE SIZE	LENGTH	CENTER TO END	OUTSIDE DIAMETER
Inch.	M	C	OD
1/2	25	25	21.3
3/4	29	29	26.7
1	38	38	33.4
1 1/4	48	48	42.2
1 1/2	57	57	48.3
2	64	64	60.3
2 1/2	76	76	73
3	86	86	88.9
3 1/2	95	95	101.6
4	105	105	114.3
5	124	124	141.3
6	143	143	168.3
8	178	178	219.1
10	216	216	273.1
12	254	254	323.9
14	279	279	355.6
16	305	305	406.4
18	343	343	457.2
20	381	381	508
22	419	419	559
24	432	432	610
26	495	495	660
28	521	521	711
30	559	559	762
32	597	597	813
34	635	635	864
36	673	673	914
38	711	711	965
40	749	749	1016
42	711	762	1067
44	762	813	1118
46	800	851	1168
48	838	889	1219

NPS	KG	LBS
1/2	0.11	0.25
3/4	0.11	0.25
1	0.23	0.5
1¼	0.41	0.9
1½	0.52	1.15
2	1	2.2
2½	1.81	4
3	2.95	6.5
3½	3.79	8.35
4	6.12	13.5
5	9.98	22
6	15.88	35
8	32.21	71
10	48.53	107
12	72.57	160
14	92.99	205
16	125.19	276
18	154.22	340
20	190.51	420
22	235.87	520
24	272.16	600
26	330.67	729
30	442.25	975
36	640.47	1412

ASME B16.9 MSS-SP-43 Cuni 90 Degree Weld Elbow, Y-Lateral Tee, Cross, Outlets, Return Bends, Weldolet, Short/ Long Radius Elbow & SCH10 Pipe Bend manufacturer in India

Grade	Cu	Mn	Pb	Ni	Fe	Zn
Cu-Ni 90-10	88.6 min	1.0 max	.05 max	9-11 max	1.8 max	1 max

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Copper Nickel 90-10	0.323 lb/in3 at 68 F	2260 F	50000 psi	20000 psi	30 %

STANDARD	WERKSTOFF NR.	UNS
Copper Nickel 90/10	2.0872	C70600

Density	kg/dm³	8.9
Melting Range	°C	1100-1145
Specific Heat	J/kg °K	377
Thermal Conductivity	W/m°K	40
Coeff. of Linear Expansion 10-300°C	10-6/°K	17
Electrical Resistivity	microhm. cm	19
Modulus of Elasticity	GPa	135
Modulus of Rigidity	GPa	50

Range	1/4" NB to 4" NB
Outlet's	1/4" to 6"
Type	Socket Weld (S/W) & Screwed (SCRD)
Form	Elbow 45 deg & 90 degree, Tee , Union, Full & Half coupling, Cross, Cap, Swage Nipple, Plug, Bush

Joining Technique	Suitability
Soldering	Excellent
Spot Weld	Good
Brazing	Excellent
Gas Shielded Arc Welding	Excellent
Coated Metal Arc Welding	Good
Seam Weld	Good
Capacity for Being Hot Formed	Good
Butt Weld	Excellent
Oxyacetylene Welding	Fair
Capacity for Being Cold Worked	Good
Machinability Rating	20
