316 Stainless Steel Elbow and ASTM A403 WP316 Tee manufacturer in India
What is Stainless Steel 316 Pipe Fittings?
The Stainless Steel 316 Pipe Fittings are made of the marine grade stainless steel alloy that comes with enhanced mechanical properties. It can resist corrosion more effectively compared to the 304 grade stainless steel. The alloy of the Stainless Steel 316 material has chromium and nickel as the main components along with several other elements. For example, the molybdenum present in the alloy helps to enhance its pitting resistance compared to the regular stainless steel fittings.
The wrought grade of Stainless Steel 316 Pipe Fittings are available in the size range of NPS ½ to NPS 48. They are used for various applications in the pharmaceutical, food processing, and many other industries. The Stainless Steel 316 material also has a good resistance to crevice corrosion, including pitting and crevice. It possesses high weldability due to the low carbon content, which reduces the formation of carbide precipitate at the time of welding.
It has a high amount of molybdenum and nickel which improves the overall properties of the SS 316 material, including the corrosion resistance attributes. They are more sturdy at elevated temperatures when compared to the 304 grade stainless steel material.
ASTM A403 WP316 Elbow Vs 316 Stainless Steel Tee
The ASTM A403 WP316 Elbow is basically installed between two pipe lengths and it helps in changing the direction of the pipe run. They are available with 45 degrees and 90 degrees bend and they can change the flow directions accordingly. Their ends can be machined for either socket welding or buttwelding. The ASTM A403 WP316 Elbows are available with short radius and long radius. They have different lengths and curvatures.
The 316 Stainless Steel Tee looks like the letter T and comes with two branched outlets located at 90 degrees. They also have one main connection line which is the inlet. They are used for different purposes like, combining the flow, dividing the flow, changing the flow directions, and adjusting the rate of the flow. There are two types of 316 Stainless Steel Tee fittings, namely equal tee (the branch diameters are same as main connection line diameter), and reducing tee (the branch diameter are smaller than the main connection line diameter).
What is the use of Stainless Steel 316 Reducer?
The Stainless Steel 316 Reducers are mainly used for controlling the pipe flow, by connecting the larger pipe to the smaller ones. There are two types of reducers, namely concentric, which are commonly used and eccentric, which are used for various vertical applications when it is essential to maintain the top or bottom level.
UNS S31600 Buttweld Fittings Vs ASTM A182 F316 Socket Weld Fittings
- The UNS S31600 Buttweld Fittings are used for for pipes with both bigger and smaller diameters, whereas the ASTM A182 F316 Socket Weld Fittings is mainly used for pipes having smaller diameters
- The buttewelded fittings need a beveled end whereas the socket weld fittings do not need a beaveal and the parts can be welded directly.
- The UNS S31600 Buttweld Fittings have buttwelded seams and their welding requirements are also high. The ASTM A182 F316 Socket Weld Fittings have fillet welds.
- The buttwelded fittings need more skills and effort to be completed, whereas when it comes to designing the socket weld fitting, things are more simple.
- Also, the price of UNS S31600 Buttweld Fittings is more affordable compared to the ASTM A182 F316 Socket Weld Fittings.
- The socket weld fittings are easy to install but the buttweld fittings have higher strength, corrosion resistance and fatigue properties. They also have a higher temperature compliance than the socket weld fittings. But the buttweld fittings need more time, effort and skilled labors to be installed.
Stainless Steel 316 Pipe Fittings
Petromet Flange is one of the leading 316 SS Fittings manufacturers in India, producing 316 Stainless Steel 90 Degree Elbow, Equal/ Unequal Tee and ASTM A403 Gr WP316 Pipe Bends for Petrochemical, Oil, and Gas industry
Table of Content
- Specification List of Stainless Steel 316 Pipe Fittings
- 316 Stainless Steel Fitting Pressure Rating
- 316 SS Fitting Dimensions
- Stainless Steel 316 Forged Fittings
- 316 SS Socket Weld Fittings
- 316 SS Threaded Fittings
- SS 316 Pipe Fittings Price List
- Chemical Composition of ASTM A403 WP316 Buttweld Fittings
- SA403 Gr WP316 Weld Fittings Mechanical Analysis
- Physical Properties of A182 F316 Forged Fitting
- Equivalent Grade of SS 316 Pipe Fittings
- Stainless Steel 316 Pipe Fittings Types
- UNS S31600 Reducing Tee Dimensions
- A403 grade WP316 Tee Size Chart
- SS 316 Elbow Weight
- Hs Code For Ss 316 Fittings
- Stainless Steel 316 Elbow
- 316 Stainless Steel Reducer
- 316 Stainless Steel Tee
- SA403 WP316 End Cap Temperature Range
- Heat Treatment of Stainless Steel 316 Pipe Fittings
- ASTM A403 WP316 Fittings Application
Specification List of Stainless Steel 316 Pipe Fittings
| Stainless Steel 316 Pipe Fittings Specifications | ASTM A403 |
|---|---|
| Stainless Steel 316 Fittings Sizes | 316 ss Seamless Fittings: 1/2" - 10" ASME B16 9 A403 gr WP316 Welded Fittings: 1/2" - 48" |
| 316 stainless fittings Dimensions | ASME B16.28, ASME/ANSI B16.9, BS4504, MSS-SP-43, BS1560, BS4504, BS10 |
| 316 stainless weld fittings Thickness | SCH30, SCH10, SCH 160, SCH20, SCH60, XS, STD SCH40, SCH 80, SCH 120, SCH 140, SCH 100, XXS available with NACE MR 01-75 |
| Stainless Steel 316 Pipe Fittings Connection | Welding |
| ASTM A403 WP316 Fittings Type Manufacturer | DN15-DN1200 |
| Bending Radius Provided By Manufacturer | R=1D, 3D, 2D, 5D, 8D, 6D, 10D or Custom 316 ss pipe fittings |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) 316 Stainless Steel Fittings |
| Stainless Steel 316 Elbow Manufacturer | Angle : 22.5 deg, 45 deg, 30deg, 90 deg, 1.0D, 180 deg, 1.5D, 3D, 2.5D, 2.0D, 4D, 6D, 5D, 7D-40D . Standard: ASME B16.28, GB, ASME B16.9, MSS SP-75 JISB2311 DIN2605 JISB2312 JISB2313, ASME B16.25, BS, ISO |
| Stainless Steel 316 Pipe Fittings Manufacturing process | Push, Forge, Press, Cast, etc. |
| Specialized manufacturer of | ASME SA403 WP316 Stub End, 90º Elbows, Tees, Pipe Cap, Crosses, 45º Elbows, Reducers, Pipe Bend |
| Test Certificates Provided By Stainless Steel 316 Fitting Manufacturer | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Stainless steel 316 buttweld fittings Origin & Mills | European, Japanese, USA, Korean, Ukraine, Indian, Russian |
| Application of Industrial 316 ss weld fittings |
|
| Stainless Steel 316 Forged Fittings Thread Provided By Manufacturer | BSPT, NPT, BSPP |
| SS 316 Forged Fitting Pressure Rating | Threaded end - 3000lb/ 2000lb/ 6000lbs Socket weld end- 6000/ 3000/ 9000lbs |
| 316 Stainless Steel Products Manufacturer | Half Coupling, Union, Tee, Cross, Coupling, Cap, Outlet, Welding Outlet, Boss, Insert |
| Dimension Specification | MSS SP-79, 95, 83, 97, BS 3799, ASME 16.11 |
Leading Stainless Steel 316 elbow stockholders, dealers, wholesalers, importer, stockists, distributor, supplier, exporters and Manufacturer in Mumbai.
316 Stainless Steel Fitting Pressure Rating
| Normal Size Of Pipe (inches) |
Pipe Sch | OD
(inch) |
Wall Thick. (inch) |
Temperature (oF) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 | 750 | ||||
| Allowable Stress (psi) | ||||||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | 13500 | 13200 | 12900 | 12600 | ||||
| 1" | 40 | 1.315 | 0.133 | 2205 | 2205 | 2205 | 2047 | 1902 | 1783 | 1743 | 1703 | 1664 |
| 80 | 1.315 | 0.179 | 3061 | 3061 | 3061 | 2841 | 2640 | 2475 | 2420 | 2365 | 2310 | |
| 160 | 1.315 | 0.250 | 4493 | 4493 | 4493 | 4170 | 3874 | 3632 | 3552 | 3471 | 3390 | |
| 1 1/2" | 40 | 1.900 | 0.145 | 1629 | 1629 | 1629 | 1512 | 1404 | 1317 | 1287 | 1258 | 1229 |
| 80 | 1.900 | 0.200 | 2303 | 2303 | 2303 | 2138 | 1986 | 1862 | 1821 | 1779 | 1738 | |
| 160 | 1.900 | 0.281 | 3362 | 3362 | 3362 | 3120 | 2899 | 2717 | 2657 | 2597 | 2536 | |
| 2" | 40 | 2.375 | 0.154 | 1371 | 1371 | 1371 | 1272 | 1182 | 1108 | 1083 | 1059 | 1034 |
| 80 | 2.375 | 0.218 | 1985 | 1985 | 1985 | 1843 | 1712 | 1605 | 1569 | 1534 | 1498 | |
| 160 | 2.375 | 0.344 | 3283 | 3283 | 3283 | 3047 | 2831 | 2654 | 2595 | 2536 | 2477 | |
| 3" | 40 | 3.500 | 0.216 | 1301 | 1301 | 1301 | 1208 | 1122 | 1052 | 1028 | 1005 | 982 |
| 80 | 3.500 | 0.300 | 1844 | 1844 | 1844 | 1712 | 1590 | 1491 | 1458 | 1425 | 1391 | |
| 160 | 3.500 | 0.438 | 2787 | 2787 | 2787 | 2587 | 2403 | 2253 | 2203 | 2153 | 2103 | |
| 4" | 40 | 4.500 | 0.237 | 1102 | 1102 | 1102 | 1023 | 950 | 891 | 871 | 851 | 831 |
| 80 | 4.500 | 0.337 | 1596 | 1596 | 1596 | 1482 | 1377 | 1291 | 1262 | 1233 | 1204 | |
| 160 | 4.500 | 0.531 | 2611 | 2611 | 2611 | 2424 | 2552 | 2111 | 2064 | 2017 | 1970 | |
| 5" | 40 | 5.563 | 0.258 | 965 | 965 | 965 | 896 | 832 | 780 | 763 | 746 | 728 |
| 80 | 5.563 | 0.375 | 1428 | 1428 | 1428 | 1325 | 1231 | 1154 | 1129 | 1103 | 1077 | |
| 160 | 5.563 | 0.625 | 2474 | 2474 | 2474 | 2296 | 2133 | 2000 | 1955 | 1911 | 1866 | |
| 6" | 40 | 6.625 | 0.280 | 877 | 877 | 877 | 814 | 756 | 709 | 693 | 677 | 661 |
| 80 | 6.625 | 0.432 | 1379 | 1379 | 1379 | 1280 | 1189 | 1115 | 1090 | 1065 | 1040 | |
| 160 | 6.625 | 0.719 | 2382 | 2382 | 2382 | 2211 | 2054 | 1925 | 1883 | 1840 | 1797 | |
| 8" | 40 | 8.625 | 0.322 | 771 | 771 | 771 | 716 | 665 | 623 | 610 | 596 | 582 |
| 80 | 8.625 | 0.500 | 1218 | 1218 | 1218 | 1131 | 1050 | 985 | 963 | 941 | 919 | |
| 160 | 8.625 | 0.906 | 2298 | 2298 | 2298 | 2133 | 1982 | 1858 | 1817 | 1775 | 1734 | |
| 10" | 40 | 10.750 | 0.365 | 699 | 699 | 699 | 649 | 603 | 565 | 553 | 540 | 528 |
| 80 | 10.750 | 0.594 | 1159 | 1159 | 1159 | 1075 | 999 | 937 | 916 | 895 | 874 | |
| 160 | 10.750 | 1.125 | 2289 | 2289 | 2289 | 2124 | 1974 | 1850 | 1809 | 1768 | 1727 | |
EN DIN 10253-4 seamless/ welded SA 403 Wp 316 Eccentric / Concentric Reducer, SS316 Elbow, Pipe Cap and 316 stainless steel marine fittings manufacturer in India
316 SS Fitting Dimensions
| Nominal Pipe Size | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
|
(inches)
|
Long Radius
|
Short Radius
|
Long Radius
|
Long Radius
|
||||
|
(mm)
|
(inches)
|
Center to Face
(inches) |
Center to Face
(inches) |
Center to Face
(inches) |
Radius
(inches) |
Center to Center
(inches) |
Back to face
(inches) |
|
|
1/2
|
21.3
|
0.840
|
1 1/2
|
-
|
5/8
|
2
|
1 7/8
|
|
|
3/4
|
26.7
|
1.050
|
1 1/8
|
-
|
7/16
|
2 1/4
|
1 11/16
|
|
|
1
|
33.4
|
1.315
|
1 1/2
|
1
|
7/8
|
3
|
2 3/16
|
|
|
1 1/4
|
42.2
|
1.660
|
1 7/8
|
1 1/4
|
1
|
3 3/4
|
2 3/4
|
|
|
1 1/2
|
48.3
|
1.900
|
2 1/4
|
1 1/2
|
1 1/8
|
3
|
4 1/2
|
3 1/4
|
|
2
|
60.3
|
2.375
|
3
|
2
|
1 3/8
|
4
|
6
|
4 3/16
|
|
2 1/2
|
73.0
|
2.875
|
3 3/4
|
2 1/2
|
1 3/4
|
5
|
7 1/2
|
5 3/16
|
|
3
|
88.9
|
3.500
|
4 1/2
|
3
|
2
|
6
|
9
|
6 1/4
|
|
3 1/2
|
101.6
|
4.000
|
5 1/4
|
3 1/2
|
2 1/4
|
7
|
10 1/2
|
7 1/4
|
|
4
|
114.3
|
4.500
|
6
|
4
|
2 1/2
|
8
|
12
|
8 1/4
|
|
5
|
141.3
|
5.563
|
7 1/2
|
5
|
3 1/8
|
10
|
15
|
10 5/16
|
|
6
|
168.3
|
6.625
|
9
|
6
|
3 3/4
|
12
|
18
|
12 5/16
|
|
8
|
219.1
|
8.625
|
12
|
8
|
5
|
12
|
24
|
16 5/16
|
|
10
|
273.1
|
10.750
|
15
|
10
|
6 1/4
|
15
|
30
|
20 3/8
|
|
12
|
323.9
|
12.750
|
18
|
12
|
7 1/2
|
18
|
36
|
24 3/8
|
Stainless Steel 316 Forged Fittings
Stainless Steel 316 Forged Fittings

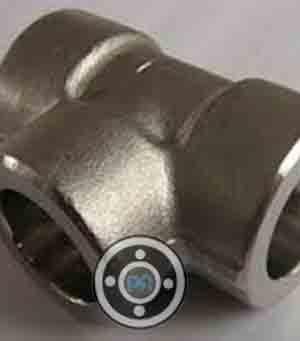

ASTM A182 316 Forged Tee

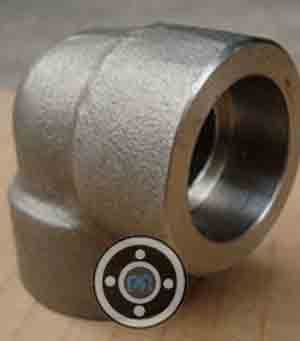

SS 316 Forged Elbow
316 SS Socket Weld Fittings
316 Stainless Steel Socket Weld Fittings

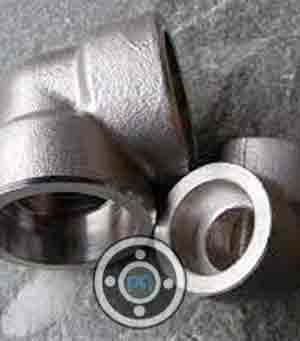

SS 316 Socket Weld Elbow

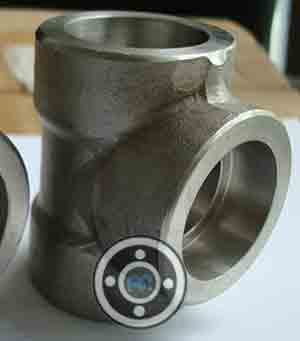

UNS S31600 SW Tee
316 SS Threaded Fittings
Stainless Steel 316 Threaded Fittings
316 SS Threaded Elbow

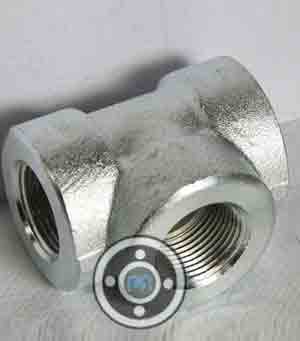

A182 F316 Threaded Tee
Manufacturer of butt-weld SA403 WP316 Stub End , AISI 316 Pipe Bend, UNS S31603 LR/ SR Elbow, Cross, and 45/ 90/ 180 Degree 1.4401 Stainless Steel 3D/ 5D Bends according to EN 10253-3, EN 10253-4 , ASTM, and ASME
SS 316 Pipe Fittings Price List
| Stainless Steel 316 Pipe Fittings Price Per Piece in India | 316 Stainless Steel Weld Fittings Price in INR | A403 WP316 Fittings Price in UAE Dirham | UNS S31600 ButtWeld Fittings Price in USD |
| 8" Nb Sch10s Equal Tee Butt Weld 316 Welded Stainless Steel Per Piece | 7759.19 | UAE Dirham 383.23 | $104.34 |
| 4" Nb Sch10s Cap Butt Weld Seamless 316 Stainless Steel Per Piece | 2770.08 | UAE Dirham 136.82 | $37.25 |

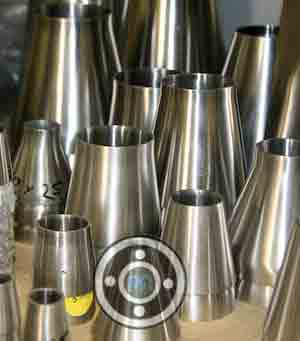

| 2" X 1" Nb Sch10s Concentric Reducer Butt Weld 316 Welded Stainless Steel Per Piece | 1505.14 | UAE Dirham 74.34 | $20.24 |

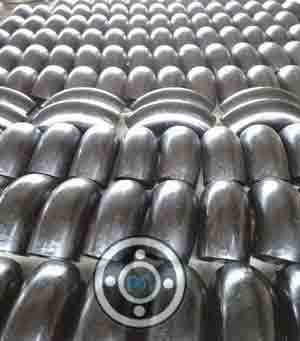

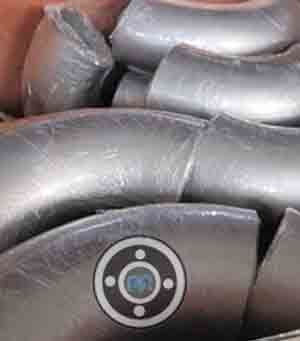

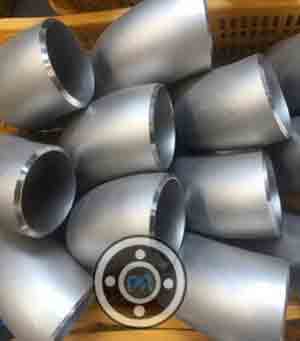

| 5" Nb Sch10s 90° Short Radius Elbow Butt Weld 316 Welded Stainless Steel Per Piece | 2384.13 | UAE Dirham 117.75 | $32.06 |
| 10" Nb Sch10s 90° Long Radius Elbow Butt Weld 316 Welded Stainless Steel Per Piece | 4715.45 | UAE Dirham 232.90 | $63.41 |
| 8" Nb Sch10s Stub End Type A Butt Weld 316 Welded Stainless Steel Per Piece | 4415.02 | UAE Dirham 218.06 | $59.37 |
Check our price with other Stainless Steel 316 Fitting Manufacturer in India Before Purchasing. This is an approximate Price of UNS S31600 Fittings in India. Feel free to contact us latest Stocklist of Stainless Steel 316 Pipe Fittings in Mumbai.
Chemical Composition of ASTM A403 WP316 Buttweld Fittings
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 11.00 - 14.00 | 67.845 min |
SA403 Gr WP316 Weld Fittings Mechanical Analysis
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi - 75000 , MPa - 515 | Psi - 30000 , MPa - 205 | 35 % |
Physical Properties of A182 F316 Forged Fitting
| Grade |
Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Co-eff of Thermal Expansion (µm/m/°C) |
Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Elec Resistivity (nΩ.m) |
|||
| 0-100°C | 0-315°C | 0-538°C | At 100°C | At 500°C | |||||
| ASTM A403 WP316 Pipe Fittings | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
Manufacturer of ASME B16.9 SCH10 316 Stainless Steel Fittings such as ASTM A403 WP316 Flanged Tee, SUS 316 Short Radius 90 Degree Elbow and LR Elbow in Welded & Seamless form
Equivalent Grade of SS 316 Pipe Fittings
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | - | Z7CND17-11-02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
Stainless Steel 316 Pipe Fittings Types

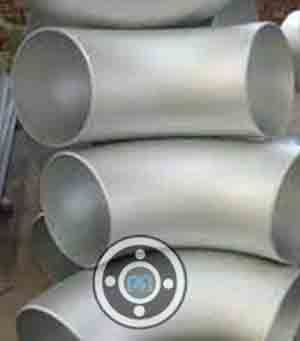

SCH 140 astm a 403 WP 316 90° Long Radius Elbow
A403 gr WP316 90° Short Radius Elbow

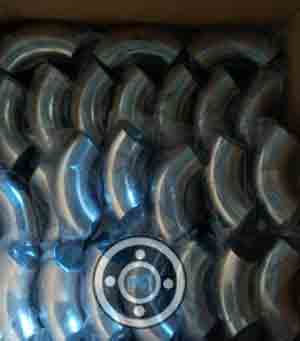

SCH 60 316 SS 45° Long Radius Elbow
316 stainless steel 45° Short Radius Elbow

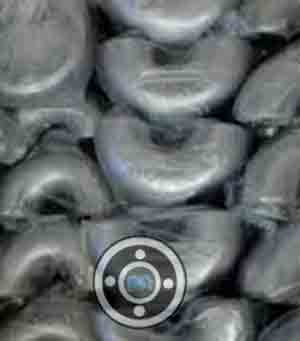

15 NB SCH 100 UNS S31600 180° Long Radius Elbow
ASTM A182 316 180° Short Radius Elbow

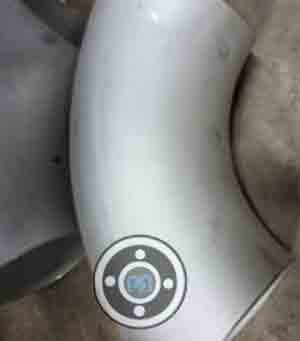

SS 316 1D Elbow

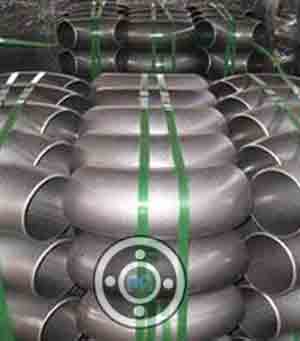

SCH XXS SA403 WP316 1.5D Elbow

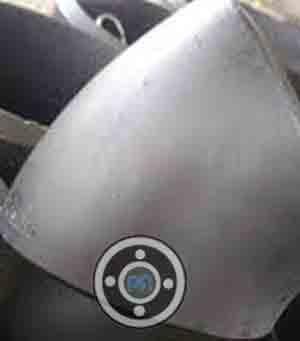

Stainless Steel 316 3D Elbow

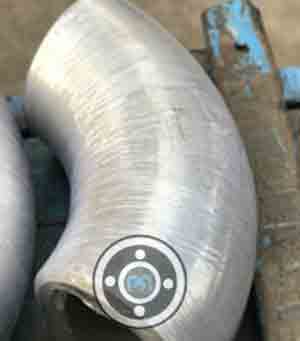

ASTM A403 WP316 5D Elbow

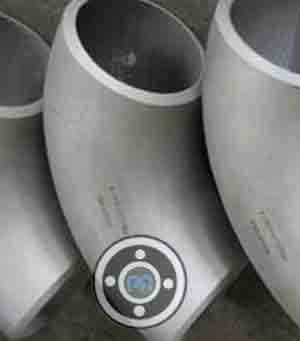

SCH 20 ASME SA403 WP316 10D ELBOW
Din 1.4401 Seamless Buttwelding 45° and 90° Elbows

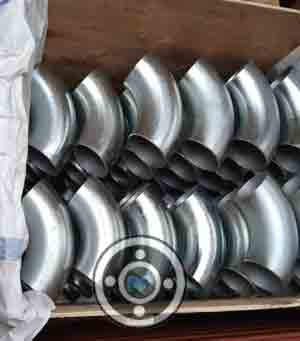

Stainless Steel 316 Welded Elbows

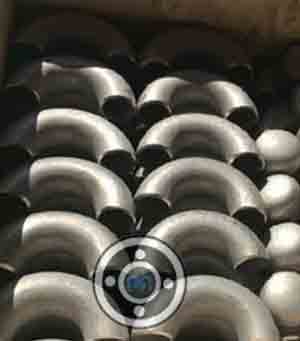

SA403 Gr WP316 Seamless Buttwelding 180° Returns

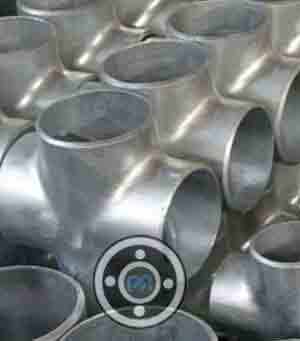

SCH 30 A403 grade WP316 Straight Tees and Crosses
A403 WP316 Reducing Outlet Tees and Reducing Outlet Crosses

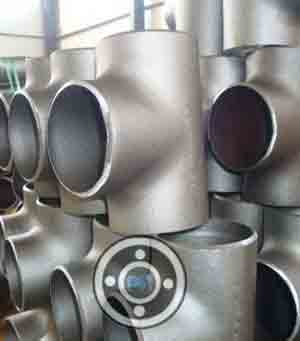

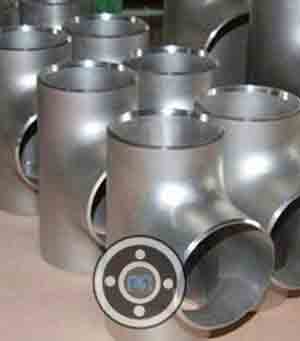

A403 gr WP316 Equal Tee

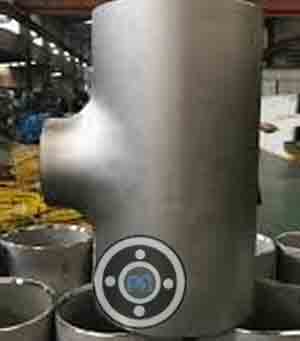

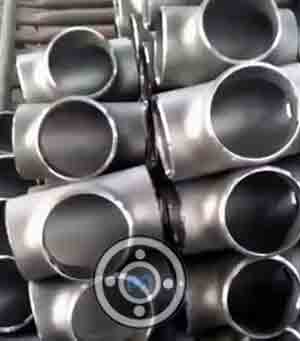

316 stainless steel Reducing Tee

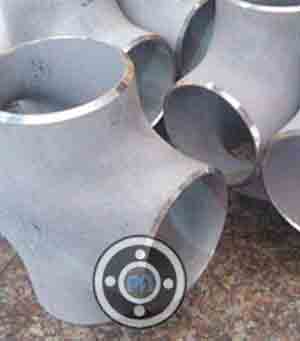

SCH 80 astm a 403 WP 316 Equal Cross

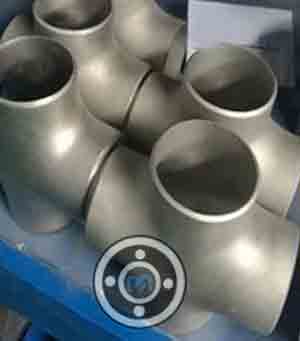

316 stainless steel Reducing Cross

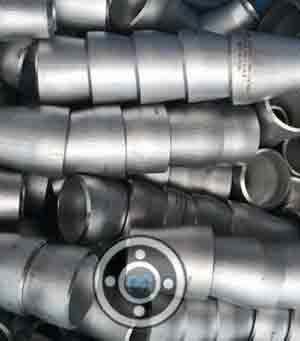

Stainless Steel 316 Reducers

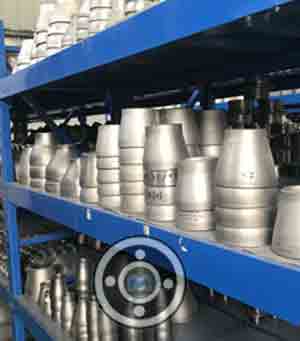

A403 grade WP316 Concentric Reducer

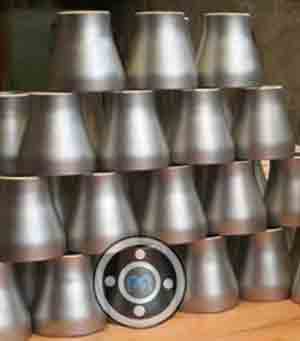

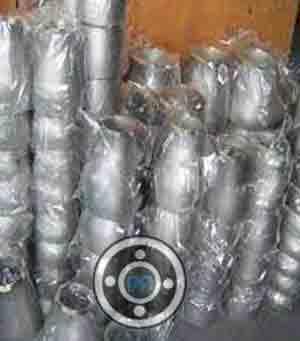

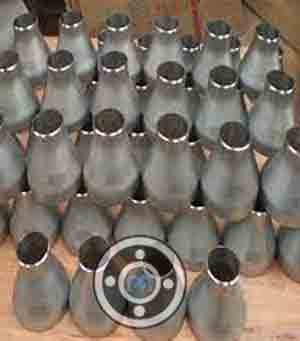

450 NB SCH 40 SA403 Gr WP316 Eccentric Reducer
ASME SA403 WP316 Stub End

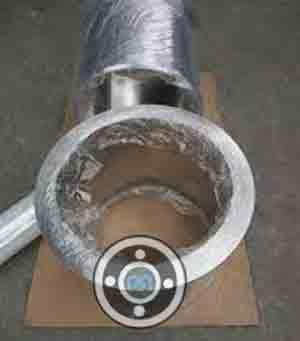

SCH 160 ASTM A182 316 Lap Joint Stub Ends

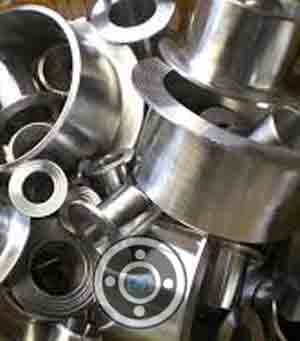

SS 316 Long Stubend

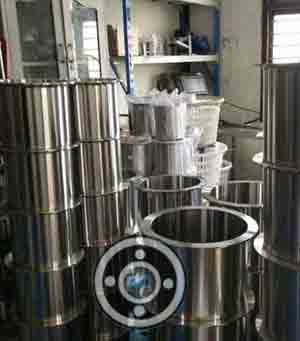

SA403 WP316 Short Stubend

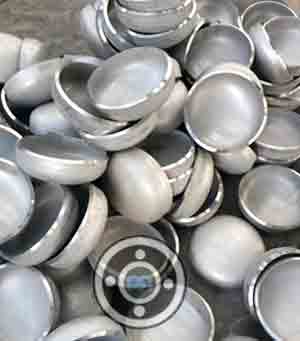

SCH 10 UNS S31600 Pipe Cap
316 SS End Cap

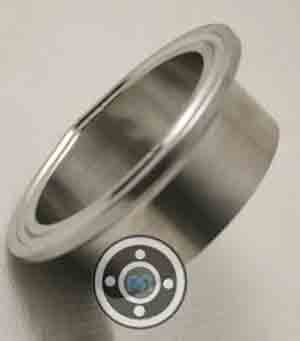

SCH XS Stainless Steel 316 Collar

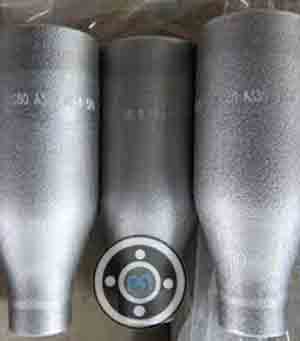

Din 1.4401 Swage Nipple

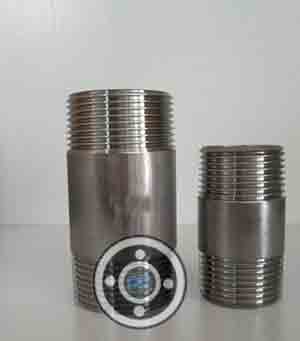

SCH 120 SS 316 Pipe Nipples

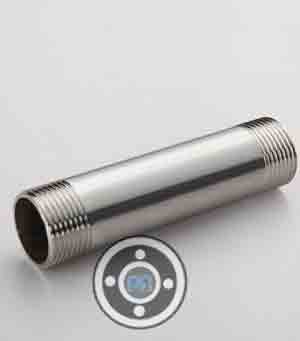

ASTM A182 316 Stainless Steel Barrel Nipple

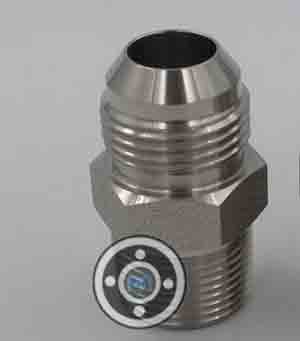

316 stainless steel Reducing Nipple

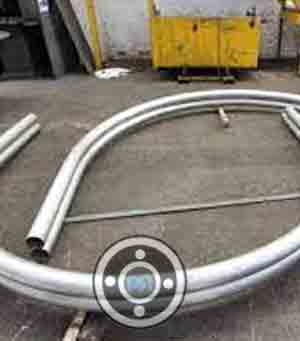

ASTM A403 WP316 Bend

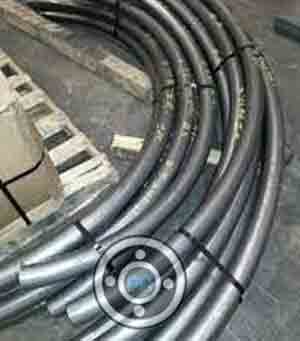

SCH STD A403 WP316 Long Radius Bend
UNS S31600 Reducing Tee Dimensions
| NOMINAL PIPE SIZE | LENGTH | CENTER TO END | OUTSIDE DIAMETER |
|---|---|---|---|
| Inch. | M | C | OD |
| 1/2 | 25 | 25 | 21.3 |
| 3/4 | 29 | 29 | 26.7 |
| 1 | 38 | 38 | 33.4 |
| 1 1/4 | 48 | 48 | 42.2 |
| 1 1/2 | 57 | 57 | 48.3 |
| 2 | 64 | 64 | 60.3 |
| 2 1/2 | 76 | 76 | 73 |
| 3 | 86 | 86 | 88.9 |
| 3 1/2 | 95 | 95 | 101.6 |
| 4 | 105 | 105 | 114.3 |
| 5 | 124 | 124 | 141.3 |
| 6 | 143 | 143 | 168.3 |
| 8 | 178 | 178 | 219.1 |
| 10 | 216 | 216 | 273.1 |
| 12 | 254 | 254 | 323.9 |
| 14 | 279 | 279 | 355.6 |
| 16 | 305 | 305 | 406.4 |
| 18 | 343 | 343 | 457.2 |
| 20 | 381 | 381 | 508 |
| 22 | 419 | 419 | 559 |
| 24 | 432 | 432 | 610 |
| 26 | 495 | 495 | 660 |
| 28 | 521 | 521 | 711 |
| 30 | 559 | 559 | 762 |
| 32 | 597 | 597 | 813 |
| 34 | 635 | 635 | 864 |
| 36 | 673 | 673 | 914 |
| 38 | 711 | 711 | 965 |
| 40 | 749 | 749 | 1016 |
| 42 | 711 | 762 | 1067 |
| 44 | 762 | 813 | 1118 |
| 46 | 800 | 851 | 1168 |
| 48 | 838 | 889 | 1219 |
A403 grade WP316 Tee Size Chart
| Normal Pipe Sizes (NPS) | Outside Daimeter (O.D.) | Center To End | ||
|---|---|---|---|---|
| Inches | D | P | C | M |
| 1/2 x 3/8 | 21.3 | 17.1 | 25 | 25 |
| 1/2 x 1/4 | 21.3 | 13.7 | 25 | 25 |
| 3/4 x 1/2 | 26.7 | 21.3 | 29 | 29 |
| 3/4 x 3/8 | 26.7 | 17.1 | 29 | 29 |
| 1 x 3/4 | 33.4 | 26.7 | 38 | 38 |
| 1 x 1/2 | 33.4 | 21.3 | 38 | 38 |
| 1 1/4 x 1 | 42.2 | 33.4 | 48 | 48 |
| 1 1/4 x 3/4 | 42.2 | 26.7 | 48 | 48 |
| 1 1/4 x 1/2 | 42.2 | 21.3 | 48 | 48 |
| 1 1/2 x 1 1/2 | 48.3 | 42.2 | 57 | 57 |
| 1 1/2 x 1 | 48.3 | 33.4 | 57 | 57 |
| 1 1/2 x 3/4 | 48.3 | 26.7 | 57 | 57 |
| 1 1/2 x 1/2 | 48.3 | 21.3 | 57 | 57 |
| 2 x 1 1/2 | 60.3 | 48.2 | 64 | 60 |
| 2 x 1 1/4 | 60.3 | 42.2 | 64 | 57 |
| 2 x 1 | 60.3 | 33.4 | 64 | 51 |
| 2 x 3/4 | 60.3 | 26.7 | 64 | 44 |
| 2 1/2 x 2 | 73 | 60.3 | 76 | 70 |
| 2 1/2 x 1 1/2 | 73 | 48.3 | 76 | 67 |
| 2 1/2 x 1 1/4 | 73 | 42.2 | 76 | 64 |
| 2 1/2 x 1 | 73 | 33.4 | 76 | 57 |
| 3 x 2 1/2 | 88.9 | 73 | 86 | 83 |
| 3 x 2 | 88.9 | 60.3 | 86 | 76 |
| 3 x 1 1/2 | 88.9 | 48.3 | 86 | 73 |
| 3 x 1 1/4 | 88.9 | 42.2 | 86 | 70 |
| 3 1/2 x 3 | 101.6 | 88.9 | 95 | 92 |
| 3 1/2 x 21/2 | 101.6 | 73 | 95 | 89 |
| 3 1/2 x 2 | 101.6 | 60.3 | 95 | 83 |
| 3 1/2 x 1 1/2 | 101.6 | 48.3 | 95 | 79 |
| 4 x 3 1/2 | 114.3 | 101.6 | 105 | 102 |
| 4 x 3 | 114.3 | 88.9 | 105 | 98 |
| 4 x 2 1/2 | 114.3 | 73 | 105 | 95 |
| 4 x 2 | 114.3 | 60.3 | 105 | 89 |
| 4 x 1 1/2 | 114.3 | 48.3 | 105 | 86 |
| 5 x 4 | 141.3 | 114.3 | 124 | 117 |
| 5 x 3 1/2 | 141.3 | 101.6 | 124 | 114 |
| 5 x 3 | 141.3 | 88.9 | 124 | 111 |
| 5 x 2 1/2 | 141.3 | 73 | 124 | 108 |
| 5 x 2 | 141.3 | 60.3 | 124 | 105 |
| 6 x 5 | 168.3 | 141.3 | 143 | 137 |
| 6 x 4 | 168.3 | 114.3 | 143 | 130 |
| 6 x 3 1/2 | 168.3 | 101.6 | 143 | 127 |
| 6 x 3 | 168.3 | 88.9 | 143 | 124 |
| 6 x 2 1/2 | 168.3 | 73 | 143 | 121 |
| 8 x 6 | 219.1 | 168.3 | 178 | 168 |
| 8 x 5 | 219.1 | 141.3 | 178 | 162 |
| 8 x 4 | 219.1 | 114.3 | 178 | 156 |
| 8 x 3 1/2 | 219.1 | 101.6 | 178 | 152 |
| 10 x 8 | 273.1 | 219.1 | 216 | 203 |
| 10 x 6 | 273.1 | 168.1 | 216 | 194 |
| 10 x 5 | 273.1 | 141.3 | 216 | 191 |
| 10 x 4 | 273.1 | 114.3 | 216 | 184 |
| 12 x 10 | 323.9 | 273.1 | 254 | 241 |
| 12 x 8 | 323.9 | 219.1 | 254 | 229 |
| 12 x 6 | 323.9 | 168.3 | 254 | 219 |
| 12 x 5 | 323.9 | 141.3 | 254 | 216 |
| 14 x 12 | 355.6 | 323.9 | 279 | 270 |
| 14 x 10 | 355.6 | 273.1 | 279 | 257 |
| 14 x 8 | 355.6 | 219.1 | 279 | 248 |
| 14 x 6 | 355.6 | 168.3 | 279 | 238 |
| 16 x 14 | 406.4 | 355.6 | 305 | 305 |
| 16 x 12 | 406.4 | 323.9 | 305 | 295 |
| 16 x 10 | 406.4 | 273.1 | 305 | 283 |
| 16 x 8 | 406.4 | 219.1 | 305 | 273 |
| 16 x 6 | 406.4 | 168.3 | 305 | 264 |
| 18 x 16 | 457 | 406.4 | 343 | 330 |
| 18 x 14 | 457 | 355.6 | 343 | 330 |
| 18 x 12 | 457 | 323.9 | 343 | 321 |
| 18 x 10 | 457 | 273.1 | 343 | 308 |
| 18 x 8 | 457 | 219.1 | 343 | 298 |
| 20 x 18 | 508 | 457 | 381 | 368 |
| 20 x 16 | 508 | 406.4 | 381 | 356 |
| 20 x 14 | 508 | 355.6 | 381 | 356 |
| 20 x 12 | 508 | 323.9 | 381 | 346 |
| 20 x 10 | 508 | 273.1 | 381 | 333 |
| 20 x 8 | 508 | 219.1 | 381 | 324 |
| 22 x 20 | 559 | 508 | 419 | 406 |
| 22 x 18 | 559 | 457 | 419 | 394 |
| 22 x 16 | 559 | 406.4 | 419 | 381 |
| 22 x 14 | 559 | 355.6 | 419 | 381 |
| 22 x 12 | 559 | 323.9 | 419 | 371 |
| 24 x 10 | 559 | 273.1 | 419 | 359 |
| 24 x 22 | 610 | 559 | 432 | 432 |
| 24 x 20 | 610 | 508 | 432 | 432 |
| 24 x 18 | 610 | 457 | 432 | 419 |
| 24 x 16 | 610 | 406.4 | 432 | 406 |
| 24 x 14 | 610 | 355.6 | 432 | 406 |
| 24 x 12 | 610 | 323.9 | 432 | 397 |
| 24 x 10 | 610 | 273.1 | 432 | 384 |
SS 316 Elbow Weight
| NPS | KG | LBS |
| 1/2 | 0.11 | 0.25 |
| 3/4 | 0.11 | 0.25 |
| 1 | 0.23 | 0.5 |
| 1¼ | 0.41 | 0.9 |
| 1½ | 0.52 | 1.15 |
| 2 | 1 | 2.2 |
| 2½ | 1.81 | 4 |
| 3 | 2.95 | 6.5 |
| 3½ | 3.79 | 8.35 |
| 4 | 6.12 | 13.5 |
| 5 | 9.98 | 22 |
| 6 | 15.88 | 35 |
| 8 | 32.21 | 71 |
| 10 | 48.53 | 107 |
| 12 | 72.57 | 160 |
| 14 | 92.99 | 205 |
| 16 | 125.19 | 276 |
| 18 | 154.22 | 340 |
| 20 | 190.51 | 420 |
| 22 | 235.87 | 520 |
| 24 | 272.16 | 600 |
| 26 | 330.67 | 729 |
| 30 | 442.25 | 975 |
| 36 | 640.47 | 1412 |
Hs Code For Ss 316 Fittings
| Hs Code | 7307 |
Stainless Steel 316 Elbow
4" Nb Sch10s Stainless Steel 316 Elbow
5" Nb Sch10s 90° Short Radius Elbow Butt Weld 316 Stainless Steel
2" Nb Sch10s 90° Short Radius Elbow Butt Weld 316 Welded Stainless Steel
316 Stainless Steel Reducer
1" X 3/4" Nb Sch10s Eccentric Reducer 316 Stainless Steel
2" X 1/2" Nb Sch10s Concentric Reducer 316 Stainless Steel
2" X 1/2" Nb Sch10s Eccentric Reducer 316 Stainless Steel
316 Stainless Steel Tee
1-1/2" X 1-1/4" Nb Sch10s Reducing Tee 316 Stainless Steel
6" Nb Sch10s Equal Tee Butt Weld 316 Stainless Steel
2" X 1-1/2" Nb Sch10s Reducing Tee 316 Stainless Steel
SA403 WP316 End Cap Temperature Range
| Intermittent service | up to 1600°F |
| Continuous service | up to 1700°F |
Heat Treatment of Stainless Steel 316 Pipe Fittings
| Heat Treatment | 1010-1120 °C |
ASTM A403 WP316 Fittings Application
- Oil & Gas Industry
- Paper & Pulp
- Marine Applications
- Fossil Fuel Power Plants
- Ship Building
- Refineries
- Power Plants
- Nuclear Plants
We are Stainless Steel 316 Fitting Manufacturer in India and Supply in Below Countries
316 stainless steel pipe fittings
Kuala Lumpur, Indonesia, Tehran -Iran, South Korea, Poland, United States, Qatar, Dubai
316 stainless steel socket weld fittings
Iran, Netherlands, Jakarta -Indonesia, Romania Dubai- UAE, Singapore, Malaysia, France
schedule 40 316 stainless steel pipe fittings
Norway, Czechia, Chile, Nigeria, Vietnam, Kuwait, Belgium, Europe, Germany, South Africa, Malaysia
316 ss tube fittings
Bangladesh, Finland, Oman, Argentina, Istanbul- Turkey, Jakarta, NY 12203 (USA), Bahrain, Brazil, Hong Kong
A403 grade WP316 Reducer
USA, States, Japan, United Kingdom (UK), Thailand, Malaysia, Ellington -United Saudi Arabia (KSA), Spain
ASME SA403 WP316 Elbow
Los Alamos -Mexico, Philippines, Turkey, Dammam -KSA, Greece, Austria, Canada, Singapore
