Alloy Steel WP5 Elbow & SA 234 Gr WP5 Tee Fittings manufacturer in India
What is ASTM A234 WP5 Fittings?
The ASTM A234 covers the fittings made up of alloy steel and wrought carbon steel. These are mainly of seamless and welded constructions. The ASTM A234 WP5 Fittings is mainly used for applications involving pressure piping systems in the average or elevated temperature surroundings. The WP5 is the grade of the steel that stands for W- welded, P-pressure and 5 is the grade. This alloy steel material is also used for the fabrication of the piping system.
The ASTM A234 WP5 Fittings are available in different types, they have varied structure and hence performs different types of functions, like:
- Tee- These are T-shaped fittings with two outlets present at an angle of 45 or 90 degrees and only one inlet.
- Cross- These are shaped like a cross with three inlets and one outlet, or vice-versa. These fittings come handy for small spaces.
- Elbow- They have sharp bends and are mostly used for changing the direction, pressure and volume of the liquid flow.
- Reducer- They have a big diameter and a small diameter on each end, and they are mainly of two types; concentric reducer and eccentric reducer.
There are several other types of ASTM A234 WP5 Fittings available and each of them perform various functions in a similar environment.
The ASTM A234 WP5 Fittings also comes with several advantages, some of them has been listed below:
- To offer good resistance to general corrosion.
- They have high strength.
- They are also resistant to sulfide stress corrosion cracking.
- The fittings also offer great resistance to crevice corrosion as well as chloride pitting.
- They possess high weldability.
The ASTM A234 WP5 Fittings are available in both welded and seamless variants. They are mostly designed using the steel piping, whereas the bigger sized fittings are first welded and then the pieces are joined together.
A234 Gr. WP5 Concentric Reducer Vs SA234 WP5 Eccentric Reducer
The A234 Gr. WP5 Concentric Reducer is mainly used when vertical installation is done of the pipework and that too at the discharged side of the pump. The SA234 WP5 Eccentric Reducer is however used mostly when the pipework lay over the rack, i.e, when the pipe is installed horizontally. Because of the presence of the flat side, proper alignment and secured options, mounting the pipes to the racks becomes easier. Thus, it can be said that the selection of the concentric and eccentric reducers are done on the basis of liquid or gas discharge direction, as required by the process.
How To Inspect ASTM A234 Grade WP5 Tee?
The Inspection of ASTM A234 Grade WP5 Tee is generally carried out during its manufacturing process. Several inspections and tests are conducted to ensure the quality of tee. These inspections are done both by the manufacturing companies and third-parties for detailed results.
Some of common types of tests conducted on the ASTM A234 Grade WP5 Tee would include:
- Hydrotest- It is carried out on special request of the purchaser. It helps to determine that the tee is able to withstand the pressure which is required by the applicable piping code.
- Proof test- It is done to ensure that the tee meets all the design standards and code requirements.
- Non-destructive testing- This would include different types of testing like radiography, ultrasonic, liquid penetrant, magnetic particle, and positive material identification test which helps determine the soundness of the product.
- Destructive test- It helps to inspect the strength and weld of the tee.
- Metallurgical test- It is conducted to confirm if the body and weld of the tee meets the standard requirements.
- Special test- These tests help to understand whether the fitting will be able to withstand different types of corrosive environments.
Apart from these visual inspection of the tee is also carried out. The clients receive the products only after the products successfully pass all these tests.
ASTM A234 WP5 Fittings
European Directive 2014/68/eu certified ASTM A234 WP5 Fittings manufacturers in India offers wide selection of A234 Gr WP5 Pipe Cap and Eccentric / Concentric Reducer in Mumbai
How To Order A234 Gr WP5 Fittings?
Clients should order the A234 Gr WP5 Fittings from reputed manufacturers, who use high-quality raw materials. The quality of the raw materials and the overall manufacturing process impact the quality of the end product. Clients can directly call the manufacturers and take suggestions from them about the type and dimension of A234 Gr WP5 Fittings they would require. It varies with the purpose and the type of industry where the fittings will be used. Purchasers can talk to the manufacturers about the same, brief their ultimate requirements, and suggestions for the right products along with accurate dimensions will be made accordingly.
ASME SA234 Gr WP5 45 Degree Elbow Vs ASTM A234 WP5 90 Degree Elbow
The function of the ASME SA234 Gr WP5 45 Degree Elbow is same as that of the ASTM A234 WP5 90 Degree Elbow, but their measurements of dimensions are slightly different. They both perform a similar function of changing the direction of flow, but the angle of change is 45 and 90 degrees accordingly. It is to be noted that the radius of ASME SA234 Gr WP5 45 Degree Elbow and ASTM A234 WP5 90 Degree Elbow are same, but the center to face dimensions are not equivalent in both the cases.
Table of Content
- Material Specification of ASTM A234 WP5 Fittings
- Alloy Steel WP5 Reducer Size Range
- Dimensions Table of SA234 Gr Wp5 Reducer
- AS Grade WP5 Tee Dimensions Chart
- A234 Wp5 Cl1 Tee Weight Chart
- Price list of ASTM A234 WP5 Fittings
- ASTM A234 Grade WP5 Elbow
- ASME SA234 WP5 Reducer
- Alloy steel Gr WP5 Tee
- Hardness of A234 WP5 Material
- SA234 Gr WP5 Fittings Temperature Range
- Most Selling Types of ASTM A234 WP5 Fittings
- Pressure Rating of Alloy Steel Grade WP5 Fittings
- ASTM A234 Gr WP5 Fittings Dimension Table
- A234 WP5 Chemical Composition
- SA234 Gr WP5 Fittings Mechanical Properties
- A234 WP5 Cl1 Pipe Fittings For Sale
- Features of Chrome Moly A234-WP5 Buttweld Fittings
- Alloy Steel WP5 Fittings Material Testing
- ASME SA 234 WP5 Fittings Applications
Material Specification of ASTM A234 WP5 Fittings
| ASTM A234 WP5 Fittings Specifications | ASTM A234 |
|---|---|
| ASTM A234 Gr WP5 Fittings Thickness | SCH30, SCH10, SCH 160, SCH20, SCH60, XS, STD SCH40, SCH 80, SCH 120, SCH 140, SCH 100, XXS available with NACE MR 01-75 |
| Alloy Steel Grade WP5 Fittings Type Manufacturer | DN15-DN1200 |
| ASTM A234 WP5 Fittings Dimensions | ASME B16.28, ASME/ANSI B16.9, BS4504, MSS-SP-43, BS1560, BS4504, BS10 |
| SA234 Gr WP5 Fittings Sizes | ASME SA 234 WP5 Seamless Fittings: 1/2" - 10"
ASME B16 9 A234 Wp5 Cl1 Welded Fittings: 1/2" - 48" |
| A234 Wp5 Cl1 Buttweld Fittings Connection | Welding |
| ASME B16.9 ASTM A234 WP5 Fittings Test Certificates | EN 10204/3.1B
Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Bending Radius Provided By Manufacturer | R=1D, 3D, 2D, 5D, 8D, 6D, 10D or Custom Alloy Steel Grade WP5 Fittings |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Alloy Steel WP5 Fittings |
| AS Grade WP5 Elbows Manufacturer | Angle : 22.5 deg, 45 deg, 30deg, 90 deg, 1.0D, 180 deg, 1.5D, 3D, 2.5D, 2.0D, 4D, 6D, 5D, 7D-40D .
Standard: ASME B16.28, GB, ASME B16.9, MSS SP-75 JISB2311 DIN2605 JISB2312 JISB2313, ASME B16.25, BS, ISO |
| Dimension Specification | MSS SP-79, 95, 83, 97, BS 3799, ASME 16.11 |
| Specialized manufacturer of | A234 grade WP5 crmo Stub End, 90º Elbows, Tees, Pipe Cap, Crosses, 45º Elbows, Reducers, Pipe Bend |
| ASTM A234 WP5 Fittings Manufacturing process | Push, Forge, Press, Cast, etc. |
| SA234 Gr Wp5 Buttweld Fittings Thread Provided By Manufacturer | BSPT, NPT, BSPP |
| SA234 Gr WP5 Fittings Origin & Mills | European, Japanese, USA, Korean, Ukraine, Indian, Russian |
| A234 WP5 Fittings Pressure Rating | Threaded end - 3000lb/ 2000lb/ 6000lbs
Socket weld end- 6000/ 3000/ 9000lbs |
| Alloy steel Gr WP5 Products Manufacturer | Half Coupling, Union, Tee, Cross, Coupling, Cap, Outlet, Welding Outlet, Boss, Insert |
| Application of Industrial ASME SA 234 Grade WP5 Fittings |
|
Biggest ASTM A234 Grade WP5 Elbow importer, wholesalers, stockists,distributor, exporters, dealers, stockholders, supplier and Manufacturer in Mumbai
Alloy Steel WP5 Reducer Size Range
| GRADE | SCHEDULE | NOM. PIPE SIZE |
|---|---|---|
| WP-S | SCH 10S | 1/2″ - 12″ |
| SCH 40S | 1/2″ - 12″ | |
| SCH 80S | 1/2″ - 12″ |
Dimensions Table of SA234 Gr Wp5 Reducer
| Nominal Pipe Size |
Outside Diameter |
Reducers | ||
|---|---|---|---|---|
| Reduced from (inches) |
(inches) | (mm) | Concentric & Eccentric Length (inches) |
Reduced to (inches) |
| 1/2 | 0.840 | 21.3 | 1 1/2 | 1/4 |
| 1 1/2 | 3/8 | |||
| 3/4 | 1.050 | 26.7 | 2 | 3/8 |
| 2 | 1/2 | |||
| 1 | 1.315 | 33.4 | 2 | 3/8 |
| 2 | 1/2 | |||
| 2 | 3/4 | |||
| 1 1/4 | 1.660 | 42.2 | 2 | 1/2 |
| 2 | 3/4 | |||
| 2 | 1 | |||
| 1 1/2 | 1.900 | 48.3 | 2 1/2 | 1/2 |
| 2 1/2 | 3/4 | |||
| 2 1/2 | 1 | |||
| 2 1/2 | 1 1/4 | |||
| 2 | 2.375 | 60.3 | 3 | 3/4 |
| 3 | 1 | |||
| 3 | 1 1/4 | |||
| 3 | 1 1/2 | |||
| 2 1/2 | 2.875 | 73.0 | 3 1/2 | 1 |
| 3 1/2 | 1 1/4 | |||
| 3 1/2 | 1 1/2 | |||
| 3 1/2 | 2 | |||
| 3 | 3.500 | 88.9 | 3 1/2 | 1 |
| 3 1/2 | 1 1/2 | |||
| 3 1/2 | 2 | |||
| 3 1/2 | 2 1/2 | |||
| 3 1/2 | 4.000 | 101.6 | 4 | 1 1/4 |
| 4 | 1 1/2 | |||
| 4 | 2 | |||
| 4 | 2 1/2 | |||
| 4 | 3 | |||
| 4 | 4.500 | 114.3 | 4 | 1 1/2 |
| 4 | 2 | |||
| 4 | 2 1/2 | |||
| 4 | 3 | |||
| 4 | 3 1/2 | |||
| 5 | 5.563 | 141.3 | 5 | 2 |
| 5 | 2 1/2 | |||
| 5 | 3 | |||
| 5 | 3 1/2 | |||
| 5 | 4 | |||
| 6 | 6.625 | 168.3 | 5 1/2 | 2 1/2 |
| 5 1/2 | 3 | |||
| 5 1/2 | 3 1/2 | |||
| 5 1/2 | 4 | |||
| 5 1/2 | 5 | |||
| 8 | 8.625 | 219.1 | 6 | 3 |
| 6 | 3 1/2 | |||
| 6 | 4 | |||
| 6 | 5 | |||
| 6 | 6 | |||
| 10 | 10.750 | 273.1 | 7 | 4 |
| 7 | 5 | |||
| 7 | 6 | |||
| 7 | 8 | |||
| 12 | 12.750 | 323.9 | 8 | 5 |
| 8 | 6 | |||
| 8 | 8 | |||
| 8 | 10 | |||
1/2" - 32" NB seamless butt weld SA 234 WP5 Buttweld Fittings and Alloy Steel ASTM A234 WP5 Stub End manufacturer in India
AS Grade WP5 Tee Dimensions Chart
| NOMINAL PIPE SIZE | LENGTH | CENTER TO END | OUTSIDE DIAMETER |
|---|---|---|---|
| Inch. | M | C | OD |
| 1/2 | 25 | 25 | 21.3 |
| 3/4 | 29 | 29 | 26.7 |
| 1 | 38 | 38 | 33.4 |
| 1 1/4 | 48 | 48 | 42.2 |
| 1 1/2 | 57 | 57 | 48.3 |
| 2 | 64 | 64 | 60.3 |
| 2 1/2 | 76 | 76 | 73 |
| 3 | 86 | 86 | 88.9 |
| 3 1/2 | 95 | 95 | 101.6 |
| 4 | 105 | 105 | 114.3 |
| 5 | 124 | 124 | 141.3 |
| 6 | 143 | 143 | 168.3 |
| 8 | 178 | 178 | 219.1 |
| 10 | 216 | 216 | 273.1 |
| 12 | 254 | 254 | 323.9 |
| 14 | 279 | 279 | 355.6 |
| 16 | 305 | 305 | 406.4 |
| 18 | 343 | 343 | 457.2 |
| 20 | 381 | 381 | 508 |
| 22 | 419 | 419 | 559 |
| 24 | 432 | 432 | 610 |
| 26 | 495 | 495 | 660 |
| 28 | 521 | 521 | 711 |
| 30 | 559 | 559 | 762 |
| 32 | 597 | 597 | 813 |
| 34 | 635 | 635 | 864 |
| 36 | 673 | 673 | 914 |
| 38 | 711 | 711 | 965 |
| 40 | 749 | 749 | 1016 |
| 42 | 711 | 762 | 1067 |
| 44 | 762 | 813 | 1118 |
| 46 | 800 | 851 | 1168 |
| 48 | 838 | 889 | 1219 |
A234 Wp5 Cl1 Tee Weight Chart
| NPS | KG | LBS |
| 1/2 | 0.16 | 0.35 |
| 3/4 | 0.2 | 0.45 |
| 1 | 0.34 | 0.75 |
| 1¼ | 0.59 | 1.3 |
| 1½ | 0.91 | 2 |
| 2 | 1.59 | 3.5 |
| 2½ | 2.72 | 6 |
| 3 | 3.18 | 7 |
| 3½ | 4.08 | 9 |
| 4 | 5.44 | 12 |
| 5 | 9.53 | 21 |
| 6 | 15.42 | 34 |
| 8 | 24.95 | 55 |
| 10 | 38.56 | 85 |
| 12 | 54.43 | 120 |
| 14 | 74.84 | 165 |
| 16 | 88.45 | 195 |
| 18 | 112.94 | 249 |
| 20 | 155.13 | 342 |
| 22 | 187.79 | 414 |
| 24 | 239.5 | 528 |
| 26 | 349.27 | 770 |
| 30 | 480.81 | 1060 |
| 36 | 675.85 | 1490 |
Schedules 10/ 40 Welded A234 Gr WP5 Reducing/ Equal/ Unequal/ Lateral Tee and Low Alloy ASTM A234 WP5 Cross Fittings manufacturer in India, check WP5 material chemical composition and price in Asia
Price list of ASTM A234 WP5 Fittings
| ASTM A234 WP5 Fittings Price Per Piece in India | Alloy Steel WP5 Fittings Price in INR | A234 WP5 Buttweld Fittings Price in UAE Dirham | SA234 Gr WP5 Fittings Price in USD |
| 90d Elbow ASTM A234 Wp5 Per Kg | 178.84 | UAE Dirham 8.82 | $2.4 |
| ASTM A234 Wp5 Butt Weld Fitting Seamless Tee Per Kg | 521.60 | UAE Dirham 25.71 | $7 |
| Pipe Elbow 90 Lr, Smls Pipe Fittings ASTM A234 Wp5 Class 1 Per Kg | 143.07 | UAE Dirham 7.05 | $1.92 |
| A234 Wp5 3" Sch40 Eccentric Reducer Per Kg | 212.37 | UAE Dirham 10.47 | $2.85 |
ASTM A234 WP5 Fittings Manufacturer in India. We are supplying the SA234 Gr WP5 Fittings in various Sizes & Dimensions so that we can meet the demand for various applications. Compare Price list of ASTM A234 Grade WP5 Elbow with other Manufacturers.
ASTM A234 Grade WP5 Elbow
A234 WP5 4 Inch 90 Degree Elbow
ASTM A234 WP5 90D Sch 20 Elbows
ASTM A234 Grade WP5 Elbow SCH40
ASME SA234 WP5 Reducer

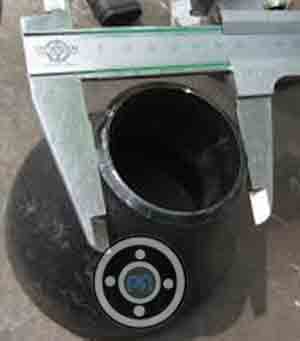

ASTM A234 WP5 Eccentric Reducer

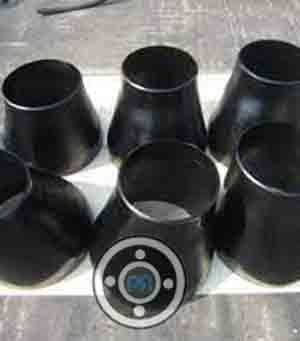

A234 WP5 24"*20" STD Concentric Reducer

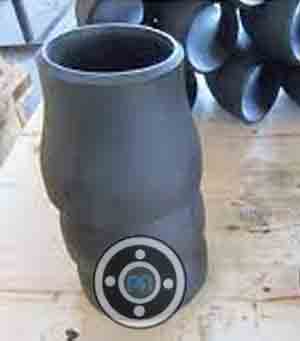

B16.9 SA234 WP5 Butt weld Reducer 6"X4" SCH 40
Alloy steel Gr WP5 Tee

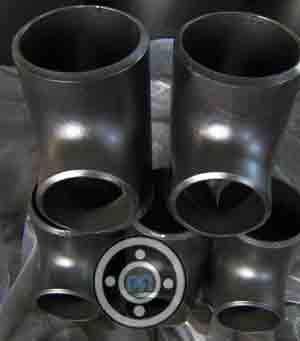

ASTM A234 alloy steel WP5 Tee

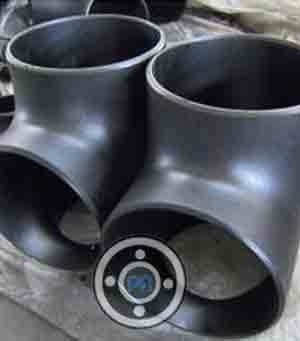

ANSI B16.9 BW A234 wp5 Equal Tee

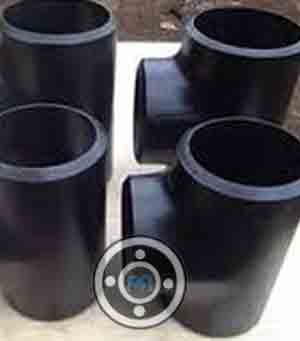

A234 WP5 Reducing Tee b16.9 BW
Hardness of A234 WP5 Material
| Hardness | 217 HBW |
SA234 Gr WP5 Fittings Temperature Range
| Temperature Range | 620℃ [1150℉] |
Most Selling Types of ASTM A234 WP5 Fittings
SA234 Gr Wp5 Short Stubend
SCH 60 ASME SA 234 Grade WP5 90° Long Radius Elbow
ASME SA234 WP5 Reducing Outlet Tees and Reducing Outlet Crosses
15 NB SCH 100 AS A234 WP5 Equal Tee
ASME SA 234 WP5 5D Elbow
ASTM A234 Wp5 Gr Cl1 45° Short Radius Elbow
ASTM A234 Chrome Moly WP5 Reducing Nipple
Chrome Moly A234-WP5 90° Short Radius Elbow
A234 WP5 Welded Elbows
SCH XS SA234 Wp5 Equal Cross
SCH STD ASME SA 234 Grade WP5 Straight Tees and Crosses
Alloy Steel Grade WP5 Reducing Cross
Alloy Steel Grade WP5 Barrel Nipple
Alloy Steel cl1 WP5 Lap Joint Stub Ends
SCH 30 Alloy steel Gr WP5 Stub End
SCH 80 Alloy Steel WP5 180° Short Radius Elbow
SCH 120 AS Grade WP5 Long Stubend
ASME SA 234 WP5 Long Radius Bend
SCH 20 Alloy Steel cl1 WP5 Pipe Nipples
ASTM A234 Chrome Moly WP5 1D Elbow
A234 WP5 Concentric Reducer
SCH XXS Chrome Moly A234-WP5 45° Long Radius Elbow
SCH 10 ASME SA234 WP5 10D ELBOW
SCH 140 A234 grade WP5 crmo Bend
SA234 Weldable Pressure 5 Seamless Buttwelding 180° Returns
A234 Wp5 Cl1 Swage Nipple
SA234 Wp5 Eccentric Reducer
AS A234 WP5 1.5D Elbow
Alloy Steel WP5 Pipe Cap
ASTM A234 WP5 End Cap
450 NB SCH 40 A234 Wp5 Cl1 3D Elbow
SA234 Gr Wp5 Seamless Buttwelding 45° and 90° Elbows
Chromium A234 Grade WP5 Collar
A234 grade WP5 crmo Reducing Tee
ASTM A234 Gr WP5 180° Long Radius Elbow
SCH 160 AS Grade WP5 Reducers
Manufacturer of SCH 10 / SCH 40 ASTM A234 WP5 Buttweld Elbow 90 Deg LR, Return Bends and SA 234 Gr WP5 SR Elbow in India according to ASME B16.9
Pressure Rating of Alloy Steel Grade WP5 Fittings
| Normal Size Of Pipe (inches) |
Pipe Sch | OD
(inch) |
Wall Thick. (inch) |
Temperature (oF) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 | 750 | ||||
| Allowable Stress (psi) | ||||||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | 13500 | 13200 | 12900 | 12600 | ||||
| 1" | 40 | 1.315 | 0.133 | 2205 | 2205 | 2205 | 2047 | 1902 | 1783 | 1743 | 1703 | 1664 |
| 80 | 1.315 | 0.179 | 3061 | 3061 | 3061 | 2841 | 2640 | 2475 | 2420 | 2365 | 2310 | |
| 160 | 1.315 | 0.250 | 4493 | 4493 | 4493 | 4170 | 3874 | 3632 | 3552 | 3471 | 3390 | |
| 1 1/2" | 40 | 1.900 | 0.145 | 1629 | 1629 | 1629 | 1512 | 1404 | 1317 | 1287 | 1258 | 1229 |
| 80 | 1.900 | 0.200 | 2303 | 2303 | 2303 | 2138 | 1986 | 1862 | 1821 | 1779 | 1738 | |
| 160 | 1.900 | 0.281 | 3362 | 3362 | 3362 | 3120 | 2899 | 2717 | 2657 | 2597 | 2536 | |
| 2" | 40 | 2.375 | 0.154 | 1371 | 1371 | 1371 | 1272 | 1182 | 1108 | 1083 | 1059 | 1034 |
| 80 | 2.375 | 0.218 | 1985 | 1985 | 1985 | 1843 | 1712 | 1605 | 1569 | 1534 | 1498 | |
| 160 | 2.375 | 0.344 | 3283 | 3283 | 3283 | 3047 | 2831 | 2654 | 2595 | 2536 | 2477 | |
| 3" | 40 | 3.500 | 0.216 | 1301 | 1301 | 1301 | 1208 | 1122 | 1052 | 1028 | 1005 | 982 |
| 80 | 3.500 | 0.300 | 1844 | 1844 | 1844 | 1712 | 1590 | 1491 | 1458 | 1425 | 1391 | |
| 160 | 3.500 | 0.438 | 2787 | 2787 | 2787 | 2587 | 2403 | 2253 | 2203 | 2153 | 2103 | |
| 4" | 40 | 4.500 | 0.237 | 1102 | 1102 | 1102 | 1023 | 950 | 891 | 871 | 851 | 831 |
| 80 | 4.500 | 0.337 | 1596 | 1596 | 1596 | 1482 | 1377 | 1291 | 1262 | 1233 | 1204 | |
| 160 | 4.500 | 0.531 | 2611 | 2611 | 2611 | 2424 | 2552 | 2111 | 2064 | 2017 | 1970 | |
| 5" | 40 | 5.563 | 0.258 | 965 | 965 | 965 | 896 | 832 | 780 | 763 | 746 | 728 |
| 80 | 5.563 | 0.375 | 1428 | 1428 | 1428 | 1325 | 1231 | 1154 | 1129 | 1103 | 1077 | |
| 160 | 5.563 | 0.625 | 2474 | 2474 | 2474 | 2296 | 2133 | 2000 | 1955 | 1911 | 1866 | |
| 6" | 40 | 6.625 | 0.280 | 877 | 877 | 877 | 814 | 756 | 709 | 693 | 677 | 661 |
| 80 | 6.625 | 0.432 | 1379 | 1379 | 1379 | 1280 | 1189 | 1115 | 1090 | 1065 | 1040 | |
| 160 | 6.625 | 0.719 | 2382 | 2382 | 2382 | 2211 | 2054 | 1925 | 1883 | 1840 | 1797 | |
| 8" | 40 | 8.625 | 0.322 | 771 | 771 | 771 | 716 | 665 | 623 | 610 | 596 | 582 |
| 80 | 8.625 | 0.500 | 1218 | 1218 | 1218 | 1131 | 1050 | 985 | 963 | 941 | 919 | |
| 160 | 8.625 | 0.906 | 2298 | 2298 | 2298 | 2133 | 1982 | 1858 | 1817 | 1775 | 1734 | |
| 10" | 40 | 10.750 | 0.365 | 699 | 699 | 699 | 649 | 603 | 565 | 553 | 540 | 528 |
| 80 | 10.750 | 0.594 | 1159 | 1159 | 1159 | 1075 | 999 | 937 | 916 | 895 | 874 | |
| 160 | 10.750 | 1.125 | 2289 | 2289 | 2289 | 2124 | 1974 | 1850 | 1809 | 1768 | 1727 | |
ASTM A234 Gr WP5 Fittings Dimension Table
| Nominal Pipe Size | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
|
(inches)
|
Long Radius
|
Short Radius
|
Long Radius
|
Long Radius
|
||||
|
(mm)
|
(inches)
|
Center to Face
(inches) |
Center to Face
(inches) |
Center to Face
(inches) |
Radius
(inches) |
Center to Center
(inches) |
Back to face
(inches) |
|
|
1/2
|
21.3
|
0.840
|
1 1/2
|
-
|
5/8
|
2
|
1 7/8
|
|
|
3/4
|
26.7
|
1.050
|
1 1/8
|
-
|
7/16
|
2 1/4
|
1 11/16
|
|
|
1
|
33.4
|
1.315
|
1 1/2
|
1
|
7/8
|
3
|
2 3/16
|
|
|
1 1/4
|
42.2
|
1.660
|
1 7/8
|
1 1/4
|
1
|
3 3/4
|
2 3/4
|
|
|
1 1/2
|
48.3
|
1.900
|
2 1/4
|
1 1/2
|
1 1/8
|
3
|
4 1/2
|
3 1/4
|
|
2
|
60.3
|
2.375
|
3
|
2
|
1 3/8
|
4
|
6
|
4 3/16
|
|
2 1/2
|
73.0
|
2.875
|
3 3/4
|
2 1/2
|
1 3/4
|
5
|
7 1/2
|
5 3/16
|
|
3
|
88.9
|
3.500
|
4 1/2
|
3
|
2
|
6
|
9
|
6 1/4
|
|
3 1/2
|
101.6
|
4.000
|
5 1/4
|
3 1/2
|
2 1/4
|
7
|
10 1/2
|
7 1/4
|
|
4
|
114.3
|
4.500
|
6
|
4
|
2 1/2
|
8
|
12
|
8 1/4
|
|
5
|
141.3
|
5.563
|
7 1/2
|
5
|
3 1/8
|
10
|
15
|
10 5/16
|
|
6
|
168.3
|
6.625
|
9
|
6
|
3 3/4
|
12
|
18
|
12 5/16
|
|
8
|
219.1
|
8.625
|
12
|
8
|
5
|
12
|
24
|
16 5/16
|
|
10
|
273.1
|
10.750
|
15
|
10
|
6 1/4
|
15
|
30
|
20 3/8
|
|
12
|
323.9
|
12.750
|
18
|
12
|
7 1/2
|
18
|
36
|
24 3/8
|
A234 WP5 Chemical Composition
| Grade | C | Mn | Si | S | P | Cr | Mo |
| ASTM A234 WP5 | ≤0.15 | ≤0.6 | ≤0.5 | ≤0.04 | ≤0.03 | 4-6 | 0.44-0.65 |
SA234 Gr WP5 Fittings Mechanical Properties
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| ASTM A234 WP5 | 415 – 585 | ≥205 | ≥20 |
A234 WP5 Cl1 Pipe Fittings For Sale
| DIN 1.7362 Elbow Fittings | AS A234 Weldable Pressure 5 Reducing Tee Fittings |
| ASME SA234 Weldable Pressure 5 Pipe Nipple | DIN 1.7362 Buttweld Fittings |
| Chrome Moly A234-WP5 Eccentric Reducer | WNR 1.7362 Buttweld Elbow |
| Chrome Moly A234-WP5 Long Radius Bend | ASME SA234 Weldable Pressure 5 Elbow Pipe Fittings |
| A234 Weldable Pressure 5 Cl1 Pipe Bends | ASME SA 234 WP5 End Cap |
| SA234 Gr WP5 5D Bend | ASTM A234 Gr WP5 Reducing Cross |
| SA234 Weldable Pressure 5 180 Deg Long Radius Elbow | Alloy Steel Grade Weldable Pressure 5 Eccentric Reducer |
| A234 WP5 Cl1 Lateral Tee | Alloy Steel cl1 Weldable Pressure 5 Welded Pipe Fittings |
| A234 grade WP5 crmo Seamless Bend Pipe | ASME SA 234 WP5 Pipe Cap |
| ASTM A234 Weldable Pressure 5 Gr Cl1 45 Deg Long Radius Elbow | UNS K41545 Seamless Pipe Fitting |
| Chromium A234 Grade Weldable Pressure 5 90 Deg Short Radius Elbow | Alloy Steel cl1 Weldable Pressure 5 45 Deg Short Radius Elbow |
| SA234 WP5 90 Deg Long Radius Elbow | ASTM A234 WP5 Concentric Reducer Fittings |
| A234 Weldable Pressure 5 U Bend | AS Grade Weldable Pressure 5 End Pipe Cap |
| DIN 1.7362 Seamless Butt Weld Fittings | ASTM A234 Weldable Pressure 5 Gr Cl1 Reducer |
| ASTM A234 Chrome Moly WP5 Cross | A234 Weldable Pressure 5 Equal Cross |
| AS Grade WP5 Pipe Tee Fittings | Alloy Steel WP5 Straight Cross |
| ASME SA 234 Weldable Pressure 5 Tees | UNS K41545 Pipe Cross |
| Alloy Steel Grade Weldable Pressure 5 Stub End | Chromium A234 Grade WP5 BW Tee Fittings |
| SA234 Gr WP5 180 Deg Short Radius Elbow | WERKSTOFF NR. 1.7362 Pipe End Cap |
| A234 Weldable Pressure 5 Cl1 Pipe Reducer | ASME SA 234 Grade Weldable Pressure 5 Seamless Tee Fittings |
| ASME SA 234 Grade Weldable Pressure 5 Equal Tee Fittings | ASTM A234 Gr Weldable Pressure 5 Stubends Fittings |
Features of Chrome Moly A234-WP5 Buttweld Fittings
- Anti-corrosive
- Good dimensional accuracy
- High tensile strength
- Hardness
- Corrosion resistance
- Durability/reliability
Alloy Steel WP5 Fittings Material Testing
- Hardness Test
- Intergranular corrosion Test
- Flattening Test
- Chemical Test
- Pitting resistance Test
- Macro Test
- Radiography Test
- Mechanical Test
ASME SA 234 WP5 Fittings Applications
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Off-Shore Oil Drilling Companies
- Pulp and Paper Industry
- Power Generation
- Petrochemicals
- Gas Processing
Check what we supply in Africa & Europe
A234 WP5 CrMo Seamless Pipe Fittings
Kuala Lumpur, Poland, Tehran -Iran, South Korea, Indonesia, Dubai, Qatar, United States
A234 WP5 Alloy Steel End Cap
Romania, Netherlands, Jakarta -Indonesia, France, Dubai- UAE, Malaysia, Iran, Singapore
A234 WP5 Cr-Mo Buttweld Fittings
Kuwait, Chile, Germany, Vietnam, Norway, Belgium, Europe, South Africa, Nigeria, Malaysia, Czechia
ANSI B16.9 WP5 Butt weld Reducer
Oman, Hong Kong, Istanbul- Turkey, Jakarta, Bangladesh, Bahrain, Argentina, NY 12203 (USA), Brazil, Finland
WP5 Alloy Steel 90 Degree Elbow
Japan, Thailand, Spain, Malaysia, Saudi Arabia (KSA), USA, Ellington -United States, United Kingdom (UK)
SCH 80 A234 WP5 Pipe Tee
Canada, Dammam -KSA, Singapore, Austria, Turkey, Philippines, Los Alamos -Mexico, Greece
