Inconel 625 Pipe Fittings
- Home /
- Inconel 625 Pipe Fittings
ASTM B366 UNS N06625 Tee Fittings & Alloy 625 Elbow manufacturer in India
What is Inconel 625 Pipe Fittings?
The Inconel 625 is an alloy of nickel, which is non-magnetic in nature. It has several other elements like chromium, molybdenum, niobium, etc., in its chemical composition, which helps to enhance its physical and mechanical properties. The Inconel 625 Pipe Fittings are known for their high strength and improved toughness. It is resistant to both corrosion and oxidation, and they are used in high temperature applications. Due to their high strength, the Inconel 625 Pipe Fittings are also widely used for high pressure services.
One of the best things about the Inconel 625 Pipe Fittings is that they can retain their features within a wide range of temperature, from cryogenic up to 1093 degrees C. They are suitable for high temperature applications, because the melting point of Inconel 625 material is 1350 degrees C.
The Inconel 625 Pipe Fittings are available in different shapes, sizes, and their dimensions can be customized very easily. Their standard size ranges between 1/16” to 2”, and they also have different pressure clases. The Inconel 625 material also has high fabricability. It is quite popular across industries that need corrosion resisting environments and also high temperature/ pressure.
What is ASME B16.11 Inconel 625 Forged Fittings?
The ASME B16.11 Inconel 625 Forged Fittings can be customized in different specifications, sizes and thicknesses. Various surface finishes are available so as to increase their corrosion resisting properties. However, with a satin coat or a black finish, oxidation on the fittings can be resisted, especially in terms of the reducing environments. They are a perfect purchase for long term applications. The ASME B16.11 Inconel 625 Forged Fittings are strong and thicker. They are available in different pressure groups and ideal for various heavy industrial usage.
Nickel 625 Reducer Vs ASTM B366 UNS N06625 Tee
The Nickel 625 Reducer helps to reduce the size of the pipe from a large to a small bore. They basically help to control the flow within the run pipe. There are two types of reducers available, the Nickel 625 Concentric Reducer which is used for most applications, and Nickel 625 Eccentric Reducer, that helps to maintain the same top or bottom level.

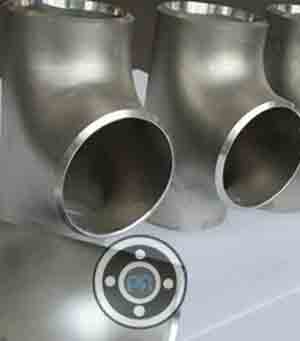

The ASTM B366 UNS N06625 Tee is a T-shaped pipe fittings that perform a wide range of functions. Firstly, it helps to combine or divide the flow in the run pipe. It also helps to change the flow direction and control the flow rate. There are two pipes of tee, namely ASTM B366 UNS N06625 Equal Tee that have the same branch diameter as the main connection and line, and ASTM B366 UNS N06625 Reducing Tee, whose branch diameters are smaller than the main line connection.
Inconel 625 1D Elbow Vs WNR 2.4856 5D Elbow
The main difference between the Inconel 625 1D Elbow and the WNR 2.4856 5D Elbow, is in their structures. For Inconel 625 1D Elbow, it’s radius of curvature is same as that of the pipe’s diameter. But for WNR 2.4856 5D Elbow, the radius of curvature is 5 times the pipe’s diameter. It is mostly used for longer pipes and also provides better efficiency when it comes to changing directions.
Inconel 625 Pipe Fittings
Inconel Pipe Fittings manufacturers in Mumbai offers wide selection of Nickel Alloy 625 Eccentric / Concentric Reducer and ASTM B366 N06625 Pipe Cap in India
Table of Content
- Inconel 625 Pipe Fittings Specification
- Inconel 625 Buttweld Fittings Pressure Rating
- Alloy 625 Elbow Dimensions
- Weight Chart of ASTM B366 UNS N06625 Elbow
- Inconel 625 Pipe Fittings Price List
- Inconel 625 Forged Fittings
- Nickel Alloy 625 Socket Weld Fittings
- ASME B16.11 Inconel 625 Threaded Fittings
- Alloy 625 Tee Dimensions
- Inconel Alloy 625 Tee Weight
- Weight Chart of DIN 2.4856 Reducer
- Inconel UNS N06625 Reducer Dimensions
- 625 Nickel Alloy Elbow Size Chart
- Different Types of Inconel 625 Pipe Fittings
- Composition Standard of Nickel Alloy 625 Fittings
- JIS NCF 625 Weld Fittings Mechanical Behaviour
- Material Equivalent of 625 Nickel Alloy Fittings
- Inconel 625 Uns N06625 Elbow
- ASTM B366 UNS N06625 Tee
- Inconel Alloy 625 Reducer
- Temperature Range of ASTM B564 UNS N06625 Forged Fittings
- Common Applications of Nickel 625 Weld Fittings

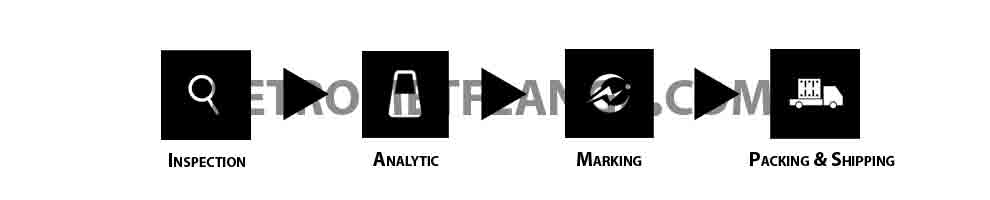

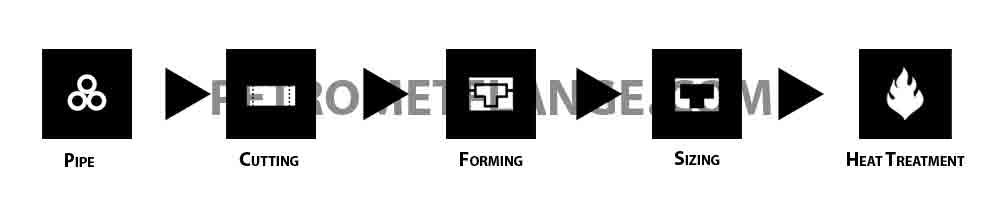

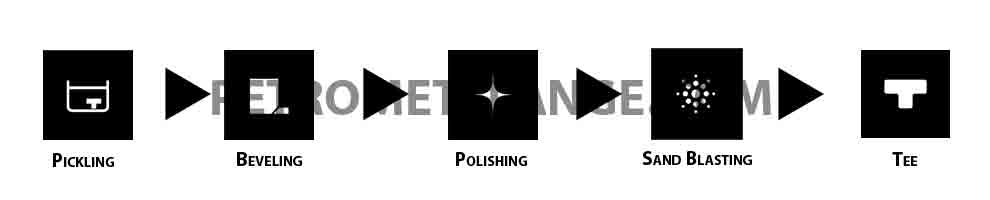

- Manufacturing Process of Alloy 625 Tee
Inconel 625 Pipe Fittings Specification
| Inconel 625 Fittings Specifications | ASTM B366 |
|---|---|
| Inconel 625 Pipe Fittings Sizes | Inconel 625 Seamless Fittings: 1/2" - 10" ASME B16 9 DIN 2.4856 Welded Fittings: 1/2" - 48" |
| Alloy 625 Fittings Dimensions | ASME B16.28, ASME/ANSI B16.9, BS4504, MSS-SP-43, BS1560, BS4504, BS10 |
| Inconel 625 Fittings Thickness | SCH30, SCH10, SCH 160, SCH20, SCH60, XS, STD SCH40, SCH 80, SCH 120, SCH 140, SCH 100, XXS available with NACE MR 01-75 |
| Inconel 625 Pipe Fittings Type Manufacturer | DN15-DN1200 |
| Inconel 625 Tube Fittings Connection | Welding |
| Bending Radius Provided By Manufacturer | R=1D, 3D, 2D, 5D, 8D, 6D, 10D or Custom Alloy 625 Fittings |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Inconel 625 Pipe Fittings |
| Inconel Alloy 625 Elbows Manufacturer | Angle : 22.5 deg, 45 deg, 30deg, 90 deg, 1.0D, 180 deg, 1.5D, 3D, 2.5D, 2.0D, 4D, 6D, 5D, 7D-40D . Standard: ASME B16.28, GB, ASME B16.9, MSS SP-75 JISB2311 DIN2605 JISB2312 JISB2313, ASME B16.25, BS, ISO |
| Inconel 625 Buttweld Fittings Manufacturing process | Push, Forge, Press, Cast, etc. |
| ASME B16.9 Inconel 625 Pipe Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Inconel 625 Buttweld Fittings Origin & Mills | European, Japanese, USA, Korean, Ukraine, Indian, Russian |
| Specialized Inconel 625 Pipe Fittings Manufacturer of | ASTM B366 UNS N06625 Stub End, 90º Elbows, Tees, Pipe Cap, Crosses, 45º Elbows, Reducers, Pipe Bend |
| Application of Industrial Inconel 625 Fittings |
|
| Inconel Alloy 625 Threaded Fittings Thread Provided By Manufacturer | BSPT, NPT, BSPP |
| Inconel 625 Forged Fittings Pressure Rating | Threaded end - 3000lb/ 2000lb/ 6000lbs Socket weld end- 6000/ 3000/ 9000lbs |
| Dimension Specification | MSS SP-79, 95, 83, 97, BS 3799, ASME 16.11 |
| Alloy 625 Products Manufacturer | Half Coupling, Union, Tee, Cross, Coupling, Cap, Outlet, Welding Outlet, Boss, Insert |
Well known Inconel 625 Fittings stockists, supplier, wholesalers, dealers, stockholders, distributor, importer, exporters and Manufacturer in Mumbai
Inconel 625 Buttweld Fittings Pressure Rating
| Normal Size Of Pipe (inches) |
Pipe Sch | OD
(inch) |
Wall Thick. (inch) |
Temperature (oF) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 | 750 | ||||
| Allowable Stress (psi) | ||||||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | 13500 | 13200 | 12900 | 12600 | ||||
| 1" | 40 | 1.315 | 0.133 | 2205 | 2205 | 2205 | 2047 | 1902 | 1783 | 1743 | 1703 | 1664 |
| 80 | 1.315 | 0.179 | 3061 | 3061 | 3061 | 2841 | 2640 | 2475 | 2420 | 2365 | 2310 | |
| 160 | 1.315 | 0.250 | 4493 | 4493 | 4493 | 4170 | 3874 | 3632 | 3552 | 3471 | 3390 | |
| 1 1/2" | 40 | 1.900 | 0.145 | 1629 | 1629 | 1629 | 1512 | 1404 | 1317 | 1287 | 1258 | 1229 |
| 80 | 1.900 | 0.200 | 2303 | 2303 | 2303 | 2138 | 1986 | 1862 | 1821 | 1779 | 1738 | |
| 160 | 1.900 | 0.281 | 3362 | 3362 | 3362 | 3120 | 2899 | 2717 | 2657 | 2597 | 2536 | |
| 2" | 40 | 2.375 | 0.154 | 1371 | 1371 | 1371 | 1272 | 1182 | 1108 | 1083 | 1059 | 1034 |
| 80 | 2.375 | 0.218 | 1985 | 1985 | 1985 | 1843 | 1712 | 1605 | 1569 | 1534 | 1498 | |
| 160 | 2.375 | 0.344 | 3283 | 3283 | 3283 | 3047 | 2831 | 2654 | 2595 | 2536 | 2477 | |
| 3" | 40 | 3.500 | 0.216 | 1301 | 1301 | 1301 | 1208 | 1122 | 1052 | 1028 | 1005 | 982 |
| 80 | 3.500 | 0.300 | 1844 | 1844 | 1844 | 1712 | 1590 | 1491 | 1458 | 1425 | 1391 | |
| 160 | 3.500 | 0.438 | 2787 | 2787 | 2787 | 2587 | 2403 | 2253 | 2203 | 2153 | 2103 | |
| 4" | 40 | 4.500 | 0.237 | 1102 | 1102 | 1102 | 1023 | 950 | 891 | 871 | 851 | 831 |
| 80 | 4.500 | 0.337 | 1596 | 1596 | 1596 | 1482 | 1377 | 1291 | 1262 | 1233 | 1204 | |
| 160 | 4.500 | 0.531 | 2611 | 2611 | 2611 | 2424 | 2552 | 2111 | 2064 | 2017 | 1970 | |
| 5" | 40 | 5.563 | 0.258 | 965 | 965 | 965 | 896 | 832 | 780 | 763 | 746 | 728 |
| 80 | 5.563 | 0.375 | 1428 | 1428 | 1428 | 1325 | 1231 | 1154 | 1129 | 1103 | 1077 | |
| 160 | 5.563 | 0.625 | 2474 | 2474 | 2474 | 2296 | 2133 | 2000 | 1955 | 1911 | 1866 | |
| 6" | 40 | 6.625 | 0.280 | 877 | 877 | 877 | 814 | 756 | 709 | 693 | 677 | 661 |
| 80 | 6.625 | 0.432 | 1379 | 1379 | 1379 | 1280 | 1189 | 1115 | 1090 | 1065 | 1040 | |
| 160 | 6.625 | 0.719 | 2382 | 2382 | 2382 | 2211 | 2054 | 1925 | 1883 | 1840 | 1797 | |
| 8" | 40 | 8.625 | 0.322 | 771 | 771 | 771 | 716 | 665 | 623 | 610 | 596 | 582 |
| 80 | 8.625 | 0.500 | 1218 | 1218 | 1218 | 1131 | 1050 | 985 | 963 | 941 | 919 | |
| 160 | 8.625 | 0.906 | 2298 | 2298 | 2298 | 2133 | 1982 | 1858 | 1817 | 1775 | 1734 | |
| 10" | 40 | 10.750 | 0.365 | 699 | 699 | 699 | 649 | 603 | 565 | 553 | 540 | 528 |
| 80 | 10.750 | 0.594 | 1159 | 1159 | 1159 | 1075 | 999 | 937 | 916 | 895 | 874 | |
| 160 | 10.750 | 1.125 | 2289 | 2289 | 2289 | 2124 | 1974 | 1850 | 1809 | 1768 | 1727 | |
Alloy 625 Elbow Dimensions
| Nominal Pipe Size | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
|
(inches)
|
Long Radius
|
Short Radius
|
Long Radius
|
Long Radius
|
||||
|
(mm)
|
(inches)
|
Center to Face
(inches) |
Center to Face
(inches) |
Center to Face
(inches) |
Radius
(inches) |
Center to Center
(inches) |
Back to face
(inches) |
|
|
1/2
|
21.3
|
0.840
|
1 1/2
|
-
|
5/8
|
2
|
1 7/8
|
|
|
3/4
|
26.7
|
1.050
|
1 1/8
|
-
|
7/16
|
2 1/4
|
1 11/16
|
|
|
1
|
33.4
|
1.315
|
1 1/2
|
1
|
7/8
|
3
|
2 3/16
|
|
|
1 1/4
|
42.2
|
1.660
|
1 7/8
|
1 1/4
|
1
|
3 3/4
|
2 3/4
|
|
|
1 1/2
|
48.3
|
1.900
|
2 1/4
|
1 1/2
|
1 1/8
|
3
|
4 1/2
|
3 1/4
|
|
2
|
60.3
|
2.375
|
3
|
2
|
1 3/8
|
4
|
6
|
4 3/16
|
|
2 1/2
|
73.0
|
2.875
|
3 3/4
|
2 1/2
|
1 3/4
|
5
|
7 1/2
|
5 3/16
|
|
3
|
88.9
|
3.500
|
4 1/2
|
3
|
2
|
6
|
9
|
6 1/4
|
|
3 1/2
|
101.6
|
4.000
|
5 1/4
|
3 1/2
|
2 1/4
|
7
|
10 1/2
|
7 1/4
|
|
4
|
114.3
|
4.500
|
6
|
4
|
2 1/2
|
8
|
12
|
8 1/4
|
|
5
|
141.3
|
5.563
|
7 1/2
|
5
|
3 1/8
|
10
|
15
|
10 5/16
|
|
6
|
168.3
|
6.625
|
9
|
6
|
3 3/4
|
12
|
18
|
12 5/16
|
|
8
|
219.1
|
8.625
|
12
|
8
|
5
|
12
|
24
|
16 5/16
|
|
10
|
273.1
|
10.750
|
15
|
10
|
6 1/4
|
15
|
30
|
20 3/8
|
|
12
|
323.9
|
12.750
|
18
|
12
|
7 1/2
|
18
|
36
|
24 3/8
|
625 Inconel Reducer and Alloy 625 Fittings manufactured by hot or cold forming process
Weight Chart of ASTM B366 UNS N06625 Elbow
| NPS | KG | LBS |
| 1/2 | 0.11 | 0.25 |
| 3/4 | 0.11 | 0.25 |
| 1 | 0.23 | 0.5 |
| 1¼ | 0.41 | 0.9 |
| 1½ | 0.52 | 1.15 |
| 2 | 1 | 2.2 |
| 2½ | 1.81 | 4 |
| 3 | 2.95 | 6.5 |
| 3½ | 3.79 | 8.35 |
| 4 | 6.12 | 13.5 |
| 5 | 9.98 | 22 |
| 6 | 15.88 | 35 |
| 8 | 32.21 | 71 |
| 10 | 48.53 | 107 |
| 12 | 72.57 | 160 |
| 14 | 92.99 | 205 |
| 16 | 125.19 | 276 |
| 18 | 154.22 | 340 |
| 20 | 190.51 | 420 |
| 22 | 235.87 | 520 |
| 24 | 272.16 | 600 |
| 26 | 330.67 | 729 |
| 30 | 442.25 | 975 |
| 36 | 640.47 | 1412 |
Inconel 625 Pipe Fittings Price List
| Inconel 625 Fittings Price Per Piece in India | Alloy 625 Fittings Price in INR | Inconel 625 Pipe Fittings Price in UAE Dirham | Inconel 625 Buttweld Fittings Price in USD |
| ASTM B366 Inconel 625 90deg elbow Per Piece | 18621.43 | UAE Dirham 918.25 | $250 |
| Inconel 625 Reducer, Eccentric, DN450, WT Schedule 10 Per Piece | 16983.65 | UAE Dirham 837.44 | $228 |
| Inconel 625 Bw Concentric Reducer Per Piece | 9311.21 | UAE Dirham 459.12 | $125 |
Before Buying Compare our price with other Inconel 625 Pipe Fittings Manufacturer in India. This is an approximate Price of Alloy 625 Fittings in India. Feel free to contact us latest Stocklist of Inconel 625 Buttweld Fittings in Mumbai.

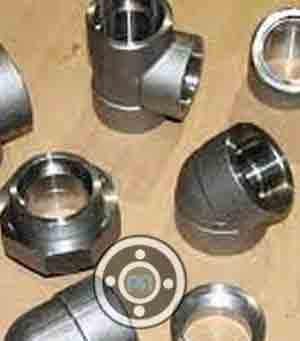

Inconel 625 Forged Fittings

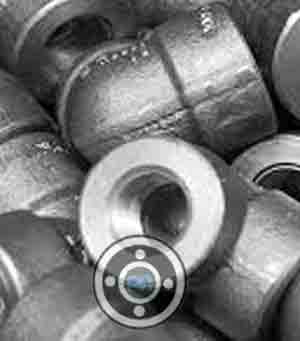

Alloy 625 Forged Fittings

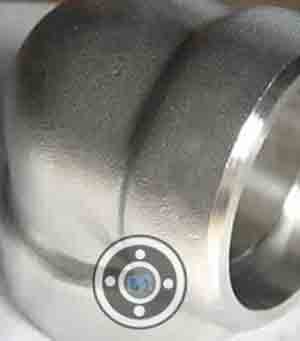

ASTM B564 UNS N06625 Forged Elbow

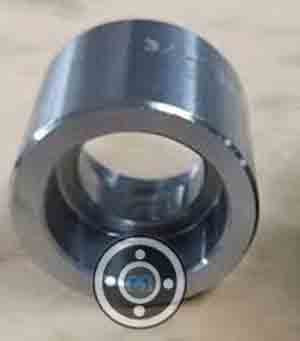

Nickel 625 Forged Coupling

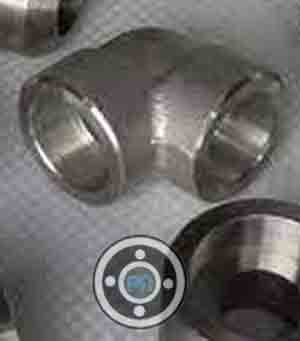

Nickel Alloy 625 Socket Weld Fittings
ASME B16.11 Inconel 625 Socket Weld Fittings

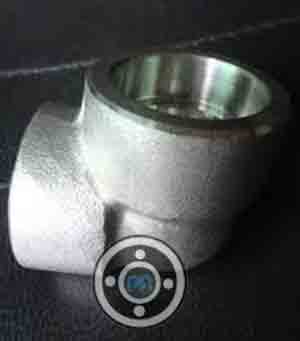

625 Nickel Alloy Socket Weld Elbow

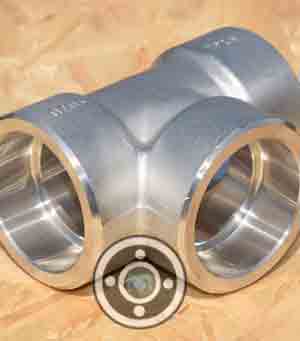

DIN 2.4856 Socket Weld Tee

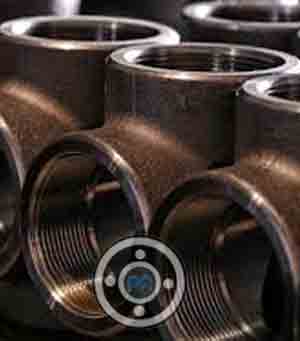

ASME B16.11 Inconel 625 Threaded Fittings
Inconel UNS N06625 Threaded Fittings

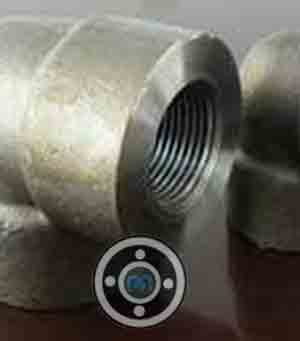

JIS NCF 625 Threaded Elbow

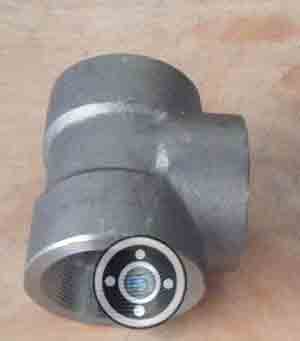

Alloy 625 Uns N06625 Threaded Tee

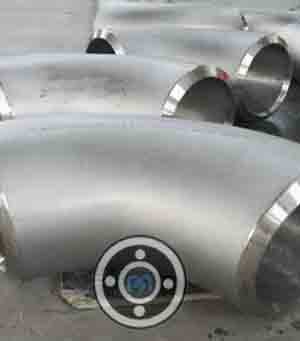

ASME B16.9 Seamless/ Welded DIN 2.4856 90 Degree Weld Elbow & SCH10 SB 366 UNS N06625 Long Radius Elbow manufacturer in India
Alloy 625 Tee Dimensions
| NOMINAL PIPE SIZE | LENGTH | CENTER TO END | OUTSIDE DIAMETER |
|---|---|---|---|
| Inch. | M | C | OD |
| 1/2 | 25 | 25 | 21.3 |
| 3/4 | 29 | 29 | 26.7 |
| 1 | 38 | 38 | 33.4 |
| 1 1/4 | 48 | 48 | 42.2 |
| 1 1/2 | 57 | 57 | 48.3 |
| 2 | 64 | 64 | 60.3 |
| 2 1/2 | 76 | 76 | 73 |
| 3 | 86 | 86 | 88.9 |
| 3 1/2 | 95 | 95 | 101.6 |
| 4 | 105 | 105 | 114.3 |
| 5 | 124 | 124 | 141.3 |
| 6 | 143 | 143 | 168.3 |
| 8 | 178 | 178 | 219.1 |
| 10 | 216 | 216 | 273.1 |
| 12 | 254 | 254 | 323.9 |
| 14 | 279 | 279 | 355.6 |
| 16 | 305 | 305 | 406.4 |
| 18 | 343 | 343 | 457.2 |
| 20 | 381 | 381 | 508 |
| 22 | 419 | 419 | 559 |
| 24 | 432 | 432 | 610 |
| 26 | 495 | 495 | 660 |
| 28 | 521 | 521 | 711 |
| 30 | 559 | 559 | 762 |
| 32 | 597 | 597 | 813 |
| 34 | 635 | 635 | 864 |
| 36 | 673 | 673 | 914 |
| 38 | 711 | 711 | 965 |
| 40 | 749 | 749 | 1016 |
| 42 | 711 | 762 | 1067 |
| 44 | 762 | 813 | 1118 |
| 46 | 800 | 851 | 1168 |
| 48 | 838 | 889 | 1219 |
Inconel Alloy 625 Tee Weight
| NPS | KG | LBS |
| 1/2 | 0.16 | 0.35 |
| 3/4 | 0.2 | 0.45 |
| 1 | 0.34 | 0.75 |
| 1¼ | 0.59 | 1.3 |
| 1½ | 0.91 | 2 |
| 2 | 1.59 | 3.5 |
| 2½ | 2.72 | 6 |
| 3 | 3.18 | 7 |
| 3½ | 4.08 | 9 |
| 4 | 5.44 | 12 |
| 5 | 9.53 | 21 |
| 6 | 15.42 | 34 |
| 8 | 24.95 | 55 |
| 10 | 38.56 | 85 |
| 12 | 54.43 | 120 |
| 14 | 74.84 | 165 |
| 16 | 88.45 | 195 |
| 18 | 112.94 | 249 |
| 20 | 155.13 | 342 |
| 22 | 187.79 | 414 |
| 24 | 239.5 | 528 |
| 26 | 349.27 | 770 |
| 30 | 480.81 | 1060 |
| 36 | 675.85 | 1490 |
Weight Chart of DIN 2.4856 Reducer
| Nominal Size | SCH20 | STD | SCH40S | SCH80S | SCH120 | SCH160 | |
| DN | NPS | ||||||
| 15 | 1/2 | 0.08 | 0.08 | 0.1 | |||
| 20 | 3/4 | 0.17 | 0.17 | 0.2 | |||
| 25 | 1 | 0.21 | 0.21 | 0.25 | 0.22 | ||
| 32 | 1 1/4 | 0.29 | 0.29 | 0.35 | |||
| 40 | 1 1/2 | 0.42 | 0.42 | 0.58 | 0.6 | ||
| 50 | 2 | 0.8 | 0.8 | 1.03 | 1.04 | ||
| 65 | 2 1/2 | 1.05 | 1.05 | 1.42 | 1.65 | ||
| 80 | 3 | 1.36 | 1.36 | 1.9 | |||
| 90 | 3 1/2 | 1.63 | 1.63 | 2.27 | 2.4 | ||
| 100 | 4 | 2.77 | 2.77 | 3.93 | 4.4 | ||
| 125 | 5 | 3.96 | 3.96 | 6 | 7.14 | ||
| 150 | 6 | 6.31 | 6.31 | 9.26 | 10.8 | ||
| 200 | 8 | 7.85 | 10.7 | 10.7 | 17.5 | 15 | 18.4 |
| 250 | 10 | 11.2 | 15.8 | 16.3 | 25.1 | 25.1 | 32.5 |
| 300 | 12 | 25.6 | 28.8 | 32.1 | 56.5 | 41.7 | 53.3 |
| 350 | 14 | 30.5 | 38.5 | 48.8 | 79 | 84.5 | 106 |
| 400 | 16 | 35.2 | 44.5 | 64.3 | 102 | 112 | 143 |
| 450 | 18 | 62.7 | 62.7 | 98.5 | 165 | ||
| 500 | 20 | 72.6 | 72.6 | 181 | |||
| 550 | 22 | 97 | 79.1 | 142 | 226 | ||
| 600 | 24 | 130 | 100 | ||||
Manufacturer of Inconel 625 Pipe Fittings offers Radiography/ Non Destructive Testing before delivery, buy ASTM B366 Nickel 625 45/ 90/ 180 Degree Elbow, Stub End, Return Bends, and Inconel Alloy Pipe Bend in custom sizes
Inconel UNS N06625 Reducer Dimensions
| Nominal Pipe Size |
Outside Diameter |
Reducers | ||
|---|---|---|---|---|
| Reduced from (inches) |
(inches) | (mm) | Concentric & Eccentric Length (inches) |
Reduced to (inches) |
| 1/2 | 0.840 | 21.3 | 1 1/2 | 1/4 |
| 1 1/2 | 3/8 | |||
| 3/4 | 1.050 | 26.7 | 2 | 3/8 |
| 2 | 1/2 | |||
| 1 | 1.315 | 33.4 | 2 | 3/8 |
| 2 | 1/2 | |||
| 2 | 3/4 | |||
| 1 1/4 | 1.660 | 42.2 | 2 | 1/2 |
| 2 | 3/4 | |||
| 2 | 1 | |||
| 1 1/2 | 1.900 | 48.3 | 2 1/2 | 1/2 |
| 2 1/2 | 3/4 | |||
| 2 1/2 | 1 | |||
| 2 1/2 | 1 1/4 | |||
| 2 | 2.375 | 60.3 | 3 | 3/4 |
| 3 | 1 | |||
| 3 | 1 1/4 | |||
| 3 | 1 1/2 | |||
| 2 1/2 | 2.875 | 73.0 | 3 1/2 | 1 |
| 3 1/2 | 1 1/4 | |||
| 3 1/2 | 1 1/2 | |||
| 3 1/2 | 2 | |||
| 3 | 3.500 | 88.9 | 3 1/2 | 1 |
| 3 1/2 | 1 1/2 | |||
| 3 1/2 | 2 | |||
| 3 1/2 | 2 1/2 | |||
| 3 1/2 | 4.000 | 101.6 | 4 | 1 1/4 |
| 4 | 1 1/2 | |||
| 4 | 2 | |||
| 4 | 2 1/2 | |||
| 4 | 3 | |||
| 4 | 4.500 | 114.3 | 4 | 1 1/2 |
| 4 | 2 | |||
| 4 | 2 1/2 | |||
| 4 | 3 | |||
| 4 | 3 1/2 | |||
| 5 | 5.563 | 141.3 | 5 | 2 |
| 5 | 2 1/2 | |||
| 5 | 3 | |||
| 5 | 3 1/2 | |||
| 5 | 4 | |||
| 6 | 6.625 | 168.3 | 5 1/2 | 2 1/2 |
| 5 1/2 | 3 | |||
| 5 1/2 | 3 1/2 | |||
| 5 1/2 | 4 | |||
| 5 1/2 | 5 | |||
| 8 | 8.625 | 219.1 | 6 | 3 |
| 6 | 3 1/2 | |||
| 6 | 4 | |||
| 6 | 5 | |||
| 6 | 6 | |||
| 10 | 10.750 | 273.1 | 7 | 4 |
| 7 | 5 | |||
| 7 | 6 | |||
| 7 | 8 | |||
| 12 | 12.750 | 323.9 | 8 | 5 |
| 8 | 6 | |||
| 8 | 8 | |||
| 8 | 10 | |||
625 Nickel Alloy Elbow Size Chart
| NPS | O.D. D |
90° 3D Center to End A |
45° 3D Center to End B |
45° Long Rad Center to End B |
90° Long Rad Center to End A |
| 18 | 457 | 1372 | 568 | 286 | 686 |
| 20 | 508 | 1524 | 632 | 318 | 762 |
| 22 | 559 | 1676 | 694 | 343 | 838 |
| 24 | 610 | 1829 | 757 | 381 | 914 |
| 26 | 660 | 1981 | 821 | 406 | 991 |
| 28 | 711 | 2134 | 883 | 438 | 1067 |
| 30 | 762 | 2286 | 946 | 470 | 1143 |
| 32 | 813 | 2438 | 1010 | 502 | 1219 |
| 34 | 864 | 2591 | 1073 | 533 | 1295 |
| 36 | 914 | 2743 | 1135 | 565 | 1372 |
| 38 | 965 | 2896 | 1200 | 600 | 1448 |
| 40 | 1016 | 3048 | 1264 | 632 | 1524 |
| 42 | 1067 | 3200 | 1326 | 660 | 1600 |
| 44 | 1118 | 3353 | 1389 | 695 | 1676 |
| 46 | 1168 | 3505 | 1453 | 727 | 1753 |
| 48 | 1219 | 3658 | 1516 | 759 | 1829 |
Different Types of Inconel 625 Pipe Fittings

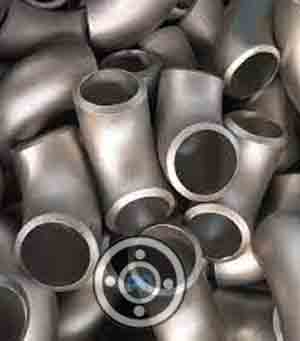

Inconel 625 90° Long Radius Elbow

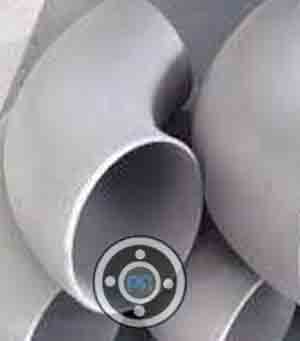

SCH 80 Alloy 625 90° Short Radius Elbow

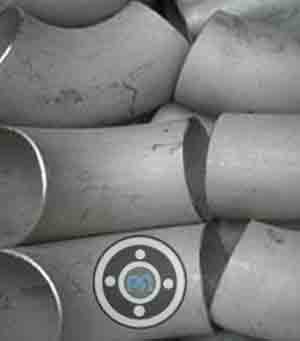

ASTM B366 UNS N06625 45° Long Radius Elbow

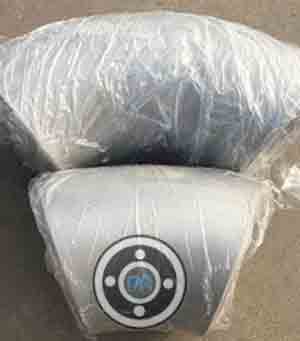

SCH 160 Inconel Alloy 625 45° Short Radius Elbow

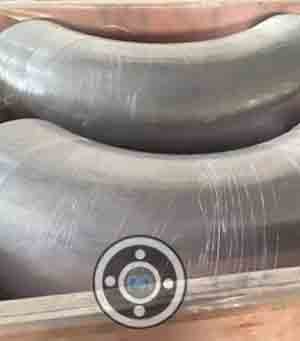

Werkstoff Nr. 2.4856 180° Long Radius Elbow

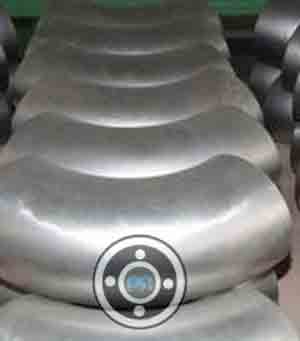

SCH XXS Inconel 625 180° Short Radius Elbow

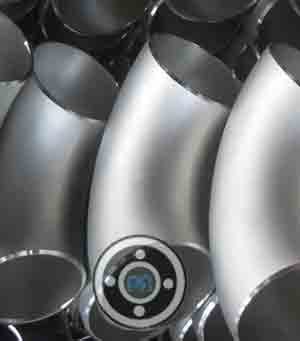

UNS N06625 1D Elbow

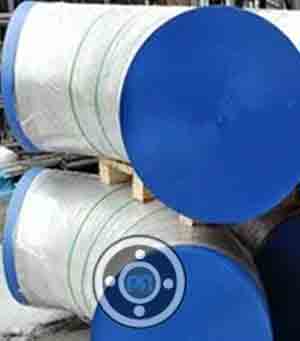

Inconel UNS N06625 1.5D Elbow

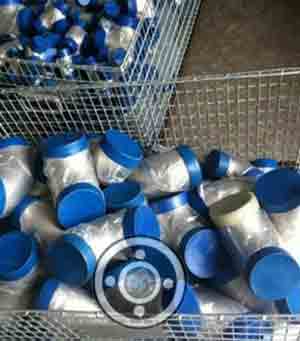

Nickel 625 3D Elbow

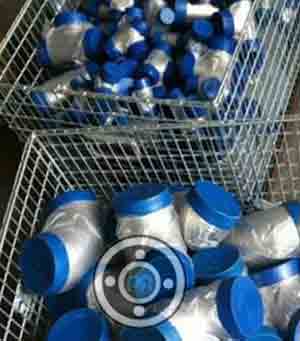

SCH 30 625 Nickel Alloy 5D Elbow

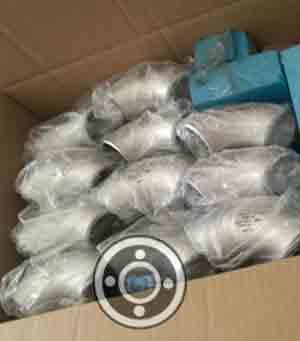

Nickel Alloy 625 10D ELBOW
SCH 120 Inconel 625 Uns N06625 Seamless Buttwelding 45° and 90° Elbows
ASME B16.9 Inconel 625 Welded Elbows

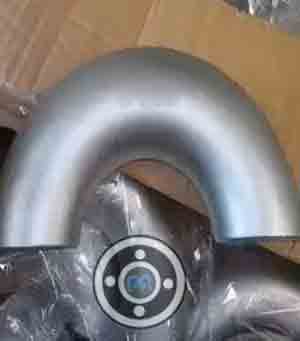

JIS NCF 625 Seamless Buttwelding 180° Returns

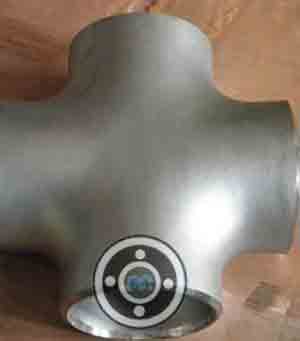

Inconel 625 Uns N06625 Straight Tees and Crosses

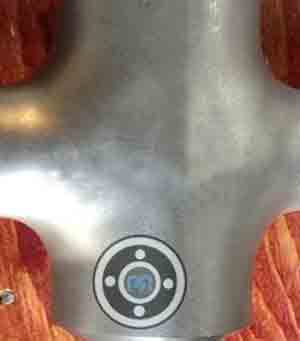

15 NB SCH 100 Alloy 625 Reducing Outlet Tees and Reducing Outlet Crosses

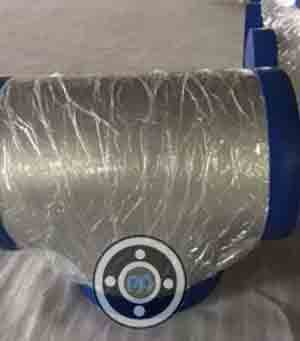

Inconel Alloy 625 Uns N06625 Equal Tee

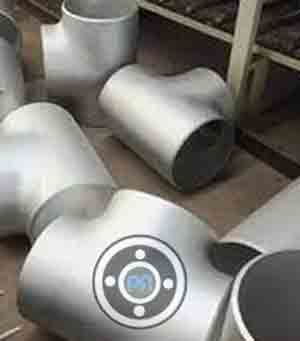

450 NB SCH 40 Werkstoff Nr. 2.4856 Reducing Tee

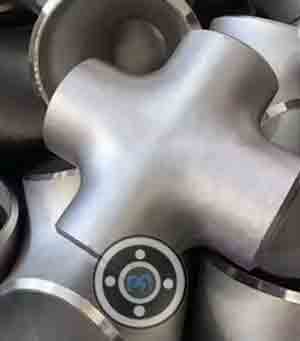

Alloy 625 Uns N06625 Equal Cross

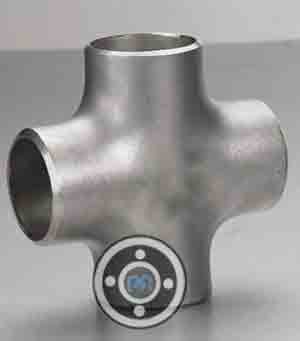

Inconel 625 Uns N06625 Reducing Cross
Nickel 625 Reducers

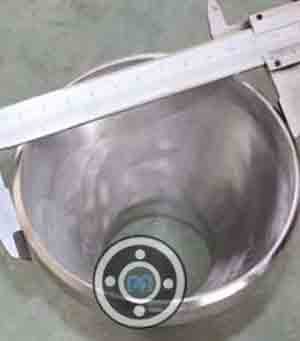

SCH 10 Inconel 625 Concentric Reducer

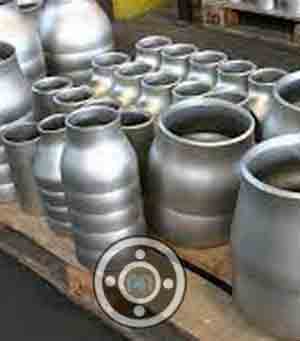

ASTM B366 UNS N06625 Eccentric Reducer

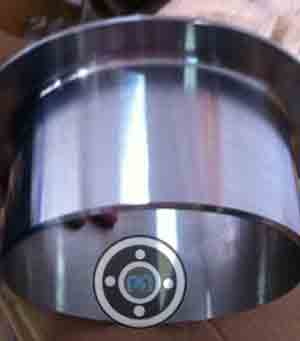

SCH 60 JIS NCF 625 Stub End
625 Nickel Alloy Lap Joint Stub Ends

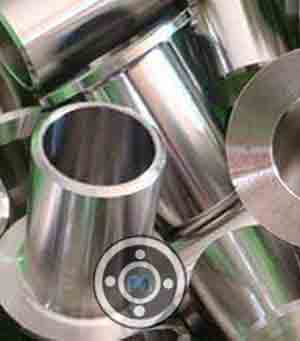

Inconel 625 Long Stubend

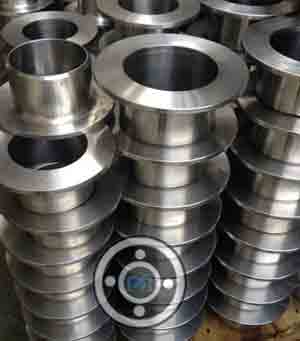

UNS N06625 Short Stubend

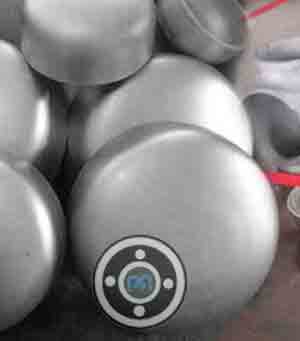

SCH 20 ASME B16.9 Inconel 625 Pipe Cap

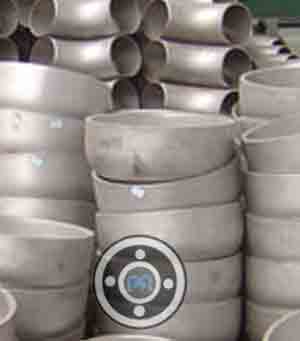

Inconel UNS N06625 End Cap

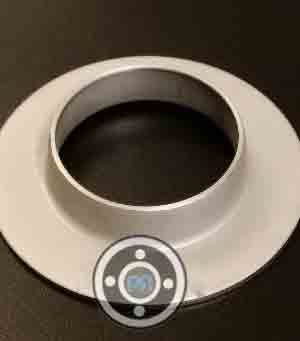

SCH XS Nickel Alloy 625 Collar
ASTM B564 UNS N06625 Swage Nipple

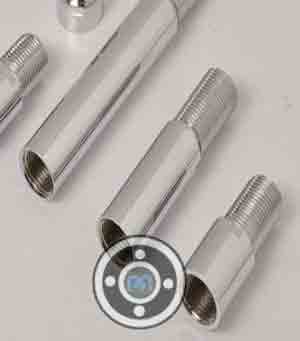

ASME B16.11 Inconel 625 Pipe Nipples

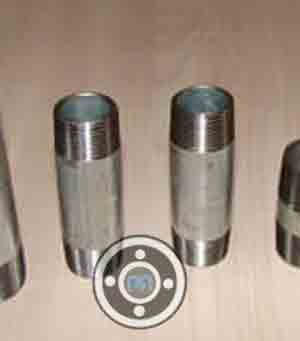

Inconel Alloy 625 Barrel Nipple

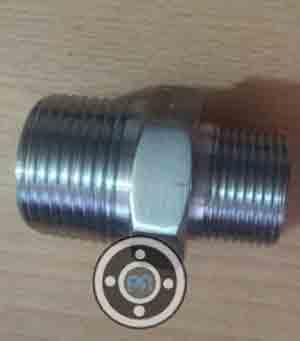

SCH 140 Inconel 625 Uns N06625 Reducing Nipple

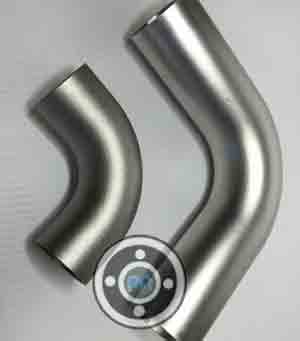

Alloy 625 Bend
SCH STD Inconel Alloy 625 Uns N06625 Long Radius Bend
Inconel Forged Fittings

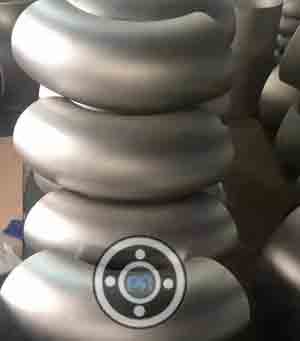

Inconel Fittings

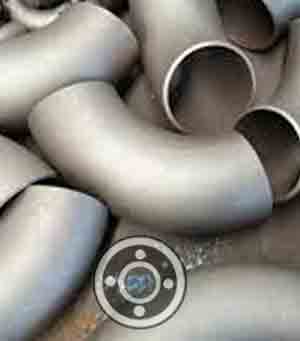

Inconel Pipe Fittings

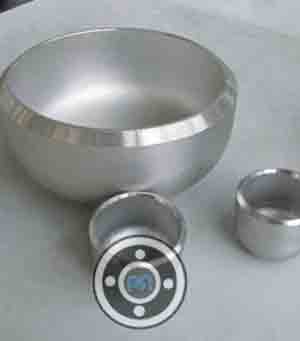

ASTM B366 N06625 Pipe Cap

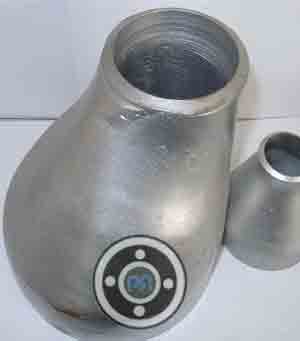

625 Inconel Reducer

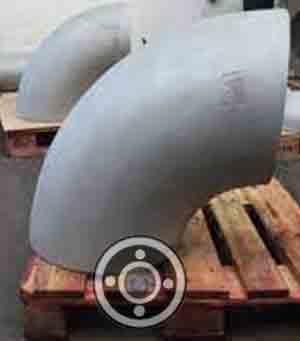

Inconel Elbow
Inconel Threaded Fittings

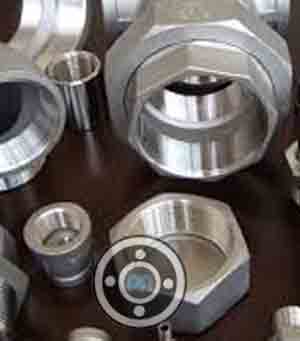

Inconel Socketweld Fittings
DIN 2.4856 90 Degree Weld Elbow
Composition Standard of Nickel Alloy 625 Fittings
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 625 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
JIS NCF 625 Weld Fittings Mechanical Behaviour
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 625 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
Material Equivalent of 625 Nickel Alloy Fittings
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
Inconel 625 Uns N06625 Elbow

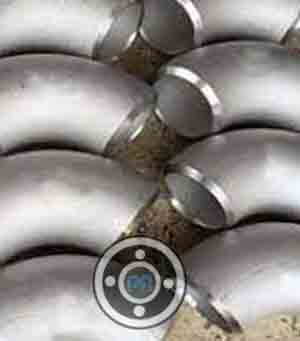

ASME B16.9 ASTM B366 Inconel 625 Seamless 90 DEGREE LR ELBOW SCH120

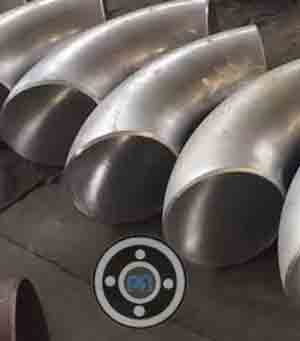

ANSI B16.9 Inconel 625 Elbow

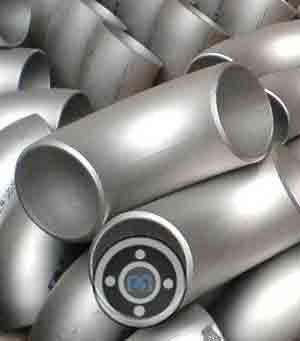

8" Nb SCH 100 90° Alloy 625 Long Radius Elbow
ASTM B366 UNS N06625 Tee
ASME B16.9 UNS N06625 Tee

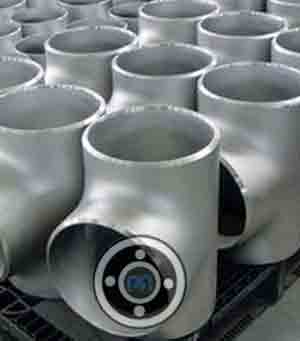

ASME B16.9 ASTM B366 Alloy 625 Equal Tee SCH120 DN250

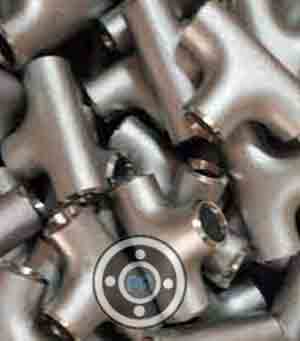

Inconel 625 Nickel Reducing Tee
Inconel Alloy 625 Reducer

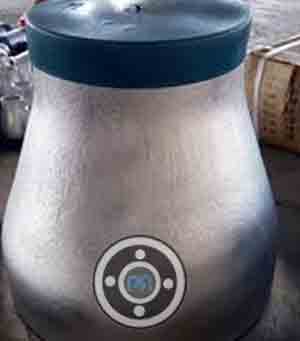

1-1/4" X 1/2" Nb Sch10 Nickel Alloy 625 Concentric Reducer

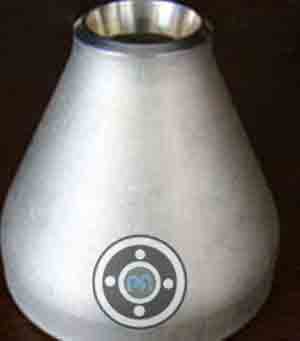

1" X 1/2" Nb Sch40 Nickel Chromium Alloy 625 Eccentric Reducer

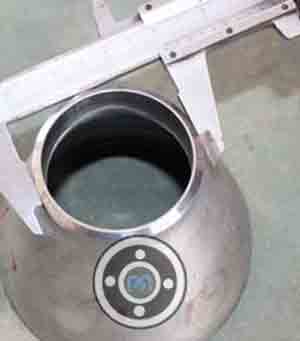

2" X 1/2" Nb Sch80 Inconel 625 Concentric Reducer
Temperature Range of ASTM B564 UNS N06625 Forged Fittings
| Temperature Range | cryogenic to 1800°F (982°C) |
Common Applications of Nickel 625 Weld Fittings
- Marine applications
- Aerospace equipment
- Nuclear technology
- Industrial processing
- Power Plants
- Fossil Fuel Power Plants
- Paper & Pulp
Manufacturing Process of Alloy 625 Tee
We are Nickel 600 Fittings Manufacturer in India and Supplier in Below Countries
ASME B16.9 inconel 625 pipe fittings
Dubai, Tehran -Iran, Indonesia, Kuala Lumpur, United States, Poland, Qatar, South Korea
Inconel 625 Dn 2.4856 Welded Buttweld Fittings
Netherlands, Iran, Dubai- UAE, Singapore, France, Malaysia, Romania, Jakarta -Indonesia
Nickel Alloy 625 Long Stub
Germany, Malaysia, Vietnam, Nigeria, South Africa, Chile, Norway, Europe, Belgium, Czechia, Kuwait
MSS SP 75 Alloy 625 Pipe Elbow
NY 12203 (USA), Jakarta, Hong Kong, Bangladesh, Oman, Finland, Istanbul- Turkey, Bahrain, Brazil, Argentina
ANSI B16.9 Alloy 625 Equal Tee
Saudi Arabia (KSA), Ellington -United Japan, Malaysia, Thailand, Spain, USA, States, United Kingdom (UK)
ASTM B366 UNS N06625 90 degree Elbow
Turkey, Philippines, Austria, Greece, Singapore, Los Alamos -Mexico, Canada, Dammam -KSA
