DIN 2615 ASTM A403 Butt Weld Tee & DIN 2605 Stainless Steel Elbow exporter in Mumbai

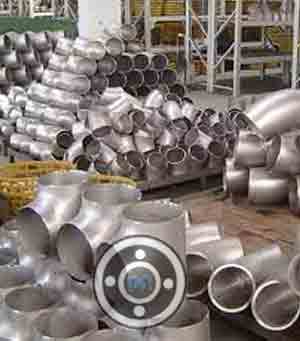

What Is Stainless Steel Pipe Fittings
The stainless steel pipe fittings are made of an alloy called stainless steel. It is very durable and is highly corrosion resistant. The stainless steel pipe fittings are also known for their cryogenic toughness. They are used across several industries due to their unique properties, like it offers good resistance in high temperatures, and possesses high fabricability and transformability. The stainless steel is available in different grades like 304, 316, and 316L, and each of them offer some unique characteristics.
Stainless steel fittings are basically used for connecting pipes. They also help to control the occurrences going on inside the pipe, like the volume or direction of the liquids, or the pressure of the flow. Depending on the purpose for which it would be used, there are different types of fittings available for piping, plumbing and pressure applications.
Some of the most common types of stainless steel pipe fittings are:
- Pipe Tee Fittings- These are T-shaped fittings with two outlets present at an angle of 90 degrees and only one inlet. It is popularly used across several industries.

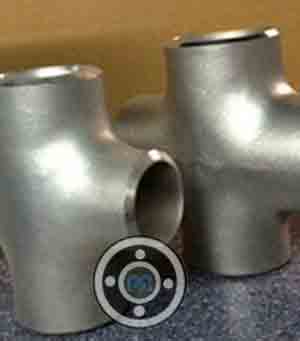

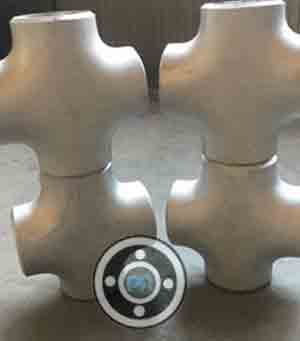

- Cross Fittings- These fittings are shaped like a cross with three inlets and one outlet, or vice-versa. These fittings come handy in small spaces where not much area is available for fittings.
- Elbow Fittings- They are mostly used for changing the direction, pressure and volume of the liquid flow. The sharp bent of this fitting helps it to perform the function.
- Reducer Fittings- They have a big diameter and a small diameter on each end, and they are mainly of two types; concentric reducer and eccentric reducer.
What Are Stainless Steel Buttweld Fittings Used For?
Stainless Steel Buttweld Fittings are designed in such a way that needs to be welded on site. It helps in connecting pipes together, and also allows change in the flow direction. The SS buttweld fitting also helps in changing pipe diameter or its branching. They are mainly used in process operations in various industries. The SS buttweld fittings are popularly used in chemical plants, pharmaceutical plants, breweries, food processing units, cryogenic plants, waste treatment facilities, commercial nuclear power plants and so on. The buttweld pipe fitting helps to join the pipes in a straight line, and change or divide the fluid flow. With the buttweld pipe fittings, clients can expect to reduce their production cycle as well as their production cost.
What Are The Types Of Stainless Steel Weld Fittings?
There are four types of stainless steel weld fittings, namely:
- Butt weld fittings- These are the pipe fittings that mainly help in changing the direction of the flow. It also helps in branching of the pipes, reducing the size of the pipe, and attaching the auxiliary equipment. They offer more robust connection, and as they have a continuous structure, it helps to add strength to the whole piping system. They also offer a seamless flow inside the pipe.
- Threaded fittings- The threaded joints are the oldest methods of connecting the pipes. They help to change the direction of the flow, and also connect all the equipment that will help in operating the whole system without any interruptions. The threaded fittings are generally available in the standard dimensions.
What Is The Difference Between Stainless Steel Socket Weld Fittings And Stainless Steel Butt Weld Fittings?
For the socket weld, there is a recessed area of the fitting where the pipe gets inserted. Both the pipe and the fitting here have a square cut, and there is no need for a beveled end, which helps in easy welding and installation.
The Stainless Steel butt weld fittings with the same thickness as that of the pipes, have its ends welded to the ends of the pipe. It is important for the butt weld fitting ends to be beveled.
There are many points that differentiate the socket weld fittings from the butt weld fittings, like:
Applications
The socket weld fittings are primarily for pipes with a diameter of NPS 2 or smaller. They are ideal for smaller lines.
The butt weld fittings come with a greater strength, and they are capable of withstanding high temperature and pressure. That is why these fittings are used for bigger pipelines.
Features
The socket weld fittings are very easy to install, but it requires a gap of about 1/16” at the bottom for thermal expansion. The gap might cause stress problems cracking the fillet weld of the fitting. They can cause trouble in corrosive fluids due to the occurrence of crevice corrosion. And because of the absence of smooth pipe internals, the chances of corrosion is also high.
But when it comes to strength, corrosion resistance, temperature compliance, and fatigue, the butt weld fittings offer the best results. The only problem with this fitting is that they are difficult to weld. More time and efficient labors are needed to do the welding work properly.
Price
Normally, similar sized socket weld fittings cost higher than the butt weld fittings. However, the overall cost of butt weld fittings is more due to the installation process. It requires skilled laborers and hence the costs are higher.
Benefits Of Stainless Steel Fittings
The stainless steel fittings offer a wide range of benefits:
- It is high in strength and offers excellent resistance to corrosion. It is also resistant to heat and chemical damage. Along with withstanding high flow rates, the stainless steel fittings can also withstand various elements in different types of environments.
- Stainless steel is safe and thus they can be used in all types of liquids, including drinking water for public supply. It is resistant to a wide range of potable waters including different levels of chloride. Apart from being fully recyclable, they also retain a higher residual scrap value compared to ordinary steel.
- Apart from these, the stainless fittings also need low maintenance. Whether it is used for an indoor or outdoor application, no additional coatings are needed on it. They are very durable and can last up to 50 years. They also come with a reduced downtime, and it does not need much replacements and maintenance over its lifetime. It is a cost-efficient fitting that has a wide range of applications.

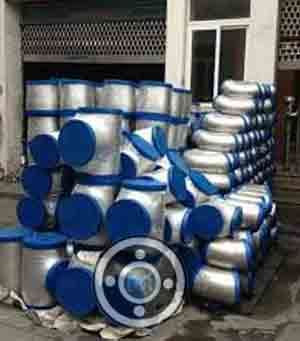

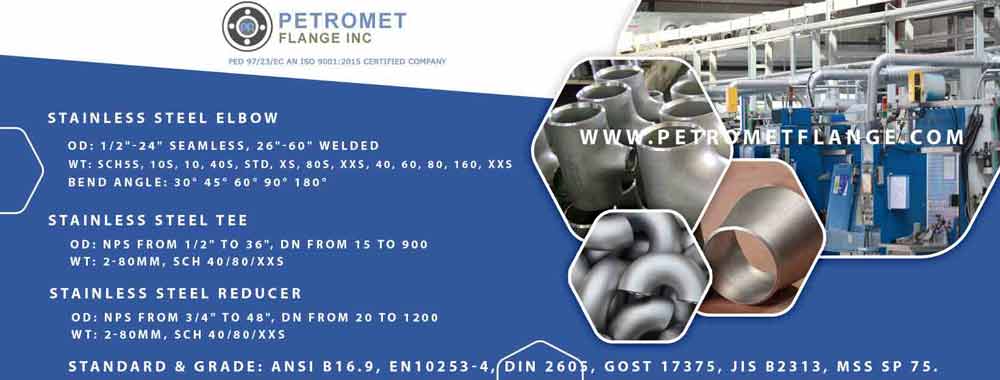

Stainless Steel Pipe Fittings manufacturer in India
European Directive 2014/68/eu certified weldable Stainless Steel Buttweld Fittings manufacturers in India offers widest selection of SS Stub end and, Reducer, End Cap in Mumbai
Table of Content
- Stainless Steel Pipe Fittings Specification List
- Stainless Steel Elbow
- Stainless Steel Tee
- Stainless Steel Reducer
- Price List of Stainless Steel Pipe Fittings
- Weight Chart of Stainless Steel Reducer
- ASTM A403 SS Reducer Dimensions
- Stainless Steel Elbow Weight
- Dimensions Table of Stainless Steel Weld Elbow
- Mss Sp-79 SS Tee Dimensions
- Stainless Steel Tee Weight
- SS Elbow Size Chart
- Size Chart of SS Reducer
- Equivalent Length of Mss Sp-79 SS Fittings
- Stainless Steel Pipe Fittings Hs Code
- Various Types Of ASME Sa403 SS Fittings
- Chemical Composition Stainless Steel ASTM A403 Weld Fittings
- Sa-403 SS Fittings Mechanical Properties
- ASTM A403 Stainless Steel Buttweld Fittings Equivalent
- Pressure Rating Of Asme Sa403 Ss Pipe Fittings
- Stainless Steel Fittings Thickness Chart
- SS Buttweld Fittings Tolerance Chart
- Application Of Stainless Steel Bw Fittings
- Value Added Services of Asme Sa403 SS Fitting
- Stainless Steel ASTM A403 BW Fittings Manufacturing Standards
- Asme Sa403 SS Fittings Surface Finish

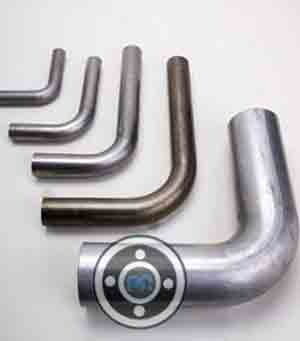

- Stainless Steel Pipe Bends Weight Formula
- Bend Radius and Angle for ASTM A403 SS Bends
Stainless Steel Pipe Fittings Specification List
| Stainless Steel Pipe Fittings Specifications | ASTM A403 |
|---|---|
| SS Fittings Sizes | Stainless Steel ASTM A403 Seamless Fittings: 1/2" - 10" ASME B16 9 Asme Sa403 Stainless Steel Welded Fittings: 1/2" - 48" |
| Stainless Steel Pipe Fittings Dimensions | ASME B16.28, ASME/ANSI B16.9, BS4504, MSS-SP-43, BS1560, BS4504, BS10 |
| SS Fittings Thickness | SCH30, SCH10, SCH 160, SCH20, SCH60, XS, STD SCH40, SCH 80, SCH 120, SCH 140, SCH 100, XXS available with NACE MR 01-75 |
| Stainless Pipe Fittings Type Manufacturer | DN15-DN1200 |
| SS Bw Fittings Connection | Welding |
| Various Bending Radius Provided By Manufacturer | R=1D, 3D, 2D, 5D, 8D, 6D, 10D or Custom Stainless Steel Pipe Fittings |
| Size Range | ½ inch to 24 inch NB in Sch 160s, 40s, 10s, 80s, XXS. (DN6~DN100) Stainless Steel Fittings |
| Mss Sp-79 SS Elbows Manufacturer | Angle : 22.5 deg, 45 deg, 30deg, 90 deg, 1.0D, 180 deg, 1.5D, 3D, 2.5D, 2.0D, 4D, 6D, 5D, 7D-40D . Standard: ASME B16.28, GB, ASME B16.9, MSS SP-75 JISB2311 DIN2605 JISB2312 JISB2313, ASME B16.25, BS, ISO |
| Asme Sa403 Stainless Steel Fitting Manufacturing process | Push, Forge, Press, Cast, etc. |
| ASME B16.9 SS Fittings Test Certificates | EN 10204/3.1B 100% Radiography Test Report Raw Materials Certificate Third Party Inspection Report, etc |
| Production Grades | 316h SS / 317 SS / 317L SS / 321 SS / 321H SS / 347 SS / 304H SS / 347H SS / 310s SS / 446 SS / 304 SS / 304L SS / 316 SS / 316L SS / 310 SS / 347 SS / 904L SS |
| SS Bw Fittings Origin & Mills | European, Japanese, USA, Korean, Ukraine, Indian, Russian |

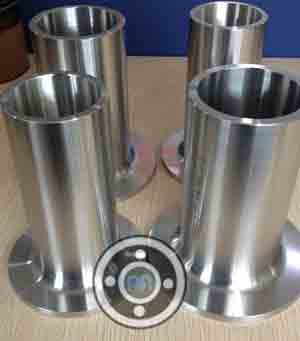

| Specialized manufacturer of | SS Buttweld Fittings Stub End, 90º Elbows, Tees, Pipe Cap, Crosses, 45º Elbows, Reducers, Pipe Bend |
| Application of Industrial SS Buttweld Fittings | Fittings To Connect Tubes and Pipe in Gas, Petroleum, Metallurgy, Chemical, Power, Construction, Shipbuilding etc |
Leading Stainless Steel Fittings Supplier, wholesalers, stockholders, importer, stockists, distributor, dealers, exporters and Manufacturer in Mumbai

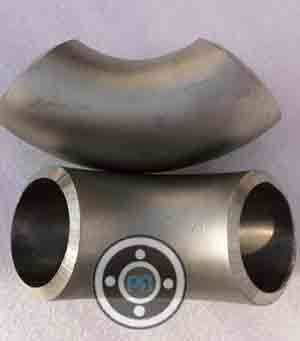

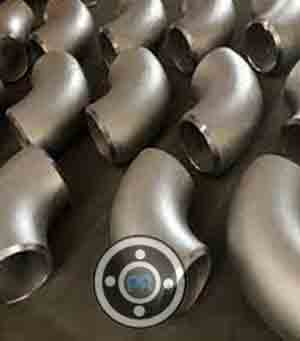

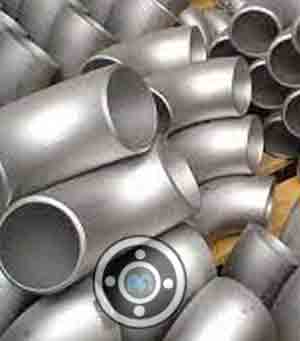

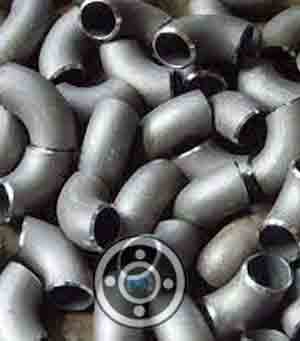

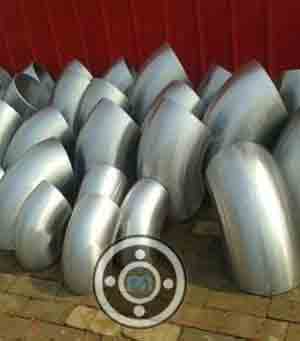

Stainless Steel Elbow

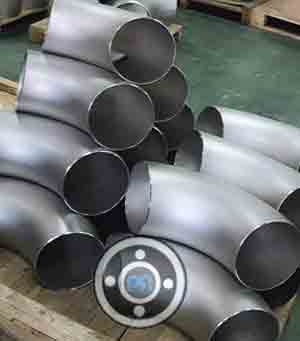

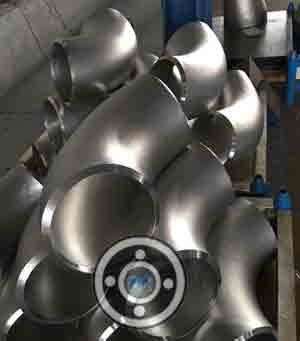

Long Radius Elbow 45° Sch 10s Stainless Steel

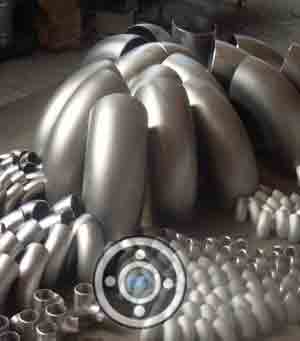

Long Radius Elbow 90° Sch 10s Stainless Steel

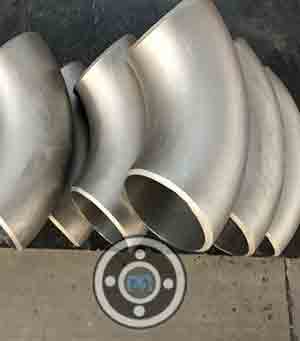

Short Radius Elbow 90° Sch 10s Stainless Steel

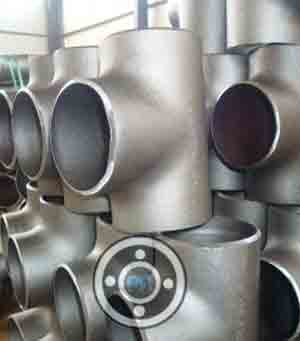

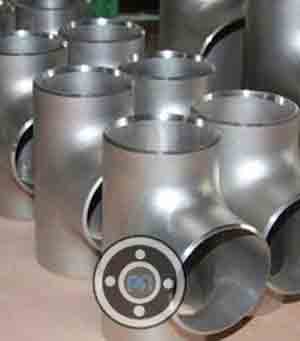

Stainless Steel Tee

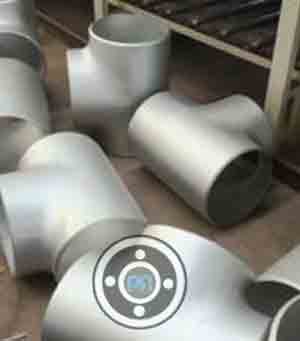

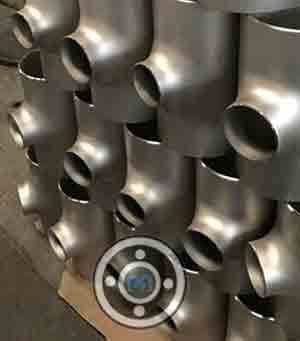

Equal Tee Sch 10s Stainless Steel

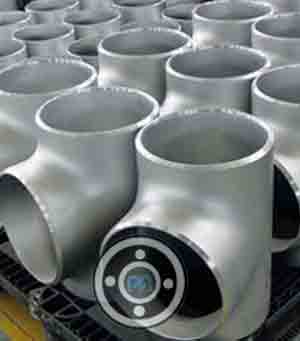

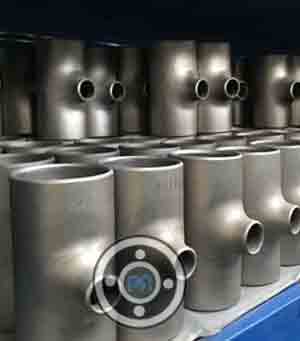

Reducing Tee Sch 10s Stainless Steel
1-1/4" NB SCH10S Equal Tee Stainless Steel

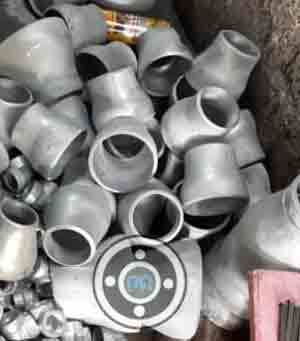

Stainless Steel Reducer

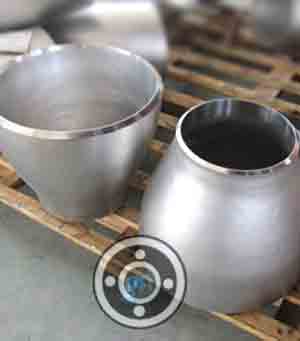

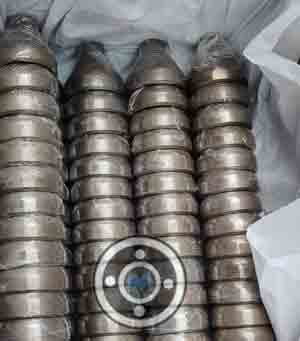

Concentric Reducer Sch 10s Stainless Steel

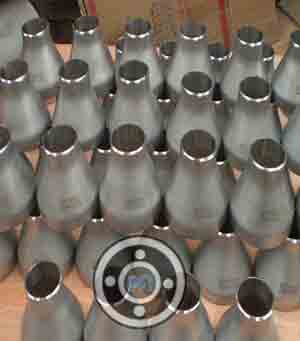

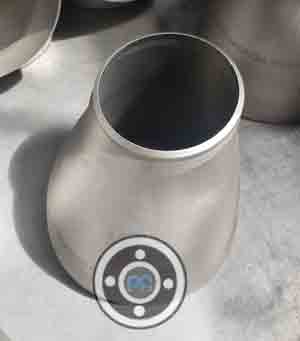

Eccentric Reducer Sch 10s Stainless Steel

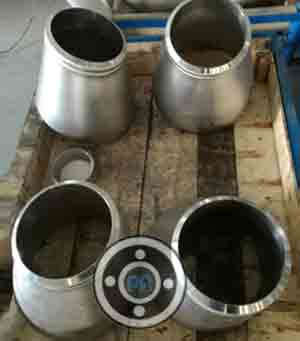

1-1/2" X 3/4" NB SCH10S SS Reducer
20mm- 800mm seamless butt weld SS Lateral Tee, short/ long radius elbow and stainless steel pipe fittings manufacturer in India
Price List of Stainless Steel Pipe Fittings
| Stainless Steel Pipe Fittings Price Per Piece in India | SS BW Fittings Price in INR | Asme Sa403 Stainless Steel Buttweld Fittings Price in UAE Dirham | Stainless Steel Buttweld Fittings Price in USD |
| 3/4" X 3/8" Nb Sch10s Concentric Reducer Welded Stainless Steel Per Piece | 742.94 | UAE Dirham 36.88 | $10.04 |
| 1" Nb Sch10s Equal Tee Butt Weld Stainless Steel Per Piece | 46.61 | UAE Dirham 46.61 | $12.69 |
| 3/4" Nb Sch10s Stub End Type A Butt Weld Stainless Steel Per Piece | 1207.08 | UAE Dirham 59.91 | $16.31 |
| 2" Nb Sch10s 90° Long Radius Elbow Stainless Steel Per Piece | 1051.64 | UAE Dirham 52.19 | $14.21 |

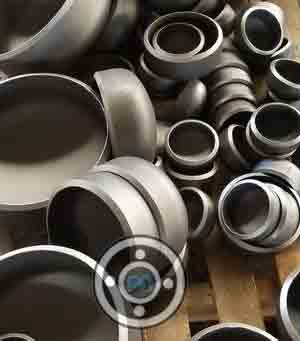

| 1/2" Nb Sch10s Cap Seamless Stainless Steel Per Piece | 677.17 | UAE Dirham 33.61 | $9.15 |
Finding a reliable Stainless Steel Pipe Fittings suppliers in UAE? Petromet Flanges supply SS Elbow, Reducer Tee, and Pipe Cap in all schedule and sizes at lowest price for UAE clients, we supply SS Buttweld Fittings to Abu Dhabi & Dubai several times in a month, contact us for ready sizes and free sample.
Weight Chart of Stainless Steel Reducer
| Nominal Size | SCH20 | STD | SCH40S | SCH80S | SCH120 | SCH160 | |
| DN | NPS | ||||||
| 15 | 1/2 | 0.08 | 0.08 | 0.1 | |||
| 20 | 3/4 | 0.17 | 0.17 | 0.2 | |||
| 25 | 1 | 0.21 | 0.21 | 0.25 | 0.22 | ||
| 32 | 1 1/4 | 0.29 | 0.29 | 0.35 | |||
| 40 | 1 1/2 | 0.42 | 0.42 | 0.58 | 0.6 | ||
| 50 | 2 | 0.8 | 0.8 | 1.03 | 1.04 | ||
| 65 | 2 1/2 | 1.05 | 1.05 | 1.42 | 1.65 | ||
| 80 | 3 | 1.36 | 1.36 | 1.9 | |||
| 90 | 3 1/2 | 1.63 | 1.63 | 2.27 | 2.4 | ||
| 100 | 4 | 2.77 | 2.77 | 3.93 | 4.4 | ||
| 125 | 5 | 3.96 | 3.96 | 6 | 7.14 | ||
| 150 | 6 | 6.31 | 6.31 | 9.26 | 10.8 | ||
| 200 | 8 | 7.85 | 10.7 | 10.7 | 17.5 | 15 | 18.4 |
| 250 | 10 | 11.2 | 15.8 | 16.3 | 25.1 | 25.1 | 32.5 |
| 300 | 12 | 25.6 | 28.8 | 32.1 | 56.5 | 41.7 | 53.3 |
| 350 | 14 | 30.5 | 38.5 | 48.8 | 79 | 84.5 | 106 |
| 400 | 16 | 35.2 | 44.5 | 64.3 | 102 | 112 | 143 |
| 450 | 18 | 62.7 | 62.7 | 98.5 | 165 | ||
| 500 | 20 | 72.6 | 72.6 | 181 | |||
| 550 | 22 | 97 | 79.1 | 142 | 226 | ||
| 600 | 24 | 130 | 100 | ||||
ASTM A403 SS Reducer Dimensions
| Nominal Pipe Size |
Outside Diameter |
Reducers | ||
|---|---|---|---|---|
| Reduced from (inches) |
(inches) | (mm) | Concentric & Eccentric Length (inches) |
Reduced to (inches) |
| 1/2 | 0.840 | 21.3 | 1 1/2 | 1/4 |
| 1 1/2 | 3/8 | |||
| 3/4 | 1.050 | 26.7 | 2 | 3/8 |
| 2 | 1/2 | |||
| 1 | 1.315 | 33.4 | 2 | 3/8 |
| 2 | 1/2 | |||
| 2 | 3/4 | |||
| 1 1/4 | 1.660 | 42.2 | 2 | 1/2 |
| 2 | 3/4 | |||
| 2 | 1 | |||
| 1 1/2 | 1.900 | 48.3 | 2 1/2 | 1/2 |
| 2 1/2 | 3/4 | |||
| 2 1/2 | 1 | |||
| 2 1/2 | 1 1/4 | |||
| 2 | 2.375 | 60.3 | 3 | 3/4 |
| 3 | 1 | |||
| 3 | 1 1/4 | |||
| 3 | 1 1/2 | |||
| 2 1/2 | 2.875 | 73.0 | 3 1/2 | 1 |
| 3 1/2 | 1 1/4 | |||
| 3 1/2 | 1 1/2 | |||
| 3 1/2 | 2 | |||
| 3 | 3.500 | 88.9 | 3 1/2 | 1 |
| 3 1/2 | 1 1/2 | |||
| 3 1/2 | 2 | |||
| 3 1/2 | 2 1/2 | |||
| 3 1/2 | 4.000 | 101.6 | 4 | 1 1/4 |
| 4 | 1 1/2 | |||
| 4 | 2 | |||
| 4 | 2 1/2 | |||
| 4 | 3 | |||
| 4 | 4.500 | 114.3 | 4 | 1 1/2 |
| 4 | 2 | |||
| 4 | 2 1/2 | |||
| 4 | 3 | |||
| 4 | 3 1/2 | |||
| 5 | 5.563 | 141.3 | 5 | 2 |
| 5 | 2 1/2 | |||
| 5 | 3 | |||
| 5 | 3 1/2 | |||
| 5 | 4 | |||
| 6 | 6.625 | 168.3 | 5 1/2 | 2 1/2 |
| 5 1/2 | 3 | |||
| 5 1/2 | 3 1/2 | |||
| 5 1/2 | 4 | |||
| 5 1/2 | 5 | |||
| 8 | 8.625 | 219.1 | 6 | 3 |
| 6 | 3 1/2 | |||
| 6 | 4 | |||
| 6 | 5 | |||
| 6 | 6 | |||
| 10 | 10.750 | 273.1 | 7 | 4 |
| 7 | 5 | |||
| 7 | 6 | |||
| 7 | 8 | |||
| 12 | 12.750 | 323.9 | 8 | 5 |
| 8 | 6 | |||
| 8 | 8 | |||
| 8 | 10 | |||
Manufacturer of butt-weld Stainless Steel Weld Fittings and Seamless Elbow, Reducer, Straight/ Reducing Tee according to ASTM, ASME, EN 10253-3, EN 10253-4 and MSS SP-79 / MSS SP-43
Stainless Steel Elbow Weight
| NPS | KG | LBS |
| 1/2 | 0.11 | 0.25 |
| 3/4 | 0.11 | 0.25 |
| 1 | 0.23 | 0.5 |
| 1¼ | 0.41 | 0.9 |
| 1½ | 0.52 | 1.15 |
| 2 | 1 | 2.2 |
| 2½ | 1.81 | 4 |
| 3 | 2.95 | 6.5 |
| 3½ | 3.79 | 8.35 |
| 4 | 6.12 | 13.5 |
| 5 | 9.98 | 22 |
| 6 | 15.88 | 35 |
| 8 | 32.21 | 71 |
| 10 | 48.53 | 107 |
| 12 | 72.57 | 160 |
| 14 | 92.99 | 205 |
| 16 | 125.19 | 276 |
| 18 | 154.22 | 340 |
| 20 | 190.51 | 420 |
| 22 | 235.87 | 520 |
| 24 | 272.16 | 600 |
| 26 | 330.67 | 729 |
| 30 | 442.25 | 975 |
| 36 | 640.47 | 1412 |
Dimensions Table of Stainless Steel Weld Elbow
| Nominal Pipe Size | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
|
(inches)
|
Long Radius
|
Short Radius
|
Long Radius
|
Long Radius
|
||||
|
(mm)
|
(inches)
|
Center to Face
(inches) |
Center to Face
(inches) |
Center to Face
(inches) |
Radius
(inches) |
Center to Center
(inches) |
Back to face
(inches) |
|
|
1/2
|
21.3
|
0.840
|
1 1/2
|
-
|
5/8
|
2
|
1 7/8
|
|
|
3/4
|
26.7
|
1.050
|
1 1/8
|
-
|
7/16
|
2 1/4
|
1 11/16
|
|
|
1
|
33.4
|
1.315
|
1 1/2
|
1
|
7/8
|
3
|
2 3/16
|
|
|
1 1/4
|
42.2
|
1.660
|
1 7/8
|
1 1/4
|
1
|
3 3/4
|
2 3/4
|
|
|
1 1/2
|
48.3
|
1.900
|
2 1/4
|
1 1/2
|
1 1/8
|
3
|
4 1/2
|
3 1/4
|
|
2
|
60.3
|
2.375
|
3
|
2
|
1 3/8
|
4
|
6
|
4 3/16
|
|
2 1/2
|
73.0
|
2.875
|
3 3/4
|
2 1/2
|
1 3/4
|
5
|
7 1/2
|
5 3/16
|
|
3
|
88.9
|
3.500
|
4 1/2
|
3
|
2
|
6
|
9
|
6 1/4
|
|
3 1/2
|
101.6
|
4.000
|
5 1/4
|
3 1/2
|
2 1/4
|
7
|
10 1/2
|
7 1/4
|
|
4
|
114.3
|
4.500
|
6
|
4
|
2 1/2
|
8
|
12
|
8 1/4
|
|
5
|
141.3
|
5.563
|
7 1/2
|
5
|
3 1/8
|
10
|
15
|
10 5/16
|
|
6
|
168.3
|
6.625
|
9
|
6
|
3 3/4
|
12
|
18
|
12 5/16
|
|
8
|
219.1
|
8.625
|
12
|
8
|
5
|
12
|
24
|
16 5/16
|
|
10
|
273.1
|
10.750
|
15
|
10
|
6 1/4
|
15
|
30
|
20 3/8
|
|
12
|
323.9
|
12.750
|
18
|
12
|
7 1/2
|
18
|
36
|
24 3/8
|
Manufacturer of ASME B16.9 Schedule 10 Stainless Steel Stub End, Pipe Bend, A403 Short Radius 90 Degree Elbow and SS LR Elbow in Seamless & Welded, check our online stainless steel pipe fittings price list, dimensions and weight chart
Mss Sp-79 SS Tee Dimensions
| NOMINAL PIPE SIZE | LENGTH | CENTER TO END | OUTSIDE DIAMETER |
|---|---|---|---|
| Inch. | M | C | OD |
| 1/2 | 25 | 25 | 21.3 |
| 3/4 | 29 | 29 | 26.7 |
| 1 | 38 | 38 | 33.4 |
| 1 1/4 | 48 | 48 | 42.2 |
| 1 1/2 | 57 | 57 | 48.3 |
| 2 | 64 | 64 | 60.3 |
| 2 1/2 | 76 | 76 | 73 |
| 3 | 86 | 86 | 88.9 |
| 3 1/2 | 95 | 95 | 101.6 |
| 4 | 105 | 105 | 114.3 |
| 5 | 124 | 124 | 141.3 |
| 6 | 143 | 143 | 168.3 |
| 8 | 178 | 178 | 219.1 |
| 10 | 216 | 216 | 273.1 |
| 12 | 254 | 254 | 323.9 |
| 14 | 279 | 279 | 355.6 |
| 16 | 305 | 305 | 406.4 |
| 18 | 343 | 343 | 457.2 |
| 20 | 381 | 381 | 508 |
| 22 | 419 | 419 | 559 |
| 24 | 432 | 432 | 610 |
| 26 | 495 | 495 | 660 |
| 28 | 521 | 521 | 711 |
| 30 | 559 | 559 | 762 |
| 32 | 597 | 597 | 813 |
| 34 | 635 | 635 | 864 |
| 36 | 673 | 673 | 914 |
| 38 | 711 | 711 | 965 |
| 40 | 749 | 749 | 1016 |
| 42 | 711 | 762 | 1067 |
| 44 | 762 | 813 | 1118 |
| 46 | 800 | 851 | 1168 |
| 48 | 838 | 889 | 1219 |
Stainless Steel Tee Weight
| NPS | KG | LBS |
| 1/2 | 0.16 | 0.35 |
| 3/4 | 0.2 | 0.45 |
| 1 | 0.34 | 0.75 |
| 1¼ | 0.59 | 1.3 |
| 1½ | 0.91 | 2 |
| 2 | 1.59 | 3.5 |
| 2½ | 2.72 | 6 |
| 3 | 3.18 | 7 |
| 3½ | 4.08 | 9 |
| 4 | 5.44 | 12 |
| 5 | 9.53 | 21 |
| 6 | 15.42 | 34 |
| 8 | 24.95 | 55 |
| 10 | 38.56 | 85 |
| 12 | 54.43 | 120 |
| 14 | 74.84 | 165 |
| 16 | 88.45 | 195 |
| 18 | 112.94 | 249 |
| 20 | 155.13 | 342 |
| 22 | 187.79 | 414 |
| 24 | 239.5 | 528 |
| 26 | 349.27 | 770 |
| 30 | 480.81 | 1060 |
| 36 | 675.85 | 1490 |
SS Elbow Size Chart
| NPS | O.D. D |
90° 3D Center to End A |
45° 3D Center to End B |
45° Long Rad Center to End B |
90° Long Rad Center to End A |
| 18 | 457 | 1372 | 568 | 286 | 686 |
| 20 | 508 | 1524 | 632 | 318 | 762 |
| 22 | 559 | 1676 | 694 | 343 | 838 |
| 24 | 610 | 1829 | 757 | 381 | 914 |
| 26 | 660 | 1981 | 821 | 406 | 991 |
| 28 | 711 | 2134 | 883 | 438 | 1067 |
| 30 | 762 | 2286 | 946 | 470 | 1143 |
| 32 | 813 | 2438 | 1010 | 502 | 1219 |
| 34 | 864 | 2591 | 1073 | 533 | 1295 |
| 36 | 914 | 2743 | 1135 | 565 | 1372 |
| 38 | 965 | 2896 | 1200 | 600 | 1448 |
| 40 | 1016 | 3048 | 1264 | 632 | 1524 |
| 42 | 1067 | 3200 | 1326 | 660 | 1600 |
| 44 | 1118 | 3353 | 1389 | 695 | 1676 |
| 46 | 1168 | 3505 | 1453 | 727 | 1753 |
| 48 | 1219 | 3658 | 1516 | 759 | 1829 |
Size Chart of SS Reducer
| NOMINAL PIPE SIZE | END TO END | OUTSIDE DIAMETER | |
|---|---|---|---|
| Inch | H | D | P |
| 3/4 x 1/2 | 38 | 26.7 | 21.3 |
| 3/4 x 3/8 | 38 | 26.7 | 17.1 |
| 1 x 3/4 | 51 | 33.4 | 26.7 |
| 1 x 1/2 | 51 | 33.4 | 21.3 |
| 1 1/4 x 1 | 51 | 42.2 | 33.4 |
| 1 1/4 x 3/4 | 51 | 42.2 | 26.7 |
| 1 1/4 x 1/2 | 51 | 42.2 | 21.3 |
| 1 1/2 x 1 1/2 | 64 | 48.3 | 42.2 |
| 1 1/2 x 1 | 64 | 48.3 | 33.4 |
| 1 1/2 x 3/4 | 64 | 48.3 | 26.7 |
| 1 1/2 x 1/2 | 64 | 48.3 | 21.3 |
| 2 x 1 1/2 | 76 | 60.3 | 48.2 |
| 2 x 1 1/4 | 76 | 60.3 | 42.2 |
| 2 x 1 | 76 | 60.3 | 33.4 |
| 2 x 3/4 | 76 | 60.3 | 26.7 |
| 2 1/2 x 2 | 89 | 73 | 60.3 |
| 2 1/2 x 1 1/2 | 89 | 73 | 48.3 |
| 2 1/2 x 1 1/4 | 89 | 73 | 42.2 |
| 2 1/2 x 1 | 89 | 73 | 33.4 |
| 3 x 2 1/2 | 89 | 88.9 | 73 |
| 3 x 2 | 89 | 88.9 | 60.3 |
| 3 x 1 1/2 | 89 | 88.9 | 48.3 |
| 3 x 1 1/4 | 89 | 88.9 | 42.2 |
| 3 1/2 x 3 | 102 | 101.6 | 88.9 |
| 3 1/2 x 21/2 | 102 | 101.6 | 73 |
| 3 1/2 x 2 | 102 | 101.6 | 60.3 |
| 3 1/2 x 1 1/2 | 102 | 101.6 | 48.3 |
| 3 1/2 x 1 1/4 | 102 | 101.6 | 42.2 |
| 4 x 3 1/2 | 102 | 114.3 | 101.6 |
| 4 x 3 | 102 | 114.3 | 88.9 |
| 4 x 2 1/2 | 102 | 114.3 | 73 |
| 4 x 2 | 102 | 114.3 | 60.3 |
| 4 x 1 1/2 | 102 | 114.3 | 48.3 |
| 5 x 4 | 127 | 141.3 | 114.3 |
| 5 x 3 1/2 | 127 | 141.3 | 101.6 |
| 5 x 3 | 127 | 141.3 | 88.9 |
| 5 x 2 1/2 | 127 | 141.3 | 73 |
| 5 x 2 | 127 | 141.3 | 60.3 |
| 6 x 5 | 140 | 168.3 | 141.3 |
| 6 x 4 | 140 | 168.3 | 114.3 |
| 6 x 3 1/2 | 140 | 168.3 | 101.6 |
| 6 x 3 | 140 | 168.3 | 88.9 |
| 6 x 2 1/2 | 140 | 168.3 | 73 |
| 8 x 6 | 152 | 219.1 | 168.3 |
| 8 x 5 | 152 | 219.1 | 141.3 |
| 8 x 4 | 152 | 219.1 | 114.3 |
| 8 x 3 1/2 | 152 | 219.1 | 101.6 |
| 10 x 8 | 178 | 273.1 | 219.1 |
| 10 x 6 | 178 | 273.1 | 168.1 |
| 10 x 5 | 178 | 273.1 | 141.3 |
| 10 x 4 | 178 | 273.1 | 114.3 |
| 12 x 10 | 203 | 323.9 | 273.1 |
| 12 x 8 | 203 | 323.9 | 219.1 |
| 12 x 6 | 203 | 323.9 | 168.3 |
| 12 x 5 | 203 | 323.9 | 141.3 |
| 14 x 12 | 330 | 355.6 | 323.9 |
| 14 x 10 | 330 | 355.6 | 273.1 |
| 14 x 8 | 330 | 355.6 | 219.1 |
| 14 x 6 | 330 | 355.6 | 168.3 |
| 16 x 14 | 356 | 406.4 | 355.6 |
| 16 x 12 | 356 | 406.4 | 323.9 |
| 16 x 10 | 356 | 406.4 | 273.1 |
| 16 x 8 | 356 | 406.4 | 219.1 |
| 16 x 6 | 356 | 406.4 | 168.3 |
| 18 x 16 | 381 | 457 | 406.4 |
| 18 x 14 | 381 | 457 | 355.6 |
| 18 x 12 | 381 | 457 | 323.9 |
| 18 x 10 | 381 | 457 | 273.1 |
| 18 x 8 | 381 | 457 | 219.1 |
| 20 x 18 | 508 | 508 | 457 |
| 20 x 16 | 508 | 508 | 406.4 |
| 20 x 14 | 508 | 508 | 355.6 |
| 20 x 12 | 508 | 508 | 323.9 |
| 20 x 10 | 508 | 508 | 273.1 |
| 20 x 8 | 508 | 508 | 219.1 |
| 22 x 20 | 508 | 559 | 508 |
| 22 x 18 | 508 | 559 | 457 |
| 22 x 16 | 508 | 559 | 406.4 |
| 22 x 14 | 508 | 559 | 355.6 |
| 22 x 12 | 508 | 559 | 323.9 |
| 24 x 10 | 508 | 559 | 273.1 |
| 24 x 22 | 508 | 610 | 559 |
| 24 x 20 | 508 | 610 | 508 |
| 24 x 18 | 508 | 610 | 457 |
| 24 x 16 | 508 | 610 | 406.4 |
| 24 x 14 | 508 | 610 | 355.6 |
| 24 x 12 | 508 | 610 | 323.9 |
| 24 x 10 | 508 | 610 | 273.1 |
Equivalent Length of Mss Sp-79 SS Fittings
| Fittings | GRP/FRP e = 0.02 mm |
Rigid PVC/HDPE e = 0.005 mm |
Spiral Weld Steel e = 0.1 mm |
Commercial Steel e = 0.05 mm |
|---|---|---|---|---|
| Threaded bends | ||||
| 45� elbow, r/d=1 | 18 | 20 | 14 | 16 |
| 90� elbow, r/d=1 | 34 | 37 | 26 | 30 |
| Welded bends | ||||
| 90� elbow, sharp bend | 63 | 69 | 49 | 55 |
| 90� elbow, r/d=1 | 21 | 23 | 16 | 19 |
| 90� elbow, r/d=2 | 13 | 14 | 10 | 11 |
| 90� elbow, r/d=1.5 | 15 | 17 | 12 | 13 |
| 45� elbow, sharp bend | 20 | 22 | 16 | 18 |
| 45� elbow, r/d=1.5 | 11 | 12 | 8.3 | 9.4 |
| 45� elbow, r/d=1 | 16 | 17 | 12 | 14 |
| Welded tees | ||||
| Tee, square, straight through | 0 | 0 | 0 | 0 |
| Tee, square, through branch | 79 | 87 | 61 | 70 |
| Tee, radiused, straight through | 12 | 13 | 9 | 10 |
| Tee, radiused, through branch | 65 | 72 | 50 | 57 |
Stainless Steel Pipe Fittings Hs Code
| HS Code | 730729 | Tube or pipe fittings of stainless steel |
Various Types Of ASME Sa403 SS Fittings
Stainless Steel 90° Long Radius Elbow

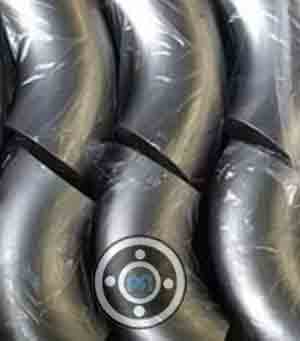

SCH 20 ASTM A403 SS 90° Short Radius Elbow
Stainless Steel ASTM A403 45° Long Radius Elbow

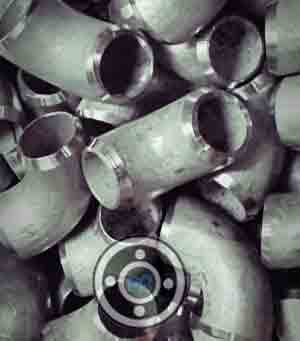

ASTM A403 Stainless Steel 45° Short Radius Elbow

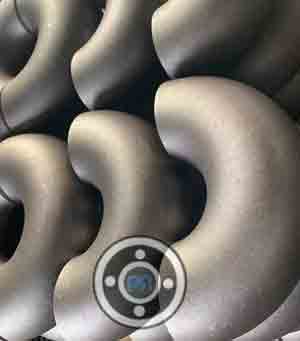

SCH 30 Sa 403 Stainless Steel 180° Long Radius Elbow

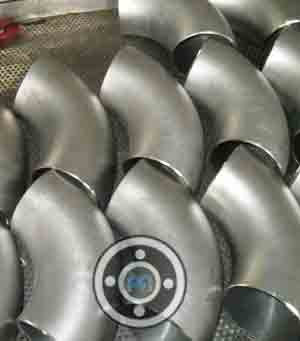

SS 180° Short Radius Elbow

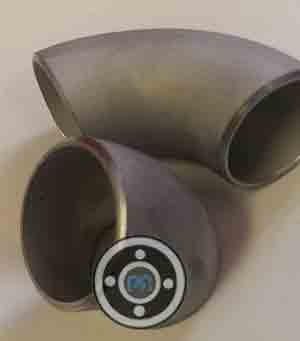

Stainless Steel 1D Elbow

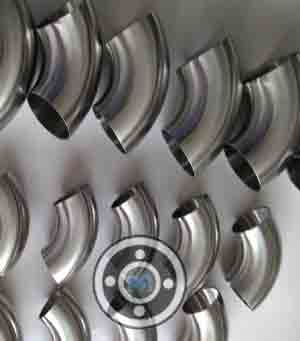

Mss Sp-79 SS 1.5D Elbow

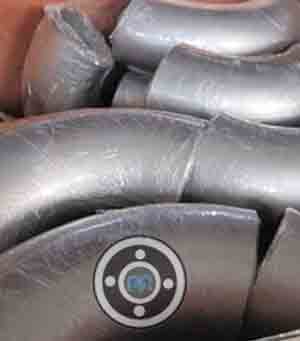

Sa-403 Stainless Steel 3D Elbow

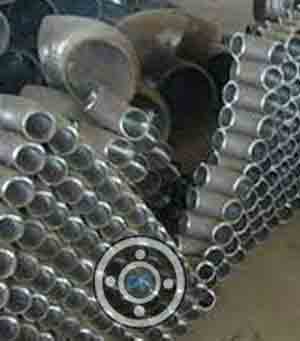

SCH 40 Asme Sa403 Stainless Steel 5D Elbow

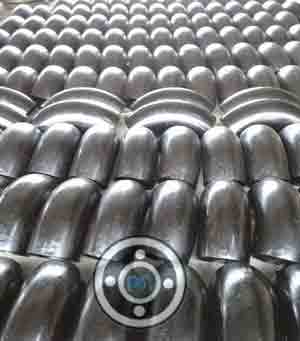

STD Asme Sa403 SS 10D ELBOW
Asme Sa403 Stainless Steel Seamless Buttwelding 45° and 90° Elbows
SCH 140 SS Welded Elbows

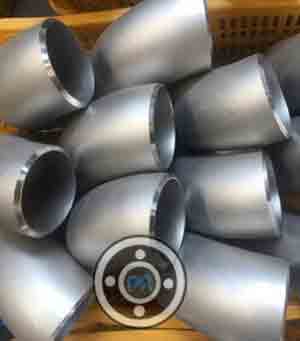

ASTM A403 SS Seamless Buttwelding 180° Returns
SCH 60 Stainless Steel ASTM A403 Straight Tees and Crosses
Stainless Steel Reducing Outlet Tees and Reducing Outlet Crosses
Sa 403 Stainless Steel Equal Tee
SCH 80 Asme Sa403 Stainless Steel Reducing Tee
Sa-403 Stainless Steel Equal Cross
SCH XS Mss Sp-79 SS Reducing Cross
Stainless Steel Reducers
ASTM A403 Stainless Steel Concentric Reducer
Sa-403 Stainless Steel Eccentric Reducer

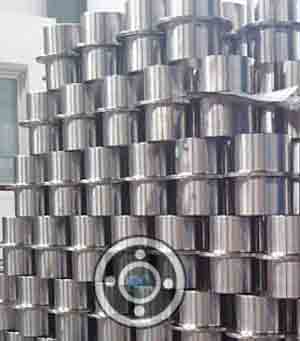

450 NB SCH 10 Stainless Steel Stub End

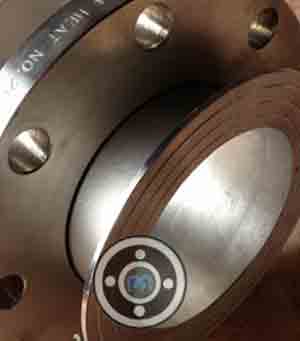

ASTM A403 Stainless Steel Lap Joint Stub Ends
Asme Sa403 SS Long Stubend

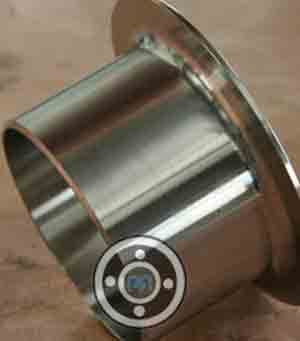

SCH 100 Asme Sa403 Stainless Steel Short Stubend

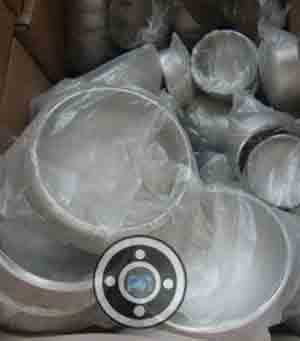

ASTM A403 Stainless Steel Pipe Cap
SCH 160 Stainless Steel End Cap

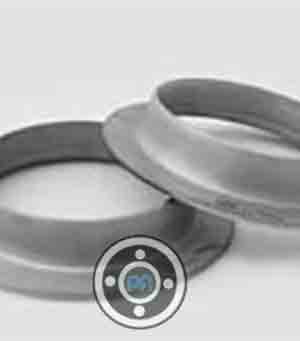

Mss Sp-79 SS Collar

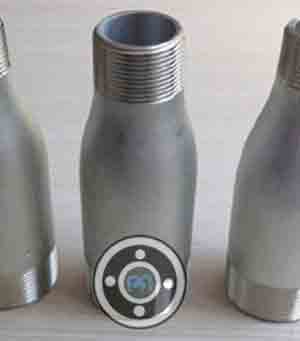

15 NB SS Swage Nipple

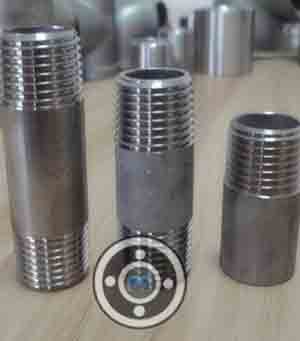

Sa 403 Stainless Steel Pipe Nipples

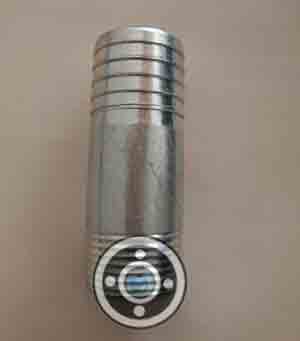

STD XXS SS ASTM A403 Barrel Nipple

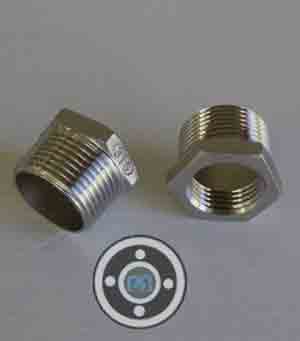

Mss Sp-79 Stainless Steel Reducing Nipple

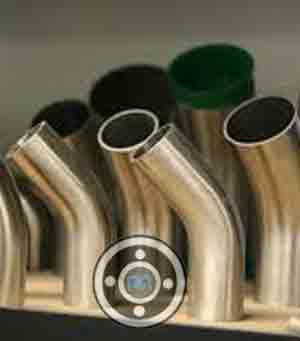

SCH 120 Stainless Steel Bend
Sa 403 Stainless Steel Long Radius Bend

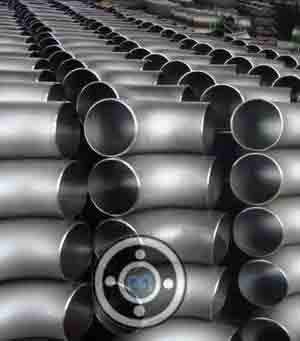

317 Stainless Steel Pipe Fittings

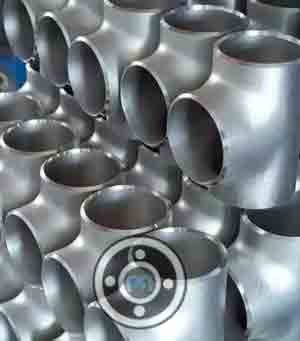

Stainless Steel 317l Pipe Fittings

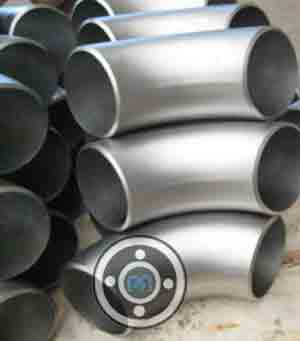

310 Stainless Steel Pipe Fittings

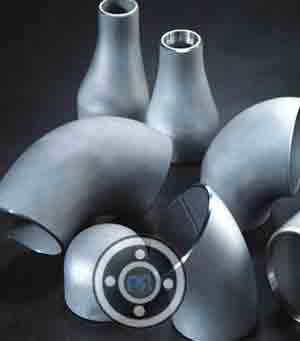

310S Stainless Steel Pipe Fittings
ASTM A403 WP310 Pipe Fittings
Chemical Composition Stainless Steel ASTM A403 Weld Fittings
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Ti | Fe | |
| 304 | min. | 18.0 | 8.0 | |||||||||
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | 0.10 | ||||
| 304L | min. | 18.0 | 8.0 | |||||||||
| max. | 0.030 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 12.0 | 0.10 | ||||
| 304H | min. | 0.04 | 18.0 | 8.0 | ||||||||
| max. | 0.010 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | |||||
| 316 | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | |||||
| 316L | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | |||||
| 316TI | 0.08 max | 10.00 14.00 | 2.0 max | 0.045 max | 0.030 max | 16.00 18.00 | 0.75 max | 2.00 3.00 | ||||
| 317 | 0.08 max | 2 max | 1 max | 0.045 max | 0.030 max | 18.00 20.00 | 3.00 4.00 | 57.845 min | ||||
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 20.00 | 3.00 4.00 | 11.00 15.00 | 57.89 min | |||
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 19.00 | 9.00 12.00 | 0.10 max | 5(C+N) 0.70 max | |||
| SS 321H | 0.04 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 19.00 | 9.00 12.00 | 0.10 max | 4(C+N) 0.70 max | |||
| 347/ 347H | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 20.00 | 9.0013.00 | |||||
| 410 | min. | 11.5 | ||||||||||
| max. | 0.15 | 1.0 | 1.00 | 0.040 | 0.030 | 13.5 | 0.75 | |||||
| 446 | min. | 23.0 | 0.10 | |||||||||
| max. | 0.2 | 1.5 | 0.75 | 0.040 | 0.030 | 30.0 | 0.50 | 0.25 | ||||
| 904L | min. | 19.0 | 4.00 | 23.00 | 0.10 | |||||||
| max. | 0.20 | 2.00 | 1.00 | 0.045 | 0.035 | 23.0 | 5.00 | 28.00 | 0.25 | |||
Sa-403 SS Fittings Mechanical Properties
| Grade | Elongation | Density | Yield Strength (0.2%Offset) | Melting Point | Tensile Strength |
| 304/ 304L | 35 % | 8.0 g/cm3 | Psi 30000 , MPa 205 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 |
| 304H | 40 % | 8.0 g/cm3 | Psi 30000 , MPa 205 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 |
| 310 / 310S / 310H | 40 % | 7.9 g/cm3 | Psi 30000 , MPa 205 | 1402 °C (2555 °F) | Psi 75000 , MPa 515 |
| 306/ 316H | 35 % | 8.0 g/cm3 | Psi 30000 , MPa 205 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 |
| 316L | 35 % | 8.0 g/cm3 | Psi 30000 , MPa 205 | 1399 °C (2550 °F) | Psi 75000 , MPa 515 |
| 317 | 35 % | 7.9 g/cm3 | Psi 30000 , MPa 205 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 |
| 321 | 35 % | 8.0 g/cm3 | Psi 30000 , MPa 205 | 1457 °C (2650 °F) | Psi 75000 , MPa 515 |
| 347 | 35 % | 8.0 g/cm3 | Psi 30000 , MPa 205 | 1454 °C (2650 °F) | Psi 75000 , MPa 515 |
| 904L | 35 % | 7.95 g/cm3 | Psi 32000 , MPa 220 | 1350 °C (2460 °F) | Psi 71000 , MPa 490 |
ASTM A403 Stainless Steel Buttweld Fittings Equivalent
| STANDARD | AFNOR | UNS | EN | JIS | BS | WERKSTOFF NR. | GOST |
| 304 | Z7CN18‐09 | S30400 | X5CrNi18-10 | SUS 304 | 304S31 | 1.4301 | 08Х18Н10 |
| 304L | Z3CN18‐10 | S30403 | X2CrNi18-9 / X2CrNi19-11 | SUS 304L | 3304S11 | 1.4306 / 1.4307 | 03Х18Н11 |
| 304H | - | S30409 | - | - | - | 1.4301 | - |
| 310 | - | S31000 | X15CrNi25-20 | SUS 310 | 310S24 | 1.4841 | 20Ch25N20S2 |
| 310S | - | S31008 | X8CrNi25-21 | SUS 310S | 310S16 | 1.4845 | 20Ch23N18 |
| 310H | - | S31009 | - | - | - | - | - |
| 316 | Z7CND17‐11‐02 | S31600 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 | SUS 316 | 316S31 / 316S33 | 1.4401 / 1.4436 | - |
| 316L | Z3CND17‐11‐02 / Z3CND18‐14‐03 | S31603 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 | SUS 316L | 316S11 / 316S13 | 1.4404 / 1.4435 | 03Ch17N14M3 / 03Ch17N14M2 |
| 316H | - | S31609 | - | - | - | 1.4401 | - |
| 316Ti | Z6CNDT17‐123 | S31635 | X6CrNiMoTi17-12-2 | SUS 316Ti | 320S31 | 1.4571 | 08Ch17N13M2T |
| 317 | - | S31700 | - | SUS 317 | - | 1.4449 | - |
| 317L | - | S31703 | X2CrNiMo18-15-4 | SUS 317L | - | 1.4438 | - |
| 321 | - | S32100 | X6CrNiTi18-10 | SUS 321 | - | 1.4541 | - |
| 321H | - | S32109 | X12CrNiTi18-9 | SUS 321H | - | 1.4878 | - |
| 347 | - | S34700 | X6CrNiNb18-10 | SUS 347 | - | 1.4550 | 08Ch18N12B |
| 347H | - | S34709 | X6CrNiNb18-12 | SUS 347H | - | 1.4961 | - |
| 904L | Z2 NCDU 25-20 | N08904 | X1NiCrMoCu25-20-5 | SUS 904L | 904S13 | 1.4539 | STS 317J5L |
Pressure Rating Of Asme Sa403 Ss Pipe Fittings
| Normal Size Of Pipe (inches) |
Pipe Sch | OD
(inch) |
Wall Thick. (inch) |
Temperature (oF) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 | 750 | ||||
| Allowable Stress (psi) | ||||||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | 13500 | 13200 | 12900 | 12600 | ||||
| 1" | 40 | 1.315 | 0.133 | 2205 | 2205 | 2205 | 2047 | 1902 | 1783 | 1743 | 1703 | 1664 |
| 80 | 1.315 | 0.179 | 3061 | 3061 | 3061 | 2841 | 2640 | 2475 | 2420 | 2365 | 2310 | |
| 160 | 1.315 | 0.250 | 4493 | 4493 | 4493 | 4170 | 3874 | 3632 | 3552 | 3471 | 3390 | |
| 1 1/2" | 40 | 1.900 | 0.145 | 1629 | 1629 | 1629 | 1512 | 1404 | 1317 | 1287 | 1258 | 1229 |
| 80 | 1.900 | 0.200 | 2303 | 2303 | 2303 | 2138 | 1986 | 1862 | 1821 | 1779 | 1738 | |
| 160 | 1.900 | 0.281 | 3362 | 3362 | 3362 | 3120 | 2899 | 2717 | 2657 | 2597 | 2536 | |
| 2" | 40 | 2.375 | 0.154 | 1371 | 1371 | 1371 | 1272 | 1182 | 1108 | 1083 | 1059 | 1034 |
| 80 | 2.375 | 0.218 | 1985 | 1985 | 1985 | 1843 | 1712 | 1605 | 1569 | 1534 | 1498 | |
| 160 | 2.375 | 0.344 | 3283 | 3283 | 3283 | 3047 | 2831 | 2654 | 2595 | 2536 | 2477 | |
| 3" | 40 | 3.500 | 0.216 | 1301 | 1301 | 1301 | 1208 | 1122 | 1052 | 1028 | 1005 | 982 |
| 80 | 3.500 | 0.300 | 1844 | 1844 | 1844 | 1712 | 1590 | 1491 | 1458 | 1425 | 1391 | |
| 160 | 3.500 | 0.438 | 2787 | 2787 | 2787 | 2587 | 2403 | 2253 | 2203 | 2153 | 2103 | |
| 4" | 40 | 4.500 | 0.237 | 1102 | 1102 | 1102 | 1023 | 950 | 891 | 871 | 851 | 831 |
| 80 | 4.500 | 0.337 | 1596 | 1596 | 1596 | 1482 | 1377 | 1291 | 1262 | 1233 | 1204 | |
| 160 | 4.500 | 0.531 | 2611 | 2611 | 2611 | 2424 | 2552 | 2111 | 2064 | 2017 | 1970 | |
| 5" | 40 | 5.563 | 0.258 | 965 | 965 | 965 | 896 | 832 | 780 | 763 | 746 | 728 |
| 80 | 5.563 | 0.375 | 1428 | 1428 | 1428 | 1325 | 1231 | 1154 | 1129 | 1103 | 1077 | |
| 160 | 5.563 | 0.625 | 2474 | 2474 | 2474 | 2296 | 2133 | 2000 | 1955 | 1911 | 1866 | |
| 6" | 40 | 6.625 | 0.280 | 877 | 877 | 877 | 814 | 756 | 709 | 693 | 677 | 661 |
| 80 | 6.625 | 0.432 | 1379 | 1379 | 1379 | 1280 | 1189 | 1115 | 1090 | 1065 | 1040 | |
| 160 | 6.625 | 0.719 | 2382 | 2382 | 2382 | 2211 | 2054 | 1925 | 1883 | 1840 | 1797 | |
| 8" | 40 | 8.625 | 0.322 | 771 | 771 | 771 | 716 | 665 | 623 | 610 | 596 | 582 |
| 80 | 8.625 | 0.500 | 1218 | 1218 | 1218 | 1131 | 1050 | 985 | 963 | 941 | 919 | |
| 160 | 8.625 | 0.906 | 2298 | 2298 | 2298 | 2133 | 1982 | 1858 | 1817 | 1775 | 1734 | |
| 10" | 40 | 10.750 | 0.365 | 699 | 699 | 699 | 649 | 603 | 565 | 553 | 540 | 528 |
| 80 | 10.750 | 0.594 | 1159 | 1159 | 1159 | 1075 | 999 | 937 | 916 | 895 | 874 | |
| 160 | 10.750 | 1.125 | 2289 | 2289 | 2289 | 2124 | 1974 | 1850 | 1809 | 1768 | 1727 | |
Stainless Steel Fittings Thickness Chart
| GRADE | SCHEDULE | NOM. PIPE SIZE |
|---|---|---|
| WP-S | SCH 10S | 1/2″ - 12″ |
| SCH 40S | 1/2″ - 12″ | |
| SCH 80S | 1/2″ - 12″ |
SS Buttweld Fittings Tolerance Chart
Application Of Stainless Steel Bw Fittings
- Oil & Gas Industry
- Heat Exchangers
- Fossil Fuel Power Plants
- Paper & Pulp
- Marine Applications
- Industrial Boilers
- Power Plants
- Condensers
- Ship Building
- Nuclear Power/ Nuclear Plants
- Refineries
Value Added Services of Asme Sa403 SS Fitting
- Micro and Macro Test
- Flattening Test
- PMI Testing
- Hardness Test
- Pitting Resistance Test
- Flaring Test
- Chemical Analysis - Spectro Analysis
Stainless Steel ASTM A403 BW Fittings Manufacturing Standards
- ASME B16.9 - Factory-Made Wrought Buttwelding Fittings
- MSS SP-43 - Fabricated and Wrought Buttweld Fittings for Corrosion Resistant, Low Pressure Applications
Asme Sa403 SS Fittings Surface Finish
- Hairline
- Anti Corrosive
- Galvanized
- Black Phosphating
- Shot blasting
Stainless Steel Pipe Bends Weight Formula
Weight Formula : 0.0433 x (D-T) x T x R x θ / 100000 + L
- D = Outside Diameter (OD)
- R = Bend Radius
- T = Thickness
- L = Weight of Double Sides Straight Length
- θ = Bend Angle
Bend Radius and Angle for ASTM A403 SS Bends
- Usually R≥3D , such as R= 4D, 9D, 3D, 5D, 7D, 6D, 8D, 10D
- Normally 90°, 135°, 15°, 45°, 30°, 60°, 180° or at customer’s option.
Manufacturer of SS Pipe Fittings and Supplier in Below Countries
Stainless Steel Weld Fittings
Tehran -Iran, Kuala Lumpur, South Korea, Poland, Dubai, Qatar, United States, Indonesia
Stainless Steel Pipe Fittings
Singapore, Malaysia, France, Netherlands, Dubai- UAE, Iran, Jakarta -Indonesia, Romania
ASTM A403 SS Buttweld Fittings
South Africa, Kuwait, Chile, Malaysia, Germany, Norway, Europe, Belgium, Vietnam, Czechia, Nigeria
Stainless Steel Weld Elbow
Jakarta, Bangladesh, Finland, Brazil, Bahrain, NY 12203 (USA), Argentina, Istanbul- Turkey, Hong Kong, Oman
Mss Sp-79 Stainless Steel Tee
Thailand, Spain, Japan, Saudi Arabia (KSA), United Kingdom (UK), USA, Ellington -United States, Malaysia
Stainless Steel Reducer
Singapore, Turkey, Greece, Dammam -KSA, Philippines, Los Alamos -Mexico, Austria, Canada
