What Is Pipe Bend?
The Pipe Bend is an essential part of the piping system. It helps to minimize the changes in pressure. They are easy to implement within the processing system with the use of some standard welding procedures, or other connection methods. Pipe Bends are available in a wide range of sizes and materials. This makes them suitable for routing different types of liquids and gasses in the piping system. The bend helps to maintain pressure and enables easy movements.
The Pipe Bending methods are affordable and they offer a minimum impact on the overall design budget. They help to maintain the ideal length and right sizes of the application.

What Is Pipe Bend Radius?
The Pipe Bend Radius is measured by inside curvature and it is the minimum radius in which the pipe can be bent, without kinking or damaging it, or shortening its lifespan. The lower Pipe Bend Radius, the higher is the flexibility of the pipe bend.

What Are Different Types Of Pipe Bend?
There are four Different Types Of Pipe Bend:

  • 90 degree stub up bend- It is the most commonly used L-shaped bend.
  • Back to back bend- It is a U-shaped bend that helps to fit a pipe between two parallel surfaces.
  • Offset bend- This is made of two bends of equal degrees but in opposite directions.
  • Three point saddle bend- It helps to move around the obstacle of the pipe

What Is The Difference Between A Bend And A Bent?
A bend is a piece of piping equipment that helps to minimize pressure, whereas a bent implies the angle at which the given pipe is folded to become the pipe bend.

Pipe Bend Manufacturing Process
Pipe Bend is manufactured by the cold bending or hot bending method. The cold bending procedure mainly relies on sheer force which helps to bring the pipe to its final shape. The hot bending method puts heat to use so as to reduce the total amount of force applied on the pipe. The cold bending method are of the following types:

  • Rotary Draw Bending- The pipe is bent by using a combination of dies and other equipment which works in a rotary action.
  • Mandrel Bending- here a mandrel is placed inside the pipe for preventing any defects that might occur during the bending process.
  • Compression Bending- Here a stationary die is used, and a counter die bends the pipe around the stationary die.
  • Roll Bending- The pipes are passed through three rollers which are in a pyramid configuration to achieve the desired shape.

The hot bending procedure primarily uses an induction heating coil to heat the pipe and then pressure is applied, which is quite less, to achieve the required bend.

Pipe Bend manufacturer in India

Pipe Bend manufacturer in India

Looking for Hot Induction Bend manufacturer in India? Refer SCH40/ 80/ 160 5d Pipe Bend and Stainless Steel Short Radius Bend dimensions and weight chart

Table of Content


Standards ASME / ANSI – B 16.9
Radius Provided by Manufacturer 2.5D Pipe Bend, 3D Pipe Bend, 5D Pipe Bend, 10D Pipe Bend, 22D Pipe Bend
Dimensions MSS-SP-43 Type B, MSS-SP-43 Type A, ANSI B16.28, JIS B2313
Type Seamless | Welded | ERW | Fabricated
Available Angles of Pipe Bend By Manufacturer 15 Deg, 22 Deg, 22.5 Deg, 30Deg, 45 Deg, 60Deg, 90 Deg, 135 Deg, 180 Degree
Size Ranges Manufacturer of 1/2 inch TO 36 inch, (Seamless upto 24 inch), (Welded 8 upto 36 inch)
Thickness Sch 5S, 10S, S10, S20, 20S, S40, S60, 80S, Schedule S80, S100, S120, SCH S160

Petromet Flage is Carbon Steel 3D Bend stockholders, importer, wholesalers, distributor, stockists, dealers, exporters, supplier and Manufacturer in Mumbai. We are leading Pipe Bend manufacturer in India.

Nominal Piping Size (NPS) Outside Diameter at Bevel D Center-to-End 90 Deg Elbows A
1 33.4 25.4
1-1/4 42.2 31.8
1-1/2 48.3 38.1
2 60.3 50.8
2-1/2 73.0 63.5
3 88.9 76.2
3-1/2 101.6 88.9
4 114.3 101.6
5 141.3 127.0
6 168.3 152.4
8 219.1 203.2
10 273.0 254.0
12 323.8 304.8
14 355.6 355.6
16 406.4 406.4
18 457 457.2
20 508 508.0
22 558 558.8
24 610 609.6
Tubing O.D. Radius Material Radius
1.25”, 31.75mm, 1 ¼-inches 2”, 50.8mm, 2-inches Stainless steel and Inconel
.375”, 9.52mm, ⅜-inch .9375”, 23.8mm, 15/16-inch Stainless steel and Copper
0.25”, 6.35mm, ¼-inch .5”, 12.7mm, ½-inch Stainless steel .5625”, 14.28mm, 9/16-inch
1.5”, 38mm, 1 ½-inches 2.25”, 57.15mm, 2 ¼-inches Stainless steel
1”, 25.4mm, 1-inch 1.5”, 38mm, 1 ½-inches Stainless steel and Aluminum
.5”, 12.7mm, ½-inch .5”, 12.7mm, ½-inch Stainless steel 1.5”, 38mm, 1 ½-inches
.75”, 19mm, ¾-inch 1.125”, 28.5mm, 1 -⅛” inches Stainless steel and Aluminum

MSS SP-75 GR.WPHY 52 Hot Induction Bend and Sweep bends manufacturer in Mumbai, view Carbon Steel 3D Pipe Bend sizes and price in India

  • Computer Numerical Controlled (CNC) benders
  • Vector bend tube bending machines
  • Vector bend electric tube bending machines
  • Orbital head bending machines
  • Hydroforming equipment
  • Ram bending
  • Heat bending equipment
  • Mandrel benders
  • Roll benders
Standard pipes . Bauart 5 Spec 2,5D
DN Diameter [ØD] CLR CLR CLR
20 26,9 110 67
25 33,7 110 84
32 42,4 110 106
40 48,3 110 212
50 60,3 125 151
65 76,1 175 190
80 88,9 205 222
100 114,3 270 286
125 139,7 330 350
150 168,3 390 421
200 219,1 510
250 273 650
300 323,9 775
350 355,6 850
400 406,4 970
500 508 1245

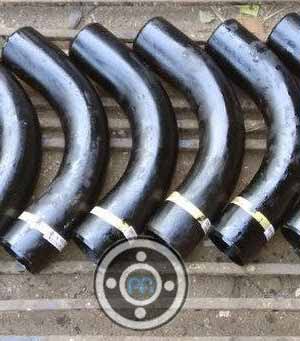

Mild Steel Mandrel Bends

Mild Steel Mandrel Bends

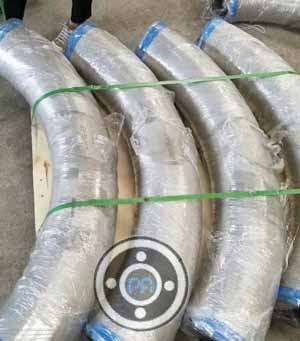

Seamless ASTM A403 WP304 Lr Bend

Seamless ASTM A403 WP304 Lr Bend

Api 5l 5d Pipe Bend

Api 5l 5d Pipe Bend

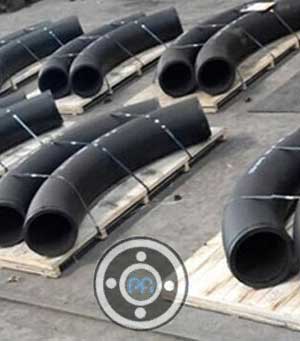

ANSI B16.49 ASTM A234 GR.WPB 1.5 D Bend

ANSI B16.49 ASTM A234 GR.WPB 1.5 D Bend

30 Deg ASTM A403 WP316L Piggable Bend

30 Deg ASTM A403 WP316L Piggable Bend

Astm A234 Wpb U Bend

Astm A234 Wpb U Bend

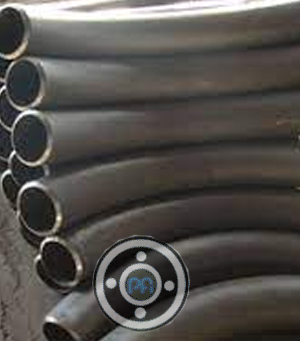

Alloy Steel Flange Bend

Alloy Steel Flange Bend

Ms Bend 90 Degree

Ms Bend 90 Degree

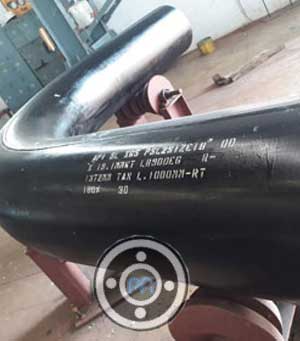

Carbon Steel J Bend

Carbon Steel J Bend

24 Inch, Carbon Steel 1.5 D Elbow

24 Inch, Carbon Steel 1.5 D Elbow

Astm A860 Wphy42 Seamless Bend

Astm A860 Wphy42 Seamless Bend

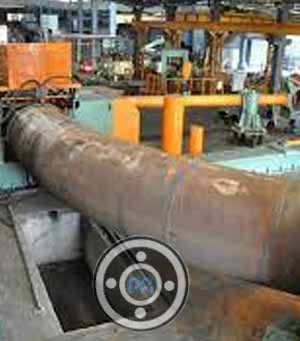

ANSI B16.9 SS316 Hot Induction Bend

ANSI B16.9 SS316 Hot Induction Bend

Astm A403 Wp304 Long Radius Bend

Astm A403 Wp304 Long Radius Bend

AWWA C208 90 Degree Mitred Bend

AWWA C208 90 Degree Mitred Bend

Carbon Steel Piggable Bend

Carbon Steel Piggable Bend

Sch 80 ASTM A234 Gr WP9 5d Pipe Bend

Sch 80 ASTM A234 Gr WP9 5d Pipe Bend

Carbon Steel 3d Pipe Bend

Carbon Steel 3d Pipe Bend

Stainless Steel Long Radius Bend

Stainless Steel Long Radius Bend

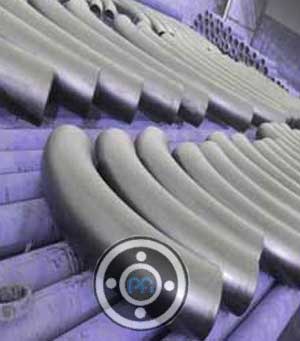

Butt Weld Ends Alloy Steel ASTM A234 WP5 3d Elbow

Butt Weld Ends Alloy Steel ASTM A234 WP5 3d Elbow

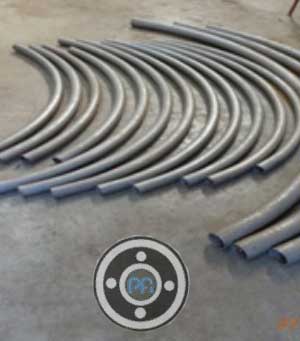

Stainless Steel Short Radius Bends

Stainless Steel Short Radius Bends

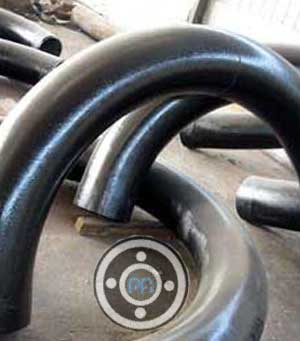

Black Coating LTCS ASTM A420 WPL6 3d Pipe Bend

Black Coating LTCS ASTM A420 WPL6 3d Pipe Bend

Stainless Steel Return Bend

Stainless Steel Return Bend

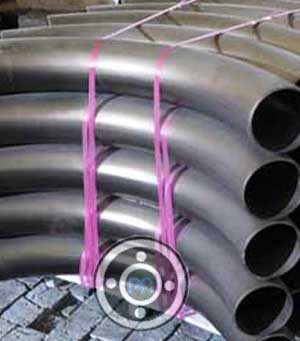

4 Inch ASTM A234 Grade WP11 5d Bend

4 Inch ASTM A234 Grade WP11 5d Bend

Stainless Steel U Bends

Stainless Steel U Bends

Astm A106b Elbow

Astm A106b Elbow

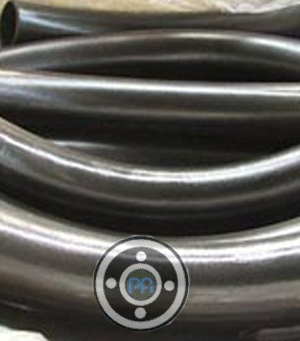

BW Ends ASTM A234 WPC 3d Bend

BW Ends ASTM A234 WPC 3d Bend

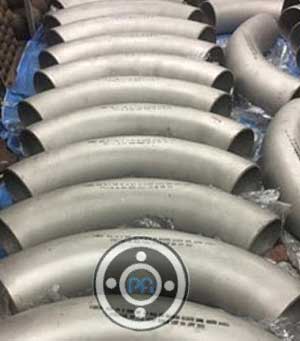

36 Inch, 11.90 MM A403 WP316 Seamless Bend

36 Inch, 11.90 MM A403 WP316 Seamless Bend

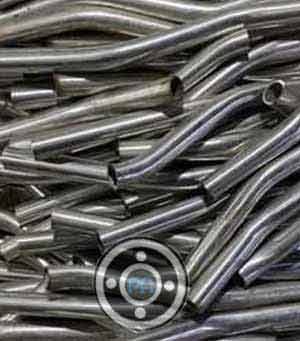

Mild Steel Pipe Bends

Mild Steel Pipe Bends

ASME B16.9 Seamless Elbows

ASME B16.9 Seamless Elbows

Black Coated A234 WP22 5d Elbow

Black Coated A234 WP22 5d Elbow

90 Deg Stanless Steel A403 WP304L Long Bend Pipe

90 Deg Stanless Steel A403 WP304L Long Bend Pipe

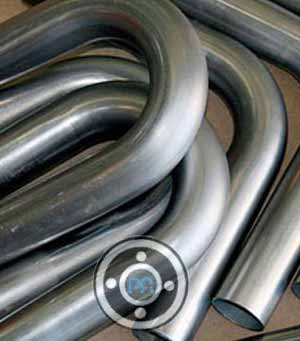

Mild Steel Bends

Mild Steel Bends

MSS SP-75 GR.WPHY 52 Pipe Bend

MSS SP-75 GR.WPHY 52 Pipe Bend

Mild Steel Exhaust Bends

Mild Steel Exhaust Bends

ASTM A860 WPHY 65 Seamless Pipe Elbow

ASTM A860 WPHY 65 Seamless Pipe Elbow

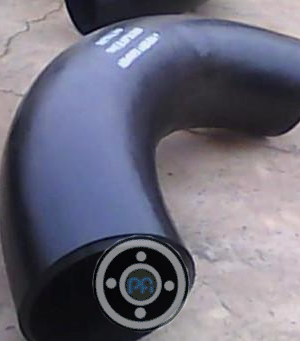

Asme B16.49 Pipe Bend
