What is saddle fittings?
A saddle fitting can be defined as a structure that consists of a saddle and an integral base. It helps to support the pipe by transmitting a part of the load or force to an adjacent structure. They are available in size ½” through 3”. They have a wide range of applications in structure pipe, hydraulic pipe, gas pipe, etc. Depending on the material grade, it can withstand high temperature and pressure. The surface finish of the saddle fitting can be customized to improve their appearance, protection, and corrosion resisting capabilities.
The benefits of saddle fittings are:
The process of installation is quite simple and they are designed to work in environments with elevated temperatures and pressures. With the proper surface coating, its corrosion resistance capabilities can also be increased. It helps to make a strong piping connection which is appropriate for a long term usage.
What is a weld saddle fittings?
The weld saddle fittings are fabricated with the help of the extrusion process. They are a structural component which is non-pressure retaining, and they are usually welded over a tee connection. This helps in supplying adequate quantities of reinforcement to the joint. They come with a low level of angle misalignment. This is due to the positioning projections. It helps to improve the overall efficiency and also reduces the cost. With weld saddle fittings, there is no need for any additional procedures. Easy installation would complete the entire system.
How to use Welding Saddle Fittings?
The use Welding Saddle Fittings would include:
Saddle Fittings manufacturer in India
Type | Saddles |
Size | 1/2 to 72 inch |
Wall Thickness | SCH60, SCH10, SCH20, SCH80, SCH30, STD, XS, SCH140, SCH100, SCH120, SCH40, SCH160, XXS. |
Standard | ASME B16.9 , EN10253, MSS SP75, BS1965, GOST17375, DIN2605, GOST17378, GOST17379, ISO3419 , JIS B2311, GOST17376, JIS B2312, ISO 5251, BS1640, JIS B2313. |
Material | A234 WPB, WPHY 42, A420, ST37.0, ST35.8; |
End Treatment | Plain Ends, Bevel Ends, or as per Clients Requirments |
Biggest Pipe Saddles wholesalers, supplier, dealers, stockholders, importer, distributor, stockists, exporters and Manufacturer in Mumbai
2 | DN | d1 | s | h | kg |
---|---|---|---|---|---|
3 | 20 | 26.9 | 2.3 | 30 | 0.06 |
4 | 25 | 33.7 | 2.6 | 30 | 0.09 |
5 | 32 | 42.4 | 2.6 | 35 | 0.13 |
6 | 40 | 48.3 | 2.6 | 40 | 0.21 |
7 | 50 | 60.3 | 2.9 | 45 | 0.27 |
8 | 65 | 76.1 | 2.9 | 50 | 0.45 |
9 | 80 | 88.9 | 3.2 | 60 | 0.70 |
10 | 100 | 114.3 | 3.6 | 65 | 1.20 |
11 | 125 | 139.7 | 4.0 | 85 | 2.10 |
12 | 150 | 168.3 | 4.5 | 100 | 2.90 |
13 | 200 | 219.1 | 6.3 | 135 | 6.40 |
14 | 250 | 273.0 | 6.3 | 150 | 9.80 |
15 | 300 | 323.9 | 7.1 | 175 | 17.20 |
D | s | h | L |
---|---|---|---|
21,3 0,036 |
2,0 |
2,6 35 |
30" |
2,6 | 30 | 45 | 0,060 |
33,7 | 2,6 | 30 | 55 |
0,074 | 42,4 | 2,6 | 35 |
70 | 0,111 | 48,3 | 2,6 |
40 | 85 | 0,164 | 54,0 |
2,0 | 45 | 95 | 0,160 |
57,0 | 2,6 | 40 | 100 |
0,240 | 60,3 | 2,9 | 45 |
Size(mm) | D(mm) | D1(mm) | L2(mm) | H(mm) |
100-80 | 98.8 | 78.8 | 50/55 | 40/45 |
125-80 | 123.8 | 78.8 | 50/55 | 40/45 |
125-100 | 123.8 | 98.8 | 50/55 | 40/45 |
150-80 | 148.7 | 78.8 | 50/55 | 40/45 |
150-100 | 148.7 | 98.8 | 50/55 | 40/45 |
150-125 | 148.7 | 123.8 | 50/55 | 40/45 |
160-80 | 158.7 | 78.8 | 50/55 | 40/45 |
160-100 | 158.7 | 98.8 | 50/55 | 40/45 |
160-125 | 158.7 | 123.8 | 50/55 | 40/45 |
160-150 | 158.7 | 148.7 | 50/55 | 40/45 |
180-125 | 178.6 | 123.8 | 50/55 | 40/45 |
180-150 | 178.6 | 148.7 | 50/55 | 40/45 |
180-160 | 178.6 | 158.7 | 50/55 | 40/45 |
200-80 | 198.6 | 78.8 | 50/55 | 40/45 |
200-100 | 198.6 | 98.8 | 50/55 | 40/45 |
200-125 | 198.6 | 123.8 | 50/55 | 40/45 |
200-150 | 198.6 | 148.7 | 50/55 | 40/45 |
200-160 | 198.6 | 158.7 | 50/55 | 40/45 |
200-180 | 198.6 | 178.6 | 50/55 | 40/45 |
250-100 | 248.5 | 98.8 | 50/55 | 40/45 |
250-125 | 248.5 | 123.8 | 50/55 | 40/45 |
250-150 | 248.5 | 148.7 | 50/55 | 40/45 |
250-160 | 248.5 | 158.7 | 50/55 | 40/45 |
250-180 | 248.5 | 178.6 | 50/55 | 40/45 |
250-200 | 248.5 | 198.6 | 50/55 | 40/45 |
300-200 | 298.4 | 198.6 | 50/55 | 40/45 |
300-250 | 298.4 | 248.5 | 50/55 | 40/45 |
315-160 | 313.4 | 158.7 | 50/55 | 40/45 |
315-200 | 313.4 | 198.6 | 50/55 | 40/45 |
315-250 | 313.4 | 248.5 | 50/55 | 40/45 |
355-250 | 353.4 | 248.5 | 50/55 | 40/45 |
355-315 | 353.4 | 313.4 | 50/55 | 40/45 |
Saddle Fittings Price Per Piece in India | P235GH Weld Saddles Price in INR | ASTM A234 WPB Pipe Saddles Price in UAE Dirham | St35.8I Pipe Saddles Price in USD |
PIPING SADDLES POLY16 PP PN16 Per Kg | 948 | UAE Dirham 47.10 | $12.82 |
TEE SADDLES 2 X 1 1/2 Per Kg | 1,880 | UAE Dirham 93.41 | $25.43 |
Are you looking for Tapping Saddles Manufacturer In India. Lowest Price Of Bulk Pressed Duct Collar Saddle with Gasket for Piping Connection. Compare Price list of DIN 2618 saddles with other Manufacturers.
The ventilation ducts'crotch tee', previously known as the saddle, are formed like pants and have equal and unequal diameters. The formal name is "tube tapered pants tee."
Surface Treatment
Packing

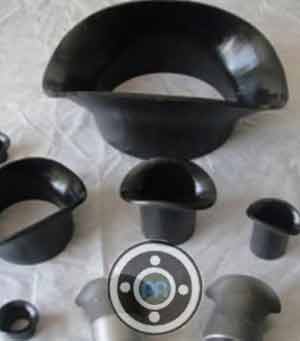

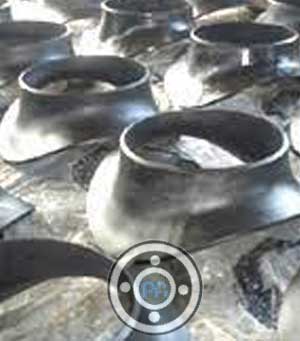

Carbon Steel Butt Weld Saddle

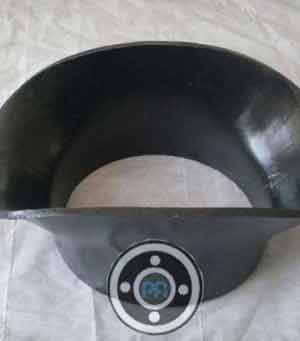

Carbon Steel DIN 2618 St35.8I Pipe Saddle

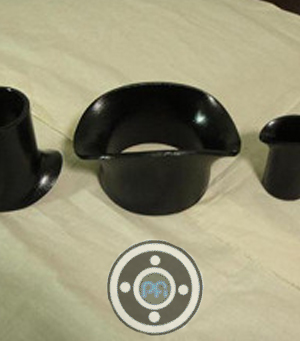

ASTM A234 Wpb Carbon Steel Saddle

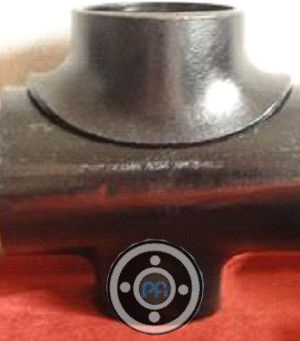

Carbon Steel Butt Weld Pipe Saddle

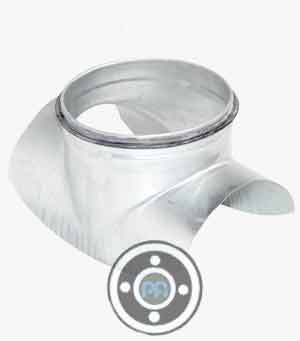

Pressed Duct Collar Saddle with Gasket
Steel P235GH Weld saddle
DIN 2618 saddle

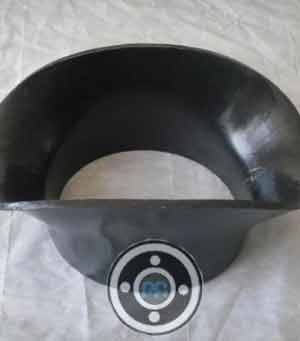

ST37.0 Butt Welded Saddle

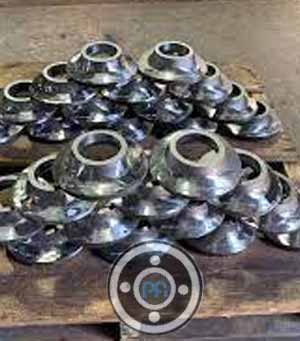

ASTM A234 WPC Saddle Fittings
Carbon Steel Saddle Pipe Fittings

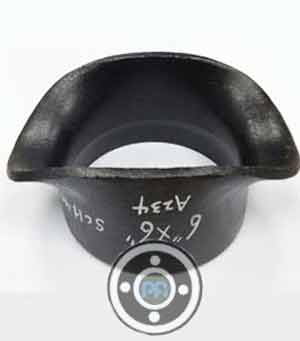

ASTM A234 WPB Pipe Saddles
Alloy Steel Pipe Saddle Fittings

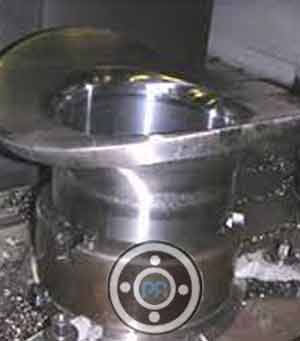

ASTM A403 WP304 Saddle Tee Fitting

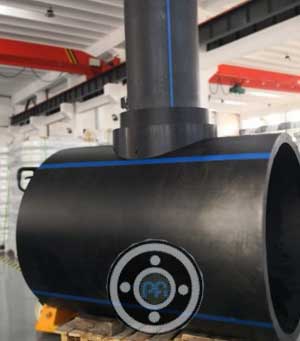

ASTM A420 WPL6 Branch Saddle Tee

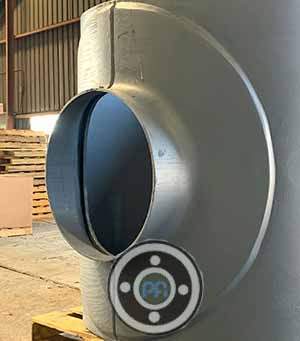

WPHY 42 Tapping Saddle

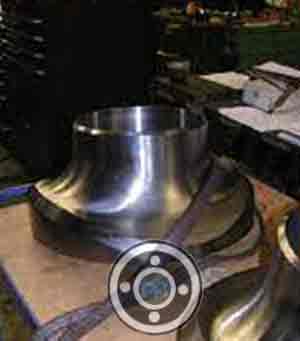

A403 WP316 Saddle Previously

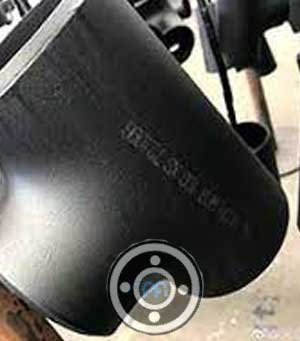

ASTM A234 WP11 Branch Saddle

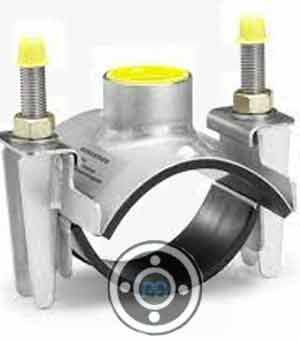

Stainless Steel Branch Saddle Tee
Size range: 1/2 to 72 inches
