What Is Hammer Union?
Hammer Union is a common piping connection used in the oil industry. It consists of two joints that are accompanied by threaded nuts. The protrusions on the nuts get hitted by a sledge hammer so as to make the connection tighter. They are primarily used in treated iron as they can be quickly made up or broken down. They are heavy duty flow lines connecting pipe fittings.
The Hammer Union is available in various shapes, sizes and pressure ratings. It is one of the most reliable fittings that help in safe transportation of fluids. It is very important to ensure that the two halves of the Hammer Unions are compatible. High pressure Hammer Union when used with a low pressure Hammer Union can cause failures, and lead to accidents.

How Do You Install A Hammer Union?
The Hammer Union has three parts namely male sub, female sub and nut. The external threaded portion of the Hammer Union is the male sub which gets welded to the end of the pipe which connects the tank wall. The nut is through which the pipe leads to the huge O-ring and thus entering the female sub. The nut threaded in the interiors are then hammered and then tightened to make a strong connection with the female part.

How To Tighten A Hammer Union?
Hammer Union consists of two joints, called the male and the female sub, that are accompanied by threaded nuts. The protrusions on the nuts get hitted by a sledge hammer so as to make the connection tighter with the female sub.

Parts Of A Hammer Union
The Hammer Union has three parts namely male sub, female sub and nut.

What Is Fig In Hammer Union?
Fig In Hammer Union helps to represent different configurations and pressure ratings. The pressure rating of the hammer union ranges between 1000-15000 psi depending on the configuration and also the size.

Hammer Union manufacturer in India

Hammer Union manufacturer in India

Manufacturer & supplier of API Hammer Union according to API RP-14E & NACE MR0175

Table of Content


Bore Size 1-4 inch
Working Pressure 2,000psi – 20,000psi
Connection type Threaded end, butt weld end
Figure No. Fig100, Fig200/206, Fig400, Fig602, Fig1002, Fig1502, Fig2202
Cold Working Pressure from 2,000psi to 20,000psi
Nominal Pipe Size 1" to 4"

Well known 1502 Hammer Union supplier, stockists, wholesalers, distributor, dealers, stockholders, importer, exporters and Manufacturer in Mumbai

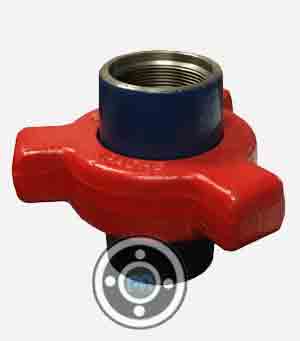

Hammer Union

Hammer Union

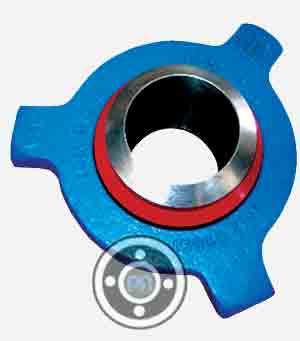

Windlass Hammer Union

Windlass Hammer Union

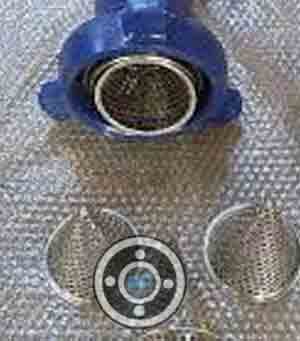

Hammer Lug Union

Hammer Lug Union

API Hammer Union

API Hammer Union

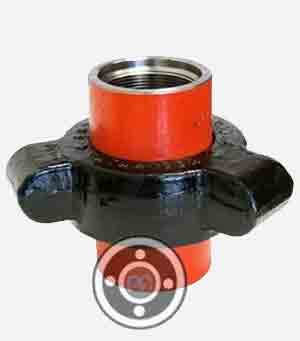

602 Hammer Union

602 Hammer Union

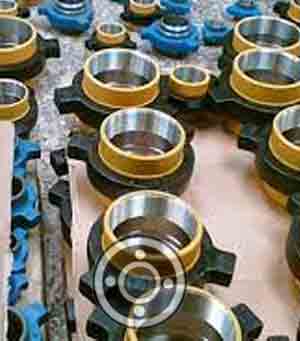

Hammer Union Fittings

Hammer Union Fittings

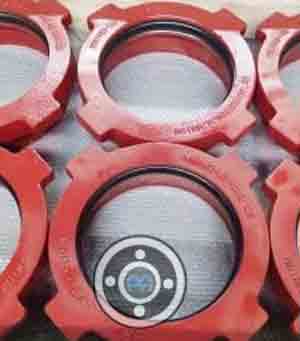

Hammer Seal Union

Hammer Seal Union

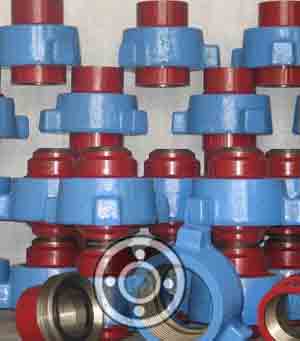

20,000psi Hammer Union

20,000psi Hammer Union

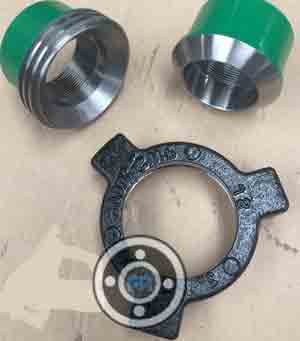

Hammer Union Male And Female

Hammer Union Male And Female

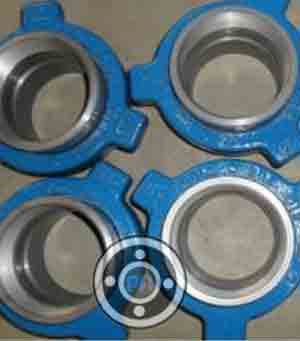

Fig 400 Union 4,000 PSI CWP

Fig 400 Union 4,000 PSI CWP

Hammer Union Connection

Hammer Union Connection

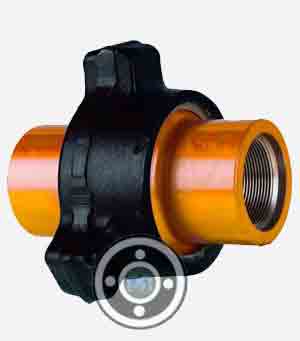

Fig 602 Hammer Union

Fig 602 Hammer Union

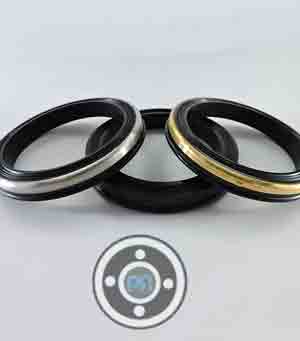

Sour gas service unions

Sour gas service unions

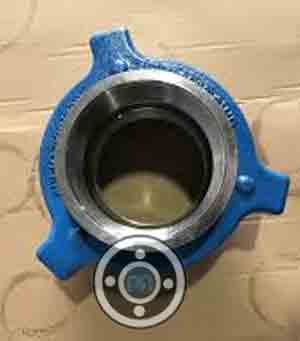

Fig 200 Hammer Union

Fig 200 Hammer Union

Fig 1502 Hammer Union

Fig 1502 Hammer Union

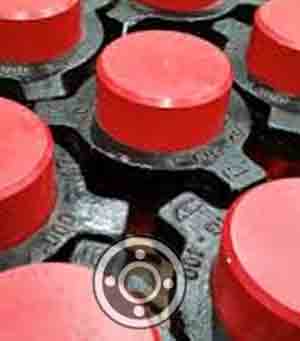

Fig 206 Hammer Union

Fig 206 Hammer Union

1502 Hammer Union

1502 Hammer Union

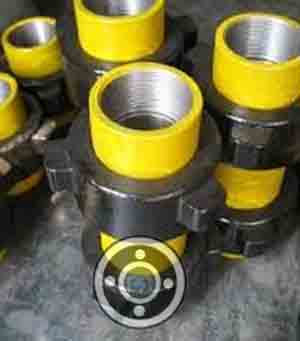

Fig 100 Hammer Union

Fig 100 Hammer Union

Weco Wing Union

Weco Wing Union

Fig 1502 Wing Union

Fig 1502 Wing Union

Wing Union

Wing Union

Description Model Cold WP size (inch)
1" 1-1/2" 2" 3" 4"
Threaded End
Wing Union		 FIG 206 2000psi (14Mpa) y
FIG 400 4000psi (28Mpa) y
FIG 402 4000psi (28Mpa) y
FIG 602 6000psi (42Mpa) y y y y y
FIG 1002 10000psi (70Mpa) y y y y y
FIG 1502 15000psi (105Mpa) y y y y
Butt Weld End
Wing Union		 FIG 206 2000psi (14Mpa) y y y
FIG 602 6000psi (42Mpa) y y y
FIG 1002 10000psi (70Mpa) y y y
FIG 1502 15000psi (105Mpa) y y
FIG2002 20000psi (140Mpa) y y
H2S Butt Weld End
Wing Union		 FIG 602 6000psi (42Mpa) y y y
FIG 1002 7500psi (53Mpa) y y y
FIG 1502 10000psi (70Mpa) y y y
FIG 2202 15000psi (105Mpai) y y y
Pipe size Length Nut radius Material Weight
Nut Sub
in mm in mm in mm Blue Gray Ibs kgs
1 25.4 211/16 68.3 115/16 49.2 SC/SF CDB/SF 1.75 0.8
11/4 31.7 27/8 73.0 23/8 60.3 SF SF 2.37 1.1
11/2 38.1 27/8 73.0 23/8 60.3 SF SF 2.37 1.1
2 50.8 35/16 84.1 229/32 73.8 SF SF 2.25 2.4
21/2 63.8 41/16 103.2 311/16 93.7 SF SF 10.0 4.5
3 76.2 413/8 111.1 37/8 98.4 SF SF 15.25 6.9
4 101.6 413/16 122.2 5 127.0 SF SF 20.0 9.1
6 152.4 65/8 168.3 67/16 163.5 SF SF 44.5 20.2
8 203.2 71/4 184.2 711/16 195.3 SF SF 61.0 27.7

Hammer Lug Union and Hammer Seal Union manufacturer in Mumbai offers Sour gas service unions for reliable seal connections

Hammer Union Price Per Piece in India Wing Union Price in INR API Hammer Union Price in UAE Dirham Hammer Union Fittings Price in USD
OILFIELD EQUIPMENT HAMMER UNION:NUT:2.00 IN:FIG,1502:NOT CERTIFIED 15000 PSI: STANDARD SERVICE BLUE Per Piece 10,465 UAE Dirham 516.14 $140.54
2 FIG 300 2000PSI THRD KEMPER HAMMER UNION Per Piece 2,455 UAE Dirham 121.10 $32.97
HAMMER UNION 2 INCH X15000 PSI (THREAD TYPE)Per Kg 420 UAE Dirham 20.72 $5.64

World's leading Supplier of Hammer Union Connection. EIL Accredited Hammer Union manufacturer in India. View Stock and Price list of API Hammer Union. We are Manufacturer of Hammer Seal Union according to API RP-14E & NACE MR0175 Standards

Air, water, oil, or gas service up to 500 PSI NSCWP is recommended. API line pipe is threaded on standard subs.

Size (in.) Length (in.) Nut Radius (in.) Weight (Kg.)
5" 51/2" 51/4" 10.80

Air, water, oil, or gas service to 1,000 PSI NSCWP is recommended. Standard subs are API line pipe threaded and Weco interchangeable. Butt weld ends are also available.

Size (in.) Length (in.) Nut Radius (in.) Weight (Kg.)
2" 35/8" 229/32" 2.60
21/2" 49/32" 35/8" 5.20
3" 51/8" 4" 6.20
4" 53/4" 411/16" 10.20
5" 633/64" 59/16" 13.80
6" 67/8" 67/8" 23.20
8" 75/16" 713/16" 32.20
Hammer Union Fittings available in Fig1002, Fig200, Fig602, Fig300, Fig206, Fig2002, Fig101, Fig1003, Fig211, Fig100, Fig400, Fig600, Fig207, Fig2202, Fig402, Fig1502, Fig201 sizes

Air, water, oil, or gas service to 2000 PSI NSCWP is recommended. A union of high utility that meets the majority of criteria in the medium pressure levels. Precision seating surfaces ensure a strong pressure seal. Standard subs are API line pipe threaded and Weco interchangeable. Butt weld end connections are also available in sizes 2′′ and larger.

Size (in.) Length (in.) Nut Radius (in.) Weight (Kg.)
1a” 219/32" 2" 1.00
11/4" 225/32" 25/32" 1.60
11/2" 229/32" 213/32" 1.60
2" 31/4" 229/32" 2.40
21/2" 41/4" 35/8" 4.50
3" 417/32" 41/4" 6.60
4" 415/16" 5" 9.60
5" 73/64" 523/32" 19.00
6" 625/32" 61/2" 22.00
8" 75/16" 713/16" 29.10
10" 93/32" 91/16" 41.36

Air, water, oil, or gas service up to 2,000 PSI NSCWP is recommended. To offer an extra seal, a Buna-N 'O' ring is put on the plain sub. The subs and nuts of the Fig. 200 unions can be used with the Fig. 200 and 600 unions. API line pipe is threaded on standard subs. Sizes 2" and larger are also available with butt weld ends.

Size (in.) Length (in.) Nut Radius (in.) Weight (Kg.)
1" 219/32" 2" 1.00
11/4" 225/32" 25/32" 1.07
11/2" 229/32" 213/32" 1.07
2" 31/4" 229/32" 2.40
21/2" 41/4" 35/8" 5.02
3" 417/32" 41/4" 6.60
4" 415/16" 5" 9.10
6" 625/32" 61/2" 19.30
8" 75/16" 713/16" 29.10
10" 93/32" 91/16" 41.36

Air, water, oil, or gas service up to 4,000 PSI NSCWP is recommended. Precision ball and cone seating surfaces are used for easy alignment and a reliable pressure seal. Sizes larger than 4′′ are rated to 2,500 PSI NSCWP. As shown in Figure 402, a lip-type seal is also available in a 2′′ size.

Size (in.) Length (in.) Nut Radius (in.) Weight (Kg.)
Total CTR. BR.
2" 51/4" 1/4" 39/16" 5.80
3" 6" 3/8" 41/4" 9.40
4" 87/32" 3/8" 5" 14.40
6" 111/32" 3/8" 65/8" 28.80
8" 1113/32" 3/8" 75/8" 42.70
10" 1037/64" - 949/64" 56.80
12" 107/8" 3/8" 101/4" 74.43

Recommended for air, oil, gas or steam service to 6,000 PSI NSCWP. Rugged and fast 2 pitch acme thread makes this the quickest unions to makeup or break out (only two turns). The threaded sub is fitted with a bronze seat insert for added effectiveness in pressure sealing.

Size (in.) Length (in.) Nut Radius (in.) Weight (Kg.)
Total CTR. BR.
1" 39/16" 1/4" 225/32" 1.59
11/2" 47/8" 1/4" 37/32" 4.30
2" 67/16" 1/4" 33/4" 6.80
21/2" 79/16" 3/8" 41/4" 9.10
3" 811/16" 3/8" 41/2" 13.18
4" 101/16" 3/8" 51/4" 18.63
2,000 to 20,000psi Hammer Union manufacturer in India, interchanged with SPM hammer union & FMC Weco wing union, call now for a free sample!

FIG. 50 Wing Union

Main characteristics

  • Max pressure: 500 PSI STD & H2S service
  • Thread: ACME
  • Working T: -20°F / 250°F
  • End connection: NPT Thread
  • Material: A105 / A350 LF2 Mod
  • Sealing system : Metal to metal + o-ring on male side
FIG. 50 Wing Union
Nominal pipe size (inch) A (mm) B (mm) øOD (mm) Weight (kg)
4" 152,4 130,3 151 12,5
5" 142,7 130,3 151 10

FIG. 100 Wing Union

Main characteristics

  • Max pressure: 1000 PSI STD & H2S service
  • Sealing system: Metal to metal (fire resistance)
  • Thread: ACME
  • Working T: 20°F / 300°F
  • Material: A395
  • End connection: NPT Thread
FIG. 100 Wing Union
Nominal pipe size (inch) A (mm) B (mm) øOD (mm) Weight
2 92 81 70 2,7
2"1/2 109 100 83 4,5
3" 124 114 102 6,4
4" 146 135 132 10
6" 171 152 190 20
8" 187 184 243 30

FIG. 200 Wing Union

Main characteristics

  • Max pressure: 2000 PSI STD & H2S service
  • Thread: ACME
  • Working T: -40°F / 350°F
  • Sealing system : Fig 200 : metal to metal
  • Sub Material: A350 LF2
  • End connection: Butt welding (NPT or GAS Thread also available)
FIG. 200 Wing Union
Nominal pipe size (inch) øOD (mm) A (mm) B (mm) Weight (kg)
1" 40 66 50 0,9
1"1/4 51 71 57 0,9
1"1/2 57 71 64 1,4
2" 74 90 76 2,3
2"1/2 84 105 90 4,1
3" 104 115 102 5,9
4" 130 125 119 8,2
  • Butt Weld Hammer Unions (1502, 602, and 2202)
  • Threaded Hammer Unions (50, 40, and 602 to 1502)
  • Threaded & Butt Weld Hammer Unions (100 to 400)
  • Hammer unions with different figure numbers should never be mixed.
  • Never exceed the hammer union's working pressure.
  • The pressure rating of butt weld hammer unions may be determined by the schedule/rating of the neighbouring pipe or fitting.
  • Hammer unions are intended for either regular or sour service and should never be mixed.
  • Replace the lugs of the hammer union nut as soon as they get worn and distorted.
  • Oil and Gas pipelines
  • Cementing
  • Fracturing
  • Manifolds and Pipelines
  • Acidizing
  • Crude Oil and Sour Gas
  • Water Flood Lines
  • Choke-and-kill lines
