Manufacturer of Mild Steel End Caps & Galvanized Pipe Cap in Mumbai according to ASME B16.9/ BS1640/ DIN 2617/ DIN 28011

What is Carbon Steel Cap?
The Carbon Steel Cap is a solid head cap which is installed on the male threads at the ends of a pipe. They help to block the flow inside a piping system. They have similar functions like that of a blind flange. The Carbon Steel Caps are made according to various standards. They help to make the connection leakage proof, and can effectively withstand high temperature and high pressure situations. They are primarily used in those parts of the pipeline that are not in use or if there is a requirement for maintenance or repair works inside the pipe. These caps are available in three types:

  • Carbon Steel Buttweld Cap
  • Carbon Steel Socket Weld Cap
  • Carbon Steel Threaded Cap

The Carbon Steel Caps are available in different dimensions and their sizes can be customized according to unique requirements. They are used in a wide range of applications in various industries like chemicals, paper, cement, shipbuilding, and many more. Different types of surface treatments can be applied on the Carbon Steel Cap to enhance its appearance and also corrosion resisting properties.

How do you set up an Carbon Steel Pipe Cap?
The Carbon Steel Pipe Caps are installed at the ends of the pipeline or on the open nozzle of a pipe vessel. They are installed on the male threads at the ends of a pipe, and help in blocking the pipe run. Their dimensions are customized according to the pipe’s diameter.

What is a High Carbon Steel End Cap used for?
When the carbon content in the alloy is more than 0.55%, it is known as High Carbon Steel. The High Carbon Steel End Cap comes with enhanced strength, and hence they can be used in more harsh environments, like high-temperature, high-pressure, or fluctuating services. The High Carbon Steel End Cap is very cost-effective due to the superior performance it offers. They are widely used in process piping due to its ability to withstand harsh situations.

Carbon Steel Cap manufacturer in India

Carbon Steel Cap manufacturer in India

Carbon Steel Cap manufacturers in India offers large selection of A420 WPL6 Butt Weld Pipe Cap and ASTM A234 WPB Weld On Pipe Caps in Mumbai

Table of Content


Dimensions ASME B16.9, MSS-SP-43
Sizes 1/2″NB TO 36 “NB IN
Types Provided By Manufacturer End Pipe, Pipe Cap, Dish Cap, Lateral Cap
Wall Thickness Schedule S100, 5S, S10, S20, 20S, S60, STD, 40S, S40, S120, 10S, XS, 80S, S80, S140, S30, S160, XXS and etc.
Pressure SCH5 to SCH160v
Value Added Services Provided By Manufacturer Epoxy & FBE Coating, Hot Dipped Galvanizing, Sand Blasting, Threading, Electro Polish, Soldering

Are you looking for Mild Steel End Caps dealers, stockholders, wholesalers, supplier, importer, stockists, distributor, exporters and Manufacturer in Mumbai.

D(inch) DN OD SCH5s SCH10s SCH10 SCH20 SCH30 SCH40s STD SCH40
1/8" 6 10.3 - 1.24 1.73 1.73 1.73
1/4" 8 13.7 - 1.65 - - - 2.24 2.24 2.24
3/8" 10 17.1 - 1.65 - - - 2.31 2.31 2.31
1/2" 15 21.3 1.65 2.11 - - - 2.77 2.77 2.77
3/4" 20 26.7 1.65 2.11 - - - 2.87 2.87 2.87
1" 25 33.4 1.65 2.77 - - - 3.38 3.38 3.38
11/4" 32 42.2 1.65 2.77 - - - 3.56 3.56 3.56
11/2" 40 48.3 1.65 2.77 - - - 3.68 3.68 3.68
2" 50 60.3 1.65 2.77 - - - 3.91 3.91 3.91
21/2" 65 73.0 2.11 3.05 - - - 5.16 5.16 5.16
3" 80 88.9 2.11 3.05 - - - 5.49 5.49 5.49
31/2" 90 101.6 2.11 3.05 - - - 5.74 5.74 5.74
4" 100 114.3 2.11 3.05 - - - 6.02 6.02 6.02
5" 125 141.3 2.77 3.40 - - - 6.55 6.55 6.55
6" 150 168.3 2.77 3.40 - - - 7.11 7.11 7.11
8" 200 219.1 2.77 3.76 - 6.35 7.04 8.18 8.18 8.18
10" 250 273.1 3.40 4.19 - 6.35 7.80 9.27 9.27 9.27
12" 300 323.9 3.96 4.57 - 6.35 8.83 9.53 9.53 10.31
14" 350 355.6 3.96 4.78 6.35 7.92 9.53 - 9.53 11.13
16" 400 406.4 4.19 4.78 6.35 7.92 9.53 - 9.53 12.70
18" 450 457.2 4.19 4.78 6.35 7.92 11.13 - 9.53 14.27
20" 500 508.0 4.78 5.54 6.35 9.53 12.70 - 9.53 15.09
22" 550 558.8 4.78 5.54 6.35 9.53 12.70 - 9.53
24" 600 609.6 5.54 6.35 6.35 9.53 14.27 - 9.53 17.48
26" 650 660.4 - - 7.92 12.70 - - 9.53 -
28" 700 711.2 - - 7.92 12.70 15.88 - 9.53 -
30" 750 762.0 6.35 7.92 7.92 12.70 15.88 - 9.53 -
32" 800 812.8 - - 7.92 12.70 15.88 - 9.53 17.48
34" 850 863.6 - - 7.92 12.70 15.88 - 9.53 17.48
36" 900 914.4 - - 7.92 12.70 15.88 - 9.53 19.05
38" 950 965.2 - - - - - - 9.53 -
40" 1000 1016.0 - - - - - - 9.53 -
42" 1050 1066.8 - - - - - - 9.53 -
44" 1100 1117.6 - - - - - - 9.53 -
46" 1150 1168.4 - - - - - - 9.53 -
48" 1200 1219.2 - - - - - - 9.53 -

Carbon Steel Cap Dimensions

NPS Length
H		 O.D.
D		 Length
H(1)
1/2 25 21.3 25
3/4 25 26.7 25
1 38 33.4 38
1.1/4 38 42.2 38
1.1/2 38 48.3 38
2 38 60.3 44
2.1/2 38 73 51
3 51 88.9 64
3.1/2 64 101.6 76
4 64 114.3 76
5 76 141.3 89
6 89 168.3 102
8 102 219.1 127
10 127 273 152
12 152 323.8 178
14 165 355.6 191
16 178 406.4 203
18 203 457 229
20 229 508 254
22 254 559 254
24 267 610 305
26 267 660 -
28 267 711 -
30 267 762 -
32 267 813 -
34 237 864 -
36 267 914 -
38 305 965 -
40 305 1016 -
42 305 1067 -
44 343 1118 -
46 343 1168 -
48 343 1219 -

Sch 40/ 80 seamless Mild Steel Domed End Caps and Carbon Steel Weldable Pipe Caps manufacturer in Mumbai, check dimensions and price list of 4 / 24 Inch WPHY 42 Butt Weld Cap

Out diameter High size Wall thickness accord to 'E'
DN NPS E E1 E
15 1/2 25 25 3.73
20 3/4 25 25 3.91
25 1 38 38 4.55
32 11／4 38 38 4.85
40 11／2 38 38 5.08
50 2 38 44 5.54
65 21／2 38 51 7.01
80 3 51 64 7.62
90 31／2 64 76 8.08
100 4 64 76 8.56
125 5 76 89 9.53
150 6 89 102 10.97
200 8 102 127 12.7
250 10 127 152 12.7
300 12 152 178 12.7
350 14 165 191 12.7
400 16 178 203 12.7
450 18 203 229 12.7
500 20 229 254 12.7
550 22 254 254 12.7
600 24 267 305 12.7
650 26 267
700 28 267
750 30 267
800 32 267
850 34 267
900 36 267
950 38 305
1000 40 305
1050 42 305
1100 44 343
1150 46 343
1200 48 343
Carbon Steel Cap Price Per Piece in India Mild Steel End Caps Price in INR A420 WPL6 Butt Weld Pipe Cap Price in UAE Dirham ASTM A234 WPB Weld On Pipe Caps Price in USD
DN 100, END CAP, SCH 40/STD, SA234 GR.WPB Per Kg 151 UAE Dirham 7.50 $2.04
DN 50, END CAP, SCH XS/80, SA234 GR.WPB Per Kg 400 UAE Dirham 19.87 $5.41
CAP BW A420-WPL6 STD3 Per Kg 668 UAE Dirham 33.19 $9.04
CAP BW B16.9 A420-WPL6 S80 0.75 Per Kg 567 UAE Dirham 28.18 $7.67

Check our price with other Carbon Steel Cap manufacturer in India Before Purchasing. This is an approximate Price of A420 WPL6 Butt Weld Pipe Cap in India. Feel free to contact us latest Stocklist of MS Buttweld Caps in Mumbai.

OD ND INCH SCH20 SCH40 SCH80 STD XS
Weight Weight Weight Weight Weight
88.9 80 3 0.66 0.92 0.66 0.92
114.3 100 4 1.17 1.67 1.17 1.67
141.3 125 5 1.91 2.78 1.91 2.78
168.3 150 6 2.9 4.47 2.9 4.47
219.1 200 8 4.09 5.19 8.05 5.19 8.05
273 250 10 6.36 9.15 12.5 9.15 12.5
323.8 300 12 9.08 14.4 26.8 13.2 17.3
355.6 350 14 13.2 18.8 34.5 15.9 20.4
406.4 400 16 16.8 26.7 47.7 20.4 26.3
457.2 450 18 24.8 41.8 67.7 25.9 33.6
508 500 20 32.2 54.9 91.3 32.2 42.7
558.8 550 22 37.7 49.9
609.6 600 24 46.3 93.1 155 46.3 59.5
WDR
3 4 5
DN d1 s s s h
15 21.3 2 3.2 4 25
20 26.9 2.3 3.2 4 25
25 33.7 2.6 3.2 4 38
32 42.4 2.6 3.6 4 38
40 48.3 2.6 4 5 38
50 60.3 2.9 4.5 5.6 38
65 76.1 2.9 5 7.1 38
80 88.9 3.2 5.6 8 51
100 114.3 3.6 6.3 8.8 64
125 139.7 4 6.3 10 76
150 168.3 4.5 7.1 11 89
200 219.1 6.3 8 12.5 102
250 273 6.3 8.8 14.2 127
300 323.9 7.1 10 16 152
Schedules 10/ 40 Large Dia Welded Carbon Steel Pipe Cap and MS Buttweld Caps manufacturer in India, manufacturing Pipe Cap in custom sizes according to ASTM A234 WPB/WPA/WPC, WP11/ WP22, A420 WPL6, and High Yield ASTM A860 WPHY 42/52/65/70

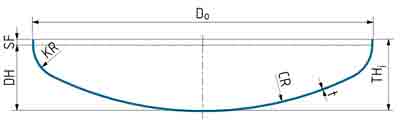

DIN 28011 End Cap Dimensions

dimensions d1 x s height L weight / kg
21,3 x 2,0 9,0 0,01
26,9 x 2,0 9,0 0,01
33,7 x 2,0 13,0 0,02
42,4 x 2,0 13,0 0,04
48,3 x 2,0 13,5 0,05
60,3 x 2,0 18,5 0,07
76,1 x 2,0 20,5 0,10
88,9 x 2,0 25,0 0,15
114,3 x 2,0 28,0 0,26
114,3 x 3,0 29,0 0,39
139,7 x 3,0 38,5 0,60
168,3 x 3,0 47,5 0,90
219,1 x 3,0 63,5 1,32
273,0 x 3,0 93,0 1,95
323,9 x 3,0 102,0 2,70
355,6 x 3,0 109,0 3,80
406,4 x 3,0 123,0 5,00
457,2 x 3,0 123,0 6,10
508,0 x 3,0 133,0 7,60

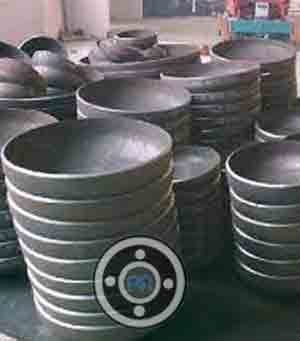

Carbon Steel End Cap

Carbon Steel End Cap

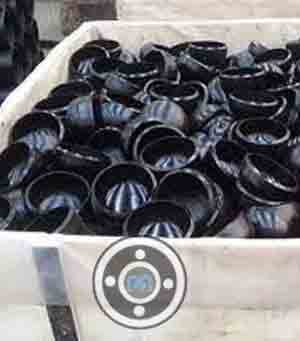

ASTM A860 High Yield Welded Pipe End Caps

ASTM A860 High Yield Welded Pipe End Caps

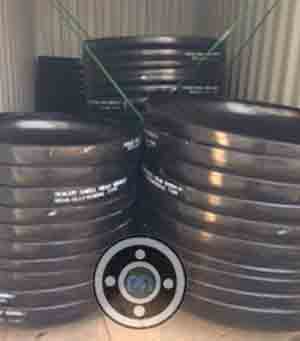

24 Inch Steel Pipe Cap

24 Inch Steel Pipe Cap

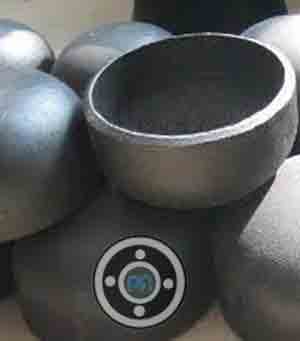

ASTM A234 WPC Steel Pipe Caps Welded

ASTM A234 WPC Steel Pipe Caps Welded

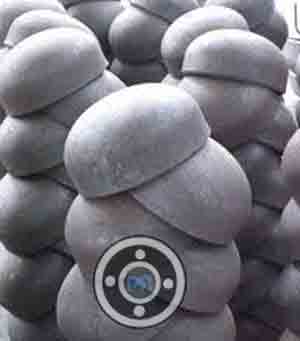

ASTM A234 WPA Seamless Pipe End Cap

ASTM A234 WPA Seamless Pipe End Cap

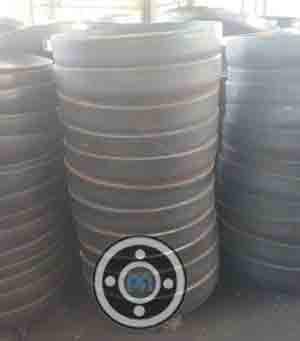

Mild Steel Weld On End Caps

Mild Steel Weld On End Caps

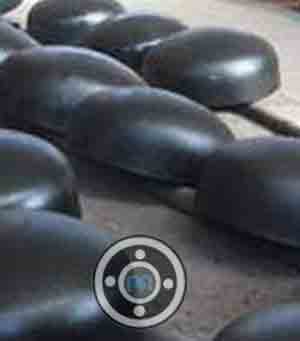

WPHY 42 End Cap Fittings

WPHY 42 End Cap Fittings

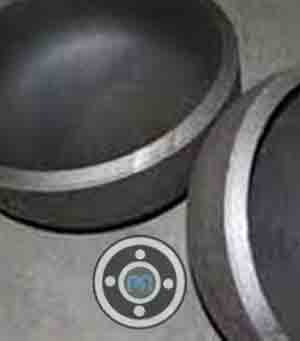

WPHY 65 Buttweld End Cap Fitting

WPHY 65 Buttweld End Cap Fitting

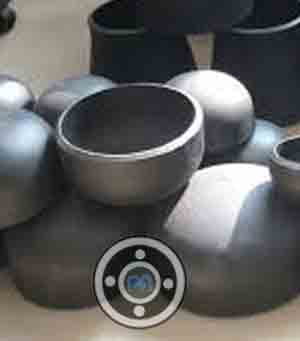

ASTM A234 WPC Weld Caps

ASTM A234 WPC Weld Caps

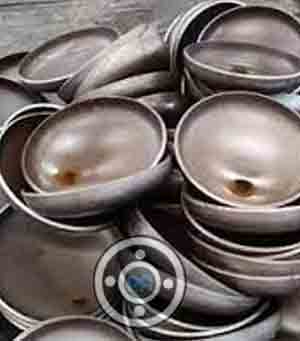

DIN 2617 Pipe Cap

DIN 2617 Pipe Cap

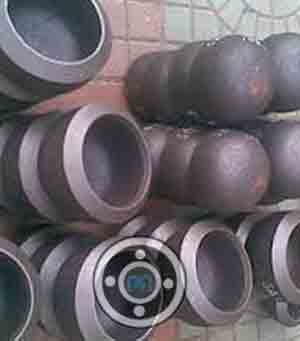

Mild Steel End Caps

Mild Steel End Caps

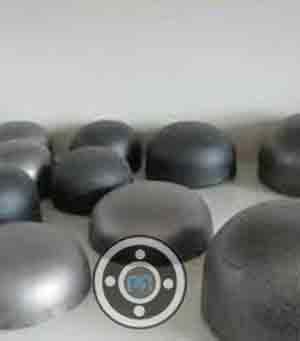

Schedule 40 Carbon Steel Weld On Cap

Schedule 40 Carbon Steel Weld On Cap

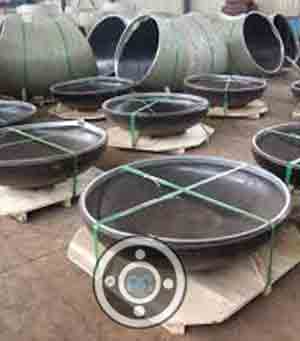

ASTM A234 WPA Weld On Pipe Caps

ASTM A234 WPA Weld On Pipe Caps

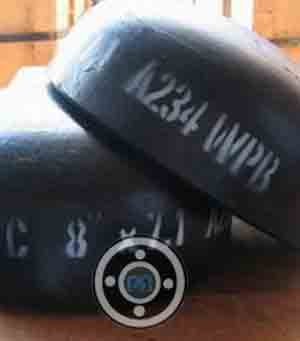

ASTM A234 WPB Weldable Pipe Caps

ASTM A234 WPB Weldable Pipe Caps

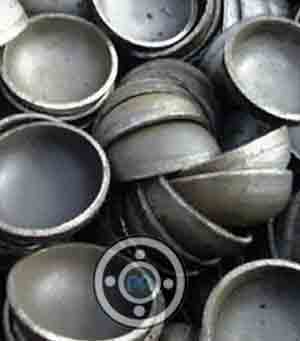

ASTM A420 WPL6 Domed Weld On Pipe Caps

ASTM A420 WPL6 Domed Weld On Pipe Caps

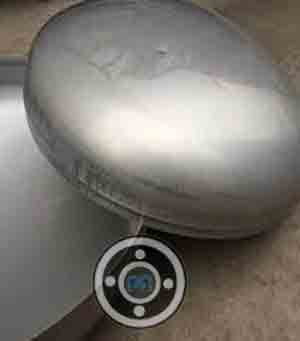

WPHY 70 Pipe Cap Fittings

WPHY 70 Pipe Cap Fittings

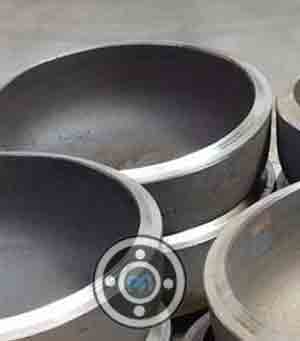

WPHY 42 Butt Weld Cap

WPHY 42 Butt Weld Cap

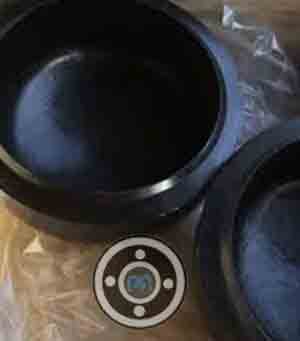

Carbon Steel Cap

Carbon Steel Cap

Carbon Steel Galvanized Pipe Cap

Carbon Steel Galvanized Pipe Cap

4 Inch Weld On Pipe Cap

4 Inch Weld On Pipe Cap

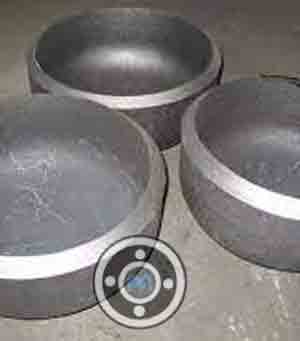

WPHY 70 Weld On Pipe End Caps

WPHY 70 Weld On Pipe End Caps

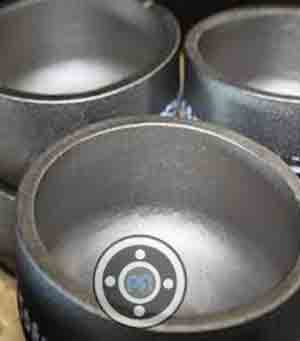

Galvanized endcaps

Galvanized endcaps

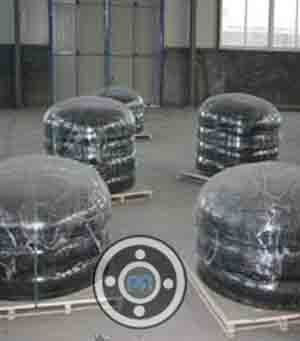

ASTM A234 WPB Large Dia Pipe Cap

ASTM A234 WPB Large Dia Pipe Cap

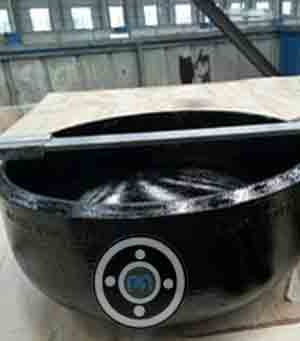

ASTM A860 High Yield Butt Weld End Cap

ASTM A860 High Yield Butt Weld End Cap

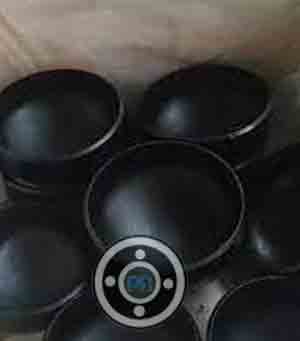

WPHY 52 Pipe End Caps

WPHY 52 Pipe End Caps

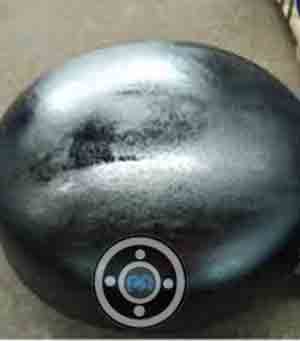

Carbon Steel Buttweld Caps

Carbon Steel Buttweld Caps

Carbon Steel Buttweld End Caps

Carbon Steel Buttweld End Caps

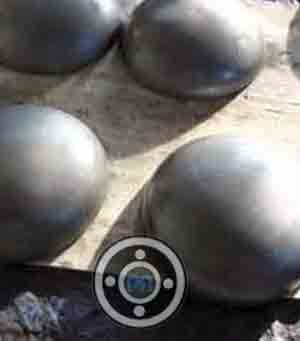

DIN 28011 End Cap

DIN 28011 End Cap

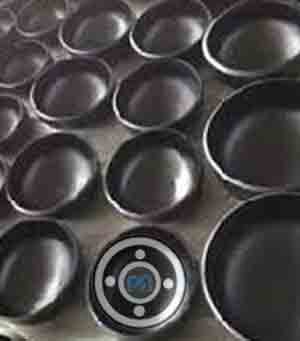

WPHY 52 Custom Shape Pipe Cap

WPHY 52 Custom Shape Pipe Cap

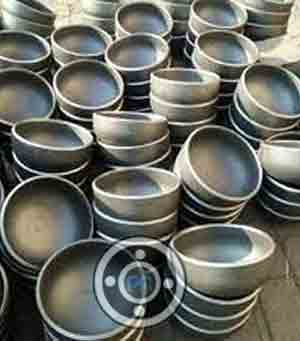

Galvanized Butt Weld Pipe Cap

Galvanized Butt Weld Pipe Cap

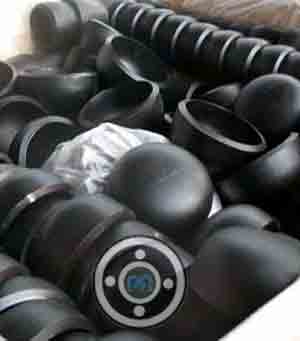

WPHY 65 Mild Steel Domed End Caps

WPHY 65 Mild Steel Domed End Caps

ASTM A420 WPL6 Round Pipe Cap

ASTM A420 WPL6 Round Pipe Cap

Carbon Steel Pipe Cap

Carbon Steel Pipe Cap

Deep drawing is the process of shaping sheet metal stock, known as blanks, into geometrical or irregular shapes that are deeper than half their diameters. Deep drawing entails wrapping a metal blank around a plug and then inserting it into a moulding cutter known as a die.

A drawing press can be used to shape sheet metal into various shapes, and the finished shape is determined by the ultimate position in which the blanks are forced down. Deep drawing metal must be flexible as well as resistant to stress and tension damage.

Carbon Steel Cap

Nominal Pipe Size 1/2 to 2.1/2 3 to 3.1/2 4 5 to 8
Outside Diameter
at Bevel ( D)		 + 1.6
- 0.8		 1.6 1.6 + 2.4
- 1.6
Inside Diameter at End 0.8 1.6 1.6 1.6
Overall Length ( H) 3 3 3 6
Nominal Pipe Size 10 to 18 20 to 24 26 to 30 32 to 48
Outside Diameter
at Bevel ( D)		 + 4
- 3.2		 + 6.4
- 4.8		 + 6.4
- 4.8		 + 6.4
- 4.8
Inside Diameter at End 3.2 4.8 + 6.4
- 4.8		 + 6.4
- 4.8
Overall Length ( H) 6 6 10 10
Wall Thickness ( t) Not less than 87.5% of Nominal Wall Thickness
Ultrasonic testing, X-ray, and magnetic testing available for Schedule 40 Carbon Steel Weld On Cap and Galvanized Pipe Cap, call us for a free sample!

Pipe Cap is directly welded to die at the end of the pipeline; at the end of the pipeline can also welding flange, then with a blind flange to death, can open the blind flange, pipeline check inside when necessary. The traditional cap holder is created with a thick wall, forging, and spinning a large diameter.

4 inch schedule 40 carbon steel weld on cap Price: $16.75

Schedule 40
Product Type Weld on Caps
Size 4"
Material Carbon Steel
Outside Diameter 4.5
Inside Diameter 4.026
Wall Thickness 0.237
Approx Weight 2.8 LBS

24 inch carbon steel weld on cap Price: $557.48

Schedule Standard
Product Type Weld on Caps
Size 24"
Material Carbon Steel
Schedule 20
Length E 10.5 inch
Wall Thickness 0.375 inch
Approx Weight 101 LBS

Pipe End Caps Weight

The weight of an ASME B16.9 Butt Weld Cap is computed using the following formula:

Pipe End Caps Weight

Where:

  • W = Weight of Cap in Kg.
  • OD = Outside diameter of cap (mm)
  • E = End to end length of cap (mm)
  • T = Wall Thickness (mm)
  • Transparent oil
  • Rust-proof black oil
  • Hot galvanized
  • Power Plant
  • Metallurgy
  • Petroleum
  • Shipbuilding
  • Construction
  • Chemical Plant

Marking

  • Logo of Manufacturer
  • Fitting Type
  • NPS
  • Schedule
  • Material Designation
  • Standard (BW/ SMLS)

These Pipe End Cap are wrapped in various packaging materials such as:

  • Wooden boxes
  • Pallet racks
  • Pallets
  • Wrappers made of plastic
ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
DIN: DIN2605, DIN2616, DIN2615, DIN2617, DIN28011
EN: EN10253-1, EN10253-2
HS Code 7307
  • Micro and Macro Test
  • Flaring Test
  • Chemical Analysis - Spectro Analysis
  • Flattening Test
  • Hardness Test
  • Pitting Resistance Test
  • PMI Testing

Pipe Fittings Types



Pipe Fittings Material



Flanges Material



Other Products
