What Is Split Tee?
A Split Tee is a T-shaped pipe fitting whose inner diameter is the same as that of the outer diameter of the pipe which is to be hot tapered. It is primarily used at the time of hot tapping into a pipeline. This variant of the tee fitting is used when the branched connection is greater than or equal to half the run direction diameter. The run direction is the flow direction inside the pipe, which will be cut. For the design of the Split Tee to be in compliance, it is very important that hot tap and piping standards are followed.
The benefits of getting a Split Tee are:

  • It will help to tie into a line while it is in service.
  • It can be used with activities related to hot tapping and line stop installations.
  • If the process is done properly, the weld will not penetrate the tapping area. However, proper precautions are needed to be taken as welding burn can lead to line failure.
  • They can easily be customized according to requirements and are readily available.

However, if the pipe is cement lined or internally coated, then slip tee cannot be used with that. The heat will flake off the coating and destroy all the protection that has been given by the coating.

How Do You Weld A Reducing Split Tee?
Split tees with reducing branches would need to meet the requirements for the fittings with a hot tap machine. In case the Reducing Split Tee has buttweld ends, that should be beveled as per the ASME B16.5 standard. The Reducing Split Tee are manufactured using various techniques like reduced branch opening, hot drawing, branch outlet welded to snug-fitting sleeves. The welding procedures done during the manufacturing process should be in accordance with ASME Section-IX. Charpy impact test and hardness test should be included in the procedure of welding qualification test of the Reducing Split Tee.

Full Encirclement Saddle Vs Split Tee
The Full Encirclement Saddle helps provide reinforcement for branched outlets as dictated by the codes, due to the probable requirements of any further strength. They are designed in such a way that they would encircle the pipe completely, and the saddle does not have the right design for retaining pressure. They have a hole which helps to expel welding gasses.
The inner diameter of a split tee is the same as that of the outer diameter of the pipe which is to be hot tapered. It is primarily used at the time of hot tapping into a pipeline. It is used when the branched connection is greater than or equal to half the run direction diameter.

How To Install Split Tee Pipe Fitting
The Split Tee Pipe Fitting is installed to the hot tapered pipe with the help of joints, that helps to establish a secure connection.

Split Tee Hydrotest
Split Tee Hydrotest helps to detect any defects that have gone unnoticed  in the prior detection. The test helps to identify all types of designing defects, including any potential for leakages and confirms the integrity of the spit tee pipe fitting.

Split Tee manufacturer in India

Split Tee manufacturer in India

41 - 51 bar ASTM A234 WPB Split Tee Fitting and Medium Carbon Steel Split Tee Pipeline exporter in Mumbai

Table of Content


Standards ANSI B31.1, B31.3, ANSI B31.4 & B31.8
Size 2" TO 48"
Pressure Ratings 150# TO 2500#
DIN DIN2605, DIN2616, DIN2615, DIN2617, DIN28011
Schedule SCH20, SCH40, STD, SCH30, SCH80, XS, SCH80, SCH120, SCH60, SCH140, SCH160, XXS
Form Split Tee
Value Added Services Epoxy & FBE Coating, Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Threading, Soldering

Biggest ASTM B148 UNS C95400 Flanges wholesalers, supplier, dealers, stockholders, importer, distributor, stockists, exporters and Manufacturer in Mumbai

Nominal
Pipe Size		 TYPE Outside
Diameter OD		 STD X – S
E & L D T ID E & L D T ID
1
1¼
1½		 B
B
B		 1.315
1.660
1.900		 5.75
6.25
7.00		 1.75
1.75
2.00		 0.133
0.140
0.145		 1.049
1.380
1.610		 6.50
7.25
8.50		 2.00
2.25
2.50		 0.179
0.191
0.200		 0.957
1.278
1.500
2
2½
3		 A/B
B
B		 2.375
2.875
3.500		 8.00
9.50
10.00		 2.50
2.50
3.00		 0.154
0.203
0.216		 2.067
2.469
3.068		 *8.00
**9.00
10.50
11.00		 2.50
2.50
3.00		 0.128
0.276
0.300		 1.939
2.323
2.900
3½
4
5		 B
A/B
B		 4.000
4.500
5.562		 11.50
12.00
13.50		 3.00
3.00
3.50		 0.226
0.237
0.258		 3.548
4.026
5.047		 12.50
*12.00
**13.50
15.00		 3.00
3.00
3.50		 0.318
0.337
0.375		 3.364
3.826
4.813
6
8
10		 A/B
B
B		 6.625
8.625
10.750		 14.50
17.50
20.50		 3.50
4.50
5.00		 0.280
0.322
0.365		 6.065
7.981
10.020		 *14.50
**17.50
20.50
24.00		 *3.50
**4.00
5.00
5.50		 0.432
0.500
0.500		 5.761
7.625
9.750
12
14
16		 B
B
B		 12.750
14.000
16.000		 24.50
27.00
30.00		 5.50
6.00
6.50		 0.375
0.375
0.375		 12.000
13.250
15.250		 27.50
31.00
34.50		 6.00
6.50
7.50		 0.500
0.500
0.500		 11.750
13.000
15.000
18
20
24		 B
B
B		 18.000
20.000
24.000		 32.00
35.00
40.50		 7.00
8.00
9.00		 0.375
0.375
0.375		 17.250
19.250
23.250		 37.50
40.50
47.50		 8.00
8.50
10.00		 0.500
0.500
0.500		 17.000
19.000
23.000
DN NPS STD 40 XS 80 160 XXS
40 1 1/2 0.9 0.9 1.3 1.3 1.5 1.3
50 2 1.5 1.5 2.2 2.2 2.7 3.4
65 2 1/2 2.7 2.7 3.0 3.0 3.1 3.8
80 3 3.8 3.8 4.4 4.4 5.6 6.1
90 3 1/2 4.6 4.6 5.9 5.9 　 　
100 4 6.5 6.5 7.7 7.7 10.2 12.9
15  1/2 0.21 0.2 0.2 0.2 　 　
20  3/4 0.2 0.2 0.3 0.3 　 　
25 1 0.3 0.3 0.5 0.5 　 　
32 1 1/4 0.6 0.6 0.7 0.7 　 　
125 5 9.7 9.7 13.5 13.5 19.8 25.7
150 6 14 14 19.3 19.3 34 30.6
200 8 24.5 24.5 34.5 34.5 50 47.7
250 10 41.3 41.3 58.4 67.5 111.2 84.7
300 12 65 69 76.5 105 158 129
350 14 83 96 104 142 232 　
400 16 110 120 120 187 335 　
450 18 132 170 159 263 564 　
500 20 168 240 192 356 756 　
550 22 185 　 209 416 1002 　
600 24 222 345 251 548 1215 　

ASME B31.8/ B31.4 certified ASTM A420 WPL6 Split Tee Pipe Fitting and Alloy Steel Welded Split Tee manufacturer in India

Split Tee Price Per Piece in India Extruded Hot Tap Split Tee Price in INR Carbon Steel Split Tees Price in UAE Dirham ASTM A234 WPB Splits Tee Fitting Price in USD
12 x 10 x 12 inch (NO FLANGE) EXTRUDED SPLITS TEE Per Kg 776,950 UAE Dirham 38495.73 $10480.76
LOOSE SPLITS FLANGE: TEE DRILLING MS/GL EQUAL 80 X 80 X 80 Per Kg 7,853 UAE Dirham 389.09 $105.94

Are you looking for Carbon Steel Split Tee manufacturer in India. Lowest Price Of Bulk Fabricated Split Tee for Piping Connection. Compare Price list of Stainless Steel Split Tee with other Manufacturers.

To achieve the desired weld, you can use a variety of processes such as TIG, arc, and MIG welding. While all of these methods can be used in splits tee welding, TIG welding is the most common.

Weight of a Split Tees calculated as per formula:

0.02466*（S+1.5）*[D-(S+1.5)]*(3C-D/2)/1000
  • S= Wall Thickness in mm
  • D= Outside Diameter in mm
  • C= Length*[Out Diameter-(Thickness+2)]*(Thickness*2)*0.02466*Length, the unit is mm.

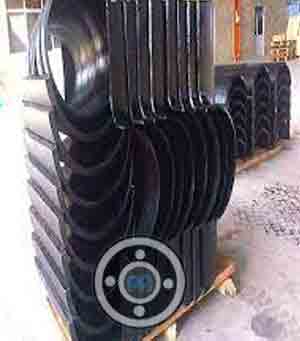

ASTM A234 WPB Split Tee Fitting

ASTM A234 WPB Split Tee Fitting

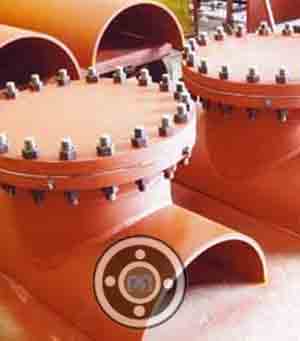

ASTM A420 WPL6 Split Tee Pipe Fitting

ASTM A420 WPL6 Split Tee Pipe Fitting

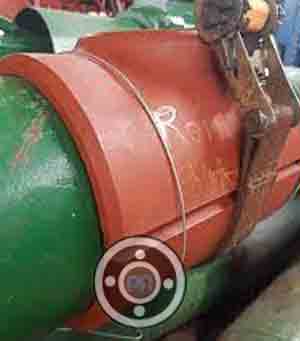

ST35.8 Split Tee Hot Tap Fittings

ST35.8 Split Tee Hot Tap Fittings

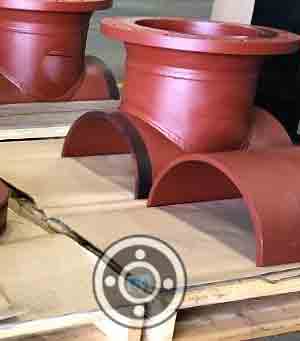

Mild Steel Full Encirclement Split Tee

Mild Steel Full Encirclement Split Tee

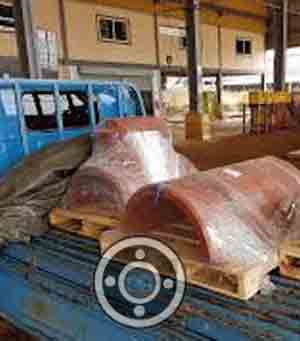

Medium Carbon Steel Hot Tap Split Tee

Medium Carbon Steel Hot Tap Split Tee

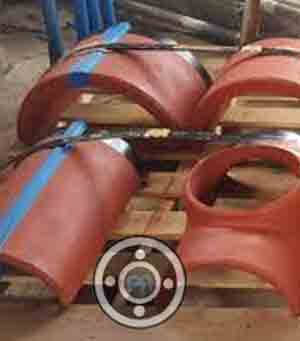

Split Tee Pipeline

Split Tee Pipeline

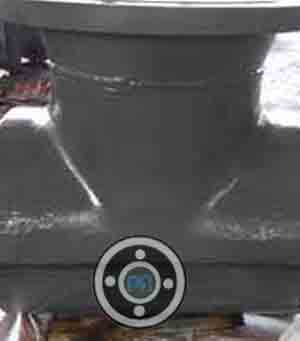

Carbon Steel Split Tee

Carbon Steel Split Tee

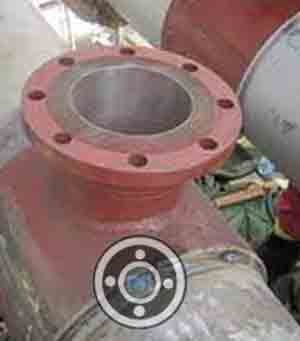

Alloy Steel Welded Split Tee

Alloy Steel Welded Split Tee

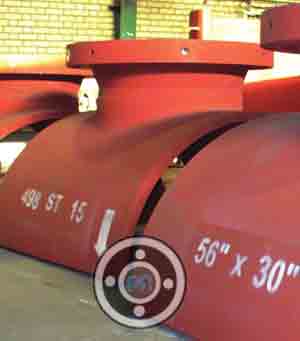

Split Tee With Guide Bar

Split Tee With Guide Bar

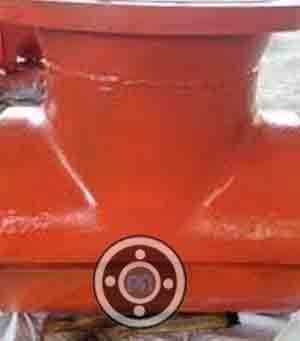

Split Tee Without Guide Bar

Split Tee Without Guide Bar

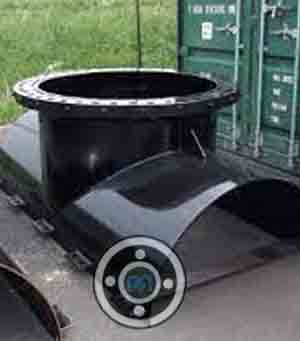

WPHY 42 Fabricated Split Tee

WPHY 42 Fabricated Split Tee

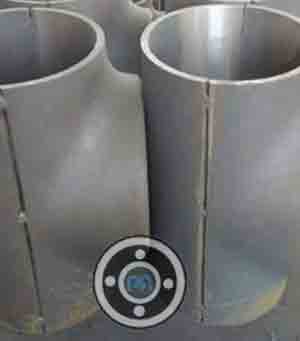

ASTM A234 WP11 Extruded Split Tee

ASTM A234 WP11 Extruded Split Tee

Reinforced Set On Branch Fitting

Reinforced Set On Branch Fitting

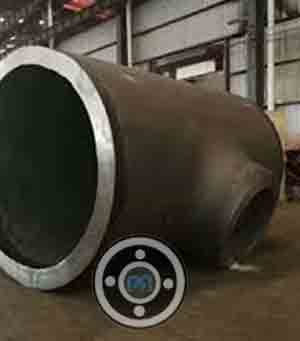

ASTM A234 WPC Split Reducing Tee

ASTM A234 WPC Split Reducing Tee

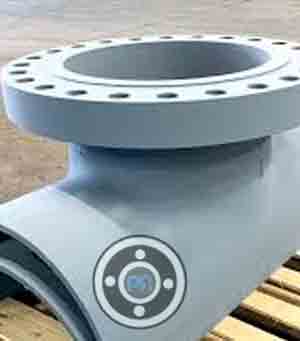

Split Tee Hot Tap Fitting

Split Tee Hot Tap Fitting

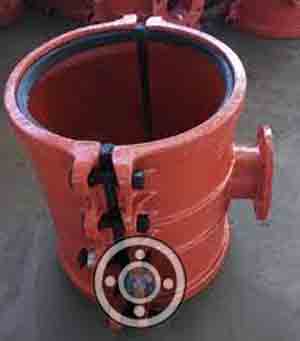

Split Tee Flange

Split Tee Flange

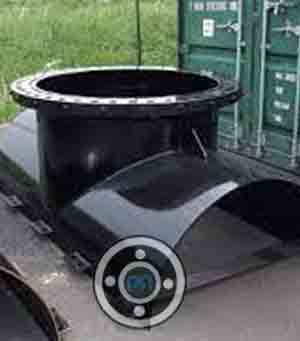

ASTM A403 WP304 Double Split Tee Joint

ASTM A403 WP304 Double Split Tee Joint

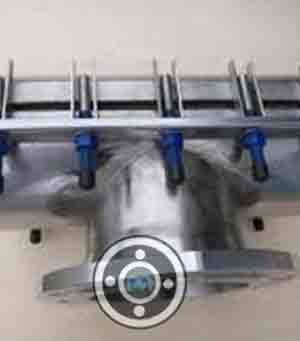

Stainless Steel Split Tee

Stainless Steel Split Tee

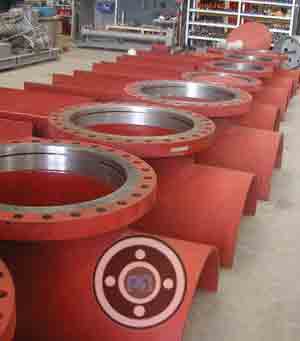

Split Weld Tee

Split Weld Tee

Equal Split Tee

Equal Split Tee

Reducing Split Tee

Reducing Split Tee

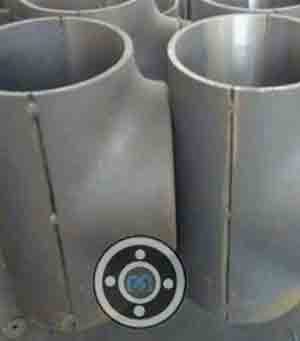

ASTM A403 WP316 Split Pipe Tee

ASTM A403 WP316 Split Pipe Tee

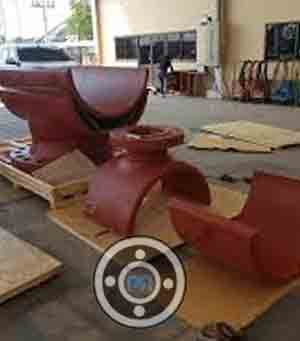

Split Long Sleeve Tee
