Carbon Steel ASTM A234 WPB Two Half Pipe Fittings and A420 WPL6 2 Halves Elbow manufacturer in India

What is Welded 2 Halves Fittings?
The Welded 2 Halves Fittings are made of a unique type of stainless steel, which is quite different from the normal stainless steel used for making different types of pipe fitting. This alloy consists of copper, nickel, and molybdenum, which improves the quality and properties of the Welded 2 Halves Fitting. They are known for enhanced toughness, durability and long service life.
They are available in different types like tees, caps, reducers, elbows, etc. They perform a wide range of functions according to their structures. Also, they are made following different international standards and are made with precise dimensions.

Welded 2 Halve Fittings Features
The Welded 2 Halves Fittings can be used in harsh environments and critical industrial situations due to its inherent properties. The features of Welded 2 Halves Fitting would include:

  • Available in the size range of 6” NB to 36” NB, and they can be easily customized according to specific requirements.
  • They are available in welded, fabricated and ERW variants.
  • They can withstand elevated temperatures.
  • Available in different forms like tee, elbow, reducer, etc.
  • Non-magnetic, non-stabilized and has low carbon content.
  • Mixed with copper, they can effectively resist any type of damage from reducing acids.
  • Heat resistant and capable of withstanding temperatures of up to 400 degrees C.
  • Resistant from stress corrosion cracking, crevice corrosion, and chloride attacks.
  • Able to maintain the shiny surface appearance for a long period of time.

Weld 2 Halve Fittings Manufacturing Process
The Weld 2 Halve Fitting Manufacturing Process would include:

  • Plate Cutting with the help of a Plasma machine.
  • Conducting the procedure of Gauging, Grinding, Beveled etc.
  • Several tests including DP test and 100% Radiography.
  • It is followed by Solution Annealing
  • Finally, the procedure of Pickling and Passivation are conducted.
Welded 2 Halves Fittings

Welded 2 Halves Fittings

Manufacturer of ASTM A403 WP304 weld 2 halves fittings and Stainless Steel 2 Halves Elbow offers Non Destructive/ Radiography Testing, available in Sch. 10S/ 40/ 40S/ 80S/ 160/ XXS thicknesses

Table of Content


Size 6" to 60" NB
Thickness Sch. 10S/40S/80S/160/XXS
Dimension ANSI B 16.9:2007 ,MSS-SP-43,MSS-SP-75
Type Elbow, Tee, Reducer, Stubend, Laterals, Customized Fitting
Other Services Hot Dip Galvanizing, Sand Blasting
Stainless Steel ASTM A 403 WPW - TP 304/304H/304L,316/316H/316L/316Ti, 309,310,317L, 321, 347,904L
Dulpex Steel ASTM A815 - UNS S31803 , S32760, S31500
Monel UNS N04400, N05500,Alloy 20
Alloy Steel ASTM A 234 WPW,WP5,WP9,WP11,WP12,WP91
Low Temperature Carbon Steel ASTM A-420 WPL6
Copper Nickel C70600(90:10),C71500(70:30), C71640
Carbon Steel ASTM A-234 WPB
Nickel UNS N02200,N02201
Inconel UNS N06600, N06601, N06625, N08800, N08810, N08825
Welded 2 Halves Fittings Price Per Piece in India Two Half Pipe Fitting Price in INR 2 Halves Elbow Price in UAE Dirham Weld 2 halves fitting Price in USD
two half pieces elbow big size carbon steel elbow welded Per Kg 743.86 UAE Dirham 36.73 $10
2 way welded pipe fitting Per Kg 728.99 UAE Dirham 36.00 $9.80

ASME B16.9 Butt-Weld ASTM A815 UNS S31803 Two Half Buttweld Fittings and Duplex Steel 2 Halves Buttweld Elbow manufacturer in India, check dimensions according to MSS-SP-75/ MSS-SP-43

Elbows are manufactured in a factory using one of several methods. The first method involves heating and forging plate material into two halves (clam shells) using a press and a die to produce the desired radius and diameter. Each half's edges are trimmed before the two halves are assembled and welded together with two submerged-arc welds (one along the intrados and the other along the extrados). The ends of the elbow are trimmed and prepared for field welding after radiographic inspection of the seam welds.

Welded 2 Halves Fittings

Welded 2 Halves Fittings

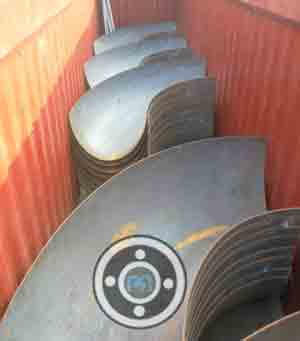

Welded Two Halves Fittings

Welded Two Halves Fittings

Two Half Pipe Fittings

Two Half Pipe Fittings

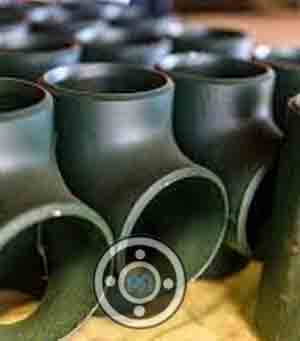

Carbon Steel Welded fittings

Carbon Steel Welded fittings

Stainless Steel Two Halve Fittings

Stainless Steel Two Halve Fittings

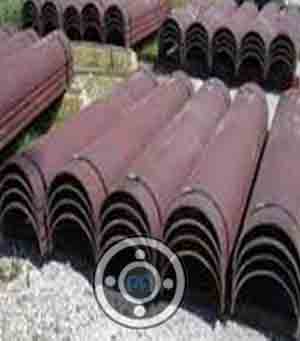

weld 2 halves fittings

weld 2 halves fittings

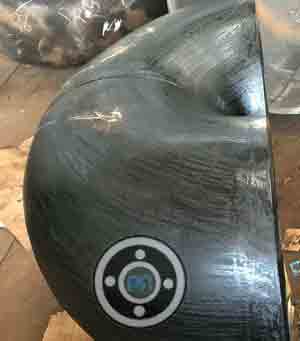

2 Halves Elbow

2 Halves Elbow

Two Halves Elbow

Two Halves Elbow

Two Half Buttweld Fittings

Two Half Buttweld Fittings

2 Halves Buttweld Elbow

2 Halves Buttweld Elbow

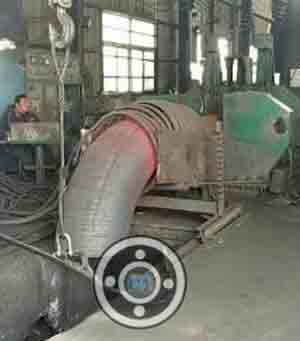

Two Half Seamless Fitting

Two Half Seamless Fitting

2 Halves Seamless Elbow

2 Halves Seamless Elbow

  • Available in sizes ranging from 6" NB to 36" NB and can be further customised to meet your exact requirements.
  • There are various types. Fabrication, Welding, and ERW
  • Is able to withstand a high amount of heat, so it can be heated to temperatures ranging from 1090 to 1175 degrees Celsius.
  • It is heat resistant and can withstand temperatures of up to 400 degrees Celsius.
  • Provides good resistance to stress-corrosion cracking, crevice corrosion, and chloride attacks.

ISO 18001:2007 certified Alloy Steel Two Half Seamless Fittings manufacturers in India offers widest selection of ASTM A234 WP5 2 Halves Seamless Long Radius Elbow in Mumbai
  • Eddy current examining
  • X-ray test
  • Firmness test
  • Impact analysis
  • Pitting protection test
  • Small tests
  • Hydrostatic analysis
  • Large-scale test
  • Chemical examination
  • Prompt test
  • Positive material recognition
20mm- 800mm butt weld Copper Nickel 2 Halves LR Elbow and Inconel 600/ 625 2 Halves Fittings manufacturer in India
  • High Pressure Applications
  • Nuclear Power Plants
  • Water Pipe Line
  • Paper & Pulp
  • High Temperature Application
  • Oil and Gas Industry
  • Food Processing and Dairy Industries
  • Chemical Refinery
