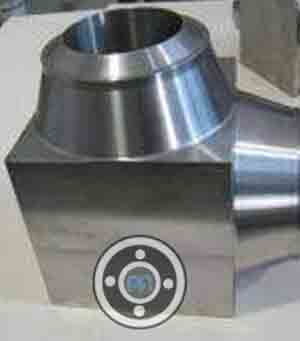

What Is Cushion Tee Pipe Fitting?
Cushion Tee is a type of Pipe Fitting that is manufactured from forged material. Unlike any other type of tee fittings, it consists of a blind branch. The Cushion Tee Pipe Fittings offer leakage proof connections and they are very suitable for all types of high pressure application. The environment where it is to be used also depends on the material grade. Another important feature of cushion tee is that no debri build-ups occur over time. It also helps in changing the flow direction and offers dimensional stability. The cushion is capable of withstanding elevated temperatures and they can effectively resist different types of solvents, chemicals, and acids.
The Cushion Tee Pipe Fitting has a wide range of applications in various industries, like petroleum, electricity, natural gas, etc. They are durable and can resist corrosion effectively.
What Is The Purpose Of Using Cushion Tee?
The cushion tee comes with a blind branch. The ends of the blind branch is filled up with a soft material that cushions the impinging solid particles present in the fluid at the surface of the bend. The cushion also helps to reduce any erosion probability in the target tee, thus preventing any losses from the flow process caused because of the erosion.
How To Order Cushion Tee?
To Order Cushion Tee, you would need to consider the following aspects:
Cushion Tee Pipe Fitting manufacturer in India
Product name | Cushion tee Alloy steel 1" DN25 STD |
Standard | ANSI B16.9 |
Type | tee |
Size | 1 inch |
Thickness | STD |
Certificates | API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc. |
Application | Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc. |
Quality | High lever |
Delivery Time | At the earliest ,within the period required by customer. |
Test | Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirment |
Leading Cushion Tee Pipe Fitting wholesalers, stockholders, dealers, distributor, supplier, importer, stockists, exporters and Manufacturer in Mumbai.
Cushion Tee Pipe Fitting Price Per Piece in India | Target Tee Pipe Fitting Price in INR | Carbon Steel Cushion Tees Price in UAE Dirham | Cushion Tee Fitting Price in USD |
ASTM A234 WPB Cushion Tee Per Kg | 498.97 | UAE Dirham 24.79 | $6.75 |
1" DN25 STD 304 Cushion Tee Stainless Steel Per Kg | 1495.43 | UAE Dirham 74.30 | $20.23 |
Before making a purchase, compare our prices to those of Target Tee Pipe Fitting Manufacturers in India. This is an estimate of the price of Carbon Steel Cushion Tees in India. Please contact us for the most recent stocklist of ASTM A234 WPB Target Tee in Mumbai.

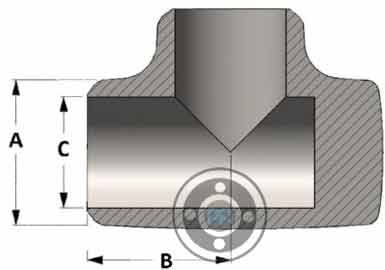

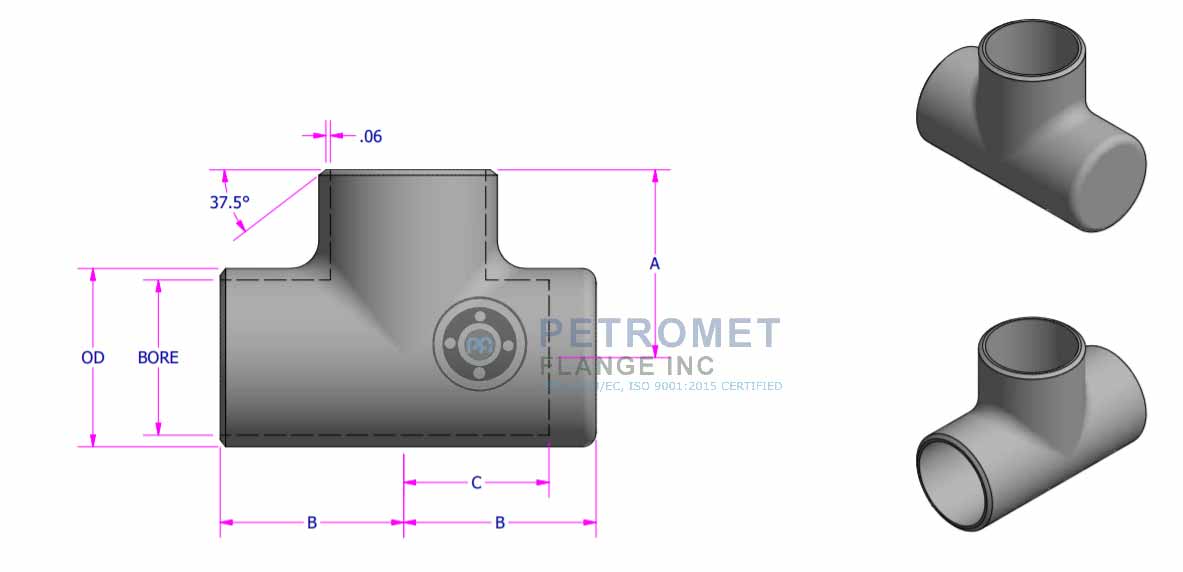

PIPE SIZE | A | B | STD/S40 | XH/S80 | S160 | XXH | ||||
C | LBS | C | LBS | C | LBS | C | LBS | |||
1/2 | 0.875 | 1.000 | 0.622 | 0.28 | 0.546 | 0.32 | 0.464 | 0.40 | 0.252 | 0.42 |
3/4 | 1.063 | 1.120 | 0.824 | 0.38 | 0.742 | 0.45 | 0.612 | 0.55 | 0.434 | 0.62 |
1 | 1.375 | 1.500 | 1.049 | 0.79 | 0.957 | 0.85 | 0.815 | 1.15 | 0.599 | 1.35 |
1-1/4 | 1.660 | 1.880 | 1.380 | 1.26 | 1.278 | 1.31 | 1.160 | 1.95 | 0.896 | 2.35 |
1-1/2 | 1.900 | 2.250 | 1.610 | 1.85 | 1.500 | 1.95 | 1.338 | 2.85 | 1.100 | 3.12 |
2 | 2.375 | 2.500 | 2.067 | 2.66 | 1.939 | 2.81 | 1.689 | 4.68 | 1.503 | 5.10 |
2-1/2 | 2.875 | 3.000 | 2.469 | 6.10 | 2.323 | 6.50 | 2.125 | 8.98 | 1.771 | 10.62 |
3 | 3.500 | 3.380 | 3.068 | 9.05 | 2.900 | 9.75 | 2.624 | 13.45 | 2.300 | 15.75 |
4 | 4.500 | 4.120 | 4.026 | 15.25 | 3.826 | 18.50 | 3.438 | 23.75 | 3.152 | 27.49 |

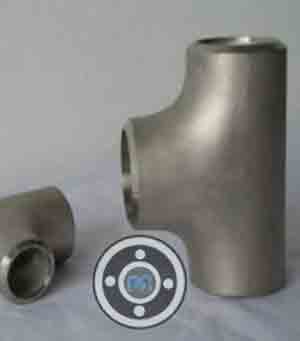

ASTM A403 WP316 Cushion Tee Fitting

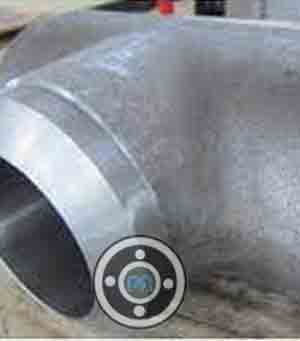

Stainless Steel Cushion Tee

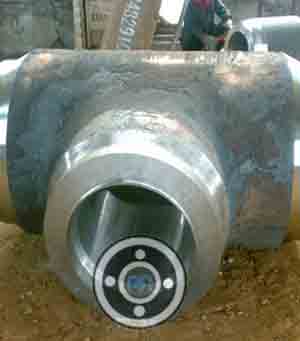

Alloy Steel Cushion Tees
Cushion Tee Pipe Fitting

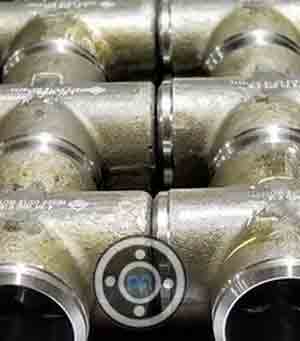

ASTM A234 WPC Forged Cushion Tees

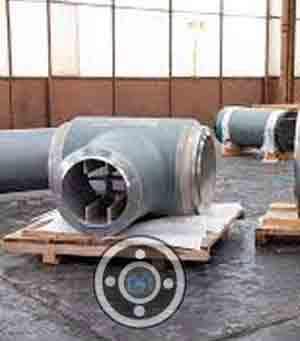

ASTM A420 WPL6 Cushion Tee

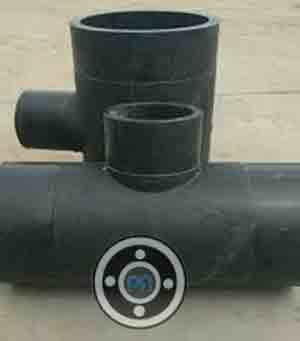

ASTM A234 WP11 Tee Cushion
ST37.0 Target Tee Pipe Fitting

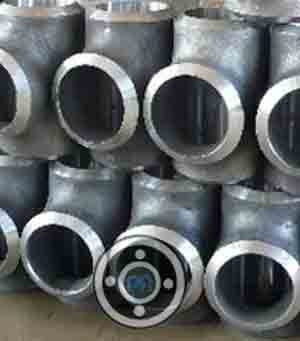

WPHY 42 Tee Cushion

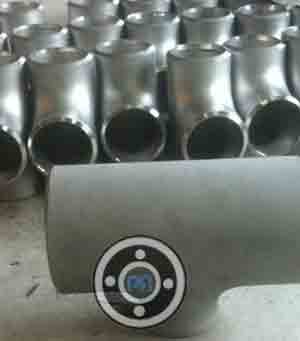

ASTM A403 WP304 Cushion Tees

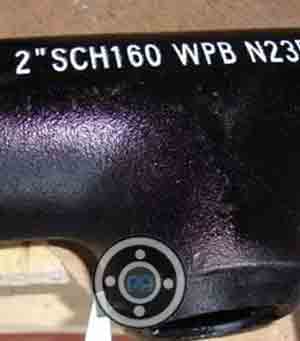

ASTM A234 WPB Target Tee Pipe Fitting

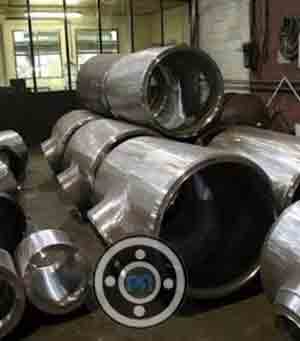

Medium Carbon Steel Cushion Tee
ASTM A234 WP11 Tee Cushion

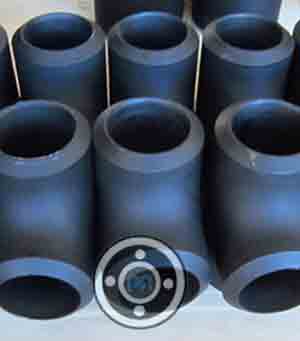

ST35.8 Target Tee Pipe Fitting

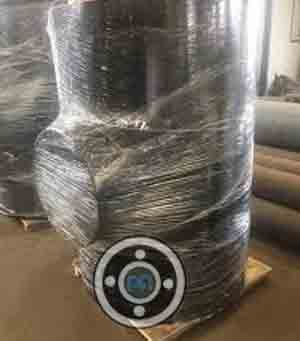

Carbon Steel Cushion Tee
These are suited for subsea corrosion-resistant alloy tees in heat-affected zones where welding may impair material qualities. WFI Seamless Target/Cushion Tees are made with a sturdy one-end run. This creates a 90-degree flow channel out the branch and through one end of the run.
