What Is Barred Tee?
Barred Tee can be described as a special type of tee that basically bases from a normal tee. A Barred Tee can either be an equal or reducing tee, and at a later stage bar plates bar plates are added on the inner side of the branch outlet. When looked from inside, it appears to be a steel cage. Depending on the parent material, the bar is also made up of similar material.
The bars are basically placed on the inner side of the tee, and its dimension should be accurate enough to do the job without restricting the flow of the tee. They should also be able to prevent the breakage depending on the flow rate of the tee’s branched connection.
Like other tee fittings, the Barred Tee too has one inlet located at 90 degrees and connected to the main line. It has tiny holes. They are either fabricated or extruded and help in connecting different pieces of pipes and fittings together. They are used in pigged pipelines.

What Is Stainless Steel Barred Tee Used For?
The Stainless Steel Barred Tee helps to restrict the flow of pig from the header to the branch pipe. The bars in the barred tee are basically installed so that they can flush with the pipeline’s inner diameter and prevent the pig from hanging up, while it passes through.

Difference Between Flow And Barred Tee
The flow tee allows the fluid to flow in from the main pipe through the inlet and then branch out. These branches can be of equal size or smaller size than the main pipe. The barred tee has its base from a normal tee. Bar plates are added in these tees at a later stage in the inner side of the branch outlet. It basically restricts the pig from flowing from the header pipe to the branch pipe.

What Is Barred Tee Fitting Design Standard
The barred tee does not have any international standard. It takes the base from normal tee, and hence is custom made using the normal tee standard, which is ASME B16.9 or MSS-SP 75. However, some barred tees were developed based on the standards Shell DEP 31.40.10.13-Gen or ISO 15590-2.

Barred Tee Manufacturing Process
The Barred Tee Manufacturing Process involves the standard manufacturing procedure of a normal tee, and then a bar plate is welded on the inner side of the fitting.

Barred Tee manufacturer in India

Barred Tee manufacturer in India

Fast & Reliable Carbon Steel Scrapper Tee and ASTM A860 Equal Barred Tee manufacturers in India


Type Barred Tee (butt welded)
WELDING BEVEL According to ASME B.16.25
Sizes By Manufacturer 1/2" - 42" (larger sizes on applications)
Wall Thickness 4mm – 80mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Dimension ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 Barred Tees
Applications & uses Pipeline repair and new installation operations – shallow water, diver assist

Biggest Barred Tee Fitting distributor, dealers, wholesalers, supplier, importer, stockholders, exporters, stockists and Manufacturer in Mumbai

  • Hot pressing
  • Cold extrusion
  • Hot pushing
  • Molding
Barred Tee Fitting Price Per Piece in India Scrapper Tees Price in INR Equal Barred Tees Price in UAE Dirham Barred Tees Price in USD
4X3 TEES RDC QLF PSX.JF-16 BAR Per Piece 18,334 UAE Dirham 906.21 $246.75
3X1 TEES RDC QLF PSX.JF-16BAR Per Piece 15,861 UAE Dirham 783.98 $213.45

Check our price with other Barred Tee manufacturer in India Before Purchasing. This is an approximate Price of Carbon Steel Barred Tee in India. Feel free to contact us latest Stocklist of Barred Pipe Tees in Mumbai.

KNPC approved Galvanized Weldbend Barred Tee manufacturers in India offers widest selection of ASTM A234 WPB Barred Tee Pipeline and Alloy Steel Sphere Barred Tee in Mumbai

Carbon Steel ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/46/52/56/60/65/70
Stainless Steel SS 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L
Alloy Steel ASTM A182 / ASME SA182 F5, F9, F11, F12, F22, F91
Titanium ASTM B381 / ASME SB381, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7 ASTM R50250/GR.1 | R50400/GR.2 | R50550/GR.3 | R50700/GR.4 | GR.6 |R52400/GR.7 | R53400/GR.12 | R56320/GR.9 |R56400/GR.5
Nickel Alloy ASTM / ASME SB 336 UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8020 (Alloy 20 / 20 CB 3, UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 ( Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276)
Copper Nickel ASTM / ASME SB 61 / 62 / 151 / 152, Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Alloy 20 ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3
Aluminium 5052 /6061/ 6063 / 2017 / 7075 / etc.
Duplex and Super Duplex ASTM A815, ASME SA815 UNS NO S31803, S32205. Werkstoff No. 1.4462
254 Smo ASTM A182 / ASME SA182, SMO 254/6Mo, UNS S31254, DIN 1.4547
Nominal Pipe Size Outside diameter
at bevel
Center-to-End
Run Outlet Run Outlet Run (C) Outlet (M)
1/2" 1/4"
3/8"
21.3 13.7
17.3
25 25
3/4" 3/8"
1/2"
26.7 17.3
21.3
29 29
1" 1/2"
3/4"
33.4 21.3
26.7
38 38
1 1/4" 1/2"
3/4"
1"
42.2 21.3
26.7
33.4
48 48
1 1/2" 1/2"
3/4"
1"
1 1/4"
48.3 21.3
26.7
33.4
42.2
57 57
2" 3/4"
1"
1 1/4"
1 1/2"
60.3 26.7
33.4
42.2
48.3
64 44
51
57
60
2 1/2" 1"
1 1/4"
1 1/2"
2"
73.0 33.4
42.2
48.3
60.3
76 57
64
67
70
3" 1 1/4"
1 1/2"
2"
2 1/2"
88.9 42.2
48.3
60.3
73.0
86 70
73
76
83
3 1/2" 1 1/2"
2"
2 1/2"
3"
101.6 48.3
60.3
73.0
88.9
95 79
83
89
92
4" 1 1/2"
2"
2 1/2"
3"
3 1/2"
114.3 48.3
60.3
73.0
88.9
101.6
105 86
89
95
98
102
5" 2"
2 1/2"
3"
3 1/2"
4"
141.3 60.3
73.0
88.9
101.6
114.3
124 105
108
111
114
117
6" 2 1/2"
3"
3 1/2"
4"
5
168.3 73.0
88.9
101.6
114.3
141.3
143 121
124
127
130
137
8" 3 1/2"
4"
5"
6"
219.1 101.6
114.3
141.3
168.3
178 152
156
162
168
10" 4"
5"
6"
8"
273.0 114.3
141.3
168.3
219.1
216 184
191
194
203
12" 5"
6"
8"
10"
323.8 141.3
168.3
219.1
273.0
254 216
219
229
241
14" 6"
8"
10"
12"
355.6 168.3
219.1
273.0
323.8
279 238
248
257
270
16" 6"
8"
10"
12"
14"
406.4 168.3
219.1
273.0
323.8
355.6
305 264
273
283
295
305
18" 8"
10"
12"
14"
16"
457.0 219.1
273.0
323.8
355.6
406.4
343 298
308
321
330
330
20" 8"
10"
12"
14"
16"
18"
508.0 219.1
273.0
323.8
355.6
406.4
457.0
381 324
333
346
356
356
368
22" 10"
12"
14"
16"
18"
20"
559.0 273.0
323.8
355.6
406.4
457.0
508.0
419 359
371
381
381
394
406
24" 10"
12"
14"
16"
18"
20"
22"
610.0 273.0
323.8
355.6
406.4
457.0
508.0
559.0
432 384
397
406
406
419
432
432
NPS LBS KG
1/2 0.45 0.2
3/4 0.6 0.27
1 0.88 0.4
1.1/4 1.6 0.73
1.1/2 2.25 1.02
2 4 1.81
2.1/2 7 3.18
3 8.5 3.86
3.1/2 12 5.44
4 15.8 7.17
5 26 11.79
6 40 18.14
8 75 34.02
10 105 47.63
12 160 72.57
14 240 108.86
16 280 127.01
18 332 150.59
20 480 217.72
22 550 249.48
24 610 276.69
26 875 396.89
30 1200 544.31
36 1700 771.11

Barred tees, like butt weld tees, are made to particular customer project specifications in a wide range of sizes. Welded to the branch of the butt weld tees are custom-fitted bar sections. The bars are there to ensure that the pig passes through the branch aperture. The bar gap is intended to protect the pig's functional elements.

Schedules 10/ 40 Welded ASTM A420 WPL6 Pigged Tee and WPHY 52 Barred Tee manufacturer in India

If there are too many welded bars, the medium flow may be reduced. If it is too small, it may not function when the pig passes. The barred tee has no international standard dimension. It is manufactured to order utilising the ASME B16.9/ MSS-SP 75 tee as a foundation. Equally spaced bars for sizes 4′′ to 6′′ are 1 bar, 8′′ to 10′′ are 2 bars, 12′′ to 20′′ are 3pcs, and 24′′ to 48′′ are 5 bars. In addition, the thickness of 4′′ to 18′′ bars is 1/2′′(12.7mm), and 20′′ to 48′′ bars are 1/2′′(12.7mm).

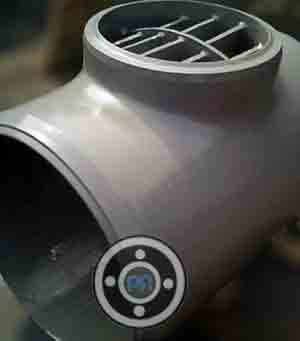

Alloy Steel Barred Tee

Alloy Steel Barred Tee

Galvanized Pig Launcher Barred Tee

Galvanized Pig Launcher Barred Tee

ASTM A860 Forged Barred Tee

ASTM A860 Forged Barred Tee

Scrapper Tee

Scrapper Tee

ASTM A234 WPA Barred Tee Pipeline

ASTM A234 WPA Barred Tee Pipeline

ASTM A234 WPC Equal Barred Tee

ASTM A234 WPC Equal Barred Tee

WPHY 42 Piggable Barred Tee

WPHY 42 Piggable Barred Tee

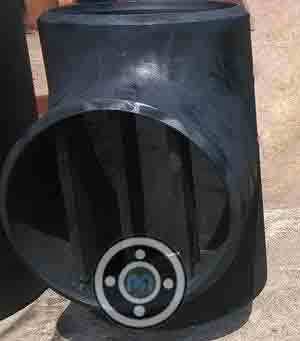

Carbon Steel Barred Tee

Carbon Steel Barred Tee

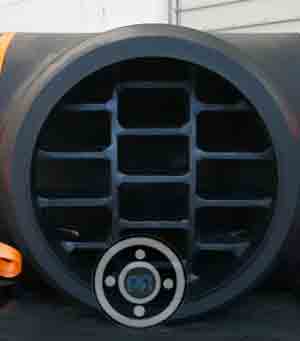

WPHY 52 Sphere Tee And Barred Tee

WPHY 52 Sphere Tee And Barred Tee

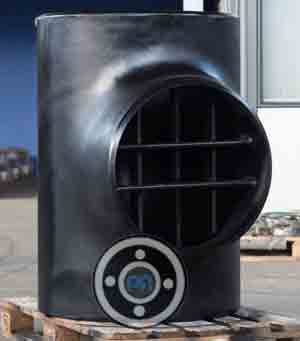

Barred Tee Material

Barred Tee Material

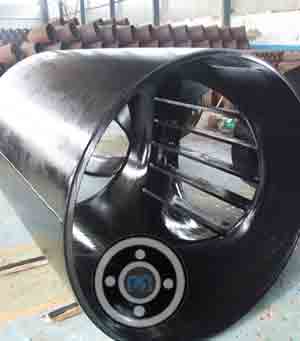

Barred Tee A860

Barred Tee A860

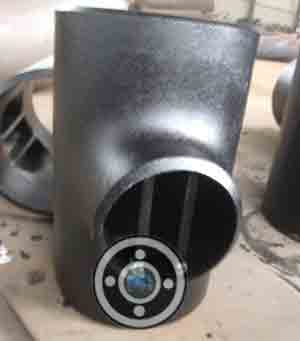

WPHY 70 Barred Tee Fitting

WPHY 70 Barred Tee Fitting

Carbon Steel Pigged Tee

Carbon Steel Pigged Tee

Bar Tee Pipe Fitting

Bar Tee Pipe Fitting

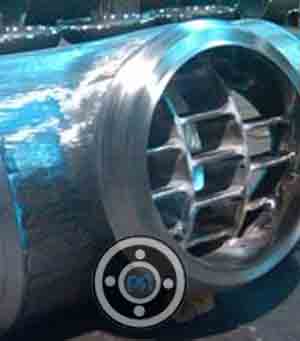

ASTM A420 WPL6 Weldbend Barred Tee

ASTM A420 WPL6 Weldbend Barred Tee

ASTM A234 WPB Barred Pipe Tee

ASTM A234 WPB Barred Pipe Tee

Reducing Barred Tee

Reducing Barred Tee

ASTM A860 High Yield Barred Tee In Pipeline

ASTM A860 High Yield Barred Tee In Pipeline

Galvanized Weldbend Barred Tee

Galvanized Weldbend Barred Tee

WPHY 65 Sphere Barred Tee

WPHY 65 Sphere Barred Tee

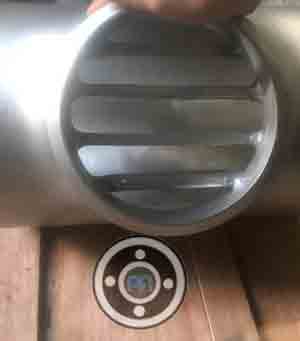

Asme B16.9 Barred Tee

Asme B16.9 Barred Tee

  • The bar plates should be of suitable amount, thickness, and spacing.
  • The size of the bars in the branch connection should be modest enough not to obstruct the flow. However, it must be large enough to withstand the flow's pressure.
  • The bar plates should be ground to match the curvature of the branch. Sharp edges, spatters, and bursts must be eliminated.
  • The number of bar plates should begin with one or two pieces and rise as the branch's ID increases.
  • The spacing between the bar plates should be equal.
  • The material of the bar plates is frequently the same as the material of the tee.
  • To fit the branch, the bar plate ends must be machined.
  • Weaving bars directly on the high-stress concentration sections of the extrusion neck should be avoided.
Parameter Tee Barred Tee
Definition Standard Pipe Fitting A special type of piping component
Production Quantity Large scale in bulk Select small quantities (custom made)
Use Used in both piping and pipeline engineering used in pipeline engineering near the pig launcher/receiver
Design Code / Standard ASME B 16.9/MSS SP 75 Shell DEP 31.40.10.13-Gen or ISO 15590-2
Manufacturing Generally by Extrusion or forging Mostly Fabricated
Cost Cheaper Costlier than normal Tees
Manufacturer of ASTM A860 High Yield Reducing Barred Tee and WPHY 42 Bar Tee Pipe Fitting offers Alternating Current Field Measurement (ACFM) & Non Destructive Testing
  • Micro and Macro Test
  • Flaring Test
  • Chemical Analysis
  • PMI Testing
  • Flattening Test
  • Pitting Resistance Test
  • Hardness Test
  • Oil & Gas Industry
  • Fossil Fuel Power Plants
  • Paper & Pulp
  • Marine Applications
  • Power Plants
  • Nuclear Power/ Nuclear Plants
  • Refineries
Gravelines Nuclear Power Plant - France

Gravelines Nuclear Power Plant - France

Abadan Refinery -  Iran

Abadan Refinery - Iran
