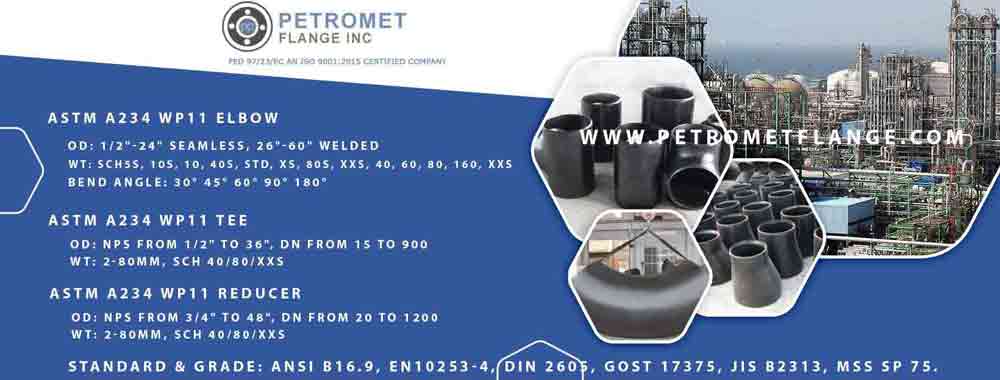

What are ASTM A234 WP11 Fittings?
The ASTM A234 can be described as the standard for buttweld pipe fitting material, which have properties of different types alloy steel and carbon steel. The WP11 can be described as a grade in this standard. These fittings are mostly used in moderate and high temperature environments in pressure piping services.
There are different types of fittings available for this standard such as reducers, elbows, caps, tees, couplings, cross, and many more. Clients can also get both welded and seamless variants of the ASTM A234 WP11 Fittings. The seamless fittings are basically made of the seamless pipes, whereas the welded fittings are made of steel plates as well as the welded pipes.
The ASTM A234 WP11 Fittings are manufactured using the wrought process, which means the fittings are either casted or forged. For example, the ASTM A234 WP11 tees, reducers, elbows, etc., are manufactured from the steel pipes, whereas fittings like caps are made from the plates. In case of large-sized ASTM A234 WP11 Fittings, they are manufactured in pieces and then welded together.
The ASTM A234 WP11 Fittings are available in three classes, namely class 1, class 2, and class 3. They possess different chemical compositions as well as separate mechanical properties. According to their features, they are used across several industries that include oil gas, water treatment, power plants, chemical industry, and many more.
Some benefits offered by the ASTM A234 WP11 Fittings would include:
A234 WP11 CL2 Vs A234 Gr WP11 CL1
The A234 WP11 CL2 and the A234 Gr WP11 CL1 have different chemical composition and because of that they differ in their mechanical properties.
A234 Gr WP11 CL1 |
A234 WP11 CL2 |
Their carbon content is limited to 0.15% and manganese to 0.6%. |
Their carbon content is limited to 0.2% and manganese to 0.8%. |
Minimum yield strength is 205MPa |
Minimum yield strength is 275 MPa |
Minimum tensile strength is 585 MPa |
Minimum tensile strength is 655 MPa |
SA 234 WP11 Elbow Vs ASTM A234 WP11 Stub End
The SA 234 WP11 Elbow is one of the most important pipe fittings, as it helps to change the flow direction of the fluid inside the piping system. It also helps in connecting two pipes that have similar or different nominal diameters. They are available in different angles, namely 45 degree and 90 degree, and thus, they change the angle of direction accordingly.
On the other hand, the ASTM A234 WP11 Stub End helps in quick disconnection of a piping section. They are associated with slip-on flanges and hence are used for easy alignment of the mating flanges. They are basically installed in pairs and then are mated with two slip-on flanges. In other words, they help to establish flanged connections.
Manufacturing process of ASTM A234 Gr WP11 Fittings
The ASTM A234 WP11 Fittings are manufactured using the wrought process, which means the fittings are either casted or forged. For example, the ASTM A234 WP11 tees, reducers, elbows, etc., are manufactured from the steel pipes, whereas fittings like caps are made from the plates. In case of large-sized ASTM A234 WP11 Fittings, they are manufactured in pieces and then welded together.
These buttweld pipe fittings are manufactured using all the national and international standards, to maintain its optimum performance and safety. Depending on the size and type of the ASTM A234 WP11 Fittings fittings, different manufacturing methods, like heat treatment, forging, cold drawing and hot rolling, are used for manufacturing different types of products like elbows, bends, reducers, etc.
A234 Gr WP11 Reducer Vs SA234 Grade WP11 Tee
The A234 Gr WP11 Reducer basically helps to connect two pipes of different sizes. In other words, it helps in reducing the pipe size, from the larger bore to the smaller ones, in the piping system. The change in size helps to meet the hydraulic flow requirements of the piping and also adapt the existing piping of different sizes. There are also different types of A234 Gr WP11 Reducer, namely concentric reducers which connect pipes in the center and eccentric reducers, which help in reducing the pipes to the sides.
The SA234 Grade WP11 Tee is one of the most common types of fitting used in the piping system, and they basically assist in combining or dividing the fluid. These fittings look like the alphabet ‘T’ and help to connect pipes of different diameters. They can also change the pipe run’s direction or do both. They can also help in transporting two fluid mixtures. There are two types of SA234 Grade WP11 Tee available, equal tee whose branch diameter is same as that of the main run pipe and reducing tee whose branch diameter is smaller than the run ports.
ASTM A234 WP11 Fittings
Table of Content
ASTM A234 WP11 Fittings Specifications | ASTM A234 |
---|---|
SA234 Gr WP11 Fittings Thickness | SCH30, SCH10, SCH 160, SCH20, SCH60, XS, STD SCH40, SCH 80, SCH 120, SCH 140, SCH 100, XXS available with NACE MR 01-75 |
ASTM A234 Gr WP11 Fittings Sizes | Werkstoff 1.7338 Seamless Fittings: 1/2" - 10"
ASME B16 9 AS Grade WP11 Welded Fittings: 1/2" - 48" |
ASTM A234 WP11 Fittings Type Manufacturer | DN15-DN1200 |
Alloy Steel Grade WP11 Fittings Connection | Welding |
ASTM A234 WP11 Fittings Dimensions | ASME B16.28, ASME/ANSI B16.9, BS4504, MSS-SP-43, BS1560, BS4504, BS10 |

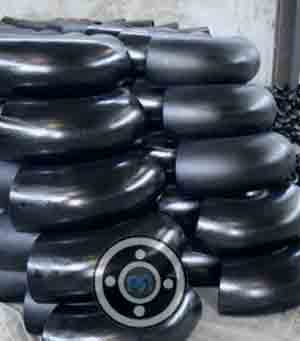

ASTM A234 Gr Wp11 Elbow Manufacturer | Angle : 22.5 deg, 45 deg, 30deg, 90 deg, 1.0D, 180 deg, 1.5D, 3D, 2.5D, 2.0D, 4D, 6D, 5D, 7D-40D . Standard: ASME B16.28, GB, ASME B16.9, MSS SP-75 JISB2311 DIN2605 JISB2312 JISB2313, ASME B16.25, BS, ISO |
Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Alloy Steel Grade WP11 Buttweld Fittings |
UNS K11597 Pipe Fittings Manufacturing process | Push, Forge, Press, Cast, etc. |
Chromium A234 Grade WP11 Fittings Pressure Rating | Threaded end - 3000lb/ 2000lb/ 6000lbs
Socket weld end- 6000/ 3000/ 9000lbs |
ASTM A234 Gr WP11 Fittings Products Manufacturer | Half Coupling, Union, Tee, Cross, Coupling, Cap, Outlet, Welding Outlet, Boss, Insert |
Test Certificates Provided by ASTM A234 WP11 Fittings Manufacturer | EN 10204/3.1B
Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Bending Radius Provided By Manufacturer | R=1D, 3D, 2D, 5D, 8D, 6D, 10D or Custom ASTM A234 Chrome Moly WP11 Pipe Bend |
Specialized manufacturer of | Alloy Steel Grade WP11 Stub End, 90º Elbows, Tees, Pipe Cap, Crosses, 45º Elbows, Reducers, Pipe Bend |
Alloy Steel Grade WP11 Fittings Thread Provided By Manufacturer | BSPT, NPT, BSPP |
ASME SA 234 Grade WP11 Fittings Origin & Mills | European, Japanese, USA, Korean, Ukraine, Indian, Russian |
Dimension Specification | MSS SP-79, 95, 83, 97, BS 3799, ASME 16.11 |
Application of Industrial ASTM A234 WP11 Fittings |
|
Are you looking for A234 Wp11 Cl2 Buttweld Fittings wholesalers, exporters, dealers, supplier, distributor, importer, stockholders, stockists and Manufacturer in Mumbai
Nominal Pipe Size | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
---|---|---|---|---|---|---|---|---|
(inches) | Long Radius | Short Radius | Long Radius | Long Radius | ||||
(mm) | (inches) | Center to Face (inches) |
Center to Face (inches) |
Center to Face (inches) |
Radius (inches) |
Center to Center (inches) |
Back to face (inches) |
|
1/2 | 21.3 | 0.840 | 1 1/2 | - | 5/8 | 2 | 1 7/8 | |
3/4 | 26.7 | 1.050 | 1 1/8 | - | 7/16 | 2 1/4 | 1 11/16 | |
1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Normal Size Of Pipe (inches) |
Pipe Sch | OD
(inch) |
Wall Thick. (inch) |
Temperature (oF) | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 | 750 | ||||
Allowable Stress (psi) | ||||||||||||
16700 | 16700 | 16700 | 15500 | 14400 | 13500 | 13200 | 12900 | 12600 | ||||
1" | 40 | 1.315 | 0.133 | 2205 | 2205 | 2205 | 2047 | 1902 | 1783 | 1743 | 1703 | 1664 |
80 | 1.315 | 0.179 | 3061 | 3061 | 3061 | 2841 | 2640 | 2475 | 2420 | 2365 | 2310 | |
160 | 1.315 | 0.250 | 4493 | 4493 | 4493 | 4170 | 3874 | 3632 | 3552 | 3471 | 3390 | |
1 1/2" | 40 | 1.900 | 0.145 | 1629 | 1629 | 1629 | 1512 | 1404 | 1317 | 1287 | 1258 | 1229 |
80 | 1.900 | 0.200 | 2303 | 2303 | 2303 | 2138 | 1986 | 1862 | 1821 | 1779 | 1738 | |
160 | 1.900 | 0.281 | 3362 | 3362 | 3362 | 3120 | 2899 | 2717 | 2657 | 2597 | 2536 | |
2" | 40 | 2.375 | 0.154 | 1371 | 1371 | 1371 | 1272 | 1182 | 1108 | 1083 | 1059 | 1034 |
80 | 2.375 | 0.218 | 1985 | 1985 | 1985 | 1843 | 1712 | 1605 | 1569 | 1534 | 1498 | |
160 | 2.375 | 0.344 | 3283 | 3283 | 3283 | 3047 | 2831 | 2654 | 2595 | 2536 | 2477 | |
3" | 40 | 3.500 | 0.216 | 1301 | 1301 | 1301 | 1208 | 1122 | 1052 | 1028 | 1005 | 982 |
80 | 3.500 | 0.300 | 1844 | 1844 | 1844 | 1712 | 1590 | 1491 | 1458 | 1425 | 1391 | |
160 | 3.500 | 0.438 | 2787 | 2787 | 2787 | 2587 | 2403 | 2253 | 2203 | 2153 | 2103 | |
4" | 40 | 4.500 | 0.237 | 1102 | 1102 | 1102 | 1023 | 950 | 891 | 871 | 851 | 831 |
80 | 4.500 | 0.337 | 1596 | 1596 | 1596 | 1482 | 1377 | 1291 | 1262 | 1233 | 1204 | |
160 | 4.500 | 0.531 | 2611 | 2611 | 2611 | 2424 | 2552 | 2111 | 2064 | 2017 | 1970 | |
5" | 40 | 5.563 | 0.258 | 965 | 965 | 965 | 896 | 832 | 780 | 763 | 746 | 728 |
80 | 5.563 | 0.375 | 1428 | 1428 | 1428 | 1325 | 1231 | 1154 | 1129 | 1103 | 1077 | |
160 | 5.563 | 0.625 | 2474 | 2474 | 2474 | 2296 | 2133 | 2000 | 1955 | 1911 | 1866 | |
6" | 40 | 6.625 | 0.280 | 877 | 877 | 877 | 814 | 756 | 709 | 693 | 677 | 661 |
80 | 6.625 | 0.432 | 1379 | 1379 | 1379 | 1280 | 1189 | 1115 | 1090 | 1065 | 1040 | |
160 | 6.625 | 0.719 | 2382 | 2382 | 2382 | 2211 | 2054 | 1925 | 1883 | 1840 | 1797 | |
8" | 40 | 8.625 | 0.322 | 771 | 771 | 771 | 716 | 665 | 623 | 610 | 596 | 582 |
80 | 8.625 | 0.500 | 1218 | 1218 | 1218 | 1131 | 1050 | 985 | 963 | 941 | 919 | |
160 | 8.625 | 0.906 | 2298 | 2298 | 2298 | 2133 | 1982 | 1858 | 1817 | 1775 | 1734 | |
10" | 40 | 10.750 | 0.365 | 699 | 699 | 699 | 649 | 603 | 565 | 553 | 540 | 528 |
80 | 10.750 | 0.594 | 1159 | 1159 | 1159 | 1075 | 999 | 937 | 916 | 895 | 874 | |
160 | 10.750 | 1.125 | 2289 | 2289 | 2289 | 2124 | 1974 | 1850 | 1809 | 1768 | 1727 |
GRADE | SCHEDULE | NOM. PIPE SIZE |
---|---|---|
WP-S | SCH 10S | 1/2″ - 12″ |
SCH 40S | 1/2″ - 12″ | |
SCH 80S | 1/2″ - 12″ |
ASTM A234 WP11 Fittings Price Per Piece in India | Price Applicable for jan 2022 to june 2022 | Price Applicable for July 2022 to December 2022 |

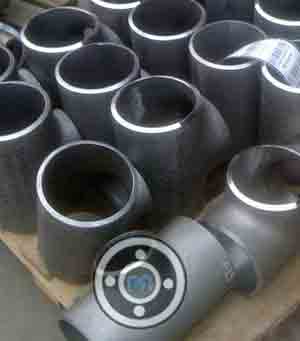

ASTM A234 GR WP11 90 DEG LR ELBOW 18 SCH 100 BEVELLED END ASME B16.9 SEAMLESS Per Kg | US $6.36 | US $8.36 |
Wp11 Sch100 Seamless Butt-Weld Pipe Fittings Per Kg | US $2.5 | US $4.5 |
A234-Wp11 48" Sch160 Butt Weld Tee Per Kg | US $12 | US $14 |
ASTM A234 GR WP11 ECCENTRIC REDUCER 32 24 THK 27.75MM X SCH 60 BEVELLED END ASME B16.9 Per Kg | US $5.76 | US $7.76 |
Get at discount of SA234 Gr WP11 Fittings, Are you looking for ASTM A234 WP11 Fittings Manufacturer In India. Lowest Price Of Bulk ASME B16.9 ASTM A234 Chrome Moly WP11 Buttweld Fittings for Piping Connection.

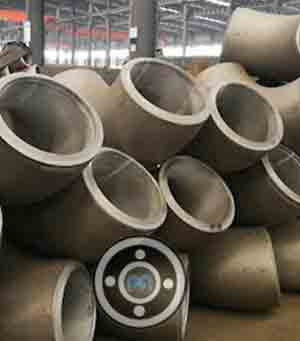

ASME SA234 Gr WP11 Short Radius Elbow
Alloy steel Gr WP11 Elbow 90deg. LR

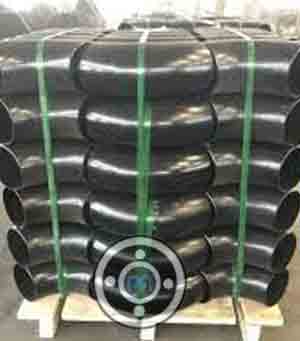

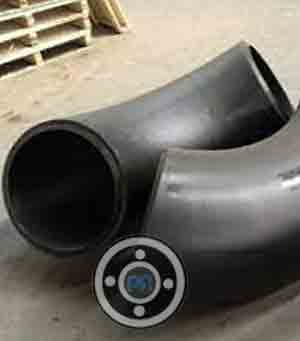

ASTM A234 Alloy Steel WP11 45 Degree welded Elbow

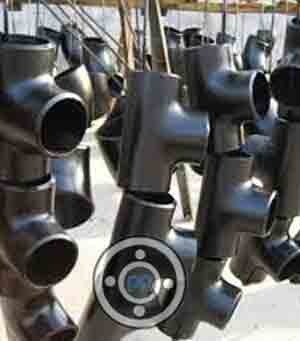

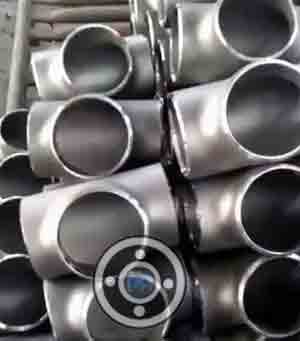

A234 Grade WP11 Equal Tee, 12In, SCH40, BW

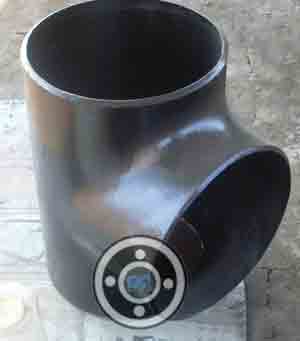

ASME SA234 WP11 Reducing Tee, ASME B16.9, SCH XXS

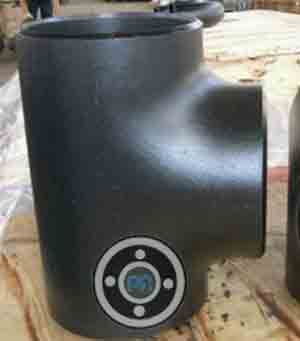

ASTM A234 WP11 Butt welding Tee

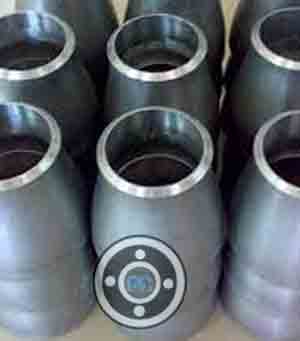

Alloy Steel WP11 Concentric Reducer, SCH 80

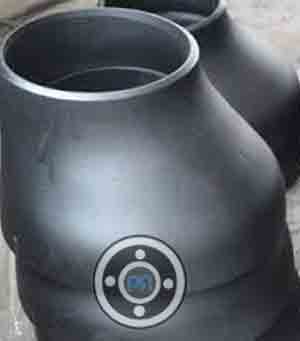

A234 WP11 Eccentric Reducer 16inch sch80 BW

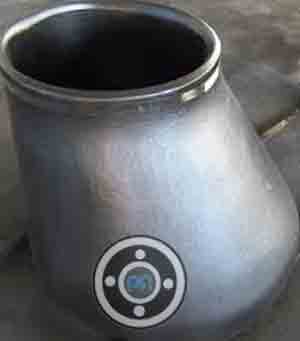

ASME SA234 Gr WP11 Cl2 Concentric Reducer
Tolerance | 90 Deg And 45 Deg Elbows And Pipe Tee |
Reducer (Concentric/ Eccentric) & Lap Joint Stub End (Long / Short) |
Pipe End Caps | |||
Nominal Pipe Sizes (NPS) Of ASME B16.9 | O. (Outside) D. (Daimeter) at Bevel |
I. (Inside) D.(Daimeter) at End |
Wall Thickness Of T | Center-to-End Dimension A ,C ,B |
Over-all Length Of H |
Over-all Length Of F |
1/2 to 2-1/2 | +0.06 | Not less than 87.5% of nominal thickness |
+/- 0.06 | +/- 0.06 | +/- 0.12 | |
-0.03 | ||||||
3 to 3-1/2 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
4 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
5 to 8 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.25 | |
10 to 18 | +0.16 | +/- 0.12 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
-0.12 | ||||||
20 to 24 | +0.25 | +/- 0.19 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
-0.19 | ||||||
26 to 30 | +0.25 | +/- 0.19 | +/- 0.12 | +/- 0.19 | +/- 0.38 | |
-0.19 | ||||||
32 to 48 | +0.25 | +/- 0.19 | +/- 0.19 | +/- 0.19 | +/- 0.38 | |
-0.19 |
O.D. or I.D. Diameter | Equivalent Decimal | Nominal Diameter | Typical Threads In Inch |
5/16 | 0.313 | 1/16 | 27 |
13/32 | 0.405 | 1/8 | 27 |
35/64 |
0.540 |
1/4 | 18 |
43/64 | 0.675 | 3/8 | 18 |
27/32 | 0.840 | 1/2 | 14 |
1-3/64 | 1.050 | 3/4 | 14 |
1-5/16 | 1.315 | 1 | 11-1/2 |
1-21/32 |
1.660 | 1-1/4 | 11-1/2 |
1-29/32 | 1.900 | 1-1/2 | 11-1/2 |
2-3/8 | 2.375 | 2 | 11-1/2 |
2-7/8 | 2.875 | 2-1/2 | 8 |
3-1/2 | 3.500 | 3 | 8 |
4 | 4.000 | 3-1/2 | 8 |
4-1/2 | 4.500 | 4 | 8 |
NOMINAL PIPE SIZE | END TO END | OUTSIDE DIAMETER | |
---|---|---|---|
Inch | H | D | P |
3/4 x 1/2 | 38 | 26.7 | 21.3 |
3/4 x 3/8 | 38 | 26.7 | 17.1 |
1 x 3/4 | 51 | 33.4 | 26.7 |
1 x 1/2 | 51 | 33.4 | 21.3 |
1 1/4 x 1 | 51 | 42.2 | 33.4 |
1 1/4 x 3/4 | 51 | 42.2 | 26.7 |
1 1/4 x 1/2 | 51 | 42.2 | 21.3 |
1 1/2 x 1 1/2 | 64 | 48.3 | 42.2 |
1 1/2 x 1 | 64 | 48.3 | 33.4 |
1 1/2 x 3/4 | 64 | 48.3 | 26.7 |
1 1/2 x 1/2 | 64 | 48.3 | 21.3 |
2 x 1 1/2 | 76 | 60.3 | 48.2 |
2 x 1 1/4 | 76 | 60.3 | 42.2 |
2 x 1 | 76 | 60.3 | 33.4 |
2 x 3/4 | 76 | 60.3 | 26.7 |
2 1/2 x 2 | 89 | 73 | 60.3 |
2 1/2 x 1 1/2 | 89 | 73 | 48.3 |
2 1/2 x 1 1/4 | 89 | 73 | 42.2 |
2 1/2 x 1 | 89 | 73 | 33.4 |
3 x 2 1/2 | 89 | 88.9 | 73 |
3 x 2 | 89 | 88.9 | 60.3 |
3 x 1 1/2 | 89 | 88.9 | 48.3 |
3 x 1 1/4 | 89 | 88.9 | 42.2 |
3 1/2 x 3 | 102 | 101.6 | 88.9 |
3 1/2 x 21/2 | 102 | 101.6 | 73 |
3 1/2 x 2 | 102 | 101.6 | 60.3 |
3 1/2 x 1 1/2 | 102 | 101.6 | 48.3 |
3 1/2 x 1 1/4 | 102 | 101.6 | 42.2 |
4 x 3 1/2 | 102 | 114.3 | 101.6 |
4 x 3 | 102 | 114.3 | 88.9 |
4 x 2 1/2 | 102 | 114.3 | 73 |
4 x 2 | 102 | 114.3 | 60.3 |
4 x 1 1/2 | 102 | 114.3 | 48.3 |
5 x 4 | 127 | 141.3 | 114.3 |
5 x 3 1/2 | 127 | 141.3 | 101.6 |
5 x 3 | 127 | 141.3 | 88.9 |
5 x 2 1/2 | 127 | 141.3 | 73 |
5 x 2 | 127 | 141.3 | 60.3 |
6 x 5 | 140 | 168.3 | 141.3 |
6 x 4 | 140 | 168.3 | 114.3 |
6 x 3 1/2 | 140 | 168.3 | 101.6 |
6 x 3 | 140 | 168.3 | 88.9 |
6 x 2 1/2 | 140 | 168.3 | 73 |
8 x 6 | 152 | 219.1 | 168.3 |
8 x 5 | 152 | 219.1 | 141.3 |
8 x 4 | 152 | 219.1 | 114.3 |
8 x 3 1/2 | 152 | 219.1 | 101.6 |
10 x 8 | 178 | 273.1 | 219.1 |
10 x 6 | 178 | 273.1 | 168.1 |
10 x 5 | 178 | 273.1 | 141.3 |
10 x 4 | 178 | 273.1 | 114.3 |
12 x 10 | 203 | 323.9 | 273.1 |
12 x 8 | 203 | 323.9 | 219.1 |
12 x 6 | 203 | 323.9 | 168.3 |
12 x 5 | 203 | 323.9 | 141.3 |
14 x 12 | 330 | 355.6 | 323.9 |
14 x 10 | 330 | 355.6 | 273.1 |
14 x 8 | 330 | 355.6 | 219.1 |
14 x 6 | 330 | 355.6 | 168.3 |
16 x 14 | 356 | 406.4 | 355.6 |
16 x 12 | 356 | 406.4 | 323.9 |
16 x 10 | 356 | 406.4 | 273.1 |
16 x 8 | 356 | 406.4 | 219.1 |
16 x 6 | 356 | 406.4 | 168.3 |
18 x 16 | 381 | 457 | 406.4 |
18 x 14 | 381 | 457 | 355.6 |
18 x 12 | 381 | 457 | 323.9 |
18 x 10 | 381 | 457 | 273.1 |
18 x 8 | 381 | 457 | 219.1 |
20 x 18 | 508 | 508 | 457 |
20 x 16 | 508 | 508 | 406.4 |
20 x 14 | 508 | 508 | 355.6 |
20 x 12 | 508 | 508 | 323.9 |
20 x 10 | 508 | 508 | 273.1 |
20 x 8 | 508 | 508 | 219.1 |
22 x 20 | 508 | 559 | 508 |
22 x 18 | 508 | 559 | 457 |
22 x 16 | 508 | 559 | 406.4 |
22 x 14 | 508 | 559 | 355.6 |
22 x 12 | 508 | 559 | 323.9 |
24 x 10 | 508 | 559 | 273.1 |
24 x 22 | 508 | 610 | 559 |
24 x 20 | 508 | 610 | 508 |
24 x 18 | 508 | 610 | 457 |
24 x 16 | 508 | 610 | 406.4 |
24 x 14 | 508 | 610 | 355.6 |
24 x 12 | 508 | 610 | 323.9 |
24 x 10 | 508 | 610 | 273.1 |
NOMINAL PIPE SIZE | LENGTH | CENTER TO END | OUTSIDE DIAMETER |
---|---|---|---|
Inch. | M | C | OD |
1/2 | 25 | 25 | 21.3 |
3/4 | 29 | 29 | 26.7 |
1 | 38 | 38 | 33.4 |
1 1/4 | 48 | 48 | 42.2 |
1 1/2 | 57 | 57 | 48.3 |
2 | 64 | 64 | 60.3 |
2 1/2 | 76 | 76 | 73 |
3 | 86 | 86 | 88.9 |
3 1/2 | 95 | 95 | 101.6 |
4 | 105 | 105 | 114.3 |
5 | 124 | 124 | 141.3 |
6 | 143 | 143 | 168.3 |
8 | 178 | 178 | 219.1 |
10 | 216 | 216 | 273.1 |
12 | 254 | 254 | 323.9 |
14 | 279 | 279 | 355.6 |
16 | 305 | 305 | 406.4 |
18 | 343 | 343 | 457.2 |
20 | 381 | 381 | 508 |
22 | 419 | 419 | 559 |
24 | 432 | 432 | 610 |
26 | 495 | 495 | 660 |
28 | 521 | 521 | 711 |
30 | 559 | 559 | 762 |
32 | 597 | 597 | 813 |
34 | 635 | 635 | 864 |
36 | 673 | 673 | 914 |
38 | 711 | 711 | 965 |
40 | 749 | 749 | 1016 |
42 | 711 | 762 | 1067 |
44 | 762 | 813 | 1118 |
46 | 800 | 851 | 1168 |
48 | 838 | 889 | 1219 |
NPS | KG | LBS |
1/2 | 0.16 | 0.35 |
3/4 | 0.2 | 0.45 |
1 | 0.34 | 0.75 |
1¼ | 0.59 | 1.3 |
1½ | 0.91 | 2 |
2 | 1.59 | 3.5 |
2½ | 2.72 | 6 |
3 | 3.18 | 7 |
3½ | 4.08 | 9 |
4 | 5.44 | 12 |
5 | 9.53 | 21 |
6 | 15.42 | 34 |
8 | 24.95 | 55 |
10 | 38.56 | 85 |
12 | 54.43 | 120 |
14 | 74.84 | 165 |
16 | 88.45 | 195 |
18 | 112.94 | 249 |
20 | 155.13 | 342 |
22 | 187.79 | 414 |
24 | 239.5 | 528 |
26 | 349.27 | 770 |
30 | 480.81 | 1060 |
36 | 675.85 | 1490 |
Nominal Pipe Size |
Outside Diameter |
Reducers | ||
---|---|---|---|---|
Reduced from (inches) |
(inches) | (mm) | Concentric & Eccentric Length (inches) |
Reduced to (inches) |
1/2 | 0.840 | 21.3 | 1 1/2 | 1/4 |
1 1/2 | 3/8 | |||
3/4 | 1.050 | 26.7 | 2 | 3/8 |
2 | 1/2 | |||
1 | 1.315 | 33.4 | 2 | 3/8 |
2 | 1/2 | |||
2 | 3/4 | |||
1 1/4 | 1.660 | 42.2 | 2 | 1/2 |
2 | 3/4 | |||
2 | 1 | |||
1 1/2 | 1.900 | 48.3 | 2 1/2 | 1/2 |
2 1/2 | 3/4 | |||
2 1/2 | 1 | |||
2 1/2 | 1 1/4 | |||
2 | 2.375 | 60.3 | 3 | 3/4 |
3 | 1 | |||
3 | 1 1/4 | |||
3 | 1 1/2 | |||
2 1/2 | 2.875 | 73.0 | 3 1/2 | 1 |
3 1/2 | 1 1/4 | |||
3 1/2 | 1 1/2 | |||
3 1/2 | 2 | |||
3 | 3.500 | 88.9 | 3 1/2 | 1 |
3 1/2 | 1 1/2 | |||
3 1/2 | 2 | |||
3 1/2 | 2 1/2 | |||
3 1/2 | 4.000 | 101.6 | 4 | 1 1/4 |
4 | 1 1/2 | |||
4 | 2 | |||
4 | 2 1/2 | |||
4 | 3 | |||
4 | 4.500 | 114.3 | 4 | 1 1/2 |
4 | 2 | |||
4 | 2 1/2 | |||
4 | 3 | |||
4 | 3 1/2 | |||
5 | 5.563 | 141.3 | 5 | 2 |
5 | 2 1/2 | |||
5 | 3 | |||
5 | 3 1/2 | |||
5 | 4 | |||
6 | 6.625 | 168.3 | 5 1/2 | 2 1/2 |
5 1/2 | 3 | |||
5 1/2 | 3 1/2 | |||
5 1/2 | 4 | |||
5 1/2 | 5 | |||
8 | 8.625 | 219.1 | 6 | 3 |
6 | 3 1/2 | |||
6 | 4 | |||
6 | 5 | |||
6 | 6 | |||
10 | 10.750 | 273.1 | 7 | 4 |
7 | 5 | |||
7 | 6 | |||
7 | 8 | |||
12 | 12.750 | 323.9 | 8 | 5 |
8 | 6 | |||
8 | 8 | |||
8 | 10 |

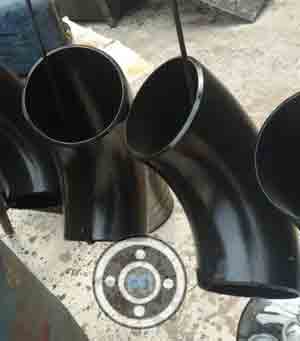

8” - Sch.100, ELBOW 90°, LONG RADIUS, ASTM A234 Gr.WP11, ASME B16.9, beveled end as ANSI B16.25
8”x6” Sch.100 x 80 REDUCING TEE 90°, ASTM A234 Gr.WP11 ASME B16.9, beveled end as ANSI B16.25
6” - Sch.80, CAP, ASTM A234 Gr.WP11 sizes ASME B16.9, beveled end as ANSI B16.25

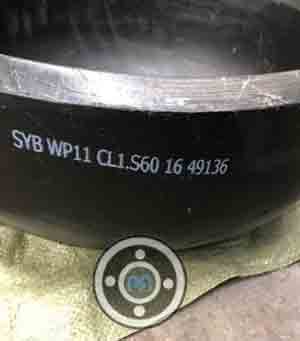

A234 WP11 End Cap

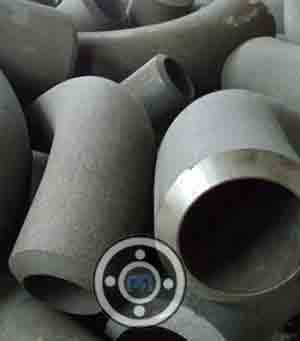

SCH 160 Chrome Moly A234-WP11 3D Elbow

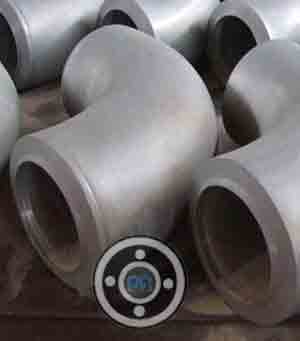

AS A234 WP11 180° Long Radius Elbow

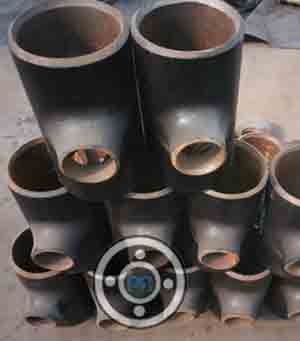

ASTM A234 Wp11 Class 2 Reducing Tee

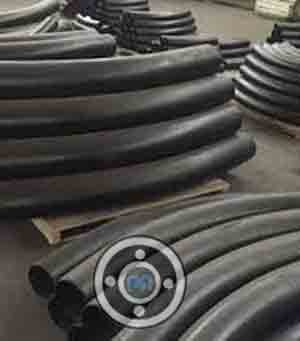

ASTM A234 Wp11 Cl2 Long Radius Bend

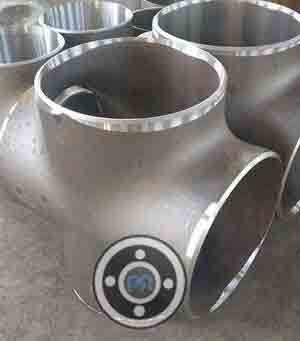

ASTM A234 WP11 Gr Cl1 Reducing Cross

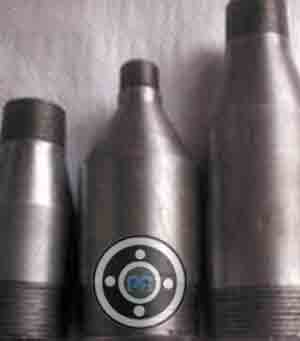

Chromium A234 Grade WP11 Swage Nipple

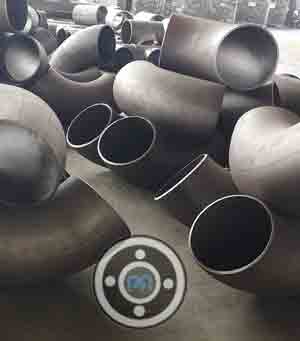

DIN 1.7338 90° Long Radius Elbow

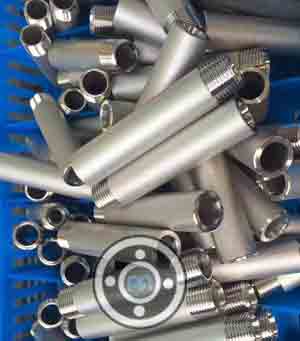

SCH XS ASTM A234 WP11 Gr Cl1 Pipe Nipples

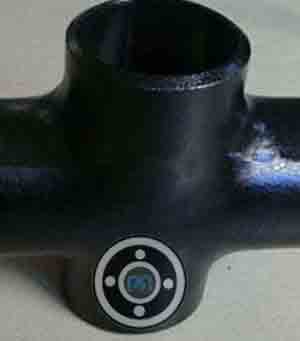

450 NB SCH 40 ASME SA 234 WP11 Straight Tees and Crosses

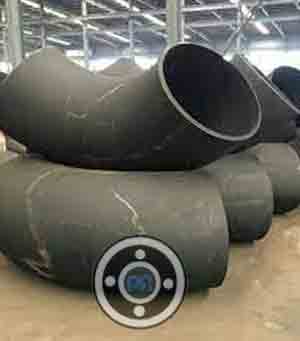

SCH 80 UNS K11597 45° Short Radius Elbow

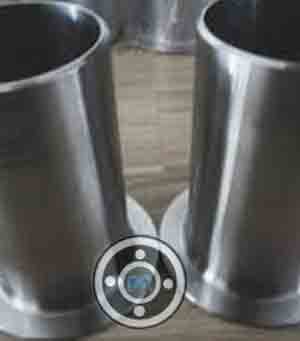

A234 Wp11 Cl2 Long Stubend
SCH 30 ASTM A234 Gr Wp11 Lap Joint Stub Ends

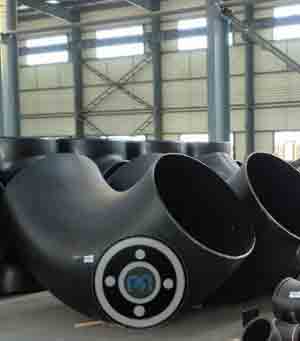

SA234 WP11 5D Elbow

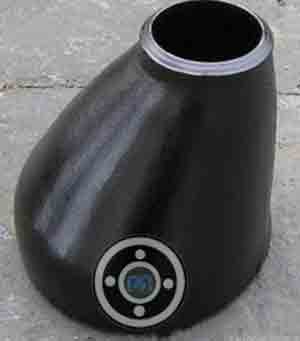

Chrome Moly A234-WP11 Concentric Reducer

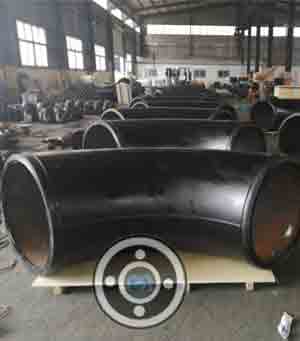

ASTM A234 Wp11 Class 2 45° Long Radius Elbow

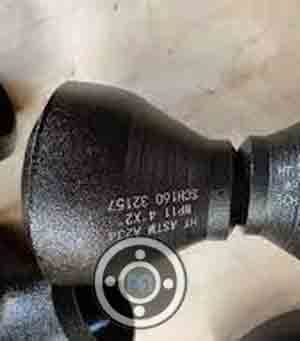

AS Grade WP11 Eccentric Reducer
ASTM A234 Gr Wp11 Cl2 Equal Tee

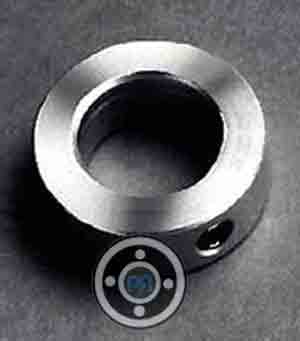

SCH XXS A234 grade WP11 crmo Collar

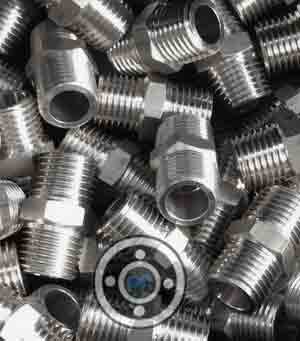

Alloy Steel WP11 Reducing Nipple

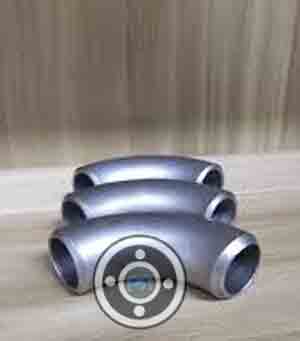

15 NB SCH 100 ASME SA 234 Grade WP11 1D Elbow
ASTM A234 WP11 Welded Elbows
ASTM A234 Gr WP11 1.5D Elbow
SCH 20 Werkstoff 1.7338 90° Short Radius Elbow

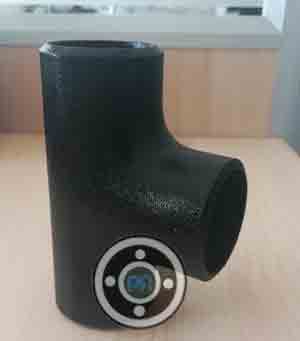

UNS K11597 Reducing Outlet Tees and Reducing Outlet Crosses

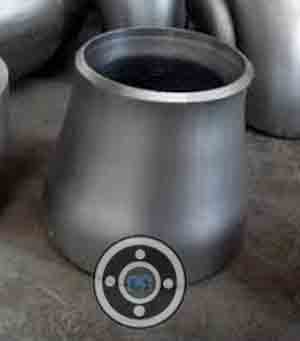

SCH 120 ASME SA234 WP11 Reducers

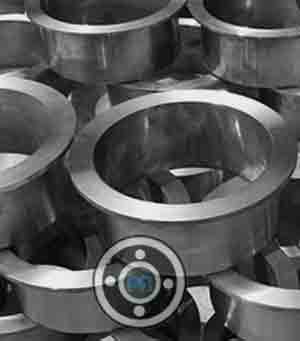

SCH 10 Alloy Steel cl1 WP11 Short Stubend

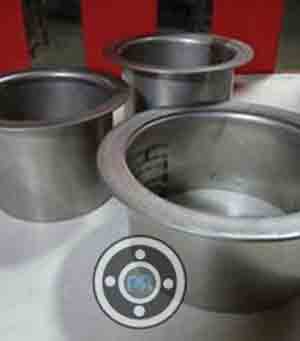

WNR 1.7338 Stub End
SCH 60 ASTM A234 Gr.wp11 Cl.1 10D ELBOW

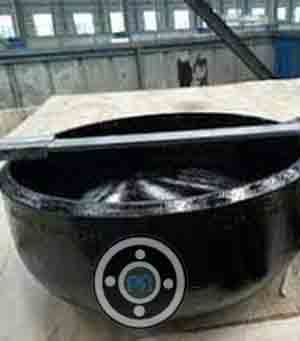

Werkstoff 1.7338 Pipe Cap

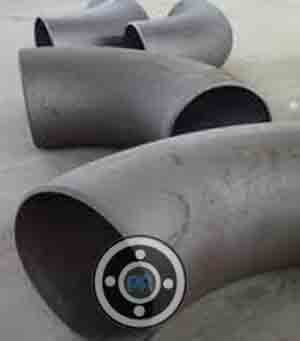

SA234 Gr WP11 Seamless Buttwelding 45° and 90° Elbows

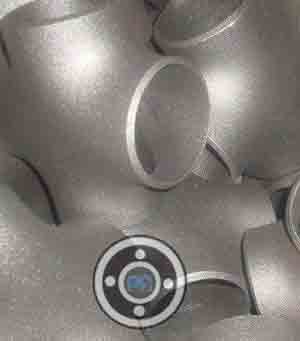

Alloy steel Gr WP11 Equal Cross

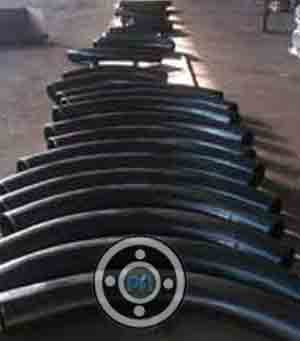

SCH 140 WNR 1.7338 Bend

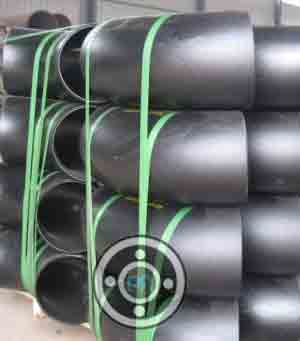

A234 WP11 Cl1 Seamless Buttwelding 180° Returns

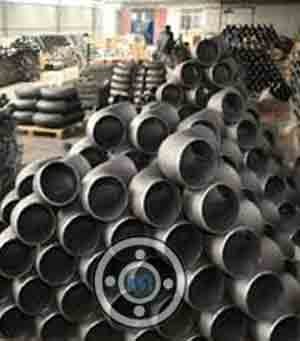

SCH STD Alloy Steel Grade WP11 180° Short Radius Elbow

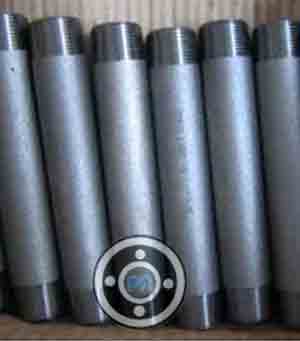

ASTM A234 Chrome Moly WP11 Barrel Nipple
Carbon | Manganese | Silicon | Sulfur | Phosphorus | Chromium | Molybdenum |
0.08-0.12 | 0.3-0.6 | 0.2-0.5 | ≤0.02 | ≤0.015 | 8-9.5 | 0.85-1.05 |
Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
≥590 | ≥415 | ≥20 |
Property | Value |
Elastic modulus | 200 - 215 GPa |
Elongation A50 | 14 - 22 % |
Poisson's ratio | 0.29 [-] |
Tensile strength | 485 MPa |
Yield strength Rp0.2 | 275 MPa |
Property | Value |
Coefficient of thermal expansion | 1.1E-5 - 1.4E-5 1/K |
Melting point | 1382 - 1529 °C |
Specific heat capacity | 448 - 502 J/(kg·K) |
Thermal conductivity | 36 - 43 W/(m·K) |
WNR 1.7338 Lateral Tee | ASTM A234 Weldable Pressure 11 45 Deg Long Radius Elbow |
ASTM A234 Wp11 Class 2 BW Tee Fittings | Werkstoff 1.7338 Elbow Fittings |
Alloy Steel Grade WP11 Equal Cross | Alloy Steel cl1 Weldable Pressure 11 Seamless Butt Weld Fittings |
DIN 1.7338 Eccentric Reducer | Alloy steel Gr Weldable Pressure 11 Straight Cross |
Werkstoff 1.7338 5D Bend | Alloy Steel cl1 WP11 Reducing Tee Fittings |
ASTM A234 Gr Weldable Pressure 11 90 Deg Short Radius Elbow | DIN 1.7338 Tees |
ASTM A234 Chrome Moly WP11 Pipe Cap | UNS K11597 Buttweld Elbow |
ASTM A234 Chrome Moly WP11 Seamless Bend Pipe | A234 Weldable Pressure 11 Cl1 90 Deg Long Radius Elbow |
ASME SA 234 Grade WP11 Equal Tee Fittings | UNS K11597 180 Deg Short Radius Elbow |
WNR 1.7338 Reducer | AS A234 Weldable Pressure 11 Pipe Bends |
WNR 1.7338 Pipe Reducer | ASTM A234 WP11 Gr Cl1 Cross |
Chrome Moly A234-WP11 Pipe Tee Fittings | ASTM A234 Gr Weldable Pressure 11 Cl2 Seamless Pipe Fitting |
A234 Wp11 Cl2 180 Deg Long Radius Elbow | SA234 Weldable Pressure 11 Stub End |
Alloy Steel Grade WP11 Buttweld Fittings | UNS K11597 Welded Pipe Fittings |
ASTM A234 Gr Weldable Pressure 11 Seamless Tee Fittings | ASTM A234 Gr.wp11 Cl.1 Pipe Cross |
A234 WP11 Elbow Pipe Fittings | Werkstoff 1.7338 Reducing Cross |
Alloy Steel WP11 Pipe End Cap | ASTM A234 Weldable Pressure 11 Cl2 End Pipe Cap |
ASME SA234 Weldable Pressure 11 U Bend | ASME SA 234 WP11 End Cap |
AS Grade WP11 Long Radius Bend | SA234 Gr Weldable Pressure 11 45 Deg Short Radius Elbow |
A234 grade WP11 crmo Concentric Reducer Fittings | A234 grade WP11 crmo Eccentric Reducer |
ASTM A234 Weldable Pressure 11 Class 2 Pipe Nipple | Chromium A234 Grade WP11 Stubends Fittings |
Pipe Fittings Material
Flanges Material
Other Products
