ASTM A234 WP22 Fittings
- Home /
- ASTM A234 WP22 Fittings
Alloy Steel WP22 Tee & SA 234 Gr WP22 Elbow Fittings manufacturer in India
What is astm a234 grade wp22?
The astm a234 grade wp22 offers good resistance to corrosion in environments that are mildly corrosive. They offer a good level of resistance to oxidation, even at elevated temperatures. The astm a234 grade wp22 products are also known for their high durability, rust proof and stain proof nature. They are available in different shapes, and sizes, and can be customized according to requirements. The astm a234 grade wp22 material has gained these properties due to its chemical composition, which includes chromium, and molybdenum.
What is astm a234 gr wp22 Elbow?
The a234 gr wp22 Elbow is basically fixed between the two lengths of the pipes or tubing. They primarily help to change the direction of flow in the pipe run. The elbows are available at an angle of 45 degrees and 90 degrees, which changes the flow angle accordingly.
What is astm a234 gr wp22 Tee?
The astm a234 gr wp22 tee is a T-shaped pipe fitting which comes with an inlet and two outlets. They are located at a 90 degree connection to the main line. It is used for various purposes, like it helps in combining or dividing the flow and changing the direction of the pipe run. It can also help to connect two pipes with different diameters. Tees also help in transporting two-fluid mixtures.
A234 Gr WP22 Concentric Reducer vs SA 234 wp22 Eccentric Reducer
The difference between the A234 Gr WP22 Concentric Reducer and the SA 234 wp22 Eccentric Reducer is that, the former reduces the pipe in the center, whereas the latter is used for maintaining the same top or bottom level. The SA 234 wp22 Eccentric Reducer is primarily used when both the air and liquids flow together.
The A234 Gr WP22 Concentric Reducer is cone-shaped whereas the SA 234 wp22 Eccentric Reducer comes with a straight side. They are more commonly used while transporting liquids.
ASTM A234 WP22 Fittings
ISO 9001:2015 certified ASTM A234 WP22 Fittings manufacturers in India offers large selection of A234 Gr WP22 Concentric / Eccentric Reducer and Alloy Steel WP22 Buttweld Cap in Mumbai
Table of Content
- ASTM A234 WP22 Fittings Specification Table
- ASME SA 234 WP22 Fittings Dimension
- Price List of ASTM A234 WP22 Fittings
- A234 WP22 Chemical Composition
- A234 Grade WP22 Buttweld Fittings Mechanical Properties
- Pressure Rating of Alloy Steel WP22 Fittings
- Various Types of ASME SA234 WP22 Fittings
- Size Range of ASTM A234 WP22 Fittings
ASTM A234 WP22 Fittings Specification Table
| ASTM A234 WP22 Fittings Specifications | ASTM A234 |
|---|---|
| Thickness | SCH30, SCH10, SCH 160, SCH20, SCH60, XS, STD SCH40, SCH 80, SCH 120, SCH 140, SCH 100, XXS available with NACE MR 01-75 |
| SA234 Gr WP22 Fittings Sizes | Seamless Fittings: 1/2" - 10"
Welded Fittings: 1/2" - 48" |
| ASTM A234 WP22 Fittings Type Manufacturer | DN15-DN1200 |
| Alloy Steel Grade Weldable Pressure 22 Fittings Connection | Welding |
| Manufacturing process | Push, Forge, Press, Cast, etc. |
| Specialized ASTM A234 WP22 Fittings Manufacturer of | Stub End, 90º Elbows, Tees, Pipe Cap, Crosses, 45º Elbows, Reducers, Pipe Bend |
| Bending Radius Provided By Manufacturer | R=1D, 3D, 2D, 5D, 8D, 6D, 10D or Custom ASTM A234 WP22 Fittings |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) A234 WP22 Cl1 Buttweld Fittings |
| Dimensions | ASME B16.28, ASME/ANSI B16.9, BS4504, MSS-SP-43, BS1560, BS4504, BS10 |
| Alloy steel Gr Weldable Pressure 22 Elbow Manufacturer | Angle : 22.5 deg, 45 deg, 30deg, 90 deg, 1.0D, 180 deg, 1.5D, 3D, 2.5D, 2.0D, 4D, 6D, 5D, 7D-40D .
Standard: ASME B16.28, GB, ASME B16.9, MSS SP-75 JISB2311 DIN2605 JISB2312 JISB2313, ASME B16.25, BS, ISO |
| ASME B16.9 SA234 Gr WP22 Fittings Test Certificates | EN 10204/3.1B
Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Thread Provided By Manufacturer | BSPT, NPT, BSPP |
| Alloy steel Gr WP22 Buttweld Fittings Origin & Mills | European, Japanese, USA, Korean, Ukraine, Indian, Russian |
| Application of Industrial Alloy Steel cl1 WP22 Fittings |
|
ASME SA 234 WP22 Fittings Dimension
| Nominal Pipe Size | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
|
(inches)
|
Long Radius
|
Short Radius
|
Long Radius
|
Long Radius
|
||||
|
(mm)
|
(inches)
|
Center to Face
(inches) |
Center to Face
(inches) |
Center to Face
(inches) |
Radius
(inches) |
Center to Center
(inches) |
Back to face
(inches) |
|
|
1/2
|
21.3
|
0.840
|
1 1/2
|
-
|
5/8
|
2
|
1 7/8
|
|
|
3/4
|
26.7
|
1.050
|
1 1/8
|
-
|
7/16
|
2 1/4
|
1 11/16
|
|
|
1
|
33.4
|
1.315
|
1 1/2
|
1
|
7/8
|
3
|
2 3/16
|
|
|
1 1/4
|
42.2
|
1.660
|
1 7/8
|
1 1/4
|
1
|
3 3/4
|
2 3/4
|
|
|
1 1/2
|
48.3
|
1.900
|
2 1/4
|
1 1/2
|
1 1/8
|
3
|
4 1/2
|
3 1/4
|
|
2
|
60.3
|
2.375
|
3
|
2
|
1 3/8
|
4
|
6
|
4 3/16
|
|
2 1/2
|
73.0
|
2.875
|
3 3/4
|
2 1/2
|
1 3/4
|
5
|
7 1/2
|
5 3/16
|
|
3
|
88.9
|
3.500
|
4 1/2
|
3
|
2
|
6
|
9
|
6 1/4
|
|
3 1/2
|
101.6
|
4.000
|
5 1/4
|
3 1/2
|
2 1/4
|
7
|
10 1/2
|
7 1/4
|
|
4
|
114.3
|
4.500
|
6
|
4
|
2 1/2
|
8
|
12
|
8 1/4
|
|
5
|
141.3
|
5.563
|
7 1/2
|
5
|
3 1/8
|
10
|
15
|
10 5/16
|
|
6
|
168.3
|
6.625
|
9
|
6
|
3 3/4
|
12
|
18
|
12 5/16
|
|
8
|
219.1
|
8.625
|
12
|
8
|
5
|
12
|
24
|
16 5/16
|
|
10
|
273.1
|
10.750
|
15
|
10
|
6 1/4
|
15
|
30
|
20 3/8
|
|
12
|
323.9
|
12.750
|
18
|
12
|
7 1/2
|
18
|
36
|
24 3/8
|
Price List of ASTM A234 WP22 Fittings
| ASTM A234 WP22 Fittings Price Per Piece in India | ASTM A234 Gr WP22 Fittings Price in INR | Alloy Steel WP22 Pipe Fittings Price in UAE Dirham | SA234 Gr WP22 Buttweld Fittings Price in USD |
| ASME B16.9, ASTM A234 WP22 Elbow, Sch 40 Per Kg | 283.16 | UAE Dirham 13.96 | $3.8 |
| 6 Inch Sch40 WP22 Alloy Steel 90 Degree Pipe Cap BEVELED ENDS, SCH-STD, ASME B16.9 Per Kg | 216.12 | UAE Dirham 10.65 | $2.9 |
| ASME B16.9 A234 WP22 Buttweld Reducing Tee Per Kg | 163.95 | UAE Dirham 8.08 | $2.2 |
| B16.9 ASTM A234 WP22 Alloy Steel Reducer SCH-STD, BEVELED ENDS, ASME B16.9 Per Kg | 260.83 | UAE Dirham 12.86 | $3.5 |
Schedules 10/40/ 80 in Seamless ASTM A234 Grade WP22 45/ 90/ 180 Degree Elbow, Split / Flanged Tee and Manufacturer of ASME SA 234 WP22 Alloy Steel Return Bends in India
A234 WP22 Chemical Composition
| C | Mn | Si | S | P | Cr | Mo |
| 0.05-0.15 | 0.3-0.5 | 0.5 | ≤0.04 | ≤0.04 | 2-2.5 | 0.87-1.13 |
A234 Grade WP22 Buttweld Fittings Mechanical Properties
| Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| 415 – 585 | ≥205 | ≥20 |
Pressure Rating of Alloy Steel WP22 Fittings
| Nominal Pipe Size | Wall Thickness* |
** Working Pressure– lbs per square inch at the
Fahrenheit Temperature Indicated |
|||
| -20 to 650 | 700 | 750 | *** 800 | ||
| 1/2 | 0.109 | 1695 | 1621 | 1463 | 1220 |
| 3/4 | 0.113 | 1455 | 1392 | 1256 | 1046 |
| 1 | 0.133 | 1575 | 1506 | 1359 | 1134 |
| 1 1/4 | 0.140 | 1065 | 1019 | 919 | 766 |
| 1 1/2 | 0.145 | 1005 | 960 | 867 | 723 |
| 2 | 0.154 | 900 | 861 | 777 | 648 |
| 2 1/2 | 0.203 | 1215 | 1162 | 1048 | 874 |
| 3 | 0.216 | 1095 | 1047 | 945 | 788 |
| 3 1/2 | 0.226 | 1020 | 975 | 880 | 734 |
| 4 | 0.237 | 975 | 932 | 841 | 702 |
| 5 | 0.258 | 885 | 846 | 764 | 637 |
| 6 | 0.280 | 840 | 803 | 725 | 604 |
| 8 | 0.322 | 765 | 731 | 660 | 550 |
| 10 | 0.365 | 720 | 688 | 621 | 518 |
| 12 | 0.375 | 630 | 602 | 543 | 453 |
| 14 | 0.375 | 570 | 545 | 492 | 410 |
| 16 | 0.375 | 495 | 473 | 427 | 356 |
| 18 | 0.375 | 450 | 430 | 388 | 354 |
| 20 | 0.375 | 405 | 387 | 349 | 291 |
| 24 | 0.375 | 330 | 315 | 284 | 237 |
| 30 | 0.375 | 265 | 254 | 229 | 190 |
| 36 | 0.375 | 220 | 198 | 178 | 148 |
| 42 | 0.375 | 189 | 181 | 163 | 136 |
| 48 | 0.375 | 165 | 158 | 143 | 118 |
Various Types of ASME SA234 WP22 Fittings

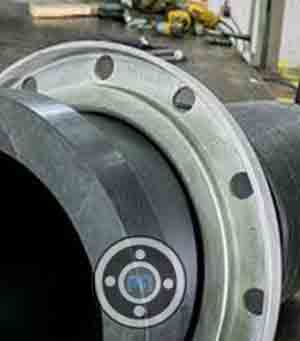

SA234 Gr WP22 Short Stubend

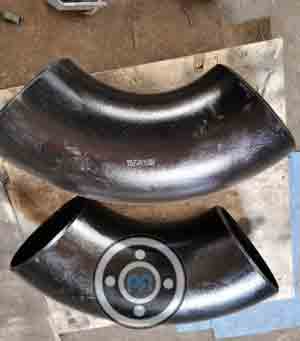

SCH 60 ASME SA 234 Grade WP22 90° Long Radius Elbow
ASME SA234 WP22 Reducing Outlet Tees and Reducing Outlet Crosses

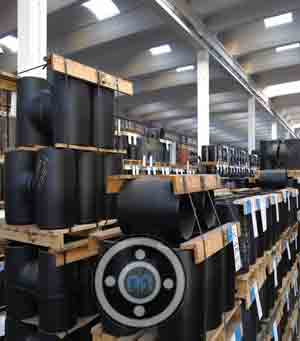

15 NB SCH 100 AS A234 WP22 Equal Tee

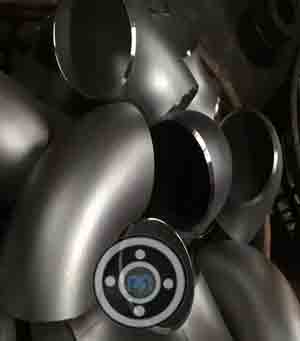

ASME SA 234 WP22 5D Elbow

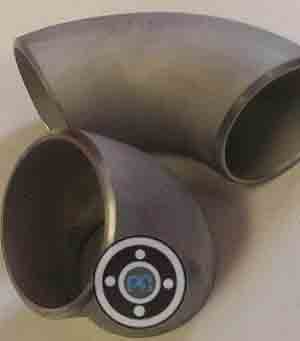

ASTM A234 WP22 Gr Cl1 45° Short Radius Elbow

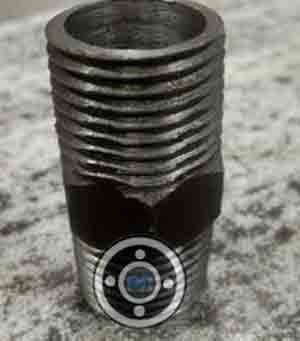

ASTM A234 Chrome Moly WP22 Reducing Nipple

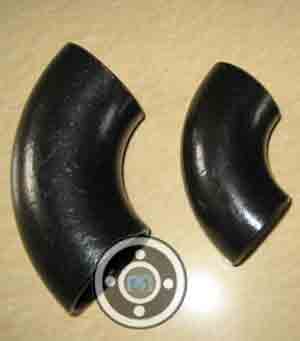

Chrome Moly A234-WP22 90° Short Radius Elbow

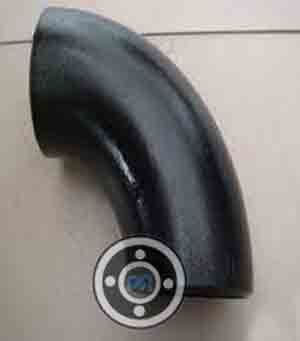

A234 WP22 Welded Elbows

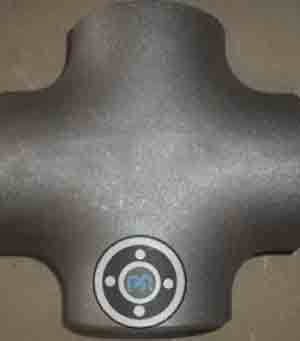

SCH XS SA234 WP22 Equal Cross

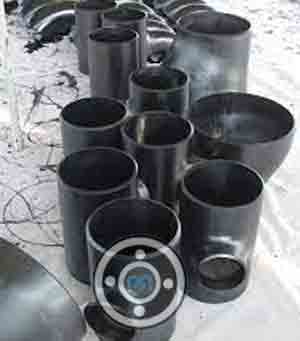

SCH STD ASME SA 234 Grade WP22 Straight Tees and Crosses

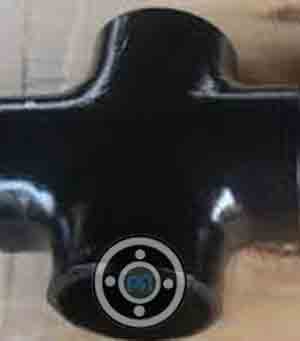

Alloy Steel Grade WP22 Reducing Cross

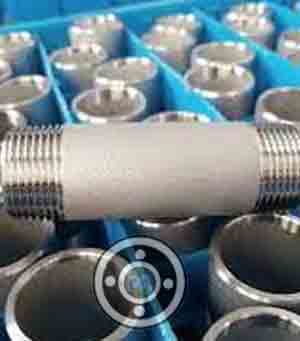

Alloy Steel Grade WP22 Barrel Nipple
Alloy Steel cl1 WP22 Lap Joint Stub Ends

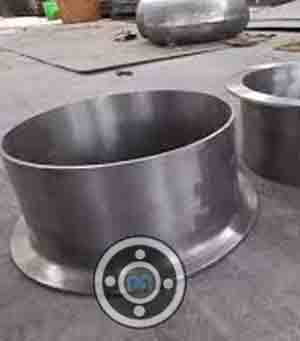

SCH 30 Alloy steel Gr WP22 Stub End

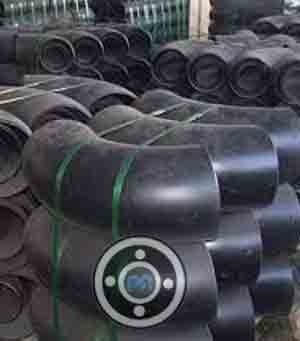

SCH 80 Alloy Steel WP22 180° Short Radius Elbow

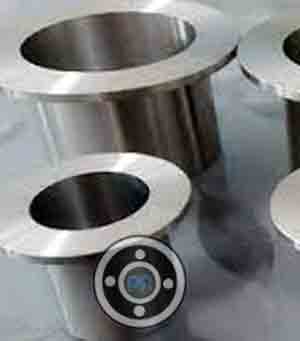

SCH 120 AS Grade WP22 Long Stubend

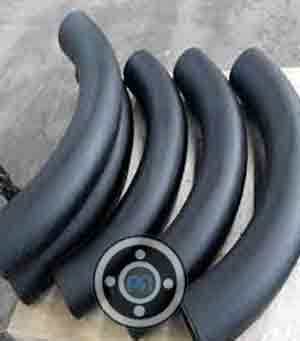

ASME SA 234 WP22 Long Radius Bend

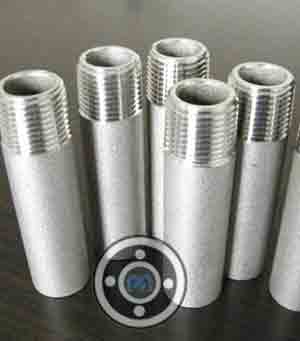

SCH 20 Alloy Steel cl1 WP22WP22 Pipe Nipples
ASTM A234 Chrome Moly WP22WP22 1D Elbow
A234 WP22WP22 Concentric Reducer

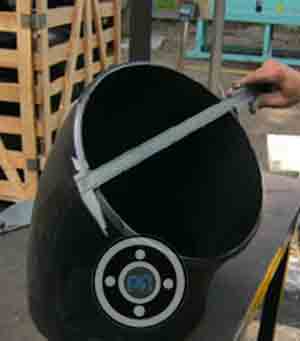

SCH XXS Chrome Moly A234-WP22WP22 45° Long Radius Elbow

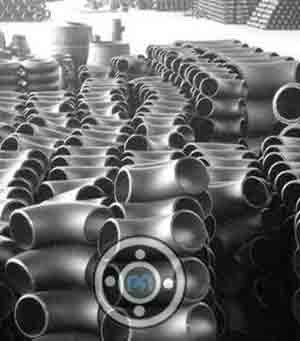

SCH 10 ASME SA234 WP22WP22 10D ELBOW
SCH 140 A234 grade WP22WP22 crmo Bend
SA234 Weldable Pressure 22 Seamless Buttwelding 180° Returns

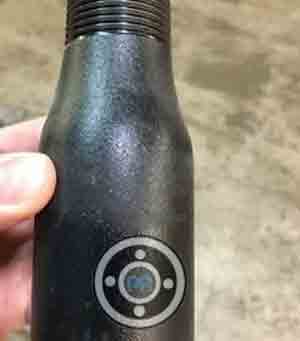

A234 WP22 Cl1 Swage Nipple
SA234 WP22 Eccentric Reducer

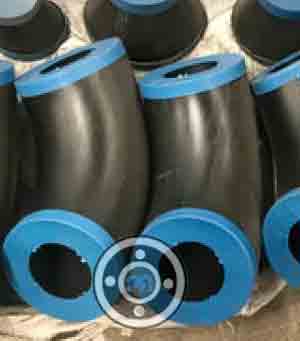

AS A234 WP22 1.5D Elbow

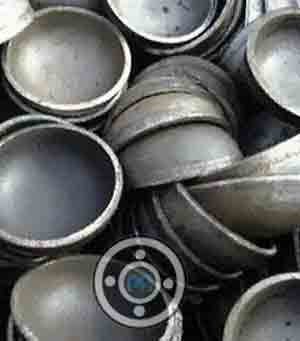

Alloy Steel WP22 Pipe Cap

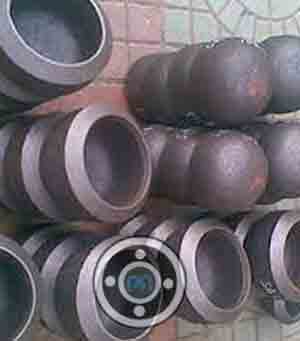

ASTM A234 WP22 End Cap

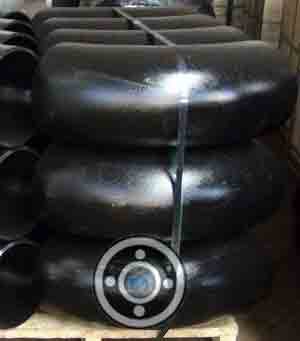

450 NB SCH 40 A234 WP22 Cl1 3D Elbow
SA234 Gr WP22 Seamless Buttwelding 45° and 90° Elbows

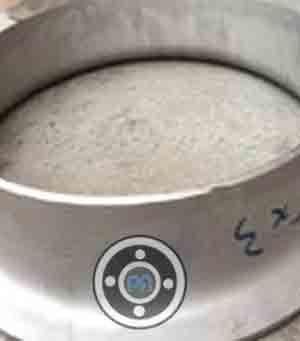

Chromium A234 Grade WP22 Collar

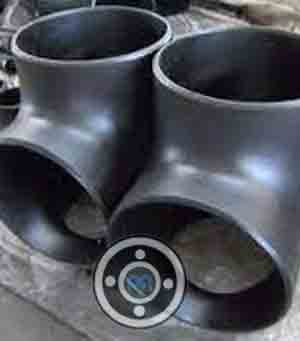

A234 grade WP22 crmo Reducing Tee
ASTM A234 Gr WP22 180° Long Radius Elbow

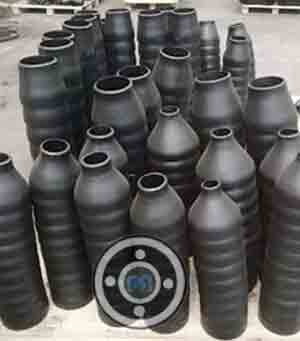

SCH 160 AS Grade WP22 Reducers
