Incoloy 825 Fittings

ASME B16.9 Alloy 825 Elbow & ASTM B366 UNS N08825 Tee manufacturer in India

What is Incoloy 825 Pipe Fittings?
The Incoloy 825 material can be defined as an alloy of nickel, chromium, and iron that consists of several other elements, such as copper, molybdenum, and titanium. The Incoloy 825 Pipe Fittings are known for possessing high corrosion resistance properties in both moderately oxidizing and reducing environments. The Incoloy 825 material is quite similar to that of Incoloy 800 material, but it possesses improved aqueous corrosion resisting properties. Due to the balanced content of all the elements present in the alloy, they also show good resistance to chloride related stress corrosion cracking, crevice corrosion, and of course general corrosion. Due to the presence of nickel, along with copper and molybdenum, they have this increased resistance to different types of corrosive environments, which is much stronger compared to stainless steel. Due to the presence of titanium, the Incoloy 825 Pipe Fittings also shows stability against intergranular corrosion. They are able to retain their properties at elevated temperatures.
The Incoloy 825 Pipe Fittings also shows good resistance to environments containing oxygen and chloride ions, like seawater. They are very ductile from the cryogenic to 538 degrees C. They are fabricable, readily formable, and possess good weldability, which means they can be welded using the standard techniques.

ASME SB366 Incoloy 825 Threaded Fittings Vs Nickel Alloy 825 Socket Weld Fittings

• The ASME SB366 Incoloy 825 Threaded Fittings are screwed to join with the pipe, whereas the Nickel Alloy 825 Socket Weld Fittings are fillet welded to join with the pipe.
• The threaded fittings are easy to install, and less time-consuming, whereas socket-welding takes some time and effort.
• Socket welding is stronger and hence can be used for critical applications, whereas threaded fittings are mostly used for non-critical applications. They are used in those cases, where welding is not possible and there is a space constraint.
• The ASME SB366 Incoloy 825 Threaded Fittings is more affordable compared to the Nickel Alloy 825 Socket Weld Fittings.

Alloy 825 Reducing Outlet Tees and Nickel 825 Reducing Outlet Crosses
The Alloy 825 Reducing Outlet Tees, like any other pipe tees, have a T-shape. It has a smaller branch port size than the run ports. The Nickel 825 Reducing Outlet Crosses are also known as unequal pipe cross, wherein the four branch ports are not located at the same distance from one another.
The tee is a three-legged tool, whereas the cross is a four-legged tool. Also, the tee is steadier than the cross.

ASTM B366 UNS N08800 Stub End and WNR 2.4858 Concentric Reducer
The ASTM B366 UNS N08800 Stub Ends can be described as buttweld fittings used with lap joint flanges to replace welded flanges. They are mainly used when a rotating back-up flange is required to give the necessary support.
The WNR 2.4858 Concentric Reducer basically joins the sections of pipes or tubes on the same axis. They are cone-shaped and primarily used for shifting diameters between the pipes. They are used when the pipes are vertically installed.

Incoloy 825 Fittings Welding Procedure
Incoloy 825 Fittings can be welded using standard procedures. However, a coordinating alloy filler material is required during the welding process. It is also important to marginally curve the weld dots. The surface that is to be welded should be perfect and free from any type of marking.

Incoloy 825 Fittings

ADNOC approved Incoloy 825 Fittings manufacturers in India offers widest range of Nickel Alloy 825 Buttweld, Threaded and Socket Weld Fittings in Mumbai

Table of Content

• Incoloy 825 Pipe Fittings Specification List
• Nickel Alloy 825 Threaded Tee Dimensions
• Dimension Table of UNS N08825 Reducer
• ASME SB366 825 Alloy Elbow Weight Chart
• Weight of WNR 2.4858 Tee
• Inconel 825 Forged Fittings
• Nickel Alloy 825 Threaded Fittings
• 825 Nickel Alloy Socket Weld Fittings
• Incoloy 825 Pipe Fittings Price List
• Alloy 825 Buttweld Fittings Dimensions
• Pressure Rating of ASME B16.9 Incoloy 825 Fittings

• Types of Incoloy 825 Pipe Fittings
• ASME B16.11 Incoloy 825 Socket Weld Fittings Dimensions
• Dimension Chart of Incoloy Alloy 825 Threaded Cap
• Incoloy 825 Buttweld Fittings Chemical Composition
• Alloy 825 Weld Fittings Mechanical Properties
• Incoloy 825 Fittings Equivalent
• Incoloy UNS N08825 Fittings Applications

Incoloy 825 Pipe Fittings Specification List

Incoloy 825 Pipe Fittings Specifications	ASTM B366
Incoloy Alloy 800 Fittings Thickness	SCH30, SCH10, SCH 160, SCH20, SCH60, XS, STD SCH40, SCH 80, SCH 120, SCH 140, SCH 100, XXS available with NACE MR 01-75
ASTM B366 UNS N08800 Pipe Fittings Sizes	Incoloy 800 Seamless Fittings: 1/2" - 10" ASME B16 9 Incoloy 800H Welded Fittings: 1/2" - 48"
Incoloy 825 Pipe Fittings Type Manufacturer	DN15-DN1200
WNR 1.4876 Fittings Connection	Welding
ASME B16.9 Incoloy 800H Buttweld Fittings Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Bending Radius Provided By Manufacturer	R=1D, 3D, 2D, 5D, 8D, 6D, 10D or Custom Nickel Alloy 800 Pipe Bend
Size Range	½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Alloy 825 Buttweld Fittings
Incoloy 825 Buttweld Fittings Dimensions	ASME B16.28, ASME/ANSI B16.9, BS4504, MSS-SP-43, BS1560, BS4504, BS10
Incoloy Alloy 800 Elbows Manufacturer	Angle : 22.5 deg, 45 deg, 30deg, 90 deg, 1.0D, 180 deg, 1.5D, 3D, 2.5D, 2.0D, 4D, 6D, 5D, 7D-40D . Standard: ASME B16.28, GB, ASME B16.9, MSS SP-75 JISB2311 DIN2605 JISB2312 JISB2313, ASME B16.25, BS, ISO
Alloy UNS N08800 Fittings Manufacturing process	Push, Forge, Press, Cast, etc.
Specialized Incoloy 825 Pipe Fittings Manufacturer of	Stub End, 90º Elbows, Tees, Pipe Cap, Crosses, 45º Elbows, Reducers, Pipe Bend
Nickel Alloy 825 Threaded Fittings Thread Provided By Manufacturer	BSPT, NPT, BSPP
Werkstoff Nr. 1.4876 Buttweld Fittings Origin & Mills	European, Japanese, USA, Korean, Ukraine, Indian, Russian
Inconel 825 Forged Fittings Pressure Rating	Threaded end - 3000lb/ 2000lb/ 6000lbs Socket weld end- 6000/ 3000/ 9000lbs
Nickel Alloy 800H Products Manufacturer	Half Coupling, Union, Tee, Cross, Coupling, Cap, Outlet, Welding Outlet, Boss, Insert
Dimension Specification	MSS SP-79, 95, 83, 97, BS 3799, ASME 16.11
Application of Industrial Alloy 825 Buttweld Fittings	Fittings To Connect Tubes and Pipe in Gas, Petroleum, Metallurgy, Chemical, Power, Construction, Shipbuilding etc

Biggest Incoloy 825 Buttweld Fittings stockholders, supplier, wholesalers, importer, dealers, stockists, distributor, exporters and Manufacturer in Mumbai

Nickel Alloy 825 Threaded Tee Dimensions

NPS	Min Length of Thread		Outside Dia of Band D	Center to End A	Min WT
	B	J
1/2	10.9	13.6	33	28	3.18
3/4	12.7	13.9	38	33	3.18
1	14.7	17.3	46	38	3.68
1.1/4	17	18	56	44	3.89
1.1/2	17.8	18.4	62	51	4.01
2	19	19.2	75	60	4.27
2.1/2	23.6	28.9	92	76	5.61
3	25.9	30.5	109	86	5.99
4	27.7	33	146	106	6.55

Dimension Table of UNS N08825 Reducer

Nominal Pipe Size	Outside Diameter		Reducers
Reduced from (inches)	(inches)	(mm)	Concentric & Eccentric Length (inches)	Reduced to (inches)
1/2	0.840	21.3	1 1/2	1/4
			1 1/2	3/8
3/4	1.050	26.7	2	3/8
			2	1/2
1	1.315	33.4	2	3/8
			2	1/2
			2	3/4
1 1/4	1.660	42.2	2	1/2
			2	3/4
			2	1
1 1/2	1.900	48.3	2 1/2	1/2
			2 1/2	3/4
			2 1/2	1
			2 1/2	1 1/4
2	2.375	60.3	3	3/4
			3	1
			3	1 1/4
			3	1 1/2
2 1/2	2.875	73.0	3 1/2	1
			3 1/2	1 1/4
			3 1/2	1 1/2
			3 1/2	2
3	3.500	88.9	3 1/2	1
			3 1/2	1 1/2
			3 1/2	2
			3 1/2	2 1/2
3 1/2	4.000	101.6	4	1 1/4
			4	1 1/2
			4	2
			4	2 1/2
			4	3
4	4.500	114.3	4	1 1/2
			4	2
			4	2 1/2
			4	3
			4	3 1/2
5	5.563	141.3	5	2
			5	2 1/2
			5	3
			5	3 1/2
			5	4
6	6.625	168.3	5 1/2	2 1/2
			5 1/2	3
			5 1/2	3 1/2
			5 1/2	4
			5 1/2	5
8	8.625	219.1	6	3
			6	3 1/2
			6	4
			6	5
			6	6
10	10.750	273.1	7	4
			7	5
			7	6
			7	8
12	12.750	323.9	8	5
			8	6
			8	8
			8	10

1/2" - 32" NB seamless butt weld DIN 2.4858 Eccentric / Concentric Reducer and 825 Incoloy Stub End manufacturer in India

ASME SB366 825 Alloy Elbow Weight Chart

NPS	KG	LBS
1/2	0.11	0.25
3/4	0.11	0.25
1	0.23	0.5
1¼	0.41	0.9
1½	0.52	1.15
2	1	2.2
2½	1.81	4
3	2.95	6.5
3½	3.79	8.35
4	6.12	13.5
5	9.98	22
6	15.88	35
8	32.21	71
10	48.53	107
12	72.57	160
14	92.99	205
16	125.19	276
18	154.22	340
20	190.51	420
22	235.87	520
24	272.16	600
26	330.67	729
30	442.25	975
36	640.47	1412

Weight of WNR 2.4858 Tee

NPS	KG	LBS
1/2	0.16	0.35
3/4	0.2	0.45
1	0.34	0.75
1¼	0.59	1.3
1½	0.91	2
2	1.59	3.5
2½	2.72	6
3	3.18	7
3½	4.08	9
4	5.44	12
5	9.53	21
6	15.42	34
8	24.95	55
10	38.56	85
12	54.43	120
14	74.84	165
16	88.45	195
18	112.94	249
20	155.13	342
22	187.79	414
24	239.5	528
26	349.27	770
30	480.81	1060
36	675.85	1490

Inconel 825 Forged Fittings

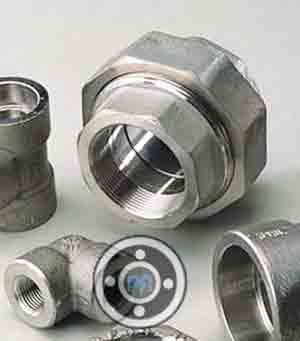

Incoloy 825 Forged Fittings

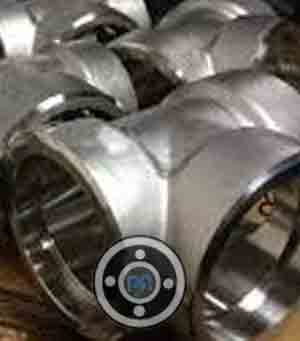

Incoloy Alloy 825 Forged Tee

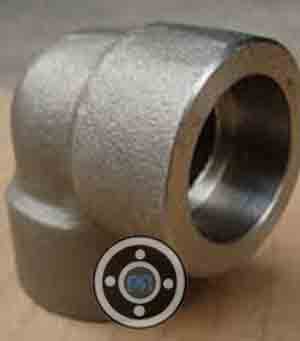

Alloy 825 Forged Elbow

Nickel Alloy 825 Threaded Fittings

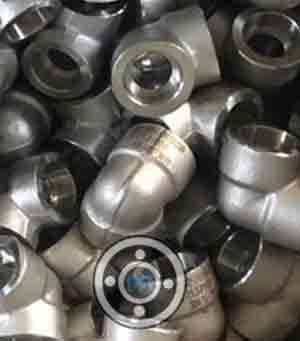

ASME B16.11 Incoloy 825 Threaded Fittings

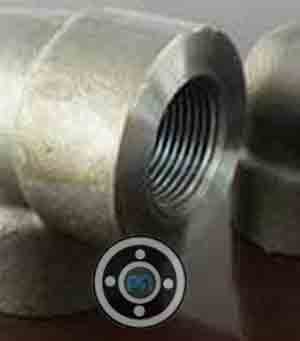

Nickel 825 Threaded Elbow

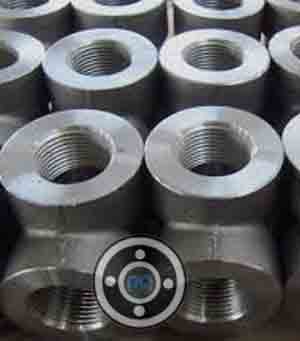

Nickel Alloy 825 Threaded Tee

825 Nickel Alloy Socket Weld Fittings

Nickel Alloy 825 Socket Weld Full Coupling

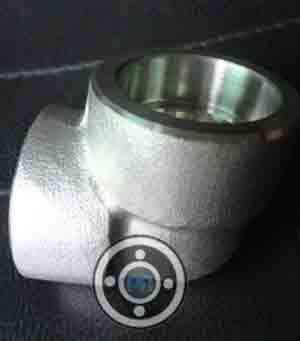

Incoloy UNS N08825 Socket Weld Elbow

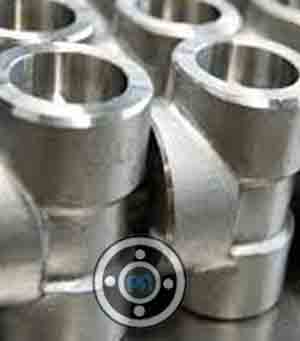

825 Incoloy SW Tee

Ultrasonic testing, X-ray, and magnetic testing available for Alloy 825 Fittings such as Inconel 825 Pipe Bend and UNS N08825 Equal/ Unequal Tee

Incoloy 825 Pipe Fittings Price List

Incoloy 825 Pipe Fittings Price Per Piece in India	Alloy 825 Seamless Fittings Price in INR	UNS N08825 Buttweld Fittings Price in UAE Dirham	2.4858 Incoloy Weld Fittings Price in USD
Incoloy 825 Pipe Elbows Per Kg	2102.20	UAE Dirham 102.84	$28
LR/SR ASME Bw Elbow B366 Incoloy 825 Per Kg	1876.96	UAE Dirham 91.82	$25
ASME B16.9 Bw Reducer B366 Incoloy 825 Per Piece	1351.40	UAE Dirham 66.11	$18

Contact us to get latest price list of Inconel 825 Forged Fittings in Mumbai. Compare our price with other Incoloy 825 Pipe Fittings Manufacturer in India.

Alloy 825 Buttweld Fittings Dimensions

Nominal Pipe Size	Outside Diameter		90° Elbows		45° Elbows		180° Returns
(inches)			Long Radius	Short Radius	Long Radius		Long Radius
	(mm)	(inches)	Center to Face (inches)	Center to Face (inches)	Center to Face (inches)	Radius (inches)	Center to Center (inches)	Back to face (inches)
1/2	21.3	0.840	1 1/2	-	5/8		2	1 7/8
3/4	26.7	1.050	1 1/8	-	7/16		2 1/4	1 11/16
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8

Pressure Rating of ASME B16.9 Incoloy 825 Fittings

Normal Size Of Pipe (inches)	Pipe Sch	OD (inch)	Wall Thick. (inch)	Temperature(oF)
				100	200	300	400	500	600	650	700	750
				Allowable Stress(psi)
				16700	16700	16700	15500	14400	13500	13200	12900	12600
1"	40	1.315	0.133	2205	2205	2205	2047	1902	1783	1743	1703	1664
	80	1.315	0.179	3061	3061	3061	2841	2640	2475	2420	2365	2310
	160	1.315	0.250	4493	4493	4493	4170	3874	3632	3552	3471	3390
1 1/2"	40	1.900	0.145	1629	1629	1629	1512	1404	1317	1287	1258	1229
	80	1.900	0.200	2303	2303	2303	2138	1986	1862	1821	1779	1738
	160	1.900	0.281	3362	3362	3362	3120	2899	2717	2657	2597	2536
2"	40	2.375	0.154	1371	1371	1371	1272	1182	1108	1083	1059	1034
	80	2.375	0.218	1985	1985	1985	1843	1712	1605	1569	1534	1498
	160	2.375	0.344	3283	3283	3283	3047	2831	2654	2595	2536	2477
3"	40	3.500	0.216	1301	1301	1301	1208	1122	1052	1028	1005	982
	80	3.500	0.300	1844	1844	1844	1712	1590	1491	1458	1425	1391
	160	3.500	0.438	2787	2787	2787	2587	2403	2253	2203	2153	2103
4"	40	4.500	0.237	1102	1102	1102	1023	950	891	871	851	831
	80	4.500	0.337	1596	1596	1596	1482	1377	1291	1262	1233	1204
	160	4.500	0.531	2611	2611	2611	2424	2552	2111	2064	2017	1970
5"	40	5.563	0.258	965	965	965	896	832	780	763	746	728
	80	5.563	0.375	1428	1428	1428	1325	1231	1154	1129	1103	1077
	160	5.563	0.625	2474	2474	2474	2296	2133	2000	1955	1911	1866
6"	40	6.625	0.280	877	877	877	814	756	709	693	677	661
	80	6.625	0.432	1379	1379	1379	1280	1189	1115	1090	1065	1040
	160	6.625	0.719	2382	2382	2382	2211	2054	1925	1883	1840	1797
8"	40	8.625	0.322	771	771	771	716	665	623	610	596	582
	80	8.625	0.500	1218	1218	1218	1131	1050	985	963	941	919
	160	8.625	0.906	2298	2298	2298	2133	1982	1858	1817	1775	1734
10"	40	10.750	0.365	699	699	699	649	603	565	553	540	528
	80	10.750	0.594	1159	1159	1159	1075	999	937	916	895	874
	160	10.750	1.125	2289	2289	2289	2124	1974	1850	1809	1768	1727

Manufacturer of ASME B16.9 Butt weld ASME SB 366 UNS N08825 Short Radius Elbow and Incoloy 825 LR Elbow in Seamless/ Welded

Types of Incoloy 825 Pipe Fittings

SCH XXS ASME B16.11 Incoloy 825 5D Elbow

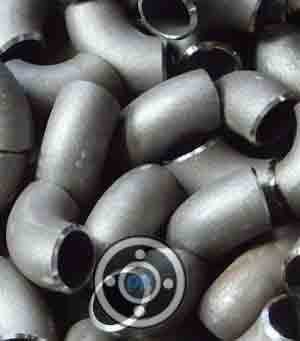

ASTM B366 Alloy 825 1D Elbow

ASME SB366 825 Alloy Reducing Cross

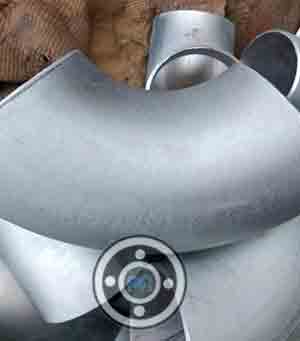

825 Incoloy 3D Elbow

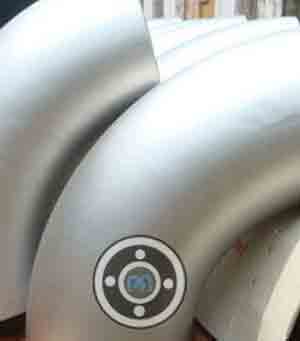

2.4858 Incoloy 1.5D Elbow

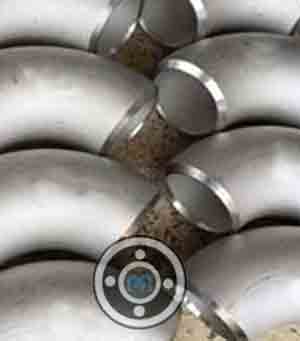

WNR 2.4858 180° Short Radius Elbow

SCH 30 Incoloy Alloy 825 Reducing Tee

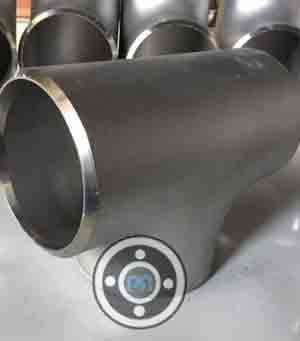

825 Incoloy Equal Tee

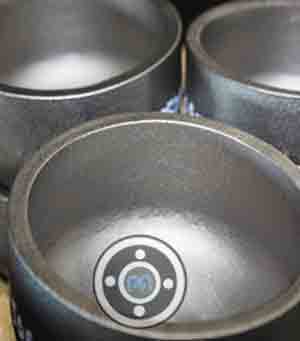

ASTM B366 Alloy 825 Pipe Cap

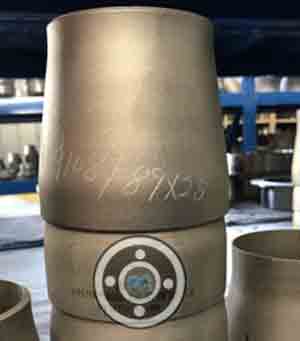

Incoloy Alloy 825 Reducers

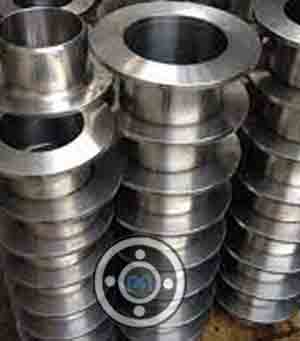

Incoloy 825 Short Stubend

UNS N08825 Welded Elbows

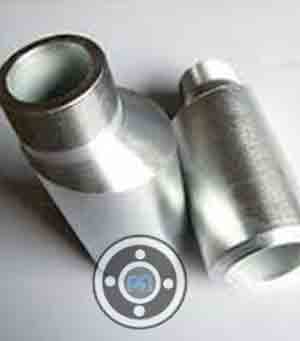

ASME B16.9 Incoloy 825 Swage Nipple

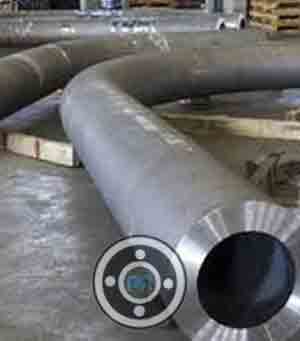

Incoloy 825 Long Radius Bend

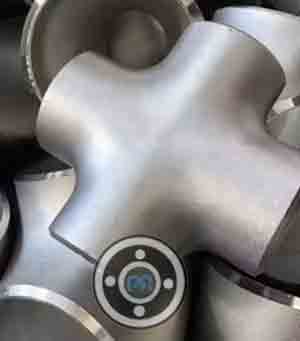

15 NB SCH 100 Nickel Alloy 825 Equal Cross

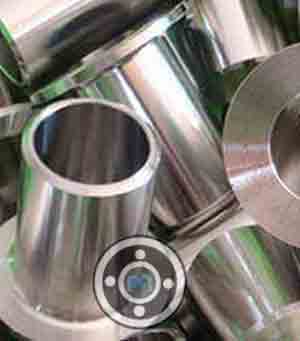

Alloy 825 Long Stubend

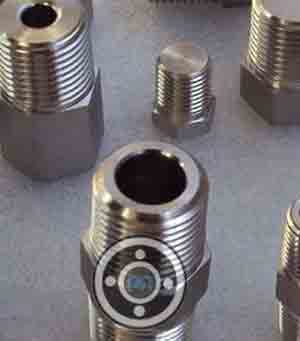

SCH 140 Incoloy UNS N08825 Reducing Nipple

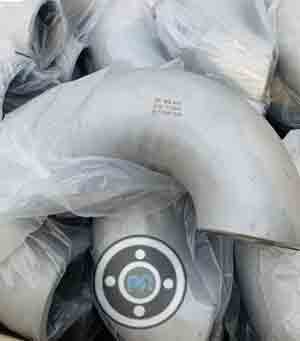

ASME SB366 825 Alloy Seamless Buttwelding 180° Returns

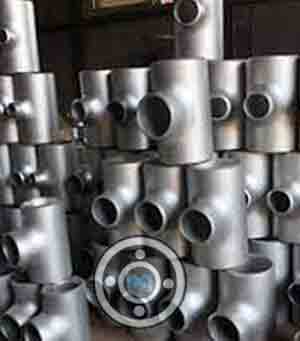

SCH STD ASME B16.9 Incoloy 825 Straight Tees and Crosses

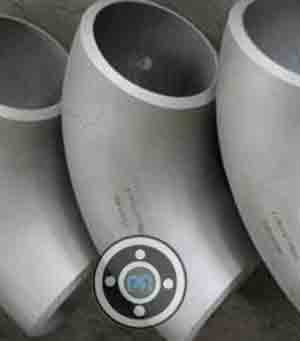

SCH 20 825 Incoloy 180° Long Radius Elbow

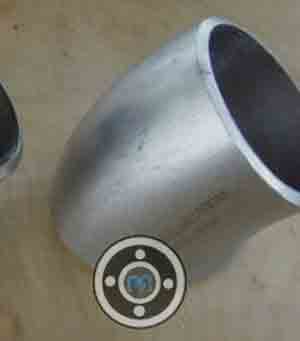

SCH 160 UNS N08825 Seamless Buttwelding 45° and 90° Elbows

Nickel 825 Reducing Outlet Tees and Reducing Outlet Crosses

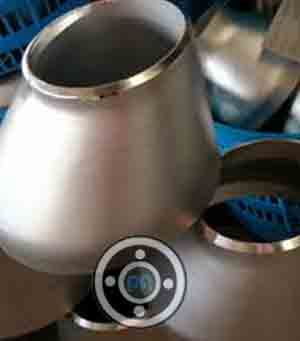

UNS N08825 Incoloy Concentric Reducer

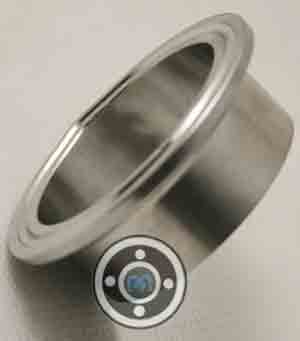

SCH XS WNR 2.4858 Collar

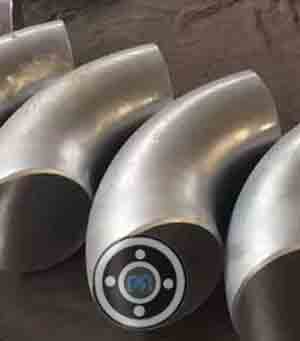

UNS N08825 Incoloy 45° Short Radius Elbow

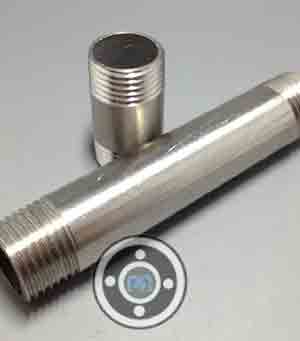

Incoloy 825 Barrel Nipple

2.4858 Incoloy Eccentric Reducer

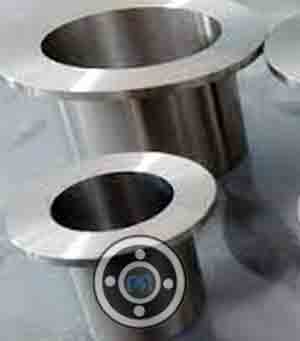

SCH 80 Nickel Alloy 825 Stub End

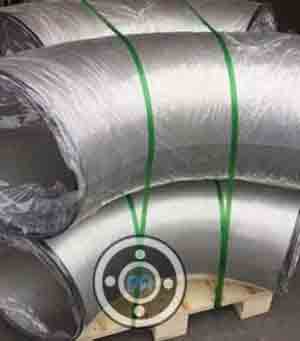

Alloy 825 90° Short Radius Elbow

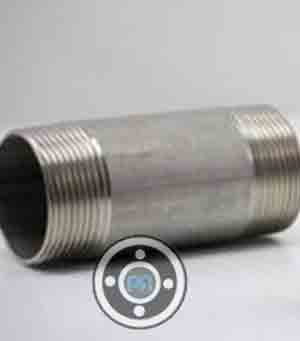

UNS N08825 Incoloy Pipe Nipples

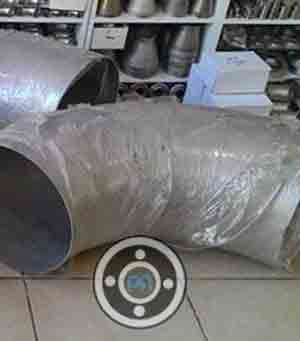

Nickel 825 45° Long Radius Elbow

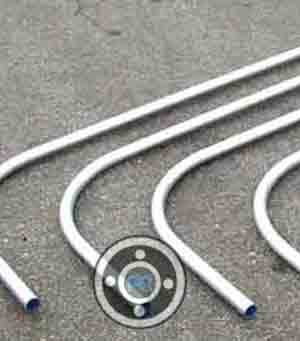

SCH 10 2.4858 Incoloy Bend

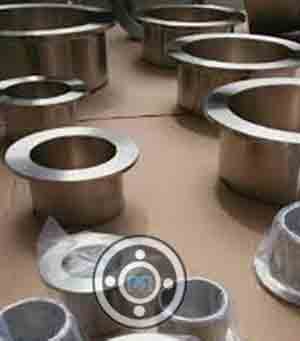

SCH 120 825 Nickel Alloy Lap Joint Stub Ends

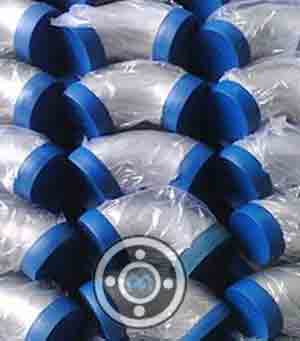

SCH 60 825 Nickel Alloy 10D ELBOW

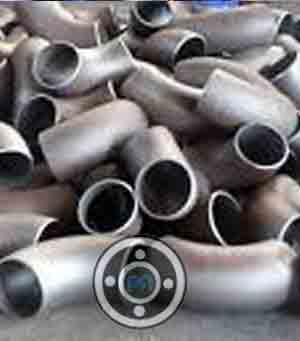

Incoloy UNS N08825 90° Long Radius Elbow

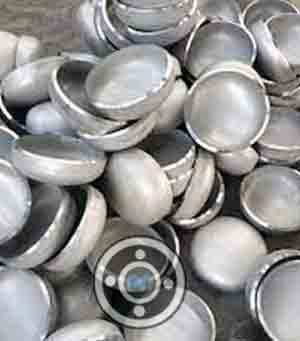

450 NB SCH 40 ASME B16.9 Incoloy 825 End Cap

ASME B16.11 Incoloy 825 Socket Weld Fittings Dimensions

NPS	Socket Bore	Depth Socket	Bore DIA	Socket WT	Body WT
	B	J	D	C	G
1/2	21.95 21.70	10	16.6 15	4.65 4.10	3.75
3/4	27.30 27.05	13	21.7 20.2	4.90 4.25	3.90
1	34.05 33.80	13	27.4 25.9	5.70 5.00	4.55
1.1/4	42.80 42.55	13	35.8 34.3	6.05 5.30	4.85
1.1/2	48.90 48.65	13	41.7 40.1	6.35 5.55	5.10
2	61.35 61.10	16	53.5 51.7	6.95 6.05	5.55
2.1/2	74.20 73.80	16	64.2 61.2	8.75 7.65	7.00
3	90.15 89.80	16	79.5 46.4	9.50 8.30	7.60
4	115.80 115.45	19	103.8 100.7	10.70 9.35	8.55

Dimension Chart of Incoloy Alloy 825 Threaded Cap

NPS	End to End	Outside Diameter	Minimum End Wall Thickness	Min Length of Thread
	A	D	G	B	J
1/2	32	28	6.4	10.9	13.6
3/4	37	35.	6.4	12.7	13.9
1	41	44	9.7	14.7	17.3
1.1/4	44	57	9.7	17	18
1.1/2	44	64	11.2	17.8	18.4
2	48	76	12.7	19	19.2
2.1/2	60	92	15.7	23.6	28.9
3	65	108	19	25.9	30.5
4	68	140	22.4	27.7	33

Incoloy 825 Buttweld Fittings Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Al	Ti	Cr
825	0.05 max	1.00 max	0.5 max	0.03 max	1.50 – 3.00	22.00 min	38.00 – 46.00	0.02 max	0.06 – 1.20	19.50 – 23.50

Alloy 825 Weld Fittings Mechanical Properties

Element	Density	Yield Strength (0.2%Offset)	Melting Point	Tensile Strength	Elongation
825	8.14 g/cm3	Psi – 80,000 , MPa – 550	1400 °C (2550 °F)	Psi – 32,000 , MPa – 220	30 %

Incoloy 825 Fittings Equivalent

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	EN	OR	AFNOR
Incoloy 825	2.4858	N08825	NCF 825	NA 16	ЭП703	NiCr21Mo	XH38BT	NFE30C20DUM

Incoloy UNS N08825 Fittings Applications

• Oil and gas recovery
• Nuclear fuel reprocessing
• Chemical processing
• Pollution control
• Calorifiers
• Radioactive waste handling
• Marine exhaust systems

Manufacturer of Incoloy 825 Fittings in India and Supplier in Below Places

Alloy 825 equal tee

Poland, Tehran -Iran, Kuala Lumpur, Qatar, Indonesia, South Korea, United States, Dubai

Incoloy 825 UNS N08825 Buttweld Fitting

Kuwait, Europe, Chile, South Africa, Malaysia, Vietnam, Czechia, Norway, Belgium, Germany, Nigeria

Nickel Alloy 825 Reducer

France, Jakarta -Indonesia, RMalaysia, omania Dubai- UAE, Iran, Netherlands, Singapore

Inconel 825 Sch40s 90 Degree LR Elbow

Jakarta, Hong Kong, Istanbul- Turkey, Argentina, NY 12203 (USA), Bahrain, Oman, Bangladesh, Finland, Brazil

Nickel Alloy 825 Butt Welding Fittings

Austria, Turkey, Canada, Philippines, Los Alamos -Mexico, Dammam -KSA, Greece, Singapore

Nickel Alloy 825 Concentric Reducer

Spain, Saudi Arabia (KSA), Japan, United Kingdom (UK), Ellington -United States, Malaysia, USA, Thailand
