Alloy 600 Elbow & ASTM B366 UNS N06600 Tee manufacturer in India

What is Inconel 600 Pipe Fittings?
The Inconel 600 alloy can be described as a standard engineering material used for various applications that requires high temperature and corrosion resistance. The Inconel 600 Pipe Fittings have some great mechanical properties, and they are quite popular for their enhanced strength and high workability. The material has all these excellent properties due to its chemical composition. It contains high concentrations of various important elements like chromium, molybdenum, and nickel. It also shows good oxidation resistance.
One of the best things about Inconel 600 Pipe Fittings is that it can retain its properties even at a high temperature. It has a min yield strength of 310 MPa, and a min tensile strength of 655 MPa. It has an elongation of 40%, which is quite good. The melting point of the Inconel 600 material is 1413 degrees C, which makes them perfect for high temperature applications and they have a long service life. It can be bent and welded easily, and the dimensions can be customized according to the specific requirements.

What is ASTM B366 UNS N06600 Reducer Vs Nickel 600 Long Radius Elbow
The ASTM B366 UNS N06600 Reducer is used for reducing the pipe diameter. It helps to control the flow in the run pipe by changing the bore size from a large to a smaller bore. There are two types of pipe reducers, namely concentric reducers- they are most commonly used and eccentric reducers- they are used when it is essential to maintain a top or bottom level.
The Nickel 600 Long Radius Elbow is used for changing the direction of flow inside the pipe, at an angle of usually 45 degrees or 90 degrees. However, the bent angle can also be customized according to specific requirements. For the long radius elbow, the radius of curvature is the same as 1.5 times the diameter of the pipe, i.e, R= 1.5D.

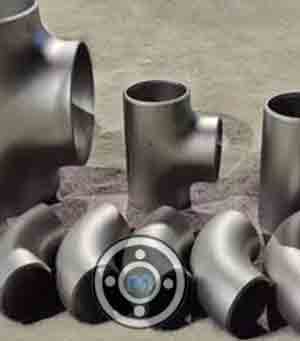

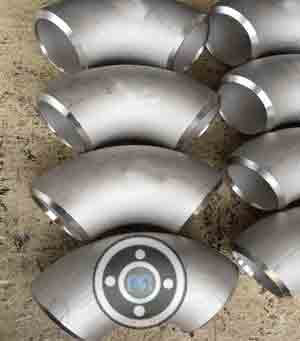

Inconel 600 Buttweld Fittings Vs Inconel 601 Fittings
The Inconel 600 Buttweld Fittings comes with excellent mechanical and physical properties. They have high strength, and enhanced weldability, throughout a wide range of temperatures. They show good resistance in different types of corrosive media and the fittings are non-magnetic in nature. The Inconel 600 Buttweld Fittings are also resistant to stress related corrosion cracking in chloride environments. They can effectively resist an alkaline environment.
All these properties are shown by Inconel 601 Fittings too, but due to the addition of aluminum in their chemical composition, they show higher mechanical properties even at extremely hot environments.

Can Alloy 600 Socket Weld Fittings be cast?
Yes, the Alloy 600 Socket Weld Fittings can be casted, but generally they are forged. The advantage of casting is that the metal here can be added in a molten state.

Inconel 600 Pipe Fittings

Inconel 600 Pipe Fittings

Inconel 600 Fittings manufacturers in India offers widest range of ASTM B366 WPNC1 Pipe Cap and ASME SB366 N06600 Eccentric / Concentric Reducer in Mumbai

Table of Content


Inconel 600 Pipe Fittings Specifications ASTM B366
Inconel 600 Fittings Sizes Nickel Alloy 600 Seamless Fitting: 1/2" - 10"
ASME B16 9 DIN 2.4816 Welded Fitting: 1/2" - 48"
Nickel 600 Fittings Dimensions ASME B16.28, ASME/ANSI B16.9, BS4504, MSS-SP-43, BS1560, BS4504, BS10
Alloy 600 Fittings Thickness SCH30, SCH10, SCH 160, SCH20, SCH60, XS, STD SCH40, SCH 80, SCH 120, SCH 140, SCH 100, XXS available with NACE MR 01-75
Inconel 600 Pipe Fitting Type Manufacturer DN15-DN1200
Inconel 600 Buttweld Fittings Connection Welding
Bending Radius Provided By Inconel 600 Pipe Fitting Manufacturer R=1D, 3D, 2D, 5D, 8D, 6D, 10D or Custom
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Alloy 600 Fitting
Inconel 600 Elbows Manufacturer Angle : 22.5 deg, 45 deg, 30deg, 90 deg, 1.0D, 180 deg, 1.5D, 3D, 2.5D, 2.0D, 4D, 6D, 5D, 7D-40D .
Standard: ASME B16.28, GB, ASME B16.9, MSS SP-75 JISB2311 DIN2605 JISB2312 JISB2313, ASME B16.25, BS, ISO
Alloy 600 Fittings Manufacturing process Push, Forge, Press, Cast, etc.
ASME B16.9 Inconel 600 Pipe Fitting Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Inconel 600 Fittings Origin & Mills European, Japanese, USA, Korean, Ukraine, Indian, Russian

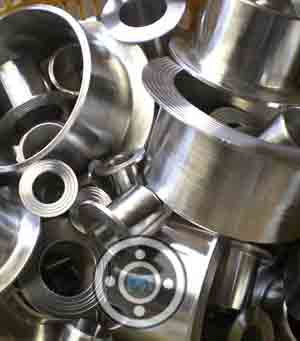

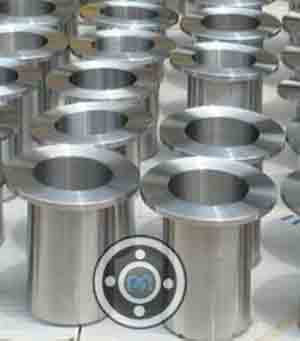

Specialized manufacturer of Inconel UNS N06600 Stub End, 90º Elbows, Tees, Pipe Cap, Crosses, 45º Elbows, Reducers, Pipe Bend
Application of Industrial Inconel 600 Pipe Fitting
  • Fittings To Connect Tubes and Pipe in Gas, Petroleum, Metallurgy, Chemical, Power, Construction, Shipbuilding etc
Inconel 600 Threaded Fittings Thread Provided By Manufacturer BSPT, NPT, BSPP
Inconel 600 Forged Fittings Pressure Rating Threaded end - 3000lb/ 2000lb/ 6000lbs
Socket weld end- 6000/ 3000/ 9000lbs
Dimension Specification MSS SP-79, 95, 83, 97, BS 3799, ASME 16.11
JIS NCF 600 Products Manufacturer Half Coupling, Union, Tee, Cross, Coupling, Cap, Outlet, Welding Outlet, Boss, Insert

Biggest Inconel 600 Fittings dealers, stockholders, wholesalers, supplier, importer, stockists, distributor, exporters and Manufacturer in Mumbai

Normal Size Of Pipe
(inches)		 Pipe Sch OD (inch)
 Wall
Thick.
(inch)
 Temperature (oF)
100 200 300 400 500 600 650 700 750
Allowable Stress (psi)
16700 16700 16700 15500 14400 13500 13200 12900 12600
1" 40 1.315 0.133 2205 2205 2205 2047 1902 1783 1743 1703 1664
80 1.315 0.179 3061 3061 3061 2841 2640 2475 2420 2365 2310
160 1.315 0.250 4493 4493 4493 4170 3874 3632 3552 3471 3390
1 1/2" 40 1.900 0.145 1629 1629 1629 1512 1404 1317 1287 1258 1229
80 1.900 0.200 2303 2303 2303 2138 1986 1862 1821 1779 1738
160 1.900 0.281 3362 3362 3362 3120 2899 2717 2657 2597 2536
2" 40 2.375 0.154 1371 1371 1371 1272 1182 1108 1083 1059 1034
80 2.375 0.218 1985 1985 1985 1843 1712 1605 1569 1534 1498
160 2.375 0.344 3283 3283 3283 3047 2831 2654 2595 2536 2477
3" 40 3.500 0.216 1301 1301 1301 1208 1122 1052 1028 1005 982
80 3.500 0.300 1844 1844 1844 1712 1590 1491 1458 1425 1391
160 3.500 0.438 2787 2787 2787 2587 2403 2253 2203 2153 2103
4" 40 4.500 0.237 1102 1102 1102 1023 950 891 871 851 831
80 4.500 0.337 1596 1596 1596 1482 1377 1291 1262 1233 1204
160 4.500 0.531 2611 2611 2611 2424 2552 2111 2064 2017 1970
5" 40 5.563 0.258 965 965 965 896 832 780 763 746 728
80 5.563 0.375 1428 1428 1428 1325 1231 1154 1129 1103 1077
160 5.563 0.625 2474 2474 2474 2296 2133 2000 1955 1911 1866
6" 40 6.625 0.280 877 877 877 814 756 709 693 677 661
80 6.625 0.432 1379 1379 1379 1280 1189 1115 1090 1065 1040
160 6.625 0.719 2382 2382 2382 2211 2054 1925 1883 1840 1797
8" 40 8.625 0.322 771 771 771 716 665 623 610 596 582
80 8.625 0.500 1218 1218 1218 1131 1050 985 963 941 919
160 8.625 0.906 2298 2298 2298 2133 1982 1858 1817 1775 1734
10" 40 10.750 0.365 699 699 699 649 603 565 553 540 528
80 10.750 0.594 1159 1159 1159 1075 999 937 916 895 874
160 10.750 1.125 2289 2289 2289 2124 1974 1850 1809 1768 1727
Nominal Pipe Size Outside Diameter 90° Elbows 45° Elbows 180° Returns
(inches) Long Radius Short Radius Long Radius Long Radius
(mm) (inches) Center to Face
(inches)		 Center to Face
(inches)		 Center to Face
(inches)		 Radius
(inches)		 Center to Center
(inches)		 Back to face
(inches)
1/2 21.3 0.840 1 1/2 - 5/8 2 1 7/8
3/4 26.7 1.050 1 1/8 - 7/16 2 1/4 1 11/16
1 33.4 1.315 1 1/2 1 7/8 3 2 3/16
1 1/4 42.2 1.660 1 7/8 1 1/4 1 3 3/4 2 3/4
1 1/2 48.3 1.900 2 1/4 1 1/2 1 1/8 3 4 1/2 3 1/4
2 60.3 2.375 3 2 1 3/8 4 6 4 3/16
2 1/2 73.0 2.875 3 3/4 2 1/2 1 3/4 5 7 1/2 5 3/16
3 88.9 3.500 4 1/2 3 2 6 9 6 1/4
3 1/2 101.6 4.000 5 1/4 3 1/2 2 1/4 7 10 1/2 7 1/4
4 114.3 4.500 6 4 2 1/2 8 12 8 1/4
5 141.3 5.563 7 1/2 5 3 1/8 10 15 10 5/16
6 168.3 6.625 9 6 3 3/4 12 18 12 5/16
8 219.1 8.625 12 8 5 12 24 16 5/16
10 273.1 10.750 15 10 6 1/4 15 30 20 3/8
12 323.9 12.750 18 12 7 1/2 18 36 24 3/8

EN 10253 Butt Welding Inconel 600 Stub End, W. Nr. 2.4816 Elbow and Alloy 600 Reducing/ Equal Tee manufacturer in India

Inconel 600 Pipe Fittings Price Per Piece in India Inconel 600 Fittings Price in INR Inconel 600 Buttweld Fittings Price in UAE Dirham Alloy 600 Fittings Price in USD
1.500IN,CAP-BUTTWELD,INCONEL 600 PER ASTM B366 Per Kg 5,562 UAE Dirham 274.31 $74.68
2 x 1.5 REDUCER - ECCENTRIC, BUTTWELD, INCONEL 600 PER ASTM B366 Per Piece 7,727 UAE Dirham 381.09 $103.75
0.5 ELBOW-90 DEGREE, BUTTWELD, INCONEL, 600 PER ASTM B366 Per Piece 2,419 UAE Dirham 119.30 $32.48

Check our price with other Inconel 600 Pipe Fittings Manufacturer in India Before Purchasing. This is an approximate Price of Alloy 600 Fittings in India. Feel free to contact us latest Stocklist of Inconel 600 Forged Fittings in Mumbai.

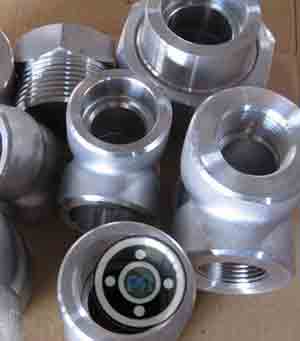

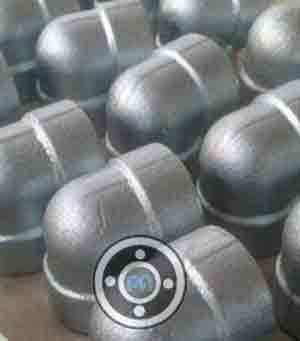

Inconel 600 Forged Fittings

Inconel 600 Forged Fittings

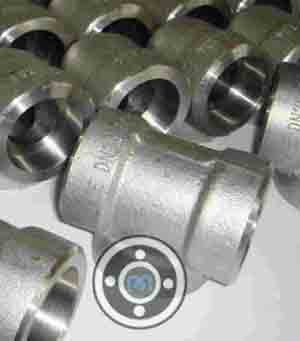

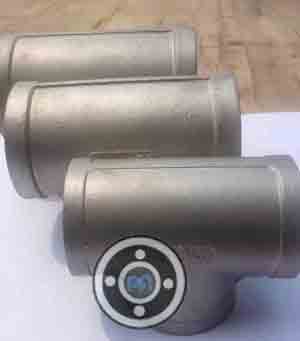

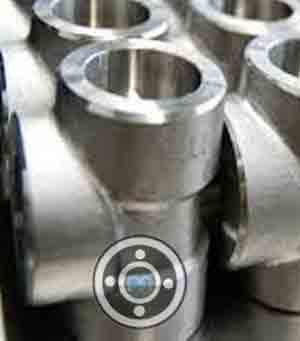

JIS NCF 600 Forged Tee

JIS NCF 600 Forged Tee

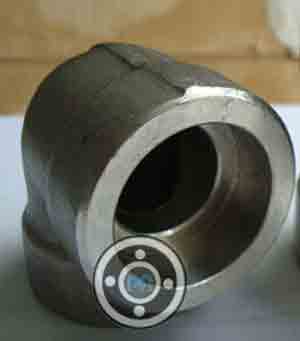

Inconel UNS N06600 Forged Elbow

Inconel UNS N06600 Forged Elbow

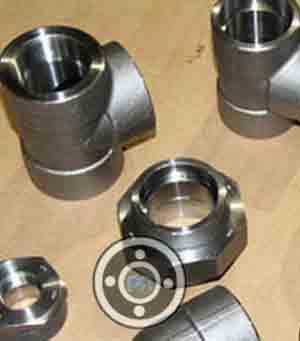

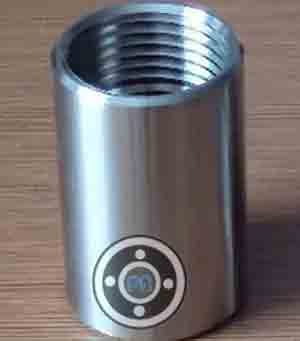

Inconel 600 Socket Weld Full Coupling

Inconel 600 Socket Weld Full Coupling

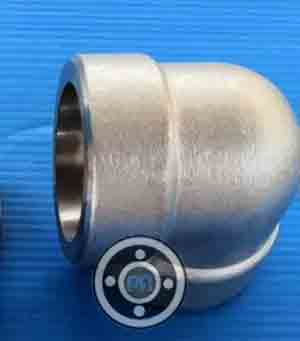

ASTM B366 UNS N06600 Socket Weld Elbow

ASTM B366 UNS N06600 Socket Weld Elbow

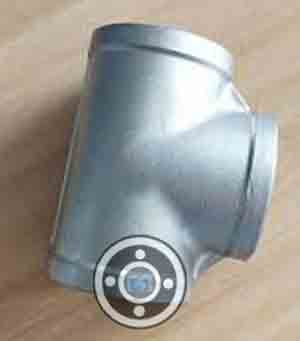

Nickel 600 SW Tee

Nickel 600 SW Tee

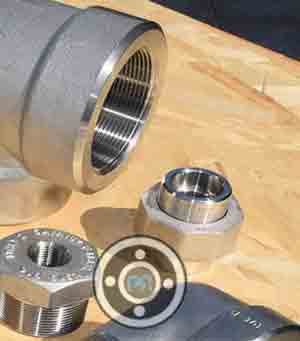

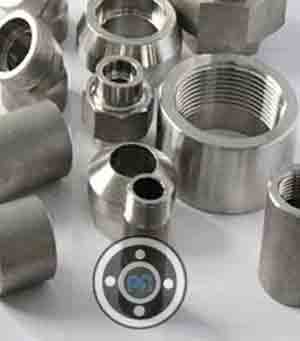

Alloy 600 Threaded Fittings

Alloy 600 Threaded Fittings

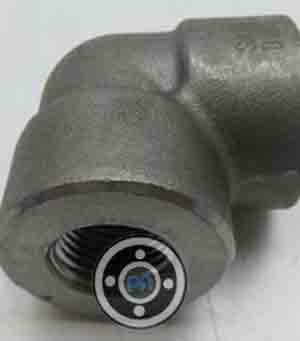

DIN 2.4816 Threaded Elbow

DIN 2.4816 Threaded Elbow

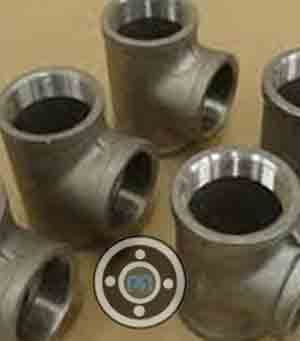

Inconel 600 Threaded Tee

Inconel 600 Threaded Tee

Nominal Size SCH20 STD SCH40S SCH80S SCH120 SCH160
DN NPS
15 1/2 0.08 0.08 0.1
20 3/4 0.17 0.17 0.2
25 1 0.21 0.21 0.25 0.22
32 1 1/4 0.29 0.29 0.35
40 1 1/2 0.42 0.42 0.58 0.6
50 2 0.8 0.8 1.03 1.04
65 2 1/2 1.05 1.05 1.42 1.65
80 3 1.36 1.36 1.9
90 3 1/2 1.63 1.63 2.27 2.4
100 4 2.77 2.77 3.93 4.4
125 5 3.96 3.96 6 7.14
150 6 6.31 6.31 9.26 10.8
200 8 7.85 10.7 10.7 17.5 15 18.4
250 10 11.2 15.8 16.3 25.1 25.1 32.5
300 12 25.6 28.8 32.1 56.5 41.7 53.3
350 14 30.5 38.5 48.8 79 84.5 106
400 16 35.2 44.5 64.3 102 112 143
450 18 62.7 62.7 98.5 165
500 20 72.6 72.6 181
550 22 97 79.1 142 226
600 24 130 100
Manufacturer of Alloy 600 Fittings and Inconel 600 Pipe Bend offers Ultrasonic Testing & Eddy Current Testing to ensure material and weld
Nominal
Pipe Size		 Outside
Diameter		 Reducers
Reduced from
(inches)		 (inches) (mm) Concentric & Eccentric Length
(inches)		 Reduced to
(inches)
1/2 0.840 21.3 1 1/2 1/4
1 1/2 3/8
3/4 1.050 26.7 2 3/8
2 1/2
1 1.315 33.4 2 3/8
2 1/2
2 3/4
1 1/4 1.660 42.2 2 1/2
2 3/4
2 1
1 1/2 1.900 48.3 2 1/2 1/2
2 1/2 3/4
2 1/2 1
2 1/2 1 1/4
2 2.375 60.3 3 3/4
3 1
3 1 1/4
3 1 1/2
2 1/2 2.875 73.0 3 1/2 1
3 1/2 1 1/4
3 1/2 1 1/2
3 1/2 2
3 3.500 88.9 3 1/2 1
3 1/2 1 1/2
3 1/2 2
3 1/2 2 1/2
3 1/2 4.000 101.6 4 1 1/4
4 1 1/2
4 2
4 2 1/2
4 3
4 4.500 114.3 4 1 1/2
4 2
4 2 1/2
4 3
4 3 1/2
5 5.563 141.3 5 2
5 2 1/2
5 3
5 3 1/2
5 4
6 6.625 168.3 5 1/2 2 1/2
5 1/2 3
5 1/2 3 1/2
5 1/2 4
5 1/2 5
8 8.625 219.1 6 3
6 3 1/2
6 4
6 5
6 6
10 10.750 273.1 7 4
7 5
7 6
7 8
12 12.750 323.9 8 5
8 6
8 8
8 10

Alloy 625 Tee Dimensions

NOMINAL PIPE SIZE LENGTH CENTER TO END OUTSIDE DIAMETER
Inch. M C OD
1/2 25 25 21.3
3/4 29 29 26.7
1 38 38 33.4
1 1/4 48 48 42.2
1 1/2 57 57 48.3
2 64 64 60.3
2 1/2 76 76 73
3 86 86 88.9
3 1/2 95 95 101.6
4 105 105 114.3
5 124 124 141.3
6 143 143 168.3
8 178 178 219.1
10 216 216 273.1
12 254 254 323.9
14 279 279 355.6
16 305 305 406.4
18 343 343 457.2
20 381 381 508
22 419 419 559
24 432 432 610
26 495 495 660
28 521 521 711
30 559 559 762
32 597 597 813
34 635 635 864
36 673 673 914
38 711 711 965
40 749 749 1016
42 711 762 1067
44 762 813 1118
46 800 851 1168
48 838 889 1219
NPS KG LBS
1/2 0.16 0.35
3/4 0.2 0.45
1 0.34 0.75
1¼ 0.59 1.3
1½ 0.91 2
2 1.59 3.5
2½ 2.72 6
3 3.18 7
3½ 4.08 9
4 5.44 12
5 9.53 21
6 15.42 34
8 24.95 55
10 38.56 85
12 54.43 120
14 74.84 165
16 88.45 195
18 112.94 249
20 155.13 342
22 187.79 414
24 239.5 528
26 349.27 770
30 480.81 1060
36 675.85 1490
NPS KG LBS
1/2 0.11 0.25
3/4 0.11 0.25
1 0.23 0.5
1¼ 0.41 0.9
1½ 0.52 1.15
2 1 2.2
2½ 1.81 4
3 2.95 6.5
3½ 3.79 8.35
4 6.12 13.5
5 9.98 22
6 15.88 35
8 32.21 71
10 48.53 107
12 72.57 160
14 92.99 205
16 125.19 276
18 154.22 340
20 190.51 420
22 235.87 520
24 272.16 600
26 330.67 729
30 442.25 975
36 640.47 1412
Manufacturer of Sch 40s Nickel Alloy 600 Long Radius Elbow & Inconel 600 SR Elbow in Welded & Seamless according to ASME B16.9

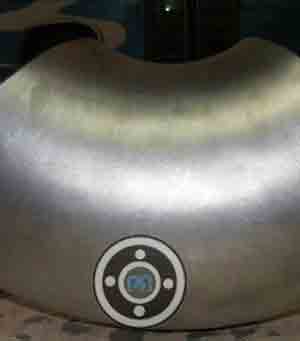

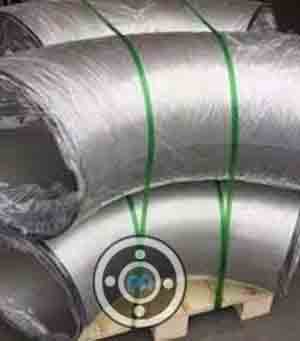

Alloy 600 90° Long Radius Elbow

Alloy 600 90° Long Radius Elbow

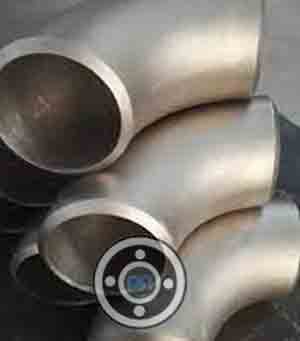

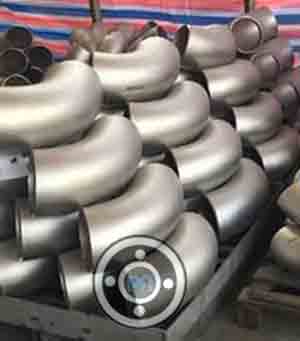

SCH 30 Inconel 600 90° Short Radius Elbow

SCH 30 Inconel 600 90° Short Radius Elbow

Inconel UNS N06600 45° Long Radius Elbow

Inconel UNS N06600 45° Long Radius Elbow

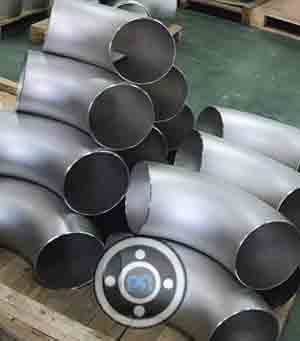

SCH 60 UNS N06600 45° Short Radius Elbow

SCH 60 UNS N06600 45° Short Radius Elbow

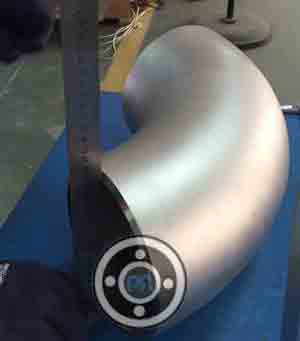

Nickel 600 180° Long Radius Elbow

Nickel 600 180° Long Radius Elbow

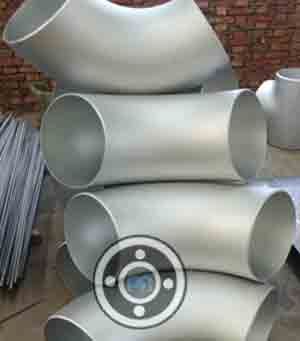

SCH 10 DIN 2.4816 180° Short Radius Elbow

SCH 10 DIN 2.4816 180° Short Radius Elbow

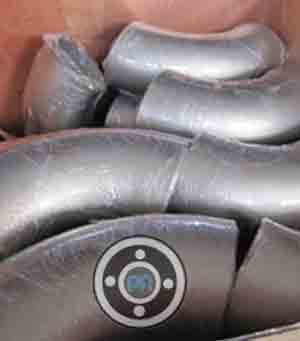

600 Nickel Alloy 1D Elbow

600 Nickel Alloy 1D Elbow

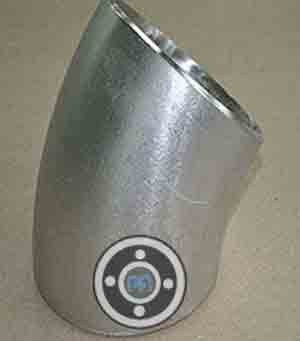

Werkstoff Nr. 2.4816 1.5D Elbow

Werkstoff Nr. 2.4816 1.5D Elbow

Inconel Alloy 600 3D Elbow

Inconel Alloy 600 3D Elbow

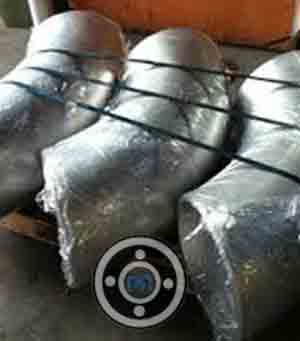

SCH 80 JIS NCF 600 5D Elbow

SCH 80 JIS NCF 600 5D Elbow

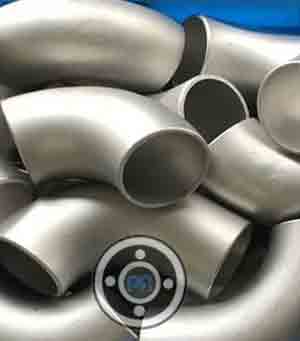

ASME B16.9 Inconel 600 10D ELBOW

ASME B16.9 Inconel 600 10D ELBOW

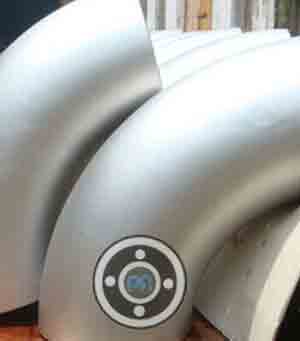

SCH 140 Nickel Chromium Alloy 600 Seamless Buttwelding 45° and 90° Elbows

SCH 140 Nickel Chromium Alloy 600 Seamless Buttwelding 45° and 90° Elbows

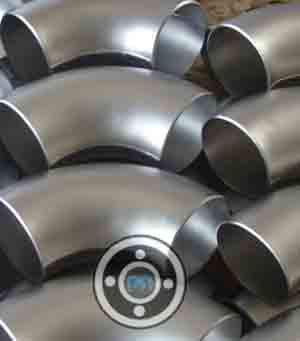

ASTM B366 UNS N06600 Welded Elbows

ASTM B366 UNS N06600 Welded Elbows

Inconel 600 Uns N06600 Seamless Buttwelding 180° Returns

Inconel 600 Uns N06600 Seamless Buttwelding 180° Returns

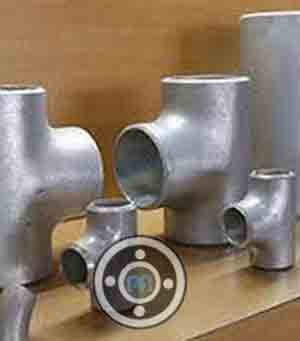

SCH XXS Nickel Alloy 600 Straight Tees and Crosses

SCH XXS Nickel Alloy 600 Straight Tees and Crosses

JIS NCF 600 Reducing Outlet Tees and Reducing Outlet Crosses

JIS NCF 600 Reducing Outlet Tees and Reducing Outlet Crosses

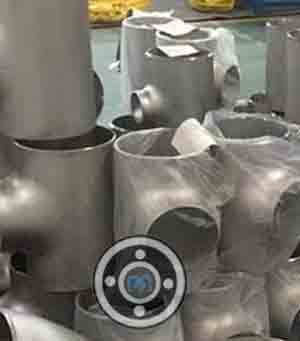

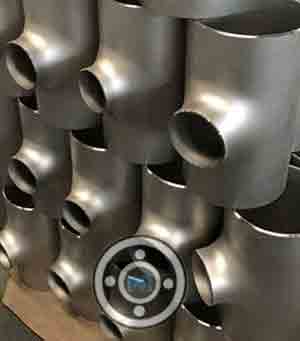

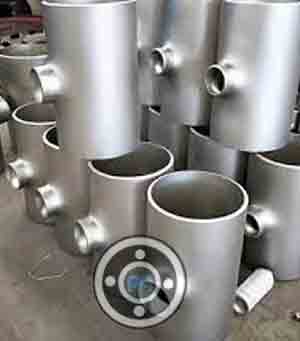

SCH XS Inconel 600 Uns N06600 Equal Tee

SCH XS Inconel 600 Uns N06600 Equal Tee

ASME B16.9 Inconel 600 Reducing Tee

ASME B16.9 Inconel 600 Reducing Tee

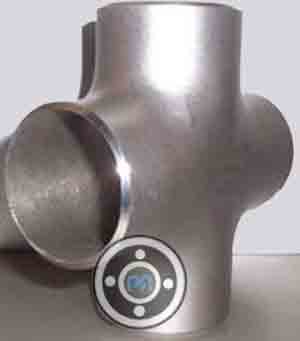

UNS N06600 Equal Cross

UNS N06600 Equal Cross

450 NB SCH 40 Werkstoff Nr. 2.4816 Reducing Cross

450 NB SCH 40 Werkstoff Nr. 2.4816 Reducing Cross

DIN 2.4816 Reducers

DIN 2.4816 Reducers

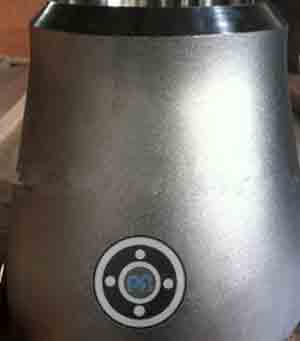

Alloy 600 Concentric Reducer

Alloy 600 Concentric Reducer

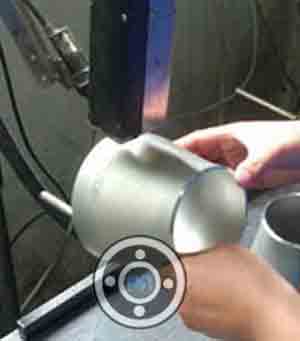

Inconel UNS N06600 Eccentric Reducer

Inconel UNS N06600 Eccentric Reducer

Nickel Alloy 600 Stub End

Nickel Alloy 600 Stub End

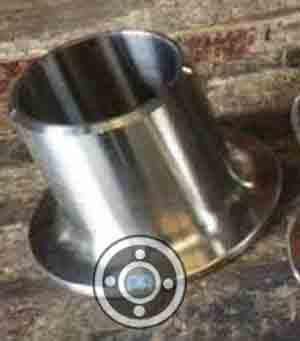

ASTM B366 UNS N06600 Lap Joint Stub Ends

ASTM B366 UNS N06600 Lap Joint Stub Ends

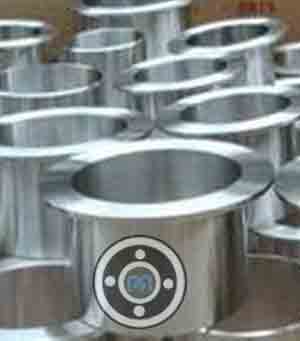

SCH 120 Inconel Alloy 600 Long Stubend

SCH 120 Inconel Alloy 600 Long Stubend

Nickel Chromium Alloy 600 Short Stubend

Nickel Chromium Alloy 600 Short Stubend

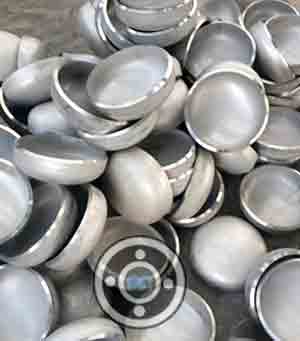

SCH STD Inconel 600 Pipe Cap

SCH STD Inconel 600 Pipe Cap

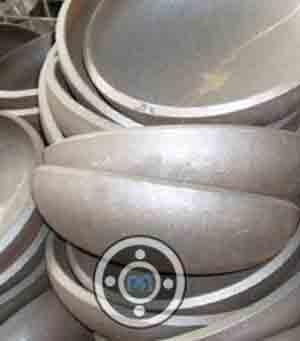

600 Nickel Alloy End Cap

600 Nickel Alloy End Cap

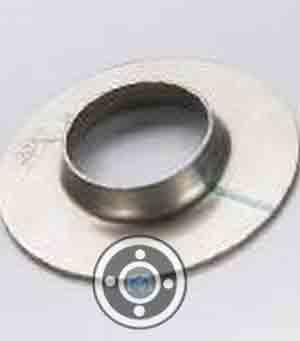

15 NB SCH 100 Nickel 600 Collar

15 NB SCH 100 Nickel 600 Collar

ASME B16.11 Inconel 600 Swage Nipple

ASME B16.11 Inconel 600 Swage Nipple

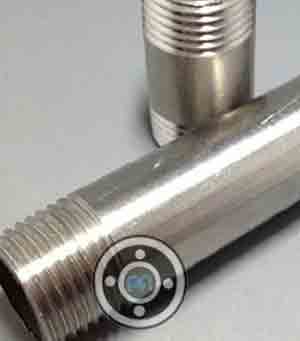

ASTM B564 UNS N06600 Pipe Nipples

ASTM B564 UNS N06600 Pipe Nipples

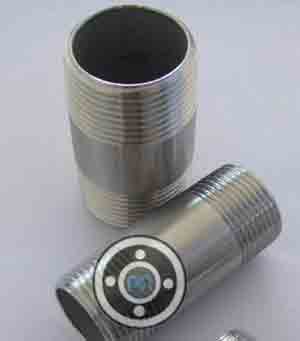

SCH 160 Inconel 600 Uns N06600 Barrel Nipple

SCH 160 Inconel 600 Uns N06600 Barrel Nipple

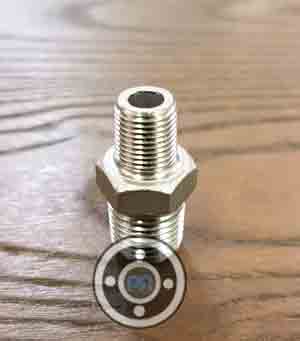

Nickel Alloy 600 Reducing Nipple

Nickel Alloy 600 Reducing Nipple

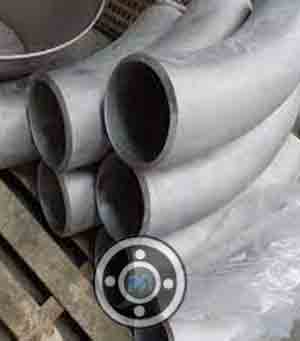

SCH 20 JIS NCF 600 Bend

SCH 20 JIS NCF 600 Bend

Inconel Alloy 600 Long Radius Bend

Inconel Alloy 600 Long Radius Bend

Grade C Mn Si S Cu Fe Ni Cr
Inconel 6000.15 max1.00 max0.50 max0.015max0.50 max6.00 – 10.0072.00 min14.00 – 17.00
Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 6008.47 g/cm31413 °C (2580 °F)Psi – 95,000 , MPa – 655Psi – 45,000 , MPa – 31040 %
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 6002.4816N06600NCF 600NA 13МНЖМц 28-2,5-1,5NC15FE11MNiCr15Fe
Inconel 601 Buttweld Fittings

Inconel 601 Buttweld Fittings

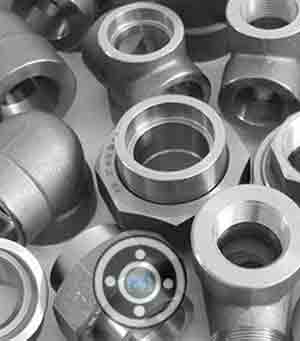

Inconel 601 Forged Fittings

Inconel 601 Forged Fittings

Inconel 601 Socket Weld Fittings

Inconel 601 Socket Weld Fittings

Inconel 601 Threaded Fittings

Inconel 601 Threaded Fittings

Inconel 601 Buttweld Elbow

Inconel 601 Buttweld Elbow

Inconel 601 Forged Tee

Inconel 601 Forged Tee

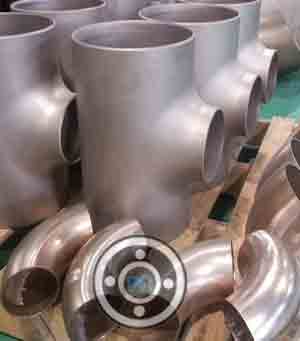

Inconel 718 Buttweld Fittings

Inconel 718 Buttweld Fittings

Inconel 718 Forged Fittings

Inconel 718 Forged Fittings

Inconel 718 Socket Weld Fittings

Inconel 718 Socket Weld Fittings

Inconel 718 Threaded Fittings

Inconel 718 Threaded Fittings

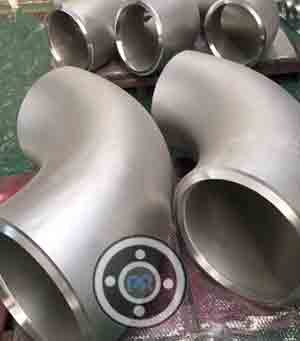

Inconel 718 Buttweld Elbow

Inconel 718 Buttweld Elbow

Inconel 718 Forged Tee

Inconel 718 Forged Tee

Alloy 600 Bw Welded 90deg Lr Elbow

Alloy 600 Bw Welded 90deg Lr Elbow

ANSI B16.9 Inconel 600 SR Elbow

ANSI B16.9 Inconel 600 SR Elbow

Inconel 600 45D 90d Lr Elbow

Inconel 600 45D 90d Lr Elbow

3/4X1/2 Inconel 600 Sch 80 Concentric Reducer

3/4X1/2" Inconel 600 Sch 80 Concentric Reducer

Inconel 600 Bw Concentric Reducer

Inconel 600 Bw Concentric Reducer

10 X 8 Concentric Reducing Bw, Schedule 40 Alloy 600 ANSI B16.9

10" X 8" Concentric Reducing Bw, Schedule 40 Alloy 600 ANSI B16.9

UNS N06600 600 Alloy Pipe Tee

UNS N06600 600 Alloy Pipe Tee

Seamless Tee B366 Wpncmc, Inconel600

Seamless Tee B366 Wpncmc, Inconel600

Inconel 600 Butt-Welding Tee

Inconel 600 Butt-Welding Tee

  • Marine applications
  • Aerospace equipment
  • Nuclear technology
  • Industrial processing
  • Power Plants
  • Fossil Fuel Power Plants
  • Paper & Pulp
  • Corrosion resistance
  • Magnetic properties
  • Ductility
  • Elevated temperature strength
  • Cryogenic strength
  • Surface finish
  • Stability of properties in service
Temperature Range 1650°F / 900°C

Pipe Fittings Material



Flanges Material



Other Products
