Incoloy 800 Pipe Fittings

Nickel Alloy 800 Elbow and ASTM B366 UNS N08800 Tee manufacturer in India

What is Incoloy 800 Pipe Fittings?
The Incoloy 800 material is an alloy of elements like iron, chromium, and nickel. The chemical composition of this alloy has helped it to develop some unique features, like stability. It is capable of maintaining its austenitic structure even after being exposed to high temperatures for a long time. They are also popular for their high strength and enhanced resistance to different types of environments, including aqueous, oxidizing, and reducing.
The machinability of Incoloy 800 Pipe Fittings is the same as that of any iron-based alloy fittings, which means they tend to be work-hardened while machining. They have good weldability and hence, can be welded using standard techniques. It shows high ductility and formability. Due to all these unique properties, the Incoloy 800 Pipe Fittings are used in a wide range of applications across various industries. It is used in heat exchangers, carburizing equipmney, heating elements, and so on.
The Incoloy 800 Pipe Fittings can retain its properties up to the temperature of 1500 degrees F. The chemical composition of the material has a very high nickel content, and that is why they are resistant to chloride related stress corrosion cracking, and embrittlement. The fittings are available in butt-welded and socket-welded forms, and there are different types of Incoloy 800 Pipe Fittings which are used for various purposes.

Alloy 800 Socket Weld Fittings Vs UNS N08800 Threaded Fittings

• Alloy 800 Socket Weld Fittings have sockets through which the pipes are inserted and then it is joined by fillet welds. However, to join the UNS N08800 Threaded Fittings to the pipe, no welding is required. It can be screwed easily.
• The installation process is much easier for threaded fittings when compared to socket weld fittings, and hence they should be used with those pipes that need frequent assembling and disassembling.
• The socket weld fittings are stronger and capable of working with critical applications, compared to threaded fittings, which are mostly used for non-critical applications.
• The threaded fittings are more affordable compared to the socket weld fittings.

Nickel 800 Reducer Vs Incoloy 800 Equal Tee
The Nickel 800 Reducer is used for changing the size of the pipe from a larger to a smaller bore. They also help in controlling the rate of flow of the pipe run. There are two types of Nickel 800 Reducers, namely concentric reducers which are used for vertical applications and they are the most common ones, and eccentric reducers which are used for maintaining the same top or bottom level (horizontal applications).
The Incoloy 800 Equal Tee is a type of T-shaped fittings, that helps to combine or divide the flow, change the flow direction, and also control the rate of flow inside the pipe. For equal tee, the diameter of the branches or outlets is same as that of the main connection line.

Incoloy 800H Fittings Vs Incoloy 800Ht Buttweld Fittings
The main difference between the Incoloy 800H Fittings and the Incoloy 800Ht Buttweld Fittings, is in their chemical composition, which also impacts their properties. There is a restricted amount of aluminum and titanium in the 800Ht alloy, which enhances its creep and rupture properties.

UNS N08800 Short Radius Elbow vs WNR 1.4876 Long Radius Elbows
The primary difference between the UNS N08800 Short Radius Elbow and the WNR 1.4876 Long Radius Elbows are in their radius of curvature. While for short radius elbows, it is the same as that of the diameter of the pipe, for long radius elbows, it is 1.5 times the pipe’s diameter. The longer the radius, the more efficient the change in the flow direction.

Incoloy 800 Pipe Fittings

Incoloy 800 Pipe Fittings manufacturers in India offers widest selection of Inconel 800 Eccentric / Concentric Reducer and Nickel Alloy 800 Stub End in Mumbai

Table of Content

• Standard Specification of Incoloy 800 Pipe Fittings
• Nickel 800 Forged Fittings
• Alloy 800 Socket Weld Fittings
• UNS N08800 Threaded Fittings
• Incoloy 800 Pipe Fittings Price List
• Incoloy 800 Buttweld Fittings Pressure Rating
• Dimension Chart of Incoloy Alloy 800 Fittings
• Incoloy 800 Elbow Chemical Composition
• Nickel 800 Pipe Fittings Mechanical Properties
• Incoloy Alloy 800 Weld Fittings Equivalent
• Different Types of Incoloy 800 Pipe Fittings

• Incoloy 800HT Buttweld/ Forged Fittings
• Incoloy 800H Buttweld/ Forged Fittings
• ASME B16.11 Incoloy 800 Forged Fittings Dimensions
• ASTM B366 UNS N08800 Reducer Weight Table
• Nickel 800 Reducer Dimensions Chart
• Dimensions Table of Nickel Alloy 800 Tee
• Dimension Chart of Incoloy 800Ht Threaded Cap
• Hot working Temperature of Alloy UNS N08800 Reducer
• Alloy 800 Buttweld Fittings Applications
• Characteristics of Incoloy 800 Fitting

Standard Specification of Incoloy 800 Pipe Fittings

Incoloy 800 Pipe Fitting Specifications	ASTM B366
Incoloy 800H Fitting Thickness	SCH30, SCH10, SCH 160, SCH20, SCH60, XS, STD SCH40, SCH 80, SCH 120, SCH 140, SCH 100, XXS available with NACE MR 01-75
Incoloy 800 Fitting Sizes	WNR 1.4876 Seamless Fitting: 1/2" - 10" ASME B16 9 Incoloy 800Ht Welded Fitting: 1/2" - 48"
Nickel Alloy 800 Fittings Type Manufacturer	DN15-DN1200
Bending Radius Provided By Manufacturer	R=1D, 3D, 2D, 5D, 8D, 6D, 10D or Custom ASTM B366 UNS N08800 Fitting
Size Range	½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Nickel Alloy 800H Welded Fitting
Incoloy 800 Pipe Fittings Connection	Welding
ASME B16.9 UNS N08800 Semaless Fitting Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Alloy 800 Fittings Origin & Mills	European, Japanese, USA, Korean, Ukraine, Indian, Russian
Incoloy 800 Forged Fitting Pressure Rating	Threaded end - 3000lb/ 2000lb/ 6000lbs Socket weld end- 6000/ 3000/ 9000lbs
Nickel 800 Buttweld Pipe Fitting Dimensions	ASME B16.28, ASME/ANSI B16.9, BS4504, MSS-SP-43, BS1560, BS4504, BS10
ASME B16.9 Incoloy 800 Buttweld Fittings Manufacturing process	Push, Forge, Press, Cast, etc.
Specialized Incoloy 800 Pipe Fitting Manufacturer of	Alloy UNS N08800 Stub End, 90º Elbows, Tees, Pipe Cap, Crosses, 45º Elbows, Reducers, Pipe Bend
ASME B16.11 Nickel 825 Threaded Fittings Thread Provided By Manufacturer	BSPT, NPT, BSPP
Nickel Alloy 800H Products Manufacturer	Half Coupling, Union, Tee, Cross, Coupling, Cap, Outlet, Welding Outlet, Boss, Insert
Nickel Alloy 800 Elbows Manufacturer	Angle : 22.5 deg, 45 deg, 30deg, 90 deg, 1.0D, 180 deg, 1.5D, 3D, 2.5D, 2.0D, 4D, 6D, 5D, 7D-40D . Standard: ASME B16.28, GB, ASME B16.9, MSS SP-75 JISB2311 DIN2605 JISB2312 JISB2313, ASME B16.25, BS, ISO
Dimension Specification	MSS SP-79, 95, 83, 97, BS 3799, ASME 16.11
Application of Industrial Incoloy 800 Pipe Fittings	Fittings To Connect Tubes and Pipe in Gas, Petroleum, Metallurgy, Chemical, Power, Construction, Shipbuilding etc

Well Known Incoloy 800 Fitting dealers, supplier, wholesalers, stockholders, importer, stockists, distributor, exporters and Manufacturer in Mumbai

Nickel 800 Forged Fittings

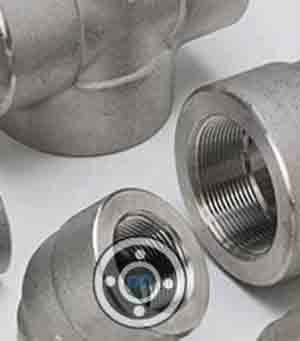

Nickel 800 Forged Fittings

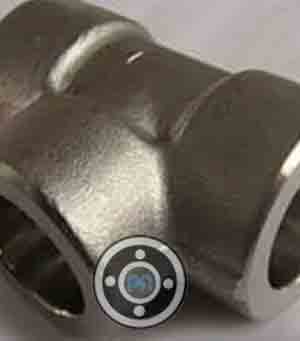

Incoloy Alloy 800 Forged Tee

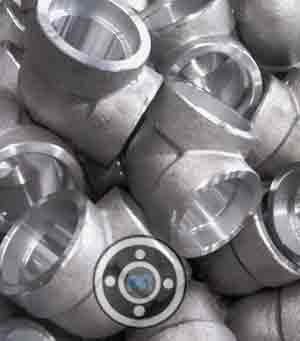

ASTM B366 UNS N08800 Forged Elbow

Alloy 800 Socket Weld Fittings

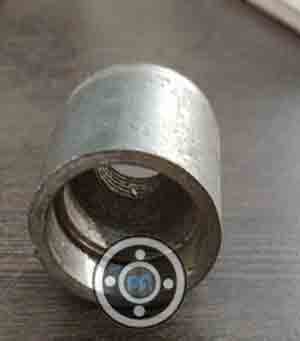

Incoloy 800 Socket Weld Full Coupling

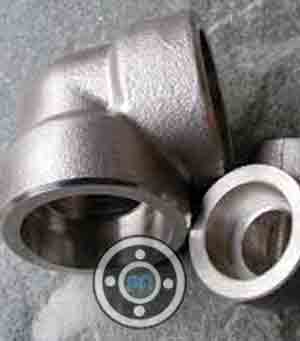

WNR 1.4876 Socket Weld Elbow

Nickel Alloy 800 SW Tee

Manufacturer of welded ASTM B366 UNS N08800 Buttweld Fittings and Incoloy 800 Forged Fittings according to ASME B16.9/ B16.11/ EN 10253-4

UNS N08800 Threaded Fittings

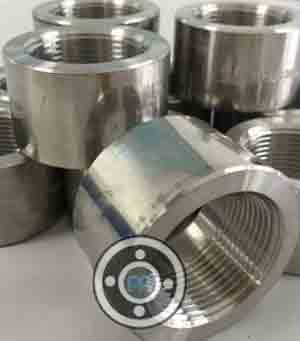

UNS N08800 Threaded Fittings

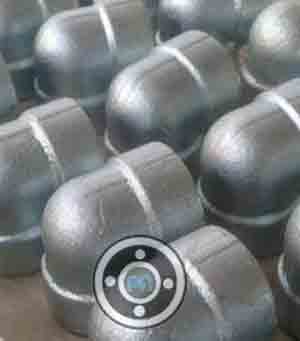

ASME B16.11 Incoloy 800 Threaded Elbow

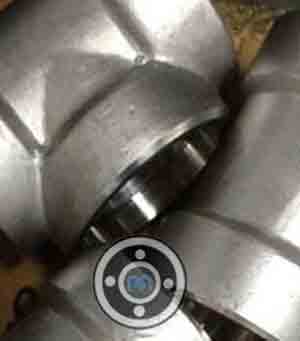

Incoloy Alloy 800 Threaded Tee

Incoloy 800 Pipe Fittings Price List

Incoloy 800 Pipe Fittings Price Per Piece in India	Alloy 800 Buttweld Fittings Price in INR	Nickel 800 Fittings Price in UAE Dirham	Incoloy 800H Weld Fittings Price in USD
ASTM B366 Alloy 800 butt weld Cap Per Piece	2252.37	UAE Dirham 110.19	$30
ASTM B366 Grade Wpnic Incoloy 800 Pipe Fittings Per Kg	1501.53	UAE Dirham 73.46	$20
Nickel Alloy ASTM B 366b Gr. Wpnic Elbow Per Piece	1726.76	UAE Dirham 84.48	$23

Feel free to contact us latest price list of Alloy 800 Buttweld Fittings in Mumbai. Compare our price with other Incoloy 800 Pipe Fittings Manufacturer in India.

Incoloy 800 Buttweld Fittings Pressure Rating

Normal Size Of Pipe (inches)	Pipe Sch	OD (inch)	Wall Thick. (inch)	Temperature(oF)
				100	200	300	400	500	600	650	700	750
				Allowable Stress(psi)
				16700	16700	16700	15500	14400	13500	13200	12900	12600
1"	40	1.315	0.133	2205	2205	2205	2047	1902	1783	1743	1703	1664
	80	1.315	0.179	3061	3061	3061	2841	2640	2475	2420	2365	2310
	160	1.315	0.250	4493	4493	4493	4170	3874	3632	3552	3471	3390
1 1/2"	40	1.900	0.145	1629	1629	1629	1512	1404	1317	1287	1258	1229
	80	1.900	0.200	2303	2303	2303	2138	1986	1862	1821	1779	1738
	160	1.900	0.281	3362	3362	3362	3120	2899	2717	2657	2597	2536
2"	40	2.375	0.154	1371	1371	1371	1272	1182	1108	1083	1059	1034
	80	2.375	0.218	1985	1985	1985	1843	1712	1605	1569	1534	1498
	160	2.375	0.344	3283	3283	3283	3047	2831	2654	2595	2536	2477
3"	40	3.500	0.216	1301	1301	1301	1208	1122	1052	1028	1005	982
	80	3.500	0.300	1844	1844	1844	1712	1590	1491	1458	1425	1391
	160	3.500	0.438	2787	2787	2787	2587	2403	2253	2203	2153	2103
4"	40	4.500	0.237	1102	1102	1102	1023	950	891	871	851	831
	80	4.500	0.337	1596	1596	1596	1482	1377	1291	1262	1233	1204
	160	4.500	0.531	2611	2611	2611	2424	2552	2111	2064	2017	1970
5"	40	5.563	0.258	965	965	965	896	832	780	763	746	728
	80	5.563	0.375	1428	1428	1428	1325	1231	1154	1129	1103	1077
	160	5.563	0.625	2474	2474	2474	2296	2133	2000	1955	1911	1866
6"	40	6.625	0.280	877	877	877	814	756	709	693	677	661
	80	6.625	0.432	1379	1379	1379	1280	1189	1115	1090	1065	1040
	160	6.625	0.719	2382	2382	2382	2211	2054	1925	1883	1840	1797
8"	40	8.625	0.322	771	771	771	716	665	623	610	596	582
	80	8.625	0.500	1218	1218	1218	1131	1050	985	963	941	919
	160	8.625	0.906	2298	2298	2298	2133	1982	1858	1817	1775	1734
10"	40	10.750	0.365	699	699	699	649	603	565	553	540	528
	80	10.750	0.594	1159	1159	1159	1075	999	937	916	895	874
	160	10.750	1.125	2289	2289	2289	2124	1974	1850	1809	1768	1727

Manufacturer of Incoloy 800 Short Radius Elbow, DIN 1.4876 Long Radius Elbow and 3R Elbows in India

Dimension Chart of Incoloy Alloy 800 Fittings

Nominal Pipe Size	Outside Diameter		90° Elbows		45° Elbows		180° Returns
(inches)			Long Radius	Short Radius	Long Radius		Long Radius
	(mm)	(inches)	Center to Face (inches)	Center to Face (inches)	Center to Face (inches)	Radius (inches)	Center to Center (inches)	Back to face (inches)
1/2	21.3	0.840	1 1/2	-	5/8		2	1 7/8
3/4	26.7	1.050	1 1/8	-	7/16		2 1/4	1 11/16
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8

Incoloy 800 Elbow Chemical Composition

Grade	Al	Ti	C	Mn	Si	S	Cu	Fe	Ni	Cr
800	0.15 – 0.60	0.15 – 0.60	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00

Nickel 800 Pipe Fittings Mechanical Properties

Element	Yield Strength (0.2%Offset)	Density	Melting Point	Tensile Strength	Elongation
800 / 800H / 800HT	7.94 g/cm3	Psi – 30,000 , MPa – 205	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	30 %

Incoloy Alloy 800 Weld Fittings Equivalent

STANDARD	UNS	JIS	BS	GOST	EN	OR	WERKSTOFF NR.	AFNOR
Incoloy 800	N08800	NCF 800	NA 15	ЭИ670	X10NiCrAlTi32-20	XH32T	1.4876	Z8NC32-21

Different Types of Incoloy 800 Pipe Fittings

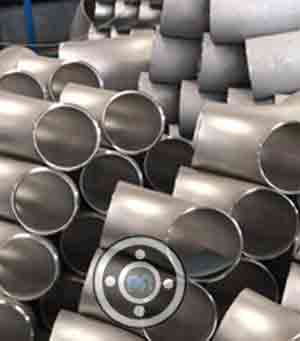

ASME SB366 800 Incoloy 90° Short Radius Elbow

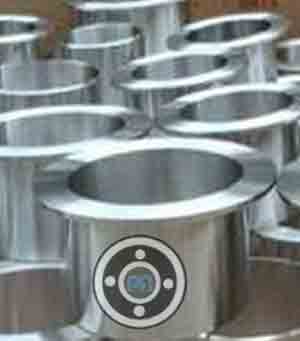

SCH XXS Incoloy 800Ht Lap Joint Stub Ends

Nickel Alloy 800 Equal Tee

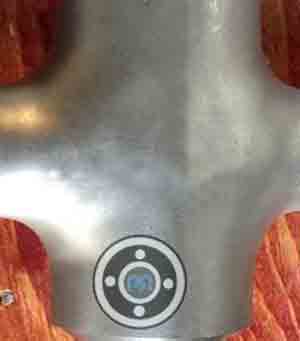

450 NB SCH 40 Incoloy 800H Equal Cross

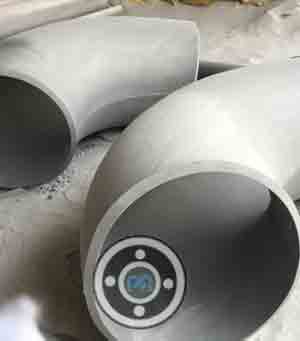

Werkstoff Nr. 1.4876 90° Long Radius Elbow

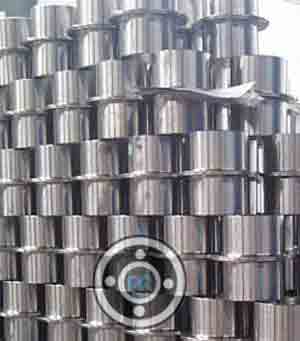

SCH XS ASTM B366 UNS N08800 Stub End

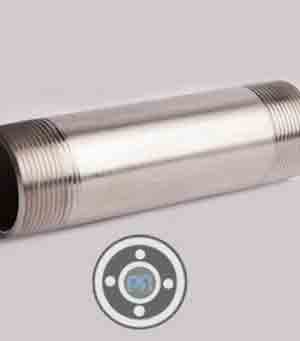

Alloy UNS N08800 Pipe Nipples

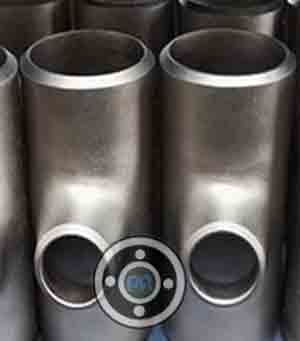

SCH 140 Incoloy 800 Straight Tees and Crosses

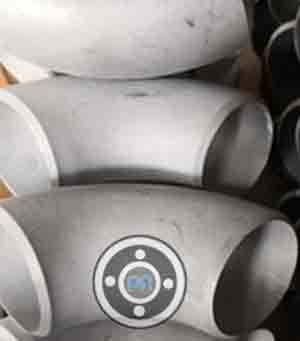

Nickel Alloy 800 180° Short Radius Elbow

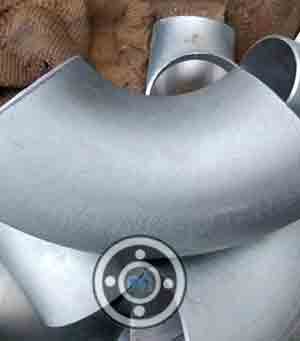

Nickel 800 3D Elbow

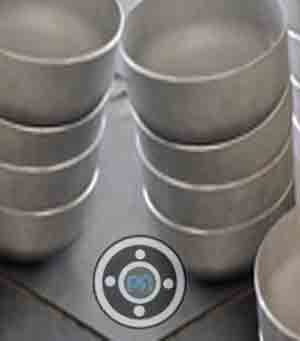

SCH 160 ASME SB366 800 Incoloy End Cap

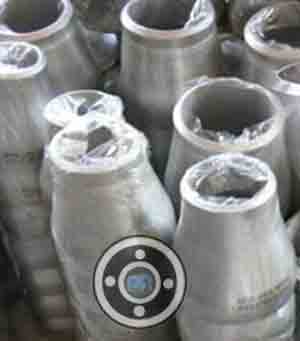

UNS N08800 Eccentric Reducer

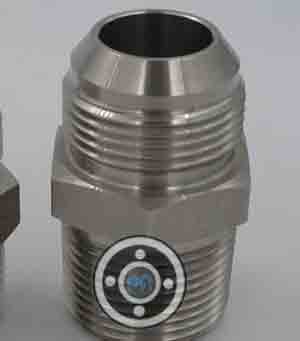

SCH STD WNR 1.4876 Reducing Nipple

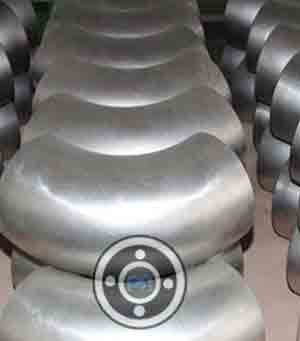

UNS N08800 Welded Elbows

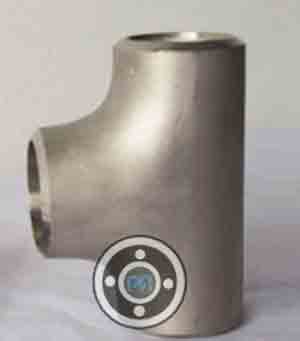

SCH 80 Alloy 800 Reducing Tee

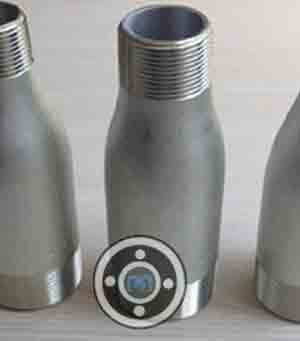

Nickel 800 Swage Nipple

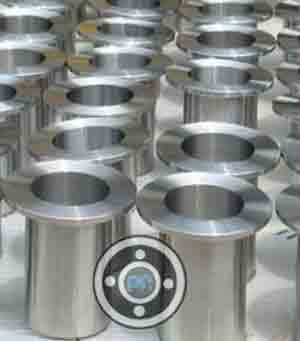

ASTM B366 UNS N08800 Long Stubend

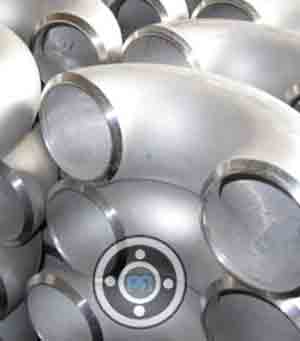

Incoloy 800 Seamless Buttwelding 180° Returns

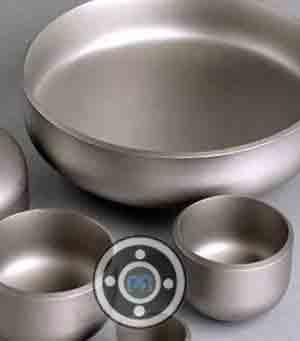

Incoloy Alloy 800 Pipe Cap

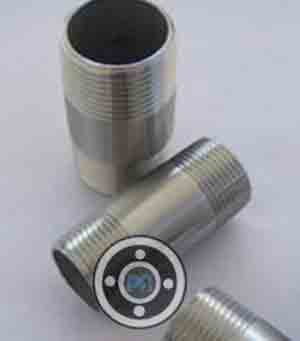

Incoloy Alloy 800 Barrel Nipple

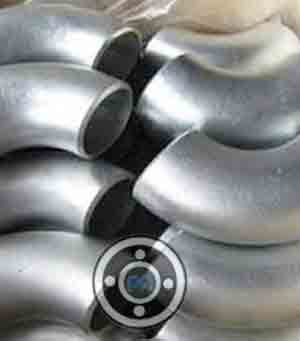

SCH 10 Nickel Alloy 800H 10D ELBOW

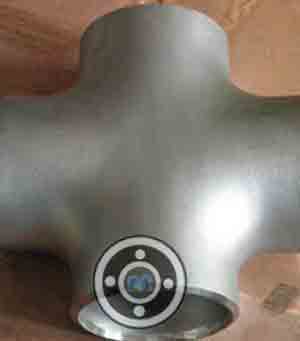

ASTM B366 UNS N08800 Reducing Cross

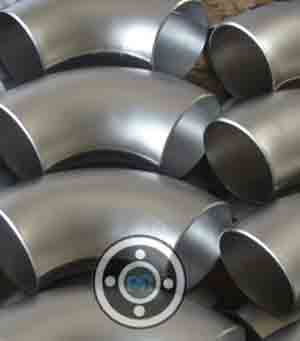

Alloy 800 45° Short Radius Elbow

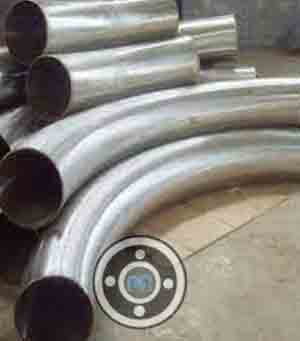

WNR 1.4876 Long Radius Bend

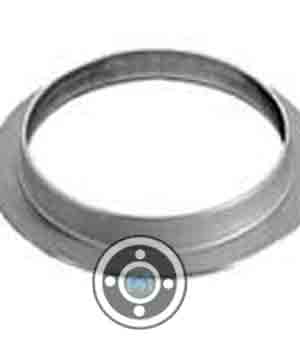

SCH 60 ASME SB366 800 Incoloy Collar

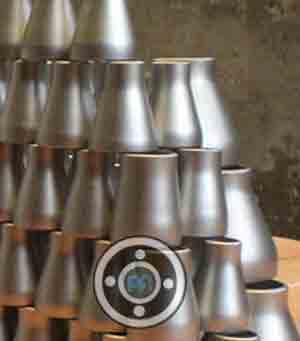

Nickel Alloy 800 Concentric Reducer

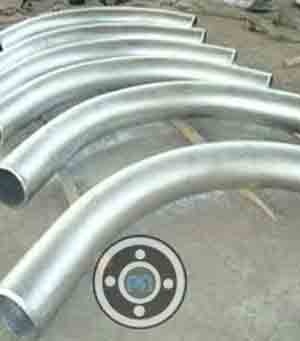

15 NB SCH 100 Incoloy 800H Bend

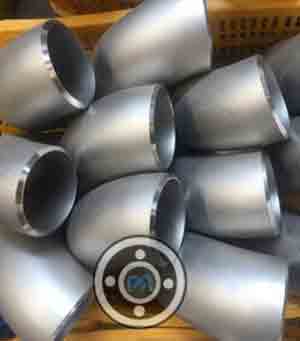

Incoloy 800Ht 1D Elbow

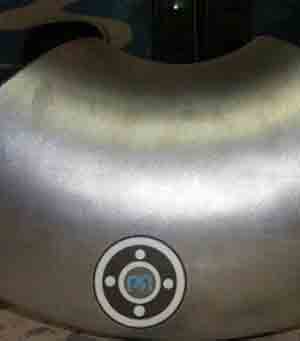

SCH 120 Alloy UNS N08800 180° Long Radius Elbow

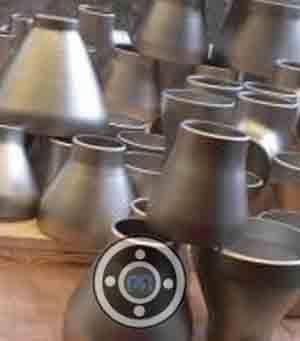

UNS N08800 Reducers

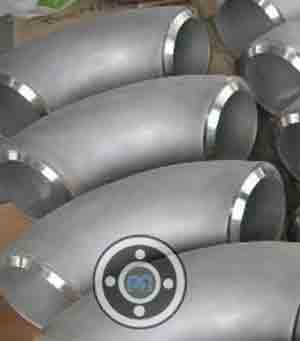

SCH 30 Incoloy Alloy 800 5D Elbow

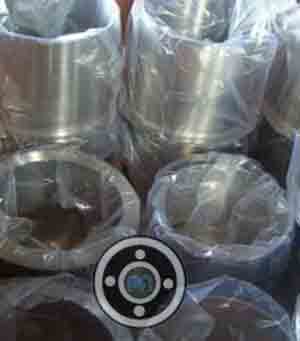

Incoloy 800 Short Stubend

SCH 20 Nickel Alloy 800H Seamless Buttwelding 45° and 90° Elbows

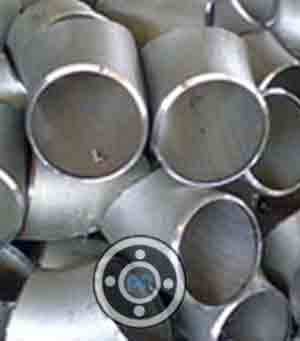

Alloy UNS N08800 1.5D Elbow

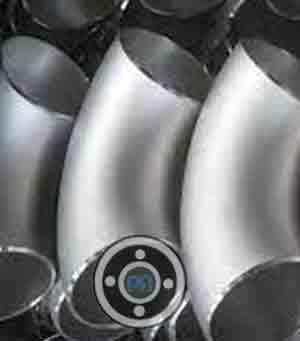

Werkstoff Nr. 1.4876 45° Long Radius Elbow

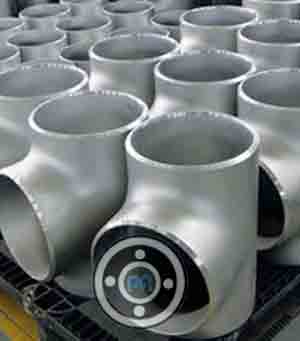

Nickel Alloy 800H Reducing Outlet Tees and Reducing Outlet Crosses

Incoloy 800HT Buttweld/ Forged Fittings

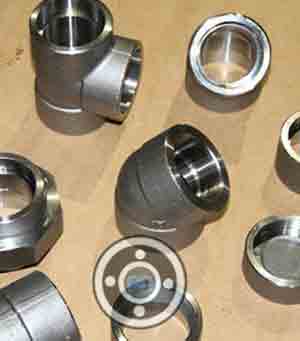

Incoloy 800Ht Socket Weld Fittings

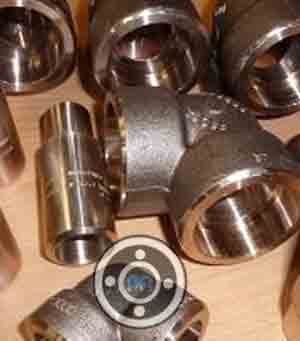

Nickel 800Ht Forged Fittings

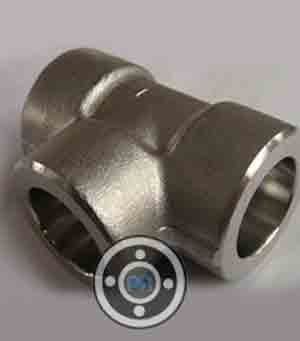

Alloy 800Ht Forged Tee

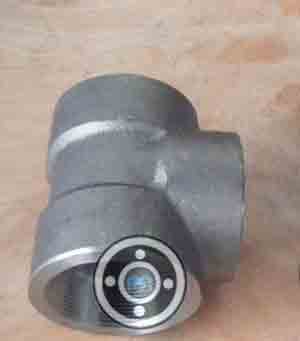

NCF 800HT Threaded Fittings

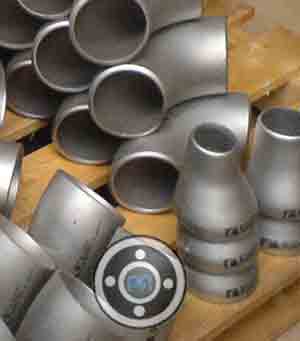

Incoloy Alloy 800Ht Buttweld Fittings

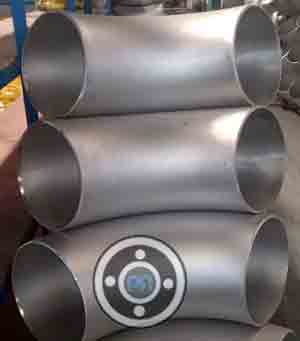

UNS N08811 Buttweld Elbow

Incoloy 800H Buttweld/ Forged Fittings

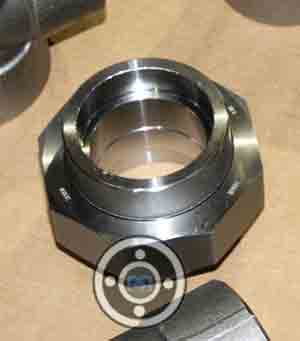

Incoloy 800H Socket Weld Fittings

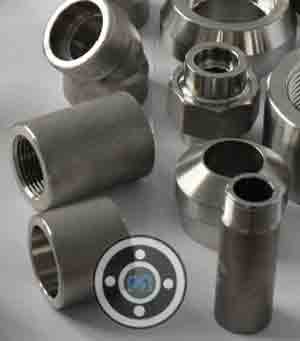

Alloy 800H Forged Fittings

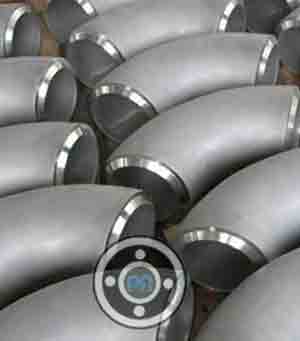

DIN 1.4958 Buttweld Elbow

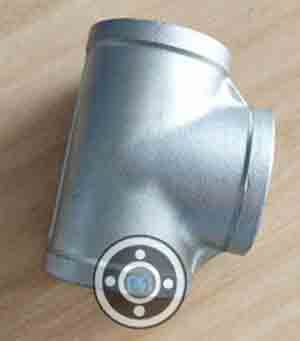

Nickel 800H Forged Tee

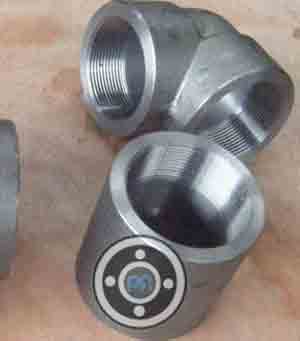

Incoloy Alloy 800H Threaded Fittings

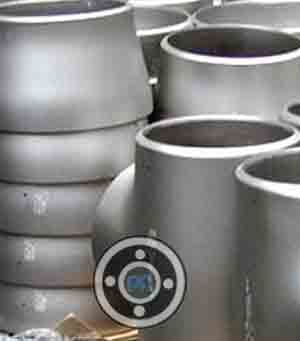

UNS N08810 Buttweld Fittings

Manufacturer of Incoloy 800 Equal/ Unequal Tee and ASME SB 366 UNS N08800 Pipe Cap offers Ultrasonic Testing & and Eddy Current Testing

ASME B16.11 Incoloy 800 Forged Fittings Dimensions

NPS	Socket Bore	Depth Socket	Bore DIA	Socket WT	Body WT
	B	J	D	C	G
1/2	21.95 21.70	10	16.6 15	4.65 4.10	3.75
3/4	27.30 27.05	13	21.7 20.2	4.90 4.25	3.90
1	34.05 33.80	13	27.4 25.9	5.70 5.00	4.55
1.1/4	42.80 42.55	13	35.8 34.3	6.05 5.30	4.85
1.1/2	48.90 48.65	13	41.7 40.1	6.35 5.55	5.10
2	61.35 61.10	16	53.5 51.7	6.95 6.05	5.55
2.1/2	74.20 73.80	16	64.2 61.2	8.75 7.65	7.00
3	90.15 89.80	16	79.5 46.4	9.50 8.30	7.60
4	115.80 115.45	19	103.8 100.7	10.70 9.35	8.55

ASTM B366 UNS N08800 Reducer Weight Table

Nominal Size		SCH20	STD	SCH40S	SCH80S	SCH120	SCH160
DN	NPS
15	1/2		0.08	0.08	0.1
20	3/4		0.17	0.17	0.2
25	1		0.21	0.21	0.25		0.22
32	1 1/4		0.29	0.29	0.35
40	1 1/2		0.42	0.42	0.58		0.6
50	2		0.8	0.8	1.03		1.04
65	2 1/2		1.05	1.05	1.42		1.65
80	3		1.36	1.36	1.9
90	3 1/2		1.63	1.63	2.27		2.4
100	4		2.77	2.77	3.93		4.4
125	5		3.96	3.96	6		7.14
150	6		6.31	6.31	9.26		10.8
200	8	7.85	10.7	10.7	17.5	15	18.4
250	10	11.2	15.8	16.3	25.1	25.1	32.5
300	12	25.6	28.8	32.1	56.5	41.7	53.3
350	14	30.5	38.5	48.8	79	84.5	106
400	16	35.2	44.5	64.3	102	112	143
450	18	62.7	62.7	98.5	165
500	20	72.6	72.6		181
550	22	97	79.1	142	226
600	24	130	100

Nickel 800 Reducer Dimensions Chart

Nominal Pipe Size	Outside Diameter		Reducers
Reduced from (inches)	(inches)	(mm)	Concentric & Eccentric Length (inches)	Reduced to (inches)
1/2	0.840	21.3	1 1/2	1/4
			1 1/2	3/8
3/4	1.050	26.7	2	3/8
			2	1/2
1	1.315	33.4	2	3/8
			2	1/2
			2	3/4
1 1/4	1.660	42.2	2	1/2
			2	3/4
			2	1
1 1/2	1.900	48.3	2 1/2	1/2
			2 1/2	3/4
			2 1/2	1
			2 1/2	1 1/4
2	2.375	60.3	3	3/4
			3	1
			3	1 1/4
			3	1 1/2
2 1/2	2.875	73.0	3 1/2	1
			3 1/2	1 1/4
			3 1/2	1 1/2
			3 1/2	2
3	3.500	88.9	3 1/2	1
			3 1/2	1 1/2
			3 1/2	2
			3 1/2	2 1/2
3 1/2	4.000	101.6	4	1 1/4
			4	1 1/2
			4	2
			4	2 1/2
			4	3
4	4.500	114.3	4	1 1/2
			4	2
			4	2 1/2
			4	3
			4	3 1/2
5	5.563	141.3	5	2
			5	2 1/2
			5	3
			5	3 1/2
			5	4
6	6.625	168.3	5 1/2	2 1/2
			5 1/2	3
			5 1/2	3 1/2
			5 1/2	4
			5 1/2	5
8	8.625	219.1	6	3
			6	3 1/2
			6	4
			6	5
			6	6
10	10.750	273.1	7	4
			7	5
			7	6
			7	8
12	12.750	323.9	8	5
			8	6
			8	8
			8	10

Dimensions Table of Nickel Alloy 800 Tee

NOMINAL PIPE SIZE	LENGTH	CENTER TO END	OUTSIDE DIAMETER
Inch.	M	C	OD
1/2	25	25	21.3
3/4	29	29	26.7
1	38	38	33.4
1 1/4	48	48	42.2
1 1/2	57	57	48.3
2	64	64	60.3
2 1/2	76	76	73
3	86	86	88.9
3 1/2	95	95	101.6
4	105	105	114.3
5	124	124	141.3
6	143	143	168.3
8	178	178	219.1
10	216	216	273.1
12	254	254	323.9
14	279	279	355.6
16	305	305	406.4
18	343	343	457.2
20	381	381	508
22	419	419	559
24	432	432	610
26	495	495	660
28	521	521	711
30	559	559	762
32	597	597	813
34	635	635	864
36	673	673	914
38	711	711	965
40	749	749	1016
42	711	762	1067
44	762	813	1118
46	800	851	1168
48	838	889	1219

Dimension Chart of Incoloy 800Ht Threaded Cap

NPS	End to End	Outside Diameter	Minimum End Wall Thickness	Min Length of Thread
	A	D	G	B	J
1/2	32	28	6.4	10.9	13.6
3/4	37	35.	6.4	12.7	13.9
1	41	44	9.7	14.7	17.3
1.1/4	44	57	9.7	17	18
1.1/2	44	64	11.2	17.8	18.4
2	48	76	12.7	19	19.2
2.1/2	60	92	15.7	23.6	28.9
3	65	108	19	25.9	30.5
4	68	140	22.4	27.7	33

Hot working Temperature of Alloy UNS N08800 Reducer

Hot working Temperature

871-1232°C (1600-2250°F)

Alloy 800 Buttweld Fittings Applications

• Chemical processing
• Pollution control
• Calorifiers
• Oil and gas recovery
• Nuclear fuel reprocessing
• Radioactive waste handling
• Marine exhaust systems

Characteristics of Incoloy 800 Fitting

• High temperature strength
• High creep rupture strength
• Resistant to oxidation
• Good corrosion resistance in acidic environments

Check About Our Clients Where We Supplied

ASME SB366 UNS N08800 SR Elbow

Kuala Lumpur, Poland, Tehran -Iran, Qatar, Indonesia, South Korea, United States, Dubai

800ht Incoloy Buttweld Pipe Fittings

Malaysia, France, Jakarta -Indonesia, Romania Dubai- UAE, Iran, Netherlands, Singapore

Nickel Alloy 800 Concentric Reducer

Chile, South Africa, Malaysia, Kuwait, Europe, Vietnam, Czechia, Norway, Belgium, Germany, Nigeria

800 Incoloy Buttweld Fittings

Istanbul- Turkey, Argentina, NY 12203 (USA), Bahrain, Oman, Bangladesh, Finland, Jakarta, Hong Kong, Brazil

ASTM B366 800H Incoloy End Cap

Japan, United Kingdom (UK), Ellington -United States, Spain, Saudi Arabia (KSA), Malaysia, USA, Thailand

Incoloy 800Ht 45 deg elbow

Canada, Austria, Turkey, Philippines, Los Alamos -Mexico, Dammam -KSA, Greece, Singapore
