ASME B16.9 Equal Tee and ASTM A234 WPB Unequal Tee exporter in Mumbai

What is Carbon Steel Tee?
A Carbon Steel Tee is one of the most commonly used pipe fittings across several industries. They are T-shaped fittings which primarily help in combining or dividing the flow of the pipe run. It also helps to control the flow rate inside the pipe to some extent and also, and they can even change the direction of the pipe run. There are basically two types of Carbon Steel Tee:

  • Equal tee- That comes with the same inlet and outlet sizes.
  • Reducing tee- They have one or two ends in different dimensions.

The Carbon Steel Tee are available in various sizes, finishes, and can be customized according to the specific requirements. They are mostly used in pipeline networks for transporting two-phase fluid mixtures. They are extensively used in industries like petroleum, chemical processing, marine, automotive, pulp and paper, waste treatment, textile, and many more.

Carbon Steel Equal Tee Vs Carbon Steel Reducing Tee
The main difference between Carbon Steel Equal Tee and Carbon Steel Reducing Tee is that, for equal tee, all the branches come with the same diameter, whereas for reducing tee, the diameter of the branches is smaller than the main line diameter. The reducing tee is more widely used compared to the equal tee as it is more functional and sits perfect for more applications in diverse environments. But the equal tee is available in all common diameters whereas reducing tees do not give much choice when it comes to versatility in diameters.

How Many Types of Carbon Steel Pipe Tee are there?
Four Types of Carbon Steel Pipe Tee are there, namely:

  • Socket welded tees- They are forged and used for 2” run size on services that have the socket welded connections. The standard is ASME B16.11.
  • Threaded tees- it has the same ASME B16.11 standard and dimensions, ratings, material, etc., same as that of socket weld tees, except that the ends are thread type.
  • Buttwelded tees- The standard for this is ASME B16.9, and they are available in the size range of ½” through 48”.
  • Flanged tees- These are for flanged end connections used in normal to large bore pressure piping.

Carbon Steel Lateral Vs Barred Tee

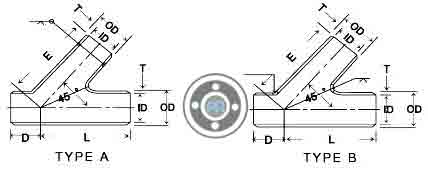

A Carbon Steel Lateral Tee is quite similar to a tee, but they have a side opening outlet branch located at a 45 degree angle. It is like a common tee fitting, but the direction of the branch is different when compared to a straight tee. The lateral tee can be a reducing or an equal tees.
Carbon Steel Barred Tee is primarily used in a pig launcher or in the receiver system of the pipe. They help to ensure that the pigs can pass safely through the branch.

Carbon Steel Tee manufacturer in India

Carbon Steel Tee manufacturer in India

European Directive 2014/68/eu certified Carbon Steel Reducing Tee manufacturers in Mumbai offers wide selection of ASTM A234 WPC Flanged Tee and WPHY 42 Straight Tee in India

Table of Content


Standard ASME B16.9, ASME B16.28
Size Seamless: 1/2" – 24"
One welding seam: 26" – 36"
Two welding seam: 38" – 72"
Wall Thickness Provided By Manufacturer 1.65mm to 80mm, SCH 5, SCH 10, SCH 40, SCH 80, SCH 100, SCH XS, SCH XXS, Custom Thickness
Type Seamless, Welded, 100% X-Ray Welded or Fabricated, Miter Bends
Surface Finish Shot blasting, Black Phosphating, Black, Oiled, Paint, Hairline, Mirror, Galvanized, Anti Corrosive
Certifications Provided By Manufacturer ISO 9001 : 2015, ISO 14001:2015, OHSAS 18001:2015, PED 97/23/EC
Mill TC as per EN 10204 3.1
Standard Dimensions Of JIS B2302, ASME/ANSI B16.11, BS3799, MSS SP 95, MSS SP 83, MSS SP 79
Packing Wooden Pallets
Payment LC, TT

Well Known ASME B16.9 Equal Tee exporters, supplier, wholesalers, distributor, stockists, importer, stockholders, dealers and Manufacturer in Mumbai

  • Equre tee: Indicates that the branch diameter of these tees are the same as the main pipe (Run pipe) diameter of this tees.
  • Reducing tee: It is a pipe fitting in which the branch port is smaller than the run ports.
  • Barred tees: Pipelines that are pigged use barred tees.
  • Lateral tees: A pipeline has a 45-degree branch from a lateral tees.
  • Forged Tees: These pipe fittings are primarily made by forging.
Carbon Steel Tee Price Per Piece in India ASME B16.9 Equal Tee Price in INR ASTM A234 WPB Unequal Tees Price in UAE Dirham Carbon Steel Reducing Tees Price in USD
DN 50X40, UNEQUAL TEES, SCH 40X80, SA234 GR.WPB Per Kg 85 UAE Dirham 2.19 $0.60
DN 80X50, UNEQUAL TEES, SCH 40/STD, SA234 GR.WPB Per Kg 108 UAE Dirham 5.37 $1.46
DN 80X50, UNEQUAL TEES, SCH 40/STD, SA234 GR.WPB Per Kg 117 UAE Dirham 5.81 $1.58
CARBON STEEL SA420 WPL6-S, STRAIGHT TEE, X-S,150DN Per Kg 253 UAE Dirham 12.57 $3.42

Petromet Flanges is one of the leading Carbon Steel Tee manufacturer in India. Contact us to get latest Price List of ASTM A234 WPB Unequal Tee. Our WPHY 52 Lateral Tee are tested to international standards.

EN DIN 10253-4 Seamless/ Welded ASTM A420 WPL6 Barred Tee and WPHY 52 Lateral Tee manufacturer in India

NPS LBS KG
1/2 0.35 0.16
3/4 0.45 0.2
1 0.75 0.34
1.1/4 1.3 0.59
1.1/2 2 0.91
2 3.5 1.59
2.1/2 6 2.72
3 7 3.18
3.1/2 9 4.08
4 12 5.44
5 21 9.53
6 34 15.42
8 55 24.95
10 85 38.56
12 120 54.43
14 165 74.84
16 195 88.45
18 249 112.94
20 342 155.13
22 414 187.79
24 528 239.5
26 770 349.27
30 1060 480.81
36 1490 675.85
NPS LBS KG
1/2-3/8 0.25 0.11
1/2-1/4 0.25 0.11
3/4-1/2 0.5 0.23
3/4-3/8 0.5 0.23
1-3/4 0.93 0.42
1-1/2 0.88 0.4
1.1/4-1 1.5 0.68
1.1/4-3/4 1.5 0.68
1.1/4-1/2 1.5 0.68
1.1/2-1.1/4 2.25 1.02
1.1/2-1 2.18 0.99
1.1/2-3/4 2.13 0.97
1.1/2-1/2 2 0.91
2-1.1/2 3.75 1.7
2-1.1/4 3.6 1.63
2-1 3.5 1.59
2-3/4 3.25 1.47
2.1/2-2 6 2.72
2.1/2-1.1/2 5.5 2.49
2.1/2-1.1/4 5.25 2.38
2.1/2-1 5 2.27
3-2.1/2 6.75 3.06
3-2 6.5 2.95
3-1.1/2 6.25 2.83
3-1.1/4 6.15 2.79
3.1/2-3 8.8 3.99
3.1/2-2.1/2 8.5 3.86
3.1/2-2 8.3 3.76
3.1/2-1.1/2 8 3.63
3.1/2-1.1/4 - -
4-3.1/2 11.8 5.35
4-3 11.6 5.26
4-2.1/2 11.3 5.13
4-2 11.15 5.06
4-1.1/2 11.25 5.1
5-4 21 9.53
5-3.1/2 20.5 9.3
5-3 20 9.07
5-2.1/2 19.5 8.85
5-2 19 8.62
6-5 34.5 15.65
6-4 33.5 15.2
6-3.1/2 33 14.97
6-3 32.5 14.74
6-2.1/2 32 14.51
8-6 54 24.49
8-5 53 24.04
8-4 51.7 23.45
8-3.1/2 50.7 23
10-8 84.5 38.33
10-6 83 37.65
10-5 81 36.74
10-4 80 36.29
12-10 119 53.98
12-8 117 53.07
12-6 114 51.71
12-5 110 49.9
14-12 160 72.57
14-10 158 71.67
14-8 155 70.31
14-6 115 52.16
16-14 194 88
16-12 191 86.64
16-10 186 84.37
16-8 180 81.65
16-6 173 78.47
18-16 241 109.32
18-14 236 107.05
18-12 230 104.33
18-10 222 100.7
18-8 211 95.71
20-18 340 154.22
20-16 338 153.31
20-14 336 152.41
20-12 334 151.5
20-10 332 150.59
20-8 330 149.69
22-20 412 186.88
22-18 410 185.97
22-16 408 185.07
22-14 406 184.16
22-12 404 183.25
22-10 402 182.34
24-22 525 238.14
24-20 522 236.78
24-18 519 235.41
24-16 516 234.05
24-14 513 232.69
24-12 510 231.33
24-10 507 229.97
26-24 760 344.73
26-22 755 342.46
26-20 750 340.19
26-18 745 337.93
26-16 740 335.66
26-14 735 333.39
26-12 730 331.12
28-26 - -
28-24 - -
28-22 - -
28-20 - -
30-28 - -
30-26 1045 474
30-24 1035 469.47
30-22 1025 464.93
30-20 1015 460.4
30-18 1005 455.86
30-16 995 451.32

Carbon Steel Equal Tee Dimensions

NOMINAL PIPE SIZE OUTSIDE DIAMETER CENTER TO END LENGTH
Inch. OD C M
1/2 21.3 25 25
3/4 26.7 29 29
1 33.4 38 38
1 1/4 42.2 48 48
1 1/2 48.3 57 57
2 60.3 64 64
2 1/2 73 76 76
3 88.9 86 86
3 1/2 101.6 95 95
4 114.3 105 105
5 141.3 124 124
6 168.3 143 143
8 219.1 178 178
10 273.1 216 216
12 323.9 254 254
14 355.6 279 279
16 406.4 305 305
18 457.2 343 343
20 508 381 381
22 559 419 419
24 610 432 432
26 660 495 495
28 711 521 521
30 762 559 559
32 813 597 597
34 864 635 635
36 914 673 673
38 965 711 711
40 1016 749 749
42 1067 762 711
44 1118 813 762
46 1168 851 800
48 1219 889 838

ASME B16.9 Reducing Tee

NPS O.D.
D1		 O.D.
D		 Center to End
M		 Center to End
C
3/4 - 1/2 21.3 26.7 29 29
1 - 1/2 21.3 33.4 38 38
1 - 3/4 26.7 33.4 38 38
1.1/4 - 1/2 21.3 42.2 48 48
1.1/4 - 3/4 26.7 42.2 48 48
1.1/4 - 1 33.4 42.2 48 48
1.1/2 - 1/2 21.3 48.3 57 57
1.1/2 - 3/4 26.7 48.3 57 57
1.1/2 - 1 33.4 48.3 57 57
1.1/2 - 1.1/4 42.2 48.3 57 57
2 - 3/4 26.7 60.3 44 64
2 - 1 33.4 60.3 51 64
2 - 1.1/4 42.2 60.3 57 64
2 - 1.1/2 48.3 60.3 60 64
2.1/2 - 1 33.4 73 57 76
2.1/2 - 1.1/4 42.2 73 64 76
2.1/2 - 1.1/2 48.3 73 67 76
2.1/2 - 2 60.3 73 70 76
3 - 1.1/4 42.2 88.9 70 86
3 - 1.1/2 48.3 88.9 73 86
3 - 2 60.3 88.9 76 86
3 - 2.1/2 73 88.9 83 86
3.1/2 - 1.1/2 48.3 101.6 79 95
3.1/2 - 2 60.3 101.6 83 95
3.1/2 - 2.1/2 73 101.6 89 95
3.1/2 - 3 88.9 101.6 92 95
4 - 1.1/2 48.3 114.3 86 105
4 - 2 60.3 114.3 89 105
4 - 2.1/2 73 114.3 95 105
4 - 3 88.9 114.3 98 105
4 - 3.1/2 101.6 114.3 102 105
Manufacturer of butt-weld WPHY 65 Straight Tees and Alloy Steel Outlet Tee according to ASTM, ASME and En 10253-2
Nominal Pipe Size (NPS) DN Outlet Diameter at Bevel Center-to-End
Run Outlet Run.C Outlet. M[Notes(1)]
6*6*5 150* 150*125 168.3 114.3 143 137
6*6*4 150*150*100 168.3 141.3 143 130
6*6*3-1/2 150*150*90 168.3 101.6 143 127
6*6*3 150*150*80 168.3 88.9 143 124
6*6*2-1/2 150*150*65 168.3 73.0 143 121
8*8*6 200*200*150 219.1 168.3 178 168
8*8*5 200*200*125 219.1 141.3 178 162
8*8*4 200*200*100 219.1 114.3 178 156
8*8*3-1/2 200*200*90 219.1 101.6 178 152
10*10*8 250*250*200 273.0 219.1 216 203
10*10*6 250*250*150 273.0 168.3 216 194
10*10*5 250*250*125 273.0 141.3 216 191
10*10*4 250*250*100 273.0 114.3 216 184
12*12*10 300*300*250 323.8 273.0 254 241
12*12*8 300*300*200 323.8 219.1 254 229
12*12*6 300*300*150 323.8 168.3 254 219
12*12*5 300*300*125 323.8 141.3 254 216
14*14*12 350*350*300 355.6 323.8 279 270
14*14*10 350*350*250 355.6 273.0 279 257
14*14*8 350*350*200 355.6 219.1 279 248
14*14*6 350*350*150 355.6 168.3 279 238
16*16*14 400*400*350 406.4 355.6 305 305
16*16*12 400*400*300 406.4 323.8 305 295
16*16*10 400*400*250 406.4 273.0 305 283
16*16*8 400*400*200 406.4 219.1 305 273
16*16*6 400*400*150 406.4 168.3 305 264
18*18*16 450*450*400 457 406.4 343 330
18*18*14 450*450*350 457 355.6 343 330
18*18*12 450*450*300 457 323.8 343 321
18*18*10 450*450*250 457 273.0 343 308
18*18*8 450*450*200 457 219.1 343 298
20*20*18 500*500*450 508 457 381 368
20*20*16 500*500*400 508 406.4 381 356
20*20*14 500*500*350 508 355.6 381 356
20*20*12 500*500*300 508 323.8 381 346
20*20*10 500*500*250 508 273.0 381 333
20*20*8 500*500*200 508 219.1 381 324
22*22*20 550*550*500 559 508 419 406
22*22*18 550*550*450 559 457 419 394
22*22*16 550*550*400 559 406.4 419 381
22*22*14 550*550*350 559 355.6 419 381
22*22*12 550*550*300 559 323.8 419 371
22*22*10 550*550*250 559 273.0 419 359
24*24*22 600*600*550 610 559 432 432
24*24*20 600*600*500 610 508 432 432
24*24*18 600*600*450 610 457 432 419
24*24*16 600*600*400 610 406.4 432 406
24*24*14 600*600*350 610 355.6 432 406
24*24*12 600*600*300 610 323.8 432 397
24*24*10 600*600*250 610 273.0 432 384
26*26*24 650*650*600 660 610 495 483
26*26*22 650*650*550 660 559 495 470
26*26*20 650*650*500 660 508 495 457
26*26*18 650*650*450 660 457 495 444
26*26*16 650*650*400 660 406.4 495 432
26*26*14 650*650*350 660 355.6 495 432
26*26*12 650*650*300 660 323.8 495 432
28*28*26 700*700*650 711 660 521 422
28*28*24 700*700*600 711 610 521 521
28*28*22 700*700*550 711 559 521 508
28*28*20 700*700*500 711 508 521 495
28*28*18 700*700*450 711 457 521 483
28*28*16 700*700*400 711 406.4 521 470
28*28*14 700*700*350 711 355.6 521 457
28*28*12 700*700*300 711 323.8 521 457
30*30*28 750*750*700 762 711 559 448
30*30*26 750*750*650 762 660 559 546
30*30*24 750*750*600 762 610 559 546
30*30*22 750*750*550 762 559 559 533
30*30*20 750*750*500 762 508 559 521
30*30*18 750*750*450 762 457 559 508
30*30*16 750*750*400 762 406.4 559 495
30*30*14 750*750*350 762 355.6 559 483
30*30*12 750*750*300 762 323.8 559 473
30*30*10 750*750*250 762 273.0 559 460
32*32*30 800*800*750 813 762 597 584
32*32*28 800*800*700 813 711 597 572
32*32*26 800*800*650 813 660 597 572
32*32*24 800*800*600 813 610 597 559
32*32*22 800*800*550 813 559 597 546
32*32*20 800*800*500 813 508 597 533
32*32*18 800*800*450 813 457 597 521
32*32*16 800*800*400 813 406.4 597 508
32*32*14 800*800*350 813 355.6 597 508
34*34*32 850*850*800 813 813 635 622
34*34*30 850*850*750 813 762 635 610
34*34*28 850*850*700 813 711 635 597
34*34*26 850*850*650 813 660 635 597
34*34*24 850*850*600 813 610 635 584
34*34*22 850*850*550 813 559 635 572
34*34*20 850*850*500 813 508 635 559
34*34*18 850*850*450 813 457 635 546
34*34*16 850*850*400 813 406.4 635 533

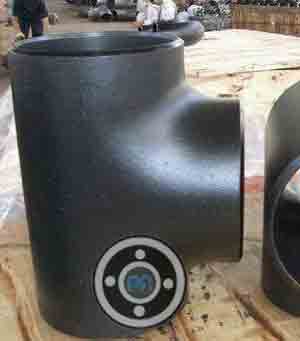

WPHY 42 Unequal Tee

WPHY 42 Unequal Tee

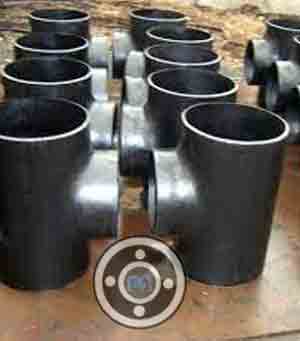

ASTM A420 WPL6 Equal Tee

ASTM A420 WPL6 Equal Tee

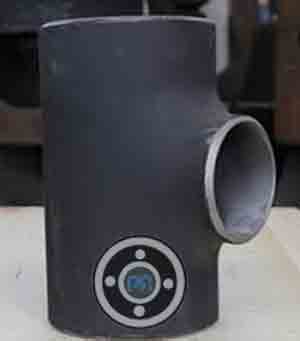

ASTM A860 High Yield Bw Equal Tee

ASTM A860 High Yield Bw Equal Tee

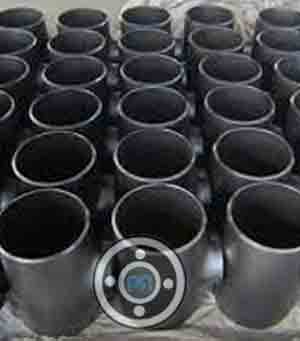

Carbon Steel Equal Tee Pipe Fitting

Carbon Steel Equal Tee Pipe Fitting

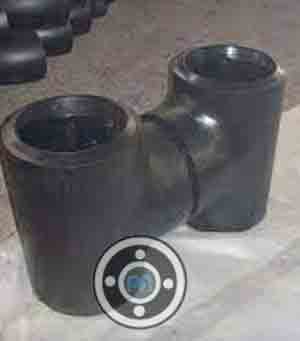

Carbon Steel Saddle Tee

Carbon Steel Saddle Tee

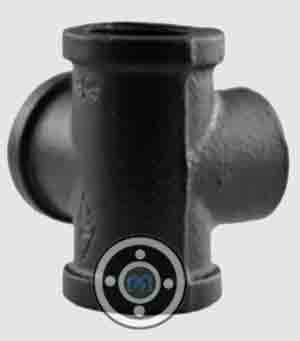

ASTM A860 High Yield Outlet Tee

ASTM A860 High Yield Outlet Tee

WPHY 52 Reducing Tee Flanged

WPHY 52 Reducing Tee Flanged

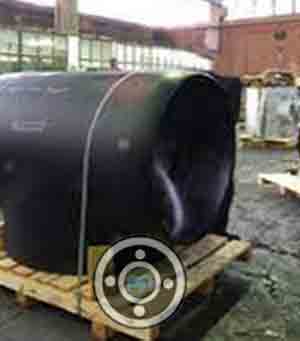

ASTM A234 WPB Galvanised Reducing Tee

ASTM A234 WPB Galvanised Reducing Tee

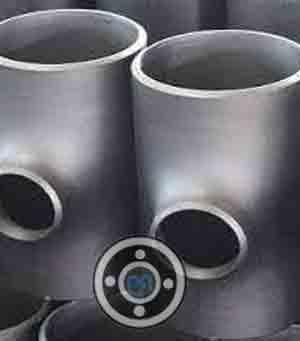

Equal Flow Tee

Equal Flow Tee

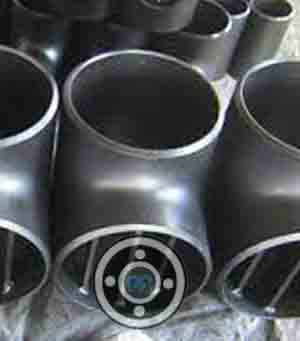

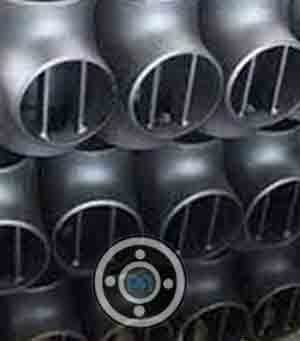

WPHY 70 Barred Tee Pipe Fittings

WPHY 70 Barred Tee Pipe Fittings

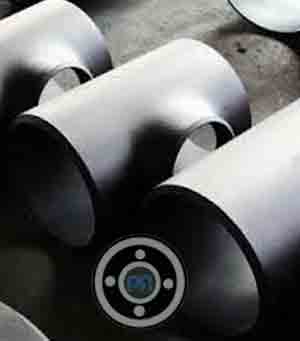

ASTM A234 WPB Tee Pipe Fittings

ASTM A234 WPB Tee Pipe Fittings

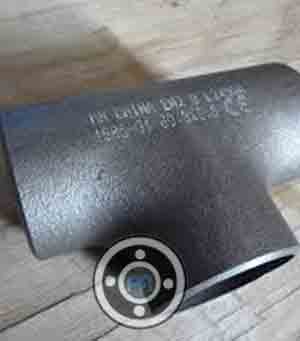

Reducing Tee En 10253

Reducing Tee En 10253

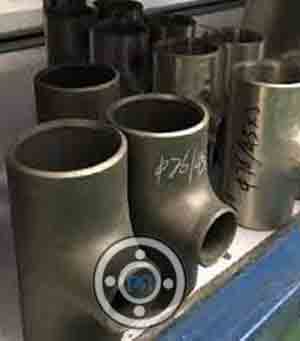

ASME B16.9 Unequal Tee

ASME B16.9 Unequal Tee

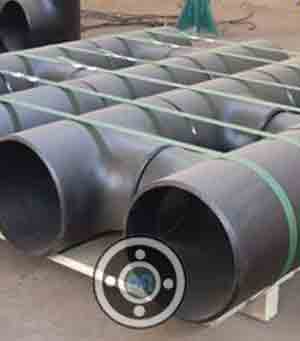

Equal And Unequal Tee

Equal And Unequal Tee

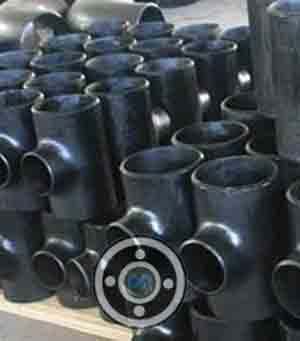

WPHY 52 Buttweld Unequal Tee

WPHY 52 Buttweld Unequal Tee

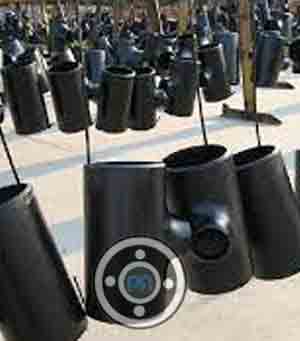

Reducing Tee A234

Reducing Tee A234

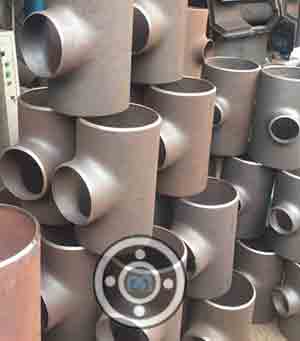

WPHY 65 Reducing Tee Joint

WPHY 65 Reducing Tee Joint

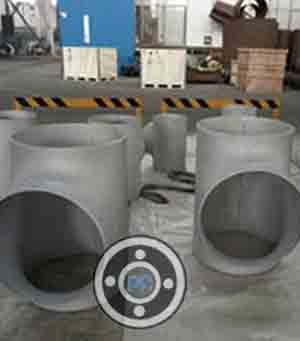

Reducing Tee En 10253-2

Reducing Tee En 10253-2

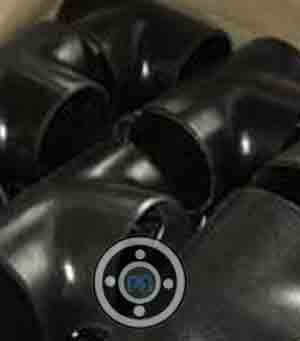

WPHY 42 Reducing Tee Pipe Fitting

WPHY 42 Reducing Tee Pipe Fitting

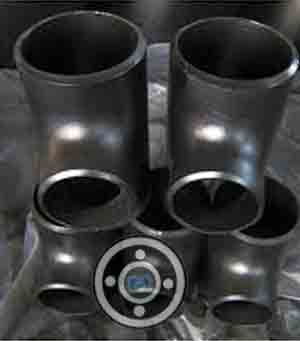

ASME B16.9 Equal Tee Fitting

ASME B16.9 Equal Tee Fitting

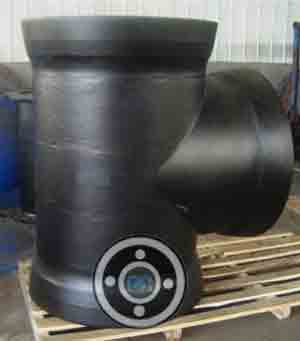

Reducing Tee Ductile Iron

Reducing Tee Ductile Iron

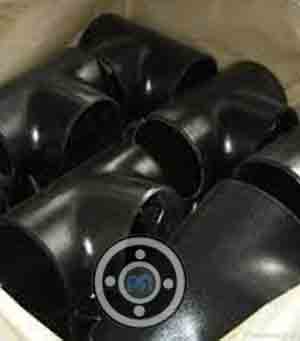

ASTM A234 WPC Buttweld Tee

ASTM A234 WPC Buttweld Tee

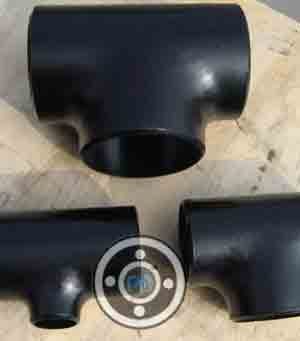

WPHY 65 Butt Weld Equal Tee

WPHY 65 Butt Weld Equal Tee

ASTM A420 WPL6 Equal Fabricated Tee

ASTM A420 WPL6 Equal Fabricated Tee

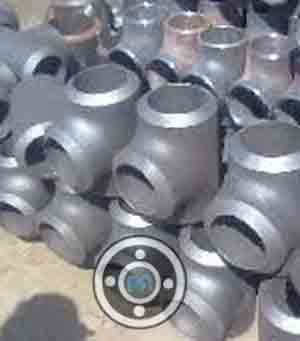

Carbon Steel Straight Tees

Carbon Steel Straight Tees

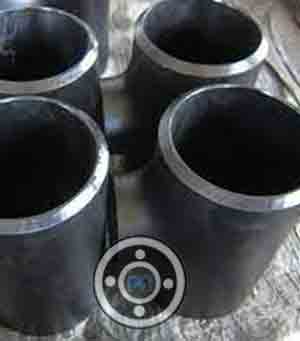

ANSI B16.9 Pipe Reducing Tee Fittings

ANSI B16.9 Pipe Reducing Tee Fittings

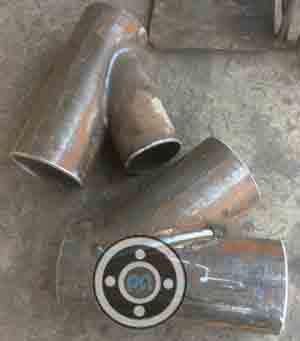

ASTM A234 WPA Lateral Tee

ASTM A234 WPA Lateral Tee

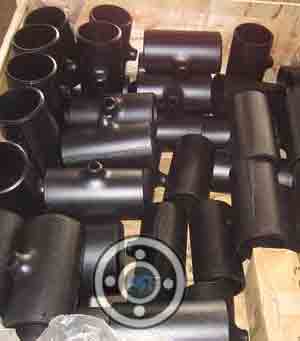

ASTM A234 WPC Extruded Reducing Tee

ASTM A234 WPC Extruded Reducing Tee

WPHY 70 Barred Equal Tee

WPHY 70 Barred Equal Tee

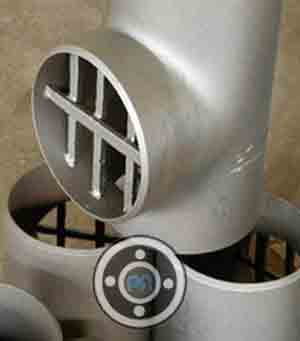

ASTM A234 WPA Cast Iron Equal Tee

ASTM A234 WPA Cast Iron Equal Tee

ASME B16.9 Reducing Tee

Side D Side D1
DN D DN1 D1 F G
20 26,9 15 21,3 29 29
25 33,7 15 21,3 38 38
20 26,9
32 42,4 15 21,3 48 48
20 26,9
25 33,7
40 48,3 15 21,3 57 57
20 26,9
25 33,7
32 42,4
50 60,3 20 26,9 64 44
25 33,7 51
32 42,4 57
40 48,3 60
65 76,1 25 33,7 76 57
32 42,4 64
40 48,3 67
50 60,3 70
80 88,9 32 42,4 86 70
40 48,4 73
50 60,3 76
65 76,1 83
100 114,3 40 48,3 105 86
50 60,3 89
65 76,1 95
80 88,9 98
125 139,7 50 60,3 76,1 88,9 114,3 124 105
65 108
80 111
100 117
150 168,3 65 76,1 143 121
80 88,9 124
100 114,3 130
125 139,7 137
200 219,1 100 114,3 178 156
125 139,7 168,3 162
150
168
250 273,1 100 114,3 216 184
125 139,7 191
150 168,3 194
200 219,1 203
300 323,9 150 168,3 254 219
200 219,1 229
250 273 241
350 355,6 150 168,3 279 238
200 219,1 248
250 273 257
300 323,9 270
400 406,4 150 168,3 305 264
200 219,1 273
250 273 283
300 323,9 295
350 355,6 305
450 457 200 219,1 343 298
250 273 308
300 323,9 321
350 355,6 330
400 406,4 330
500 508 250 273 381 333
300 323,9 346
400 406,4 356
450 457,0 368
550 559 250 273 419 359
300 323,9 371
400 406,4 381
500 508,0 406
600 610 250 273 432 384
300 323,9 397
400 406,4 406
500 508,0 432
650 660 300 323,9 495 422
350 355,6 432
400 406,4 432
500 508 457
700 711 300 323,9 521 448
400 406,4 457
500 508,0 483
600 610,0 508
750 762 400 406,4 559 483
500 508,0 508
600 610,0 533
800 813 400 406,4 602 508
500 508,0 533
600 610,0 559
700 711,0 572
850 864 400 406,4 635 533
500 508,0 559
600 610,0 584
700 711,0 597
900 914 400 406,4 673 559
500 508,0 584
600 610,0 610
700 711,0 622
800 813,0
648
1 000 1 016 600 610,0 749 660
700 711,0 673
800 813,0
711
900 914,0 737
1 050 1 067 600 610,0 762 660
700 711,0 698
800 813,0
711
900 914,0 711
1 100 1 118 600 610,0 813 698
700 711,0
698
800 813,0 711
900 914 724
1 200 1 219 700 711,0 889 762
800 813,0 787
900 914,0 787
1 000 1 016,0 813

Carbon Steel Equal Tee

DN D F
15 21,3 25
20 26,9 29
25 33,7 38
32 42,4 48
40 48,3 57
50 60,3 64
65 76,1 76
80 88,9 86
90 101,6 95
100 114,3 105
125 139,7 124
150 168,3 143
200 219,1 178
250 273 216
300 323,9 254
350 355,6 279
400 406,4 305
450 457 343
500 508 381
550 559 419
600 610 432
650 660 495
700 711 521
750 762 559
800 813 597
850 864 635
900 914 673
1 000 1 016 749
1 050 1 067 762 a
1 100 1 118 813 a
1 150 1 166 851 a
1 200 1 219 889 a
Manufacturer of SCH 10 / SCH 40 WPHY 70 Butt Weld Equal Tee and Ductile Iron Reducing Tee in India according to ASME B16.9

ASTM A234 WPC Lateral Tee

Nominal
Pipe Size		 TYPE Outside
Diameter OD		 STD X – S NPS
E & L
 D
 T
 ID
 E & L
 D
 T
 ID
1
1¼
1½		 B
B
B		 1.315
1.660
1.900		 5.75
6.25
7.00		 1.75
1.75
2.00		 0.133
0.140
0.145		 1.049
1.380
1.610		 6.50
7.25
8.50		 2.00
2.25
2.50		 0.179
0.191
0.200		 0.957
1.278
1.500		 1
1¼
1½
2
2½
3		 A/B
B
B		 2.375
2.875
3.500		 8.00
9.50
10.00		 2.50
2.50
3.00		 0.154
0.203
0.216		 2.067
2.469
3.068		 *8.00
**9.00
10.50
11.00		 2.50
2.50
3.00		 0.128
0.276
0.300		 1.939
2.323
2.900		 2
2½
3
3½
4
5		 B
A/B
B		 4.000
4.500
5.562		 11.50
12.00
13.50		 3.00
3.00
3.50		 0.226
0.237
0.258		 3.548
4.026
5.047		 12.50
*12.00
**13.50
15.00		 3.00
3.00
3.50		 0.318
0.337
0.375		 3.364
3.826
4.813		 3½
4
5
6
8
10		 A/B
B
B		 6.625
8.625
10.750		 14.50
17.50
20.50		 3.50
4.50
5.00		 0.280
0.322
0.365		 6.065
7.981
10.020		 *14.50
**17.50
20.50
24.00		 *3.50
**4.00
5.00
5.50		 0.432
0.500
0.500		 5.761
7.625
9.750		 6
8
10
12
14
16		 B
B
B		 12.750
14.000
16.000		 24.50
27.00
30.00		 5.50
6.00
6.50		 0.375
0.375
0.375		 12.000
13.250
15.250		 27.50
31.00
34.50		 6.00
6.50
7.50		 0.500
0.500
0.500		 11.750
13.000
15.000		 12
14
16
18
20
24		 B
B
B		 18.000
20.000
24.000		 32.00
35.00
40.50		 7.00
8.00
9.00		 0.375
0.375
0.375		 17.250
19.250
23.250		 37.50
40.50
47.50		 8.00
8.50
10.00		 0.500
0.500
0.500		 17.000
19.000
23.000		 18
20
24
  • Factory-Made Wrought Steel Buttwelding Fittings to ASME B16.9
  • Buttwelding Short Radius Elbows and Returns, ASME B16.28
  • Buttwelding Ends, ANSI/ASME B16.25
  • Socket Welding, Threaded, and Buttwelding Ends, MSS SP-97
DN NPS XS STD 80 XXS 40 160
40 1 1/2 1.3 0.9 1.3 1.3 0.9 1.5
50 2 2.2 1.5 2.2 3.4 1.5 2.7
65 2 1/2 3.0 2.7 3.0 3.8 2.7 3.1
80 3 4.4 3.8 4.4 6.1 3.8 5.6
90 3 1/2 5.9 4.6 5.9 4.6
100 4 7.7 6.5 7.7 12.9 6.5 10.2
15 1/2 0.2 0.21 0.2 0.2
20 3/4 0.3 0.2 0.3 0.2
25 1 0.5 0.3 0.5 0.3
32 1 1/4 0.7 0.6 0.7 0.6
125 5 13.5 9.7 13.5 25.7 9.7 19.8
150 6 19.3 14 19.3 30.6 14 34
200 8 34.5 24.5 34.5 47.7 24.5 50
250 10 58.4 41.3 67.5 84.7 41.3 111.2
300 12 76.5 65 105 129 69 158
350 14 104 83 142 96 232
400 16 120 110 187 120 335
450 18 159 132 263 170 564
500 20 192 168 356 240 756
550 22 209 185 416 1002
600 24 251 222 548 345 1215
  • A 'T' shaped pipe tees has three female apertures.
  • Straight pipe tees with the same size apertures are available.
  • Equal tees creates apertures of varying sizes as well as two openings of the same size.
  • There are sterile equal tees that are used in waste lines.
  • These kinds of equal tees have a bent branch that is ideal for wiping. They are used to prevent garbage from becoming a hindrance.
  • To secure the fitting to a divider or stud, an equivalent tees has been drawn.
  • Pressure fittings on two or more finishes are used in an equal tee.
Nominal Size Approximate Weight/kg
DN NPS 3000 LB 6000 LB 9000 LB
6 1/8 0.13 0.22
8 1/4 0.13 0.22
10 3/8 0.16 0.45
15 1/2 0.35 0.55 1.15
20 3/4 0.4 0.9 1.8
25 1 0.66 1.46 2.25
32 1 1/4 1 1.9 3.95
40 1 1/2 1.4 3.4 4.87
50 2 2.2 3.7 8.89
65 2 1/2 4 7.2
80 3 6.15 10.7
100 4 14.3
Normal Pipe Size Of Equal Tees (O.D.) For Outside Daimeter Center to End Length Size
In Inch. Outside Daimeter (C) (M)
1/2 21.3 25 25
3/4 26.7 29 29
1 33.4 38 38
1 1/4 42.2 48 48
1 1/2 48.3 57 57
2 60.3 64 64
2 1/2 73 76 76
3 88.9 86 86
3 1/2 101.6 95 95
4 114.3 105 105
5 141.3 124 124
6 168.3 143 143
8 219.1 178 178
10 273.1 216 216
12 323.9 254 254
14 355.6 279 279
16 406.4 305 305
18 457.2 343 343
20 508 381 381
22 559 419 419
24 610 432 432
26 660 495 495
28 711 521 521
30 762 559 559
32 813 597 597
34 864 635 635
36 914 673 673
38 965 711 711
40 1016 749 749
42 1067 762 711
44 1118 813 762
46 1168 851 800
48 1219 889 838
Nominal Pipe Size 1/2
to
2.1/2		 3
to
3.1/2		 4 5
to
8		 10
to
18		 20
to
24		 26
to
30		 32
to
48
Outside Dia
at Bevel (D)		 +1.6
-0.8		 1.6 1.6 +2.4
-1.6		 +4
-3.2		 +6.4
-4.8		 +6.4
-4.8		 +6.4
-4.8
Inside Dia at End 0.8 1.6 1.6 1.6 3.2 4.8 +6.4
-4.8		 +6.4
-4.8
Center to End (C / M) 2 2 2 2 2 2 3 5
Wall Thk (t) Not less than 87.5% of Nominal Wall Thickness
  • Chemical Industry
  • Petrochemical
  • Power Plant
  • Nuclear Power
  • Oil & Gas
  • Refineries
  • Fertilizers
  • Paper and Pulp
HS Code 7307
  • Manufacturer's Name or Trademark
  • Rating Designation
  • Material Designation
  • Size Designation
  • Permissible Omission of Markings
  • Identification of Threaded Ends
  • Melt Designation - as required by specification
  • Ring-Joint Facing Identification
  • Fumigation Certificates
  • Raw Material Test Reports
  • Fumigation Certificates
  • Guarantee Letter
  • Heat Treatment Charts
  • Commercial Invoice which includes HS Code
  • QAP (Quality Assurance Plan)
  • Fumigation Certificates
  • Raw Material Test Reports
  • Fumigation Certificates
  • Guarantee Letter
  • Heat Treatment Charts
  • Commercial Invoice which includes HS Code
  • QAP (Quality Assurance Plan)

Carbon Steel Tee are individually wrapped by hand to ensure that the material's high quality is maintained and that there is no damage in the final stages of manufacture. To ensure safe packaging and timely delivery of the ordered consignment, we recommend plywood containers or pallet packaging.

Pipe Fittings Types



Pipe Fittings Material



Flanges Material



Other Products
