DIN 2605 SS 321 Tee & ASTM A403 WP321 Elbow manufacturer in India

What is Stainless Steel 321 Pipe Fittings?
The Stainless Steel 321 material offers excellent resistance to intergranular corrosion when exposed to the chromium carbide precipitation temperature range of 427 to 816 degrees C. Due to the presence of titanium in the chemical composition, the Stainless Steel 321 Pipe Fittings are quite stabilized against the chromium carbide formation. The Stainless Steel 321 Pipe Fittings also have an advantage when it comes to high temperature services. They possess high mechanical properties and have high stress rupture properties and creep strength compared to the 304 and 304L material grade.
The Stainless Steel 321 Pipe Fittings can be hardened only by cold working and no treatment should be used on it. It has high weldability and fabricability. Due to all these properties, they are used for a wide range of applications across several industries. They are especially used in environments that are highly corrosive.

UNS S32100 Short Radius Elbow Vs ASME SA403 WP321H Long Radius Elbow
The main difference between the UNS S32100 Short Radius Elbow and the ASME SA403 WP321H Long Radius Elbow is in their radius of curvature. For short radius elbow, the radius of curvature is equal to the diameter of the pipe, whereas for long radius elbow, the radius of curvature is 1.5 or more times the diameter of the pipe. While the short radius elbow is capable of giving a sharper turn, the long radius elbow offers less frictional resistance to the fluid.

ASTM A403 WP321H Buttweld Fittings and ASTM A182 F321 Forged Fittings

  • The ASTM A403 WP321H Buttweld Fittings are used for pipes with bigger diameters, whereas the ASTM A182 F321 Forged Fittings are ideal for smaller pipes that are between 2 to 4 inches in diameter.
  • The buttweld fittings are manufactured from seamless or welded steel pipes by bending, cutting, and shaping them. Whereas, the forged fittings are made from solid blocks of steel, which are machined to get the desired shape.

Stainless Steel 321 Fittings Vs 321H Stainless Steel Fittings
The Stainless Steel 321 Fittings has the austenitic stainless steel alloy which is titanium stabilized. They have good corrosion resistance properties. It also shows good intergranular corrosion resistance after getting exposed to a temperature, within the range of 427-816 degrees C. This is the chromium carbide precipitation range
The 321H material is a higher carbon version of the Stainless Steel 321 material. It has an enhanced creep resistance and possesses higher strength at a temperature above 537 degrees C. In most of the cases the carbon content of the Stainless Steel 321H Fittings is such that it gets dual certification.

When should you use A403 Grade WP321 Tee?
The A403 Grade WP321 Tee can perform a number of functions, like:

  • It helps in combining or dividing the flow of the pipe run.
  • It helps to change the flow direction.
  • The tee also helps in controlling the rate of flow of the run pipe.
Stainless Steel 321 Pipe Fittings

Stainless Steel 321 Pipe Fittings

European Directive 2014/68/eu certified 321 Stainless Steel Pipe Fittings manufacturers in Mumbai offers widest selection of AISI 321 Equal/ Unequal Tee, Stub End, Reducer, and ASTM A403 WP321 Pipe Cap in India

Table of Content


Stainless Steel 321 Pipe Fittings Specifications ASTM A403
stainless steel 321 fittings Sizes 321H SS Seamless Fittings: 1/2" - 10"
ASME B16 9 ASTM A403 WP321 Pipe Fittings: 1/2" - 48"
321 ss weld fittings Dimensions ASME B16.28, ASME/ANSI B16.9, BS4504, MSS-SP-43, BS1560, BS4504, BS10
Stainless Steel 321 Pipe Fittings Thickness SCH30, SCH10, SCH 160, SCH20, SCH60, XS, STD SCH40, SCH 80, SCH 120, SCH 140, SCH 100, XXS available with NACE MR 01-75
stainless steel 321 fittings Type Manufacturer DN15-DN1200
Stainless Steel 321H Pipe Fittings Connection Welding
Bending Radius Provided By Manufacturer R=1D, 3D, 2D, 5D, 8D, 6D, 10D or Custom 321 ss buttweld fittings
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) 321H stainless steel fittings
Stainless Steel 321 Elbow Manufacturer Angle : 22.5 deg, 45 deg, 30deg, 90 deg, 1.0D, 180 deg, 1.5D, 3D, 2.5D, 2.0D, 4D, 6D, 5D, 7D-40D .
Standard: ASME B16.28, GB, ASME B16.9, MSS SP-75 JISB2311 DIN2605 JISB2312 JISB2313, ASME B16.25, BS, ISO
Stainless Steel 321 Pipe Fittings Manufacturing process Push, Forge, Press, Cast, etc.
ASTM A403 WP321 Pipe Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Stainless Steel 321H Pipe Fittings Origin & Mills European, Japanese, USA, Korean, Ukraine, Indian, Russian
Specialized 321 Stainless Steel Fittings Manufacturer of Stub End, 90º Elbows, Tees, Pipe Cap, Crosses, 45º Elbows, Reducers, Pipe Bend
Application of Industrial Stainless Steel 321 Pipe Fittings
  • Fittings To Connect Tubes and Pipe in Gas, Petroleum, Metallurgy, Chemical, Power, Construction, Shipbuilding etc
SS 321 Forged Fitting Thread Provided By Manufacturer BSPT, NPT, BSPP
321 Stainless Steel Forged Fittings Pressure Rating Threaded end - 3000lb/ 2000lb/ 6000lbs
Socket weld end- 6000/ 3000/ 9000lbs
SS 321H Socket Weld Threaded Fittings Dimension Specification MSS SP-79, 95, 83, 97, BS 3799, ASME 16.11
UNS S32100 Products Manufacturer Half Coupling, Union, Tee, Cross, Coupling, Cap, Outlet, Welding Outlet, Boss, Insert

Biggest SS 321H Socket Weld Threaded Fittings distributor, dealers, wholesalers, supplier, importer, stockholders, exporters, stockists and Manufacturer in Mumbai

Nominal
Pipe Size		 Outside
Diameter		 Reducers
Reduced from
(inches)		 (inches) (mm) Concentric & Eccentric Length
(inches)		 Reduced to
(inches)
1/2 0.840 21.3 1 1/2 1/4
1 1/2 3/8
3/4 1.050 26.7 2 3/8
2 1/2
1 1.315 33.4 2 3/8
2 1/2
2 3/4
1 1/4 1.660 42.2 2 1/2
2 3/4
2 1
1 1/2 1.900 48.3 2 1/2 1/2
2 1/2 3/4
2 1/2 1
2 1/2 1 1/4
2 2.375 60.3 3 3/4
3 1
3 1 1/4
3 1 1/2
2 1/2 2.875 73.0 3 1/2 1
3 1/2 1 1/4
3 1/2 1 1/2
3 1/2 2
3 3.500 88.9 3 1/2 1
3 1/2 1 1/2
3 1/2 2
3 1/2 2 1/2
3 1/2 4.000 101.6 4 1 1/4
4 1 1/2
4 2
4 2 1/2
4 3
4 4.500 114.3 4 1 1/2
4 2
4 2 1/2
4 3
4 3 1/2
5 5.563 141.3 5 2
5 2 1/2
5 3
5 3 1/2
5 4
6 6.625 168.3 5 1/2 2 1/2
5 1/2 3
5 1/2 3 1/2
5 1/2 4
5 1/2 5
8 8.625 219.1 6 3
6 3 1/2
6 4
6 5
6 6
10 10.750 273.1 7 4
7 5
7 6
7 8
12 12.750 323.9 8 5
8 6
8 8
8 10
NPS KG LBS
1/2 0.11 0.25
3/4 0.11 0.25
1 0.23 0.5
1¼ 0.41 0.9
1½ 0.52 1.15
2 1 2.2
2½ 1.81 4
3 2.95 6.5
3½ 3.79 8.35
4 6.12 13.5
5 9.98 22
6 15.88 35
8 32.21 71
10 48.53 107
12 72.57 160
14 92.99 205
16 125.19 276
18 154.22 340
20 190.51 420
22 235.87 520
24 272.16 600
26 330.67 729
30 442.25 975
36 640.47 1412

Manufacturer of seamless Stainless Steel 321 LR/ SR Elbow, SUS 321 Return Bends, and A403 WP321 Eccentric / Concentric Reducer according to EN 10253-4/ ASME B16.9

Nominal Pipe Size Outside Diameter 90° Elbows 45° Elbows 180° Returns
(inches) Long Radius Short Radius Long Radius Long Radius
(mm) (inches) Center to Face
(inches)		 Center to Face
(inches)		 Center to Face
(inches)		 Radius
(inches)		 Center to Center
(inches)		 Back to face
(inches)
1/2 21.3 0.840 1 1/2 - 5/8 2 1 7/8
3/4 26.7 1.050 1 1/8 - 7/16 2 1/4 1 11/16
1 33.4 1.315 1 1/2 1 7/8 3 2 3/16
1 1/4 42.2 1.660 1 7/8 1 1/4 1 3 3/4 2 3/4
1 1/2 48.3 1.900 2 1/4 1 1/2 1 1/8 3 4 1/2 3 1/4
2 60.3 2.375 3 2 1 3/8 4 6 4 3/16
2 1/2 73.0 2.875 3 3/4 2 1/2 1 3/4 5 7 1/2 5 3/16
3 88.9 3.500 4 1/2 3 2 6 9 6 1/4
3 1/2 101.6 4.000 5 1/4 3 1/2 2 1/4 7 10 1/2 7 1/4
4 114.3 4.500 6 4 2 1/2 8 12 8 1/4
5 141.3 5.563 7 1/2 5 3 1/8 10 15 10 5/16
6 168.3 6.625 9 6 3 3/4 12 18 12 5/16
8 219.1 8.625 12 8 5 12 24 16 5/16
10 273.1 10.750 15 10 6 1/4 15 30 20 3/8
12 323.9 12.750 18 12 7 1/2 18 36 24 3/8

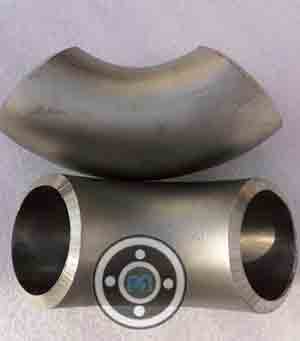

2 Nb Sch80 45° Long Radius Elbow 321 Stainless Steel

2" Nb Sch80 45° Long Radius Elbow 321 Stainless Steel

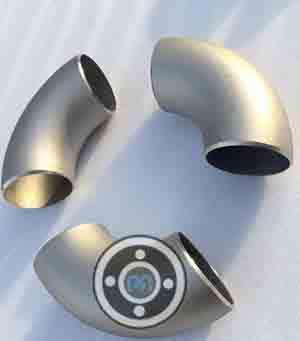

6 Nb Sch10s 90° Short Radius Elbow 321h Stainless Steel

6" Nb Sch10s 90° Short Radius Elbow 321h Stainless Steel

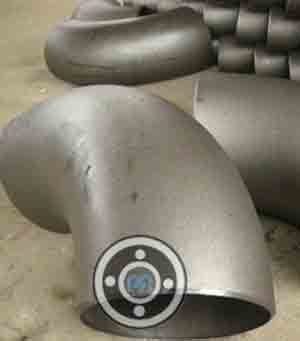

1-1/8 Nb Sch40 Stainless Steel 321 Elbow

1-1/8" Nb Sch40 Stainless Steel 321 Elbow

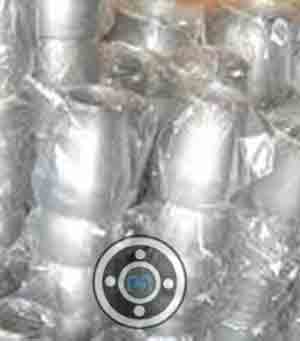

4 X 2 Nb Sch60 Eccentric Reducer 321 Stainless Steel

4" X 2" Nb Sch60 Eccentric Reducer 321 Stainless Steel

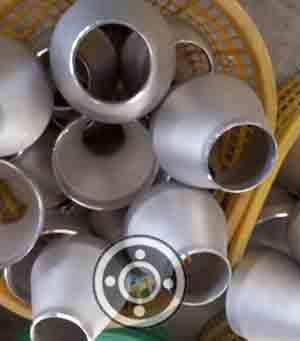

1-1/2 X 3/4 Nb Sch20 Concentric Reducer 321 Stainless Steel

1-1/2" X 3/4" Nb Sch20 Concentric Reducer 321 Stainless Steel

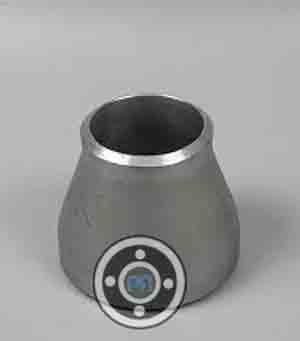

2 X 1 Nb Sch80 Eccentric Reducer 321h Stainless Steel

2" X 1" Nb Sch80 Eccentric Reducer 321h Stainless Steel

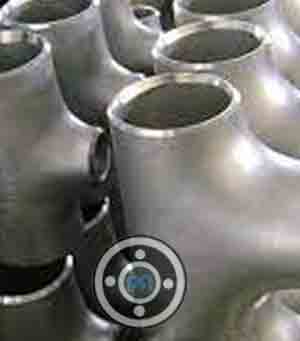

12 Nb Sch120 Equal Tee 321 Stainless Steel

12" Nb Sch120 Equal Tee 321 Stainless Steel

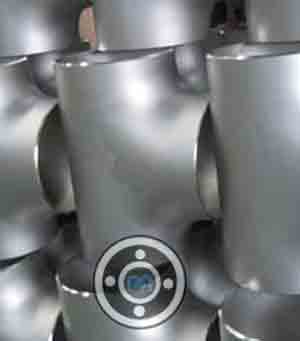

8 Nb Sch140 Equal Tee 321h Stainless Steel

8" Nb Sch140 Equal Tee 321h Stainless Steel

1-1/2 X 1-1/4 Nb Sch80 Reducing Tee 321 Stainless Steel

1-1/2" X 1-1/4" Nb Sch80 Reducing Tee 321 Stainless Steel

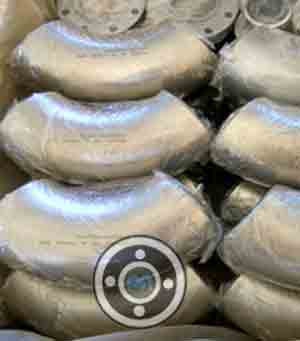

Welded and Seamless Butt-Weld Alloy 321 3D/ 5D Elbow and 1.4541 Stainless Steel Pipe Bend manufacturer in India
Stainless Steel 321 Pipe Fittings Price Per Piece in India 321 Stainless Steel BW Fittings Price in INR ASTM A403 WP321 Pipe Fittings Price in UAE Dirham SS 321 Weld Fittings Price in USD
3/4" Nb Sch40 Cap Seamless 321 Stainless Steel Per Piece 845.89 UAE Dirham 41.73 $11.36
3/4" X 3/8" Nb Sch80 Concentric Reducer 321h Stainless Steel Per Piece 782.60 UAE Dirham 38.60 $10.51
1" Nb Sch20 Equal Tee 321 Seamless Stainless Steel Per Piece 1122.14 UAE Dirham 55.35 $15.07
1-1/2" Nb Sch40s 45° Long Radius Elbow 321 Stainless Steel Per Piece 661.224 UAE Dirham 32.62 $8.88
1-1/4" Nb Sch120 Stub End Type A 321h Welded Stainless Steel Per Piece 1448.29 UAE Dirham 71.44 $19.45

Check our price with other 321 Stainless Steel Fittings Manufacturer in India Before Purchasing. This is an approximate Price of A403 Grade WP321H Fittings in India. Feel free to contact us latest Stocklist of 321 Stainless Steel Forged Fittings in Mumbai.

Normal Size Of Pipe
(inches)		 Pipe Sch OD (inch)
 Wall
Thick.
(inch)
 Temperature(oF)
100 200 300 400 500 600 650 700 750
Allowable Stress(psi)
16700 16700 16700 15500 14400 13500 13200 12900 12600
1" 40 1.315 0.133 2205 2205 2205 2047 1902 1783 1743 1703 1664
80 1.315 0.179 3061 3061 3061 2841 2640 2475 2420 2365 2310
160 1.315 0.250 4493 4493 4493 4170 3874 3632 3552 3471 3390
1 1/2" 40 1.900 0.145 1629 1629 1629 1512 1404 1317 1287 1258 1229
80 1.900 0.200 2303 2303 2303 2138 1986 1862 1821 1779 1738
160 1.900 0.281 3362 3362 3362 3120 2899 2717 2657 2597 2536
2" 40 2.375 0.154 1371 1371 1371 1272 1182 1108 1083 1059 1034
80 2.375 0.218 1985 1985 1985 1843 1712 1605 1569 1534 1498
160 2.375 0.344 3283 3283 3283 3047 2831 2654 2595 2536 2477
3" 40 3.500 0.216 1301 1301 1301 1208 1122 1052 1028 1005 982
80 3.500 0.300 1844 1844 1844 1712 1590 1491 1458 1425 1391
160 3.500 0.438 2787 2787 2787 2587 2403 2253 2203 2153 2103
4" 40 4.500 0.237 1102 1102 1102 1023 950 891 871 851 831
80 4.500 0.337 1596 1596 1596 1482 1377 1291 1262 1233 1204
160 4.500 0.531 2611 2611 2611 2424 2552 2111 2064 2017 1970
5" 40 5.563 0.258 965 965 965 896 832 780 763 746 728
80 5.563 0.375 1428 1428 1428 1325 1231 1154 1129 1103 1077
160 5.563 0.625 2474 2474 2474 2296 2133 2000 1955 1911 1866
6" 40 6.625 0.280 877 877 877 814 756 709 693 677 661
80 6.625 0.432 1379 1379 1379 1280 1189 1115 1090 1065 1040
160 6.625 0.719 2382 2382 2382 2211 2054 1925 1883 1840 1797
8" 40 8.625 0.322 771 771 771 716 665 623 610 596 582
80 8.625 0.500 1218 1218 1218 1131 1050 985 963 941 919
160 8.625 0.906 2298 2298 2298 2133 1982 1858 1817 1775 1734
10" 40 10.750 0.365 699 699 699 649 603 565 553 540 528
80 10.750 0.594 1159 1159 1159 1075 999 937 916 895 874
160 10.750 1.125 2289 2289 2289 2124 1974 1850 1809 1768 1727

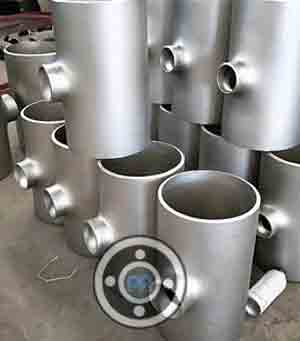

Nominal
Pipe
Size		Outside
Diameter		CapsStraight TeesStraight CrossesStub Ends
(inches) (mm) (inches) Length
(inches)		 Center to End
(inches)		 Center to End
(inches)		 Lap Diameter
(inches)		 Long Length
(inches)		 Short Length
(inches)
1/221.30.84011–1 3/832
3/426.71.05011 1/8–1 11/1632
133.41.3151 1/21 1/21 1/2242
1 1/442.21.6601 1/21 7/81 7/82 1/242
1 1/248.31.9001 1/22 1/42 1/42 7/842
260.32.3751 1/22 1/22 1/23 5/862 1/2
2 1/273.02.8751 1/2334 1/862 1/2
388.93.50023 3/83 3/8562 1/2
3 1/2101.64.0002 1/23 3/43 3/45 1/263
4114.34.5002 1/24 1/84 1/86 3/1663
5141.35.56334 7/84 7/87 5/1683
6168.36.6253 1/25 5/85 5/88 1/283 1/2
8219.18.62547710 5/884
10273.110.75058 1/28 1/212 3/4105
12323.912.7506101015106

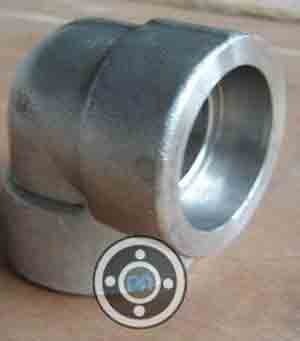

321 Stainless Steel Forged Elbow

321 Stainless Steel Forged Elbow

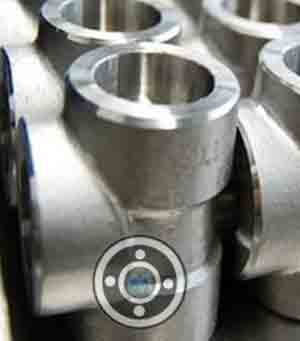

SS 321h Forged Equal Tee

SS 321h Forged Equal Tee

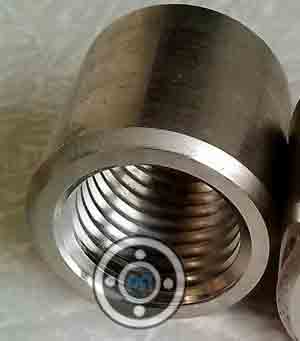

ASTM A182 F321 Reducing Coupling

ASTM A182 F321 Reducing Coupling

Stainless Steel 321 Threaded Coupling

Stainless Steel 321 Threaded Coupling

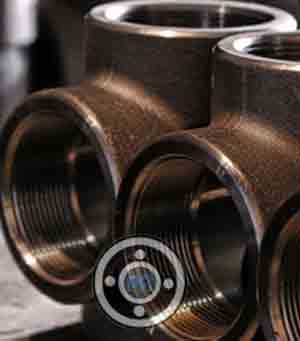

A182 Grade F321 Threaded Tee

A182 Grade F321 Threaded Tee

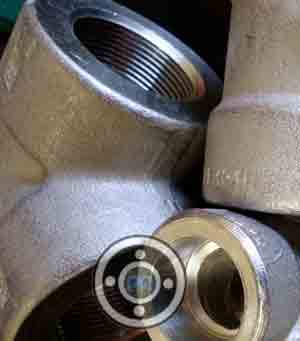

321h SS Threaded Elbow

321h SS Threaded Elbow

Stainless Steel 321 Socket Weld Elbow

Stainless Steel 321 Socket Weld Elbow

321 SS Socket Weld Coupling

321 SS Socket Weld Coupling

Din 1.4541 SW Union

Din 1.4541 SW Union

Manufacturer of ASME B16.9 Butt welding SCH10 Inox AISI 321 Buttweld Pipe Fittings such as UNS S32109 Short Radius 90 Degree Elbow, Cross and A403 Gr WP321 LR Elbow in Welded & Seamless
Grade C Mn Si P S Cr N Ni Ti
SS 321 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 17.00 - 19.00 0.10 max 9.00 - 12.00 5(C+N) - 0.70 max
SS 321H 0.04 - 0.10 2.0 max 1.0 max 0.045 max 0.030 max 17.00 - 19.00 0.10 max 9.00 - 12.00 4(C+N) - 0.70 max
Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1457 °C (2650 °F) Psi - 75000 , MPa - 515 Psi - 30000 , MPa - 205 35 %
STANDARD WERKSTOFF NR. UNS JIS EN
SS 321 1.4541 S32100 SUS 321 X6CrNiTi18-10
SS 321H 1.4878 S32109 SUS 321H X12CrNiTi18-9
Melting Point
Density
Specific Gravity
Modulus of Elasticity
in Tension
  2550-2635° F
1398-1446° C		   .286 lb/in³
7.92 g/cm³		   7.92   28 X 106 psi
193 Gpa
Heat Treatment 928 to 1093° C

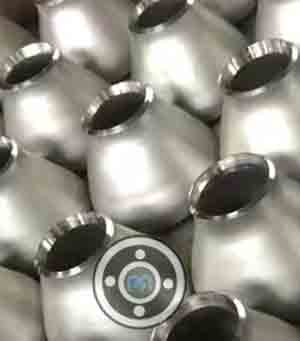

ASTM A182 321 Stainless Steel Concentric Reducer

ASTM A182 321 Stainless Steel Concentric Reducer

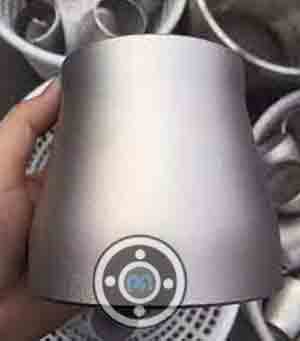

SCH XXS A403 grade WP321H Eccentric Reducer

SCH XXS A403 grade WP321H Eccentric Reducer

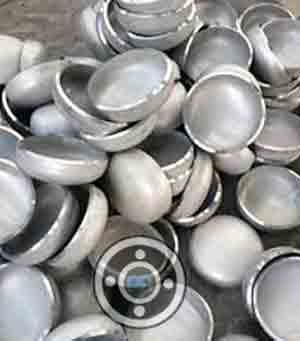

ASME SA403 WP321 Pipe Cap

ASME SA403 WP321 Pipe Cap

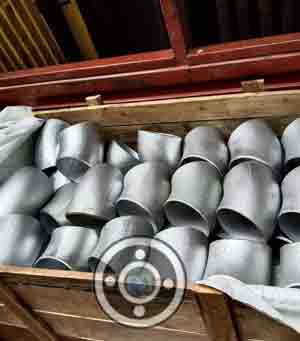

SA403 WP321 3D Elbow

SA403 WP321 3D Elbow

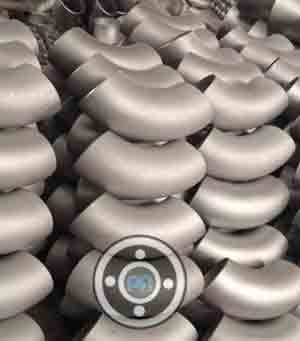

SCH 20 A403 grade WP321H 90° Long Radius Elbow

SCH 20 A403 grade WP321H 90° Long Radius Elbow

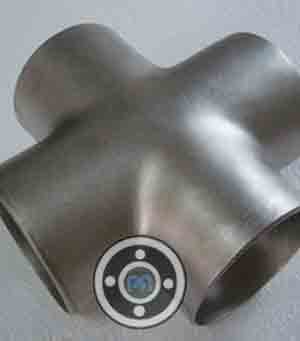

SA403 Gr WP321 Equal Cross

SA403 Gr WP321 Equal Cross

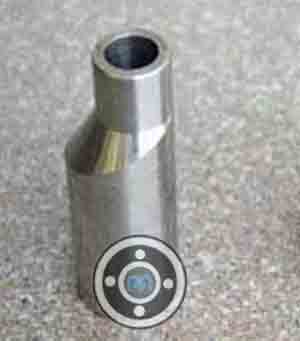

SCH 160 321H Stainless Steel Swage Nipple

SCH 160 321H Stainless Steel Swage Nipple

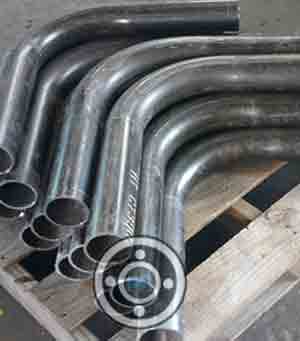

SA403 Gr WP321 Long Radius Bend

SA403 Gr WP321 Long Radius Bend

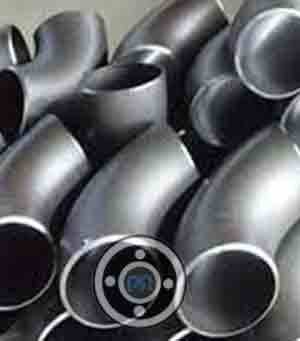

A403 gr wp321 Stainless Steel 10D ELBOW

A403 gr wp321 Stainless Steel 10D ELBOW

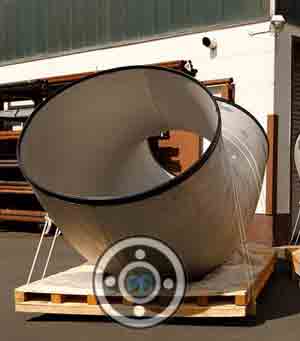

321H ss 90° Short Radius Elbow

321H ss 90° Short Radius Elbow

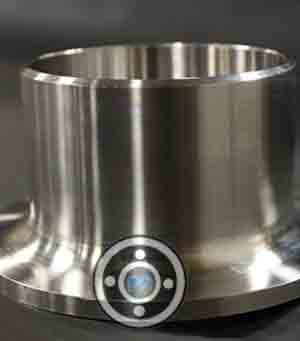

SCH 80 A403 gr wp321 Stainless Steel Short Stubend

SCH 80 A403 gr wp321 Stainless Steel Short Stubend

ASME SA403 WP321 Reducing Outlet Tees and Reducing Outlet Crosses

ASME SA403 WP321 Reducing Outlet Tees and Reducing Outlet Crosses

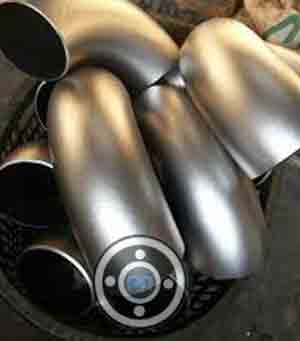

SCH 120 A403 wp321 1.5D Elbow

SCH 120 A403 wp321 1.5D Elbow

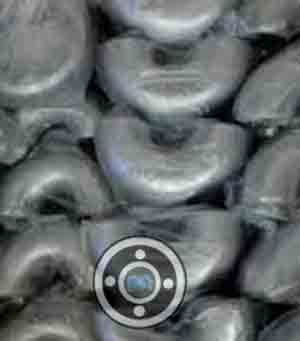

SS 321H Seamless Buttwelding 180° Returns

SS 321H Seamless Buttwelding 180° Returns

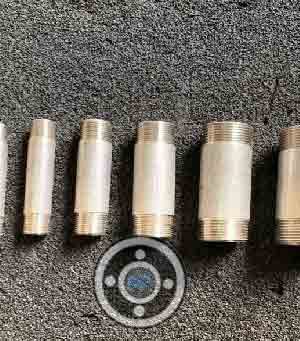

SCH 140 Stainless Steel 321H Barrel Nipple

SCH 140 Stainless Steel 321H Barrel Nipple

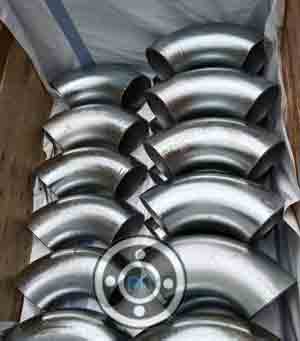

15 NB SCH 100 321H Stainless Steel Seamless Buttwelding 45° and 90° Elbows

15 NB SCH 100 321H Stainless Steel Seamless Buttwelding 45° and 90° Elbows

ASTM A403 WP321 Bend

ASTM A403 WP321 Bend

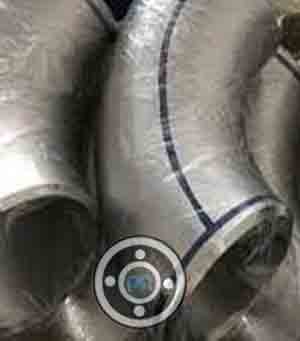

ASTM A403 WP321 45° Long Radius Elbow

ASTM A403 WP321 45° Long Radius Elbow

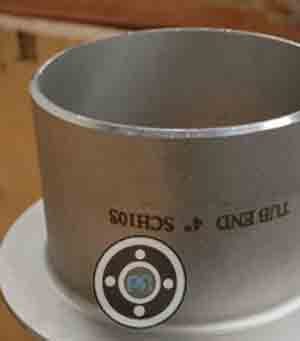

UNS S32100 Stub End

UNS S32100 Stub End

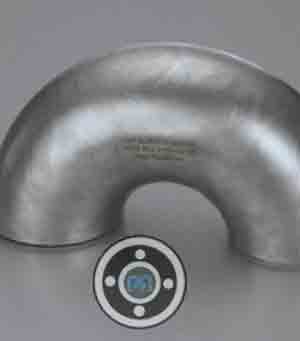

SCH 30 ss 321 180° Short Radius Elbow

SCH 30 ss 321 180° Short Radius Elbow

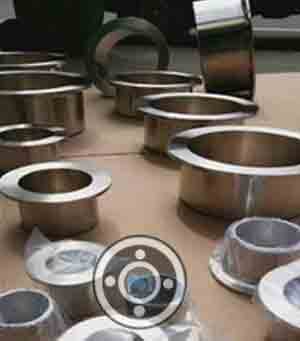

ss 321 Collar

ss 321 Collar

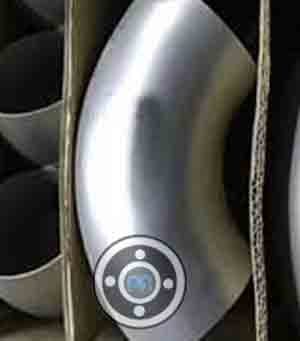

Stainless Steel 321 180° Long Radius Elbow

Stainless Steel 321 180° Long Radius Elbow

321 Stainless Steel 5D Elbow

321 Stainless Steel 5D Elbow

SCH 60 A403 wp321 Lap Joint Stub Ends

SCH 60 A403 wp321 Lap Joint Stub Ends

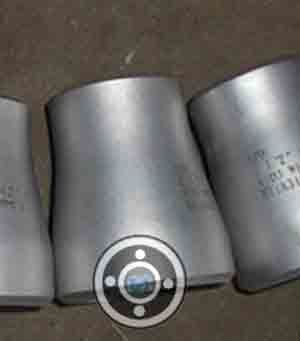

450 NB SCH 40 321H ss Reducers

450 NB SCH 40 321H ss Reducers

SCH STD UNS S32100 Reducing Tee

SCH STD UNS S32100 Reducing Tee

ASTM A182 321 Stainless Steel 45° Short Radius Elbow

ASTM A182 321 Stainless Steel 45° Short Radius Elbow

Stainless Steel 321 End Cap

Stainless Steel 321 End Cap

SCH 10 Stainless Steel 321H Straight Tees and Crosses

SCH 10 Stainless Steel 321H Straight Tees and Crosses

SS 321H Reducing Cross

SS 321H Reducing Cross

321 SS 1D Elbow

321 SS 1D Elbow

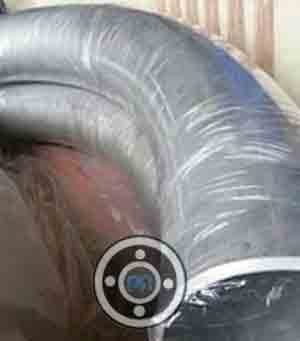

Din 1.4541 Welded Elbows

Din 1.4541 Welded Elbows

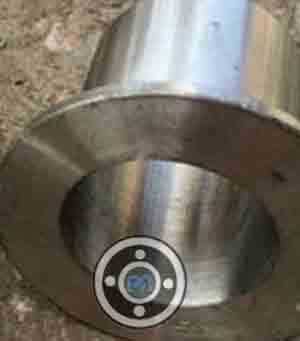

321 Stainless Steel Long Stubend

321 Stainless Steel Long Stubend

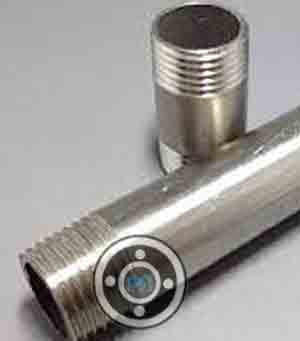

321 SS Pipe Nipples

321 SS Pipe Nipples

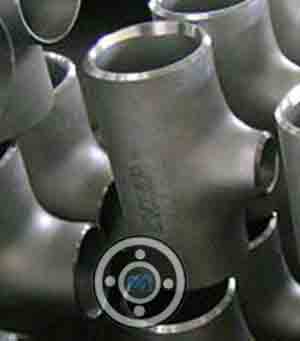

SCH XS ASTM A182 321 Equal Tee

SCH XS ASTM A182 321 Equal Tee

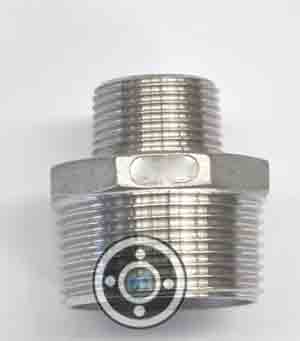

Din 1.4541 Reducing Nipple

Din 1.4541 Reducing Nipple

  • Pharmaceutical processing industry
  • Modern architecture
  • Oil and gas industry
  • Textile machinery
  • Home appliances
  • Water waste projects
  • Energy industries
  • Pulp and paper industry
  • Power plants
  • Dairy and food processing

SS Buttweld Fittings Tolerance

  • Micro and Macro Test
  • Hardness Test
  • Pitting Resistance Test
  • Flattening Test
  • Flaring Test
  • PMI Testing

Pipe Fittings Material



Flanges Material



Other Products
