Alloy Steel A234 WP9 Elbow & SA 234 Gr WP9 Stub End manufacturer in India

What is ASTM A234 WP9 Fittings?
The ASTM A234 is a standard of pipe fitting material and WP9 is the grade. This material standard indicates that the fittings consist of various carbon steel and alloy steel. Different types of pipe fittings are available under this specification like reducer, tees, couplings, caps, etc., and each of them have varied functions. One can get seamless and welded variants of the ASTM A234 WP9 pipe fittings. The seamless ones are manufactured from the A335 P9 steel pipes, whereas the welded fittings are produced either from steel plates or welded pipes. It follows the “wrought” manufacturing process which means that the fittings are either casted or forged. The small sized fittings are usually made from the steel plates, whereas the fittings of larger dimensions are manufactured in single pieces and then they are welded together.
The features of the ASTM A234 WP9 Fittings includes the following:

  • Higher durability
  • Rugged construction
  • Greater tensile strength
  • Good mechanical strength
  • Increased flexibility
  • Hardness
  • Resistance to corrosion
  • Superior and smooth surface finishes

The ASTM A234 WP9 pipe fittings are made with perfect dimensional accuracy and they offer greater performance across various industries. The pipe fittings are mainly used in low-pressure services in petrochemicals, oil and gas, food processing, water supply and several other industries.

A234 WP9 Cl1 Concentric Reducer Vs A234 Gr. WP9 Eccentric Reducer
The A234 WP9 Cl1 Concentric Reducer helps to reduce the pipe in the center. The A234 Gr. WP9 Eccentric Reducer helps in maintaining the same top or bottom level. They prevent the air from getting trapped into the piping system. Thus, they are mostly preferred when both air and liquids are flowing through a pipe. The eccentric reducers basically help in reducing the pipe to the side. The concentric reducers are more popular as there is major concern of liquid or gas getting accumulated in one area if the fitting is not placed properly. However, when the fitting is used vertically, there is potentially no difference between the two reducers.

A234 WP9 90 Degree Elbow Vs SA234 WP9 180 Degree Elbow
Both the A234 WP9 90 Degree Elbow and the SA234 WP9 180 Degree Elbow help in changing the direction of flow, but to different degrees. While the 90 degree elbow changes the flow of the fluid by 90 degrees, the 180 degree elbow changes the flow direction by 180 degrees. Both the elbows help in connecting the hose to different piping equipment, like valves, pressure pumps, etc., and they are available in short and long radius variants. They can also connect pipes of different diameters.

ASTM A234 WP9 Fittings

ASTM A234 WP9 Fittings

AN ISO certified A234 WP9 Material manufacturers in India offers widest range of ASTM A234 WP9 Buttweld Pipe Fittings and SA 234 WP9 Stub End, Eccentric / Concentric Reducer, Y Tee/ Lateral Tee in Mumbai


ASTM A234 WP9 Fittings Specifications ASTM A234
Thickness SCH30, SCH10, SCH 160, SCH20, SCH60, XS, STD SCH40, SCH 80, SCH 120, SCH 140, SCH 100, XXS available with NACE MR 01-75
SA234 Gr WP9 Fittings Sizes Seamless Fittings: 1/2" - 10"
Welded Fittings: 1/2" - 48"
ASTM A234 WP9 Fittings Type Manufacturer DN15-DN1200
Alloy Steel Grade WP9 Fittings Connection Welding
Manufacturing process Push, Forge, Press, Cast, etc.
Specialized ASTM A234 WP9 Fittings Manufacturer of Stub End, 90º Elbows, Tees, Pipe Cap, Crosses, 45º Elbows, Reducers, Pipe Bend
Bending Radius Provided By Manufacturer R=1D, 3D, 2D, 5D, 8D, 6D, 10D or Custom ASTM A234 WP9 Fittings
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) A234 WP9 Cl1 Buttweld Fittings
Dimensions ASME B16.28, ASME/ANSI B16.9, BS4504, MSS-SP-43, BS1560, BS4504, BS10
Alloy steel Gr Weldable Pressure 9 Elbow Manufacturer Angle : 22.5 deg, 45 deg, 30deg, 90 deg, 1.0D, 180 deg, 1.5D, 3D, 2.5D, 2.0D, 4D, 6D, 5D, 7D-40D .
Standard: ASME B16.28, GB, ASME B16.9, MSS SP-75 JISB2311 DIN2605 JISB2312 JISB2313, ASME B16.25, BS, ISO
ASME B16.9 SA234 Gr Weldable Pressure 9 Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Thread Provided By Manufacturer BSPT, NPT, BSPP
Alloy steel Gr Weldable Pressure 9 Buttweld Fittings Origin & Mills European, Japanese, USA, Korean, Ukraine, Indian, Russian
Dimension Specification MSS SP-79, 95, 83, 97, BS 3799, ASME 16.11
Application of Industrial Alloy Steel cl1 WP9 Fittings
  • Fittings To Connect Tubes and Pipe in Gas, Petroleum, Metallurgy, Chemical, Power, Construction, Shipbuilding etc
A234 WP9 Fittings Pressure Rating Threaded end - 3000lb/ 2000lb/ 6000lbs
Socket weld end- 6000/ 3000/ 9000lbs
A234 Weldable Pressure 9 Products Manufacturer Half Coupling, Union, Tee, Cross, Coupling, Cap, Outlet, Welding Outlet, Boss, Insert

Well Known Alloy Steel Grade WP9 Fittings exporters, supplier, wholesalers, distributor, stockists, importer, stockholders, dealers and Manufacturer in Mumbai

Nominal Pipe Size Outside Diameter 90° Elbows 45° Elbows 180° Returns
(inches) Long Radius Short Radius Long Radius Long Radius
(mm) (inches) Center to Face
(inches)
Center to Face
(inches)
Center to Face
(inches)
Radius
(inches)
Center to Center
(inches)
Back to face
(inches)
1/2 21.3 0.840 1 1/2 - 5/8 2 1 7/8
3/4 26.7 1.050 1 1/8 - 7/16 2 1/4 1 11/16
1 33.4 1.315 1 1/2 1 7/8 3 2 3/16
1 1/4 42.2 1.660 1 7/8 1 1/4 1 3 3/4 2 3/4
1 1/2 48.3 1.900 2 1/4 1 1/2 1 1/8 3 4 1/2 3 1/4
2 60.3 2.375 3 2 1 3/8 4 6 4 3/16
2 1/2 73.0 2.875 3 3/4 2 1/2 1 3/4 5 7 1/2 5 3/16
3 88.9 3.500 4 1/2 3 2 6 9 6 1/4
3 1/2 101.6 4.000 5 1/4 3 1/2 2 1/4 7 10 1/2 7 1/4
4 114.3 4.500 6 4 2 1/2 8 12 8 1/4
5 141.3 5.563 7 1/2 5 3 1/8 10 15 10 5/16
6 168.3 6.625 9 6 3 3/4 12 18 12 5/16
8 219.1 8.625 12 8 5 12 24 16 5/16
10 273.1 10.750 15 10 6 1/4 15 30 20 3/8
12 323.9 12.750 18 12 7 1/2 18 36 24 3/8

manufacturing ASTM A234 Gr WP9 Cross and Alloy Steel SA 234 WP9 Reducing/ Equal/ Unequal Tee accordance to ASME standards

Nominal Pipe Size Wall Thickness* ** Working Pressure– lbs per square inch at the

Fahrenheit Temperature Indicated

-20 to 650 700 750 *** 800
1/2 0.109 1695 1621 1463 1220
3/4 0.113 1455 1392 1256 1046
1 0.133 1575 1506 1359 1134
1 1/4 0.140 1065 1019 919 766
1 1/2 0.145 1005 960 867 723
2 0.154 900 861 777 648
2 1/2 0.203 1215 1162 1048 874
3 0.216 1095 1047 945 788
3 1/2 0.226 1020 975 880 734
4 0.237 975 932 841 702
5 0.258 885 846 764 637
6 0.280 840 803 725 604
8 0.322 765 731 660 550
10 0.365 720 688 621 518
12 0.375 630 602 543 453
14 0.375 570 545 492 410
16 0.375 495 473 427 356
18 0.375 450 430 388 354
20 0.375 405 387 349 291
24 0.375 330 315 284 237
30 0.375 265 254 229 190
36 0.375 220 198 178 148
42 0.375 189 181 163 136
48 0.375 165 158 143 118
ASTM A234 WP9 Fittings Price Per Piece in India ASTM A234 Gr WP9 Fittings Price in INR Alloy Steel WP9 Pipe Fittings Price in UAE Dirham SA234 Gr WP9 Buttweld Fittings Price in USD
Reducer Con Wrought Smls Bw, ASME B16.9, ASTM A234 Weldable Pressure 9, Sch 40 Per Kg 283.16 UAE Dirham 13.96 $3.8
B16.9 ASTM A234 Wp9 Alloy Steel Elbow SCH-STD, BEVELED ENDS, ASME B16.9 Per Kg 260.83 UAE Dirham 12.86 $3.5
4 Inch Sch40 WP9 Alloy Steel 90 Degree Elbow BEVELED ENDS, SCH-STD, ASME B16.9 Per Kg 216.12 UAE Dirham 10.65 $2.9
ASME B16.9 A234 WP9 Buttweld Pipe Tee BEVELED ENDS, SCH-STD Per Kg 163.95 UAE Dirham 8.08 $2.2

Petromet Flanges is one of the leading ASTM A234 WP9 Fittings manufacturer in India. Contact us to get latest Price List of A234 Grade WP9 Reducer. Our Alloy Steel WP5 Buttweld Fittings are tested to international standards, and specifications as per EN, JIS, DIN, ASTM etc.

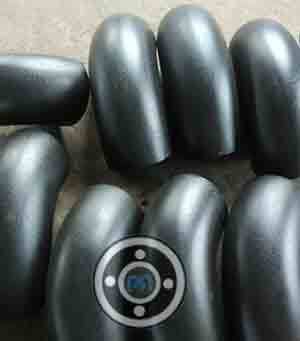

SA234 Grade WP9 SR Elbow

SA234 Grade WP9 SR Elbow

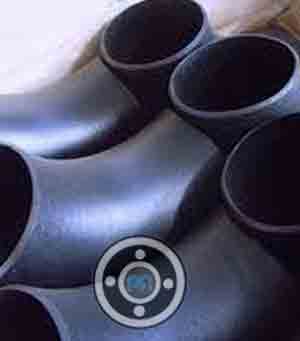

Alloy steel Gr WP9 Elbow 90deg. LR

Alloy steel Gr WP9 Elbow 90deg. LR

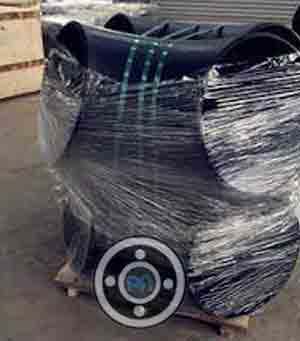

Alloy steel Gr WP9 45 Degree welded Elbow

Alloy steel Gr WP9 45 Degree welded Elbow

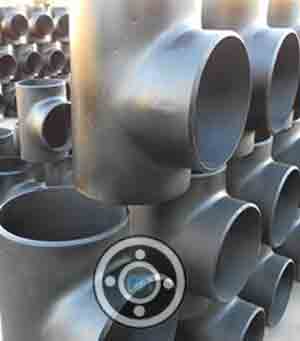

Alloy Steel Equal Tee, A234 WP9, 12In, SCH40, BW

Alloy Steel Equal Tee, A234 WP9, 12In, SCH40, BW

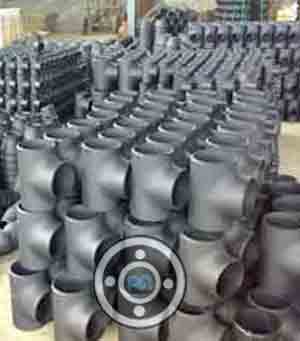

SA234 WP9 Reducing Tee, ASME B16.9, SCH XXS

SA234 WP9 Reducing Tee, ASME B16.9, SCH XXS

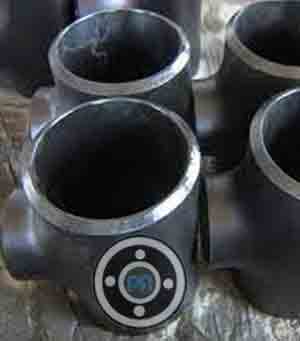

WP9 Butt welding Tee ASTM A234

WP9 Butt welding Tee ASTM A234

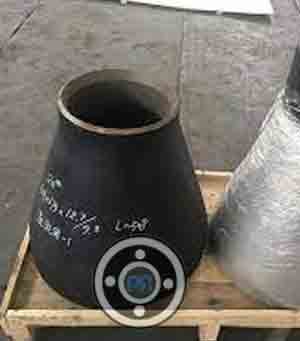

ASTM A234 WP9 Concentric Reducer, 12×10 Inch, SCH 80

ASTM A234 WP9 Concentric Reducer, 12×10 Inch, SCH 80

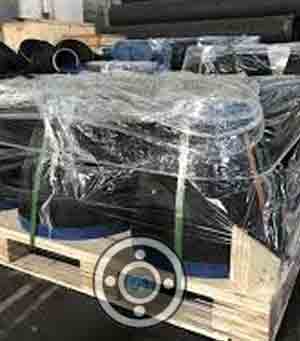

Eccentric Reducer 16inch sch80 BW A234 WP9

Eccentric Reducer 16inch sch80 BW A234 WP9

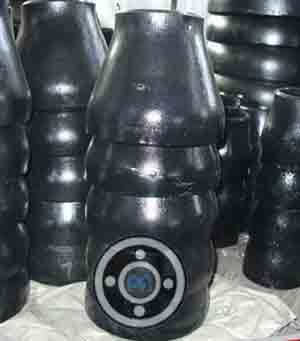

A234 Gr Wp9 Cl2 Concentric Reducer

A234 Gr Wp9 Cl2 Concentric Reducer

Carbon Manganese Phosphorus Sulfur Silicon Chromium Molybdenum
≤0.15 ≤0.6 ≤0.03 ≤0.03 1.00 8-10 0.90-1.10
Tensile Strength Yield Strength (0.2%Offset) Elongation
380 min 585 min ≥30
Property Value
Elastic modulus 190 - 210 GPa
Elongation A50 14 - 22 %
Poisson's ratio 0.3 [-]
Tensile strength 415 MPa
Yield strength Rp0.2 205 MPa
Schedules 10/40/ 80 in Seamless ASTM A234 Grade WP9 45/ 90/ 180 Degree Elbow, Pipe Bend, Split / Flanged Tee and SA 234 WP9 Alloy Steel Return Bends manufacturer in India
Hardness 217 HBW

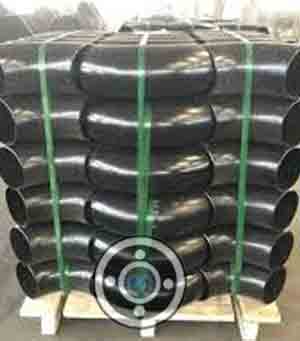

SCH STD SA234 WP9 90° Long Radius Elbow

SCH STD SA234 WP9 90° Long Radius Elbow

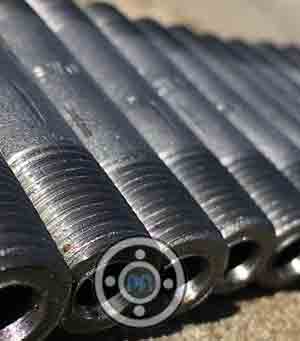

SCH 80 ASTM A234 WP9 Pipe Nipples

SCH 80 ASTM A234 WP9 Pipe Nipples

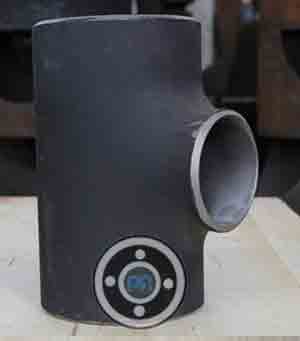

SCH 140 AS Grade WP9 Equal Tee

SCH 140 AS Grade WP9 Equal Tee

ASME SA234 WP9 Collar

ASME SA234 WP9 Collar

Alloy Steel WP9 Reducing Cross

Alloy Steel WP9 Reducing Cross

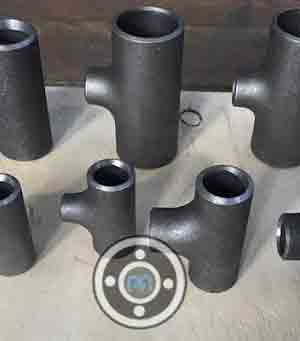

15 NB SCH 100 ASME SA234 WP9 Straight Tees and Crosses

15 NB SCH 100 ASME SA234 WP9 Straight Tees and Crosses

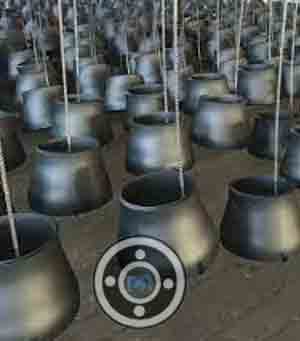

SA234 Gr WP9 Concentric Reducer

SA234 Gr WP9 Concentric Reducer

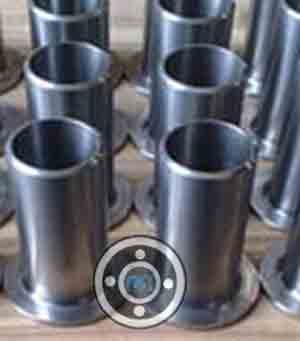

SCH 20 SA234 Gr WP9 Long Stubend

SCH 20 SA234 Gr WP9 Long Stubend

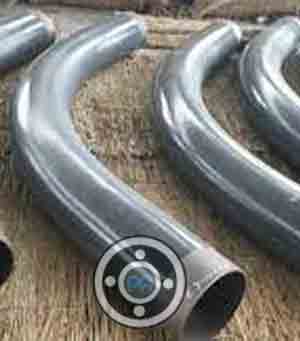

ASTM A234 Chrome Moly WP9 Long Radius Bend

ASTM A234 Chrome Moly WP9 Long Radius Bend

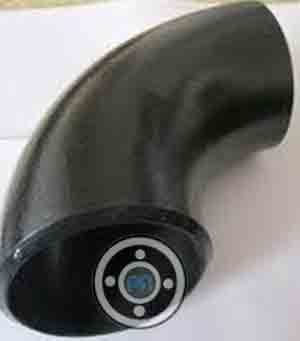

A234 WP9 Cl1 45° Short Radius Elbow

A234 WP9 Cl1 45° Short Radius Elbow

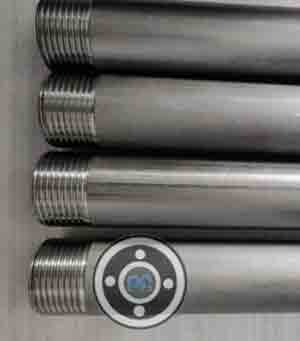

ASME SA 234 Grade WP9 Barrel Nipple

ASME SA 234 Grade WP9 Barrel Nipple

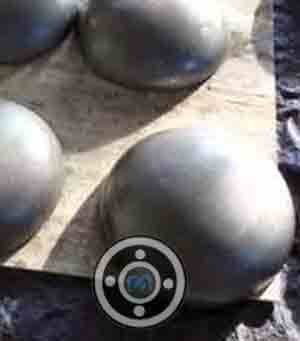

ASTM A234 WP9 Gr Cl1 End Cap

ASTM A234 WP9 Gr Cl1 End Cap

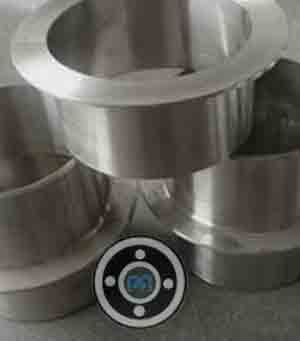

ASTM A234 WP9 Gr Cl1 Short Stubend

ASTM A234 WP9 Gr Cl1 Short Stubend

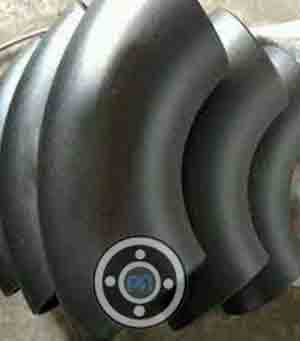

SCH 60 ASTM A234 Gr WP9 10D ELBOW

SCH 60 ASTM A234 Gr WP9 10D ELBOW

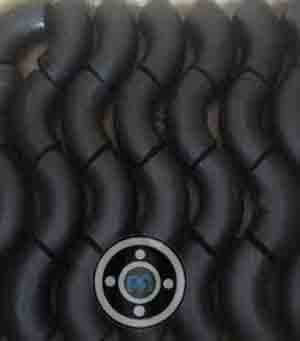

Alloy Steel cl1 WP9 1D Elbow

Alloy Steel cl1 WP9 1D Elbow

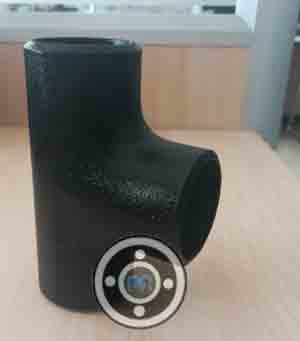

AS Grade WP9 Reducing Tee

AS Grade WP9 Reducing Tee

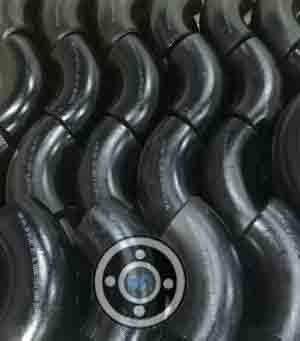

SCH 160 Chrome Moly A234-WP9 45° Long Radius Elbow

SCH 160 Chrome Moly A234-WP9 45° Long Radius Elbow

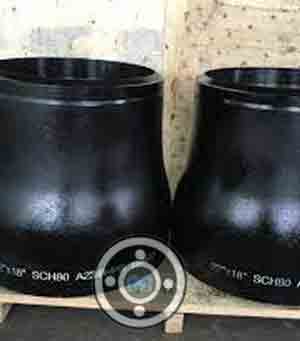

SCH 10 A234 grade WP9 crmo Reducers

SCH 10 A234 grade WP9 crmo Reducers

ASTM A234 Chrome Moly WP9 Seamless Buttwelding 45° and 90° Elbows

ASTM A234 Chrome Moly WP9 Seamless Buttwelding 45° and 90° Elbows

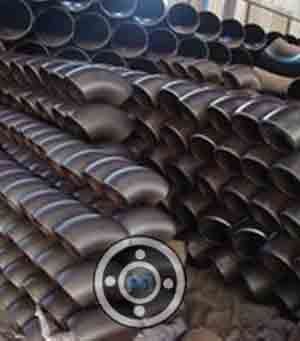

Alloy steel Gr WP9 1.5D Elbow

Alloy steel Gr WP9 1.5D Elbow

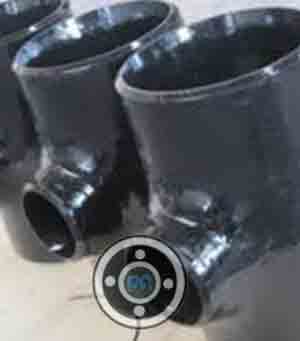

SCH 30 Alloy steel Gr WP9 Equal Cross

SCH 30 Alloy steel Gr WP9 Equal Cross

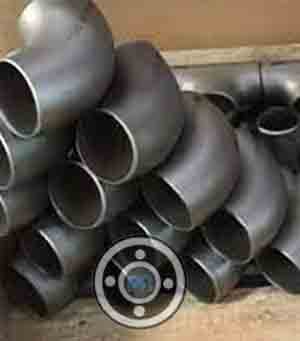

SCH 120 ASME SA 234 WP9 3D Elbow

SCH 120 ASME SA 234 WP9 3D Elbow

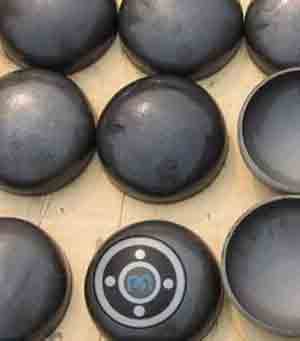

Alloy Steel WP9 Pipe Cap

Alloy Steel WP9 Pipe Cap

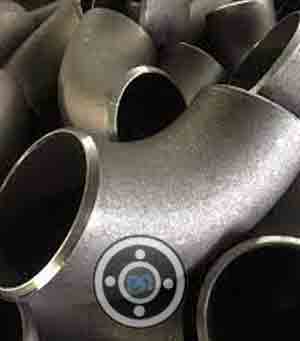

SCH XXS A234 WP9 180° Short Radius Elbow

SCH XXS A234 WP9 180° Short Radius Elbow

ASTM A234 WP9 180° Long Radius Elbow

ASTM A234 WP9 180° Long Radius Elbow

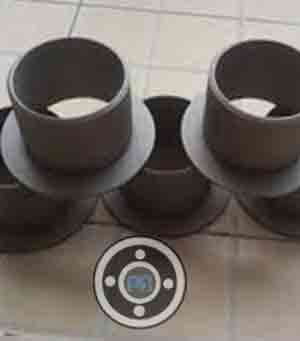

SA234 WP9 Lap Joint Stub Ends

SA234 WP9 Lap Joint Stub Ends

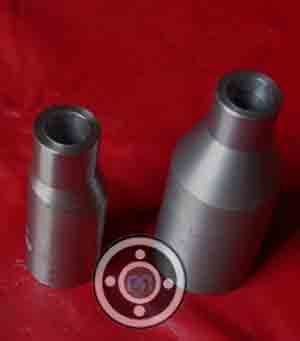

Chromium A234 Grade WP9 Swage Nipple

Chromium A234 Grade WP9 Swage Nipple

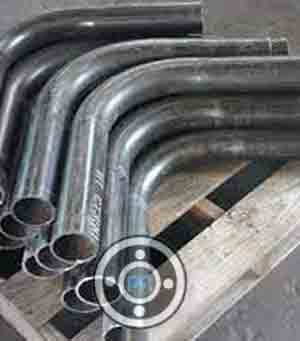

450 NB SCH 40 Chrome Moly A234-WP9 Bend

450 NB SCH 40 Chrome Moly A234-WP9 Bend

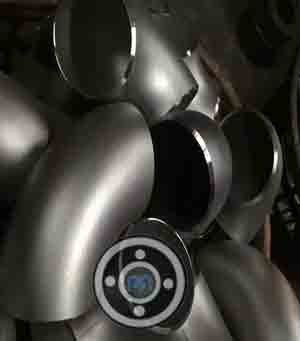

AS A234 WP9 90° Short Radius Elbow

AS A234 WP9 90° Short Radius Elbow

ASTM A234 Gr WP9 Reducing Outlet Tees and Reducing Outlet Crosses

ASTM A234 Gr WP9 Reducing Outlet Tees and Reducing Outlet Crosses

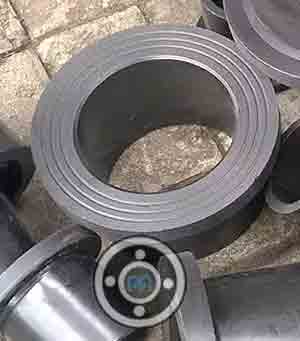

SCH XS Alloy Steel cl1 WP9 Stub End

SCH XS Alloy Steel cl1 WP9 Stub End

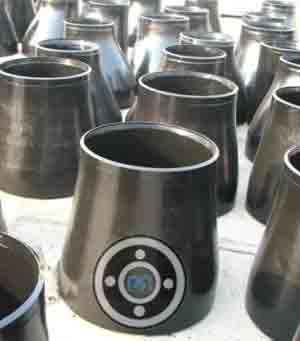

AS A234 WP9 Eccentric Reducer

AS A234 WP9 Eccentric Reducer

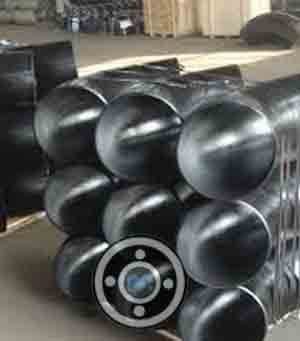

Alloy Steel Grade WP9 Seamless Buttwelding 180° Returns

Alloy Steel Grade WP9 Seamless Buttwelding 180° Returns

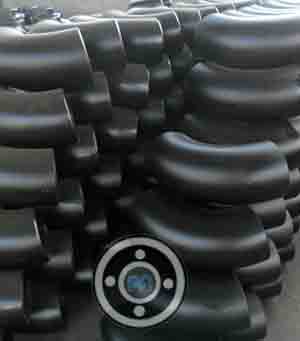

Chromium A234 Grade WP9 5D Elbow

Chromium A234 Grade WP9 5D Elbow

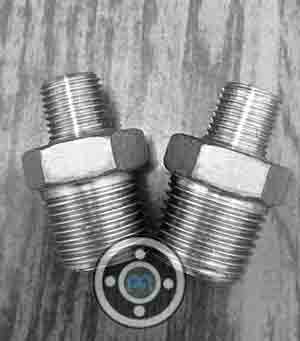

A234 grade WP9 crmo Reducing Nipple

A234 grade WP9 crmo Reducing Nipple

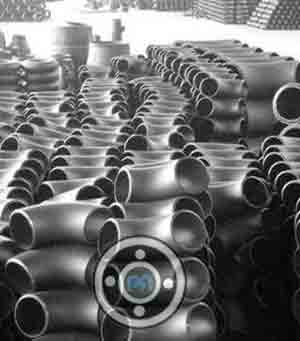

ASME SA 234 Grade WP9 Welded Elbows

ASME SA 234 Grade WP9 Welded Elbows

GRADE SCHEDULE NOM. PIPE SIZE
WP-S SCH 10S 1/2″ - 12″
  SCH 40S 1/2″ - 12″
  SCH 80S 1/2″ - 12″
  • Pitting resistance Test
  • Hardness Test
  • Flattening Test
  • Chemical Test
  • Macro Test
  • Radiography Test
  • Intergranular corrosion Test
  • Mechanical Test
SA234 Gr WP9 90 Deg Long Radius Elbow A234 grade WP9 crmo 180 Deg Short Radius Elbow
ASME SA 234 Weldable Pressure 9 Eccentric Reducer ASTM A234 WP9 Chrome Moly Steel Tees
Chrome Moly Steel SA234 WP9 Concentric Reducer Fittings AS A234 Weldable Pressure 9 Eccentric Reducer
ASTM A234 Weldable Pressure 9 Gr Cl1 45 Deg Short Radius Elbow A234 WP9 Cl1 End Pipe Cap
AS Grade WP9 Welded Pipe Fittings A234 Weldable Pressure 9 Reducing Cross
ASME SA234 Weldable Pressure 9 Pipe Bends Chrome Moly Steel A234 Weldable Pressure 9 Buttweld Elbow
Chrome Moly Steel SA234 WP9 5D Bend ASTM A234 Chrome Moly WP9 45 Deg Long Radius Elbow
ASME SA 234 Weldable Pressure 9 Seamless Bend Pipe Chromium A234 Grade WP9 Elbow Fittings
ASTM A234 Gr WP9 Pipe Nipple Alloy Steel cl1 Weldable Pressure 9 Pipe Tee Fittings
Alloy Steel cl1 Weldable Pressure 9 90 Deg Short Radius Elbow Chrome Moly A234-WP9 Elbow Pipe Fittings
ASME SA234 Weldable Pressure 9 Cross ASME SA 234 Grade Weldable Pressure 9 Seamless Tee Fittings
ASME SA 234 Weldable Pressure 9 Pipe End Cap ASTM A234 Weldable Pressure 9 Gr Cl1 Long Radius Bend
A234 Weldable Pressure 9 Seamless Pipe Fitting Chrome Moly Steel A234 grade WP9 crmo End Cap
ASTM A234 Chrome Moly WP9 Stub End Chrome Moly Steel A234 WP9 Cl1 Pipe Reducer
A234 WP9 Cl1 U Bend Chrome Moly A234-WP9 180 Deg Long Radius Elbow
SA234 Gr WP9 Lateral Tee Chrome Moly Steel Grade WP9 Stubends Fittings
Alloy Steel Grade Weldable Pressure 9 Pipe Cross ASTM A234 Gr WP9 Reducing Tee Fittings
Alloy Steel Grade Weldable Pressure 9 Equal Cross ASTM A234 WP9 Equal Tee Fittings
ASME SA 234 Grade Weldable Pressure 9 Buttweld Fittings Alloy steel Gr WP9 Seamless Butt Weld Fittings
Alloy Steel WP9 Straight Cross Chrome Moly Steel WP9 BW Tee Fittings
Alloy steel Gr Weldable Pressure 9 Reducer Chrome Moly Steel A234 Grade WP9 Pipe Cap
Manufacturer of SCH 40/ STD ASTM A234 WP9 Buttweld Elbow 90 Deg LR and A234 Gr WP9 SR Elbow in India according to ASME B16.9
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Off-Shore Oil Drilling Companies
  • Pulp and Paper Industry
  • Power Generation
  • Petrochemicals
  • Gas Processing
ASME B16.9 Factory-Made Wrought Buttwelding Fittings Long Radius Elbows, Straight Crosses, Long Radius Returns, Reducing Outlet Crosses, 3D elbows, Short Radius Elbows, Reducing Outlet Tees, Lap Joint Stub Ends, Caps, Straight Tees, Short Radius 180-deg Rerurns, Long Radius Reducing Elbows, Reducers
MSS SP43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications concentric reducers, LR Elbows, LR 180 Degree returns, Lap Joint Stub ends, caps, Straight and Reducing-on-the-Outlet Tees, eccentric reducers
Mss SP75 straight tees, 3R elbows, caps, reducing outlet tees, Long Radius Elbows, reducers
ASME B16.28 SR Elbows, SR 180-deg Returns
NPS KG LBS
1/2 0.11 0.25
3/4 0.11 0.25
1 0.23 0.5
0.41 0.9
0.52 1.15
2 1 2.2
1.81 4
3 2.95 6.5
3.79 8.35
4 6.12 13.5
5 9.98 22
6 15.88 35
8 32.21 71
10 48.53 107
12 72.57 160
14 92.99 205
16 125.19 276
18 154.22 340
20 190.51 420
22 235.87 520
24 272.16 600
26 330.67 729
30 442.25 975
36 640.47 1412

Alloy Steel cl1 WP9 Reducer Size

NOMINAL PIPE SIZE END TO END OUTSIDE DIAMETER
Inch H D P
3/4 x 1/2 38 26.7 21.3
3/4 x 3/8 38 26.7 17.1
1 x 3/4 51 33.4 26.7
1 x 1/2 51 33.4 21.3
1 1/4 x 1 51 42.2 33.4
1 1/4 x 3/4 51 42.2 26.7
1 1/4 x 1/2 51 42.2 21.3
1 1/2 x 1 1/2 64 48.3 42.2
1 1/2 x 1 64 48.3 33.4
1 1/2 x 3/4 64 48.3 26.7
1 1/2 x 1/2 64 48.3 21.3
2 x 1 1/2 76 60.3 48.2
2 x 1 1/4 76 60.3 42.2
2 x 1 76 60.3 33.4
2 x 3/4 76 60.3 26.7
2 1/2 x 2 89 73 60.3
2 1/2 x 1 1/2 89 73 48.3
2 1/2 x 1 1/4 89 73 42.2
2 1/2 x 1 89 73 33.4
3 x 2 1/2 89 88.9 73
3 x 2 89 88.9 60.3
3 x 1 1/2 89 88.9 48.3
3 x 1 1/4 89 88.9 42.2
3 1/2 x 3 102 101.6 88.9
3 1/2 x 21/2 102 101.6 73
3 1/2 x 2 102 101.6 60.3
3 1/2 x 1 1/2 102 101.6 48.3
3 1/2 x 1 1/4 102 101.6 42.2
4 x 3 1/2 102 114.3 101.6
4 x 3 102 114.3 88.9
4 x 2 1/2 102 114.3 73
4 x 2 102 114.3 60.3
4 x 1 1/2 102 114.3 48.3
5 x 4 127 141.3 114.3
5 x 3 1/2 127 141.3 101.6
5 x 3 127 141.3 88.9
5 x 2 1/2 127 141.3 73
5 x 2 127 141.3 60.3
6 x 5 140 168.3 141.3
6 x 4 140 168.3 114.3
6 x 3 1/2 140 168.3 101.6
6 x 3 140 168.3 88.9
6 x 2 1/2 140 168.3 73
8 x 6 152 219.1 168.3
8 x 5 152 219.1 141.3
8 x 4 152 219.1 114.3
8 x 3 1/2 152 219.1 101.6
10 x 8 178 273.1 219.1
10 x 6 178 273.1 168.1
10 x 5 178 273.1 141.3
10 x 4 178 273.1 114.3
12 x 10 203 323.9 273.1
12 x 8 203 323.9 219.1
12 x 6 203 323.9 168.3
12 x 5 203 323.9 141.3
14 x 12 330 355.6 323.9
14 x 10 330 355.6 273.1
14 x 8 330 355.6 219.1
14 x 6 330 355.6 168.3
16 x 14 356 406.4 355.6
16 x 12 356 406.4 323.9
16 x 10 356 406.4 273.1
16 x 8 356 406.4 219.1
16 x 6 356 406.4 168.3
18 x 16 381 457 406.4
18 x 14 381 457 355.6
18 x 12 381 457 323.9
18 x 10 381 457 273.1
18 x 8 381 457 219.1
20 x 18 508 508 457
20 x 16 508 508 406.4
20 x 14 508 508 355.6
20 x 12 508 508 323.9
20 x 10 508 508 273.1
20 x 8 508 508 219.1
22 x 20 508 559 508
22 x 18 508 559 457
22 x 16 508 559 406.4
22 x 14 508 559 355.6
22 x 12 508 559 323.9
24 x 10 508 559 273.1
24 x 22 508 610 559
24 x 20 508 610 508
24 x 18 508 610 457
24 x 16 508 610 406.4
24 x 14 508 610 355.6
24 x 12 508 610 323.9
24 x 10 508 610 273.1
Nominal
Pipe Size
Outside
Diameter
Reducers
Reduced from
(inches)
(inches) (mm) Concentric & Eccentric Length
(inches)
Reduced to
(inches)
1/2 0.840 21.3 1 1/2 1/4
1 1/2 3/8
3/4 1.050 26.7 2 3/8
2 1/2
1 1.315 33.4 2 3/8
2 1/2
2 3/4
1 1/4 1.660 42.2 2 1/2
2 3/4
2 1
1 1/2 1.900 48.3 2 1/2 1/2
2 1/2 3/4
2 1/2 1
2 1/2 1 1/4
2 2.375 60.3 3 3/4
3 1
3 1 1/4
3 1 1/2
2 1/2 2.875 73.0 3 1/2 1
3 1/2 1 1/4
3 1/2 1 1/2
3 1/2 2
3 3.500 88.9 3 1/2 1
3 1/2 1 1/2
3 1/2 2
3 1/2 2 1/2
3 1/2 4.000 101.6 4 1 1/4
4 1 1/2
4 2
4 2 1/2
4 3
4 4.500 114.3 4 1 1/2
4 2
4 2 1/2
4 3
4 3 1/2
5 5.563 141.3 5 2
5 2 1/2
5 3
5 3 1/2
5 4
6 6.625 168.3 5 1/2 2 1/2
5 1/2 3
5 1/2 3 1/2
5 1/2 4
5 1/2 5
8 8.625 219.1 6 3
6 3 1/2
6 4
6 5
6 6
10 10.750 273.1 7 4
7 5
7 6
7 8
12 12.750 323.9 8 5
8 6
8 8
8 10
A234 WP9 90 deg Long Radius Elbow

A234 WP9 90 deg Long Radius Elbow

United States, South Korea, Tehran -Iran, Poland, Indonesia, Dubai, Qatar, Kuala Lumpur, Thailand, Vietnam, Indonesia

ASTM A234 WP9 SMLS End Cap

ASTM A234 WP9 SMLS End Cap

Netherlands, France, Romania, Dubai- UAE, Singapore, Jakarta -Indonesia, Iran, Malaysia, Saudi Arabia (KSA), Singapore, Kuwait

Chrome Moly Steel A234 WP9 Buttweld Tee

Alloy Steel A234 WP9 Buttweld Tee

Czechia, South Africa, Kuwait, Europe, Vietnam, Norway, Malaysia, Belgium, Germany, Nigeria, Chile, United Arab Emirates (UAE), South Africa, UK

SA234 Grade WP9 SR Elbow

SA234 Grade WP9 SR Elbow

Oman, Brazil, NY 12203 (USA), Istanbul- Turkey, Finland, Argentina, Bahrain, Jakarta, Hong Kong, Bangladesh

Grade A234 WP9 CrMo Butt weld Pipe Fittings

A234 WP9 Butt weld Pipe Fittings

Spain, USA, Malaysia, Saudi Arabia (KSA), United Kingdom (UK), Japan, Ellington -United States, Thailand, Bahrain

A234 WP9 Alloy Steel Long Stub

A234 WP9 Alloy Steel Long Stub

Philippines, Austria, Canada, Turkey, Greece, Singapore, Los Alamos -Mexico, Dammam -KSA
