What is Gun Metal Flanges?
The gunmetal material is an alloy made up of copper, tin, and zinc. It also has other elements like nickel and lead in its composition. The gunmetal flanges are known for their good strength and corrosion resisting properties. The material can be casted easily and comes with a very long service life. The gunmetal flanges are highly durable, reliable, and hence they are used for a variety of applications. There are different types of gunmetal flanges available- they come in different shapes, sizes, and are used for different purposes. For example, the gunmetal blind flange helps in stopping the flow inside the pipe, whereas the gunmetal weld neck flange ensures that flow of liquids and gases takes place smoothly inside the pipe, without leaking at the joints, in different severe and critical conditions.
What are the properties of Gun Metal Blind Flanges?
The gunmetal blind flanges are used to stop a piping connection or seal the nozzle of a pressure. The properties of the flange are:
Gun Metal Slip on Flange Vs Gun Metal Threaded Flanges
The Gun Metal Slip on Flange comes with a hole that matches the outer diameter of the pipe. This is essential for the pipe to pass smoothly through it. Once the flange is placed into the pipe, double welding is done on the inside and the outside to ensure enhanced strength and leakage proof connections. They are mostly used for applications that involve low temperature, low pressure and there should also be less risk of leakage.
The Gun Metal Threaded Flanges are also known as screwed flanges. They have a thread inside the bore of the flange that fits into the pipe via the matching male thread that is on the pipe. The threaded flanges come with simple and speedy installations, and as there is no welding involved, the cost of the installation is also lower compared to the slip on flanges. These flanges are mostly used for utility services like air, water, etc.
Gun Metal RTJ Flange Vs Gun Metal Lap Joint Flanges
Gun Metal RTJ Flange also known as ring type joint flange are basically machined metallic rings that come with deep cuts and grooves into its face. The grooves are placed over a metallic ring that gets compressed when the connecting bolts are tightened. This method helps to establish a leak-proof connection and hence they can be easily used in several high-pressure applications.
The Gun Metal Lap Joint Flanges basically comes with two components, which are a loose backing flange and a stub end. The stub end is butt welded to join with the pipe, and the backing flange can easily move over the pipe. They are mostly used for those connections where the piping needs frequent dismantling. They are also used in applications where space is a constraint. The backing flange can be of a different material like carbon steel. It helps in saving the overall cost.

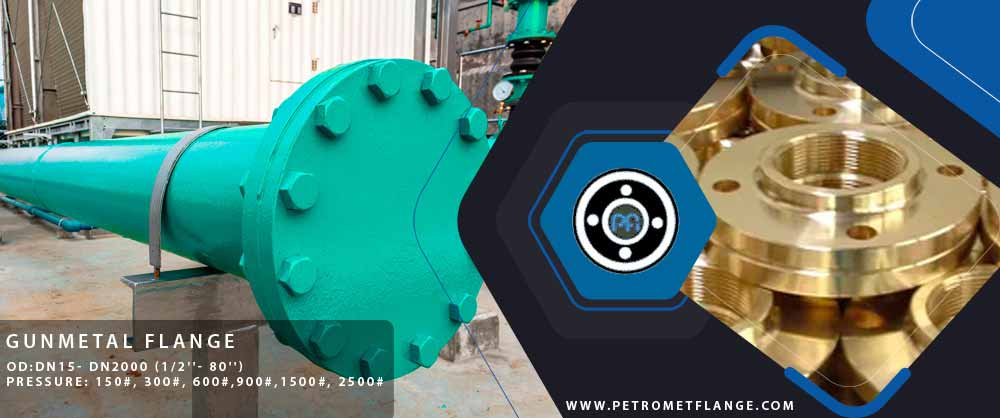

Gunmetal Flange manufacturer in India
Table of Content
Size Range | 1/2″ to 48″ |
---|---|
Chart of Pressure Rating | 300 LBS, 2500 LBS, 1500 LBS, 900 LBS, 150 LBS, 600 LBS |
JIS | 40 K, 16 K, 5K, 10 K, 30 K, 20 K, 63 K |
DIN Pressure Calculation | 25Bar 40Bar 16Bar 6Bar 10Bar / PN64 PN10 PN25 PN16 PN6 PN40 |
Manufacturer of Connect / Flange Face Type | LJF, RF, RTJ, FF, Small Tongue, Large Tongue & Groove |
Test | Magnetic particle detector, X-ray detector, Ultrasonic flaw detector, Direct-reading Spectrograph, Hydrostatic testing machine |
Origin | Japan / West Europe / Indian / USA / Korean |
Manufacturer of | GOST, JIS, ANSI, DIN, UNI, BS, AWWA, AS2129, SABS, NFE, EN etc. |
UNI / EN | 16Bar 6Bar 40Bar 10Bar 25Bar |
Standards Provided By Manufacturer | ISO70051, MSS S44, BS1560-3.1, API7S-43, B16.48, ANSI/ASME B16.5, B16.47 Series A & B, BS4504, JISB2220, ASME/ANSI B16.5/16.36/16.47A/16.47B, API605, BS 10, EN-1092, DIN, API7S-15, EN1092 |
Common Types By Manufacturer | Threaded / Screwed / Forged / Plate |
Equipment | Pushing Machine, Press machine, Sand-blasting machine, Bending machine, electric bevelling machine etc |
Production technique Used By Manufacturer | Heat treated, Forged and machined |
Coating | Zinc Plated, Anti-rust Paint, Yellow Transparent, Oil Black Paint, Cold and Hot Dip Galvanized |
Are you looking for Gunmetal Bs 1400 Lg2 Flanges stockists, distributor, dealers, supplier, wholesalers, importer, stockholders, exporters and Manufacturer in Mumbai.
BS1400 LG2 | CC491K |
C83600 | CuSn5Pb5Zn5 |
Gunmetal Flange Price Per Piece in India | ASTM B62 UNS C83600 Flanges Price in INR | Gunmetal LG2 Flange Price in UAE Dirham | Nickel Gunmetal Flange Price in USD |
1-1/2 IN INST OUTLET IN GUNMETAL ANSI 150 FLANGE Per Unit | 20,343 | UAE Dirham 996.54 | $271.31 |
RF 150# Red Brass Blind Flange Per Unit | 2136.71 | UAE Dirham 104.68 | $28.50 |
We are leading Gunmetal Flange manufacturers in India. Ask for Price list and Stock list before ordering Red Brass Flange. We are leading Manufacturer and Supplier of ASTM B62 Alloy C83600 Flanges
Size in Inch | Size in mm | ISO Stud Size | RF Height | Outer Dia. | RF Dia. | Hole Size | PCD | No of Bolts | Bolt Size UNC | Flange Thickness | RF Stud Length | Weight in kg |
D | A | C | E | B | ||||||||
1/2 | 15 | M20 | 7 | 135 | 34.9 | 7/8 | 88.9 | 4 | 3/4 | 30.2 | 120 | 3.2 |
3/4 | 20 | M20 | 7 | 140 | 42.9 | 7/8 | 95.2 | 4 | 3/4 | 31.8 | 125 | 3.7 |
1 | 25 | M24 | 7 | 160 | 50.8 | 1 | 108 | 4 | 7/8 | 35 | 140 | 5 |
1 1/4 | 32 | M27 | 7 | 185 | 63.5 | 1 1/8 | 130.2 | 4 | 1 | 38.1 | 150 | 7.8 |
1 1/2 | 40 | M30 | 7 | 205 | 73 | 1 1/4 | 146 | 4 | 1 1/8 | 44.5 | 170 | 10.5 |
2 | 50 | M27 | 7 | 235 | 92.1 | 1 1/8 | 171.4 | 8 | 1 | 50.9 | 180 | 18 |
2 1/2 | 65 | M30 | 7 | 265 | 104.8 | 1 1/4 | 196.8 | 8 | 1 1/8 | 57.2 | 195 | 25.5 |
3 | 80 | M33 | 7 | 305 | 127 | 1 3/8 | 228.6 | 8 | 1 1/4 | 66.7 | 220 | 39 |
4 | 100 | M39 | 7 | 355 | 157.2 | 1 5/8 | 273 | 8 | 1 1/2 | 76.2 | 255 | 61.5 |
5 | 125 | M45 | 7 | 420 | 185.7 | 1 7/8 | 323.8 | 8 | 1 3/4 | 92.1 | 300 | 102 |
6 | 150 | M52 | 7 | 485 | 215.9 | 2 1/8 | 368.3 | 8 | 2 | 108 | 345 | 157 |
8 | 200 | M52 | 7 | 550 | 269.9 | 2 1/8 | 438.2 | 12 | 2 | 127 | 380 | 241 |
10 | 250 | M64 | 7 | 675 | 323.8 | 2 5/8 | 539.8 | 12 | 2 1/2 | 165.1 | 490 | 470 |
12 | 300 | M72 | 7 | 760 | 381 | 2 7/8 | 619.1 | 12 | 2 3/4 | 184.2 | 540 | 575 |
Size in Inch | Size in mm | No of Bolts | Outer Dia. | Hub OD | ISO Stud Size | Flange Length | RF Height | Flange Thick. | RF Dia. | PCD | Hole Size | Socket Bore | Weight in kg |
A | C | D | F | B | E | G | H | ||||||
1/2 | 15 | 4 | 90 | 30 | M14 | 14 | 2 | 9.6 | 34.9 | 60.3 | 5/8 | 22.2 | 0.8 |
1 | 25 | 4 | 110 | 49 | M14 | 16 | 2 | 12.7 | 50.8 | 79.4 | 5/8 | 34.5 | 0.9 |
3/4 | 20 | 4 | 100 | 38 | M14 | 14 | 2 | 11.2 | 42.9 | 69.9 | 5/8 | 27.7 | 0.9 |
1 1/4 | 32 | 4 | 115 | 59 | M14 | 19 | 2 | 14.3 | 63.5 | 88.9 | 5/8 | 43.2 | 1.4 |
2 | 50 | 4 | 150 | 78 | M16 | 24 | 2 | 17.5 | 92.1 | 120.7 | 3/4 | 61.9 | 2.3 |
1 1/2 | 40 | 4 | 125 | 65 | M14 | 21 | 2 | 15.9 | 73 | 98.4 | 5/8 | 49.5 | 1.4 |
2 1/2 | 65 | 4 | 180 | 90 | M16 | 27 | 2 | 20.7 | 104.8 | 139.7 | 3/4 | 74.6 | 3.2 |
3 | 80 | 4 | 190 | 108 | M16 | 29 | 2 | 22.3 | 127 | 152.4 | 3/4 | 90.7 | 3.7 |
4 | 100 | 8 | 230 | 135 | M16 | 32 | 2 | 22.3 | 157.2 | 190.5 | 3/4 | 116.1 | 5.9 |
3 1/2 | 90 | 8 | 215 | 122 | M16 | 30 | 2 | 22.3 | 139.7 | 177.8 | 3/4 | 103.4 | 5 |
5 | 125 | 8 | 255 | 164 | M20 | 35 | 2 | 22.3 | 185.7 | 215.9 | 7/8 | 143.8 | 6.8 |
8 | 200 | 8 | 345 | 246 | M20 | 43 | 2 | 27 | 269.9 | 298.5 | 7/8 | 221.5 | 13.7 |
10 | 250 | 12 | 405 | 305 | M24 | 48 | 2 | 28.6 | 323.8 | 362 | 1 | 276.2 | 19.5 |
6 | 150 | 8 | 280 | 192 | M20 | 38 | 2 | 23.9 | 215.9 | 241.3 | 7/8 | 170.7 | 8.6 |
12 | 300 | 12 | 485 | 365 | M24 | 54 | 2 | 30.2 | 381 | 431.8 | 1 | 327 | 29 |
24 | 600 | 20 | 815 | 663 | M33 | 81 | 2 | 46.1 | 692.2 | 749.3 | 1 3/8 | 616 | 100 |
16 | 400 | 16 | 595 | 457 | M27 | 62 | 2 | 35 | 469.9 | 539.8 | 1 1/8 | 410.5 | 54 |
18 | 450 | 16 | 635 | 505 | M30 | 67 | 2 | 38.1 | 533.4 | 577.9 | 1 1/4 | 461.8 | 59 |
14 | 350 | 12 | 535 | 400 | M27 | 56 | 2 | 33.4 | 412.8 | 476.3 | 1 1/8 | 359.2 | 41 |
20 | 500 | 20 | 700 | 559 | M30 | 71 | 2 | 41.3 | 584.2 | 635 | 1 1/4 | 513.1 | 75 |
Gunmetal Flange
ASTM B62 UNS C83600 Flange
ASTM B62 Alloy C83600 Flange
ASTM B62 Flange

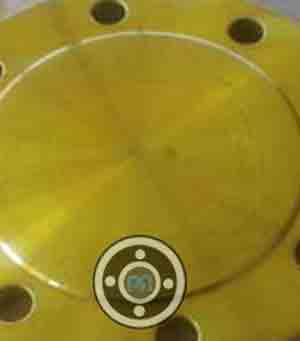

Gunmetal BS 1400 Lg2 Blind Flange

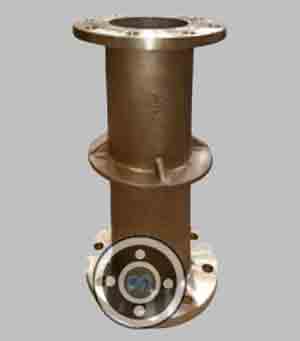

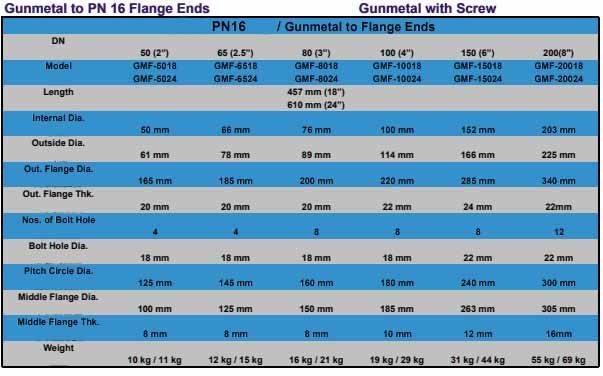

Gunmetal Puddle Flange

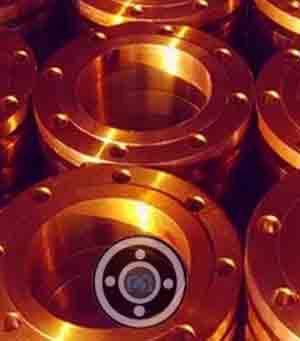

Gun Metal Flanges

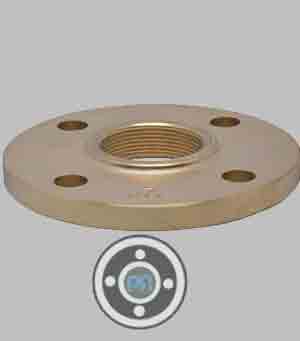

Solder flange gunmetal DIN2633

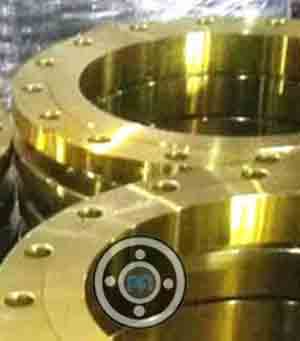

Red Brass Flange
Red Brass Pipe Flange

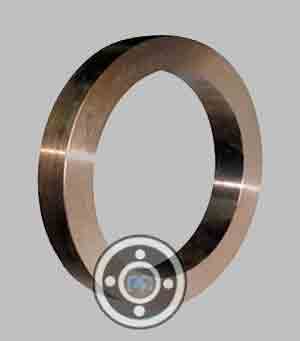

Leaded Gunmetal Ring Spacers

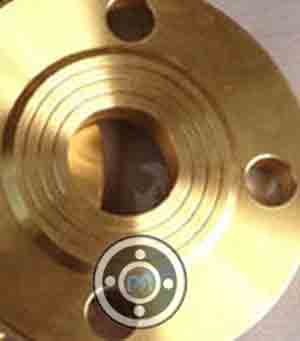

Nickel Gunmetal Socket Weld Flange

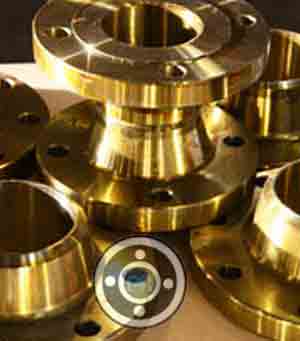

Alloy Gunmetal Weld Neck Flange

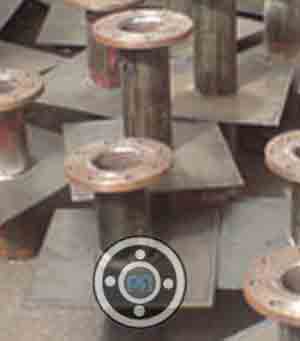

Gunmetal Alloys Puddle Flange

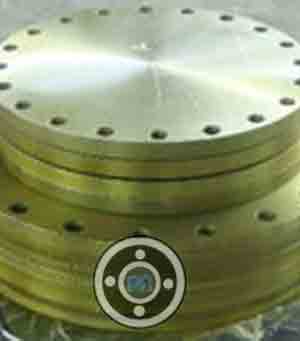

G Metal Blind Flange

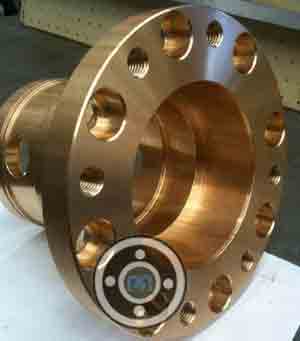

Gunmetal Cc491k WNRF Flange

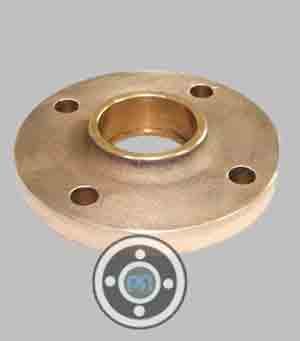

Gunmetal LG2 Lapped Joint Flange

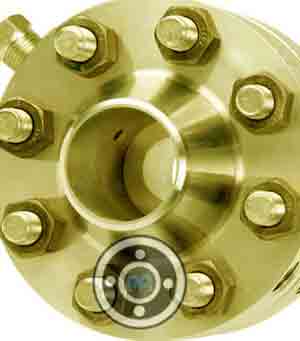

Leaded Gunmetal Lg2 Orifice Flanges
Gunmetal LG4 Threaded Flange

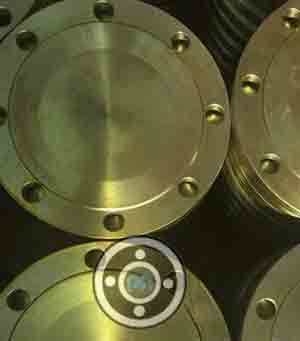

Cusn5zn5pb5 BLRF Flanges

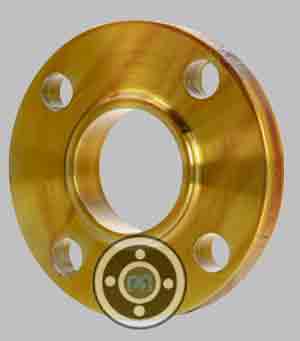

Gunmetal CC491K SORF Flanges

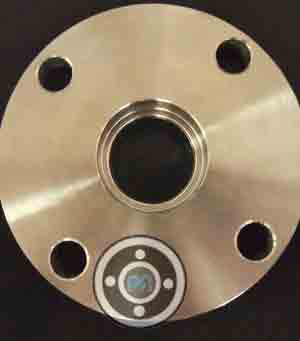

EN 1982 Grade CB491K SWRF Flanges

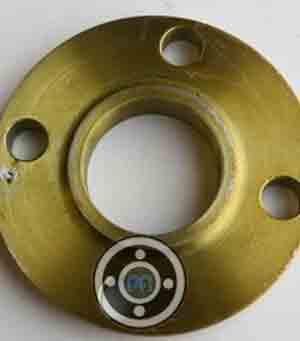

Gunmetal LG2 Flange

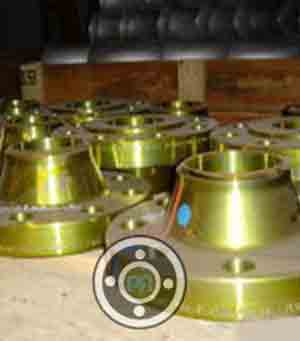

Leaded Gunmetal Lg2 Flange

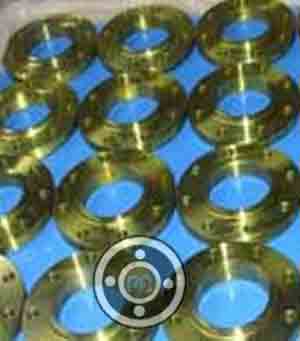

Astm B62 C83600 Flange

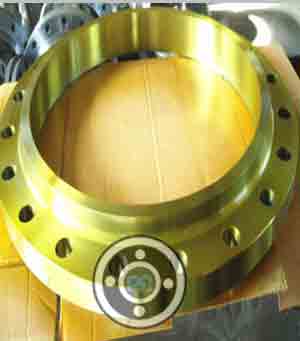

Gunmetal Bs 1400 Lg2 Flange
Astm B62 Alloy C83600 Flange
The stress relieving temperature of UNS C83600 alloy flange is 260°C (500°F). Heat treatment has no effect on this alloy. For this alloy, the time at temperature is one hour per inch of section thickness.
Copper | 85.0% |
Tin | 5.0% |
Lead | 5.0% |
Zinc | 5.0% |
Phosphorus | 0.025% |
Others | 0.5% max |
UTS | 270 N/mm2 |
0.2% Proof Strength | 100 N/mm2 |
Elongation | 13% |
Hardness | 75 HB |
Melting Point | 1010°C |
Density | 8.83 g/cm³ |
Thermal conductivity (RT) | 71.9 W/m°K |
Thermal expansion coefficient (20-200°C) | 18 x 10-6 / ?C |
Electrical conductivity | 15% IACS |
Modulus of Elasticity | 93 GPa |
Hot Formability | Not Recommended |
Cold Formability | Not Recommended |
Machinability rating (free cutting brass = 100) | 85% |
Stress Relieving Temp. Range | 260°C (1hr per inch thickness) |
Maximum operating temperature | 230°C |
Soldering | Excellent |
Brazing | Good |
Oxy-acetylene welding | Not recommended |
Gas-shielded arc welding | Not recommended |
Copper | 84.0-86.0 |
Zinc | 4.0-6.0 |
Tin | 4.0-6.0 |
Lead | 4.0-6.0 |
Silicon | 0.005 max |
Phosphorous | 0.005 max |
Iron | 0.03 max |
Sulphur | 0.08 max |
Antimony | 0.25 max |
Nickel | 1.0 max |
Aluminium | 0.005 max |
Elongation A50 mm | 12 % |
Hardness Brinell | 70 HB |
Tensile Strength | 240 N/mm2 |
0.2% Proof Stress | 130 N/mm2 |
Cua | Sn | Pb | Zn | Ni | Al | Fe | Mn | P | S | Si | Sb | As | Cr | Bi | Cd | Se | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Min | 83.0 | 4.2 | 4.2 | 4.5 | - | - | - | - | - | - | - | - | - | - | - | - | - |
Max | 86.5 | 6.0 | 5.8 | 6.5 | 2.0 | 0.01 | 0.25 | - | 0.03 | 0.08 | 0.01 | 0.25 | - | - | - | - | - |
Rm | Tensile strength min. | 250 N/mm2 |
Rp0.2 | Proof Strength min. | 110 N/mm2 |
A | Elongation min. | 13 % |
HB | Brinell hardness min. | 65 HBW |
