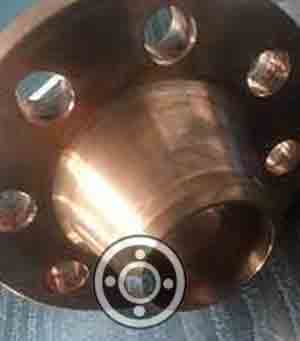

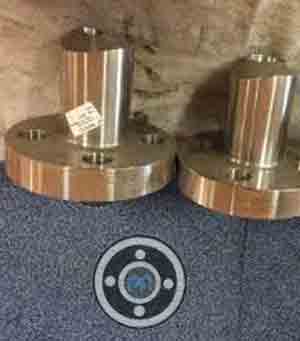

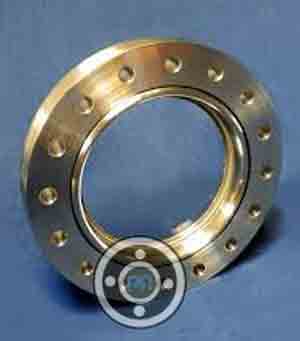

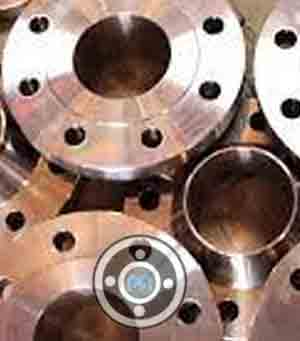

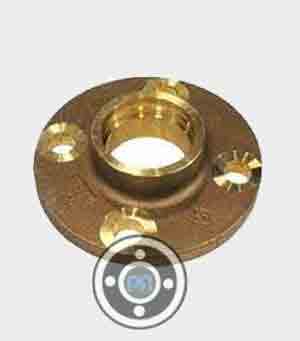

What is Tin Bronze Flanges?
The Tin Bronze material is an alloy of copper-based elements, with tin being the most important element. Due to the presence of a high percentage of tin in the alloy, the material possesses some good and unique mechanical properties. However, also because of tin, the overall cost of the material increases. The Tin Bronze Flanges are high in strength and hence they can be used for high pressure applications. These flanges possess enhanced hardenability and they can effectively resist wear and tear, as well as corrosion. The addition of lead in the alloy helps to enhance its machinability and stress tightness. It also has high fabricability. The Tin Bronze Flanges are used as valve components, steam fittings, etc.

Tin Bronze Alloy Weld Neck Flange Vs Tin Bronze Slip On Flange

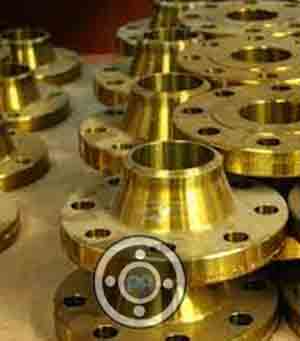

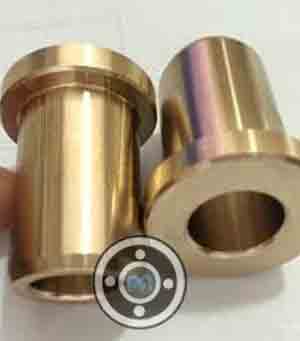

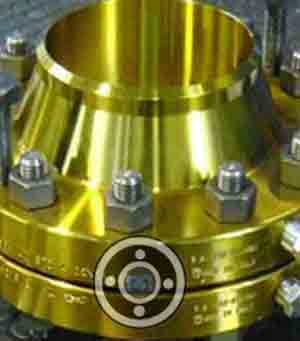

Tin Bronze Alloy Weld Neck Flange is one of most used piping components of the given material grade. It possesses a high level of joint integrity as the connection is made by buttwelding the flange with the pipe. Due to the secured nature and capacity to provide leak-proof connections, and also being made of tin bronze alloy, these weld neck flanges are ideal for high pressure applications. They have more weight and are costly compared to the slip on flanges of the given material grade.

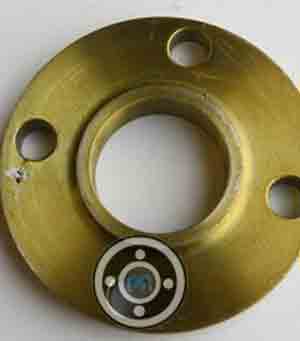

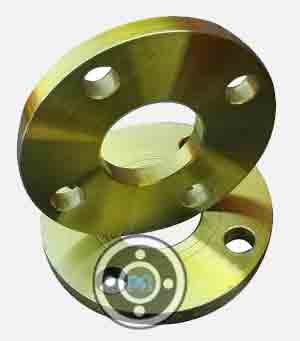

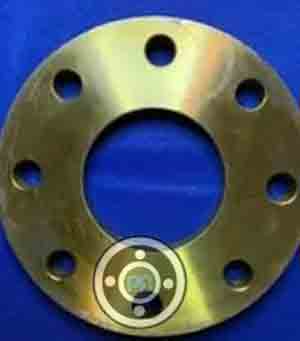

The Tin Bronze Slip On Flange is a plate with a bore in the center whose diameter matches with the outer diameter of the pipe. The flange is slipped into the pipe before it is double welded from both inside and outside. They are mainly used for low pressure applications, where there is a less risk of leakage. The cost of the flanges and its fabrication is less when compared to the weld neck flanges of the same material grade.

Where To Use High Tin Bronze Flange
The High Tin Bronze Flange is mainly used in low-speed and heavy duty machineries and industrial applications. They are used in food processing equipment, automotive machines, pumps, and many more.

High Tin Bronze Blind Flange Vs Tin Bronze RTJ Flanges

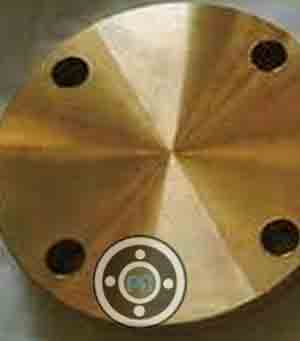

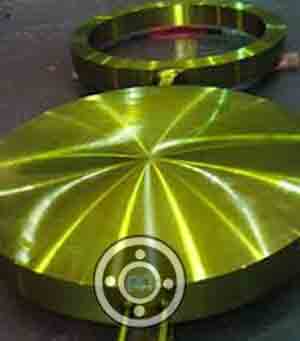

The High Tin Bronze Blind Flange looks like a plate with no center bore and bored holes on the sides. Unlike any other flange, they are primarily used for isolating the given piping system or terminating the connection as an end. They are placed with other flanges and are one of the most important piping components of any material grade.

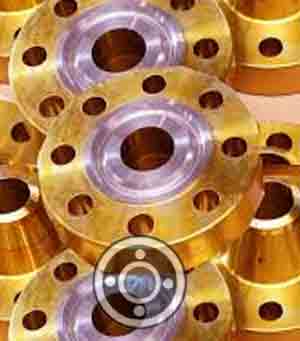

The Tin Bronze RTJ Flanges defines that the face type of the given flange is a ring type joint. They come with specially designed groves where the metal gasket remains seated. When it is tightened, the RTJ flanges provide better leakage free connections. They are mostly used for high pressure connections.

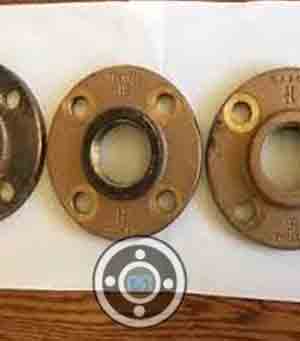

Tin Bronze Flanges manufacturer in India

Petromet Flange is one of the leading Leaded Tin Bronze Puddle Flange manufacturers in India, producing Bronze Soft Tin SORF and WNRF for Petrochemical, Oil, and Gas industry

Table of Content

Material Specification of Tin Bronze Flanges
Pressure Rating of C92900 Bronze Flanges
Tin Phosphor Bronze Flanges Size Chart
Leaded Tin Flanges Weight Chart
Price List of Tin Bronze Flanges
660 Leaded Bronze Blind Flange Dimension
Dimension Table of C90300 Tin Brass Alloy Slip On Flange
Dimension of High Tin Bronze Weld Neck Flange
Tin Bronze Flange Chemical Composition

High Tin Bronze Flanges Physical Properties
Tin Bronze Alloys Flanges Mechanical Properties
Various Types of Tin Bronze Flanges
Tin Brass Alloy Flange Features
Heat Treatment of SAE 660 Leaded Bronze Flange
Application of C90300 Tin Bronze Flanges
Copper Alloy C93700 Flange Thermal Properties

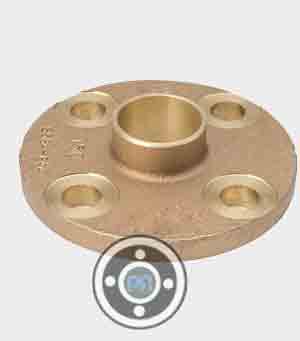

Machinability of C93600 Bronze Flange

Size Range	1/2″ to 48″
Chart of Pressure Rating	300 LBS, 2500 LBS, 1500 LBS, 900 LBS, 150 LBS, 600 LBS
Manufacturer of	GOST, JIS, ANSI, DIN, UNI, BS, AWWA, AS2129, SABS, NFE, EN etc.
JIS	40 K, 16 K, 5K, 10 K, 30 K, 20 K, 63 K
DIN Pressure Calculation	25Bar 40Bar 16Bar 6Bar 10Bar / PN64 PN10 PN25 PN16 PN6 PN40
Equipment	Pushing Machine, Press machine, Sand-blasting machine, Bending machine, electric bevelling machine etc
UNI / EN	16Bar 6Bar 40Bar 10Bar 25Bar

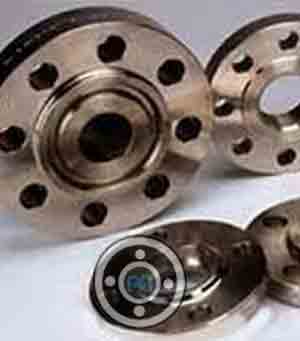

Manufacturer of Connect / Flange Face Type	LJF, RF, RTJ, FF, Small Tongue, Large Tongue & Groove
Test	Magnetic particle detector, X-ray detector, Ultrasonic flaw detector, Direct-reading Spectrograph, Hydrostatic testing machine
Production technique Used By Manufacturer	Heat treated, Forged and machined
Origin	Japan / West Europe / Indian / USA / Korean

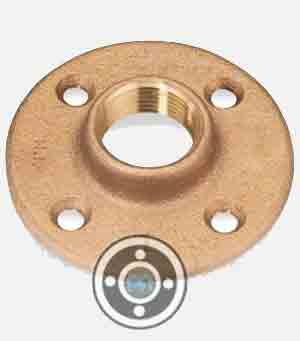

Common Types By Manufacturer	Threaded / Screwed / Forged / Plate
Coating	Zinc Plated, Anti-rust Paint, Yellow Transparent, Oil Black Paint, Cold and Hot Dip Galvanized
Standards Provided By Tin Bronze Flanges manufacturer in India	ISO70051, MSS S44, BS1560-3.1, API7S-43, B16.48, ANSI/ASME B16.5, B16.47 Series A & B, BS4504, JISB2220, ASME/ANSI B16.5/16.36/16.47A/16.47B, API605, BS 10, EN-1092, DIN, API7S-15, EN1092

Well Known C90300 Tin Brass Alloy Slip On Flange dealers, supplier, wholesalers, stockholders, importer, stockists, distributor, exporters and Manufacturer in Mumbai

Temperature °F	Class 150	Class 600	Class 1500	Class 400	Class 900	Class 300	Class 2500
-20 to 100	275	1440	3600	960	2160	720	6000
300	205	1080	2700	720	1620	540	4500
200	230	1200	3000	800	1800	600	5000
400	190	995	2485	660	1490	495	4140
600	140	875	2185	580	1310	435	3640
650	125	860	2150	575	1290	430	3580
500	170	930	2330	620	1395	465	3880
700	110	850	2125	565	1275	425	3540
750	95	830	2075	555	1245	415	3460
850	65	790	1980	530	1190	395	3300
800	80	805	2015	540	1210	405	3360
900	50	780	1945	520	1165	390	3240
950	35	765	1910	510	1145	380	3180
1000	20	640	1605	430	965	320	2675
1100	20	515	1285	345	770	255	2145
1150	20	400	995	265	595	200	1655
1050	20	615	1545	410	925	310	2570
1200	20	310	770	205	465	155	1285
1250	20	225	565	150	340	115	945
1300	20	170	430	115	255	85	715
1400	20	95	240	65	145	50	400
1350	20	125	310	80	185	60	515
1450	15	70	170	45	105	35	285
1500	10	55	135	35	80	25	230

Nominal Pipe Size (inch)	Dia. of Flange (inch)	No. of Bolts	Dia. of Bolts (inch)	Dia. of Bolt Holes (inch)	Bolt Circle (inch)
1/4	3-3/8	4	1/2	0.62	2-1/4
3/4	3-7/8	4	1/2	0.62	2-3/4
1	4-1/4	4	1/2	0.62	3-1/8
1/2	3-1/2	4	1/2	0.62	2-3/8
1-1/4	4-5/8	4	1/2	0.62	3-1/2
2	6	4	5/8	0.75	4-3/4
2-1/2	7	4	5/8	0.75	5-1/2
1-1/2	5	4	1/2	0.62	3-7/8
3	7-1/2	4	5/8	0.75	6
3-1/2	8-1/2	8	5/8	0.75	7
4	9	8	5/8	0.75	7-1/2
20	27-1/2	20	1-1/8	1.25	25
6	11	8	3/4	0.88	9-1/2
8	13-1/2	8	3/4	0.88	11-3/4
5	10	8	3/4	0.88	8-1/2
10	16	12	7/8	1	14-1/4
14	21	12	1	1.12	18-3/4
16	23-1/2	16	1	1.12	21-1/4
12	19	12	7/8	1	17
18	25	16	1-1/8	1.25	22-3/4
24	32	20	1-1/4	1.38	29-1/2

Supplier of High Tin Bronze Weld Neck Flange and Leaded Tin Plate Flanges offers hydrostatic pressure testing

NPS (Nominal Pipe Size)	NPT (Threaded)	WRNR (Weld Neck)	SWRF (Socket Weld)	Loose (Lap Joint)	SORF (Slip On)	BLRF (Blind)
½	1	2	2	1	1	2
¾	2	2	2	2	2	2
1	2	3	2	2	2	2
1¼	3	3	3	3	3	3
1½	3	4	3	3	3	4
2	5	6	5	5	5	5
2½	8	10	8	8	8	7
3	9	11.5	9	9	9	9
3½	12	12	11	11	11	13
4	13	16.5	13	13	13	17
5	15	21	15	15	15	20
6	19	26	19	19	19	27
8	30	42	30	30	30	47
10	43	54	43	43	43	70
12	64	88	64	64	64	123
14	90	114	90	105	90	140
16	98	140	98	140	106	180
18	130	165	130	160	130	220
20	165	197	165	195	165	285
22	185	225	185	245	185	355
24	220	268	220	275	220	430

Tin Bronze Flanges Price Per Piece in India	660 Leaded Bronze Flanges Price in INR	Tin Brass Alloy Flanges Price in UAE Dirham	C90300 Tin Bronze Flanges Price in USD
ANSI B16.5 CL150 Tin Bronze Forged Flanges Per Kg	5186.18	UAE Dirham 255.64	$69.60
PN16 SORF Bronze Soft Tin flange Per Unit	5731.62	UAE Dirham 282.53	$76.92

Feel free to contact us latest price list of 660 Leaded Bronze Blind Flange in Mumbai. Compare our price with other Tin Bronze Flanges manufacturer in India.

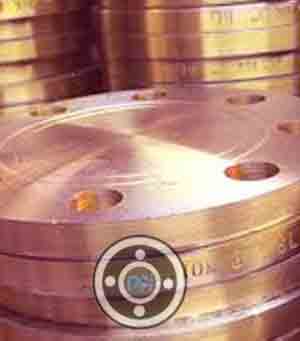

Tin Bronze Blind Flanges Dimensions

Size in Inch	Size in mm	ISO Stud Size	RF Height	Outer Dia.	RF Dia.	Hole Size	PCD	No of Bolts	Bolt Size UNC	Flange Thickness	RF Stud Length	Weight in kg
			D	A	C		E			B
1/2	15	M20	7	135	34.9	7/8	88.9	4	3/4	30.2	120	3.2
3/4	20	M20	7	140	42.9	7/8	95.2	4	3/4	31.8	125	3.7
1	25	M24	7	160	50.8	1	108	4	7/8	35	140	5
1 1/4	32	M27	7	185	63.5	1 1/8	130.2	4	1	38.1	150	7.8
1 1/2	40	M30	7	205	73	1 1/4	146	4	1 1/8	44.5	170	10.5
2	50	M27	7	235	92.1	1 1/8	171.4	8	1	50.9	180	18
2 1/2	65	M30	7	265	104.8	1 1/4	196.8	8	1 1/8	57.2	195	25.5
3	80	M33	7	305	127	1 3/8	228.6	8	1 1/4	66.7	220	39
4	100	M39	7	355	157.2	1 5/8	273	8	1 1/2	76.2	255	61.5
5	125	M45	7	420	185.7	1 7/8	323.8	8	1 3/4	92.1	300	102
6	150	M52	7	485	215.9	2 1/8	368.3	8	2	108	345	157
8	200	M52	7	550	269.9	2 1/8	438.2	12	2	127	380	241
10	250	M64	7	675	323.8	2 5/8	539.8	12	2 1/2	165.1	490	470
12	300	M72	7	760	381	2 7/8	619.1	12	2 3/4	184.2	540	575

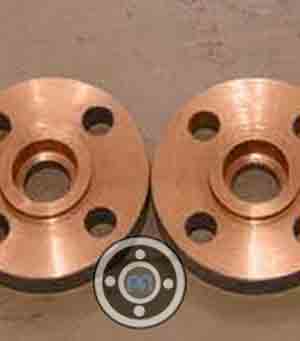

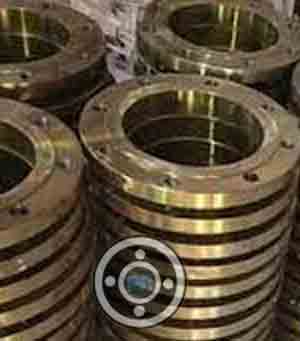

Manufacturer of 660 Leaded Bronze Forged Flange and C92900 Tin Bronze Alloys Socket Weld Flange in RF, FF and RTJ finish

Tin Bronze Slip on Flange Dimensions

Size in Inch	Size in mm	No of Bolts	Outer Dia.	Hub OD	ISO Stud Size	Flange Length	RF Height	Flange Thick.	RF Dia.	PCD	Hole Size	Socket Bore	Weight in kg
			A	C		D	F	B	E	G		H
1/2	15	4	90	30	M14	14	2	9.6	34.9	60.3	5/8	22.2	0.8
1	25	4	110	49	M14	16	2	12.7	50.8	79.4	5/8	34.5	0.9
3/4	20	4	100	38	M14	14	2	11.2	42.9	69.9	5/8	27.7	0.9
1 1/4	32	4	115	59	M14	19	2	14.3	63.5	88.9	5/8	43.2	1.4
2	50	4	150	78	M16	24	2	17.5	92.1	120.7	3/4	61.9	2.3
1 1/2	40	4	125	65	M14	21	2	15.9	73	98.4	5/8	49.5	1.4
2 1/2	65	4	180	90	M16	27	2	20.7	104.8	139.7	3/4	74.6	3.2
3	80	4	190	108	M16	29	2	22.3	127	152.4	3/4	90.7	3.7
4	100	8	230	135	M16	32	2	22.3	157.2	190.5	3/4	116.1	5.9
3 1/2	90	8	215	122	M16	30	2	22.3	139.7	177.8	3/4	103.4	5
5	125	8	255	164	M20	35	2	22.3	185.7	215.9	7/8	143.8	6.8
8	200	8	345	246	M20	43	2	27	269.9	298.5	7/8	221.5	13.7
10	250	12	405	305	M24	48	2	28.6	323.8	362	1	276.2	19.5
6	150	8	280	192	M20	38	2	23.9	215.9	241.3	7/8	170.7	8.6
12	300	12	485	365	M24	54	2	30.2	381	431.8	1	327	29
24	600	20	815	663	M33	81	2	46.1	692.2	749.3	1 3/8	616	100
16	400	16	595	457	M27	62	2	35	469.9	539.8	1 1/8	410.5	54
18	450	16	635	505	M30	67	2	38.1	533.4	577.9	1 1/4	461.8	59
14	350	12	535	400	M27	56	2	33.4	412.8	476.3	1 1/8	359.2	41
20	500	20	700	559	M30	71	2	41.3	584.2	635	1 1/4	513.1	75

Tin Bronze Weld Neck Flange Dimensions

Flange NPS	H	Inside Diameter	Flat Face Thickness (T2)	Outside Diameter	Raised Face (RF)	Raised Face (R)	H1	Raised Face Thickness (T)	T1	Bolt Circle (BC)	Bolt Hole (B)	No. of Bolt Holes
1/2"	1.19"	0.62"	1.82"	3.50"	.063"	1.38"	0.84"	1.88"	.38"	2.38"	.62"	4
1-1/4"	2.31"	1.38"	2.19"	4.62"	.063"	2.50"	1.66"	2.25"	.56"	3.50"	.62"	4
3/4"	1.50"	0.82"	2.00"	3.88"	.063"	1.69"	1.05"	2.06"	.44"	2.75"	.62"	4
1-1/2"	2.56"	1.61"	2.38"	5.00"	.063"	2.88"	1.90"	2.44"	.62"	3.88"	.62"	4
1"	1.94"	1.05"	2.13"	4.25"	.063"	2.00"	1.32"	2.19"	.50"	3.12"	.62"	4
2"	3.06"	2.07"	2.44"	6.00"	.063"	3.62"	2.38"	2.50"	.69"	4.75"	.75"	4
2-1/2"	3.56"	2.47"	2.69"	7.00"	.063"	4.12"	2.88"	2.75"	.82"	5.50"	.75"	4
3"	4.25"	3.07"	2.69"	7.50"	.063"	5.00"	3.50"	2.75"	.88"	6.00"	.75"	4
4"	5.31"	4.03"	2.94"	9.00"	.063"	6.19"	4.50"	3.00"	.88"	7.50"	.75"	8
5"	6.44"	5.05"	3.44"	10.00"	.063"	7.31"	5.56"	3.50"	.88"	8.50"	.88"	8
3-1/2"	4.81"	3.55"	2.75"	8.50"	.063"	5.50"	4.00"	2.81"	.88"	7.00"	.75"	8
6"	7.56"	6.07"	3.44"	11.00"	.063"	8.50"	6.63"	3.50"	.94"	9.50"	.88"	8
8"	9.69"	7.98"	3.94"	13.50"	.063"	10.62"	8.63"	4.00"	1.06"	11.75"	.88"	8
22"	24.25"	21.25"	5.82"	29.50"	.063"	25.25"	22.00"	5.88"	1.75"	27.25"	1.38"	20
10"	12.00"	10.02"	3.94"	16.00"	.063"	12.75"	10.75"	4.00"	1.13"	14.25"	1.00"	12
12"	14.38"	12.00"	4.44"	19.00"	.063"	15.00"	12.75"	4.50"	1.19"	17.00"	1.00"	12
16"	18.00"	15.25"	4.94"	23.50"	.063"	18.50"	16.00"	5.00"	1.38"	21.25"	1.12"	16
18"	19.88"	17.25"	5.44"	25.00"	.063"	21.00"	18.00"	5.50"	1.50"	22.75"	1.25"	16
14"	15.75"	13.25"	4.94"	21.00"	.063"	16.25"	14.00"	5.00"	1.32"	18.75"	1.12"	12
20"	22.00"	19.25"	5.63"	27.50"	.063"	23.00"	20.00"	5.69"	1.63"	25.00"	1.25"	20
24"	26.12"	23.25"	5.94"	32.00"	.063"	27.25"	24.00"	6.00"	1.82"	29.50"	1.38"	20

Element	Content (%)
Copper, Cu	85.0-88.0
Tin, Sn	10.0-12.0
Lead, Pb	1.0-1.50
Nickel, Ni	0.80-1.50
Zinc, Zn	0.50
Phosphorus, P	0.20-0.30
Iron, Fe	0.15
Aluminium, Al	0.0050

Properties	Metric	Imperial
Density	8.80 g/cm³	0.318 lb/in³

Properties	Metric	Imperial
Hardness, Brinell	80	80
Tensile strength	305 MPa	44200 psi
Yield strength (@strain 0.500%)	140 MPa	20300 psi
Elongation at break (in 50 mm)	20.00%	20.00%
Machinability	30	30
Poisson's ratio	0.34	0.34
Elastic modulus	117 GPa	16969 ksi
