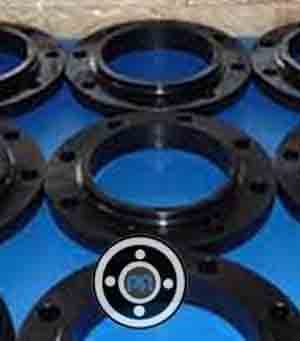

ASTM A350 LF3 Flanges

ASME SA 350 LF3 CL1 Forgings Manufacturer in India

What is ASTM A350 LF3 Flanges & Temperature Range as well pressure class
The ASTM A350 can be defined as a low-alloy steel, and the LF3 grade has a unique chemical composition that consists of Carbon at 0.2% maximum. The material grade also has other elements such as silicon, sulfur, phosphorus, chromium, and nickel in its composition at varying quantities. The ASTM A350 LF3 flange is forged within the temperature range of 1175 to 1205 degrees C. But it is to be noted that they should not be forged below the temperature of 925 degrees C.
The temperature range of ASTM A350 LF3 is above 200 degrees C, when the pressure class is 150, and it is 400 degrees C for higher pressure classes. The low operating temperature is above -29 degrees C.
The ASTM A350 LF3 flanges are available in different pressure classes ranging between class 150 to class 2500. The varied pressure classes enables the flanges to be used in different applications.

ASME SA 350 LF3 CL1 Forging process
The ASTM A350 LF3 flange is forged within the temperature range of 1175 to 1205 degrees C. But it is to be noted that they should not be forged below the temperature of 925 degrees C. Heat treatment is given to these continuously, and after welding as well. The structure is determined by the forging process, which means the structure of the flange will be determined from forgings. They can also be machined easily as and when required, and it can also be done in as-forged structure. Thus, depending on the end use of the flange, it is essential to determine the machining process accordingly.

ASTM A350 LF3 Flanges

Check Price List of LTCS Gr LF3 Weld Neck, Blind, and A 350 LF3 Plate Flange Ex Mumbai

Table of Content

• Spec List of ASTM A350 LF3 Flanges
• Size Range of ASTM A350 Grade LF3 Flange
• A350 LF3 Flanges Weight Chart
• ASTM A350 LF3 Flanges Price List
• A350 Lf3 Chemical Composition
• ASTM A350 Lf3 Mechanical Properties
• ASTM A350 Lf3 Temperature Range
• Thermal Properties of ASTM A350 Lf3 Class 1 Flange
• ASTM A350 Gr LF3 Flange Physical Properties
• Various Types of ASTM A350 LF3 Flanges
• Processing Equipment Strength of A350 Gr LF3 Flange
• Thickness Of A350 LF3 Class 2 Flanges
• ASTM A350 Gr LF3 Flanges Pressure Rating

Spec List of ASTM A350 LF3 Flanges

Size Range	1/2″(15 NB) to 48″ (1200NB)
Pressure Rating Chart ANSI	150 LBS, 300 LBS, 2500 LBS, 900 LBS, 600 LBS, 1500 LBS
JIS	16 K, 5K, 10 K, 20 K, 30 K, 40 K, 63 K
Manufacturer of Connect Type/ Flange Face Type	RF, Small Tongue, RTJ, FF, LJF, Large Tongue & Groove
Coating	Zinc Plated, Anti-rust Paint, Yellow Transparent, Oil Black Paint, Cold and Hot Dip Galvanized
Manufacturer of	GOST, JIS, ANSI, DIN, UNI, BS, AWWA, AS2129, SABS, NFE, EN etc.
DIN Pressure Calculation	25Bar 40Bar 16Bar 6Bar 10Bar / PN64 PN10 PN25 PN16 PN6 PN40
Equipment	Pushing Machine, Press machine, Sand-blasting machine, Bending machine, electric bevelling machine etc
Origin	Japan / West Europe / Indian / USA / Korean
UNI / EN	16Bar 6Bar 40Bar 10Bar 25Bar
Test	X-ray detector, Direct-reading Spectrograph, Magnetic particle detector, Ultrasonic flaw detector, Hydrostatic testing machine
Standards Provided By Manufacturer	ISO70051, MSS S44, API7S-43, API605, B16.48, ANSI/ASME B16.5, B16.47 Series A & B, BS4504, JISB2220, BS1560-3.1, ASME/ANSI B16.5/16.36/16.47A/16.47B, BS 10, EN-1092, DIN, API7S-15, EN1092
Common Types By Manufacturer	Threaded / Screwed / Forged / Plate
Production technique Used By Manufacturer	Heat treated, Forged and machined

Size Range of ASTM A350 Grade LF3 Flange

Nominal Pipe Size NPS (inches)	Class 300
	Diameter of Flange (inches)	No. of Bolts	Diameter of Bolts (inches)	Diameter of Bolt Holes (inches)	Bolt Circle (inches)
1/4	3-3/8	4	1/2	0.62	2-1/4
1/2	3-3/4	4	1/2	0.62	2-5/8
3/4	4-5/8	4	5/8	0.75	3-1/4
1	4-7/8	4	5/8	0.75	3-1/2
1-1/4	5-1/4	4	5/8	0.75	3-7/8
1-1/2	6-1/8	4	3/4	0.88	4-1/2
2	6-1/2	8	5/8	0.75	5
2-1/2	7-1/2	8	3/4	0.88	5-7/8
3	8-1/4	8	3/4	0.88	6-5/8
3-1/2	9	8	3/4	0.88	7-1/4
4	10	8	3/4	0.88	7-7/8
5	11	8	3/4	0.88	9-1/4
6	12-1/2	12	3/4	0.88	10-5/8
8	15	12	7/8	1	13
10	17-1/2	16	1	1.12	15-1/4
12	20-1/2	16	1-1/8	1.25	17-3/4
14	23	20	1-1/8	1.25	20-1/4
16	25-1/2	20	1-1/4	1.38	22-1/2
18	28	24	1-1/4	1.38	24-3/4
20	30-1/2	24	1-1/4	1.38	27
24	36	24	1-1/2	1.62	32

A350 LF3 Flanges Weight Chart

NPS (Nominal Pipe Size)	Loose (Lap Joint)	NPT (Threaded)	SORF (Slip On)	BLRF (Blind)	SWRF (Socket Weld)	WRNR (Weld Neck)
½	1	1	1	2	2	2
1	2	2	2	2	2	3
1¼	3	3	3	3	3	3
¾	2	2	2	2	2	2
1½	3	3	3	4	3	4
2½	8	8	8	7	8	10
2	5	5	5	5	5	6
3	9	9	9	9	9	11.5
4	13	13	13	17	13	16.5
3½	11	12	11	13	11	12
5	15	15	15	20	15	21
8	30	30	30	47	30	42
6	19	19	19	27	19	26
10	43	43	43	70	43	54
24	275	220	220	430	220	268
14	105	90	90	140	90	114
12	64	64	64	123	64	88
16	140	98	106	180	98	140
20	195	165	165	285	165	197
18	160	130	130	220	130	165
22	245	185	185	355	185	225

Supplier of LTCS Flange Material in India and Largest Stockist of DIN 1.5639 flange in India

ASTM A350 LF3 Flanges Price List

ASTM A350 LF3 Flanges Price Per Piece in India	ASTM A350 Grade LF3 Flange Price in INR	ASTM A350 Lf3 Class 1 Flange Price in UAE Dirham	A350 LF3 Class 2 Flanges Price in USD
WNRF 4 INCH X SCH 120/160 X 150 SA-350 LF3 CLASS 1 Per Kg	811	UAE Dirham 40.03	$10.90
2 inch astm a350 lf3 weld neck flange ASME/ANSI B16.5 Per Kg	186.05	UAE Dirham 9.18	$2.50

A350 Lf3 Chemical Composition

Element	Min	Max
V	-	0.0300
S	-	0.0400
P	-	0.0350
Si	0.2000	0.3500
Ni	3.3000	3.7000
Nb	-	0.0200
Cr	-	0.3000
Mo	-	0.1200
Cu	-	0.4000
Mn	-	0.9000
Cr+Mo	-	0.3200
C	-	0.2000

ASTM A350 Lf3 Mechanical Properties

Yield Rp0.2 (MPa)	Impact KV/Ku (J)	Reduction in cross section on fracture Z (%)	Elongation A (%)	Tensile Rm (MPa)	Brinell hardness (HBW)
991 (≥)	24	33	34	657 (≥)	333

Manufacturer of Low Alloy steel forged Flanges and A350 LF3 Ring Rolled Flanges

ASTM A350 Lf3 Temperature Range

Temperature Range

343°C

Thermal Properties of ASTM A350 Lf3 Class 1 Flange

Property	Value
Melting point	1316 - 1595 °C
Specific heat capacity	456 J/(kg·K)
Thermal conductivity	10 - 50 W/(m·K)

ASTM A350 Gr LF3 Flange Physical Properties

Temperature (°C)	Specific electrical resistivity (Ω mm²/m)	Modulus of elasticity (GPa)	Thermal conductivity (W/m·°C)	Specific thermal capacity (J/kg·°C)	Density (kg/dm³)	Mean coefficient of thermal expansion 10-6/(°C) between 20(°C) and	Poisson’s coefficient, ν
14	0.13	-			-	-
384		978	14.3	441	-	-
828		-	44.2		443	34	312

Various Types of ASTM A350 LF3 Flanges

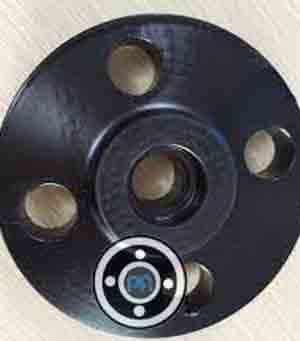

ASTM A350 LF3 Cl.2 Socket Weld Flange

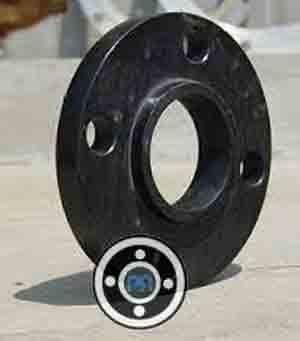

ASTM A350 Gr Lf3 SORF Flanges

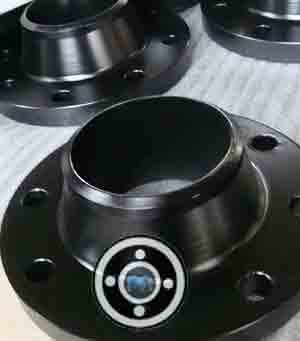

ASTM A350 Gr LF3 WNRF Flange

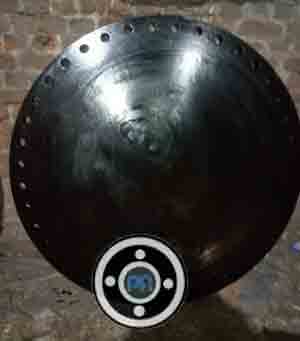

SA350 LF3 BLRF Flanges

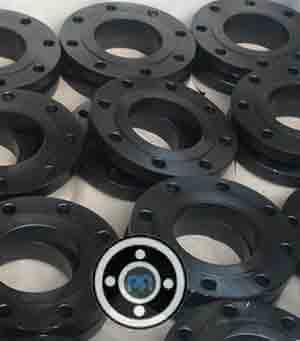

ASTM A350 Grade Lf3 Slip On Flange

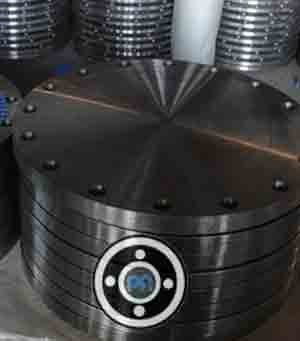

ASTM A350 Gr LF3 Cl2 Blind Flange

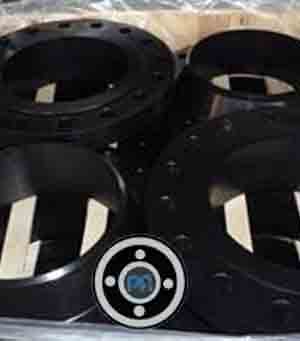

A350 Grade LF3 Class 2 Girth Flanges

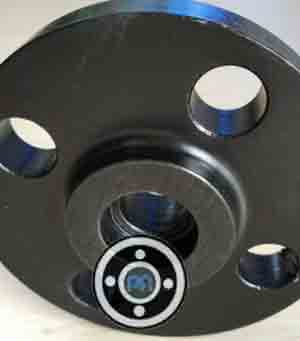

A350 LF3 Class 2 SWRF Flanges

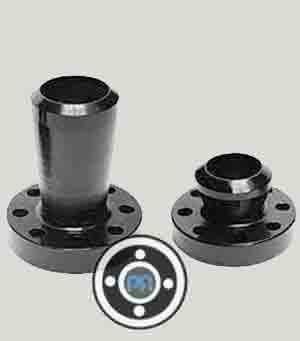

ASTM A350 LF3 Cl1 Expander Flanges

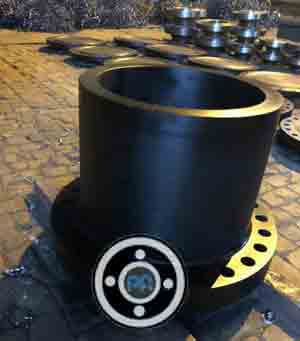

ASTM A350 Grade LF3 Long Weld Neck Flange

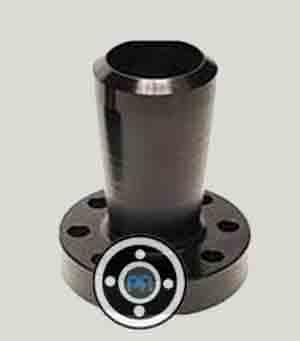

ASTM A350 Gr LF3 Cl2 Nipoflange

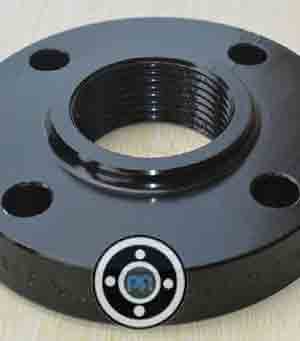

A350 LF3 Class 2 Screwed Flange

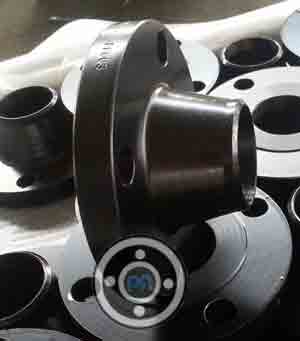

A350 Gr LF3 Reducing Flanges

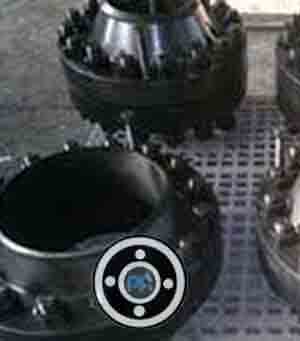

ASTM A350 Lf3 Class 1 Orifice Flanges

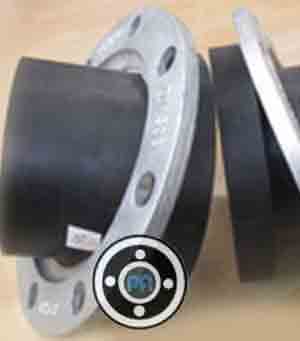

ASTM A350 Grade LF3 Class 2 Lapped Joint Flange

ASTM A350 Grade LF3 Weld Neck Flanges

ASTM A350 Grade LF3 Class 2 Tongue & Groove Flange

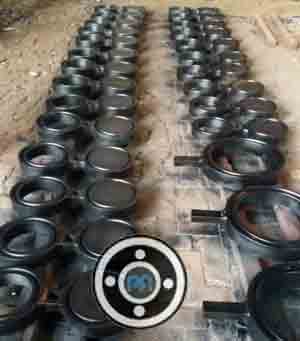

ASME SA350 LF3 Spectacle Blind Flange

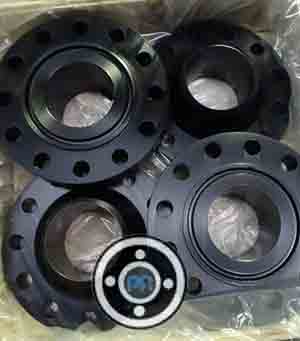

ASTM A350 LF3 Cl2 Ring Joint Flange

ASTM A350 LF3 Class 1 Threaded Flange

ASTM A350 Grade LF3 Flange

ASTM A350 Lf3 Class 1 Flange

ASTM A350 Gr LF3 Flange

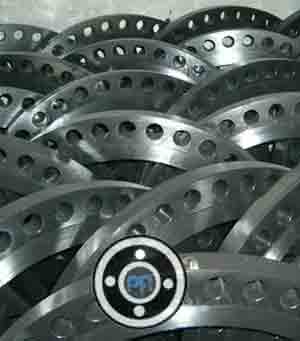

A350 Gr LF3 Flange

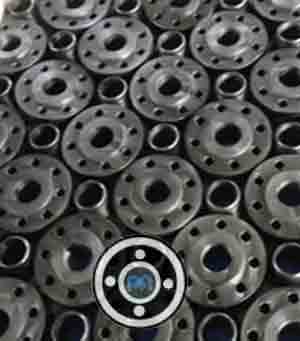

A350 LF3 Class 2 Flanges

ASTM A350 Grade LF3 Flanges

A350 Grade LF3 Flanges

ASTM A350 LF3 Forgings and Low Temperature Carbon Steel Material supplier with Test Certificate EN 10204/3.1B
