ASTM A694 Flanges
- Home /
- ASTM A694 Flanges
High Yield CS A694 Gr F65 Blind Flange and A694 F42 Weld Neck Flange manufacturer in India
What is ASTM A694 Flanges?
The ASTM A694 is a specification that describes carbon and alloy steel materials, used for making flanges primarily used for high pressure liquid transmission. The ASTM A694 Flanges are available in different grades, and they vary slightly in their mechanical properties depending on their chemical composition. Those grades are covered based on the minimum yield requirements. The material also adheres to the tensile property and testing requirements.
The ASTM A694 Flanges can be described as a method that helps in connecting valves, pumps, pipes and other equipment to form a complete piping system. With the help of these flanges, maintenance, cleaning, and inspection work across the pipeline becomes very easy. The flanges also help in quick modification of the piping system. The ASTM A694 Flanges can be installed either by welding or screwing them to the pipe. There are also flanged joints for this specification which helps to join to flanges by bolting the gasket present in between, this ensures that the flange is properly sealed to the piping connection. The ASTM A694 Flanges offer medium corrosion resistance but it has advantages in oxidizing media like nitric acid solution due to the presence of low molybdenum content in its alloy. They are also available in different faces that offer a wide range of functions according to their structure.
ASTM A694 GR. F52 Weld Neck Flange Vs ASTM A694 F60 Blind Flanges
The ASTM A694 GR. F52 Weld Neck Flange is suitable for high pressure applications. Due to their structure, they offer reduced friction and less interference. It can easily be aligned . Also, with a weld neck flange testing the pipes and joints become very easy. The ASTM A694 GR. F52 Weld Neck Flange offers durable connections, and with double welding (in both inside and outside), they offer a leakage proof connection. It is also very easy to install this weld neck flange, which is a major advantage.
The ASTM A694 F60 Blind Flanges looks like a plate that has some bolts holes in the surrounding area. There is no hole present in the middle of the flange, which differentiates it from the weld neck flange, and thus the blind flange helps in stopping the connection of a piping system. They basically help in sealing the ends of a pipe or the nozzle of a vessel. They have a great mechanical design that helps reduce the wear and pressure between the surfaces of the flange.
A694 GR.F42 Flange Vs ASTM A694 F70 Flanges
The chemical composition of A694 GR.F42 Flange and ASTM A694 F70 Flanges are different and hence their mechanical properties also vary. The F70 grade has enhanced mechanical properties such as high tensile strength, better heat resistance, enhanced corrosion resistance, and improved durability. They also possess better weldability and formability compared to the F42 grade.
What is ASTM A694 GR.F65 Flanges?
The ASTM A694 GR.F65 Flanges are very popular due to their high yield capabilities. They also possess excellent low temperature toughness and are known for their high weldability The mechanical properties of the ASTM A694 GR.F65 material would include:
- 0.2% Yield Strength – 50 Mpa
- Tensile Strength - 530 Mpa
- Elongation - 20% min
- Reduction of Area - 35% min
The ASTM A694 GR.F65 Flanges are available in various dimensions according to the international standards. They are also available in different pressure classes that range between 150 and 2500, and pressure number PN6 through PN64.
The ASTM A694 GR.F65 Flanges are available in different faces such as flat face, raised face and ring type joint flange. They are fit for different applications according to their structure. Due to the properties present in the ASTM A694 GR.F65 Flanges, they are widely used across several applications across industries like oil and gas, power generation, petroleum, boiler, condenser, and many more.
ASTM A694 Flanges

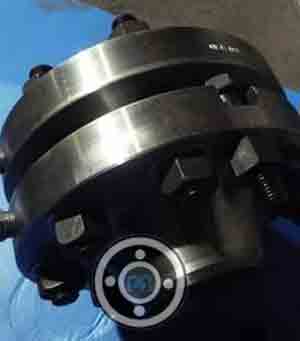

EN 1092-2 Carbon Steel F65 Orifice Flanges manufacturers in India offers large selection of ASTM A694 F52 Slip On Flange and A694 F42 Threaded Flange in Mumbai
Table of Content
- Specification of ASTM A694 Flange
- Carbon Steel F60 Weld neck Flange Dimensions
- ASME SA 694 F65 Blind Flange Dimension Table
- F42 Carbon Steel Slip on Flange Dimensions
- Price List of ASTM A694 Flange
- ASTM A694 F60 Thermal Properties
- ASTM A694 Chemical Composition
- ASTM A694 Mechanical Properties
- ASTM A694 Flange Dimensions
- A694 Gr F60 Product Forms and Standards
- Carbon Steel F65 Heat Treatment
- ASTM A694 Pressure Temperature Rating
- SA 694 F60 Temperature Range
- Grade F52 Carbon Steel Flanges Weight Chart
- Carbon Steel A694 Gr F60 Flanges Size Chart
- A694 Carbon Steel Gr F70 Yield Strength
- ASTM A694 F42 Flanges Types
- ASTM A694 F52 Flanges Types
- ASTM A694 F60 Flanges Types
- ASTM A694 F65 Flanges Types
- ASTM A694 F70 Flanges Types
- A694 Carbon Steel F42 Flanges Torque Chart
- ASME SA 694 Gr F70 Flanges Material Inspection
- ASTM A694 Grade F65 Flanges Applications
Specification of ASTM A694 Flange
| Size Range | 1/2″ to 48″ |
|---|---|
| DIN Pressure Calculation | 25Bar 40Bar 16Bar 6Bar 10Bar / PN64 PN10 PN25 PN16 PN6 PN40 |
| JIS | 40 K, 16 K, 5K, 10 K, 30 K, 20 K, 63 K |
| Chart of Pressure Rating | 300 LBS, 2500 LBS, 1500 LBS, 900 LBS, 150 LBS, 600 LBS |
| Production technique Used By Manufacturer | Heat treated, Forged and machined |
| Manufacturer of Connect / Flange Face Type | LJF, RF, RTJ, FF, Small Tongue, Large Tongue & Groove |
| Standards Provided By Manufacturer | ISO70051, MSS S44, BS1560-3.1, API7S-43, B16.48, ANSI/ASME B16.5, B16.47 Series A & B, BS4504, JISB2220, ASME/ANSI B16.5/16.36/16.47A/16.47B, API605, BS 10, EN-1092, DIN, API7S-15, EN1092 |
| Test | Magnetic particle detector, X-ray detector, Ultrasonic flaw detector, Direct-reading Spectrograph, Hydrostatic testing machine |
| UNI / EN | 16Bar 6Bar 40Bar 10Bar 25Bar |
| Coating | Zinc Plated, Anti-rust Paint, Yellow Transparent, Oil Black Paint, Cold and Hot Dip Galvanized |
| Origin | Japan / West Europe / Indian / USA / Korean |
| Equipment | Pushing Machine, Press machine, Sand-blasting machine, Bending machine, electric bevelling machine etc |
| Manufacturer of | GOST, JIS, ANSI, DIN, UNI, BS, AWWA, AS2129, SABS, NFE, EN etc. |
| Common Types By Manufacturer | Threaded / Screwed / Forged / Plate |
We are Biggest ASTM A694 F42 Flanges stockists, wholesalers, supplier, exporters, dealers, stockholders, importer, distributor and Manufacturer in Mumbai
Carbon Steel F60 Weld neck Flange Dimensions
| Flange NPS | H | Inside Diameter | Flat Face Thickness (T2) | Outside Diameter | Raised Face (RF) | Raised Face (R) | H1 | Raised Face Thickness (T) | T1 | Bolt Circle (BC) | Bolt Hole (B) | No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 1.19" | 0.62" | 1.82" | 3.50" | .063" | 1.38" | 0.84" | 1.88" | .38" | 2.38" | .62" | 4 |
| 1-1/4" | 2.31" | 1.38" | 2.19" | 4.62" | .063" | 2.50" | 1.66" | 2.25" | .56" | 3.50" | .62" | 4 |
| 3/4" | 1.50" | 0.82" | 2.00" | 3.88" | .063" | 1.69" | 1.05" | 2.06" | .44" | 2.75" | .62" | 4 |
| 1-1/2" | 2.56" | 1.61" | 2.38" | 5.00" | .063" | 2.88" | 1.90" | 2.44" | .62" | 3.88" | .62" | 4 |
| 1" | 1.94" | 1.05" | 2.13" | 4.25" | .063" | 2.00" | 1.32" | 2.19" | .50" | 3.12" | .62" | 4 |
| 2" | 3.06" | 2.07" | 2.44" | 6.00" | .063" | 3.62" | 2.38" | 2.50" | .69" | 4.75" | .75" | 4 |
| 2-1/2" | 3.56" | 2.47" | 2.69" | 7.00" | .063" | 4.12" | 2.88" | 2.75" | .82" | 5.50" | .75" | 4 |
| 3" | 4.25" | 3.07" | 2.69" | 7.50" | .063" | 5.00" | 3.50" | 2.75" | .88" | 6.00" | .75" | 4 |
| 4" | 5.31" | 4.03" | 2.94" | 9.00" | .063" | 6.19" | 4.50" | 3.00" | .88" | 7.50" | .75" | 8 |
| 5" | 6.44" | 5.05" | 3.44" | 10.00" | .063" | 7.31" | 5.56" | 3.50" | .88" | 8.50" | .88" | 8 |
| 3-1/2" | 4.81" | 3.55" | 2.75" | 8.50" | .063" | 5.50" | 4.00" | 2.81" | .88" | 7.00" | .75" | 8 |
| 6" | 7.56" | 6.07" | 3.44" | 11.00" | .063" | 8.50" | 6.63" | 3.50" | .94" | 9.50" | .88" | 8 |
| 8" | 9.69" | 7.98" | 3.94" | 13.50" | .063" | 10.62" | 8.63" | 4.00" | 1.06" | 11.75" | .88" | 8 |
| 22" | 24.25" | 21.25" | 5.82" | 29.50" | .063" | 25.25" | 22.00" | 5.88" | 1.75" | 27.25" | 1.38" | 20 |
| 10" | 12.00" | 10.02" | 3.94" | 16.00" | .063" | 12.75" | 10.75" | 4.00" | 1.13" | 14.25" | 1.00" | 12 |
| 12" | 14.38" | 12.00" | 4.44" | 19.00" | .063" | 15.00" | 12.75" | 4.50" | 1.19" | 17.00" | 1.00" | 12 |
| 16" | 18.00" | 15.25" | 4.94" | 23.50" | .063" | 18.50" | 16.00" | 5.00" | 1.38" | 21.25" | 1.12" | 16 |
| 18" | 19.88" | 17.25" | 5.44" | 25.00" | .063" | 21.00" | 18.00" | 5.50" | 1.50" | 22.75" | 1.25" | 16 |
| 14" | 15.75" | 13.25" | 4.94" | 21.00" | .063" | 16.25" | 14.00" | 5.00" | 1.32" | 18.75" | 1.12" | 12 |
| 20" | 22.00" | 19.25" | 5.63" | 27.50" | .063" | 23.00" | 20.00" | 5.69" | 1.63" | 25.00" | 1.25" | 20 |
| 24" | 26.12" | 23.25" | 5.94" | 32.00" | .063" | 27.25" | 24.00" | 6.00" | 1.82" | 29.50" | 1.38" | 20 |

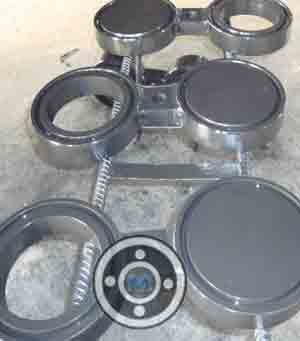

Supplier of ASTM A694 GR F65 Spectacle Blind Flange and F52 Carbon Steel Socket Weld Flange for Oil, Gas and Chemical Process Plants according to AWWA C207, JIS 10K, Gost 12815 standards
ASME SA 694 F65 Blind Flange Dimension Table
| Size in Inch | Size in mm | ISO Stud Size | RF Height | Outer Dia. | RF Dia. | Hole Size | PCD | No of Bolts | Bolt Size UNC | Flange Thickness | RF Stud Length | Weight in kg |
| D | A | C | E | B | ||||||||
| 1/2 | 15 | M20 | 7 | 135 | 34.9 | 7/8 | 88.9 | 4 | 3/4 | 30.2 | 120 | 3.2 |
| 3/4 | 20 | M20 | 7 | 140 | 42.9 | 7/8 | 95.2 | 4 | 3/4 | 31.8 | 125 | 3.7 |
| 1 | 25 | M24 | 7 | 160 | 50.8 | 1 | 108 | 4 | 7/8 | 35 | 140 | 5 |
| 1 1/4 | 32 | M27 | 7 | 185 | 63.5 | 1 1/8 | 130.2 | 4 | 1 | 38.1 | 150 | 7.8 |
| 1 1/2 | 40 | M30 | 7 | 205 | 73 | 1 1/4 | 146 | 4 | 1 1/8 | 44.5 | 170 | 10.5 |
| 2 | 50 | M27 | 7 | 235 | 92.1 | 1 1/8 | 171.4 | 8 | 1 | 50.9 | 180 | 18 |
| 2 1/2 | 65 | M30 | 7 | 265 | 104.8 | 1 1/4 | 196.8 | 8 | 1 1/8 | 57.2 | 195 | 25.5 |
| 3 | 80 | M33 | 7 | 305 | 127 | 1 3/8 | 228.6 | 8 | 1 1/4 | 66.7 | 220 | 39 |
| 4 | 100 | M39 | 7 | 355 | 157.2 | 1 5/8 | 273 | 8 | 1 1/2 | 76.2 | 255 | 61.5 |
| 5 | 125 | M45 | 7 | 420 | 185.7 | 1 7/8 | 323.8 | 8 | 1 3/4 | 92.1 | 300 | 102 |
| 6 | 150 | M52 | 7 | 485 | 215.9 | 2 1/8 | 368.3 | 8 | 2 | 108 | 345 | 157 |
| 8 | 200 | M52 | 7 | 550 | 269.9 | 2 1/8 | 438.2 | 12 | 2 | 127 | 380 | 241 |
| 10 | 250 | M64 | 7 | 675 | 323.8 | 2 5/8 | 539.8 | 12 | 2 1/2 | 165.1 | 490 | 470 |
| 12 | 300 | M72 | 7 | 760 | 381 | 2 7/8 | 619.1 | 12 | 2 3/4 | 184.2 | 540 | 575 |

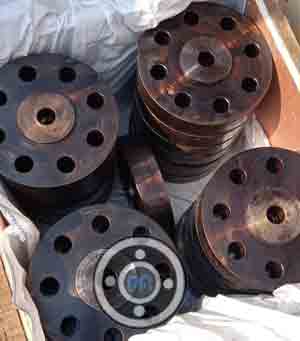

F42 Carbon Steel Slip on Flange Dimensions
| Normal Pipe Size (NPS) Of Flanges | (I.D.) Inside Diameter | Thickness Of Raised Face (RF) (T) | Outside Daimeter (O.D.) | Raised Face (R) | RF (Raised Face) | Holes Of Bolts (B) | H | T1 | Thickness Of Flat Face (FF) (T2) | BC (Circle Of Bolt) | Bolts Holes Numbers |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 0.88 | 0.88 | 3.75 | 1.38 | .063 | 0.62 | 1.50 | 0.50 | 0.82 | 2.62 | 4 |
| 1 | 1.36 | 1.06 | 4.88 | 2.00 | .063 | 0.75 | 2.12 | 0.63 | 1.00 | 3.50 | 4 |
| 3/4 | 1.09 | 1.00 | 4.62 | 1.69 | .063 | 0.75 | 1.88 | .056 | 0.94 | 3.25 | 4 |
| 1-1/4 | 1.70 | 1.06 | 5.25 | 2.50 | .063 | 0.75 | 2.50 | 0.69 | 1.00 | 3.88 | 4 |
| 2 | 2.44 | 1.31 | 6.50 | 3.62 | .063 | 0.75 | 3.31 | 0.82 | 1.25 | 5.00 | 8 |
| 1-1/2 | 1.95 | 1.19 | 6.12 | 2.88 | .063 | 0.88 | 2.75 | 0.75 | 1.13 | 4.50 | 4 |
| 2-1/2 | 2.94 | 1.50 | 7.50 | 4.12 | .063 | 0.88 | 3.94 | 0.94 | 1.44 | 5.88 | 8 |
| 3 | 3.57 | 1.69 | 8.25 | 5.00 | .063 | 0.88 | 4.62 | 1.06 | 1.63 | 6.62 | 8 |
| 3-1/2 | 4.07 | 1.75 | 9.00 | 5.50 | .063 | 0.88 | 5.25 | 1.13 | 1.69 | 7.25 | 8 |
| 4 | 4.57 | 1.88 | 10.00 | 6.19 | .063 | 0.88 | 5.75 | 1.19 | 1.82 | 7.88 | 8 |
| 5 | 5.66 | 2.00 | 11.00 | 7.31 | .063 | 0.88 | 7.00 | 1.32 | 1.94 | 9.25 | 8 |
| 18 | 18.18 | 3.50 | 28.00 | 21.00 | .063 | 1.38 | 21.00 | 2.32 | 3.44 | 24.75 | 24 |
| 6 | 6.72 | 2.06 | 12.50 | 8.50 | .063 | 0.88 | 8.12 | 1.38 | 2.00 | 10.62 | 12 |
| 8 | 8.72 | 2.44 | 15.00 | 10.62 | .063 | 1.00 | 10.25 | 1.56 | 2.38 | 13.00 | 12 |
| 10 | 10.88 | 2.62 | 17.50 | 12.75 | .063 | 1.12 | 12.62 | 1.82 | 2.56 | 15.25 | 16 |
| 12 | 12.88 | 2.88 | 20.50 | 15.00 | .063 | 1.25 | 14.75 | 1.94 | 2.82 | 17.75 | 16 |
| 14 | 14.14 | 3.00 | 23.00 | 16.25 | .063 | 1.25 | 16.75 | 2.06 | 2.94 | 20.25 | 20 |
| 20 | 20.20 | 3.75 | 30.50 | 23.00 | .063 | 1.38 | 23.12 | 2.44 | 3.69 | 27.00 | 24 |
| 16 | 16.16 | 3.25 | 25.50 | 18.50 | .063 | 1.38 | 19.00 | 2.19 | 3.19 | 22.50 | 20 |
| 22 | 22.22 | 4.00 | 33.00 | 25.25 | .063 | 1.63 | 25.25 | 2.57 | 3.94 | 29.25 | 24 |
| 24 | 24.25 | 4.19 | 36.00 | 27.25 | .063 | 1.62 | 27.62 | 2.69 | 4.13 | 32.00 | 24 |
Price List of ASTM A694 Flange
| ASTM A694 Flanges Price Per Piece in India | ASTM A694 Pipe Flanges Price in INR | ASME SA694 Flange Price in UAE Dirham | SA 694 Flange Price in USD |
| 600 HOT TAPPING FLANGE TO SPEC. ASTM A694 F 52 Per Kg | 694 | UAE Dirham 34.14 | $9.30 |
| 2" STD 150# ASTM A694 F65 ASME B16.5 Per Unit | 1029.74 | UAE Dirham 50.69 | $13.80 |
Compare our price with other ASTM A694 Grade F65 Flanges Manufacturer in India. Why don't you directly contact a ASTM A694 Flanges Supplier in Mumbai? We have extensive range of Grade F52 Carbon Steel Flanges in India at Discounted Price.
ASTM A694 F60 Thermal Properties
| Coefficient of thermal expansion | 1.32E-5 - 1.38E-5 1/K at 20 °C |
| Max service tem | 500 °C |
| Melting point | 1480 - 1526 °C |
ASTM A694 Chemical Composition
| C | Mn | P | S | Si | |
| ASTM A694 F42 | 0.26-0.265 | 1.60-1.64 | 0.025-0.030 | 0.025-0.030 | 0.15-0.35 |
| ASTM A694 F52 | 0.26-0.265 | 1.60-1.64 | 0.025-0.030 | 0.025-0.030 | 0.15-0.35 |
| ASTM A694 F60 | 0.26-0.265 | 1.60-1.64 | 0.025-0.030 | 0.025-0.030 | 0.15-0.35 |
| ASTM A694 F65 | 0.26-0.265 | 1.60-1.64 | 0.025-0.030 | 0.025-0.030 | 0.15-0.35 |
Class 300/ 600 RF, FF, RTJ Face Raised Face ASTM A694 GR F42 Lap Joint Flange and ASTM A 694 F65 Forged Flange manufacturer in India
ASTM A694 Mechanical Properties
| Grade | Yield Strength (0.2% offset),min, ksi [MPa] | Tensile Strength, min, ksi [MPa] | Elongation in 2 in, or 50 mm, min % |
|---|---|---|---|
| F42 | 42 [290] | 60 [415] | 20 |
| F46 | 46 [315] | 60 [415] | 20 |
| F48 | 48 [330] | 62 [420] | 20 |
| F50 | 50 [345] | 64 [440] | 20 |
| F52 | 52 [360] | 66 [455] | 20 |
| F56 | 56 [385] | 68 [470] | 20 |
| F60 | 60 [415] | 75 [515] | 20 |
| F65 | 65 [450] | 77 [530] | 20 |
| F70 | 70 [485] | 82 [565] | 18 |
ASTM A694 Flange Dimensions
| Size in Inch | Size in mm | Flange Thickness | Outer Dia. | Hole Size | RF Stud Length | RF Dia. | No of Bolts | RF Height | Bolt Size UNC | PCD | ISO Stud Size | Weight in kg |
| B | A | C | D | E | ||||||||
| 1/2 | 15 | 22.3 | 120 | 7/8 | 110 | 34.9 | 4 | 7 | 3/4 | 82.6 | M20 | 1.8 |
| 1 | 25 | 28.6 | 150 | 1 | 125 | 50.8 | 4 | 7 | 7/8 | 101.6 | M24 | 3.6 |
| 1 1/4 | 32 | 28.6 | 160 | 1 | 125 | 63.5 | 4 | 7 | 7/8 | 111.1 | M24 | 4.1 |
| 3/4 | 20 | 25.4 | 130 | 7/8 | 115 | 42.9 | 4 | 7 | 3/4 | 88.9 | M20 | 2.7 |
| 1 1/2 | 40 | 31.8 | 180 | 1 1/8 | 140 | 73 | 4 | 7 | 1 | 123.8 | M27 | 5.9 |
| 2 | 50 | 38.1 | 215 | 1 | 145 | 92.1 | 8 | 7 | 7/8 | 165.1 | M24 | 10.1 |
| 3 | 80 | 38.1 | 240 | 1 | 145 | 127 | 8 | 7 | 7/8 | 190.5 | M24 | 13 |
| 4 | 100 | 44.5 | 290 | 1 1/4 | 170 | 157.2 | 8 | 7 | 1 1/8 | 235 | M30 | 24.5 |
| 2 1/2 | 65 | 41.3 | 245 | 1 1/8 | 160 | 104.8 | 8 | 7 | 1 | 190.5 | M27 | 16 |
| 5 | 125 | 50.8 | 350 | 1 3/8 | 190 | 185.7 | 8 | 7 | 1 1/4 | 279.4 | M33 | 39.5 |
| 20 | 500 | 108 | 855 | 2 1/8 | 350 | 584.2 | 20 | 7 | 2 | 749.3 | M52 | 463 |
| 6 | 150 | 55.6 | 380 | 1 1/4 | 190 | 215.9 | 12 | 7 | 1 1/8 | 317.5 | M30 | 53 |
| 8 | 200 | 63.5 | 470 | 1 1/2 | 220 | 269.9 | 12 | 7 | 1 3/8 | 393.7 | M36 | 91 |
| 10 | 250 | 69.9 | 545 | 1 1/2 | 235 | 323.8 | 16 | 7 | 1 3/8 | 469.9 | M36 | 132 |
| 14 | 350 | 85.8 | 640 | 1 5/8 | 275 | 412.8 | 20 | 7 | 1 1/2 | 558.8 | M39 | 237 |
| 16 | 400 | 88.9 | 705 | 1 3/4 | 285 | 469.9 | 20 | 7 | 1 5/8 | 616 | M42 | 273 |
| 12 | 300 | 79.4 | 610 | 1 1/2 | 255 | 381 | 20 | 7 | 1 3/8 | 533.4 | M36 | 189 |
| 18 | 450 | 101.6 | 785 | 2 | 325 | 533.4 | 20 | 7 | 1 7/8 | 685.8 | M48 | 367 |
| 24 | 600 | 139.7 | 1040 | 2 5/8 | 440 | 692.2 | 20 | 7 | 2 1/2 | 901.7 | M64 | 875 |
A694 Gr F60 Product Forms and Standards
| Product Forms & Standards for ASTM A694 Forgings | |
|---|---|
| Pipe Flanges | MSS SP 44, ASME B16.47, ASME B16.5, NORSOK L-005, API 6A |
Carbon Steel F65 Heat Treatment
ASTM A694 Flanges heat treatment should be normalised, normalised or tempered, or quenched and tempered. Alloy steel heat treatment is either ageing with quenching and precipitation or ageing with quenching and precipitation. Tempering temperature must be at least 1000 °F [540 °C], and precipitation heat treatment of alloy steel must be between 1000 and 1225 °F [540 °C to 665 °C].
ASTM A694 Pressure Temperature Rating
| Temperature °F | Class 150 | Class 600 | Class 1500 | Class 400 | Class 900 | Class 300 | Class 2500 |
| -20 to 100 | 275 | 1440 | 3600 | 960 | 2160 | 720 | 6000 |
| 300 | 205 | 1080 | 2700 | 720 | 1620 | 540 | 4500 |
| 200 | 230 | 1200 | 3000 | 800 | 1800 | 600 | 5000 |
| 400 | 190 | 995 | 2485 | 660 | 1490 | 495 | 4140 |
| 600 | 140 | 875 | 2185 | 580 | 1310 | 435 | 3640 |
| 650 | 125 | 860 | 2150 | 575 | 1290 | 430 | 3580 |
| 500 | 170 | 930 | 2330 | 620 | 1395 | 465 | 3880 |
| 700 | 110 | 850 | 2125 | 565 | 1275 | 425 | 3540 |
| 750 | 95 | 830 | 2075 | 555 | 1245 | 415 | 3460 |
| 850 | 65 | 790 | 1980 | 530 | 1190 | 395 | 3300 |
| 800 | 80 | 805 | 2015 | 540 | 1210 | 405 | 3360 |
| 900 | 50 | 780 | 1945 | 520 | 1165 | 390 | 3240 |
| 950 | 35 | 765 | 1910 | 510 | 1145 | 380 | 3180 |
| 1000 | 20 | 640 | 1605 | 430 | 965 | 320 | 2675 |
| 1100 | 20 | 515 | 1285 | 345 | 770 | 255 | 2145 |
| 1150 | 20 | 400 | 995 | 265 | 595 | 200 | 1655 |
| 1050 | 20 | 615 | 1545 | 410 | 925 | 310 | 2570 |
| 1200 | 20 | 310 | 770 | 205 | 465 | 155 | 1285 |
| 1250 | 20 | 225 | 565 | 150 | 340 | 115 | 945 |
| 1300 | 20 | 170 | 430 | 115 | 255 | 85 | 715 |
| 1400 | 20 | 95 | 240 | 65 | 145 | 50 | 400 |
| 1350 | 20 | 125 | 310 | 80 | 185 | 60 | 515 |
| 1450 | 15 | 70 | 170 | 45 | 105 | 35 | 285 |
| 1500 | 10 | 55 | 135 | 35 | 80 | 25 | 230 |
SA 694 F60 Temperature Range
| Temperature Range | 1000 to 1225 °F [540 to 665 °C] |
Check A694 Grade F52 Long Weld Neck Flange and SA 694 F65 Plate Flange material specification & price list, Get a sample before buying
Grade F52 Carbon Steel Flanges Weight Chart
| NPS (Nominal Pipe Size) | Loose (Lap Joint) | NPT (Threaded) | SORF (Slip On) | BLRF (Blind) | SWRF (Socket Weld) | WRNR (Weld Neck) |
|---|---|---|---|---|---|---|
| ½ | 1 | 1 | 1 | 2 | 2 | 2 |
| 1 | 2 | 2 | 2 | 2 | 2 | 3 |
| 1¼ | 3 | 3 | 3 | 3 | 3 | 3 |
| ¾ | 2 | 2 | 2 | 2 | 2 | 2 |
| 1½ | 3 | 3 | 3 | 4 | 3 | 4 |
| 2½ | 8 | 8 | 8 | 7 | 8 | 10 |
| 2 | 5 | 5 | 5 | 5 | 5 | 6 |
| 3 | 9 | 9 | 9 | 9 | 9 | 11.5 |
| 4 | 13 | 13 | 13 | 17 | 13 | 16.5 |
| 3½ | 11 | 12 | 11 | 13 | 11 | 12 |
| 5 | 15 | 15 | 15 | 20 | 15 | 21 |
| 8 | 30 | 30 | 30 | 47 | 30 | 42 |
| 6 | 19 | 19 | 19 | 27 | 19 | 26 |
| 10 | 43 | 43 | 43 | 70 | 43 | 54 |
| 24 | 275 | 220 | 220 | 430 | 220 | 268 |
| 14 | 105 | 90 | 90 | 140 | 90 | 114 |
| 12 | 64 | 64 | 64 | 123 | 64 | 88 |
| 16 | 140 | 98 | 106 | 180 | 98 | 140 |
| 20 | 195 | 165 | 165 | 285 | 165 | 197 |
| 18 | 160 | 130 | 130 | 220 | 130 | 165 |
| 22 | 245 | 185 | 185 | 355 | 185 | 225 |
Carbon Steel A694 Gr F60 Flanges Size Chart
| Nominal Pipe Size (inch) | Dia. of Flange (inch) | No. of Bolts | Dia. of Bolts (inch) | Dia. of Bolt Holes (inch) | Bolt Circle (inch) |
|---|---|---|---|---|---|
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
A694 Carbon Steel Gr F70 Yield Strength
| Yield Strength | 485 MPa |
ASTM A694 F42 Flanges Types
ASTM A694 Gr F42 Pipe Flanges
ASTM A694 GR.F42 Flange
A694 F42 Flanges

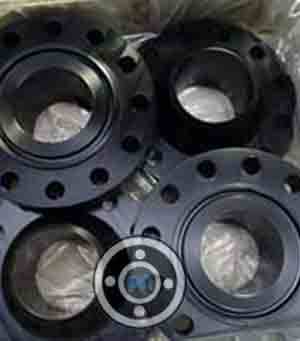

SA 694 F42 WNRF Flanges
A694 Carbon Steel Gr F42 Slip On Flanges
High Yield Carbon Steel F42 Blind Flange

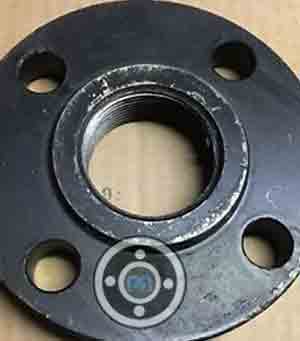

Steel Grade F42 Threaded Flange

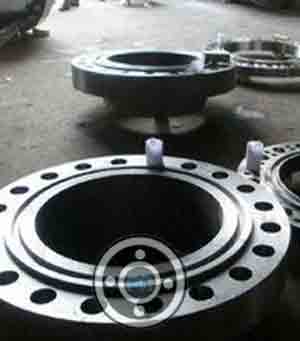

ASTM A694 Grade F42 Forged Flange
Carbon Steel F42 Plate Flange
ASTM A694 F52 Flanges Types

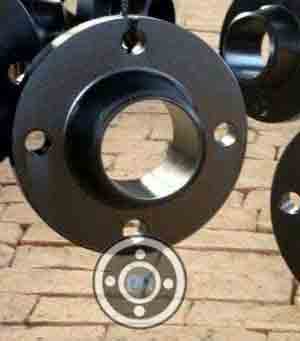

ASTM A694 Gr F52 Flanges
ASTM A694 GR.F52 Flange

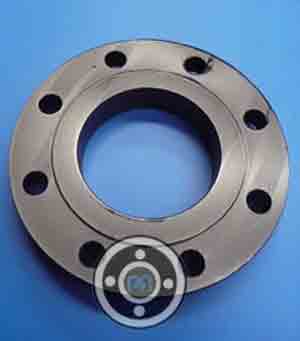

A694 F52 Flanges
SA 694 F52 Orifice Flanges

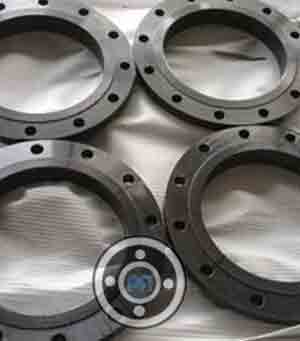

A694 Carbon Steel Gr F52 Loose Flange
High Yield Carbon Steel F52 Flat Flange
Steel Grade F52 High Hub Flange

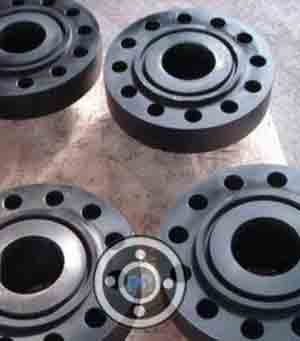

ASTM A694 Grade F52 RTJ Flanges
Carbon Steel F52 Groove & Tongue Flanges
ASTM A694 F60 Flanges Types

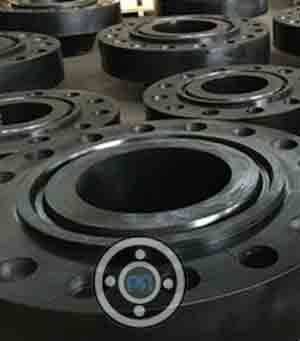

ASTM A694 Gr F60 Ring Type Joint Flanges
ASTM A694 GR.F60 Flange
A694 F60 Flange

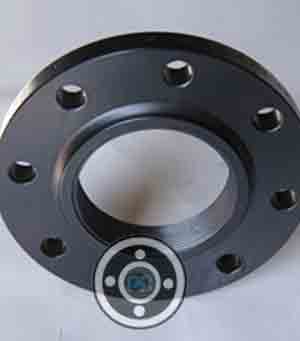

SA 694 F60 Screwed Flanges

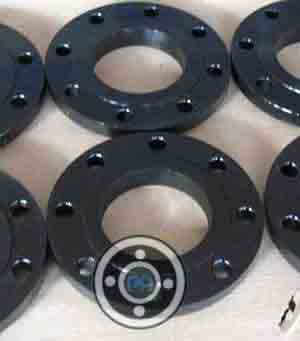

A694 Carbon Steel Gr F60 SORF Flange

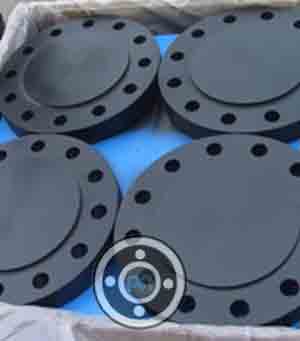

High Yield Carbon Steel F60 BLRF Flange

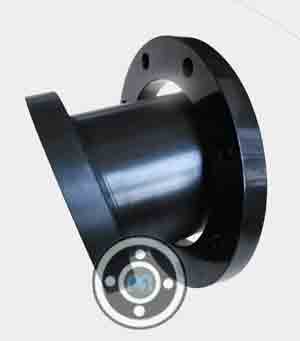

Steel Grade F60 Lap Joint Flange

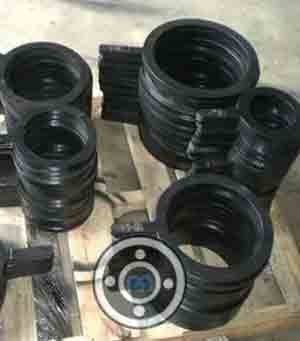

ASTM A694 Grade F60 Paddle Spacer Flange
A694 F60 Steel Spectacle Blind Flanges
ASTM A694 F65 Flanges Types

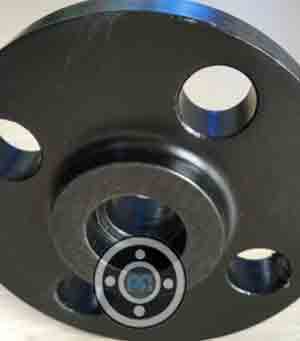

ASTM A694 Gr F65 SWRF Flanges
ASTM A694 GR.F65 Flange
A694 F65 Flanges

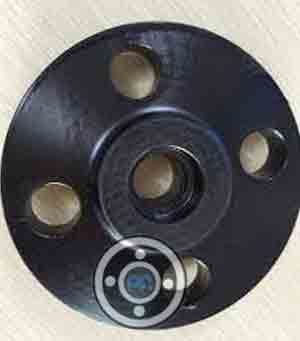

SA 694 F65 Socket Weld Flange

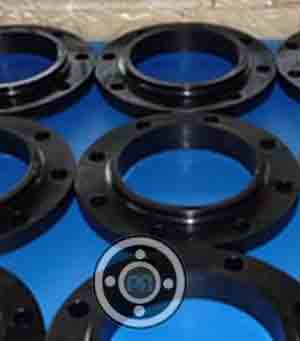

A694 Carbon Steel Gr F65 Flange
High Yield Carbon Steel F65 Flange

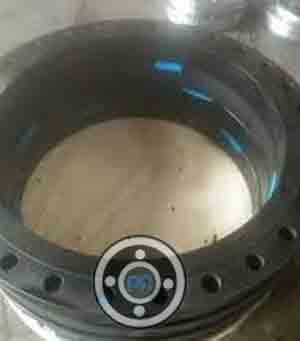

Steel Grade F65 Girth Flanges

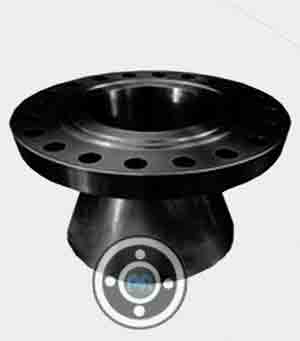

ASTM A694 Grade F65 Expander Flanges

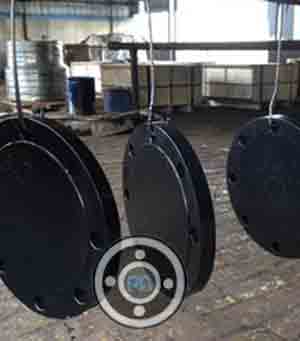

Carbon Steel A694 F65 Flanges
ASTM A694 F70 Flanges Types

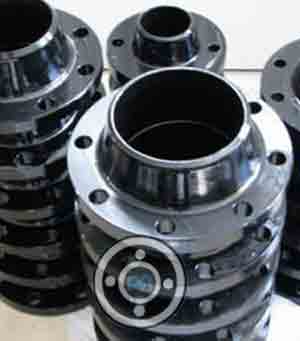

ASTM A694 Gr F70 Weld Neck Flange
ASTM A694 GR.F70 Flange
A694 F70 Flanges

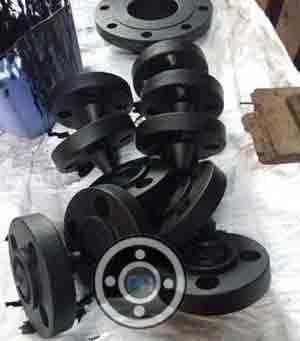

SA 694 F70 WNRF Flange

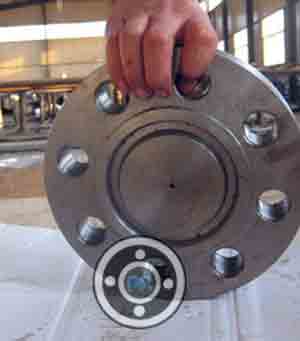

A694 Carbon Steel Gr F70 Blind Flange

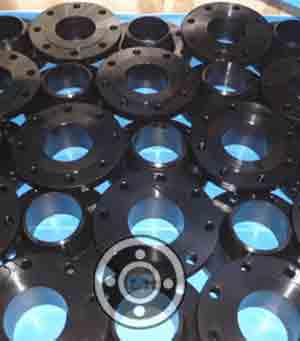

High Yield Carbon Steel F70 Long Weld Neck Flange

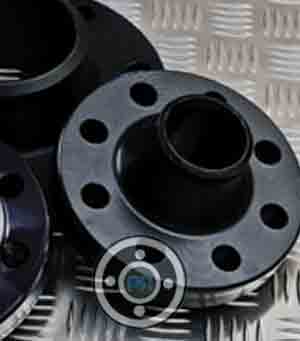

Steel Grade F70 Reducing Flanges

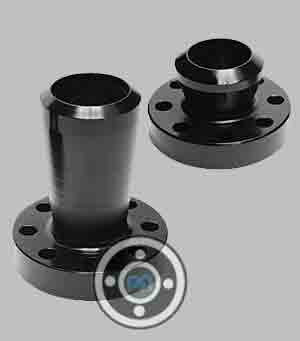

ASTM A694 Grade F70 Nipoflange

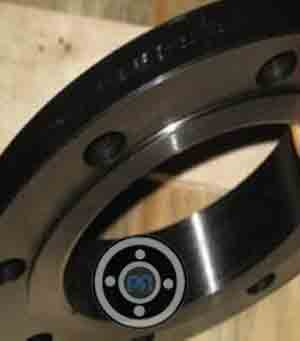

Carbon Steel F70 Flange
A694 Carbon Steel F42 Flanges Torque Chart
| Sizes in Inch | Imperfections Max. Radial Projection | |
|---|---|---|
| No deeper than the serrations bottom, mm | Serrations Deeper Than the Serrations Bottom, mm | |
| 1/2 | 3.0 | 1.5 |
| 1 1/2 | 3.0 | 1.5 |
| 1 | 3.0 | 1.5 |
| 1 1/4 | 3.0 | 1.5 |
| 2 | 3.0 | 1.5 |
| 3/4 | 3.0 | 1.5 |
| 3 | 4.5 | 1.5 |
| 3 1/2 | 6.0 | 3.0 |
| 4 | 6.0 | 3.0 |
| 2 1/2 | 3.0 | 1.5 |
| 5 | 6.0 | 3.0 |
| 8 | 8.0 | 4.5 |
| 10 | 8.0 | 4.5 |
| 6 | 6.0 | 3.0 |
| 12 | 8.0 | 4.5 |
| 18 | 12.0 | 6.0 |
| 14 | 8.0 | 4.5 |
| 20 | 12.0 | 6.0 |
| 16 | 10.0 | 4.5 |
| 24 | 12.0 | 6.0 |
ASME SA 694 Gr F70 Flanges Material Inspection
- X-ray detector
- Hydrostatic testing machine
- Magnetic particle detector
- Flattening Test
- PMI Testing
- UI trasonic flaw detector
- Hardness Test
- Direct-reading Spectrograph
- Pitting Resistance Test
- Flaring Test
ASTM A694 Grade F65 Flanges Applications
- Marine Applications
- Fossil Fuel Power Plants
- Ship Building
- Paper & Pulp
- Refineries
- Nuclear Power
- Power Plants
- Oil And Gas Industry
Flanges Material
Pipe Fittings Material
Other Products
Are you looking for Supplier in Below Countries Contact Us
SCG Chemicals - Thailand
Ducor Petrochemicals B.V. - Netherlands
