Ring Joint Flange and Stainless Steel RTJ Flange manufacturer in India

ASTM A182 F304 Stainless Steel RTJ Flange manufacturer in India

What is Ring joint flange?
The Ring Type Joint Flange can be defined as a machined metallic ring that has cuts and grooves on its face. The grooves basically rests on the metallic ring, and it gets compressed when the connecting bolts present on the flanges get tightened. It offers a close-fitting seal and offers leak proof piping connections. They are ideal for high temperature and high pressure services , and available in different material grades.
The RTJ flange can be a good alternative to the raised face flange for certain applications. They are ideally used for critical applications because they have a good structural integrity. They offer close-fitting seals and thus can effectively reduce the risk of leakage during the flange assembly operations.

When To Use Ring Type Joint Flanges
The ring type joint flanges are primarily used in critical situations, like high temperature and high pressure services. They offer a tight seal and help to prevent leakage in the piping system.

Ring Type Joint Flange Design Considerations
The RTJ flange is a metallic ring that has been machined and they come with deep cuts and grooves on the face. The grooves basically rest on the metal ring, and they might get compressed when the bolts present in the flange get tightened. Due to this unique design of the RTJ flange which helps in giving a close fitting seal, they offer leak-proof connection.

Difference between raised face and ring joint flange
The raised face flanges can be used with a wide range of gaskets. Due to their structure, i.e, a raised face, they are much more accessible. The design of the raised face flange is such that it can concentrate the hole pressure in that one small gasket area, and promotes better separation between the two flanges that are being joined.
The ring type joint flanges offers metal to metal seal, which is much stronger and hence they can effectively withstand higher temperatures and pressures. They come very handy in places where there is a space constraint. But like the raised face flange, they do not support different types of gasket. But as you choose the right one, they will offer a more reliable and stronger connection.

How to do inspection of Rtj Type Flange?
Apart from visual inspections, ultrasonic testing can also be done on the RTJ flanges to understand their conditions.

Ring Joint Flange

European Directive 2014/68/eu certified ASTM A105 Ring Joint Flange manufacturers in Mumbai offers large selection of Carbon Steel RTJ Blind Flange and A350 LF2 Ring Type Joint Flange in India

Table of Content

Ring Joint Flange Specification List
RTJ Type Flange Material Grade
Ring Type Joint Flange Types
Ring Joint Flange Torque Chart
Ring Type Joint Flanges Weight Chart
Ring Type Joint Flange Price List
Class 150 RTJ Flange Dimensions
Class 300 Ring Type Joint Flange Dimensions

Class 600 RTJ Type Flange Dimensions
900# Ring Joint Flange Dimensions
1500 Lb Ring Joint Flange Dimensions
2500# Ring Joint Flange Dimensions
RTJ Flange Standard
Stainless Steel Ring joint flange Applications
Ring Type Joint Flange Vs Raised Face Flange
Pressure Rating of RTJ Flanges

Dimensions	ASME B16.5, ASME B16.47 Series A & B, MSS SP44
Size	1/2" to 48"
Class	300 LBS, 150 LBS, 900 LBS, 600 LBS, 1500 LBS, 2500 LBS
JIS	5K, 16 K 10 K, 20 K, 40 K, 30 K, 63 K
UNI	6Bar 16Bar 10Bar 25Bar 40Bar
Coating/Surface Treatment By Manufacturer	Antirust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
EN	6Bar 25Bar 10Bar 40Bar 16Bar
BS	BS4504 , BS4504, BS1560, BS10
Flange Face Type Provided By Manufacturer	RF (Raised Face), RTJ (Ring Type Joint)
Value Added Services	CNC Machining, Customised Flanges
Making Methods Provided By Manufacturer	Casting And Forging Rolling And Cutting
Flanges Test	Hydrostatic testing machine/ UI trasonic flaw detector/ X-ray detector/ Direct-reading Spectrograph/ Magnetic particle detector
Flanges Equipment	Pushing Machine/ electric bevelling machine/ Press machine/ Bending machine/ Sand-blasting machine etc
Outer diameters	1/2” to 24”
Standards Provided By Manufacturer	EN-1092, DIN, API7S-43, API605, B16.48, ISO70051, MSS S44, ANSI/ASME B16.5, B16.47 Series A & B, BS4504, BS 10, API7S-15, JISB2220, BS1560-3.1, ASME/ANSI B16.5/16.36/16.47A/16.47B, EN1092

Stainless Steel	ASTM A182 Gr. 304, 304L, 309, 316, 310, 316L, 317L, 321, 347, 904L
Duplex Steel	ASTM A 182, ASME SA 182 UNS NO S31803, S32205. Werkstoff No. 1.4462
Carbon Steel	High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80), A181 LF2, A105N, ASTM A350 LF2 / ASME SA350, ASTM/ASME A/SA105 A/SA105N & ASTM A105 / ASME SA105, P235GH, P245GH, P250GH, RST37.2, C22.8, S235JR, ST37, A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706
Copper Nickel	Cupro Nickel 70/30 (C71500), Copper Nickel 90/10 (C70600 ), ASTM / ASME SB 62 / 151 / 61 / 152, UNS C71640
Nickel Alloy	ASTM / ASME SB 564 UNS 4400 (MONEL 400 ), UNS 2200 ( NICKEL 200 ), UNS 8825 INCONEL (825), UNS 2201 (NICKEL 201 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 6600 (INCONEL 600 ), UNS 10276 ( HASTELLOY C 276 )
Alloy Steel	F11, F12, F5, F9, F22, F91
Other	Titanium, Aluminium, 254 SMO

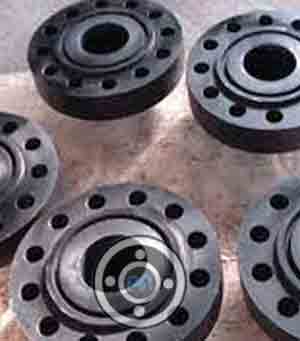

ASTM A105 Ring Joint Flange

ASTM A350 LF2 RTJ Blind Flange

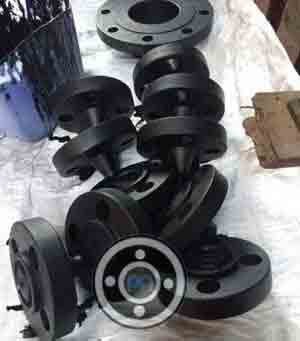

ASTM A105 RTJ Flange

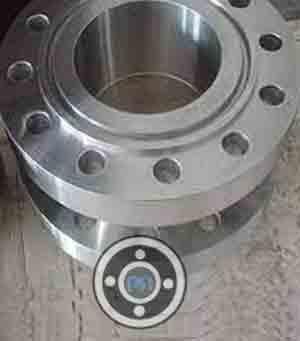

Inconel RTJ Flange

A182 F11 RTJ Blind Flange

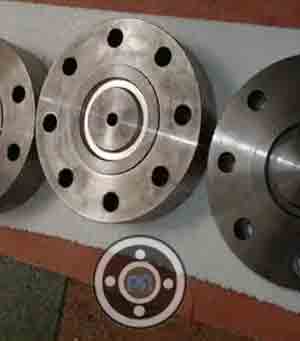

Aluminum RTJ Type Flange

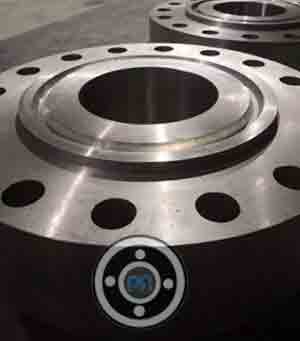

Gi Ring Type Joint Flange

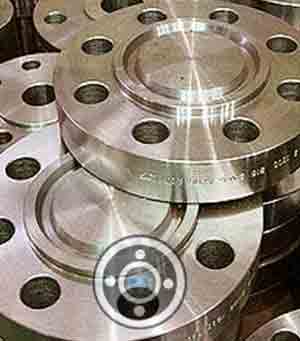

Hastelloy Ring Joint Flange

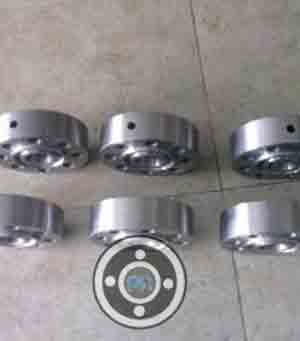

ASTM A516 Gr.70 Ring Joint Flange

Stainless Steel 304 RTJ Flange

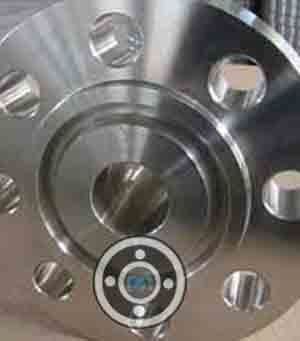

316 Stainless Steel Ring Joint Flange

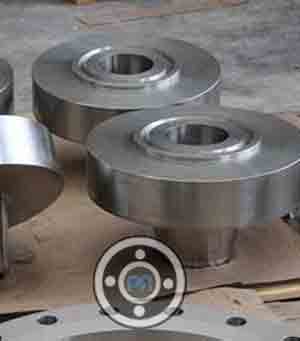

UNS S31803 RTJ Type Flange

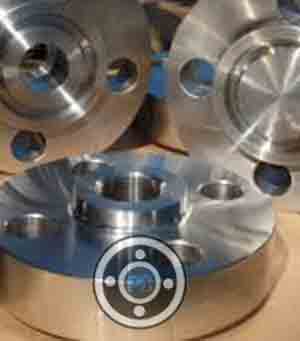

ASTM A182 F316 Ring Type Joint Flange

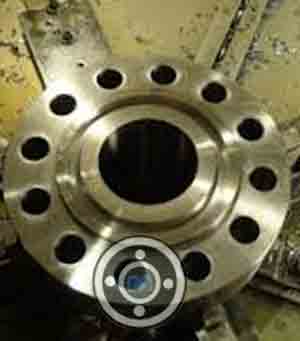

Titanium Ring Type Joint Flange

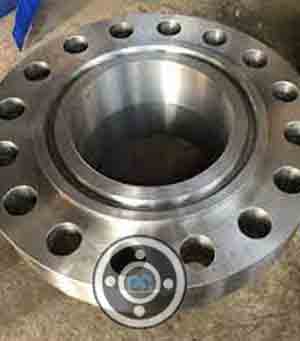

Super Duplex Ring Joint Flange

Alloy Steel RTJ Type Flange

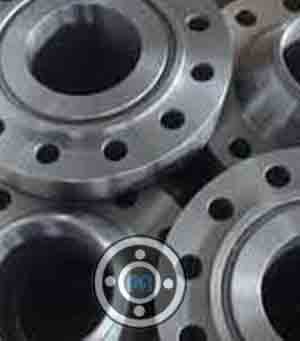

Duplex RTJ Flange

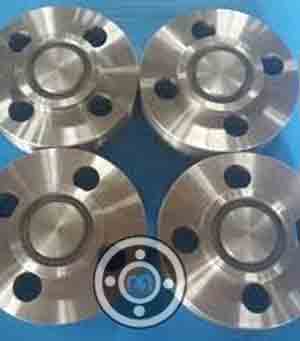

Nickel Alloy RTJ Type Flange

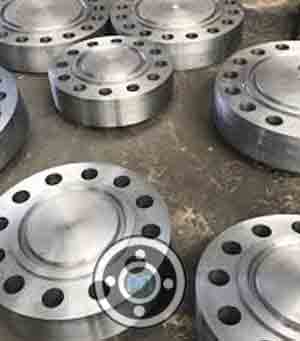

Stainless Steel RTJ Flange

Alloy Steel RTJ Blind Flange

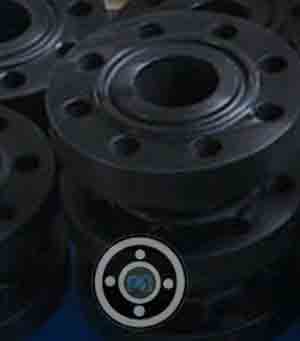

CS ASTM A516 Gr.70 RTJ Flange

Copper RTJ Blind Flange

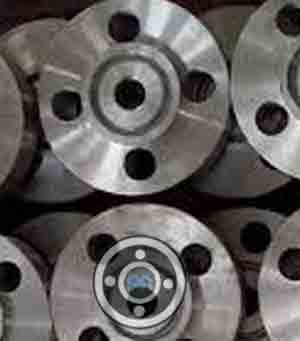

ASTM A182 F304 Ring Type Joint Flange

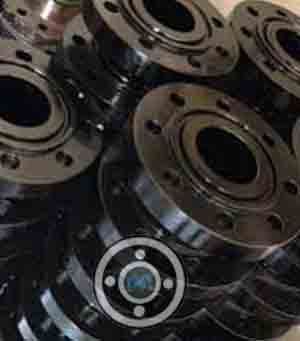

Carbon Steel RTJ Flange

Supplier of Alloy Steel RTJ Type Flange and CS ASTM A516 Gr.70 RTJ Flange offers hydrostatic testing to ensure the integrity of weldments

Flanges NPS	No of Bolts	Bolt size	Bolt Stress (MPa)	Torque N-m μ=0.09 Copperslip	Torque N-m μ=0.14 Chesterton Nickel	Torque N-m μ=0.225 Unlubricated
½"	4	½	276	40	59	90
¾"	4	½	276	40	59	90
1"	4	½	276	40	59	90
1¼"	4	½	276	40	59	90
1½"	4	½	276	40	56	90
2"	4	⅝	276	79	116	178
2½"	4	⅝	276	79	116	178
3"	4	⅝	276	79	116	178
4"	8	⅝	276	79	116	178
5"	8	¾	276	139	203	313
6"	8	¾	276	139	203	313
8"	8	¾	276	139	203	313
10"	12	⅞	276	221	325	502
12"	12	⅞	276	221	325	502
14"	12	1	276	330	485	748
16"	16	1	276	330	485	748
18"	16	1 ⅛	276	479	708	1098
20"	20	1 ⅛	276	479	708	1098
24"	20	1 ¼	276	668	992	1543

DN In inches	Dimension	ASME B16.5 RTJ Flanges Weight With Sizes 1/2 inches to 2 1/2 inches
		125 LBS 150 LBS		300 LBS		400 LBS		600 LBS		900 LBS		1500 LBS		2500 LBS
		inches	millimeter	inches	millimeter	inches	millimeter	inches	millimeter	inches	millimeter	inches	millimeter	inches		millimeter
1/2	A	3 1/2	88.9	3 3/4	95.2	3 3/4	95.2	3 3/4	95.2	4 3/4	121	4 3/4	121	5 1/4	133.4
	b	7/16	11.1	9/16	14.3	9/16	14.3	9/16	14.3	7/8	22.2	7/8	22.2	1 3/16	30.2
	D2	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9
	D1	2 3/8	60.3	2 5/8	66.7	2 5/8	66.7	2 5/8	66.7	3 1/4	82.6	3 1/4	82.6	3 1/2	88.9
	n	4	4	4	4	4	4	4	4	4	4	4	-	4	44
	d	5/8	15.9	5/8	15.9	5/8	15.9	5/8	15.9	7/8	22.2	7/8	22.2	7/8	22.2
3/4	A	3 7/8	98.4	4 5/8	117.5	4 5/8	117.5	4 5/8	117.5	5 1/8	130	5 1/8	130	5 1/2	139.7
	b	1/2	12.7	5/8	15.9	5/8	15.9	5/8	15.9	1	25.4	1	25.4	1 1/4	31.8
	D2	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9
	D1	2 3/4	69.8	3 1/4	82.5	3 1/4	82.5	3 1/4	82.5	3 1/2	88.9	3 1/2	88.9	3 3/4	95.2
	n	4	4	4	4	4	4	4	4	4	4	4	-	4	44
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	7/8	22.2	7/8	22.2	7/8	22.2
1	A	4 1/4	108	4 7/8	123.8	4 7/8	123.8	4 7/8	123.8	5 7/8	149.2	5 7/8	149.2	6 1/4	159
	b	9/16	14.3	11/16	17.5	11/16	17.5	11/16	17.5	1 1/8	28.6	1 1/8	28.6	1 3/8	34.9
	D2	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8
	D1	3 1/8	79.4	3 1/2	88.9	3 1/2	88.9	3 1/2	88.9	4	102	4	102	4 1/4	108
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1	25.4
1 1/4	A	4 5/8	117.5	5 1/4	133.4	5 1/4	133.4	5 1/4	133.4	6 1/4	159	6 1/4	159	7 1/4	184.2
	b	5/8	15.9	3/4	19	13/16	20.6	13/16	20.6	1 1/8	28.6	1 1/8	28.6	1 1/2	38.1
	D2	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5
	D1	3 1/2	88.9	3 7/8	98.4	3 7/8	98.4	3 7/8	98.4	4 3/8	111	4 3/8	111	5 1/8	130
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1 1/8	28.6
1 1/2	A	5	127	6 1/8	155.6	6 1/8	155.6	6 1/8	155.6	7	177.8	7	177.8	8	203
	b	11/16	17.5	13/16	20.6	7/8	22.2	7/8	22.2	1 1/4	31.8	1 1/4	31.8	1 3/4	44.5
	D2	2 7/8	73 98	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73
	D1	3 7/8	4	4 1/2	114	4 1/2	114	4 1/2	114	4 7/8	124	4 7/8	124	5 3/4	146
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	. 15.9	7/8	22.2	7/8	22.2	7/8	22.2	1 1/8	28.6	1 1/8	28.6	1 1/4	31.8
2	A	6	152.4	6 1/2	165.1	6 1/2	165.1	6 1/2	165.1	8 1/2	215.9	8 1/2	215.9	9 1/4	234.9
	b	3/4	19	7/8	22.2	1	25.4	1	25.4	1 1/2	38.1	1 1/2	38.1	2	50.8
	D2	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1
	D1	4 3/4	121	5	127	5	127	5	127	6 1/2	165.1	6 1/2	165.1	6 3/4	171
	n	4	4	8	8	8	8	8	8	8	8	8	8	8	8
	d	3/4	19	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1 1/8	28.6
2 1/2	A	7	177.8	7 1/2	190.5	7 1/2	190.5	7 1/2	190.5	9 5/8	244	9 5/8	244	10 1/2	266.7
	b	7/8	22.2	1	25.4	1 1/8	28.6	1 1/8	28.6	1 5/8	41.3	1 5/8	41.3	2 1/4	57.2
	D2	4 1/8	104.8	4 1/8	104.8	4 1/8	104.8	4 1/8	104.8	4 1/8	105	4 1/8	105	4 1/8	105
	D1	5 1/2	139.7	5 7/8	149.2	5 7/8	149.2	5 7/8	149.2	7 1/2	190.5	7 1/2	190.5	7 3/4	197
	n	4	4	8	8	8	8	8	8	8	8	8	8	8	8
	d	3/4	19	7/8	22.2	7/8	22.2	7/8	22.2	1 1/8	28.6	1 1/8	28.6	1 1/4	31.8

Ring Joint Flange Price Per Piece in India	Stainless Steel RTJ Flange Price in INR	Ring Type Joint Flanges Price in UAE Dirham	Ring Joint Flange Price in USD
600# SS347H, RING JOINT TYPE STAINLESS STEEL Per Piece	26,118	UAE Dirham 1289.63	$351.11
SHAFT SEALING RING JOINT FLANGES Per Piece	1,030	UAE Dirham 50.86	$13.85
FORGED LOW TEMP FLANGES RTJ 900 BLIND A105 Per Kg	147	UAE Dirham 1.98	$7.26

Class 150 RTJ Flange

Size in Inch	Size in mm	Outer Dia.	Flanges Thickness	Hub OD	Weld Neck OD	Welding Neck Length	RTJ RF Dia	RTJ RF Height	PCD	RTJ Pitch dia	RTJ Depth	RTJ Width	Bore
		A	B	C	D	E	F	G	H	I	J	K	L
1/2	15	90	9.6	30	21.3	46	N/A	N/A	60.3	N/A	N/A	N/A	Welding Neck bore is derived from the pipe schedule
3/4	20	100	11.2	38	26.7	51	N/A	N/A	69.9	N/A	N/A	N/A
1	25	110	12.7	49	33.4	54	63.5	6.35	79.4	47.63	6.35	8.74
1 1/4	32	115	14.3	59	42.2	56	73	6.35	88.9	57.15	6.35	8.74
1 1/2	40	125	15.9	65	48.3	60	82.5	6.35	98.4	65.07	6.35	8.74
2	50	150	17.5	78	60.3	62	102	6.35	120.7	82.55	6.35	8.74
2 1/2	65	180	20.7	90	73	68	121	6.35	139.7	101.6	6.35	8.74
3	80	190	22.3	108	88.9	68	133	6.35	152.4	114.3	6.35	8.74
3 1/2	90	215	22.3	122	101.6	70	154	6.35	177.8	131.78	6.35	8.74
4	100	230	22.3	135	114.3	75	171	6.35	190.5	149.23	6.35	8.74
5	125	255	22.3	164	141.3	87	194	6.35	215.9	171.45	6.35	8.74
6	150	280	23.9	192	168.3	87	219	6.35	241.3	193.68	6.35	8.74
8	200	345	27	246	219.1	100	273	6.35	298.5	247.65	6.35	8.74
10	250	405	28.6	305	273	100	330	6.35	362	304.8	6.35	8.74
12	300	485	30.2	365	323.8	113	406	6.35	431.8	381	6.35	8.74
14	350	535	33.4	400	355.6	125	425	6.35	476.3	396.88	6.35	8.74
16	400	595	35	457	406.4	125	483	6.35	539.8	454.03	6.35	8.74
18	450	635	38.1	505	457.2	138	546	6.35	577.9	517.53	6.35	8.74
20	500	700	41.3	559	508	143	597	6.35	635	558.8	6.35	8.74
24	600	815	46.1	663	610	151	711	6.35	749.3	673.1	6.35	8.74

Class 300 RTJ Flange

Size in Inch	Size in mm	Outer Dia.	Flange Thickness	Hub OD	Weld Neck OD	Welding Neck Length	RTJ RF Dia	RTJ RF Height	PCD	RTJ Pitch dia	RTJ Depth	RTJ Width	Bore
		A	B	C	D	E	F	G	H	I	J	K	L
1/2	15	95	12.7	38	21.3	51	51	5.54	66.7	34.14	5.54	7.14	Welding Neck bore is derived from the pipe schedule
3/4	20	115	14.3	48	26.7	56	63.5	6.35	82.6	42.88	6.35	8.74
1	25	125	15.9	54	33.4	60	70	6.35	88.9	50.8	6.35	8.74
1 1/4	32	135	17.5	64	42.2	64	79.5	6.35	98.4	60.33	6.35	8.74
1 1/2	40	155	19.1	70	48.3	67	90.5	6.35	114.3	68.27	6.35	8.74
2	50	165	20.7	84	60.3	68	108	7.92	127	82.55	7.92	11.91
2 1/2	65	190	23.9	100	73	75	127	7.92	149.2	101.6	7.92	11.91
3	80	210	27	117	88.9	78	146	7.92	168.3	123.83	7.92	11.91
3 1/2	90	230	28.6	133	101.6	79	159	7.92	184.2	131.78	7.92	11.91
4	100	255	30.2	146	114.3	84	175	7.92	200	149.23	7.92	11.91
5	125	280	33.4	178	141.3	97	210	7.92	235	180.98	7.92	11.91
6	150	320	35	206	168.3	97	241	7.92	269.9	211.12	7.92	11.91
8	200	380	39.7	260	219.1	110	302	7.92	330.2	269.88	7.92	11.91
10	250	445	46.1	321	273	116	356	7.92	387.4	323.85	7.92	11.91
12	300	520	49.3	375	323.8	129	413	7.92	450.8	381	7.92	11.91
14	350	585	52.4	425	355.6	141	457	7.92	514.4	419.1	7.92	11.91
16	400	650	55.6	483	406.4	144	508	7.92	571.5	469.9	7.92	11.91
18	450	710	58.8	533	457	157	575	7.92	628.6	533.4	7.92	11.91
20	500	775	62	587	508	160	635	9.53	685.8	584.2	9.53	13.49
24	600	915	68.3	702	610	167	749	11.13	812.8	692.15	11.13	16.66

Buy raised/ rtj/ flat face Mild Steel RTJ Flange and ASTM A182 F11 Ring Joint Flange at Unbeatable Prices in Mumbai

Class 600 RTJ Flange

Size in Inch	Size in mm	Outer Dia.	Flange Thickness	Hub OD	Weld Neck OD	Welding Neck Length	RTJ RF Dia	RTJ RF Height	PCD	RTJ Pitch dia	RTJ Depth	RTJ Width	Bore
		A	B	C	D	E	F	G	H	I	J	K	L
1/2	15	95	14.3	38	21.3	52	51	5.54	66.7	34.14	5.54	7.14	Welding Neck bore is derived from the pipe schedule
3/4	20	115	15.9	48	26.7	57	63.5	6.35	82.6	42.88	6.35	8.74
1	25	125	17.5	54	33.4	62	70	6.35	88.9	50.8	6.35	8.74
1 1/4	32	135	20.7	64	42.2	67	79.5	6.35	98.4	60.33	6.35	8.74
1 1/2	40	155	22.3	70	48.3	70	90.5	6.35	114.3	68.27	6.35	8.74
2	50	165	25.4	84	60.3	73	108	7.92	127	82.55	7.92	11.91
2 1/2	65	190	28.6	100	73	79	127	7.92	149.2	101.6	7.92	11.91
3	80	210	31.8	117	88.9	83	146	7.92	168.3	123.83	7.92	11.91
3 1/2	90	230	35	133	101.6	86	159	7.92	184.2	131.78	7.92	11.91
4	100	275	38.1	152	114.3	102	175	7.92	215.9	149.23	7.92	11.91
5	125	330	44.5	189	141.3	114	210	7.92	266.7	180.98	7.92	11.91
6	150	355	47.7	222	168.3	117	241	7.92	292.1	211.12	7.92	11.91
8	200	420	55.6	273	219.1	133	302	7.92	349.2	269.88	7.92	11.91
10	250	510	63.5	343	273	152	356	7.92	431.8	323.85	7.92	11.91
12	300	560	66.7	400	323.8	156	413	7.92	489	381	7.92	11.91
14	350	605	69.9	432	355.6	165	457	7.92	527	419.1	7.92	11.91
16	400	685	76.2	495	406.4	178	508	7.92	603.2	469.9	7.92	11.91
18	450	745	82.6	546	457	184	575	7.92	654	533.4	7.92	11.91
20	500	815	88.9	610	508	190	635	9.53	723.9	584.2	9.53	13.49
24	600	940	101.6	718	610	203	749	11.13	838.2	692.15	11.13	16.66

Class 900 RTJ Flange

Size in Inch	Size in mm	Outer Dia.	Flange Thickness	Hub OD	Weld Neck OD	Welding Neck Length	RTJ RF Dia	RTJ RF Height	PCD	RTJ Pitch dia	RTJ Depth	RTJ Width	Bore
		A	B	C	D	E	F	G	H	I	J	K	L
1/2	15	120	22.3	38	21.3	60	60.5	6.35	82.6	39.67	6.35	8.74	Welding Neck bore is derived from the pipe schedule
3/4	20	130	25.4	44	26.7	70	66.5	6.35	88.9	44.45	6.35	8.74
1	25	150	28.6	52	33.4	73	71.5	6.35	101.6	50.8	6.35	8.74
1 1/4	32	160	28.6	64	42.2	73	81	6.35	111.1	60.33	6.35	8.74
1 1/2	40	180	31.8	70	48.3	83	92	6.35	123.8	68.27	6.35	8.74
2	50	215	38.1	105	60.3	102	124	7.92	165.1	95.25	7.92	11.91
2 1/2	65	245	41.3	124	73	105	137	7.92	190.5	107.95	7.92	11.91
3	80	240	38.1	127	88.9	102	156	7.92	190.5	123.83	7.92	11.91
4	100	290	44.5	159	114.3	114	181	7.92	235	149.23	7.92	11.91
5	125	350	50.8	190	141.3	127	216	7.92	279.4	180.98	7.92	11.91
6	150	380	55.6	235	168.3	140	241	7.92	317.5	211.12	7.92	11.91
8	200	470	63.5	298	219.1	162	308	7.92	393.7	269.88	7.92	11.91
10	250	545	69.9	368	273	184	362	7.92	469.9	323.85	7.92	11.91
12	300	610	79.4	419	323.8	200	419	7.92	533.4	381	7.92	11.91
14	350	640	85.8	451	355.6	213	467	11.13	558.8	419.1	11.13	16.66
16	400	705	88.9	508	406.4	216	524	11.13	616	469.9	11.13	16.66
18	450	785	101.6	565	457	229	594	12.7	685.8	533.4	12.7	19.84
20	500	855	108	622	508	248	648	12.7	749.3	584.2	12.7	19.84
24	600	1040	139.7	749	610	292	772	15.88	901.7	692.15	15.88	26.97

Class 1500 RTJ Flange

Size in Inch	Size in mm	Outer Dia.	Flange Thickness	Hub OD	Weld Neck OD	Welding Neck Length	RTJ RF Dia	RTJ RF Height	PCD	RTJ Pitch dia	RTJ Depth	RTJ Width	Bore
		A	B	C	D	E	F	G	H	I	J	K	L
1/2	15	120	22.3	38	21.3	60	60.5	6.35	82.6	39.67	6.35	8.74	Welding Neck bore is derived from the pipe schedule
3/4	20	130	25.4	44	26.7	70	66.5	6.35	88.9	44.45	6.35	8.74
1	25	150	28.6	52	33.4	73	71.5	6.35	101.6	50.8	6.35	8.74
1 1/4	32	160	28.6	64	42.2	73	81	6.35	111.1	60.33	6.35	8.74
1 1/2	40	180	31.8	70	48.3	83	92	6.35	123.8	68.27	6.35	8.74
2	50	215	38.1	105	60.3	102	124	7.92	165.1	95.25	7.92	11.91
2 1/2	65	245	41.3	124	73	105	137	7.92	190.5	107.95	7.92	11.91
3	80	265	47.7	133	88.9	117	168	7.92	203.2	136.53	7.92	11.91
4	100	310	54	162	114.3	124	194	7.92	241.3	161.93	7.92	11.91
5	125	375	73.1	197	141.3	156	229	7.92	292.1	193.68	7.92	11.91
6	150	395	82.6	229	168.3	171	248	9.53	317.5	211.14	9.53	13.49
8	200	485	92.1	292	219.1	213	318	11.13	393.7	269.88	11.13	16.66
10	250	585	108	368	273	254	371	11.13	482.6	323.85	11.13	16.66
12	300	675	123.9	451	323.8	283	438	14.27	571.5	381	14.27	23.01
14	350	750	133.4	495	355.6	298	489	15.88	635	419.1	15.88	26.97
16	400	825	146.1	552	406.4	311	546	17.48	704.8	469.9	17.48	30.18
18	450	915	162	597	457	327	613	17.48	774.7	533.4	17.48	30.18
20	500	985	177.8	641	508	356	673	17.48	831.8	584.2	17.48	33.32
24	600	1170	203.2	762	610	406	794	20.62	990.6	692.15	20.62	36.53

Class 2500 RTJ Flange

Size in Inch	Size in mm	Outer Dia.	Flange Thickness	Hub OD	Weld Neck OD	Welding Neck Length	RTJ RF Dia	RTJ RF Height	PCD	RTJ Pitch dia	RTJ Depth	RTJ Width	Bore
		A	B	C	D	E	F	G	H	I	J	K	L
1/2	15	135	30.2	43	21.3	73	65	6.35	88.9	42.88	6.35	8.74	Welding Neck bore is derived from the pipe schedule
3/4	20	140	31.8	51	26.7	79	73	6.35	95.2	50.8	6.35	8.74
1	25	160	35	57	33.4	89	82.5	6.35	108	60.33	6.35	8.74
1 1/4	32	185	38.1	73	42.2	95	102	7.92	130.2	72.23	7.92	11.91
1 1/2	40	205	44.5	79	48.3	111	114	7.92	146	82.55	7.92	11.91
2	50	235	50.9	95	60.3	127	133	7.92	171.4	101.6	7.92	11.91
2 1/2	65	265	57.2	114	73	143	149	9.53	196.8	111.13	9.52	13.49
3	80	305	66.7	133	88.9	168	168	9.53	228.6	127	9.52	13.49
4	100	355	76.2	165	114.3	190	203	11.13	273	157.18	11.13	16.66
5	125	420	92.1	203	141.3	229	241	12.7	323.8	190.5	12.7	19.84
6	150	485	108	235	168.3	273	279	12.7	368.3	228.6	12.7	19.84
8	200	550	127	305	219.1	318	340	14.27	438.2	279.4	14.27	23.01
10	250	675	165.1	375	273	419	425	17.48	539.8	342.9	17.48	30.18
12	300	760	184.2	441	323.8	464	495	17.48	619.1	406.4	17.48	33.32

ASME B16.5
ASME B16.47 (Series A, Series B)
JIS
ISO
EN-1092
BS10
DIN
GOST

Check Stainless Steel 304 RTJ Flange and ASTM A182 F316 Ring Type Joint Flange temperature/ pressure ratings & price in Mumbai

Power Plants
Oil & Gas Industry
Nuclear Power
Ship Building
Refineries
Paper & Pulp
Industrial Boilers
Marine Applications
Fossil Fuel Power Plants

This is the most common type in processing plants. When you see it, you will immediately recognise it. The surfaces to which the gasket will be attached are raised in this model. The bolting circle will always be below the gasket surfaces.

You can use a wider variety of gaskets, ranging from spiral wound to flat ring sheet.
It is easier to access as the surface is raised. Replacing a worn gasket is thus much simpler.
Because of this design, more pressure can be concentrated on a smaller gasket area. This, in turn, improves the joint's ability to handle pressure containment.
It is also useful when better separation between the two flanges being joined is required.

Temperature (F°)	150#	300#	400#	600#	900#	1500#	2500#
-20 to 100	285	740	985	1480	2220	3705	6170
200	260	680	905	1360	2035	3395	5655
300	230	655	870	1310	1965	3270	5450
400	200	635	845	1265	1900	3170	5280
500	170	605	805	1205	1810	3015	5025
600	140	570	755	1135	1705	2840	4730
650	125	550	730	1100	1650	2745	4575
700	110	530	710	1060	1590	2655	4425
750	95	505	675	1015	1520	2535	4230
800	80	410	550	825	1235	2055	3430
850	65	320	425	640	955	1595	2655
900	50	230	305	460	690	1150	1915
950	35	135	185	275	410	685	1145
1000	20	85	115	170	255	430	715

Flanges Types

Pipe Fittings Material

Flanges Material

Other Products

Ring Joint Flange

ASTM A182 F304 Stainless Steel RTJ Flange manufacturer in India

European Directive 2014/68/eu certified ASTM A105 Ring Joint Flange manufacturers in Mumbai offers large selection of Carbon Steel RTJ Blind Flange and A350 LF2 Ring Type Joint Flange in India

Ring Joint Flange Specification List

RTJ Type Flange Material Grade

Ring Type Joint Flange Types

Supplier of Alloy Steel RTJ Type Flange and CS ASTM A516 Gr.70 RTJ Flange offers hydrostatic testing to ensure the integrity of weldments

Ring Joint Flange Torque Chart

Ring Type Joint Flanges Weight Chart

Ring Type Joint Flange Price List

Class 150 RTJ Flange Dimensions

Class 300 Ring Type Joint Flange Dimensions

Buy raised/ rtj/ flat face Mild Steel RTJ Flange and ASTM A182 F11 Ring Joint Flange at Unbeatable Prices in Mumbai

Class 600 RTJ Type Flange Dimensions

900# Ring Joint Flange Dimensions

1500 Lb Ring Joint Flange Dimensions

2500# Ring Joint Flange Dimensions

RTJ Flange Standard

Check Stainless Steel 304 RTJ Flange and ASTM A182 F316 Ring Type Joint Flange temperature/ pressure ratings & price in Mumbai

Stainless Steel Ring joint flange Applications

Ring Type Joint Flange Vs Raised Face Flange

Pressure Rating of RTJ Flanges
