What is FVC Flange?
FVC or Forged Vessel Connection flanges are used in a wide range of industries, including petrochemical, power generation, fire protection, medical equipment, and many more. There are different types of FVC flanges available in the market and they are used for performing various functions according to their structures. For example, the ASME SA182 F321H Flange FVC Forging RTJ HB (Nut Stop) is very popular in the chemical industry.
What is FVC nozzle?
FVC nozzle is primarily used for directing or modifying the flow of the run pipe. It can perform a wide range of tasks in plumbing, which includes, controlling the flow rate, its speed, direction, and also the pressure of the stream.
Forged Vessel Connections Flange Facings
The Forged Vessel Connections Flange are available in a wide range of standards and Facings. The height and outer diameter of the product are already specified in the tables of product dimensions. They are manufactured in accordance with ASME B16.5 and MSS-SP6. There are also flat faces, RTJ and rough faces available for this flange.
What is studding outlet flange
The studding outlet flange is primarily designed for installing in the inner or outer side of the vessels and tanks. The outlet curving must be equal to the curvature of the head, pipe, or shell. These flanges are available within the size range of ½” to 24”, and they are also of various pressure classes, within the range of 150# to 2500#.
What is FVC Studding Outlets
The FVC Studding Outlets are made in compliance with ASME Section II, and from SA-105 in compliance. They can also be customized with other material compositions too.They are primarily available with raised faces according to the ASME B16.5 specifications, but they can be made available with other other types of faces, according to the requirements.
Why use Studding Outlet
A Studding Outlet comes with a unique and compact design that comes with inherent reinforcement. It offers some distinct advantages to the designers as well as the fabricators. They are available in a wide range of configurations and are made according to the specific requirements. They were designed to make mating flanges to tanks and vessels, very economical.
FVC Flange manufacturer in India
Table of Content
Dimensions | ASME B16.5, ASME B16.47 Series A & B, MSS SP44 |
Size | 1/2"to 48" |
UNI | 6Bar 16Bar 10Bar 25Bar 40Bar |
---|---|
Class | 300 LBS, 150 LBS, 900 LBS,600 LBS, 1500 LBS, 2500 LBS |
EN | 6Bar 25Bar 10Bar 40Bar 16Bar |
Flange Face Type Provided By Manufacturer | RF (Raised Face), RTJ (Ring Type Joint) |
BS | BS4504 , BS4504, BS1560, BS10 |
Value Added Services | CNC Machining, Customised Flanges |
Outer diameters | 1/2” to 24” |
Making Methods Provided By Manufacturer | Casting And Forging Rolling And Cutting |
JIS | 5K, 16 K 10 K,20 K, 40 K, 30 K, 63 K |
Flange Test | Hydrostatic testing machine/ UI trasonic flaw detector/ X-ray detector/ Direct-reading Spectrograph/ Magnetic particle detector |
Coating/Surface Treatment By Manufacturer | Antirust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
Flange Equipment | Pushing Machine/ electric bevelling machine/ Press machine/ Bending machine/ Sand-blasting machine etc |
Leading FVC Studding Outlets Flange exporters, distributor, supplier, wholesalers, importer, stockists, dealers, stockholders and Manufacturer in Mumbai. We are FVC Flange manufacturer in India.
FVC Flange Price Per Piece in India | FVC Studding Outlets Flange Price in INR | Forged Vessel Connections Flange Price in UAE Dirham | FVC Flange Price in USD |
FVC STUD TURBINE INLET/OUTLET CASING Flange Per Piece | 869 | UAE Dirham 42.85 | $11.67 |
1/16-5000 PSI X 11-3000PSI BOTTOM WITH TWO 2.1/16-5000 PSI FVC STUDDED SIDE OUTLETS Per Piece | 118,912 | UAE Dirham 5864.15 | $1596.34 |
Petromet Flange is now considered to be one of the largest suppliers of FVC Studding Outlets in the UK. We are FVC Flange manufacturer in India With 15 Years of Experience. Check Class 2500 FVC Flange Price List
Temperature, °F | Ultimate Tensile Strength, ksi | .2% Yield Strength, ksi |
---|---|---|
68 | 84 | 38 |
400 | 62 | 20.5 |
600 | 62 | 18 |
800 | 62 | 17 |
1000 | 59.5 | 16.5 |
1200 | 45.5 | 16 |
1400 | 27.5 | 14 |

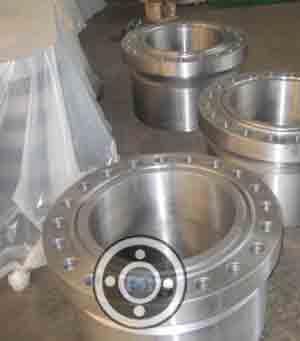

FVC Flange
Forged Vessel Connections Flange
studding outlet flange
FVC Studding Outlets
Studding Outlet
Studding Outlet Type Flanges
Studding Outlet Class 300
Long Weld Neck flange for Forged Vessel Connections

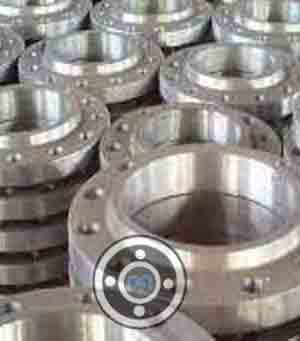

CL2500 FVC Flange
Class 150 FVC Studding Outlets

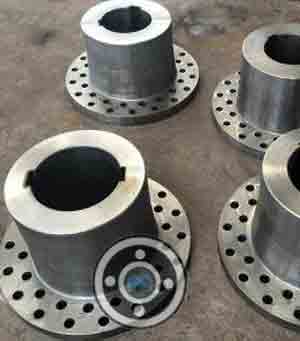

Seamless FVC Flange
Class 300 FVC Studding Outlets
Bore | OD | Thickness | OD of RF | Stud Circle | Hole Dia | # of Holes | Hole Depth | Tap Size | T.P.I. | Tap Depth | Flat Bottom Weight | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
B | O | T | R | C | U | V | Base | per 1″ | ||||
1/2 | 3.5 | 1.25 | 1.38 | 2.38 | 27/64 | 4 | 0.88 | 1/2 | 13 | 0.56 | 3 | 2.7 |
3/4 | 3.88 | 1.25 | 1.69 | 2.75 | 27/64 | 4 | 0.88 | 1/2 | 13 | 0.56 | 3.7 | 3.2 |
1 | 4.25 | 1.25 | 2 | 3.12 | 27/64 | 4 | 0.88 | 1/2 | 13 | 0.56 | 4.3 | 3.8 |
1 1/4 | 4.62 | 1.25 | 2.5 | 3.5 | 27/64 | 4 | 0.88 | 1/2 | 13 | 0.56 | 5.1 | 4.4 |
1 1/2 | 5 | 1.25 | 2.88 | 3.88 | 27/64 | 4 | 0.88 | 1/2 | 13 | 0.56 | 5.9 | 5.1 |
2 | 6 | 1.5 | 3.62 | 4.75 | 17/32 | 4 | 1.12 | 5/8 | 11 | 0.75 | 10.2 | 7.1 |
2 1/2 | 7 | 1.5 | 4.12 | 5.5 | 17/32 | 4 | 1.12 | 5/8 | 11 | 0.75 | 14 | 9.5 |
3 | 7.5 | 1.5 | 5 | 6 | 17/32 | 4 | 1.12 | 5/8 | 11 | 0.75 | 15 | 11 |
3 1/2 | 8.5 | 1.5 | 5.5 | 7 | 17/32 | 8 | 1.12 | 5/8 | 11 | 0.75 | 19 | 13 |
4 | 9 | 1.5 | 6.19 | 7.5 | 17/32 | 8 | 1.12 | 5/8 | 11 | 0.75 | 20 | 14 |
5 | 10 | 1.75 | 7.31 | 8.5 | 21/32 | 8 | 1.31 | 3/4 | 10 | 0.88 | 28 | 17 |
6 | 11 | 1.75 | 8.5 | 9.5 | 21/32 | 8 | 1.31 | 3/4 | 10 | 0.88 | 31 | 19 |
8 | 13.5 | 1.75 | 10.62 | 11.75 | 21/32 | 8 | 1.31 | 3/4 | 10 | 0.88 | 46 | 26 |
10 | 16 | 1.81 | 12.75 | 14.25 | 49/64 | 12 | 1.44 | 7/8 | 9 | 1 | 58 | 35 |
12 | 19 | 1.81 | 15 | 17 | 49/64 | 12 | 1.44 | 7/8 | 9 | 1 | 83 | 48 |
14 | 21 | 2 | 16.25 | 18.75 | 7/8 | 12 | 1.56 | 1 | 8 | 1.12 | 102 | 55 |
16 | 23.5 | 2 | 18.5 | 21.25 | 7/8 | 16 | 1.56 | 1 | 8 | 1.12 | 123 | 66 |
18 | 25 | 2.25 | 21 | 22.75 | 1 | 16 | 1.81 | 1 1/8 | 8 | 1.25 | 140 | 67 |
20 | 27.5 | 2.25 | 23 | 25 | 1 | 20 | 1.81 | 1 1/8 | 8 | 1.25 | 166 | 79 |
24 | 32 | 2.5 | 27.25 | 29.5 | 1 1/8 | 20 | 2.12 | 1 1/4 | 8 | 1.44 | 231 | 100 |
Bore | OD | Thickness | OD of RF | Stud Circle | Hole Dia | # of Holes | Hole Depth | Tap Size | T.P.I. | Tap Depth | Flat Bottom Weight | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
B | O | T | R | C | U | V | Base | per 1″ | ||||
1/2 | 3.75 | 1.25 | 1.38 | 2.62 | 27/64 | 4 | 0.88 | 1/2 | 13 | 0.56 | 3.5 | 3.1 |
3/4 | 4.62 | 1.5 | 1.69 | 3.25 | 17/32 | 4 | 1.12 | 5/8 | 11 | 0.75 | 6.4 | 4.6 |
1 | 4.88 | 1.5 | 2 | 3.5 | 17/32 | 4 | 1.12 | 5/8 | 11 | 0.75 | 7 | 5.1 |
1 1/4 | 5.25 | 1.5 | 2.5 | 3.88 | 17/32 | 4 | 1.12 | 5/8 | 11 | 0.75 | 8 | 5.8 |
1 1/2 | 6.12 | 1.75 | 2.88 | 4.5 | 21/32 | 4 | 1.31 | 3/4 | 10 | 0.88 | 13 | 7.8 |
2 | 6.5 | 1.5 | 3.62 | 5 | 17/32 | 8 | 1.12 | 5/8 | 11 | 0.75 | 12 | 8.5 |
2 1/2 | 7.5 | 1.75 | 4.12 | 5.88 | 21/32 | 8 | 1.31 | 3/4 | 10 | 0.88 | 18 | 11 |
3 | 8.25 | 1.75 | 5 | 6.62 | 21/32 | 8 | 1.31 | 3/4 | 10 | 0.88 | 22 | 14 |
3 1/2 | 9 | 1.75 | 5.5 | 7.25 | 21/32 | 8 | 1.31 | 3/4 | 10 | 0.88 | 25 | 15 |
4 | 10 | 1.75 | 6.19 | 7.88 | 21/32 | 8 | 1.31 | 3/4 | 10 | 0.88 | 30 | 19 |
5 | 11 | 1.75 | 7.31 | 9.25 | 21/32 | 8 | 1.31 | 3/4 | 10 | 0.88 | 36 | 21 |
6 | 12.5 | 1.75 | 8.5 | 10.62 | 21/32 | 12 | 1.31 | 3/4 | 10 | 0.88 | 44 | 27 |
8 | 15 | 1.88 | 10.62 | 13 | 49/64 | 12 | 1.44 | 7/8 | 9 | 1 | 63 | 36 |
10 | 17.5 | 2.12 | 12.75 | 15.25 | 7/8 | 16 | 1.56 | 1 | 8 | 1.12 | 90 | 46 |
12 | 20.5 | 2.25 | 15 | 17.75 | 1 | 16 | 1.81 | 1 1/8 | 8 | 1.25 | 127 | 61 |
14 | 23 | 2.25 | 16.25 | 20.25 | 1 | 20 | 1.81 | 1 1/8 | 8 | 1.25 | 153 | 74 |
16 | 25.5 | 2.5 | 18.5 | 22.5 | 1 1/8 | 20 | 2.12 | 1 1/4 | 8 | 1.44 | 201 | 88 |
18 | 28 | 2.5 | 21 | 24.75 | 1 1/8 | 24 | 2.12 | 1 1/4 | 8 | 1.44 | 235 | 102 |
20 | 30.5 | 2.5 | 23 | 27 | 1 1/8 | 24 | 2.12 | 1 1/4 | 8 | 1.44 | 273 | 118 |
24 | 36 | 2.88 | 27.25 | 32 | 1 3/8 | 24 | 2.38 | 1 1/2 | 8 | 1.69 | 425 | 160 |
Bore | OD | Thickness | OD of RF | Stud Circle | Hole Dia | # of Holes | Hole Depth | Tap Size | T.P.I. | Tap Depth | Flat Bottom Weight | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
B | O | T | R | C | U | V | Base | per 1″ | ||||
1/2 | 3.75 | 1.50 | 1.38 | 2.62 | 27/64 | 4 | 0.88 | 1/2 | 13 | 0.56 | 3.8 | 3.1 |
3/4 | 4.62 | 1.75 | 1.69 | 3.25 | 17/32 | 4 | 1.12 | 5/8 | 11 | 0.75 | 6.7 | 4.6 |
1 | 4.88 | 1.75 | 2 | 3.5 | 17/32 | 4 | 1.12 | 5/8 | 11 | 0.75 | 7.4 | 5.1 |
1 1/4 | 5.25 | 1.75 | 2.5 | 3.88 | 17/32 | 4 | 1.12 | 5/8 | 11 | 0.75 | 8.6 | 5.8 |
1 1/2 | 6.12 | 1.94 | 2.88 | 4.5 | 21/32 | 4 | 1.31 | 3/4 | 10 | 0.88 | 13 | 7.8 |
2 | 6.5 | 1.75 | 3.62 | 5 | 17/32 | 8 | 1.12 | 5/8 | 11 | 0.75 | 12 | 8.5 |
2 1/2 | 7.5 | 2.00 | 4.12 | 5.88 | 21/32 | 8 | 1.31 | 3/4 | 10 | 0.88 | 19 | 11 |
3 | 8.25 | 2.00 | 5 | 6.62 | 21/32 | 8 | 1.31 | 3/4 | 10 | 0.88 | 23 | 13 |
3 1/2 | 9 | 2.12 | 5.5 | 7.25 | 49/64 | 8 | 1.44 | 7/8 | 9 | 1.00 | 28 | 15 |
4 | 10.75 | 2.12 | 6.19 | 8.50 | 49/64 | 8 | 1.44 | 7/8 | 9 | 1.00 | 41 | 22 |
5 | 13 | 1.25 | 7.31 | 10.50 | 7/8 | 8 | 1.56 | 1 | 8 | 1.12 | 63 | 32 |
6 | 14 | 2.25 | 8.5 | 11.50 | 7/8 | 12 | 1.56 | 1 | 8 | 1.12 | 68 | 36 |
8 | 16.5 | 2.50 | 10.62 | 13.75 | 1 | 12 | 1.81 | 1 1/8 | 8 | 1.25 | 101 | 46 |
10 | 20 | 2.75 | 12.75 | 17 | 1 1/8 | 16 | 2.12 | 1 1/4 | 8 | 1.44 | 160 | 67 |
12 | 22 | 2.75 | 15 | 19.25 | 1 1/8 | 20 | 2.12 | 1 1/4 | 8 | 1.44 | 180 | 76 |
14 | 23.75 | 2.88 | 16.25 | 20.75 | 1 1/4 | 20 | 2.25 | 1 3/8 | 8 | 1.56 | 201 | 82 |
16 | 27 | 3.00 | 18.5 | 23.75 | 1 3/8 | 20 | 2.38 | 1 1/2 | 8 | 1.69 | 271 | 105 |
18 | 29.25 | 3.25 | 21 | 25.75 | 1 1/2 | 24 | 2.56 | 1 5/8 | 8 | 1.88 | 331 | 118 |
20 | 32 | 3.25 | 23 | 28.50 | 1 1/2 | 24 | 2.56 | 1 5/8 | 8 | 1.88 | 387 | 139 |
24 | 37 | 3.75 | 27.25 | 33 | 1 3/4 | 24 | 3.00 | 1 7/8 | 8 | 2.12 | 571 | 176 |
Bore | OD | Thickness | OD of RF | Stud Circle | Hole Dia | # of Holes | Hole Depth | Tap Size | T.P.I. | Tap Depth | Flat Bottom Weight | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
B | O | T | R | C | U | V | Base | per 1″ | ||||
1/2 | 4.75 | 2 | 1.38 | 3.25 | 21/32 | 4 | 1.31 | 3/4 | 10 | 0.88 | 8.2 | 5 |
3/4 | 5.12 | 2 | 1.69 | 3.5 | 21/32 | 4 | 1.31 | 3/4 | 10 | 0.88 | 10 | 5.7 |
1 | 5.88 | 2.12 | 2 | 4 | 49/64 | 4 | 1.44 | 7/8 | 9 | 1 | 14 | 7.5 |
1 1/4 | 6.25 | 2.12 | 2.5 | 4.38 | 49/64 | 4 | 1.44 | 7/8 | 9 | 1 | 15 | 8.3 |
1 1/2 | 7 | 2.25 | 2.88 | 4.88 | 7/8 | 4 | 1.56 | 1 | 8 | 1.12 | 20 | 10 |
2 | 8.5 | 2.12 | 3.62 | 6.5 | 49/64 | 8 | 1.44 | 7/8 | 9 | 1 | 27 | 15 |
2 1/2 | 9.62 | 2.25 | 4.12 | 7.5 | 7/8 | 8 | 1.56 | 1 | 8 | 1.12 | 37 | 19 |
3 | 9.5 | 2.12 | 5 | 7.5 | 49/64 | 8 | 1.44 | 7/8 | 9 | 1 | 33 | 18 |
4 | 11.5 | 2.5 | 6.19 | 9.25 | 1 | 8 | 1.81 | 1 1/8 | 8 | 1.25 | 56 | 26 |
5 | 13.75 | 2.75 | 7.31 | 11 | 1 1/8 | 8 | 2.12 | 1 1/4 | 8 | 1.44 | 87 | 37 |
6 | 15 | 2.5 | 8.5 | 12.5 | 1 | 12 | 1.81 | 1 1/8 | 8 | 1.25 | 91 | 42 |
8 | 18.5 | 3 | 10.62 | 15.5 | 1 1/4 | 12 | 2.25 | 1 3/8 | 8 | 1.56 | 162 | 62 |
10 | 21.5 | 3 | 12.75 | 18.5 | 1 1/4 | 16 | 2.25 | 1 3/8 | 8 | 1.56 | 210 | 81 |
12 | 24 | 3 | 15 | 21 | 1 1/4 | 20 | 2.25 | 1 3/8 | 8 | 1.56 | 251 | 96 |
14 | 25.25 | 3.25 | 16.25 | 22 | 1 3/8 | 20 | 2.38 | 1 1/2 | 8 | 1.69 | 275 | 98 |
16 | 27.75 | 3.5 | 18.5 | 24.25 | 1 1/2 | 20 | 2.56 | 1 5/8 | 8 | 1.88 | 348 | 114 |
18 | 31 | 3.88 | 21 | 27 | 1 3/4 | 20 | 3 | 1 7/8 | 8 | 2.12 | 473 | 142 |
20 | 33.75 | 4.25 | 23 | 29.5 | 1 7/8 | 20 | 3.31 | 2 | 8 | 2.25 | 608 | 164 |
24 | 41 | 5.12 | 27.25 | 35.5 | 2 3/8 | 20 | 4 | 2 1/2 | 8 | 2.81 | 1096 | 246 |
Bore Size | OD | Thickness | OD of RF | Stud Circle | Hole Dia | # of Holes | Hole Depth | Tap Size | T.P.I. | Tap Depth | Flat Bottom Weight | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
B | O | T | R | C | U | V | Base | per 1″ | ||||
1/2 | 4.75 | 2 | 1.38 | 3.25 | 21/32 | 4 | 1.31 | 3/4 | 10 | 0.88 | 8.2 | 5 |
3/4 | 5.12 | 2 | 1.69 | 3.5 | 21/32 | 4 | 1.31 | 3/4 | 10 | 0.88 | 10 | 5.7 |
1 | 5.88 | 2 12 | 2 | 4 | 49/64 | 4 | 1 44 | 7/8 | 9 | 1 00 | 14 | 7.5 |
1 1/4 | 6.25 | 2.12 | 2.5 | 4.38 | 49/64 | 4 | 1.44 | 7/8 | 9 | 1 | 15 | 8.3 |
1 1/2 | 7 | 2.25 | 2.88 | 4.88 | 7/8 | 4 | 1.56 | 1 | 8 | 1.12 | 20 | 10 |
2 | 8.5 | 2.12 | 3.62 | 6.5 | 49/64 | 8 | 1.44 | 7/8 | 9 | 1 | 27 | 15 |
2 1/2 | 9.62 | 2.25 | 4.12 | 7.5 | 7/8 | 8 | 1.56 | 1 | 8 | 1.12 | 37 | 19 |
3 | 10.5 | 2.5 | 5 | 8 | 1 | 8 | 1.81 | 1 1/8 | 8 | 1.25 | 48 | 23 |
4 | 12.25 | 2.75 | 6.19 | 9.5 | 1 1/8 | 8 | 2.12 | 1 1/4 | 8 | 1.44 | 70 | 30 |
5 | 14.75 | 3.12 | 7.31 | 11.5 | 1 3/8 | 8 | 2.38 | 1 1/2 | 8 | 1.69 | 114 | 43 |
6 | 15.5 | 3 | 8.5 | 12.5 | 1 1/4 | 12 | 2.25 | 1 3/8 | 8 | 1 56 | 116 | 45 |
8 | 19 | 3.5 | 10.62 | 15.5 | 1 1/2 | 12 | 2.56 | 1 5/8 | 8 | 1.88 | 224 | 66 |
10 | 23 | 3.88 | 12.75 | 19 | 1 3/4 | 12 | 3 | 1 7/8 | 8 | 2.12 | 345 | 95 |
12 | 26.5 | 4.12 | 15 | 22.5 | 1 7/8 | 16 | 3.31 | 2 | 8 | 2.25 | 456 | 124 |
14 | 29.5 | 4.25 | 16.25 | 25 | 2 1/8 | 16 | 3.56 | 2 1/4 | 8 | 2.56 | 540 | 150 |
16 | 32.5 | 5 | 18.5 | 27.75 | 2 3/8 | 16 | 4 | 2 1/2 | 8 | 2.81 | 762 | 178 |
18 | 36 | 5.5 | 21 | 30.5 | 2 5/8 | 16 | 4.38 | 2 3/4 | 8 | 3.12 | 1024 | 216 |
20 | 38.75 | 5.88 | 23 | 32.75 | 2 7/8 | 16 | 4.62 | 3 | 8 | 3.44 | 1234 | 245 |
24 | 46 | 6.75 | 27.25 | 39 | 3 3/8 | 16 | 5.38 | 3 1/2 | 8 | 4 | 1992 | 343 |
Bore Size | OD | Thickness | OD of RF | Stud Circle | Hole Dia | # of Holes | Hole Depth | Tap Size | T.P.I. | Tap Depth | Flat Bottom Weight | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
B | O | T | R | C | U | V | Base | per 1″ | ||||
1/2 | 5.25 | 2 | 1.38 | 3.5 | 21/32 | 4 | 1.31 | 3/4 | 10 | 0.88 | 10 | 6.1 |
3/4 | 5.5 | 2 | 1.69 | 3.75 | 21/32 | 4 | 1.31 | 3/4 | 10 | 0.88 | 11 | 6.6 |
1 | 6.25 | 2.12 | 2 | 4.25 | 49/64 | 4 | 1.44 | 7/8 | 9 | 1 | 15 | 8.5 |
1 1/4 | 7.25 | 2.25 | 2.5 | 5.12 | 7/8 | 4 | 1.56 | 1 | 8 | 1.12 | 22 | 11 |
1 1/2 | 8 | 2.5 | 2.88 | 5.75 | 1 | 4 | 1.81 | 1 1/8 | 8 | 1.25 | 29 | 14 |
2 | 9.25 | 2.25 | 3.62 | 6.75 | 7/8 | 8 | 1.56 | 1 | 8 | 1.12 | 34 | 18 |
2 1/2 | 10.5 | 2.5 | 4.12 | 7.75 | 1 | 8 | 1.81 | 1 1/8 | 8 | 1.25 | 49 | 23 |
3 | 12 | 2.75 | 5 | 9 | 1 1/8 | 8 | 2.12 | 1 1/4 | 8 | 1.44 | 71 | 30 |
4 | 14 | 3.25 | 6.19 | 10.75 | 1 3/8 | 8 | 2.38 | 1 1/2 | 8 | 1.69 | 112 | 40 |
5 | 16.5 | 3.75 | 7.31 | 12.75 | 1 5/8 | 8 | 2.81 | 1 3/4 | 8 | 2 | 179 | 55 |
6 | 19 | 4.12 | 8.5 | 14.5 | 1 7/8 | 8 | 3.31 | 2 | 8 | 2.25 | 259 | 72 |
8 | 21.75 | 4.38 | 10.62 | 17.25 | 1 7/8 | 12 | 3.31 | 2 | 8 | 2.25 | 345 | 91 |
10 | 26.5 | 5.12 | 12.75 | 21.25 | 2 3/8 | 12 | 4 | 2 1/2 | 8 | 2.81 | 590 | 134 |
12 | 30 | 5.5 | 15 | 24.38 | 2 5/8 | 12 | 4.38 | 2 3/4 | 8 | 3.12 | 799 | 168 |
